5500 hp GE Electric Drive Ariel KBZ/6 4-Stage (1 of 4 Available)

Tag: C-48000

6600 VAC/3 Ph/60 Hz GE electric motor driver rated 5500 hp at 894 rpm

• 120 V, 330 W space heater
• PF = 0.87, SF = 1.15

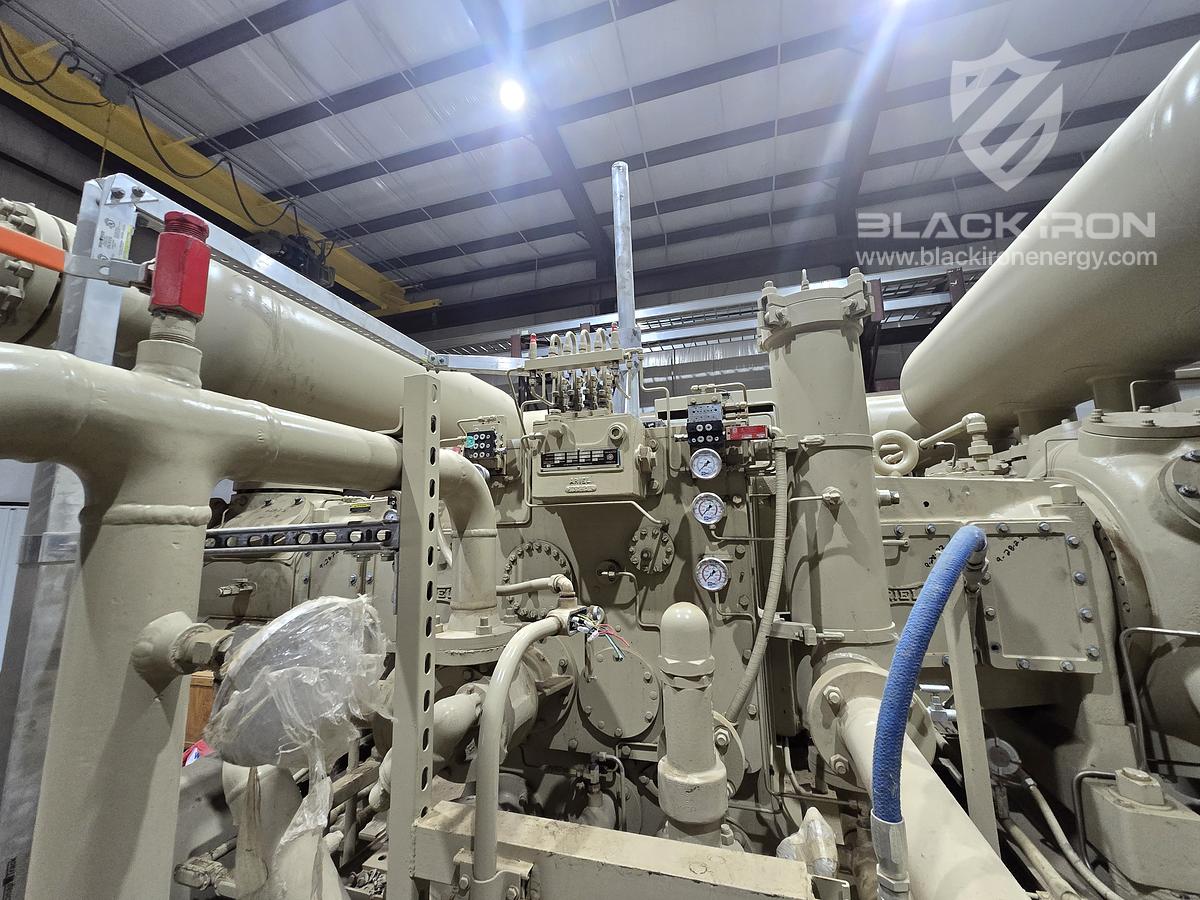

Ariel KBZ/6 6-throw, 4-stage recip compressor frame

• (2) 24.125" Z:10U cylinders, each rated 275 psig MAWP w/ VVCP and head end valve unloaders.
• (2) 14.125" Z cylinders, each rated 815 psig MAWP (no VVCP)
• (1) 12.000" Z:10 cylinder rated 1700 psig MAWP (no VVCP)
• (1) 9.875" ZM cylinder rated 1900 psig MAWP (no VVCP)
• Circulating Kim Hotstart compressor oil heater

Air-X-Changer 168-2Z EMD cooler c/w (1) VFD motor driven fan, (1) fixed speed motor driven fan, and warm air recirc

• AC section rated 1750 psig MAWP at 350F

Allen-Bradley CompactLogix control panel by Prime Controls

SPCV, Suction/Discharge/Blowdown isolation valves.

Torsional, Pulsation, and Mechanical Analysis.

QA/QC manual.
