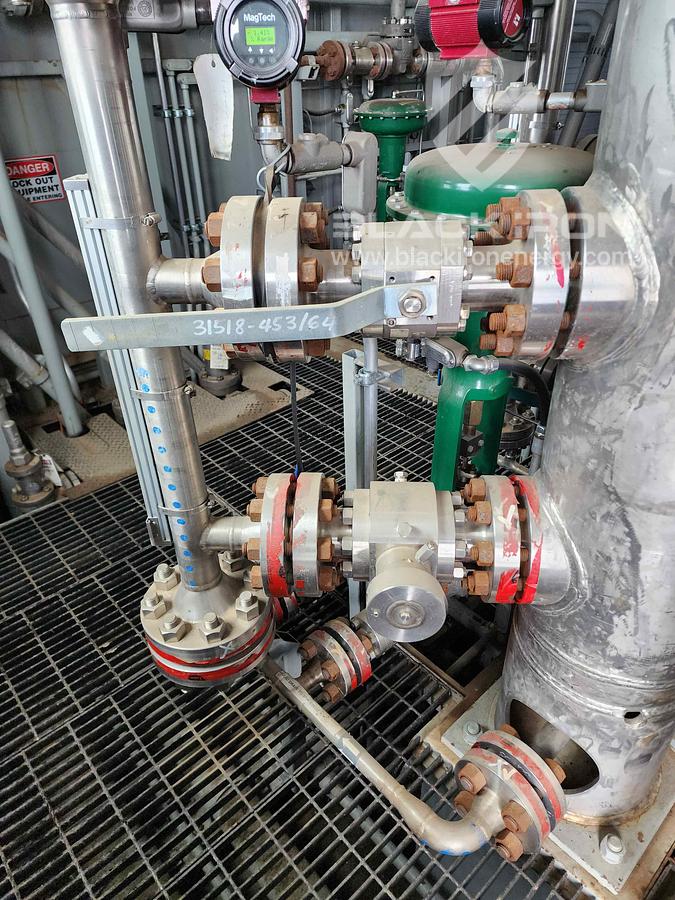

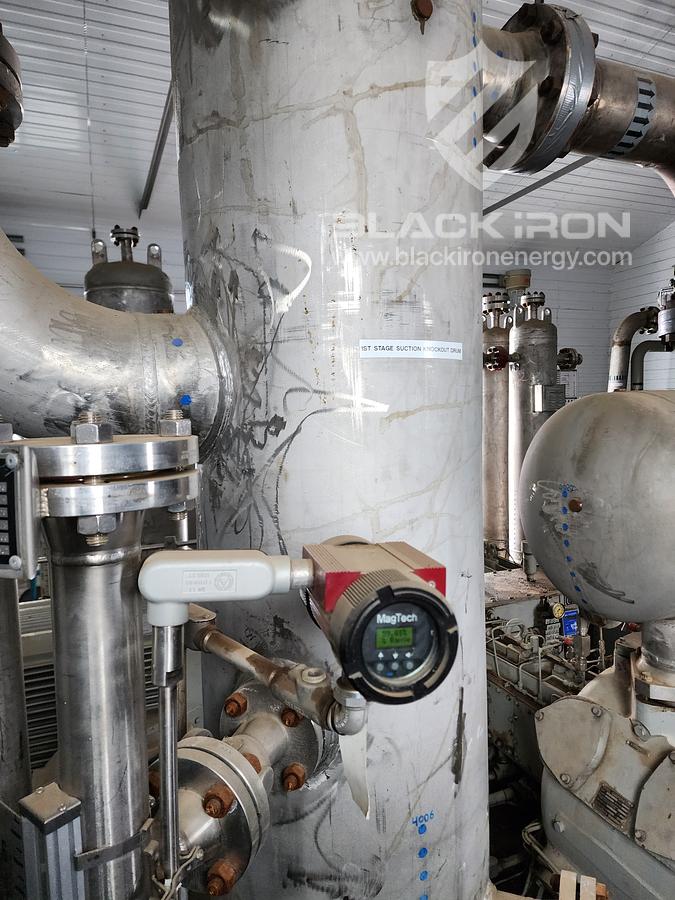

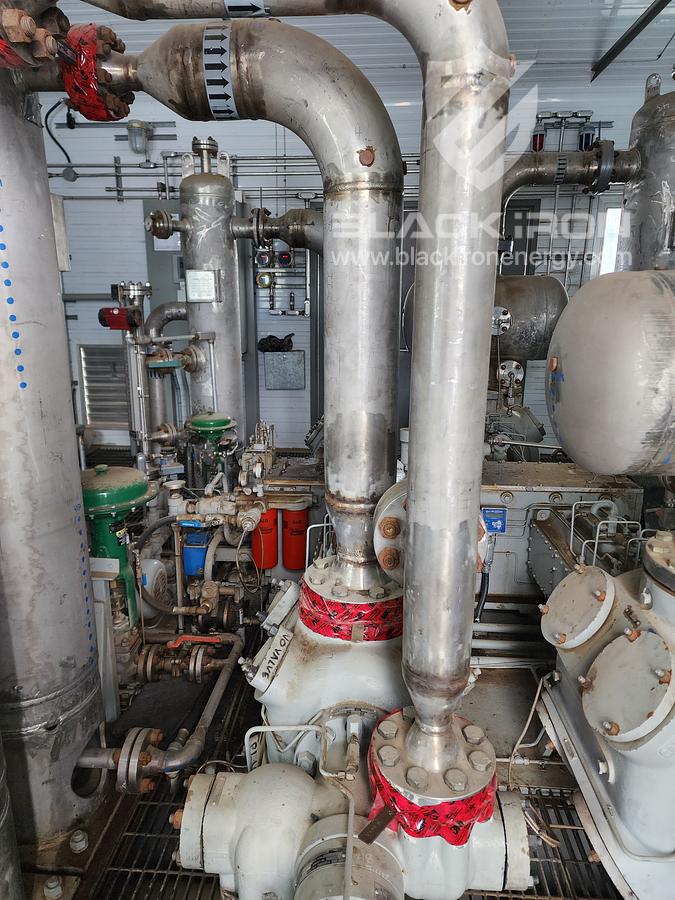

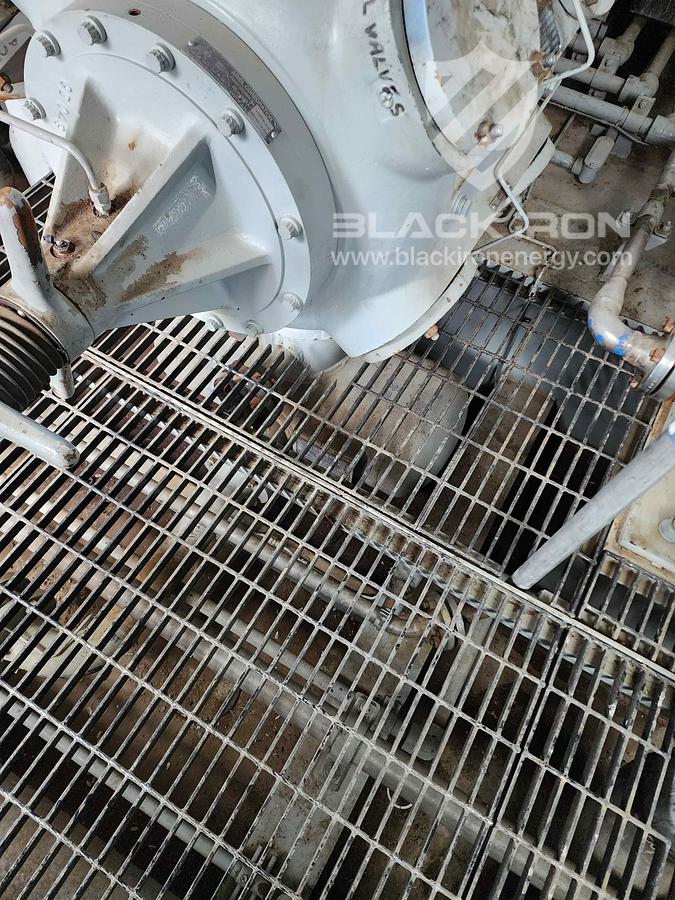

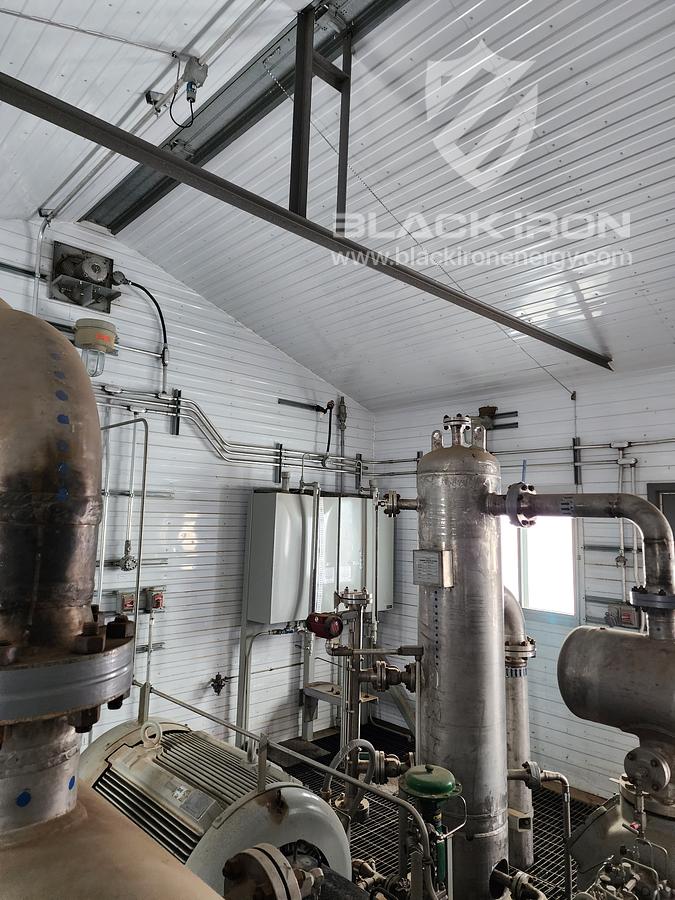

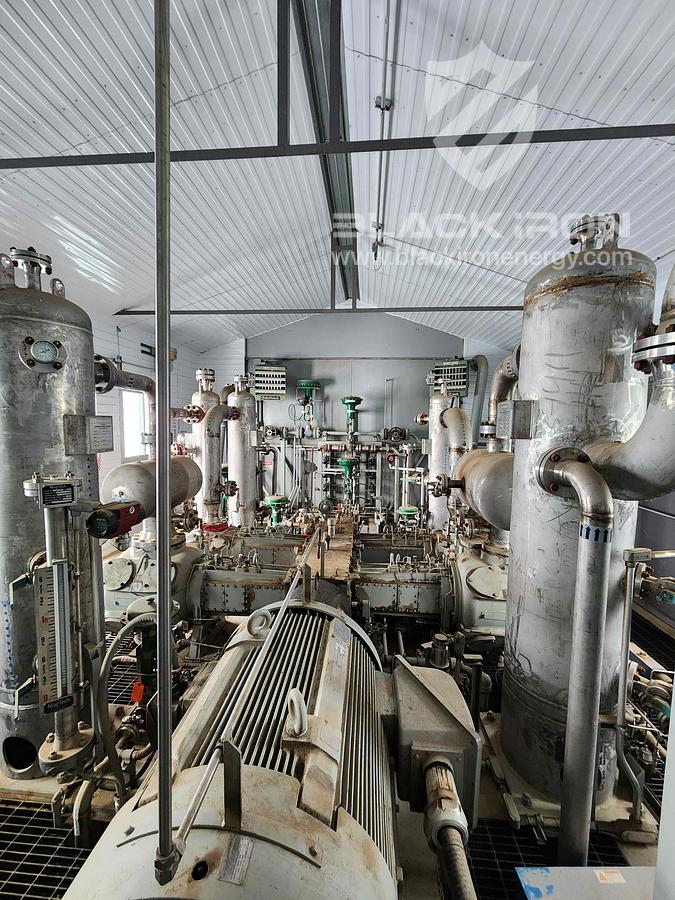

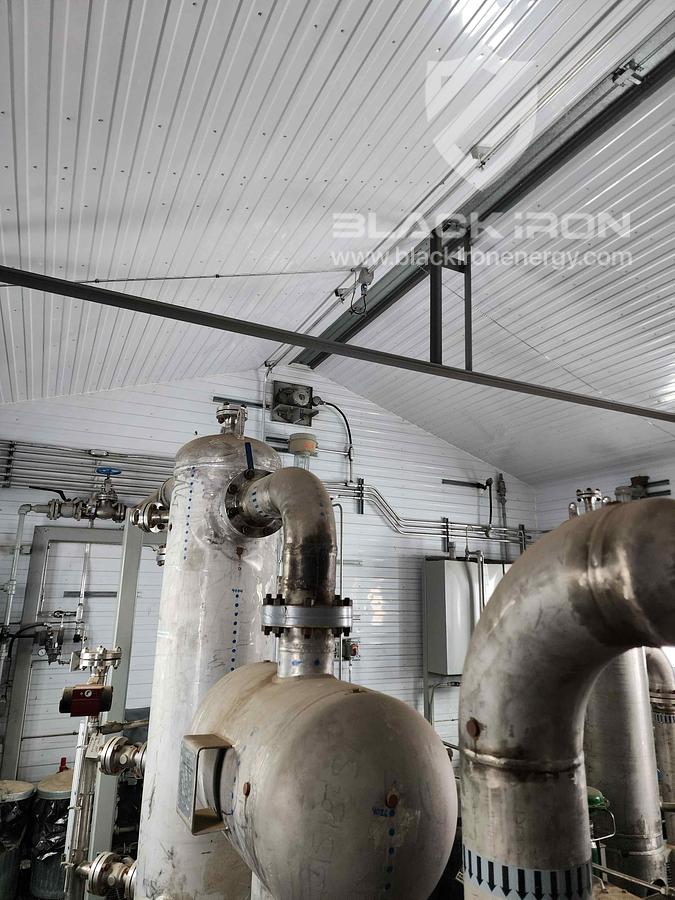

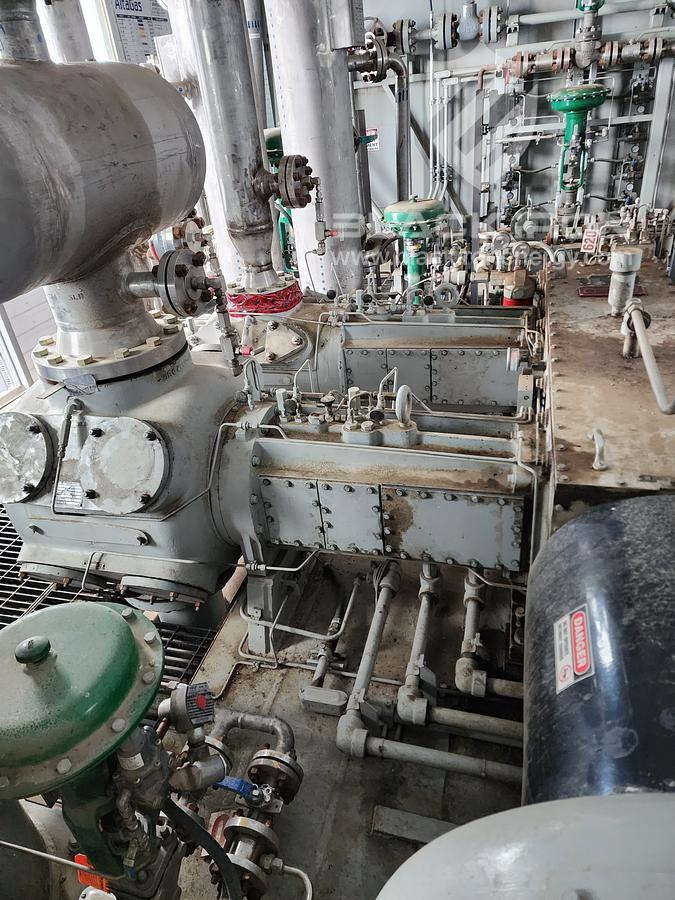

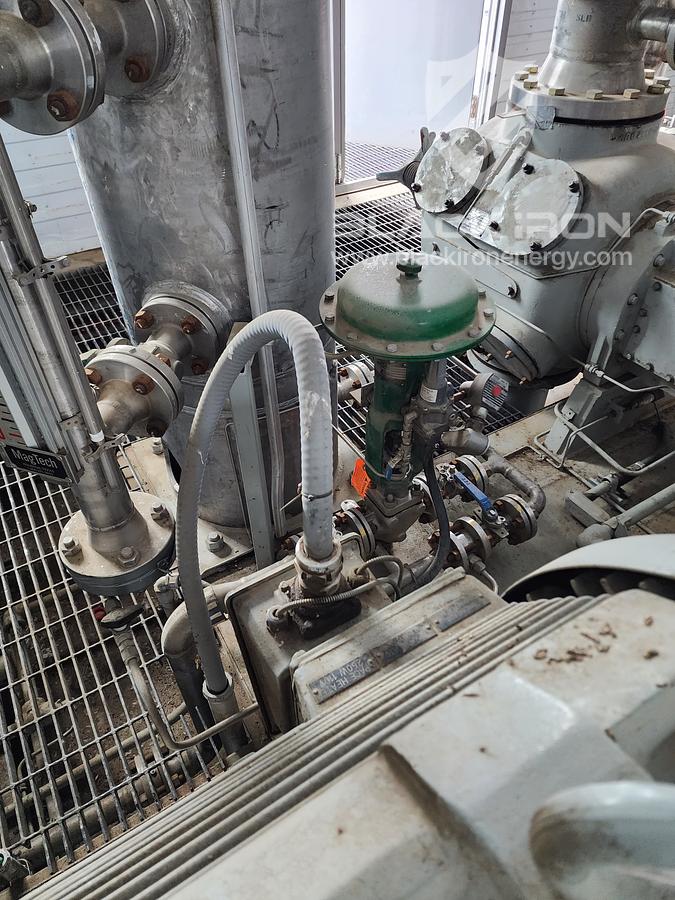

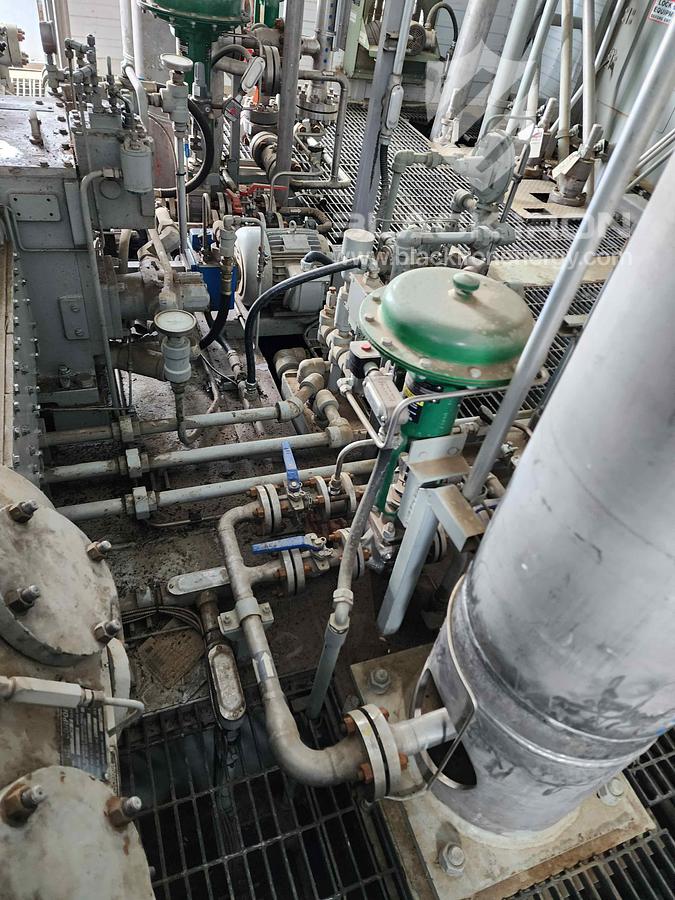

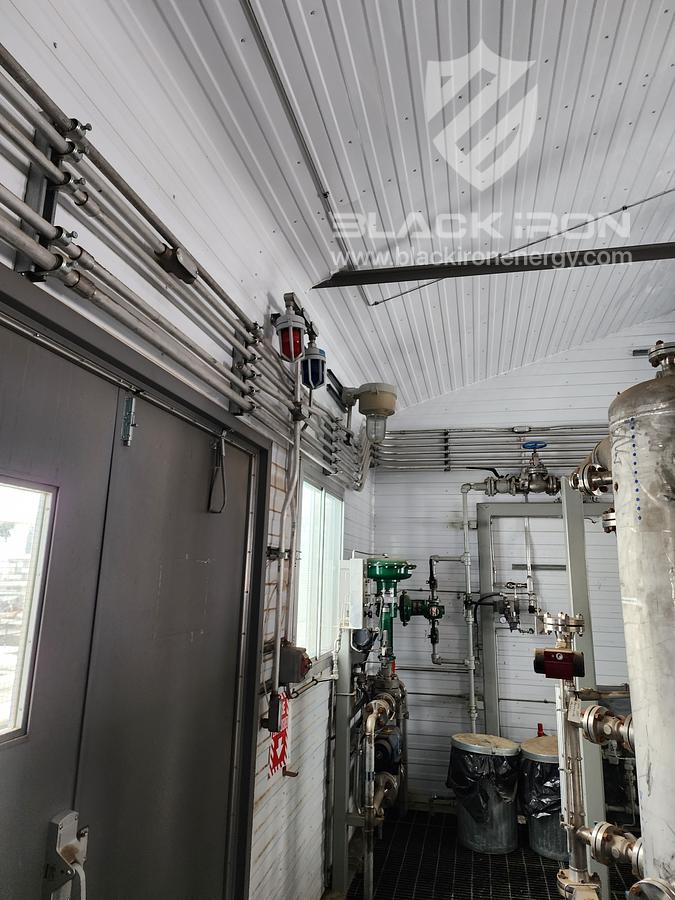

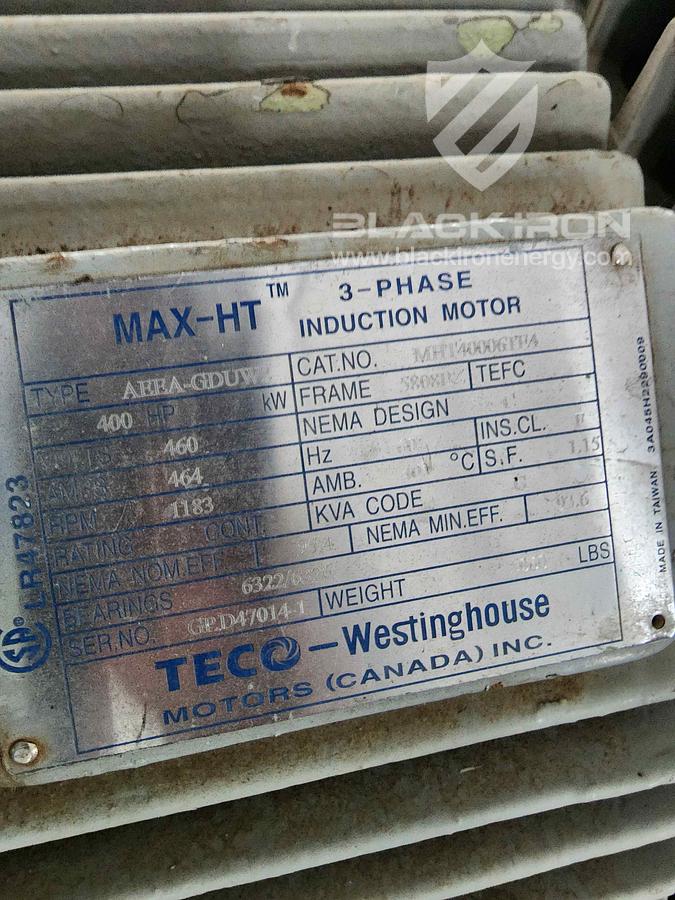

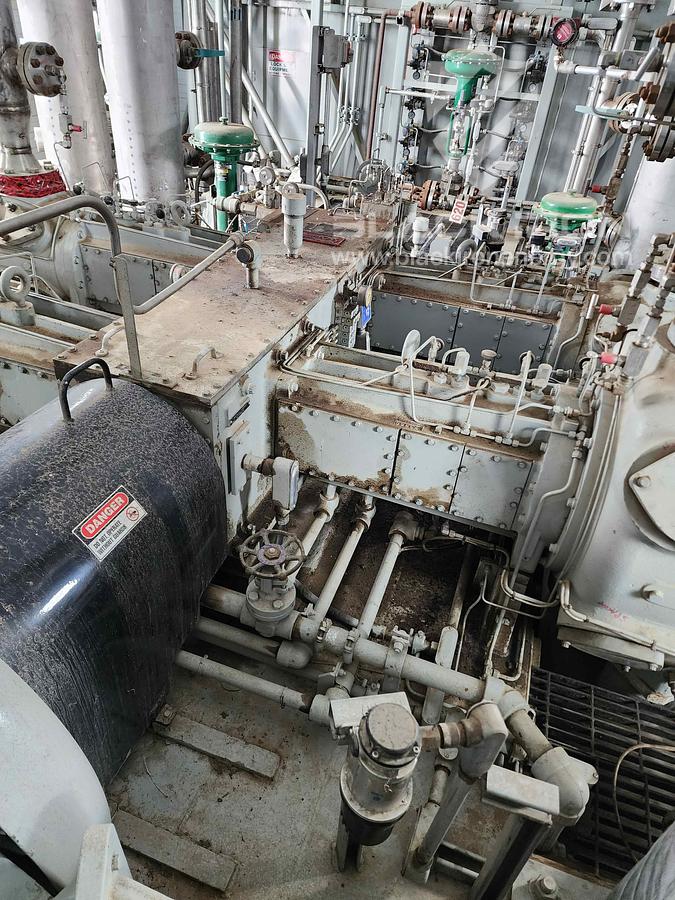

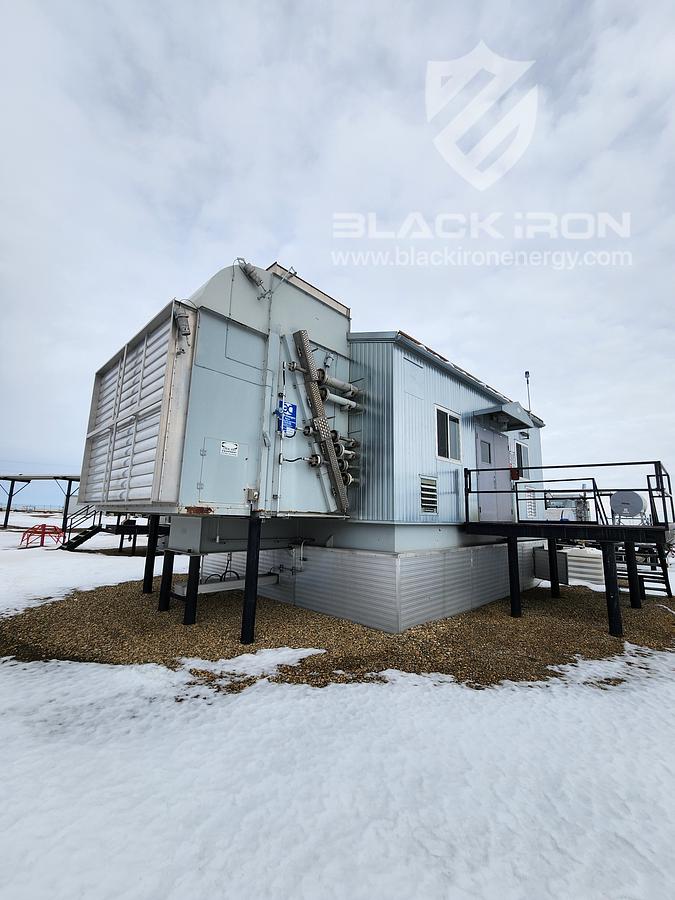

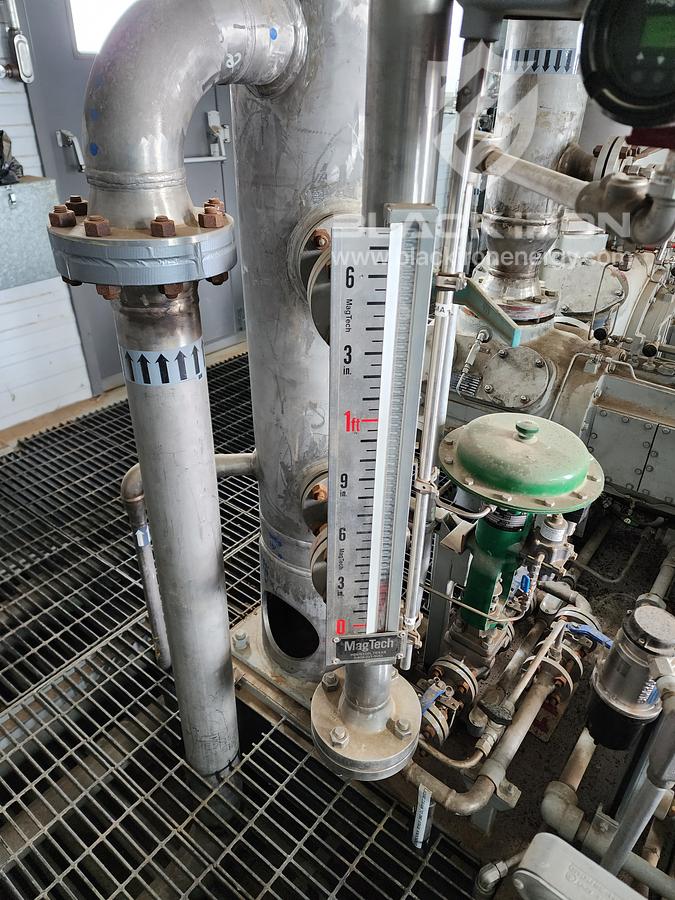

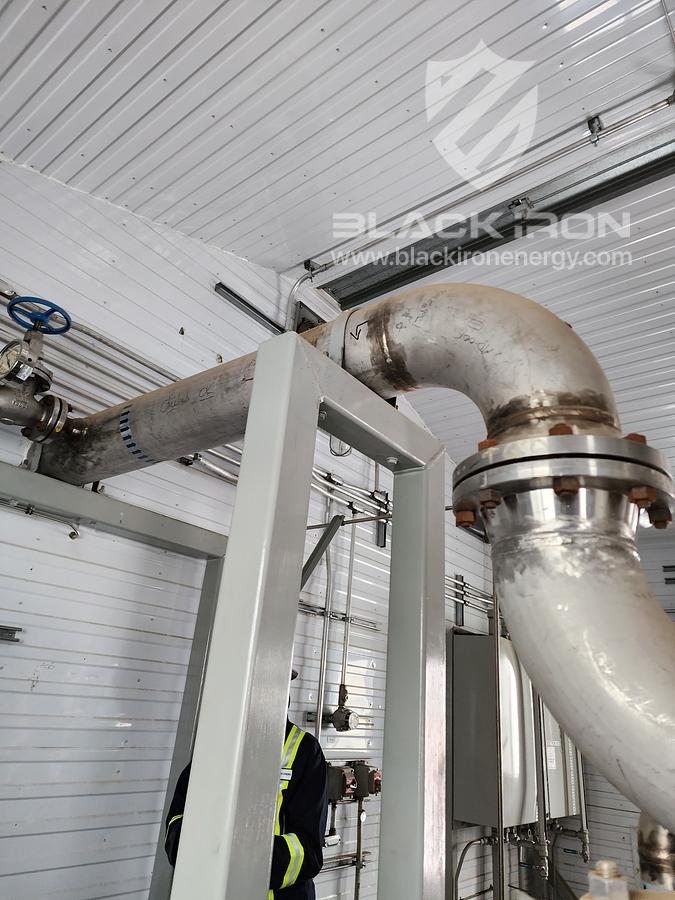

400hp Ariel JGJ/4, 5 Stage Acid Gas Compressor

Stage 1: 17-1/4 RJ (16.750" bore) rated 230 psig MAWP c/w VVCP

Stage 2: 13-1/2 RJ (13.000" bore) rated 300 psig MAWP c/w VVCP

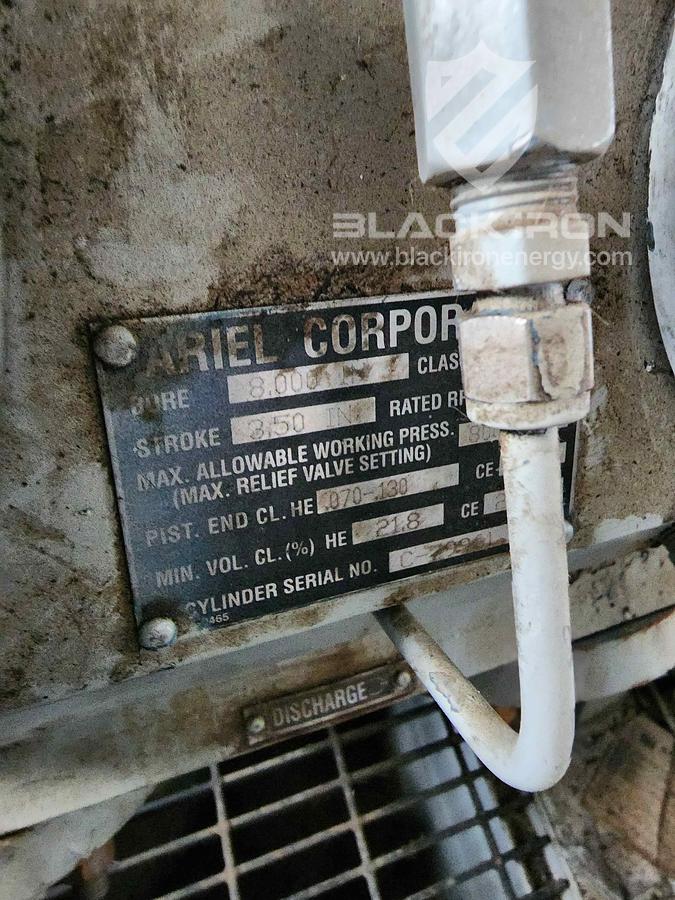

Stage 3: 8-3/4" RJ (8.000" bore) rated 800 psig MAWP c/w VVCP

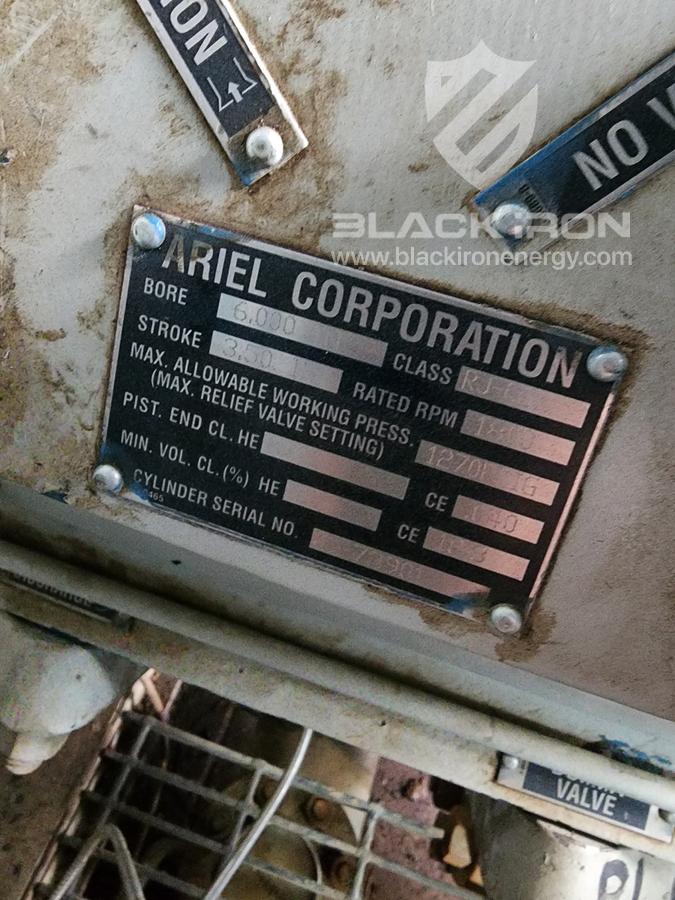

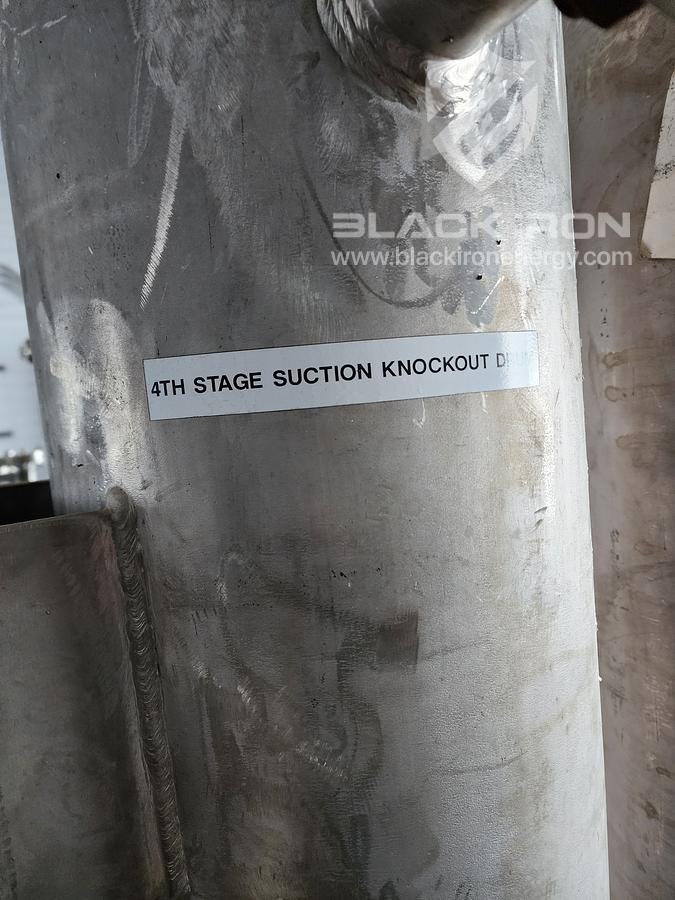

Stage 4: 6-3/8 RJ-CE (6.000" bore) rated 1270 psig MAWP

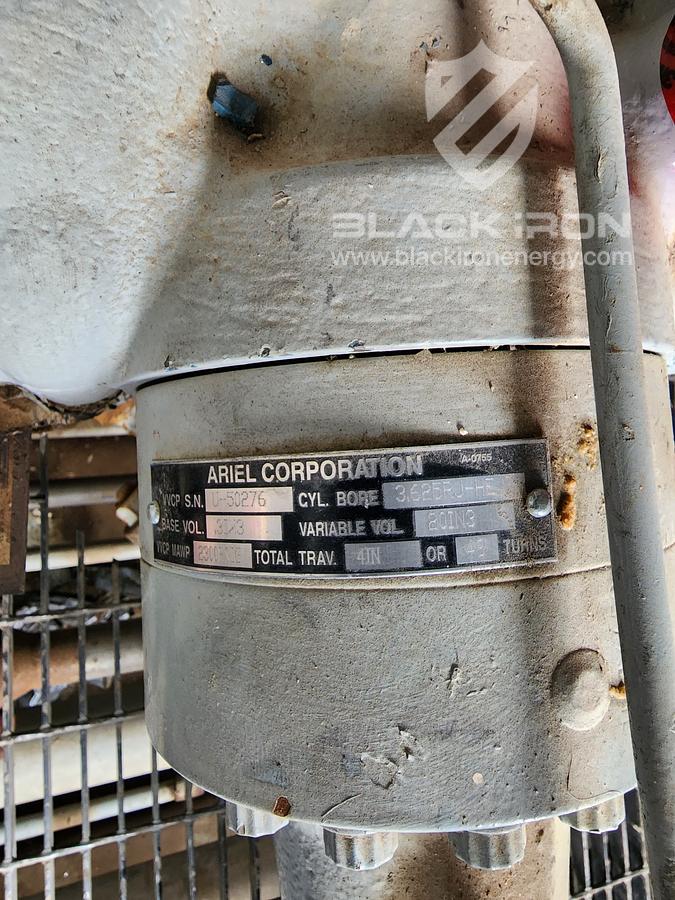

Stage 5: 3-7/8 RJ-HE (3.625" bore) rated 2200 psig MAWP c/w VVCP

Long two-compartment distance pieces.

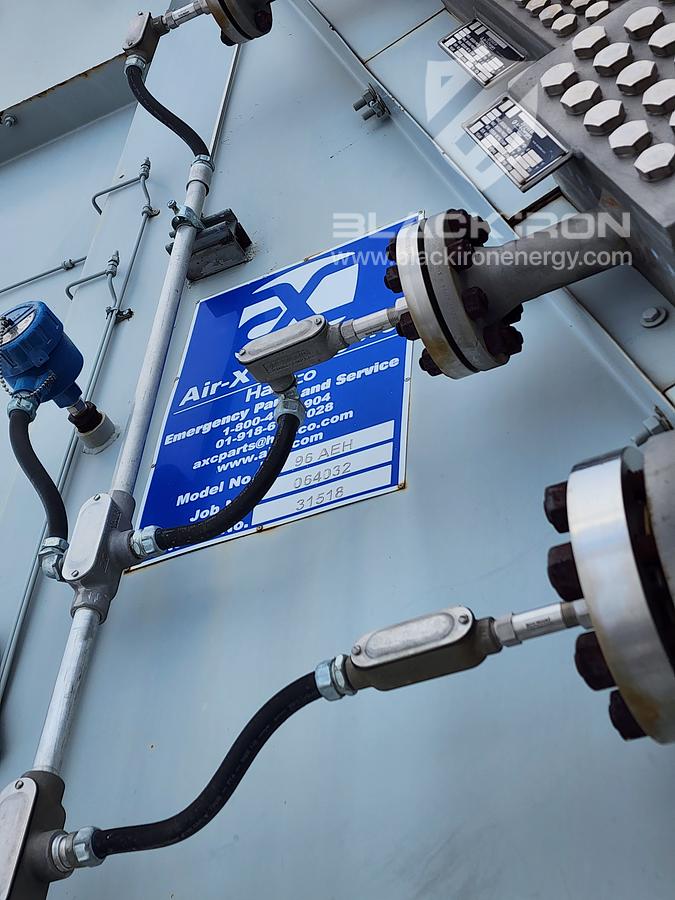

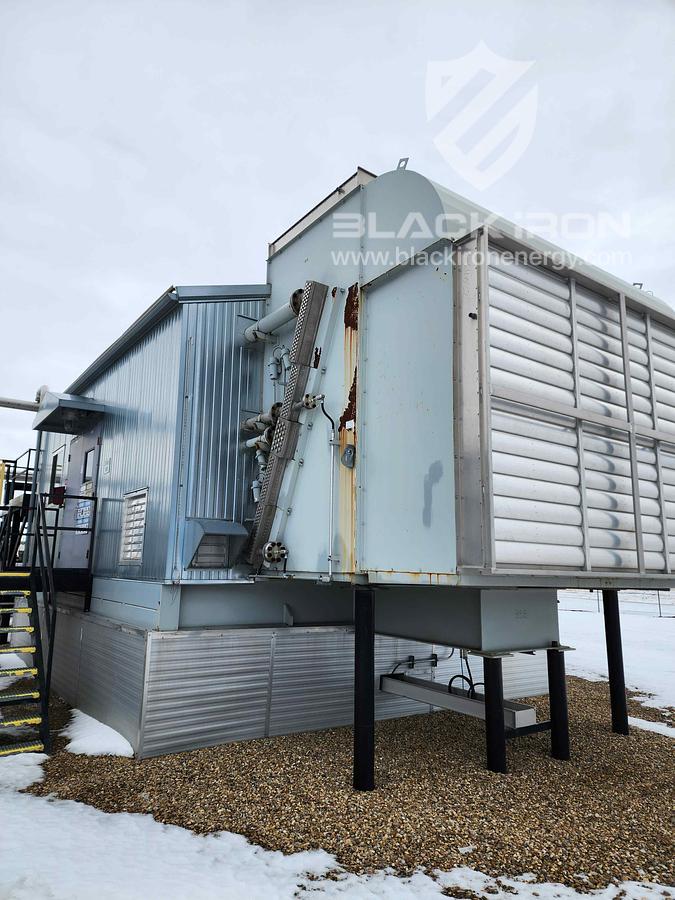

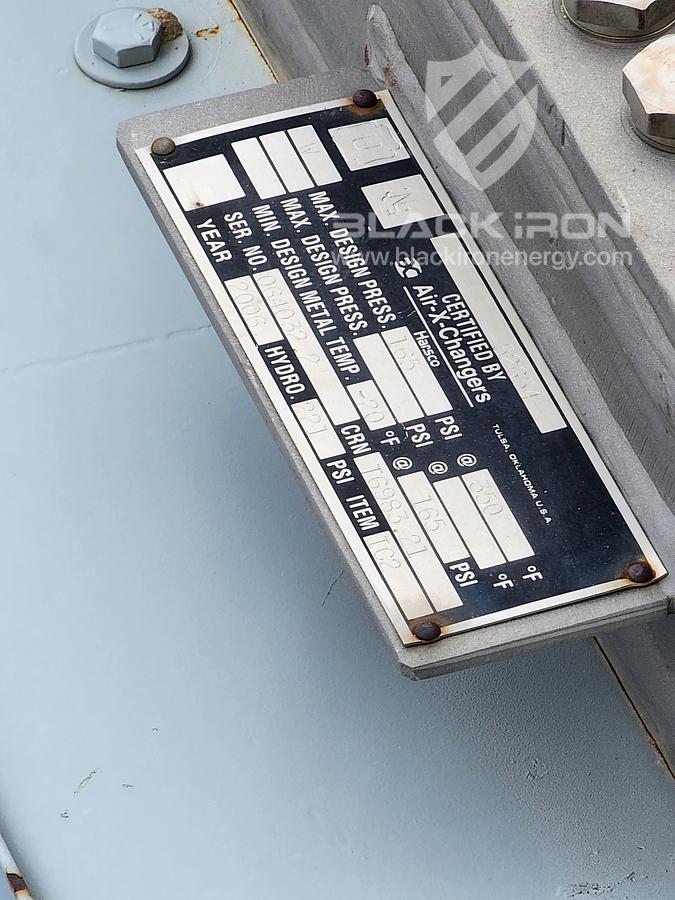

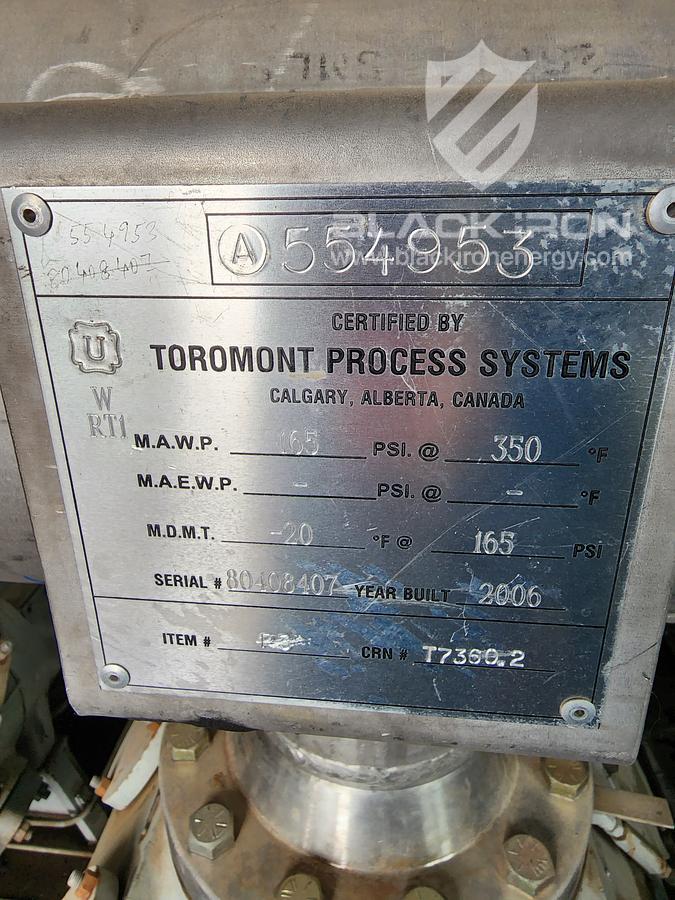

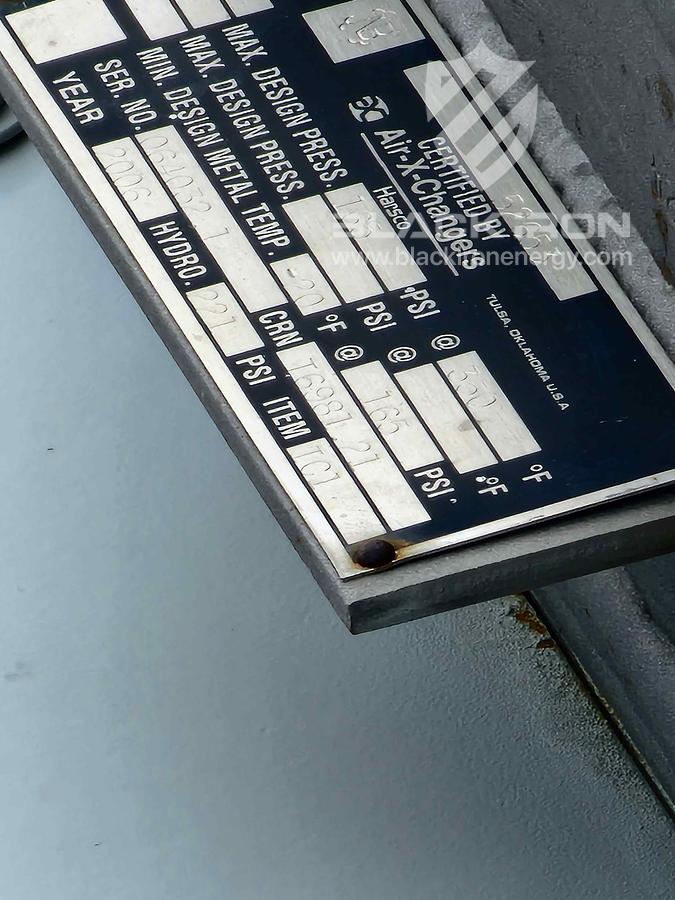

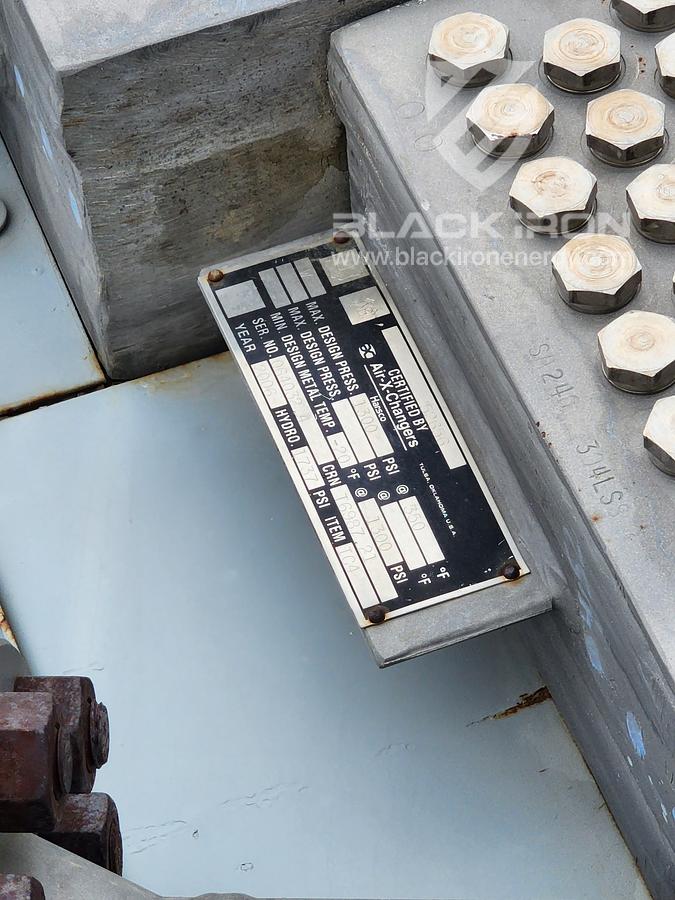

Cooler AC section rated 2165 psig MAWP at 350F
