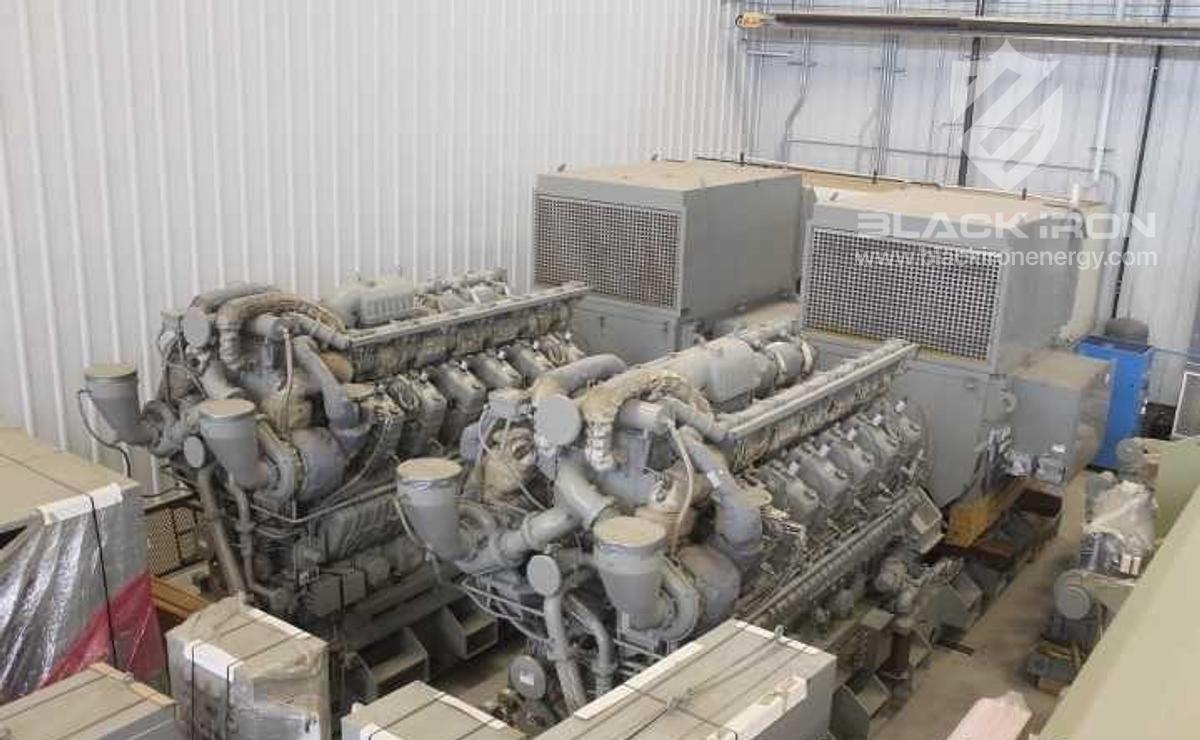

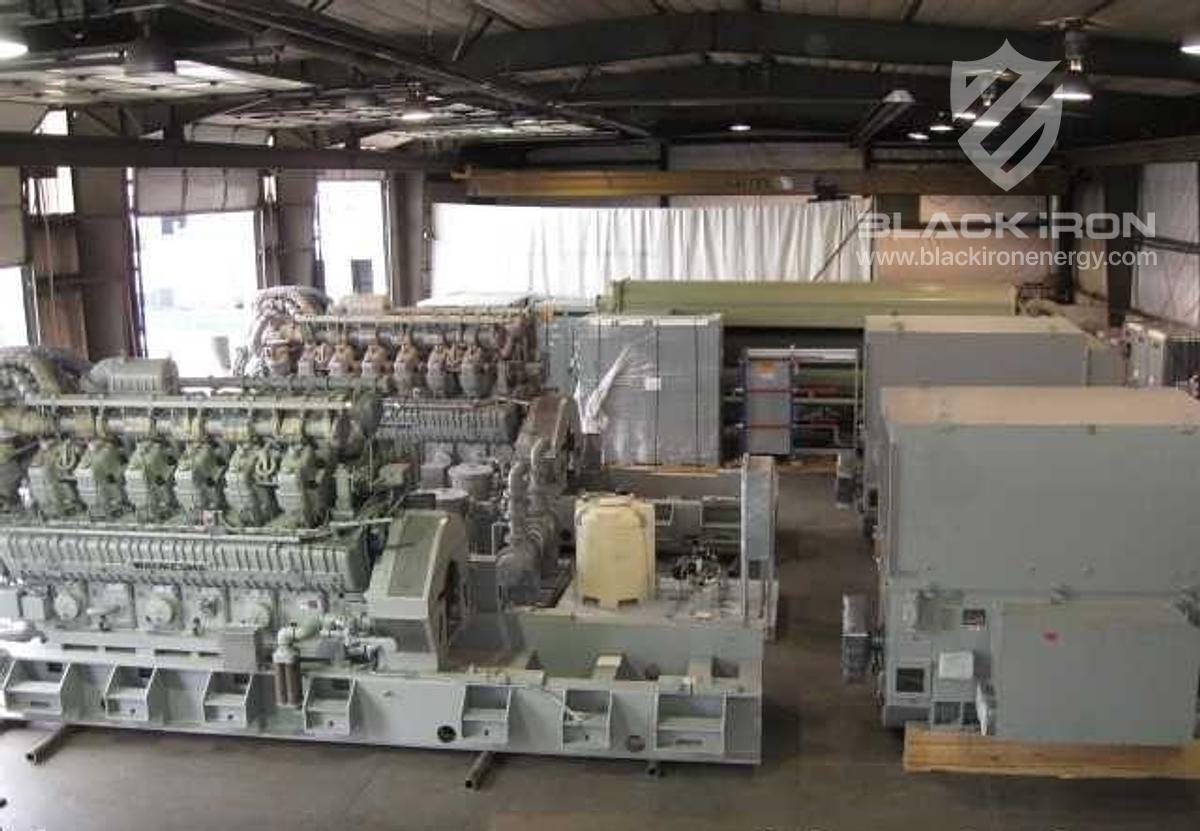

Qty.2 - 2100 kW Waukesha AT27 "New Never Used" Gensets

These gensets were test run at the factory but never installed.

Two (2) Units: 2100 kW each (4200 kW Total Capacity)

Each unit includes:

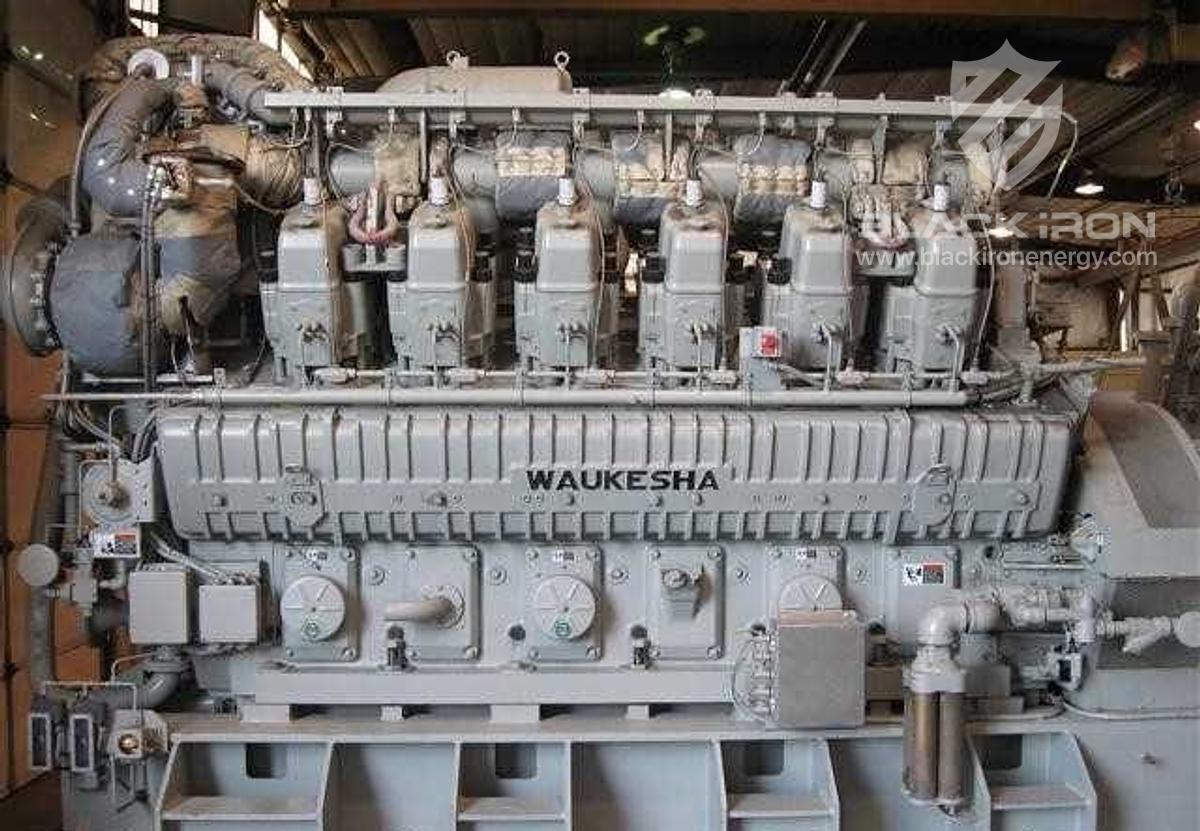

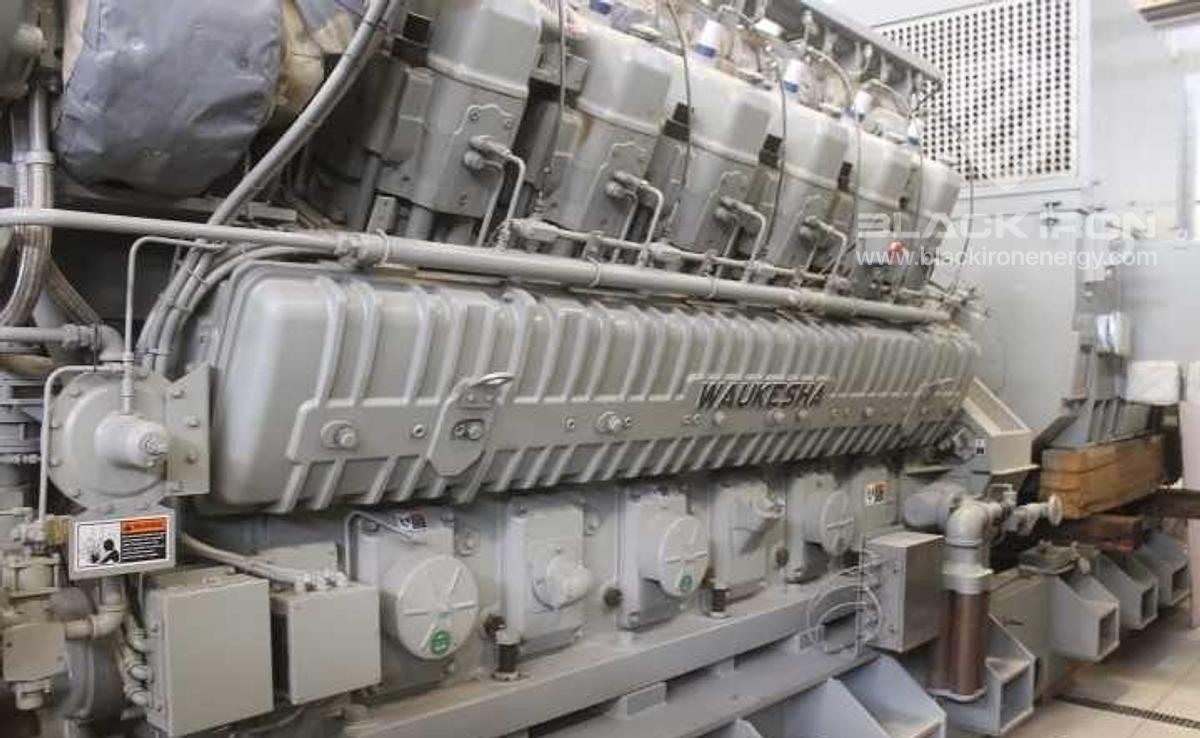

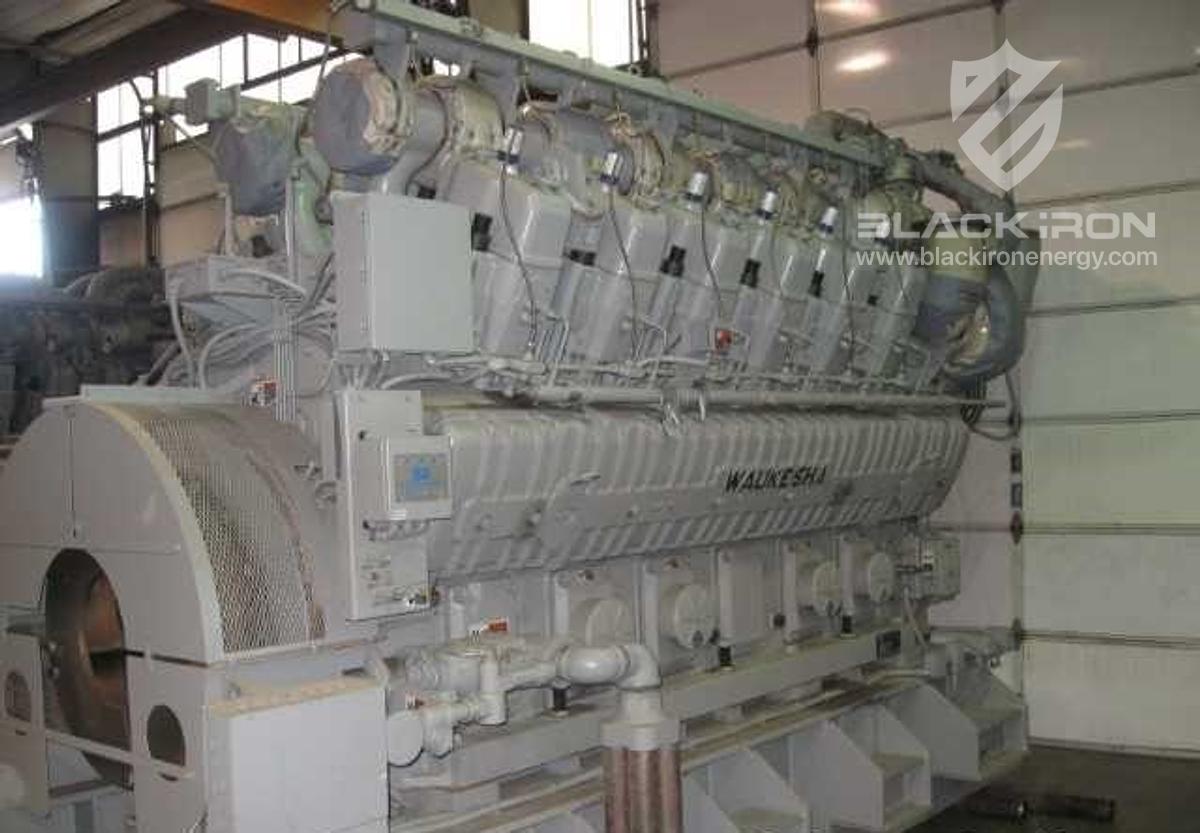

Waukesha Engine Model 12V-AT27GL rated 2955 hp at 900 rpm

Fuel: Natural Gas

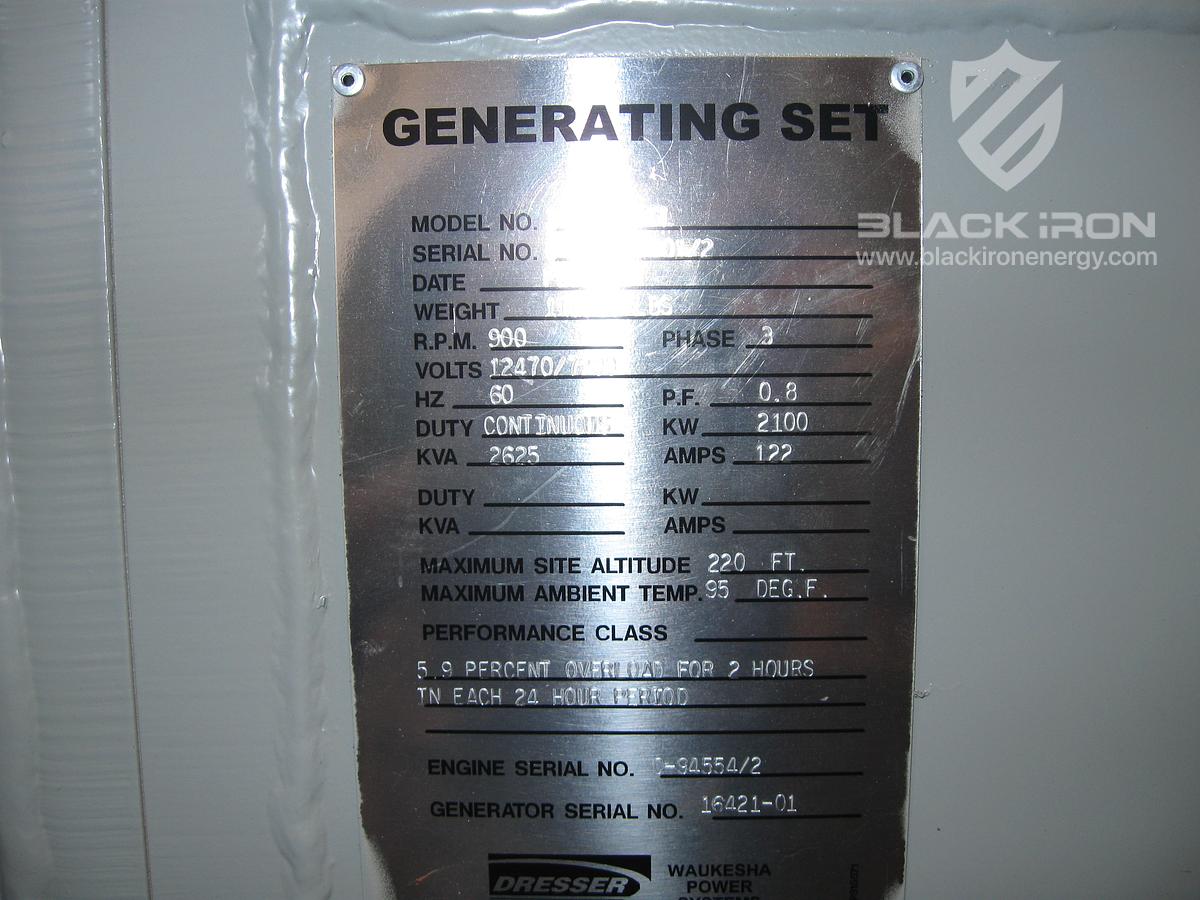

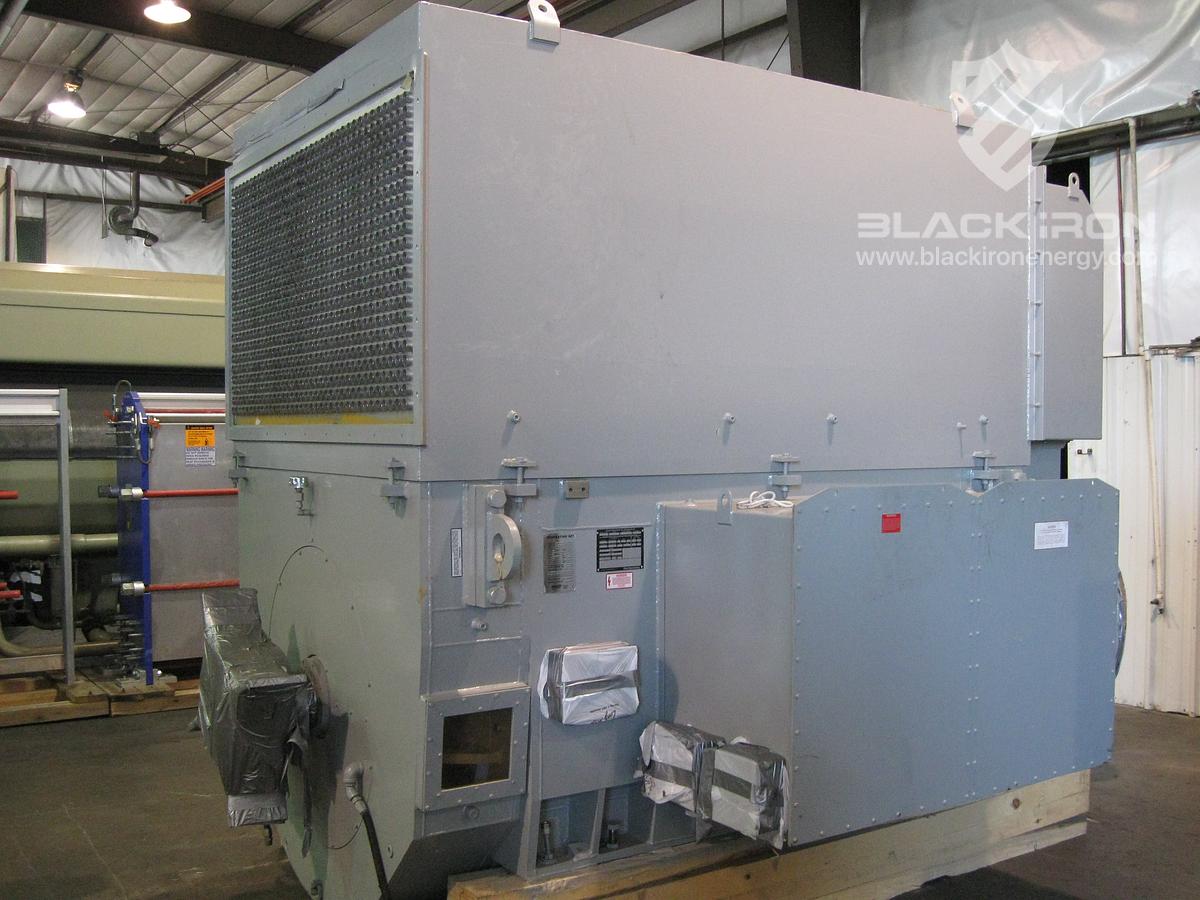

KATO Generator Model AA27493000

Voltage: 7200/12,470 VAC

Amps: 1215

Frequency: 60 Hz

Phase: Three-Phase

Power Factor: 0.8

Speed: 900 rpm

Usage: Continuous Rating

Enclosure Type: Open

Dimensions: 355"L x 96"W x 133"H each

Weight: 115,000 lbs each

Year: 2004

Runtime: 0 Hours

GT Exhaust Model 201-6124 Exhaust Silencer

Capacity: 32,619 LB/hr.

Attenuation: 42 dBA reduction @250 Hz

Weight 4,000 lbs.

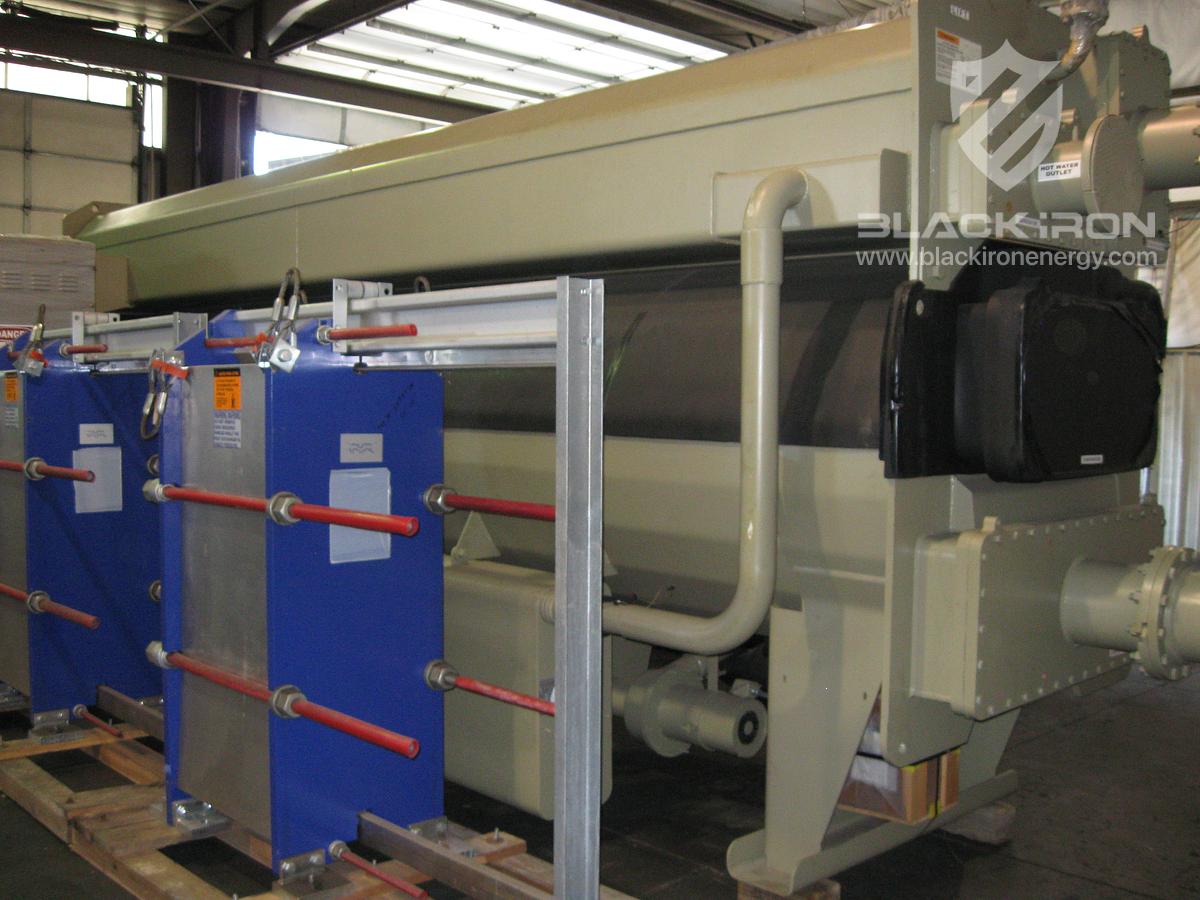

Alfa Laval Model M15-BFG Plate & Frame Heat Exchangers

Capacity: 6,500 MBH/hr.

Weight 4,550 lbs.

Chiller Water Service

Alfa Laval Model TS20-MFG Plate & Frame Heat Exchangers

Capacity: 2,592 MBH/hr

Weight 2,270 lbs.

Auxiliary Water Service

Alfa Laval Model TS20-MFG Plate & Frame Heat Exchangers

Capacity: 6,500 MBH/hr.

Weight 2,530

Waste Heat Service

EnviroKinetics Exhaust Heat Recovery Silencer/SCR Unit

Capacity: 3,700 MBH/hr.

Weight 17,000 lbs.

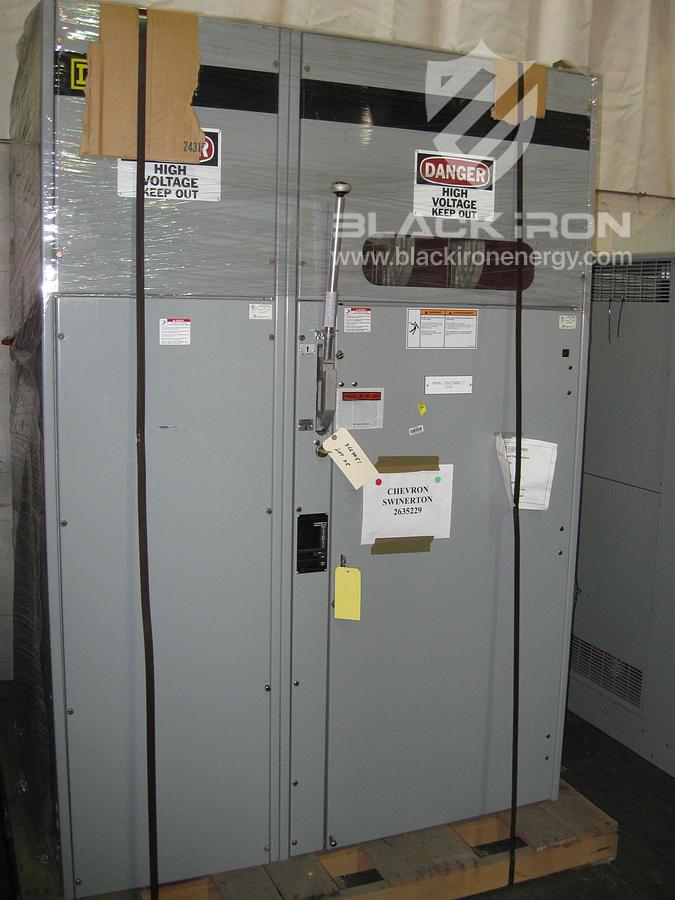

15KV Electrical Switchgear and Auxiliary Components

                Schneider Electric - Square D

Co-Gen Engine and Generator Control Switchgear:

Provides individual operation or Optional Utility auto synchronization and Load Management, either as Base Load or Peak Shaving

Includes an option to interphase with a building stand-by generator set (Stand-by generator not included)

·         One Section Master Co-Gen Control System

·         Two Section for a Main Output Breaker

·         Two Sections for Individual Generator Controls and Metering

·         Two Sections for Generator Breakers

·         One Section Air Disconnect Switch

Modicon PLC Operation and Control Base system with SEL Utility Grade Relay Protection

·         Woodward System; Engine Speed Governing with Load Sharing and Synchronizers.

·         Basler Generator Voltage Regulation with VAR/Power Factor Control

·         Touch Screen Monitoring and Operation

·         SEL Generator and Breaker Protective Relay logic

Remote Mount Cabinet: Engine Control Panel Model 4000

                                Weight 1,700 Lbs

Generator – Voltage Termination Section

Natural Grounding Resistor

All drawings part of sale.
