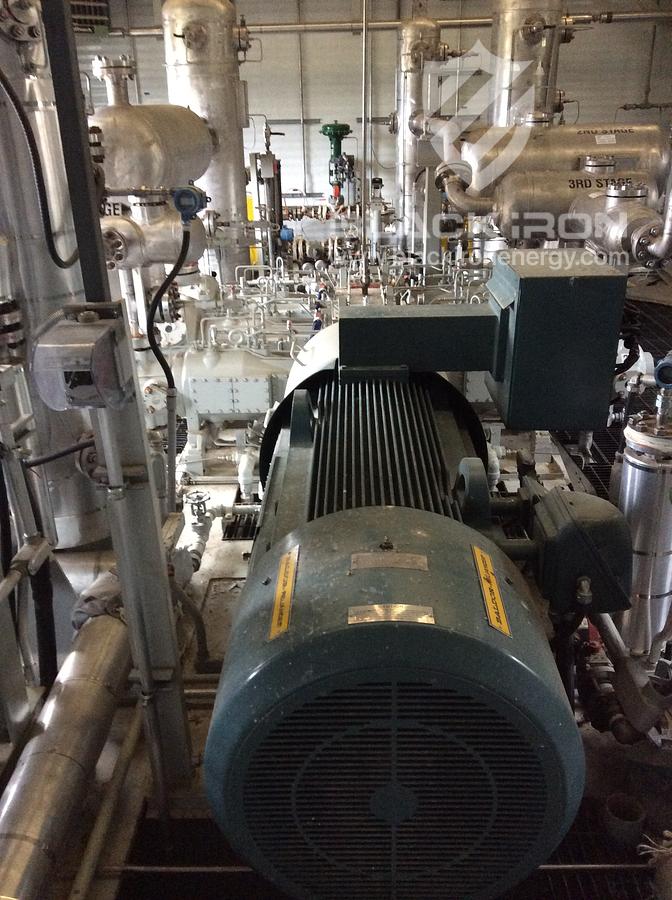

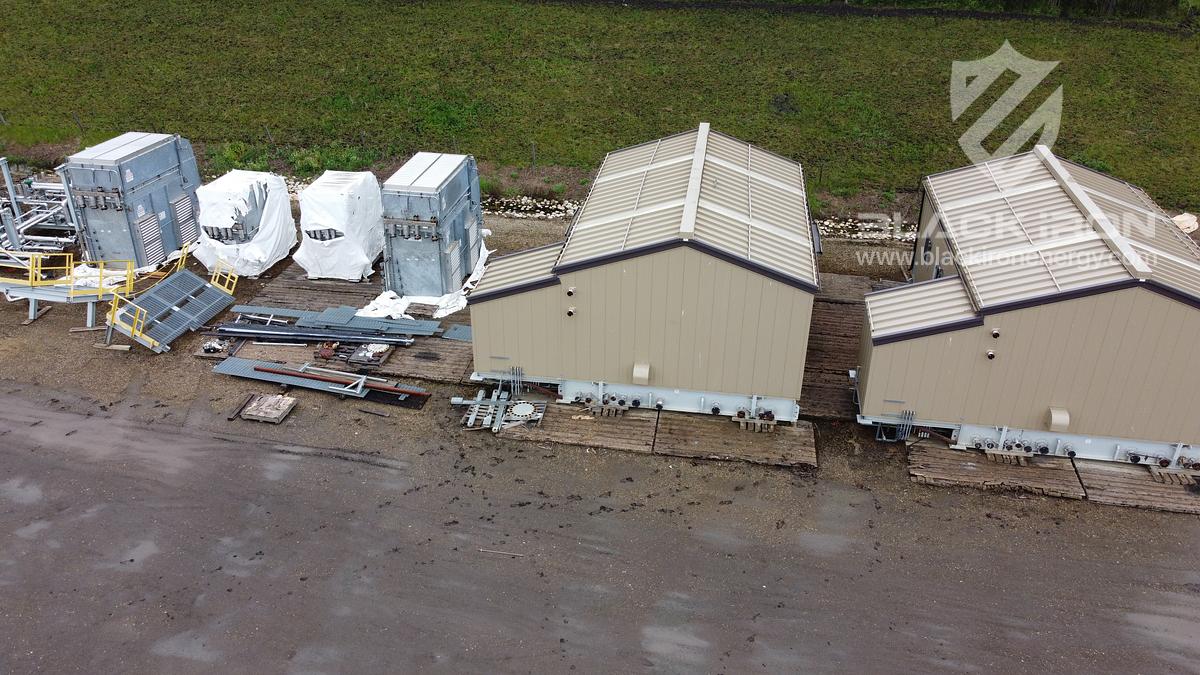

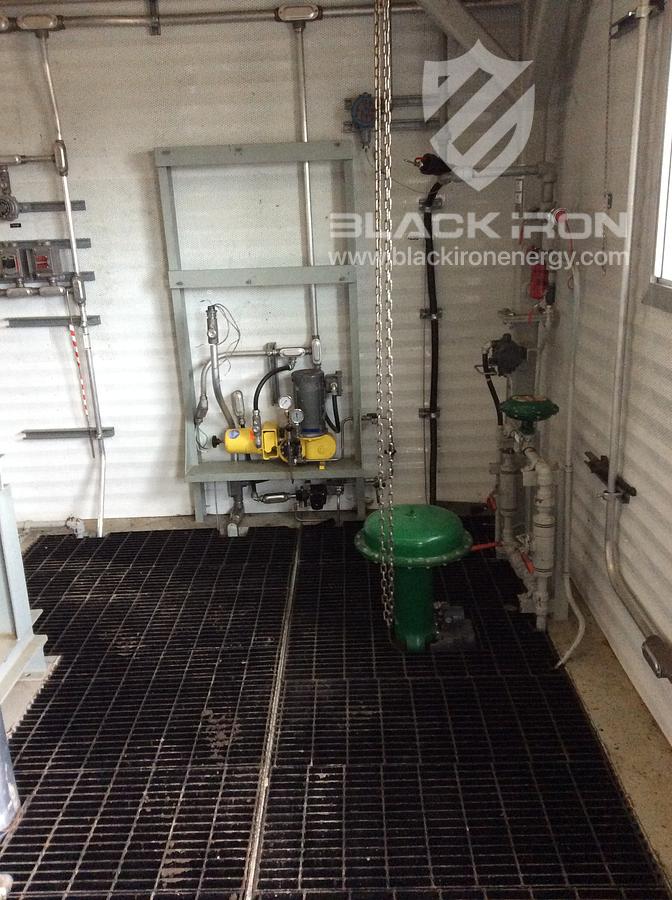

Qty. 2 - 300hp EMD Ariel JGA/6 5-Stage Acid Gas Units

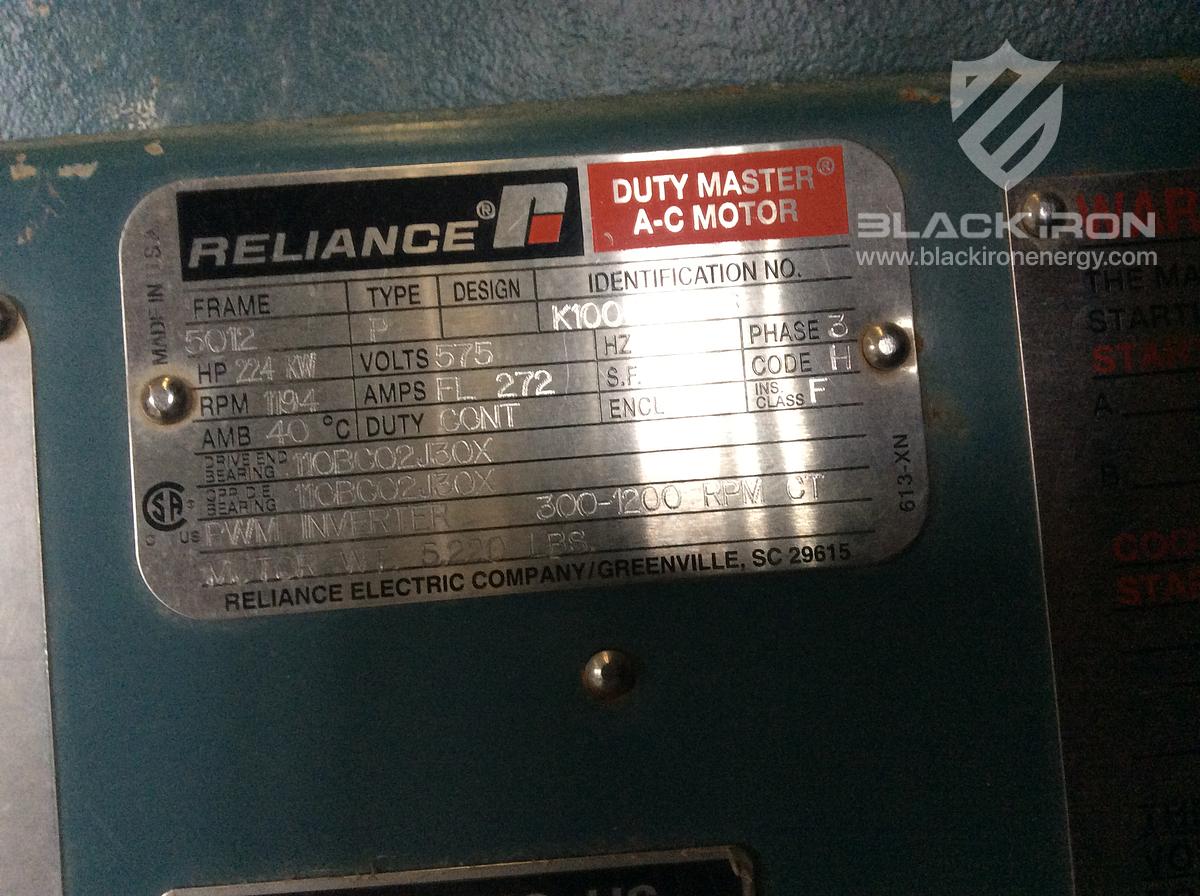

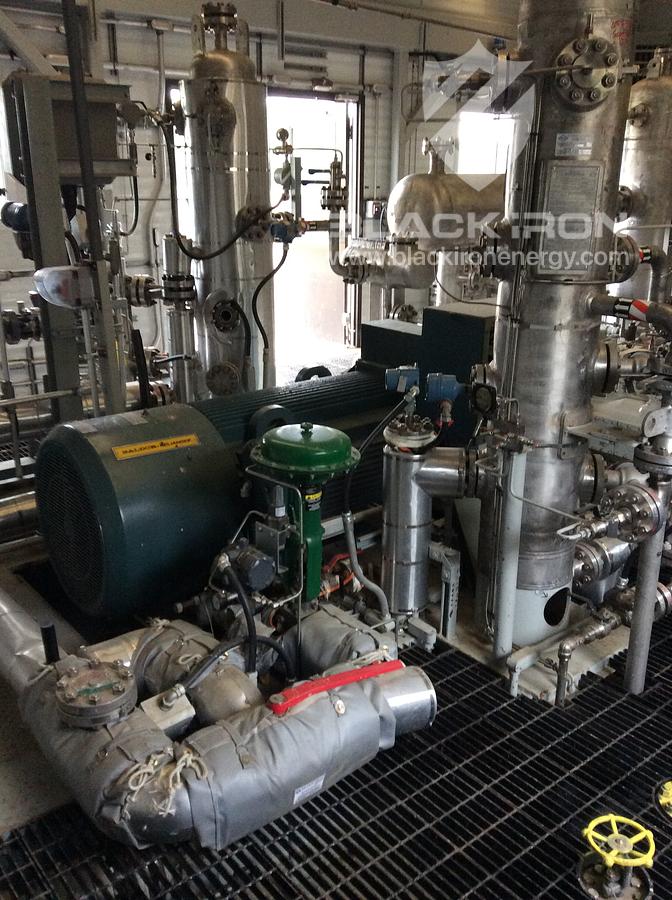

575VAC/3Ph/60Hz Electric Motor Drive rated 300 hp at 1194 rpm (VFD compatible).

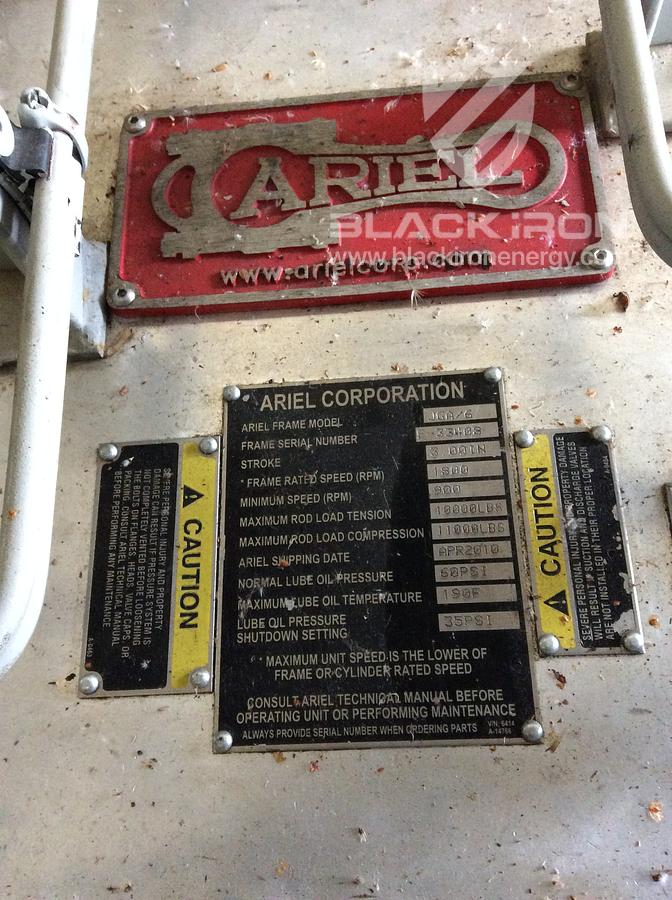

Ariel JGA/6 5-stage recip compressor w/ L2C distance pieces.

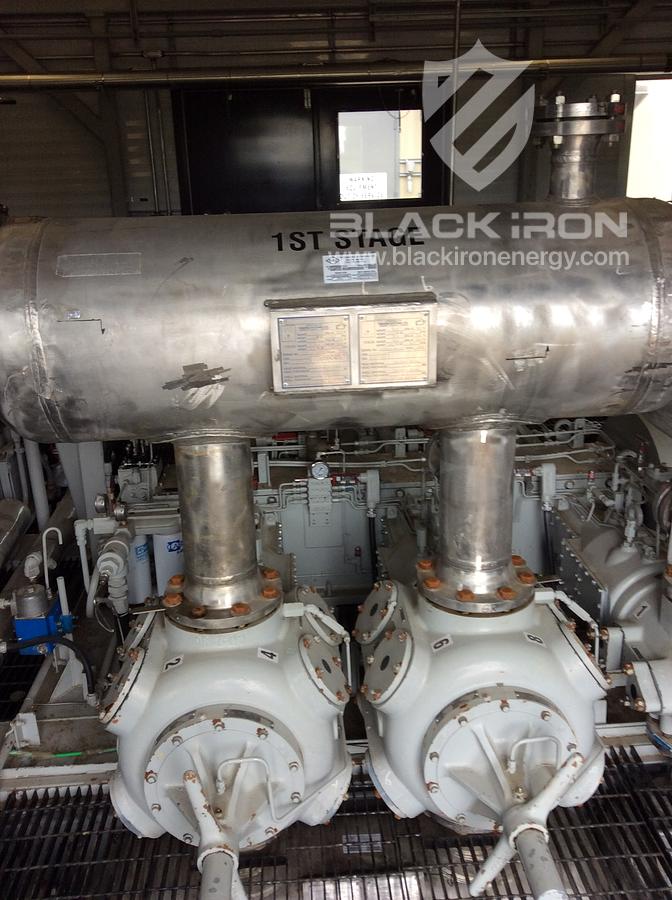

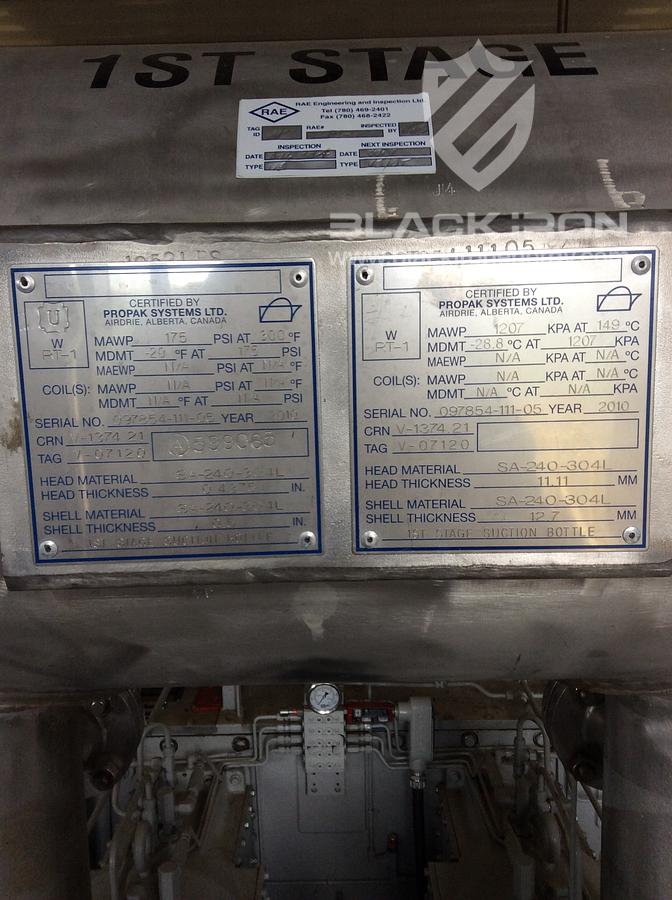

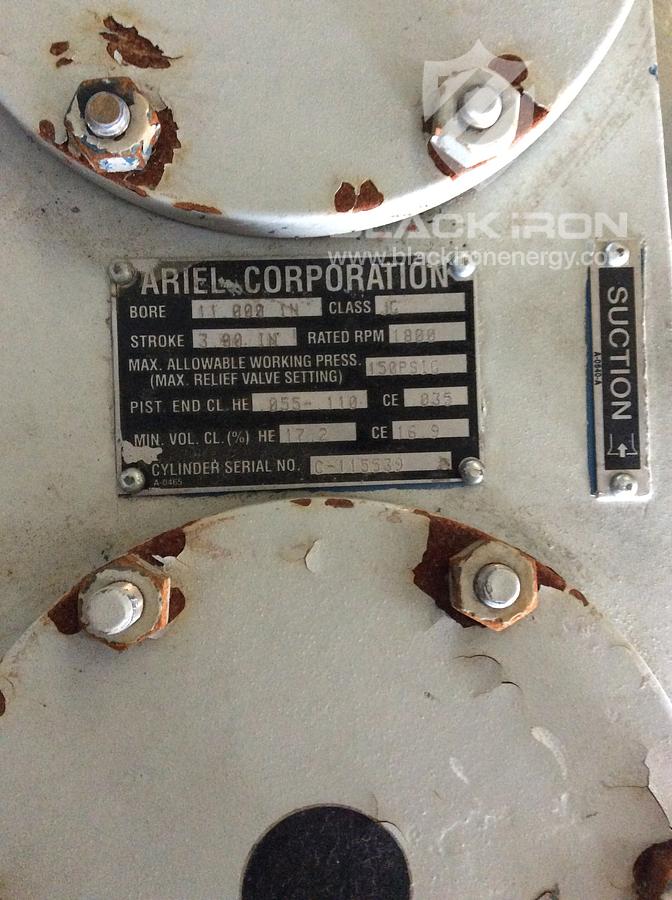

Stage 1: (2) 11.000" JG x 150 psig MAWP c/w VVCP.

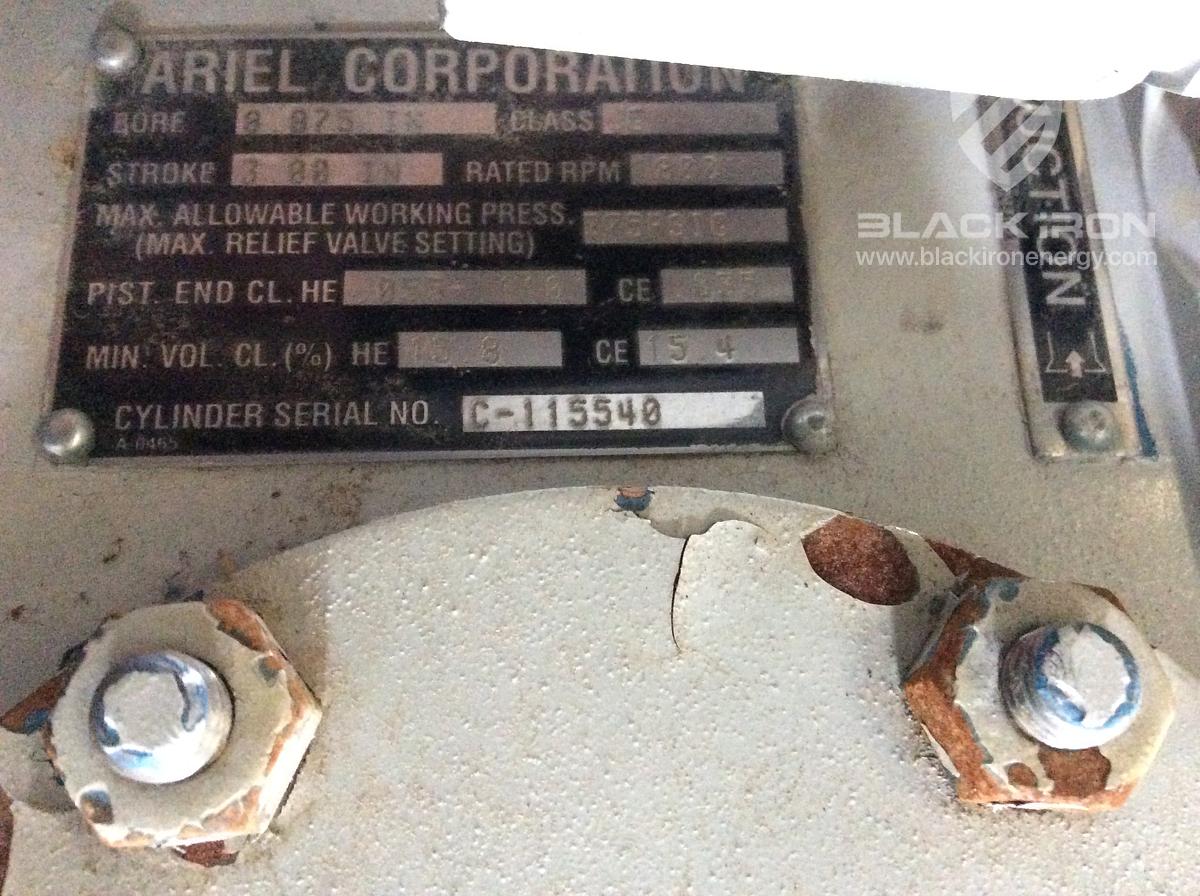

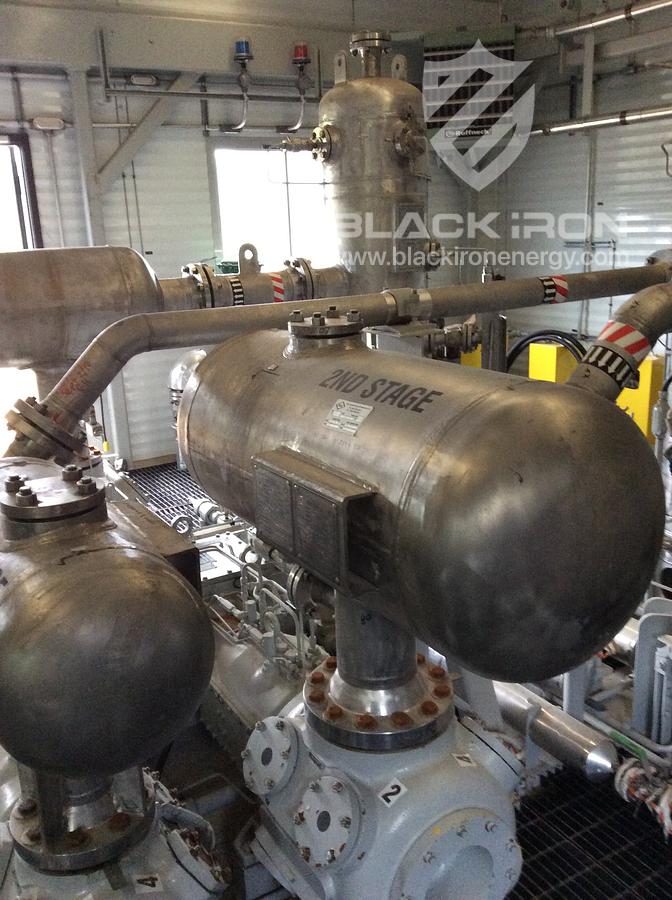

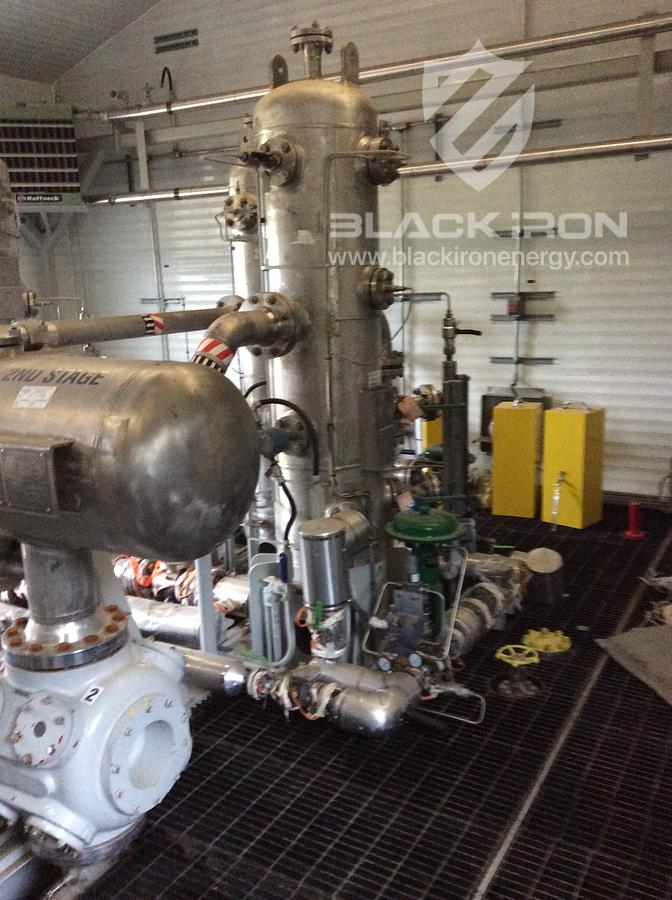

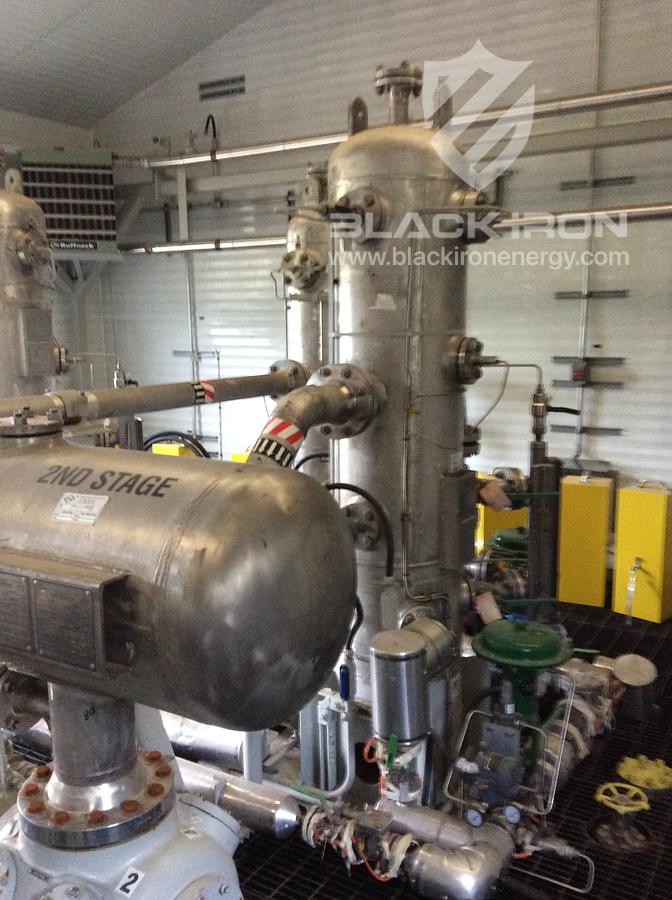

Stage 2: 8.875" JG x 375 psig MAWP.

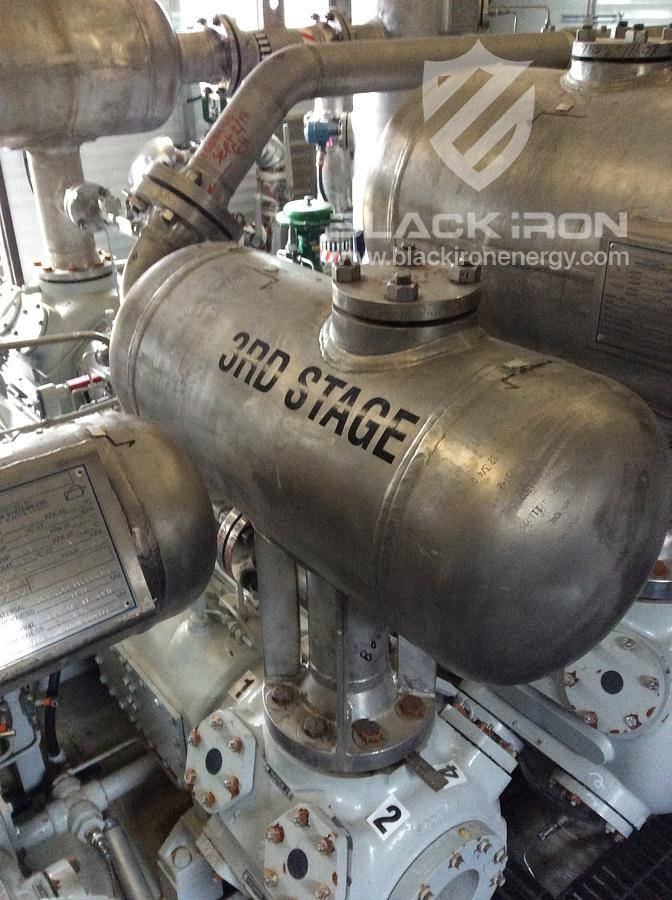

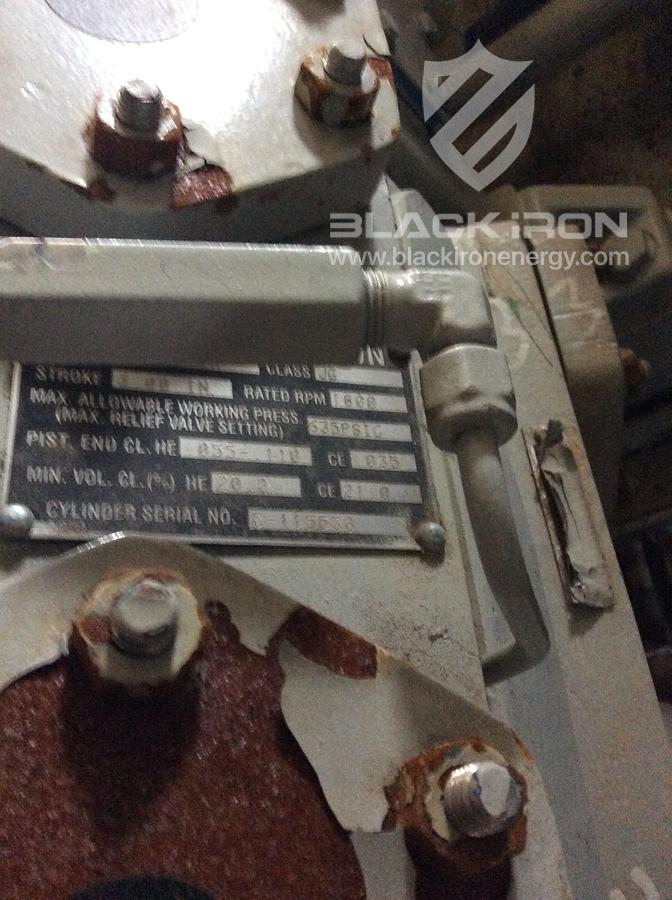

Stage 3: 6.125" JG x 635 psig MAWP.

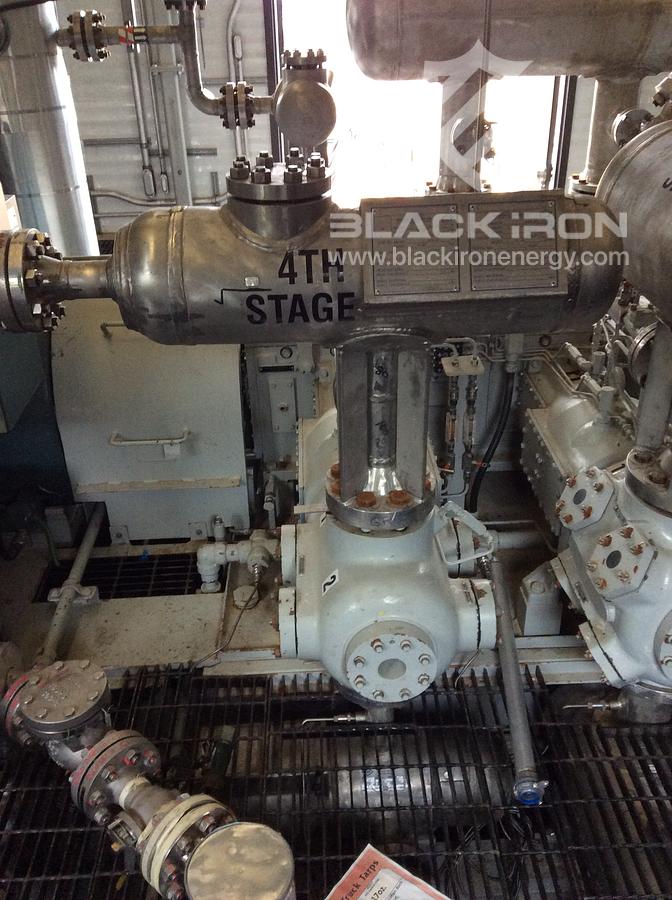

Stage 4: 3.375" JG x 1640 psig MAWP.

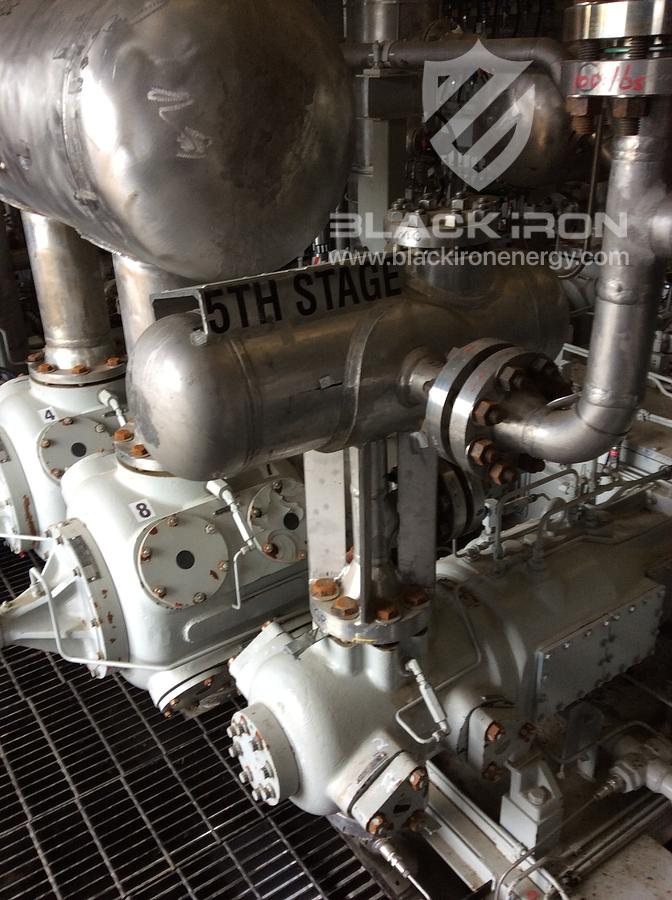

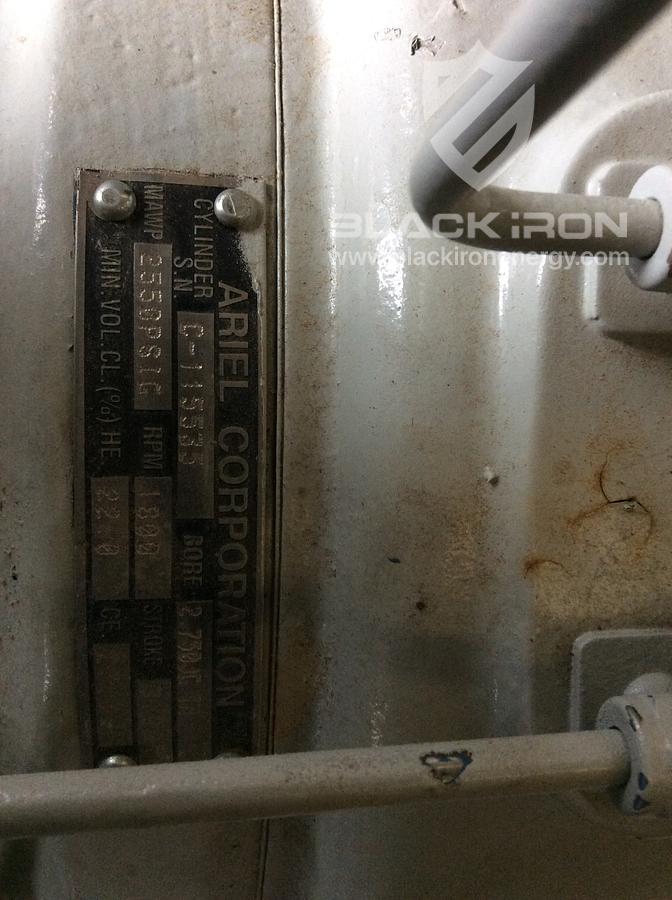

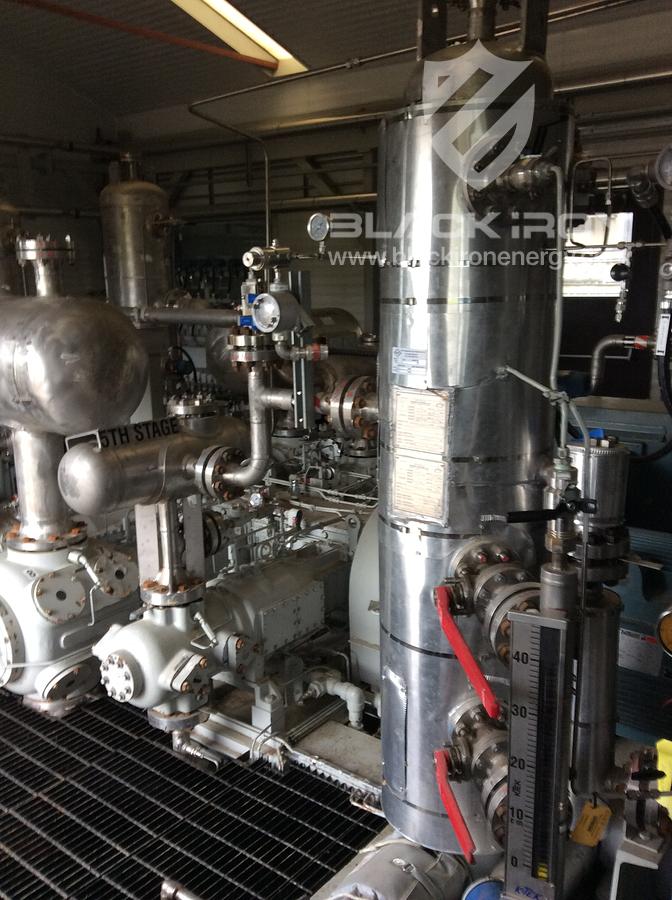

Stage 5: 2.750" JG x 2550 psig MAWP.

Each cylinder c/w purge packing & vented/drained to seal pot.

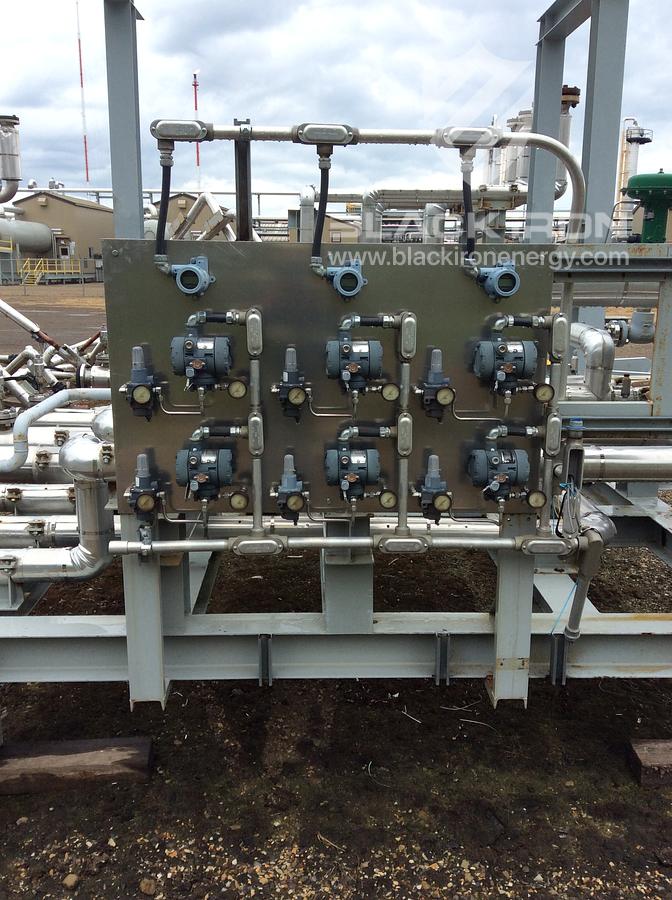

Guardian GX1500 PLC.

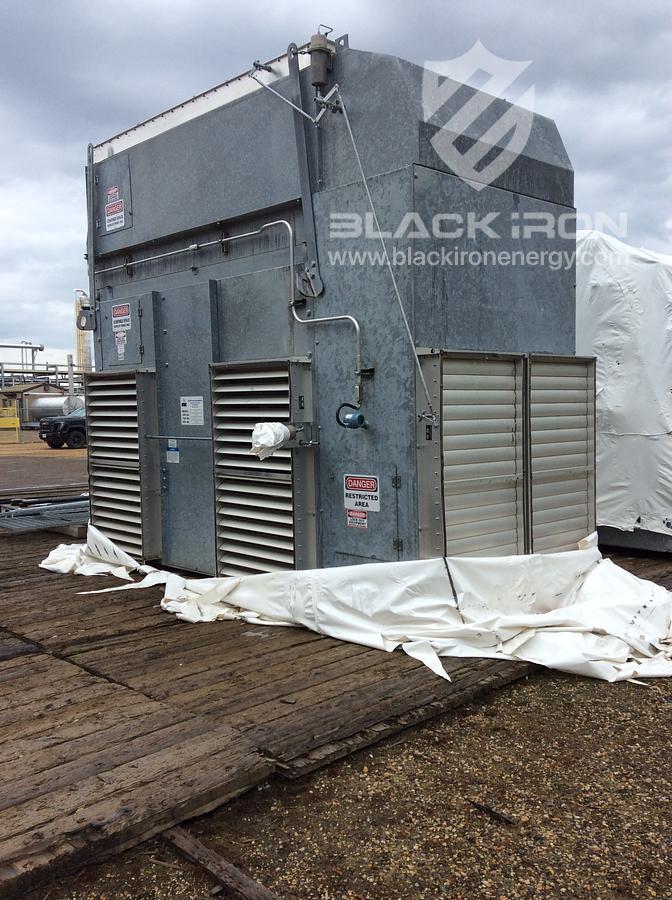

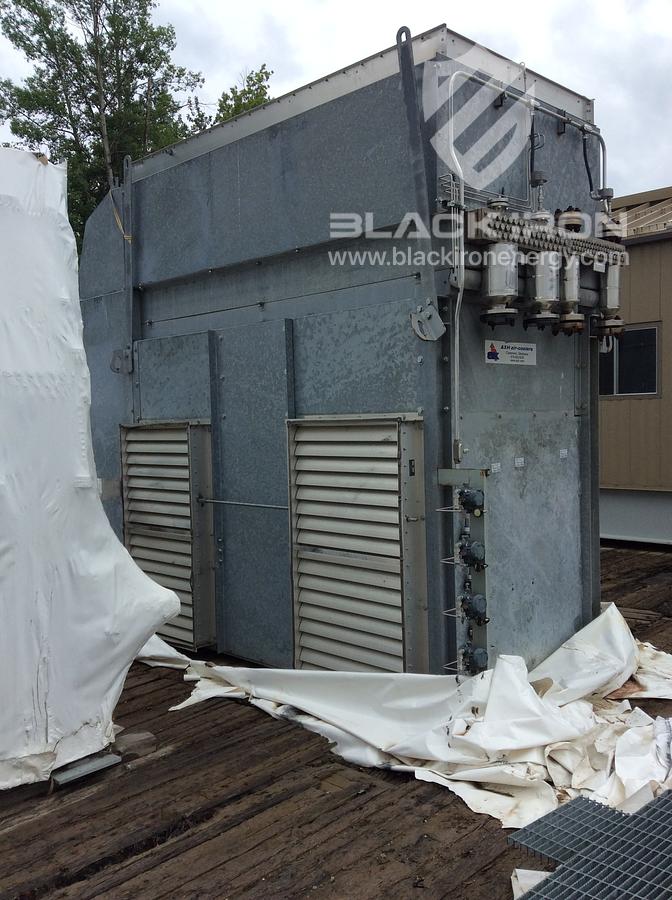

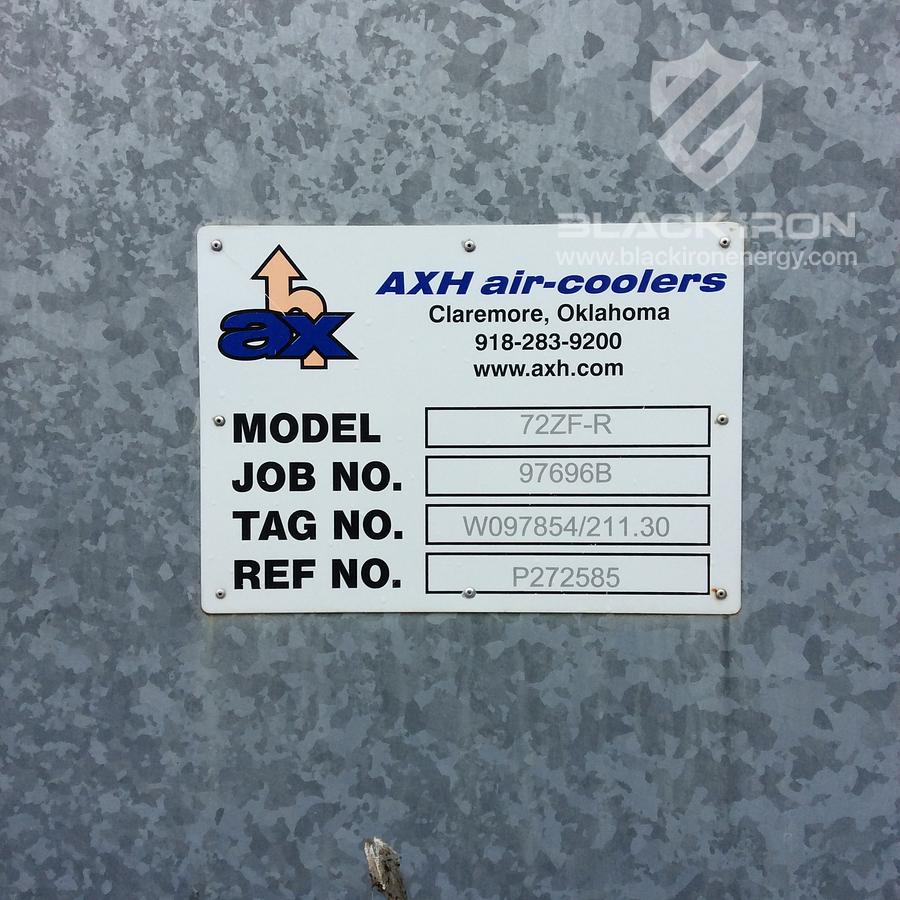

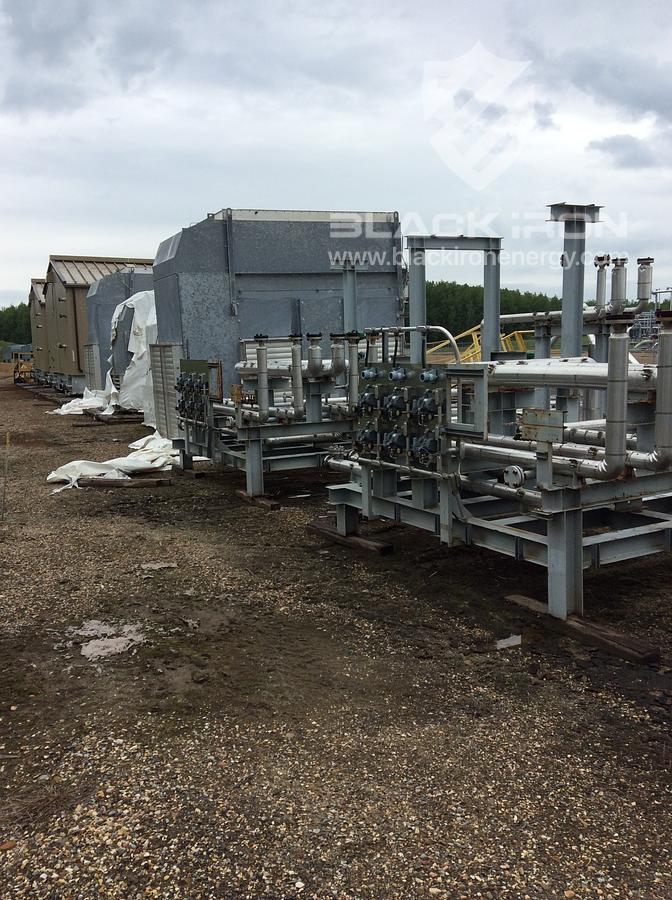

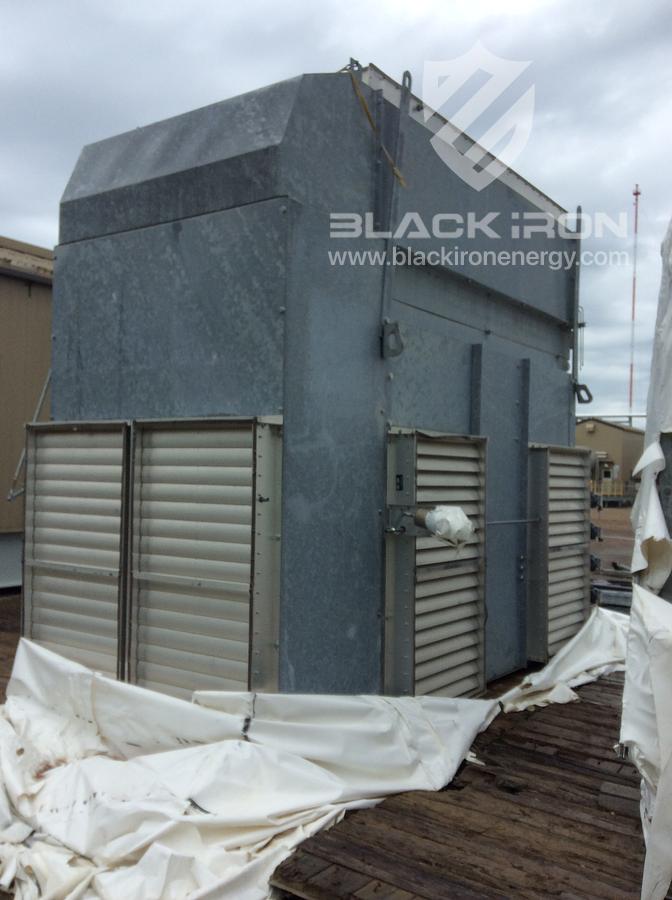

AXH 72ZF-R cooler (IC-1 & AC) c/w warm air recirc and heating coils on gas sections.

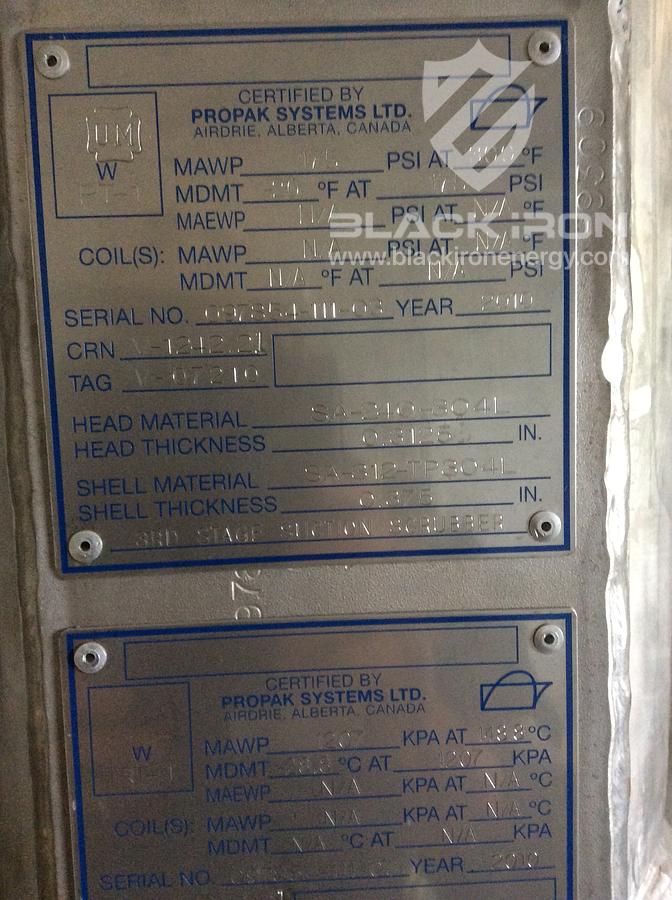

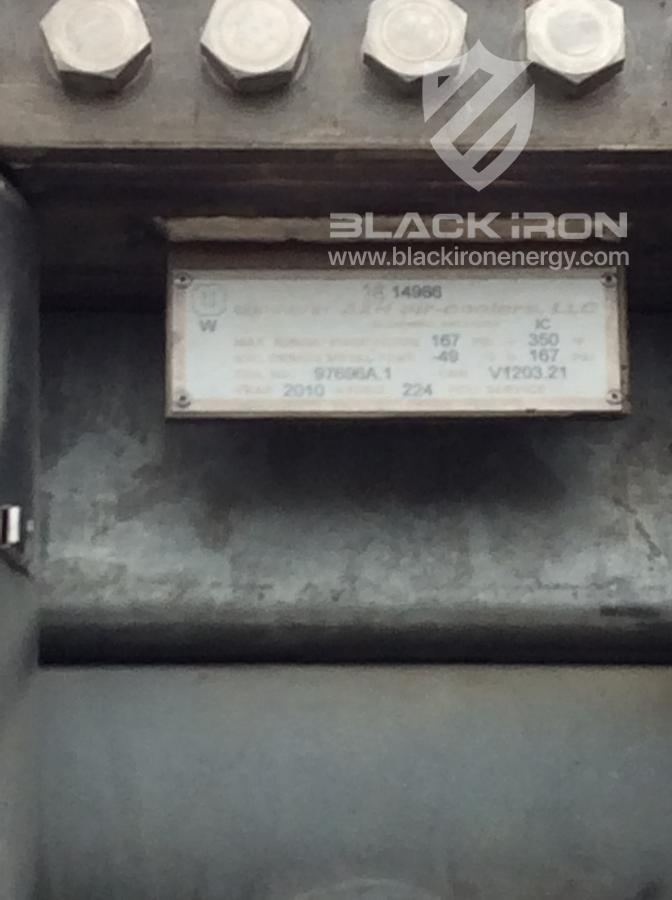

• IC-1 rated 167 psig MAWP at 350F

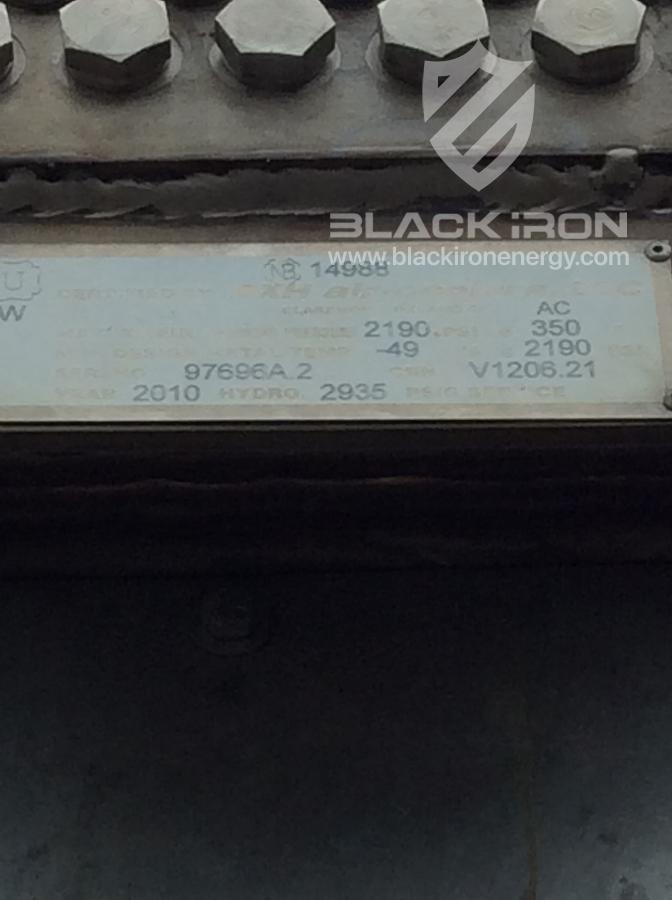

• AC rated 2100 psig MAWP at 350F

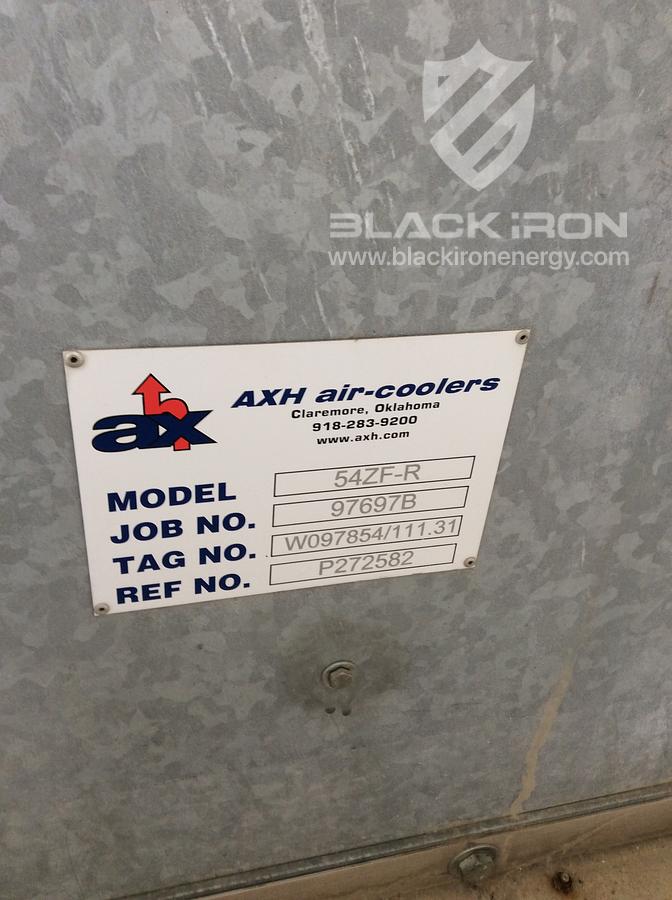

AXH 54ZF-R cooler (IC-2, IC-3, IC-4, Glycol) c/w warm air recirc and heating coils on gas sections.

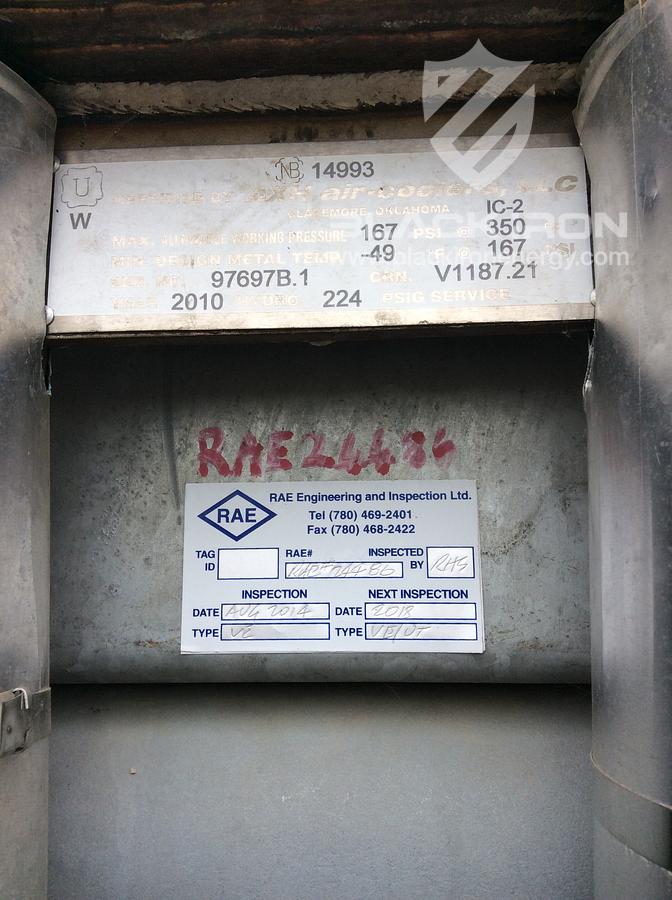

• IC-2 rated 167 psig MAWP at 350F

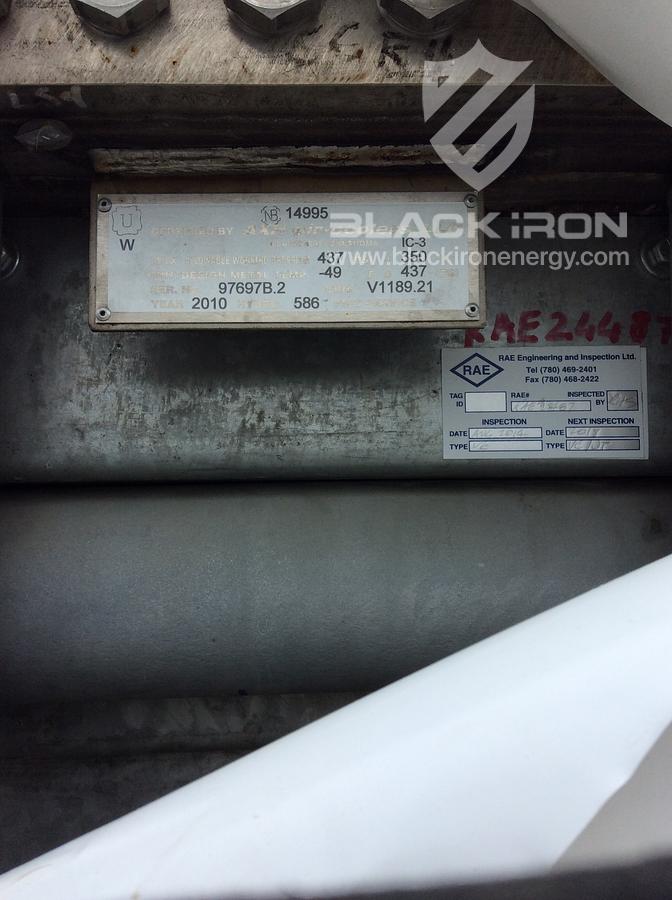

• IC-3 rated 437 psig MAWP at 350F

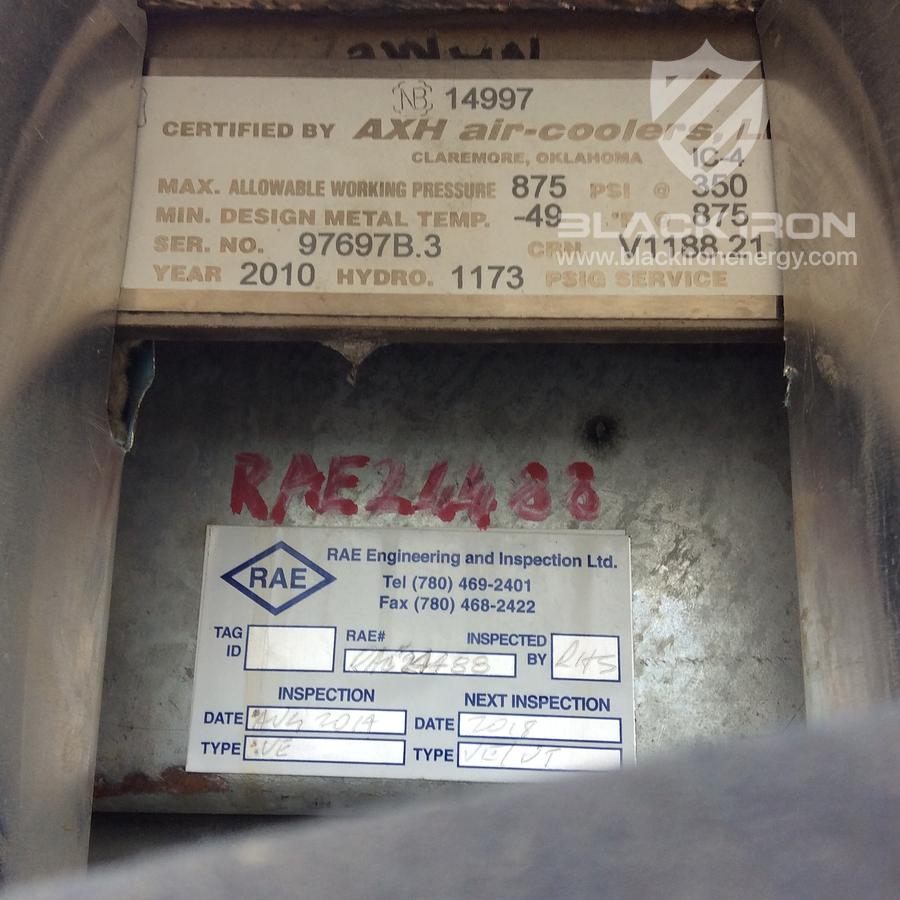

• IC-4 rated 875 psig MAWP at 350F

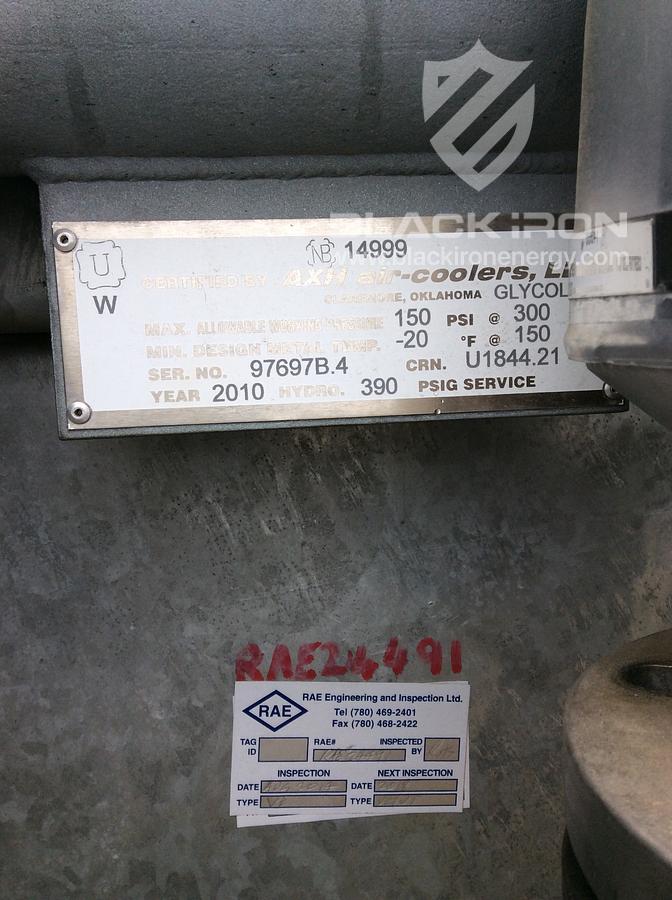

• Glycol rated 150 psig MAWP at 300F

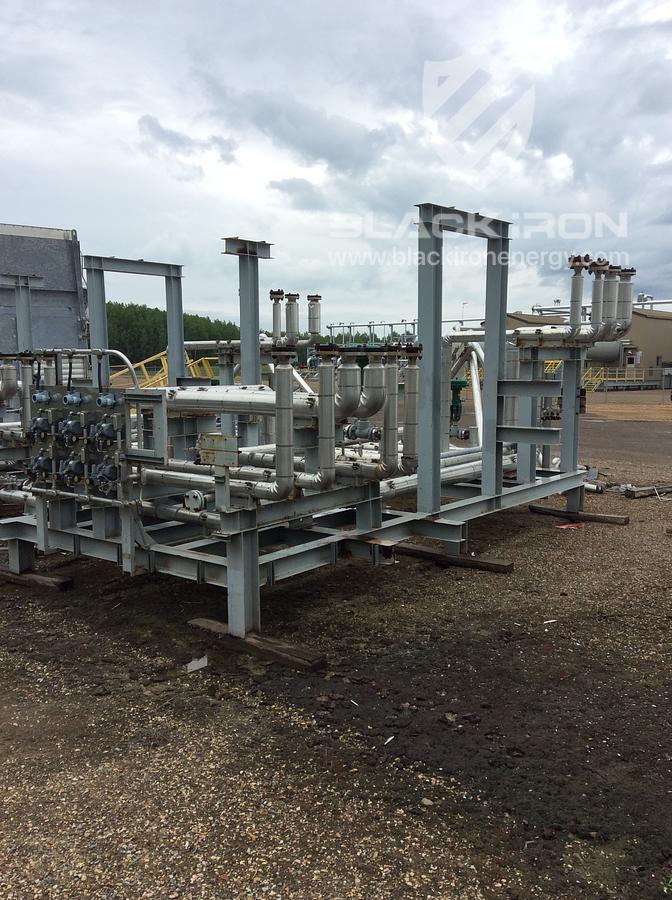

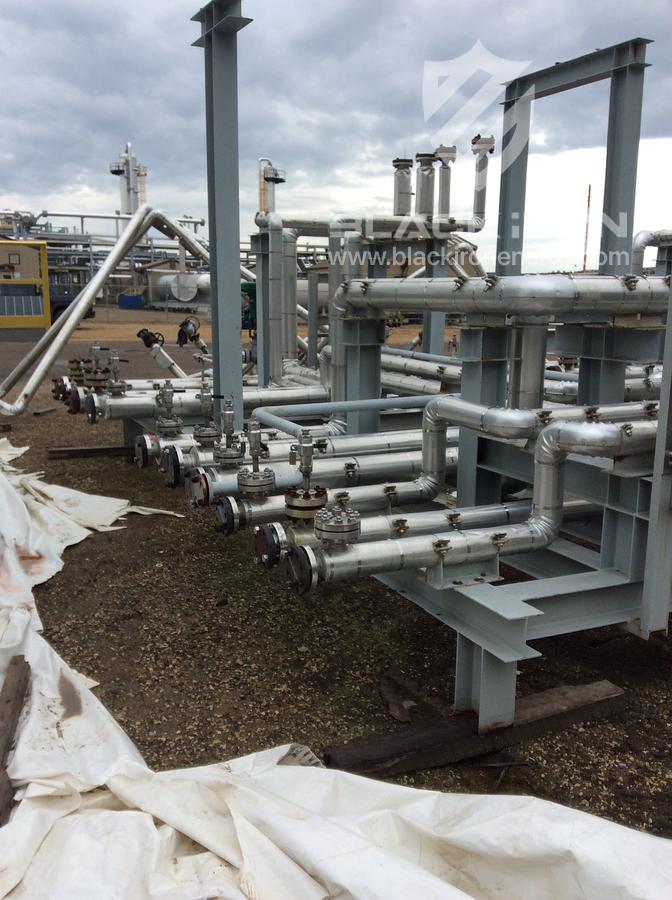

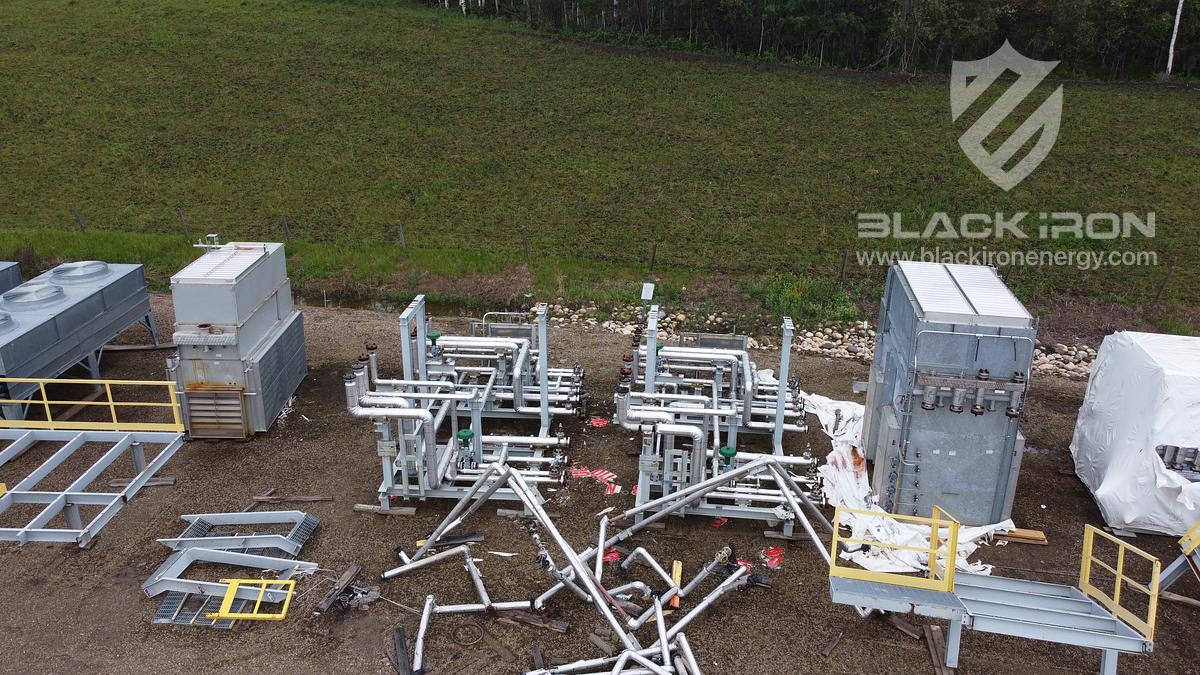

Main skid/coolers interconnecting pipe module.

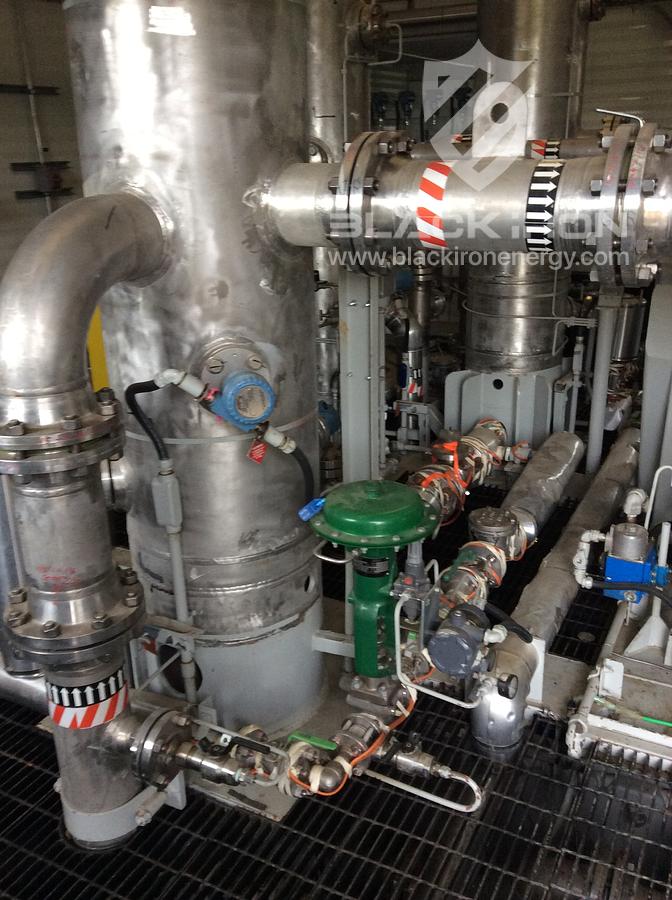

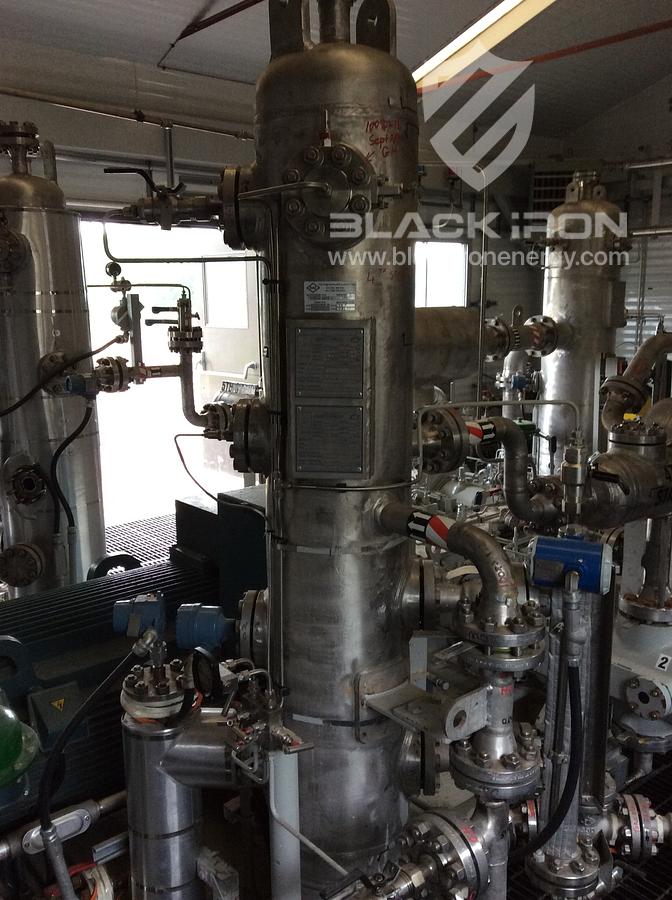

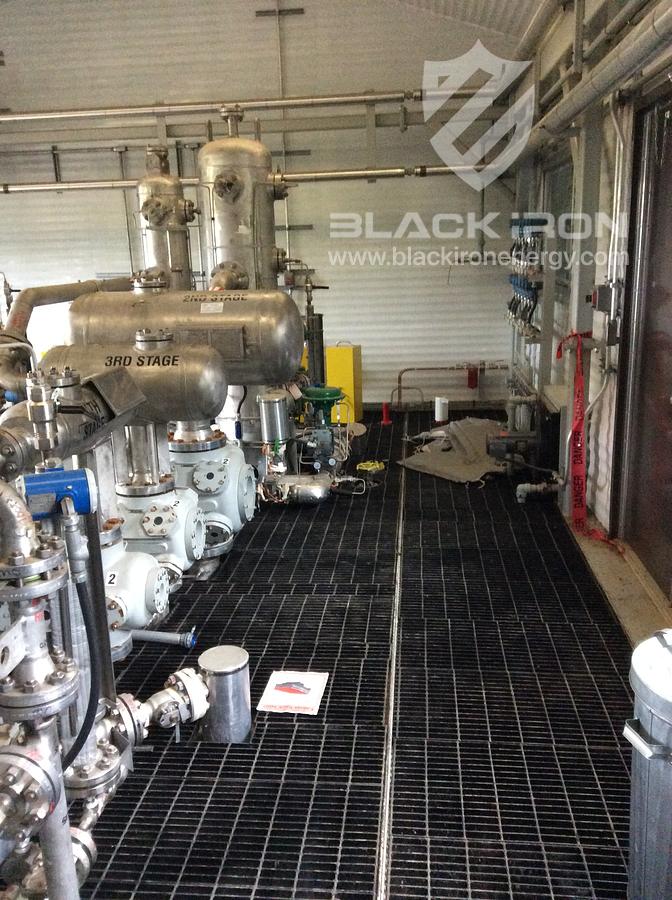

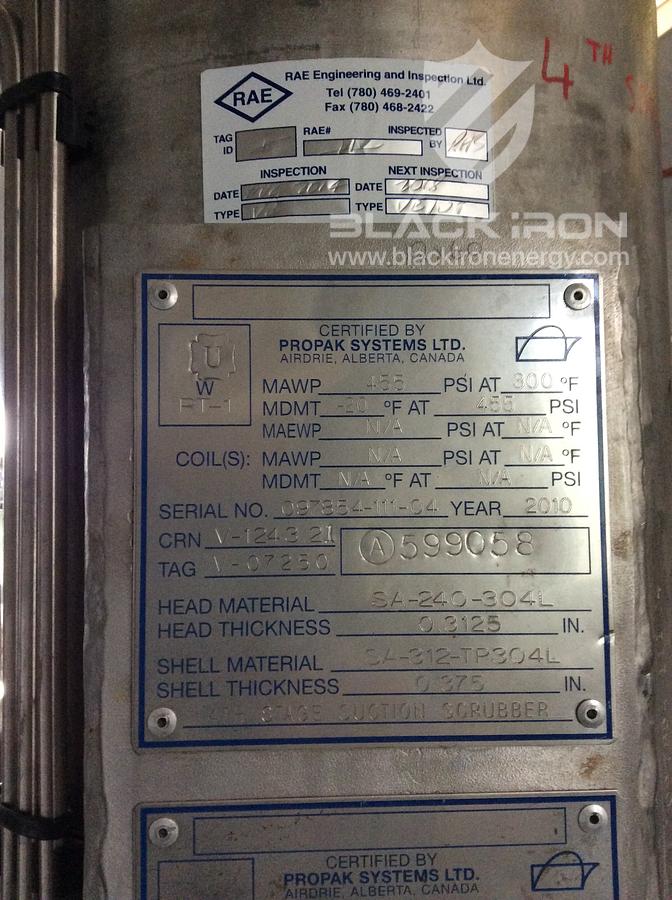

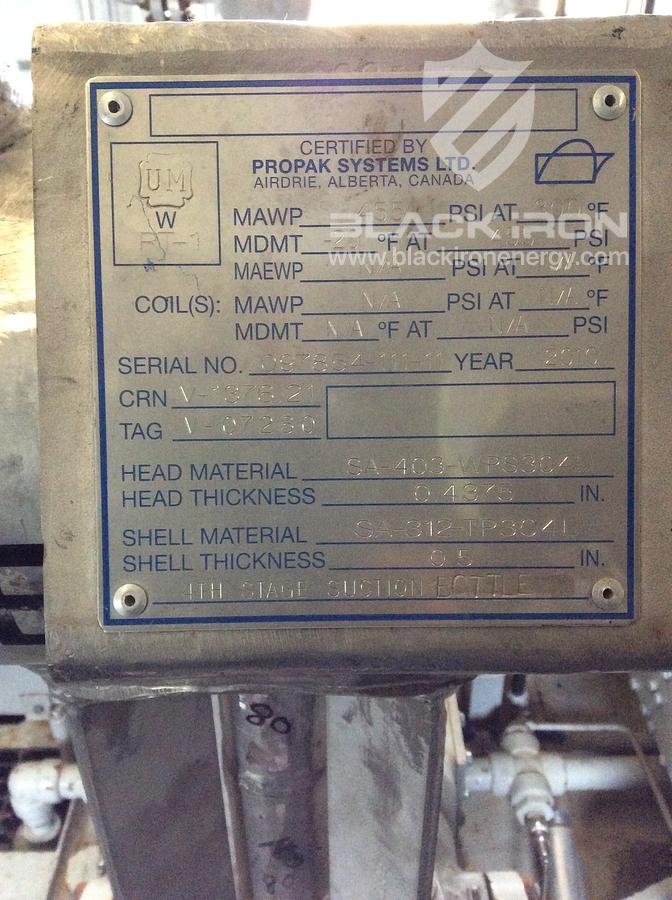

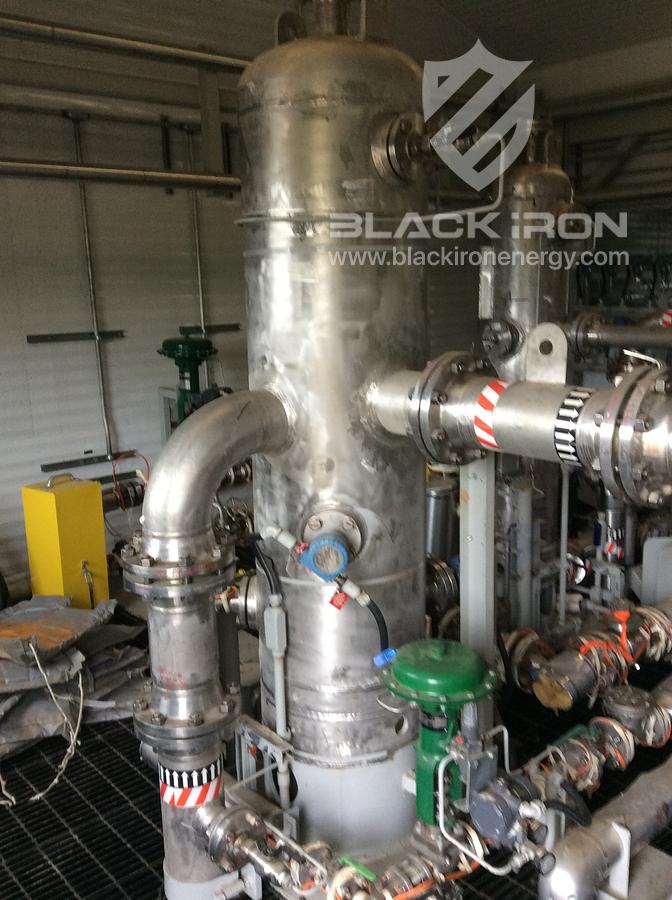

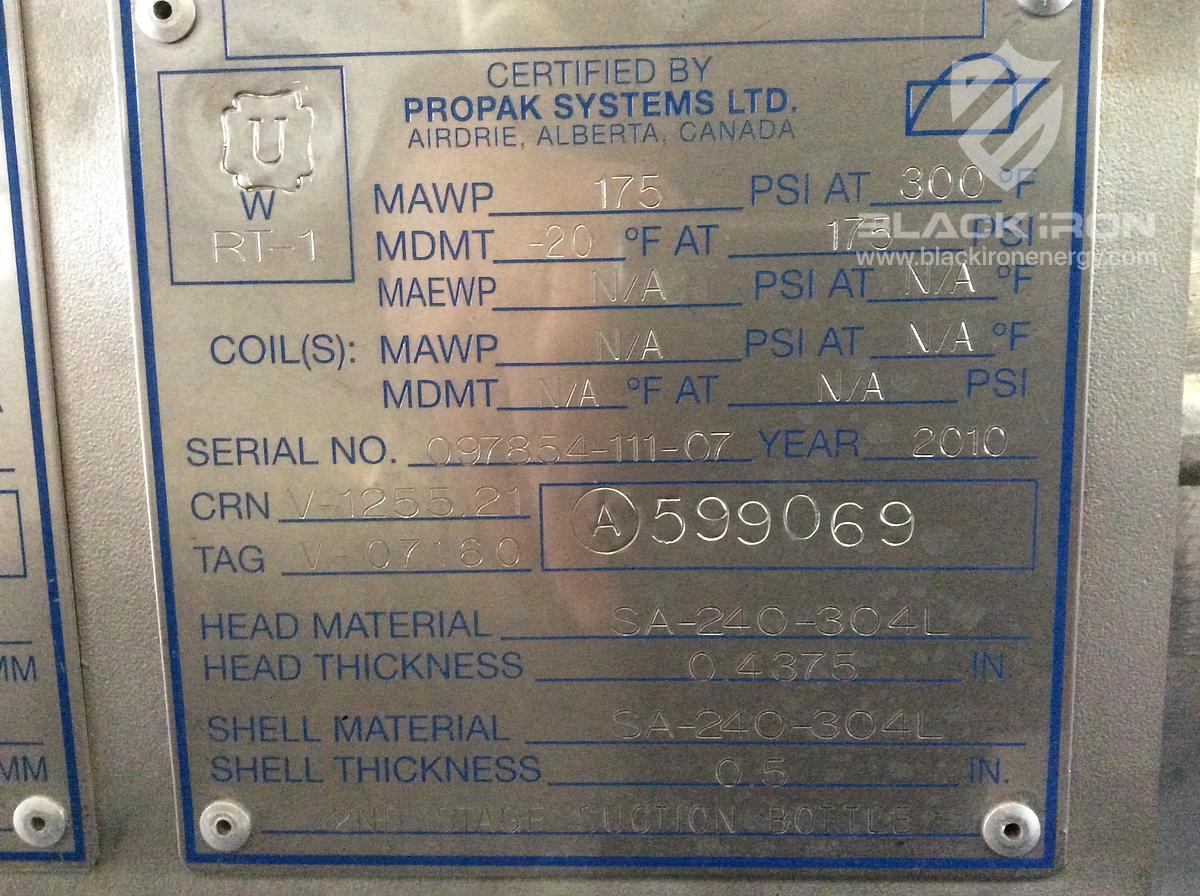

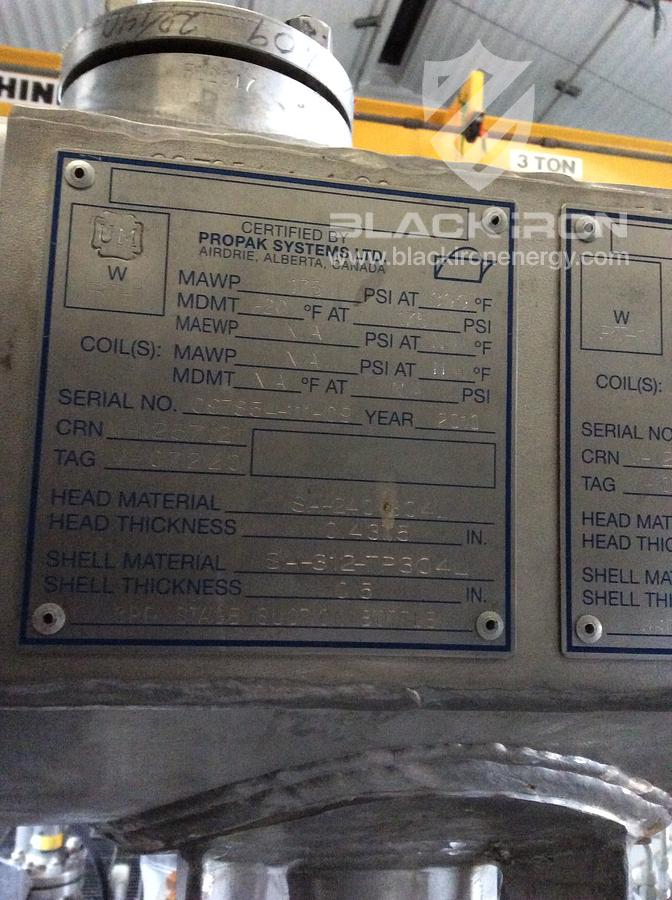

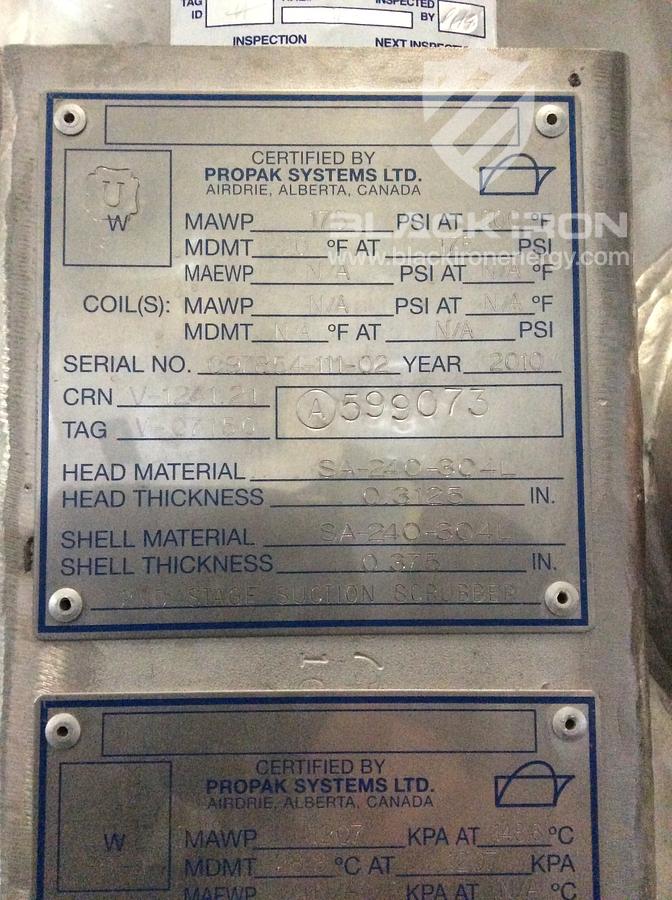

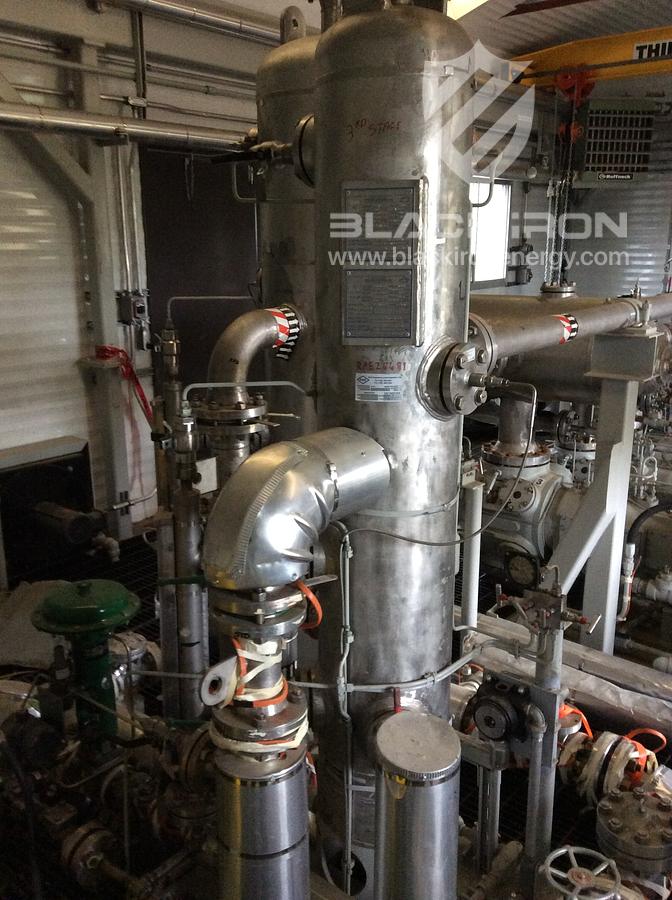

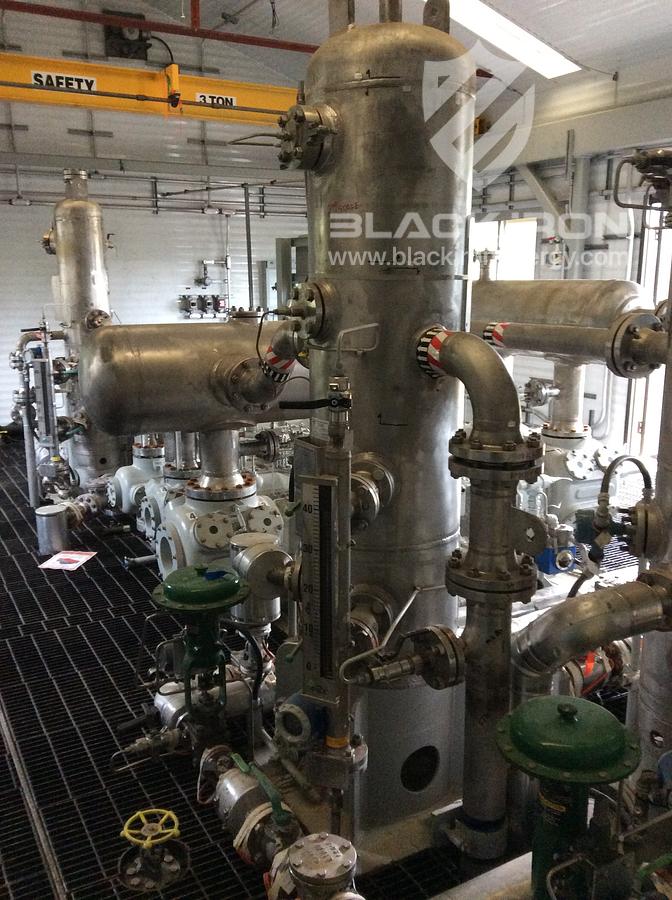

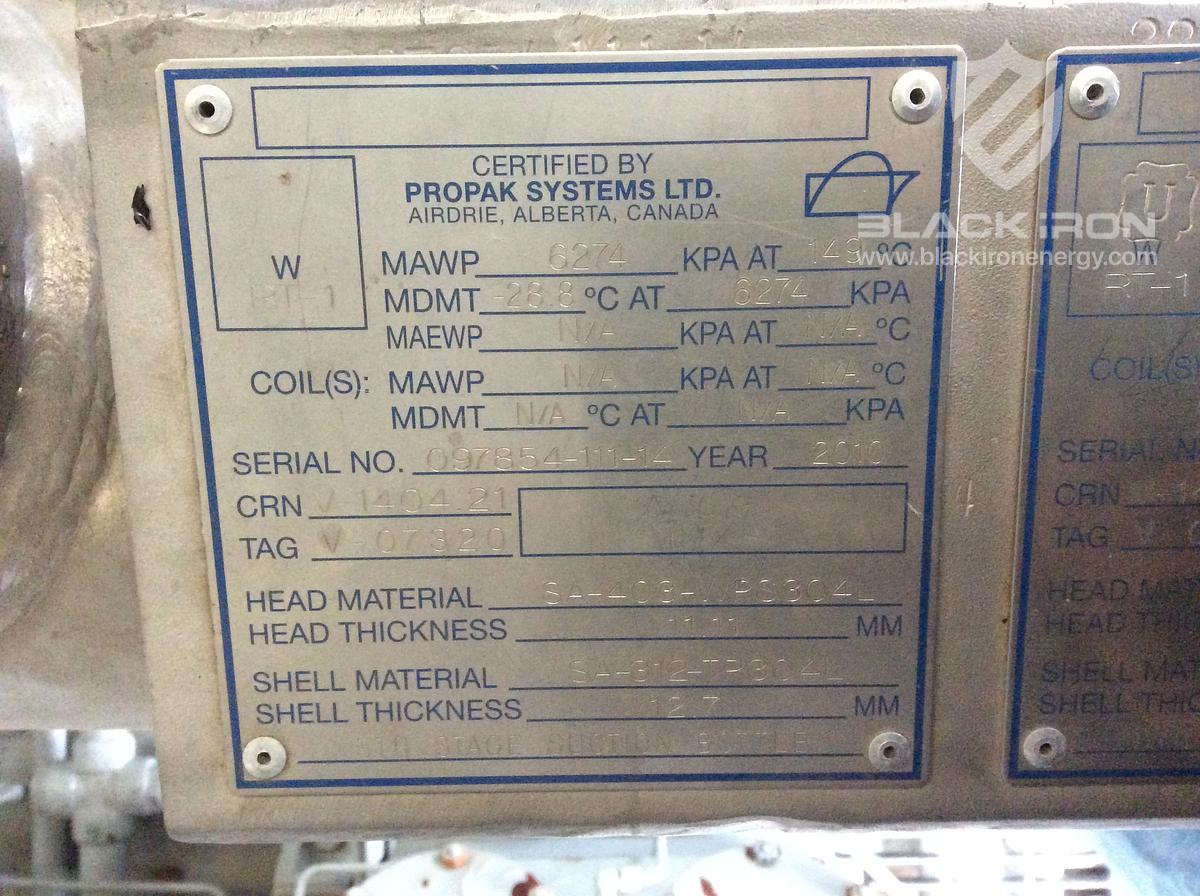

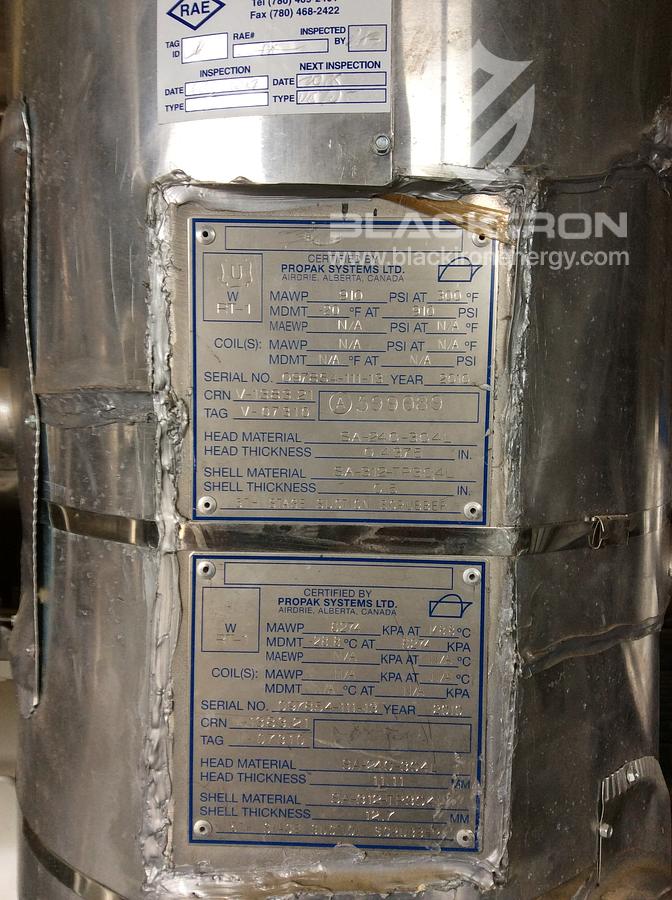

SS vessels and piping on hot and cold side.

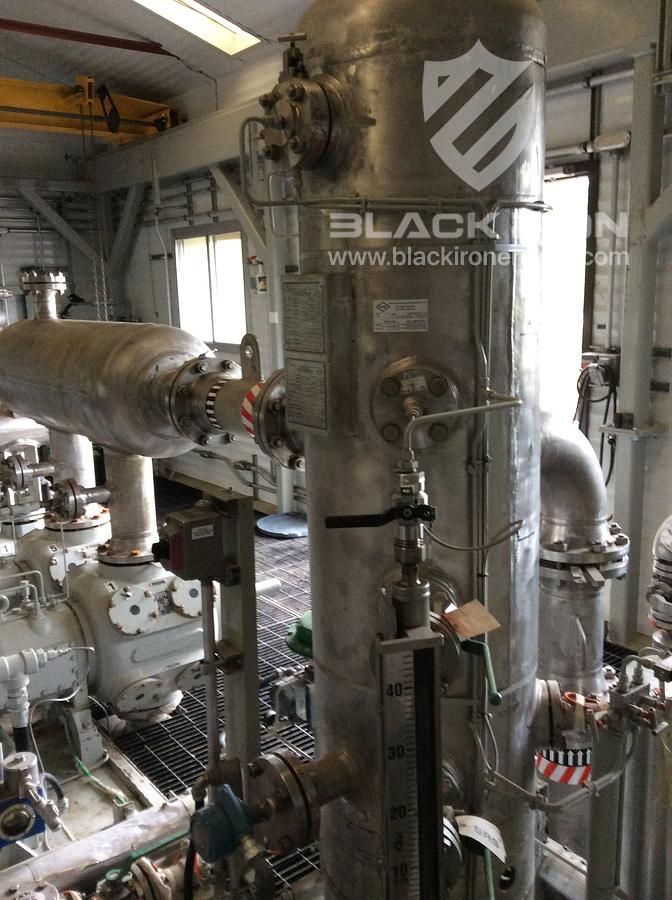

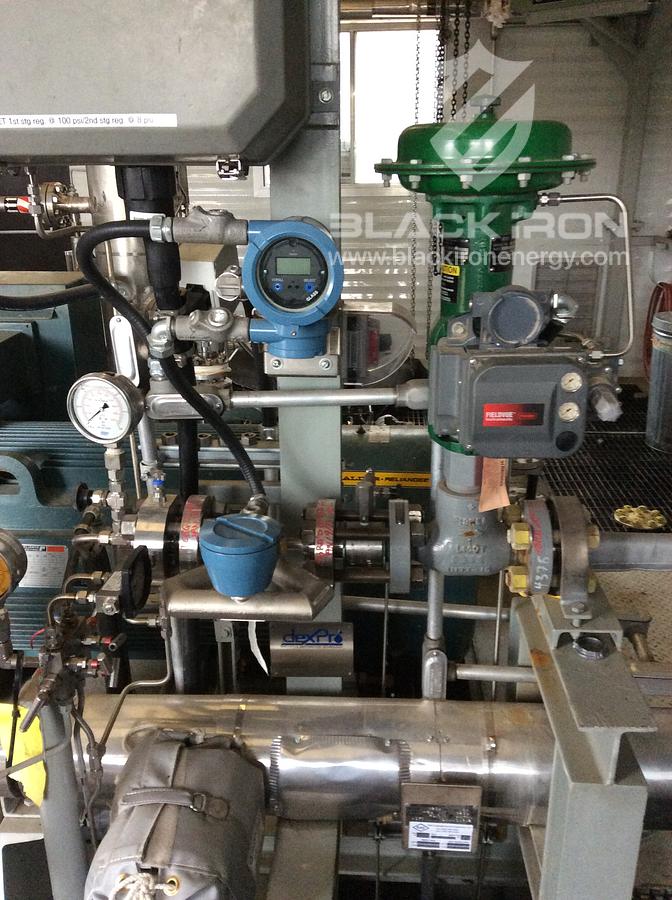

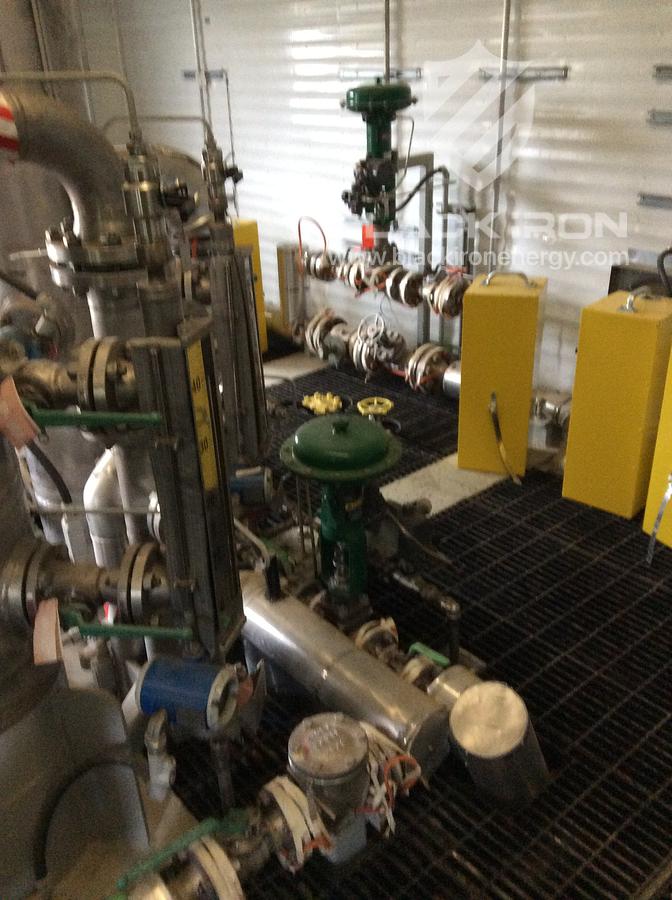

Cascading scrubber drains.

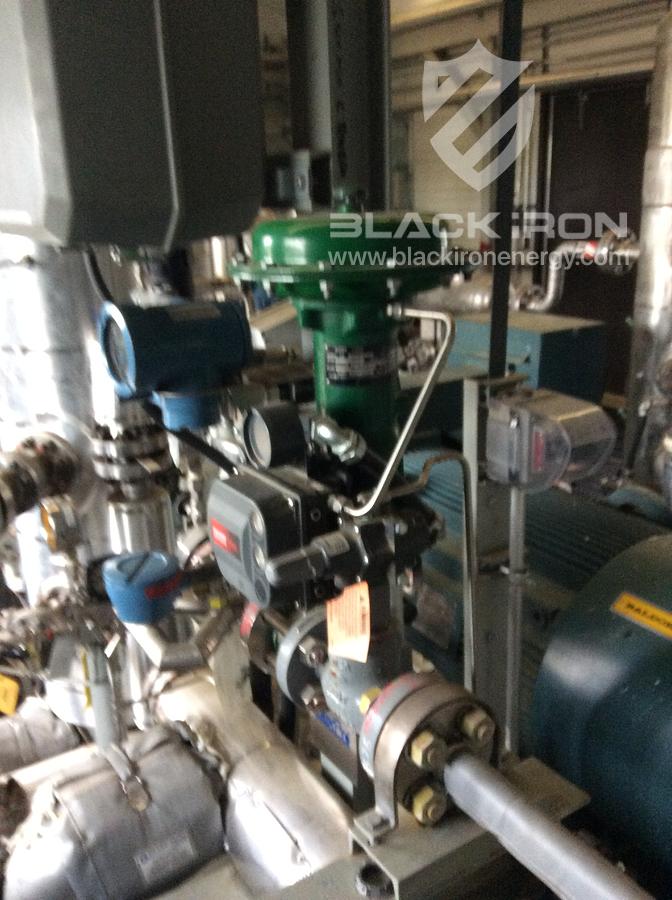

Bypass #1: Stage 3 suction side to Stage 1 suction side.

Bypass #2: Stage 5 hot side to Stage 3 hot side.

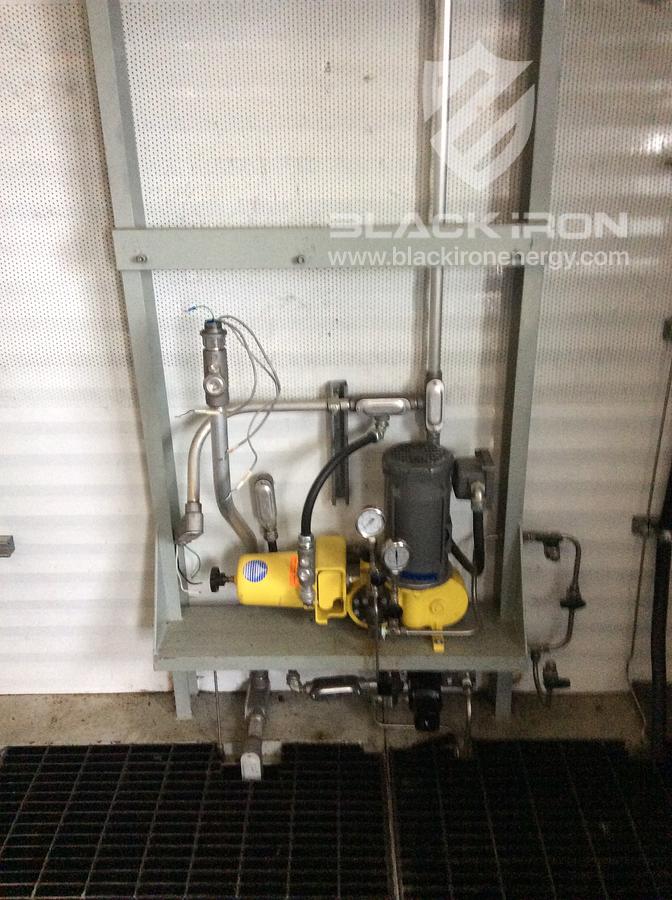

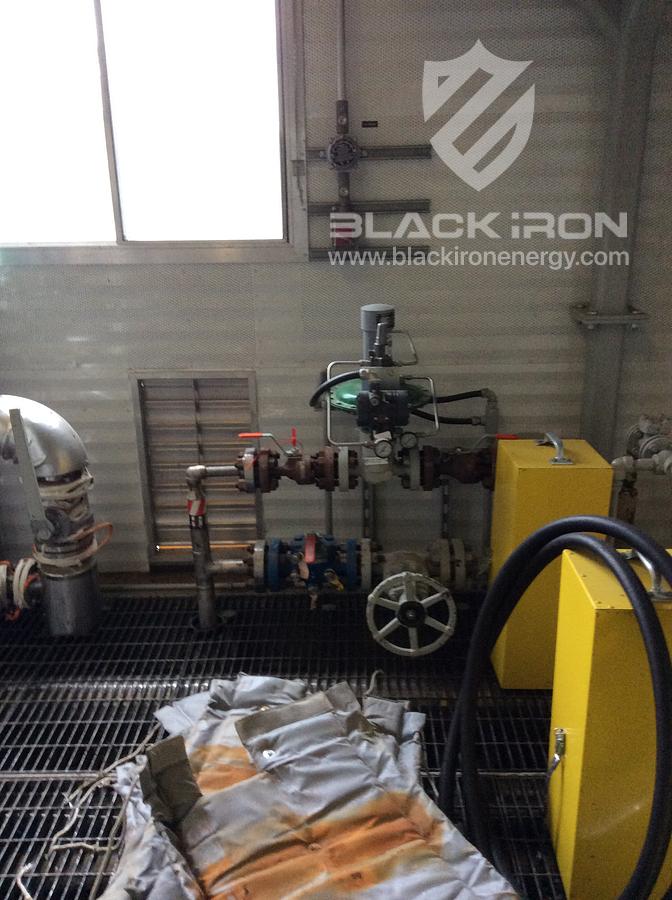

Purge gas for purge packing and maintenance purge.

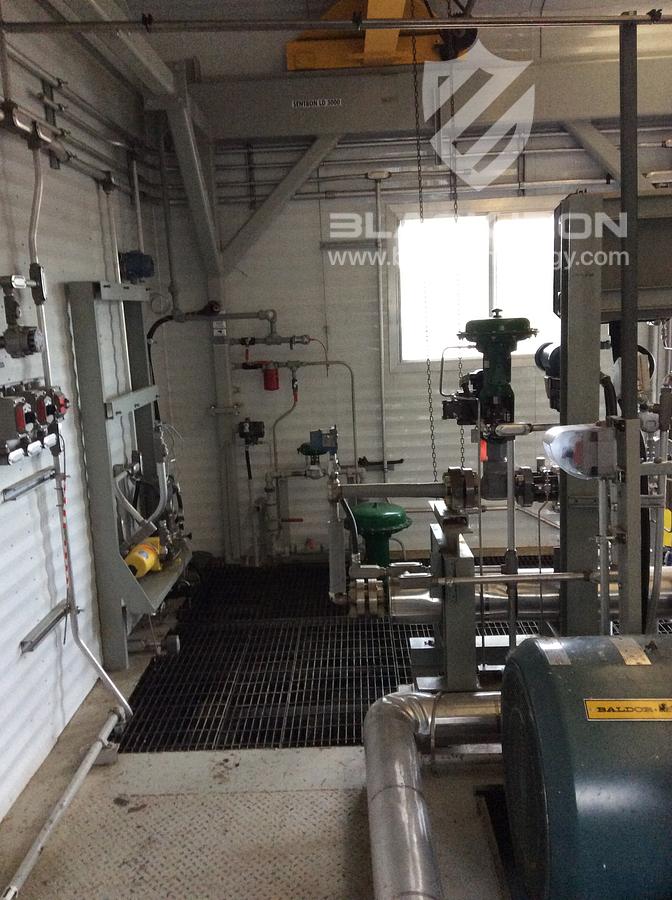

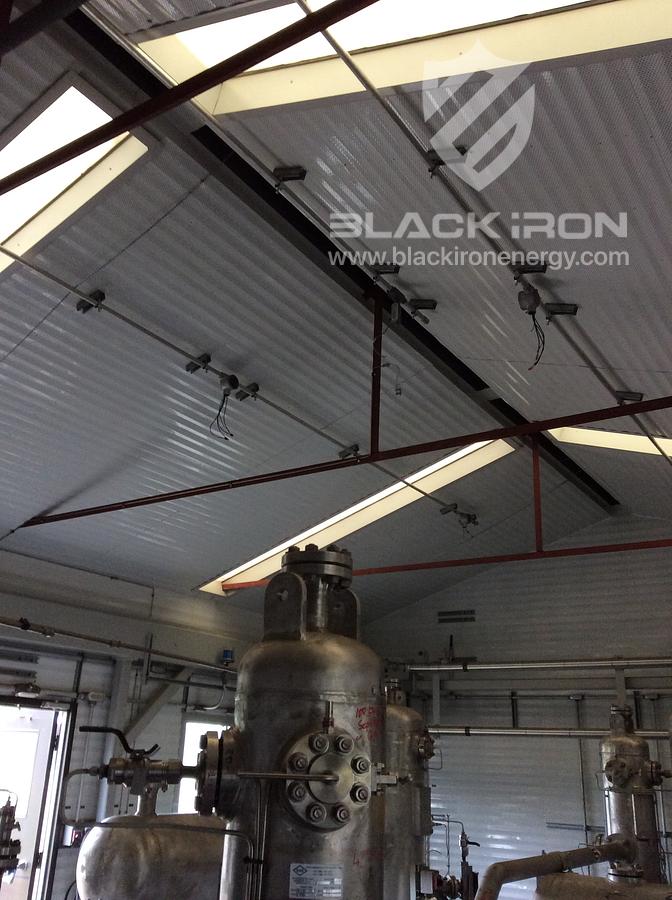

3-ton crane.

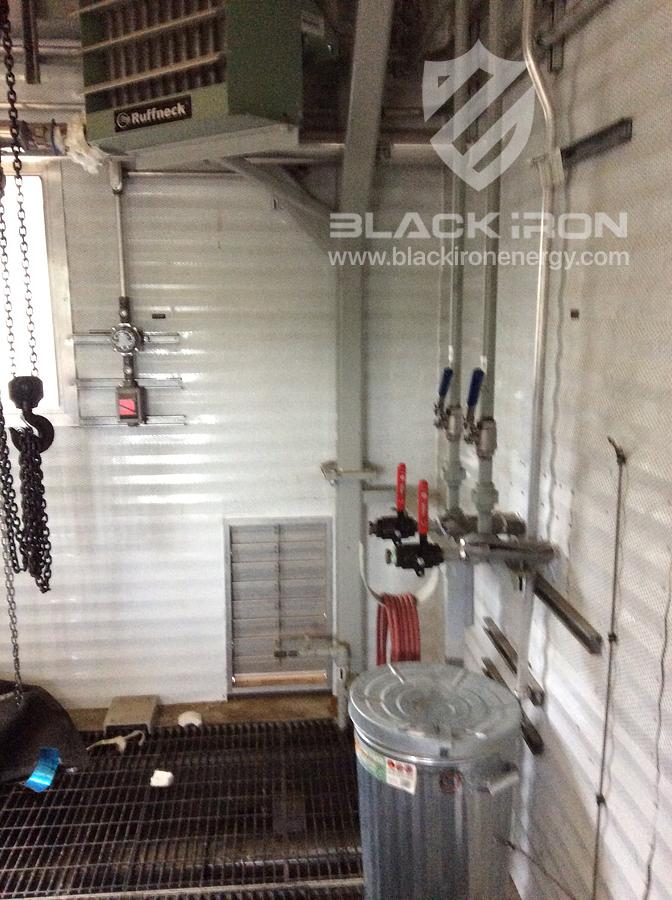

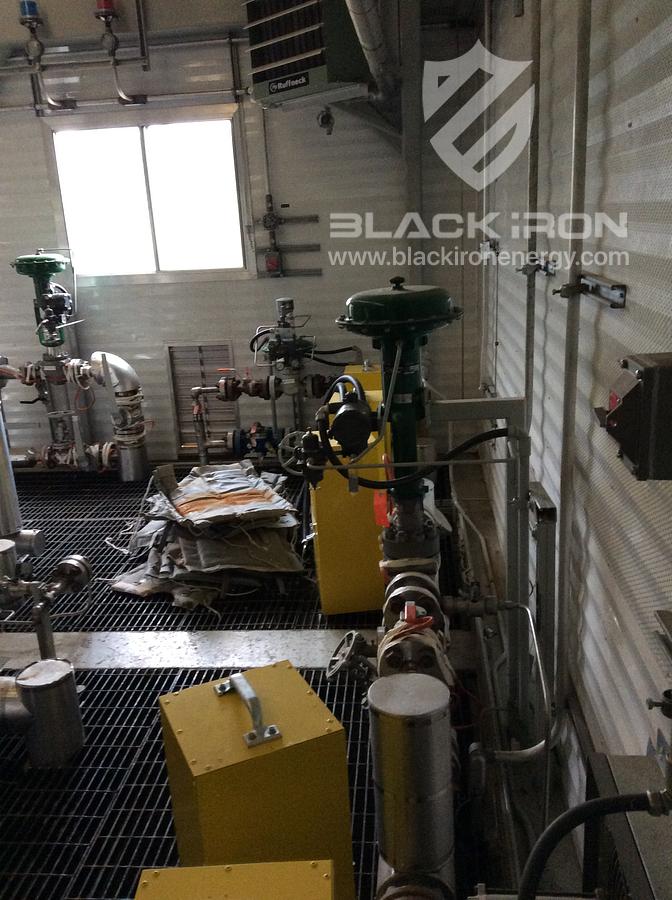

Glycol building heaters.
