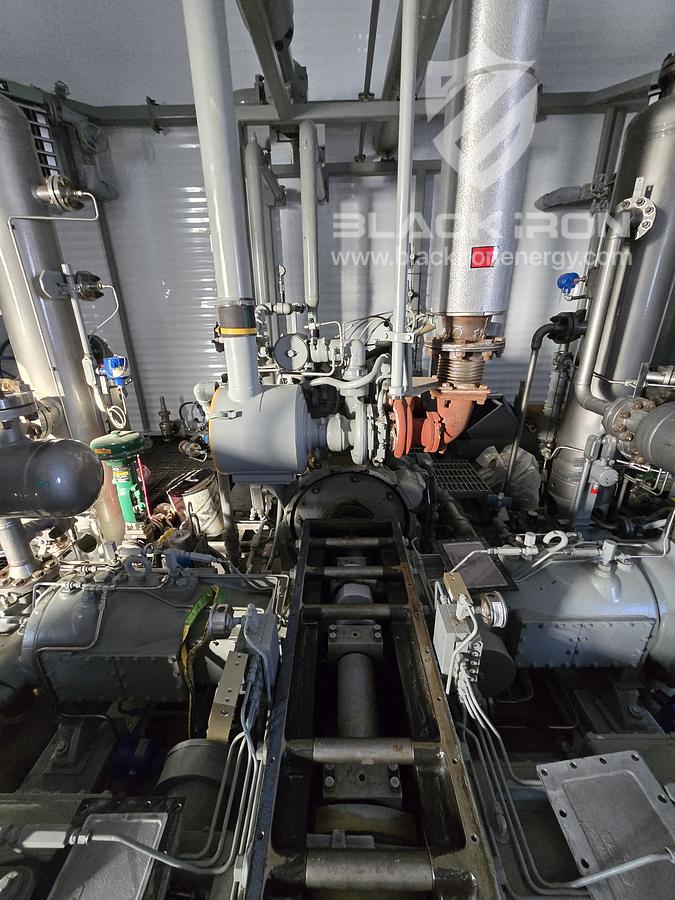

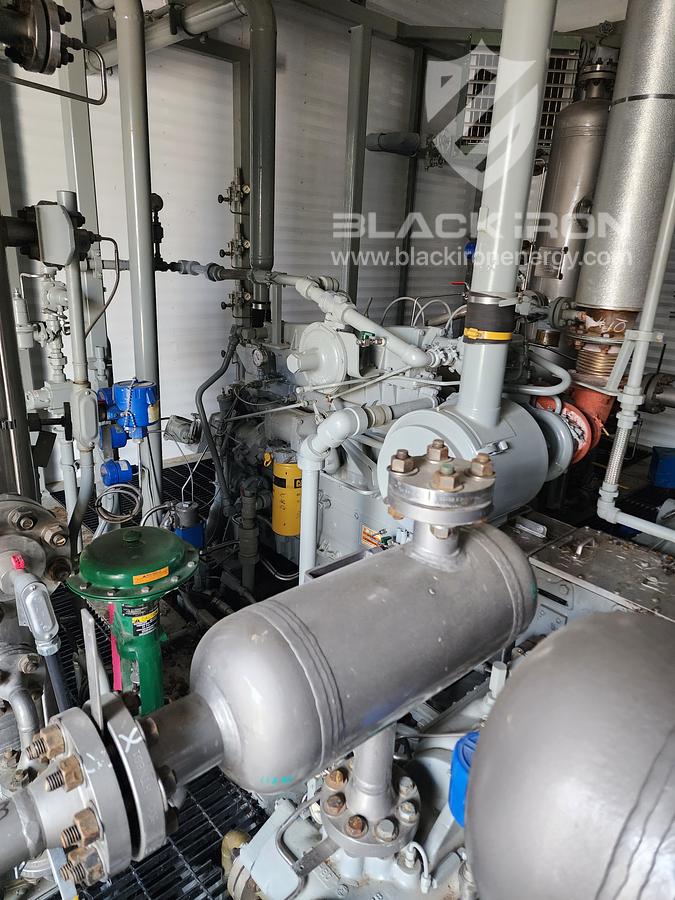

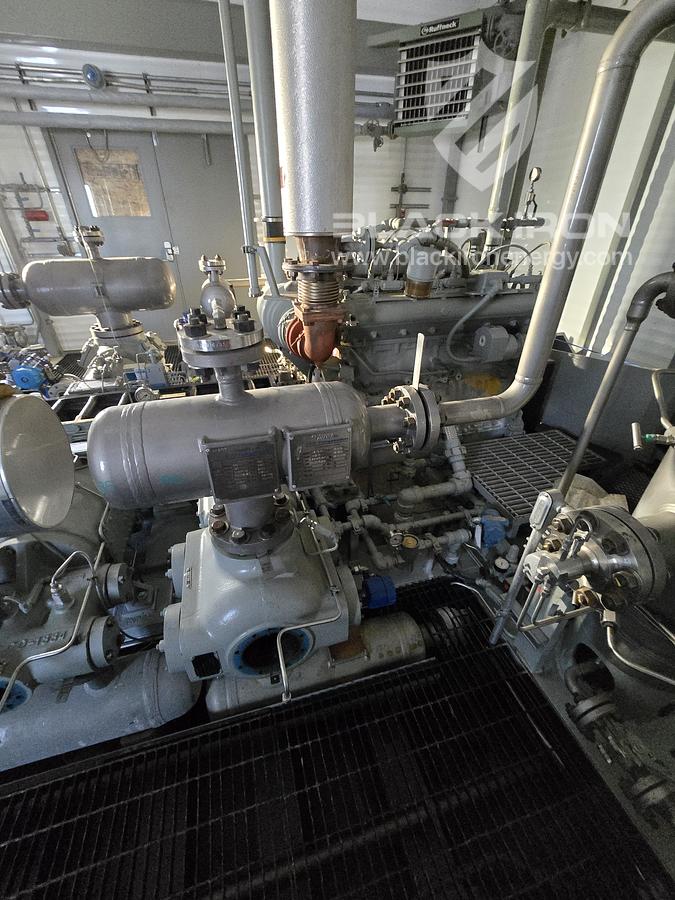

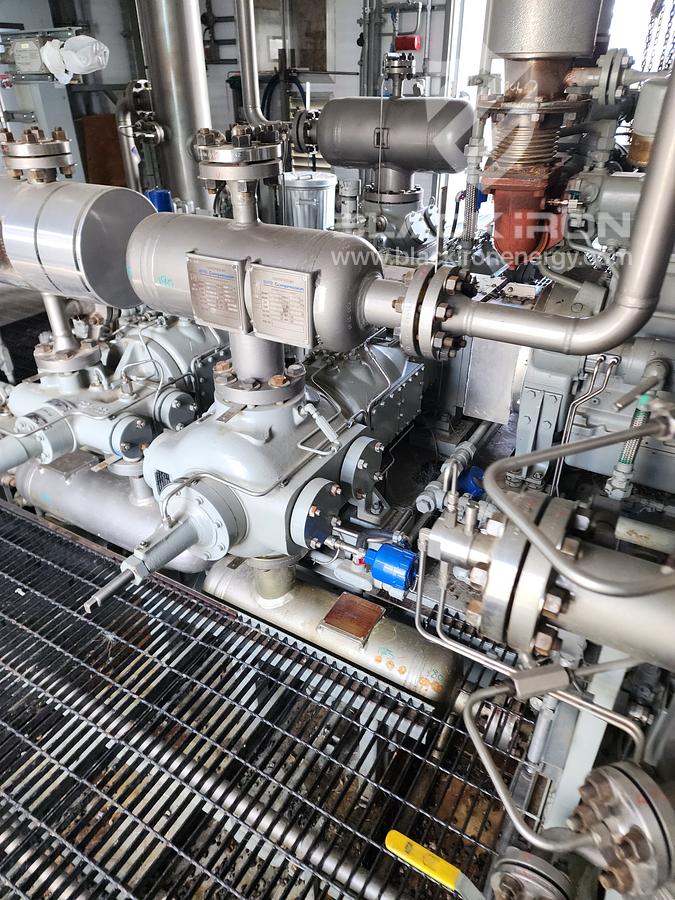

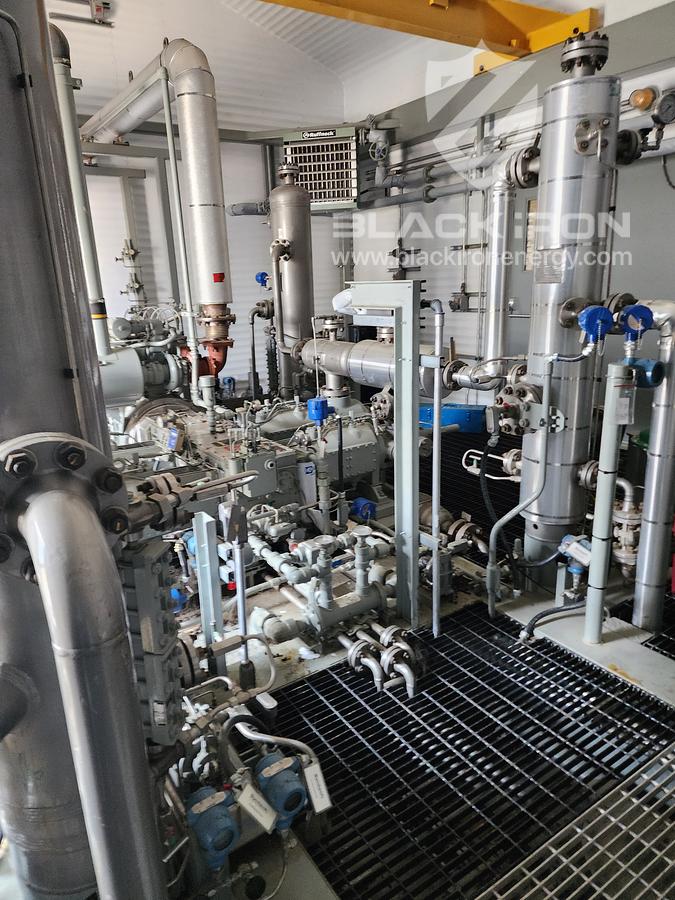

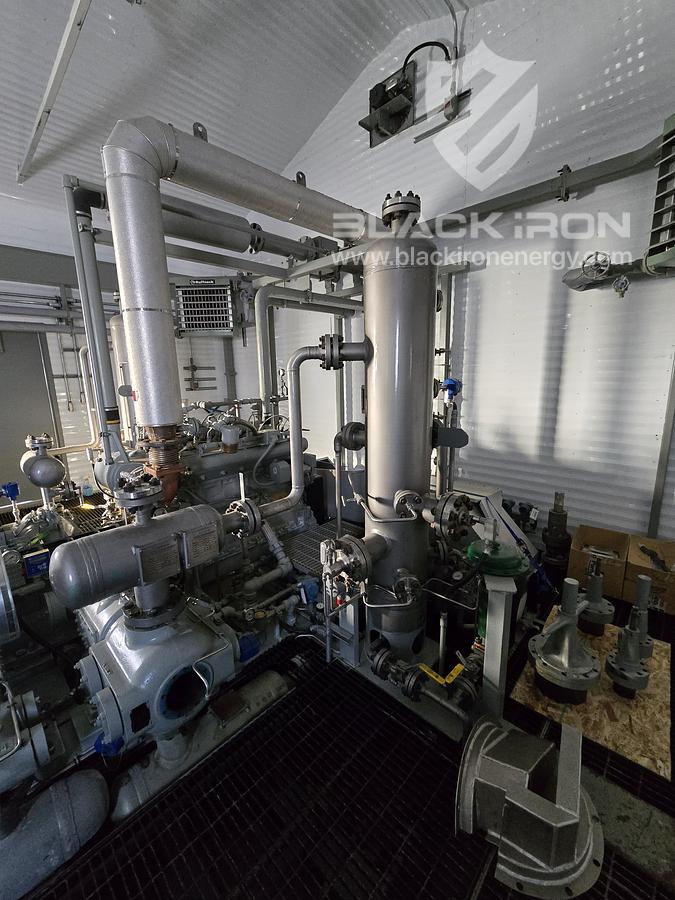

169 hp Cat 3306TA Ariel JG/4 4-Stage Acid Gas Compressor

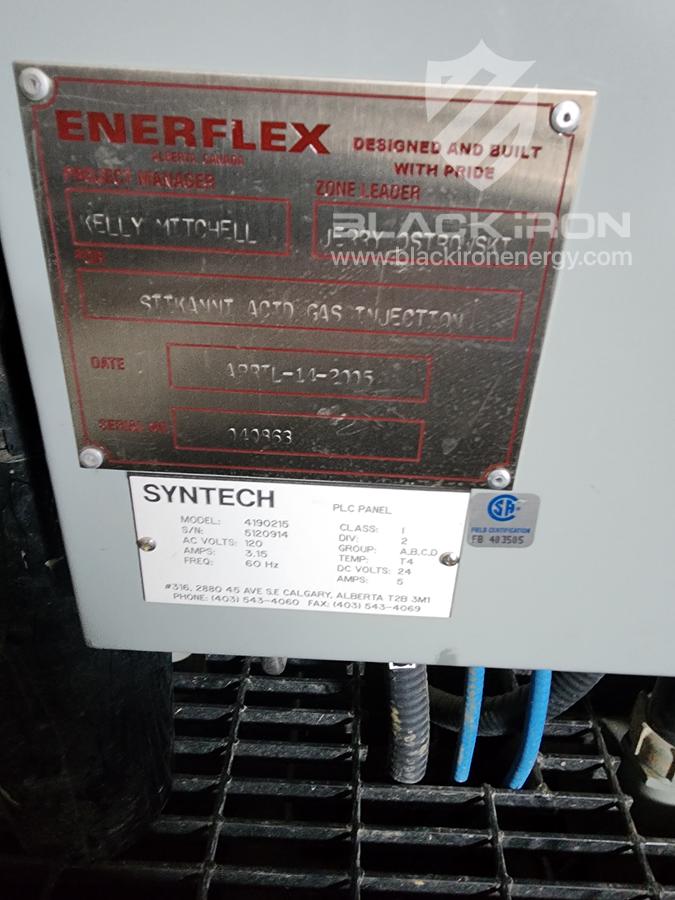

This is a low hour unit in pristine condition. It was packaged by Enerflex in 2005.

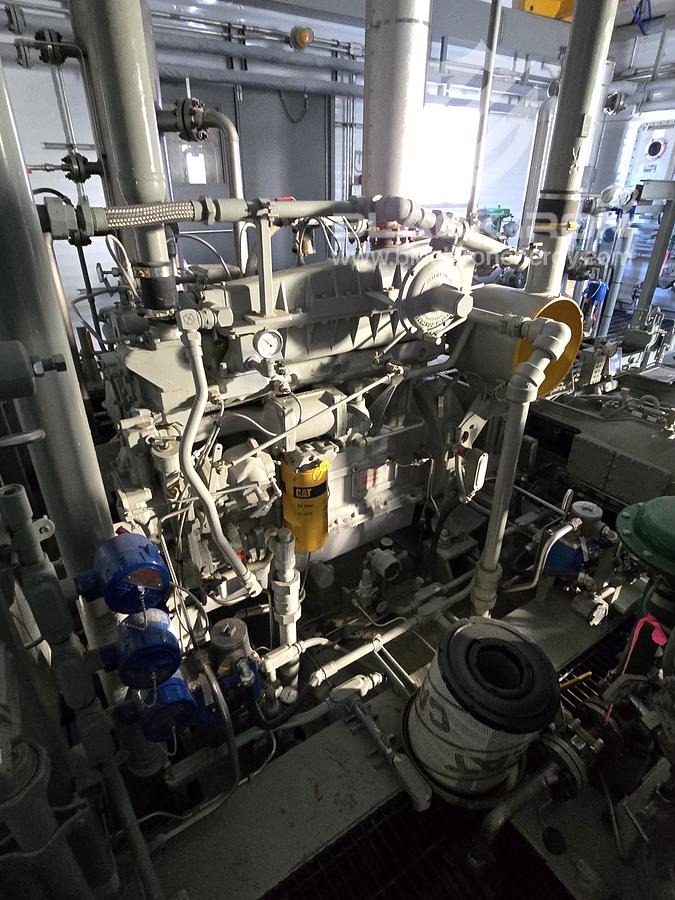

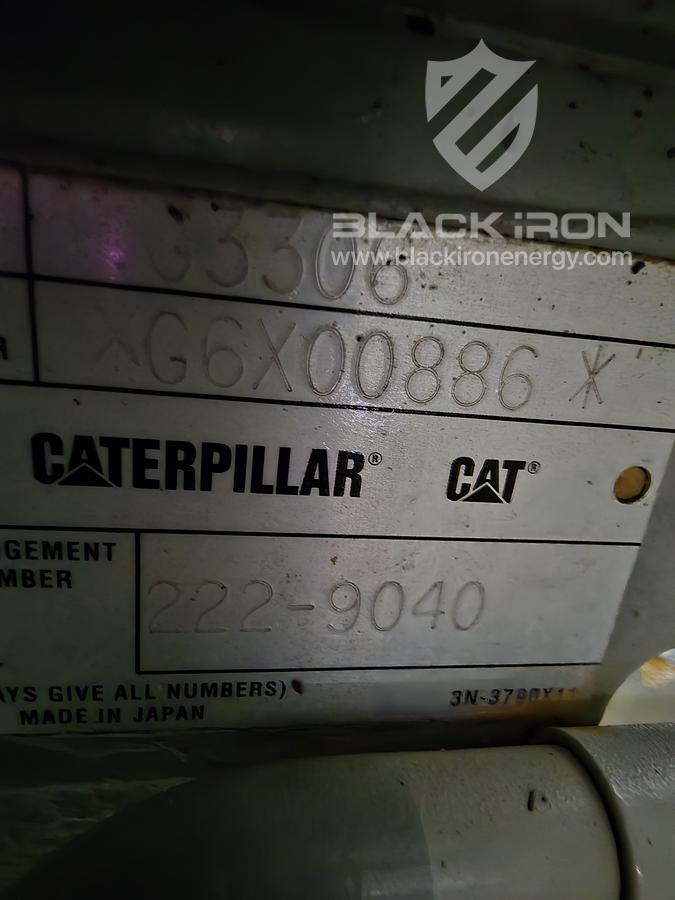

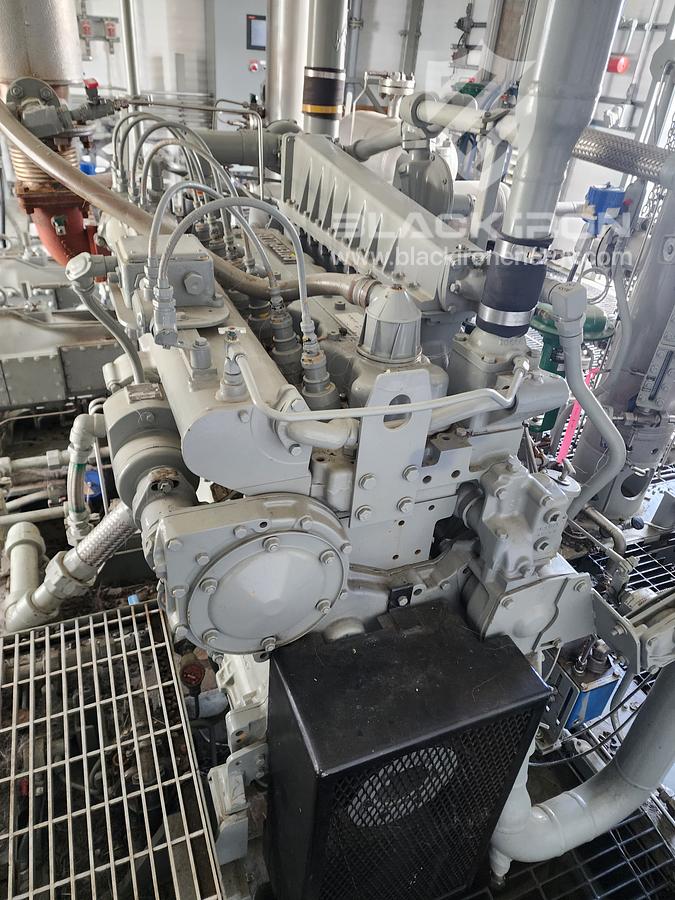

• Caterpillar G3306NA natural gas engine rated 169 hp at 1500 rpm, SN.G6X00886.

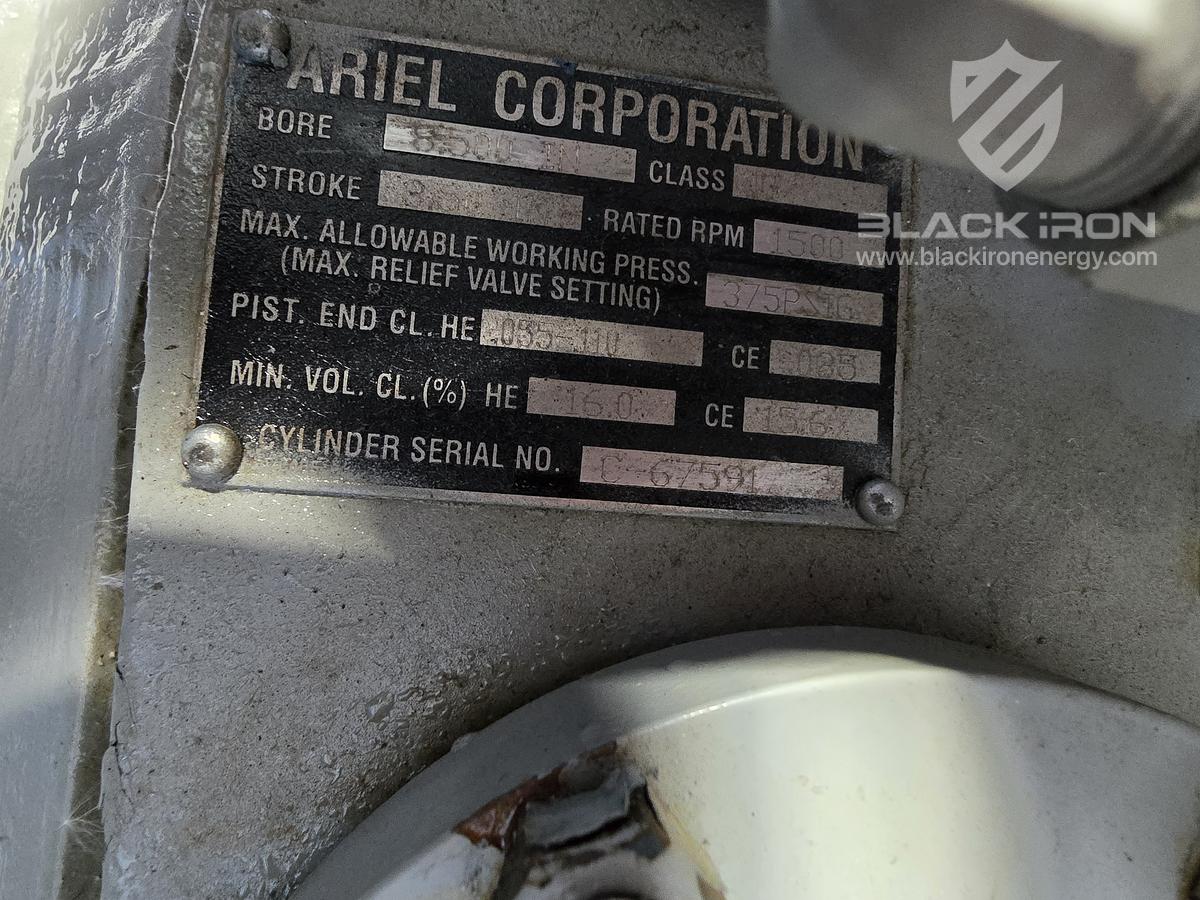

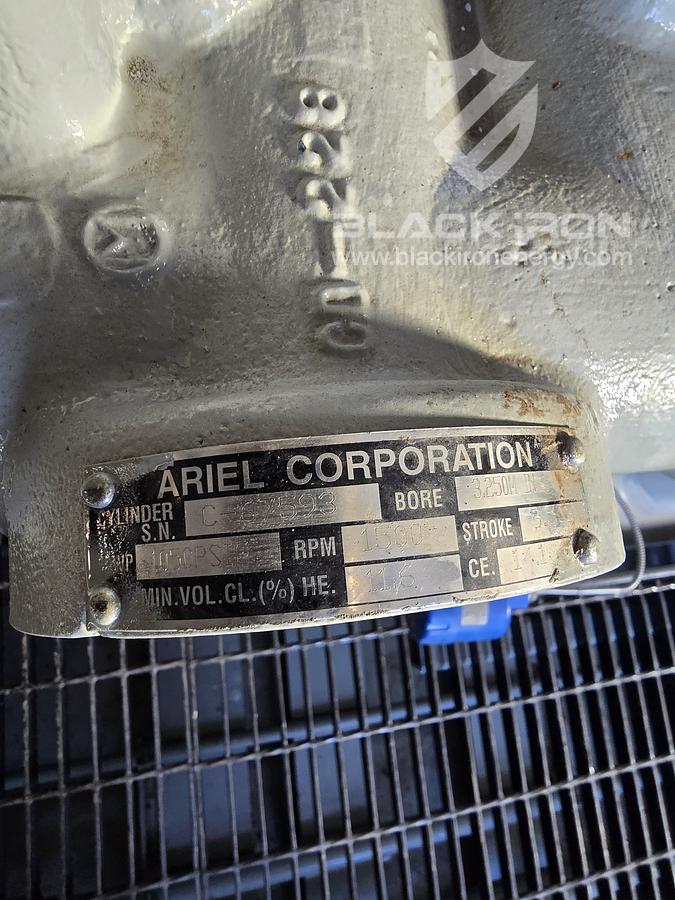

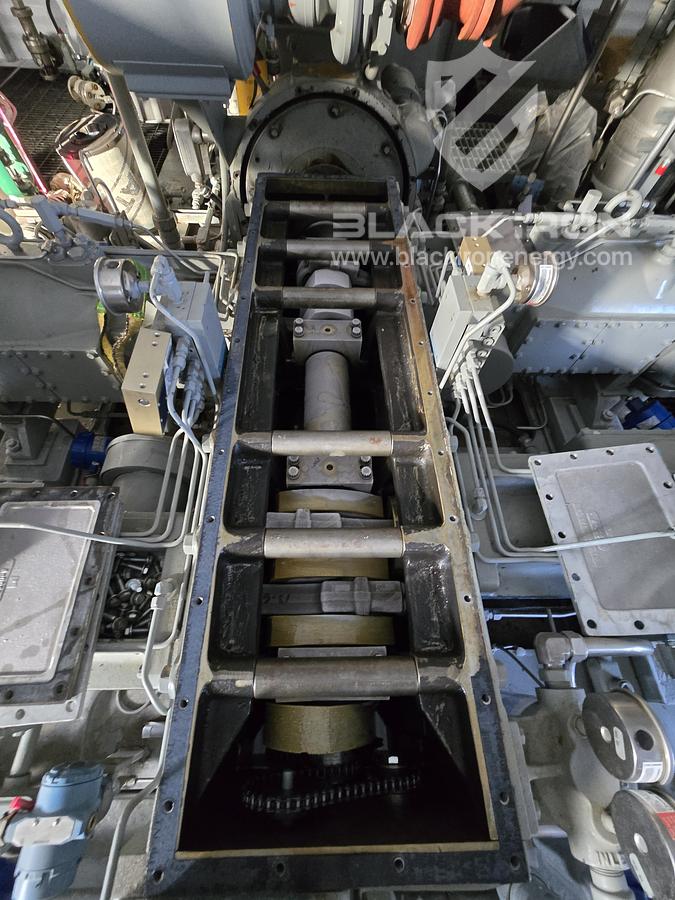

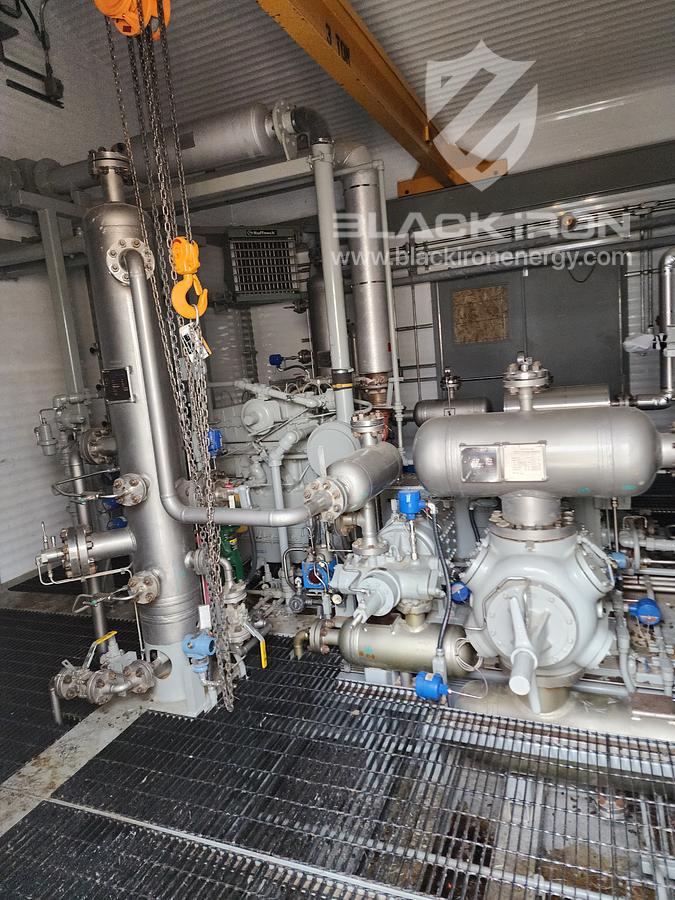

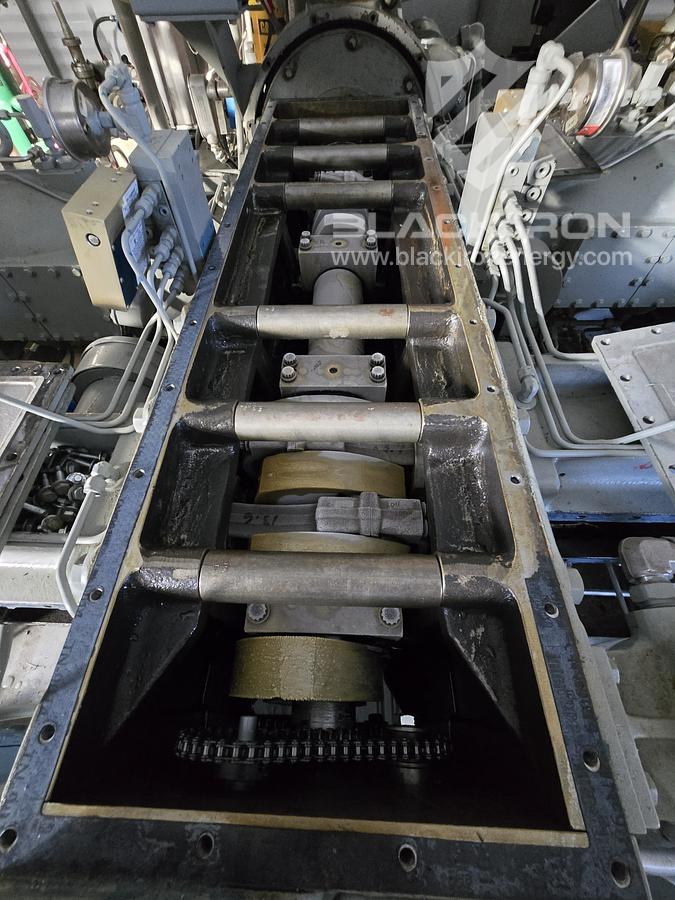

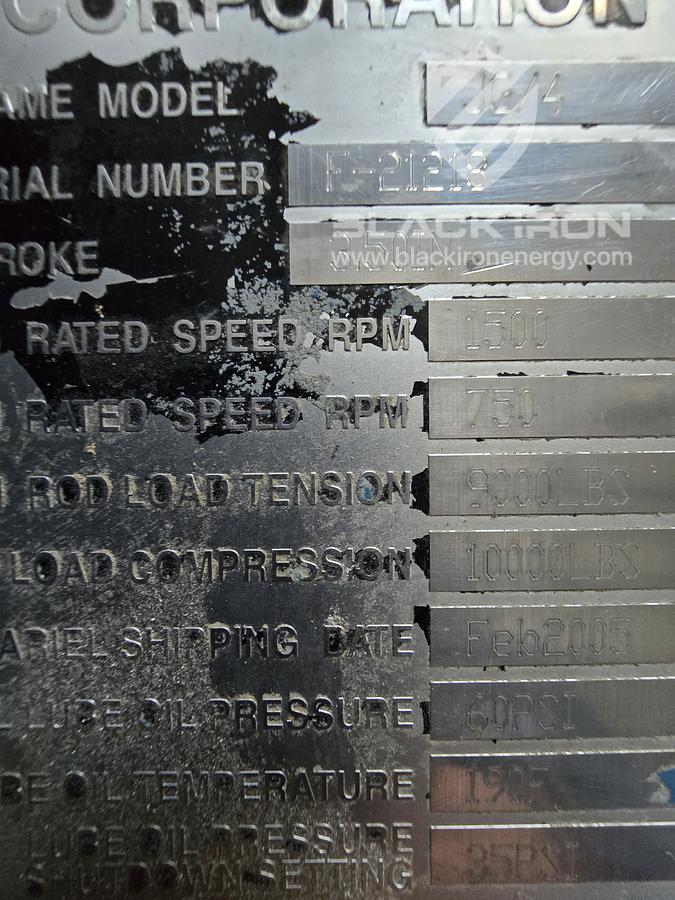

• Ariel JG/4 1500 rpm, 4-throw, 4-stage recip compressor, SN.F-21218:
• Long two-compartment distance pieces.

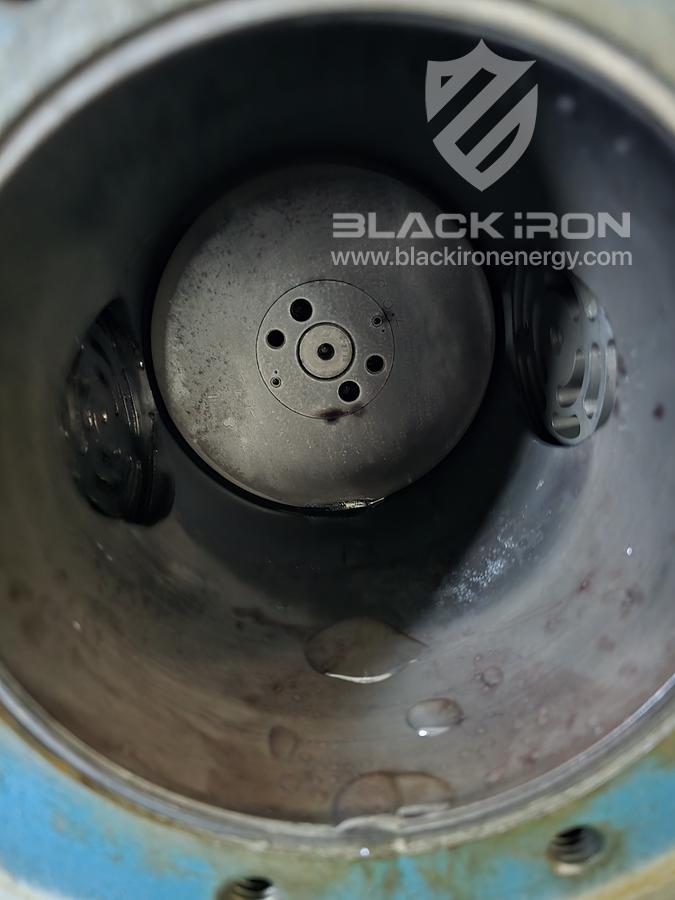

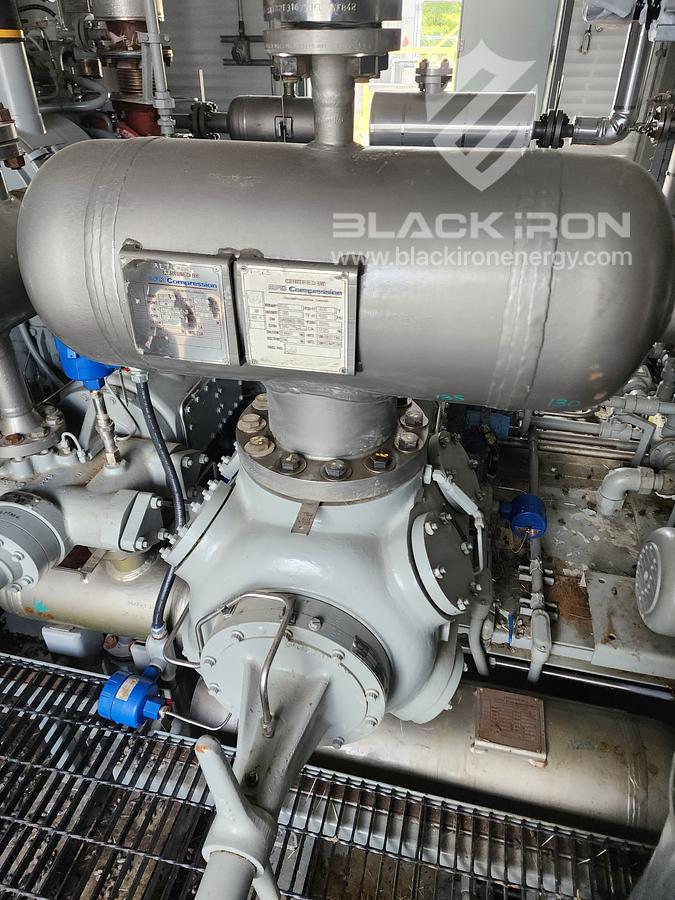

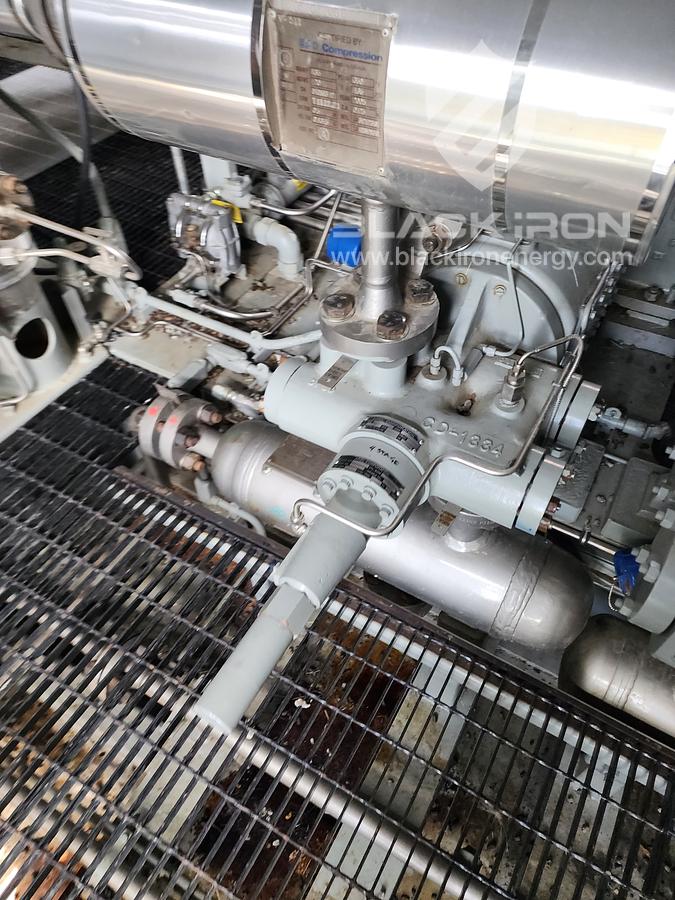

• (1) 8.500"JG cylinder rated 375 psig MAWP.
• (1) 5.125"JG cylinder rated 865 psig MAWP.

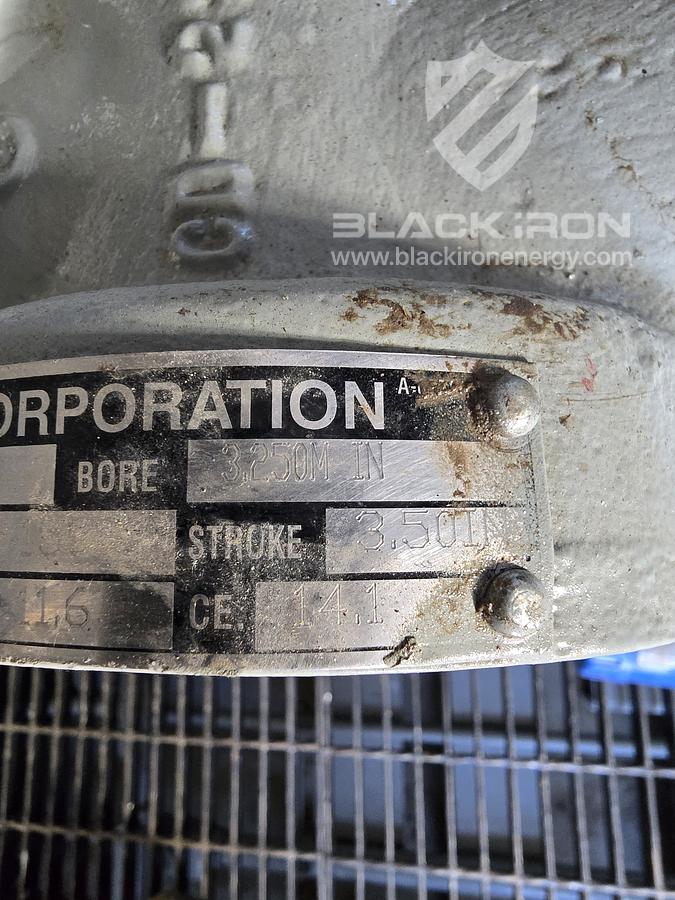

• (1) 3.250"M cylinder rated 1050 psig MAWP.

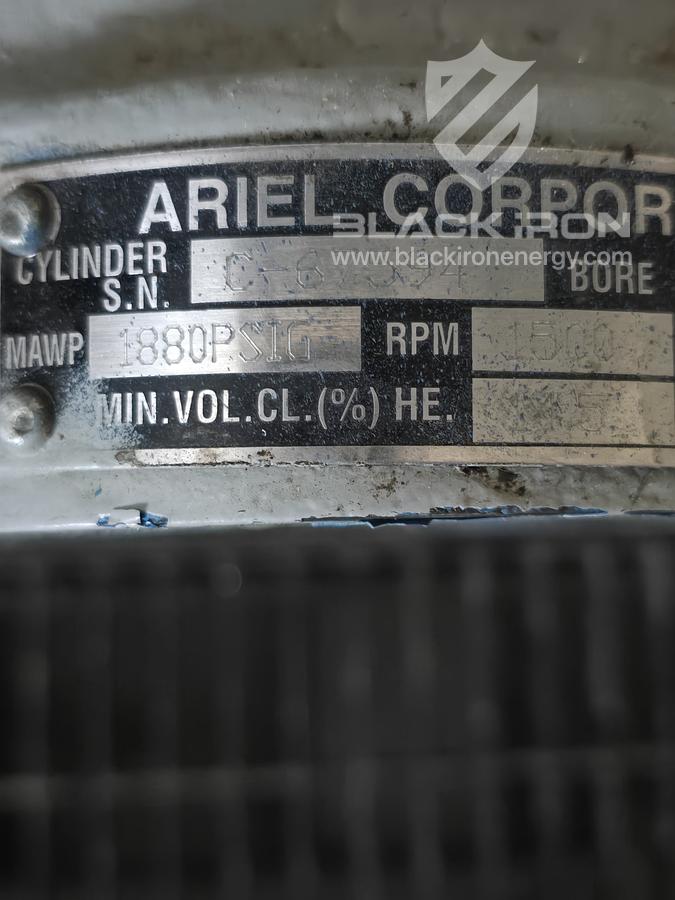

• (1) 2.500"M cylinder rated 1880 psig MAWP.
• Each cylinder c/w flushing oil & sweet gas purge packing.

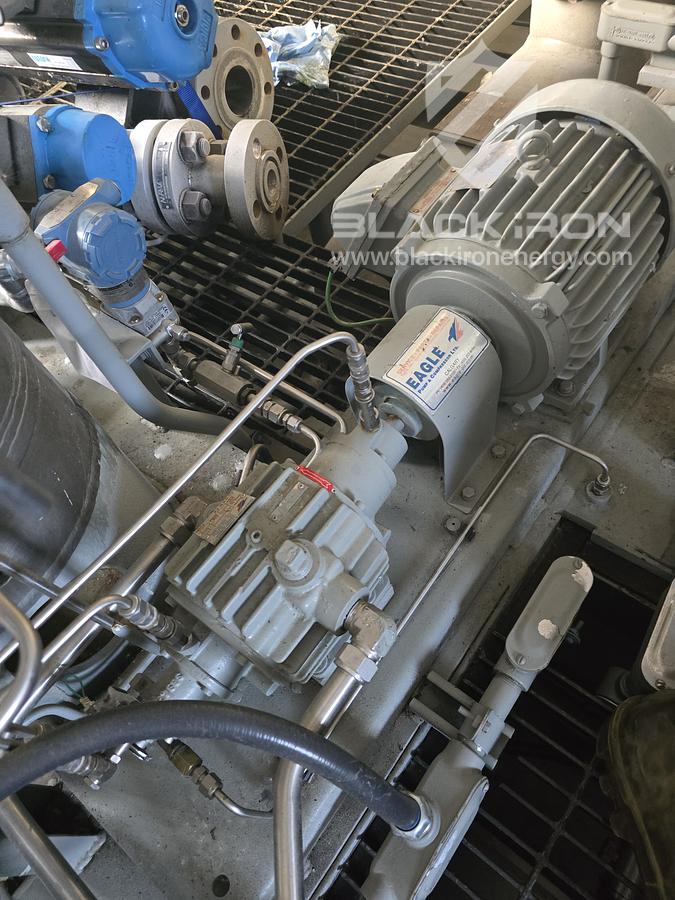

• Seal pot c/w vacuum pump.

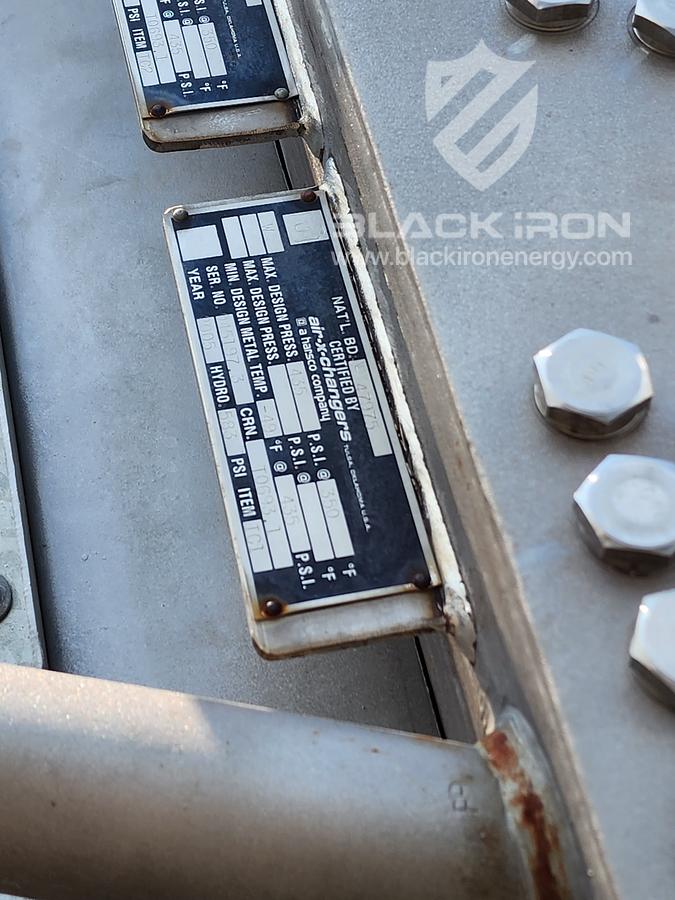

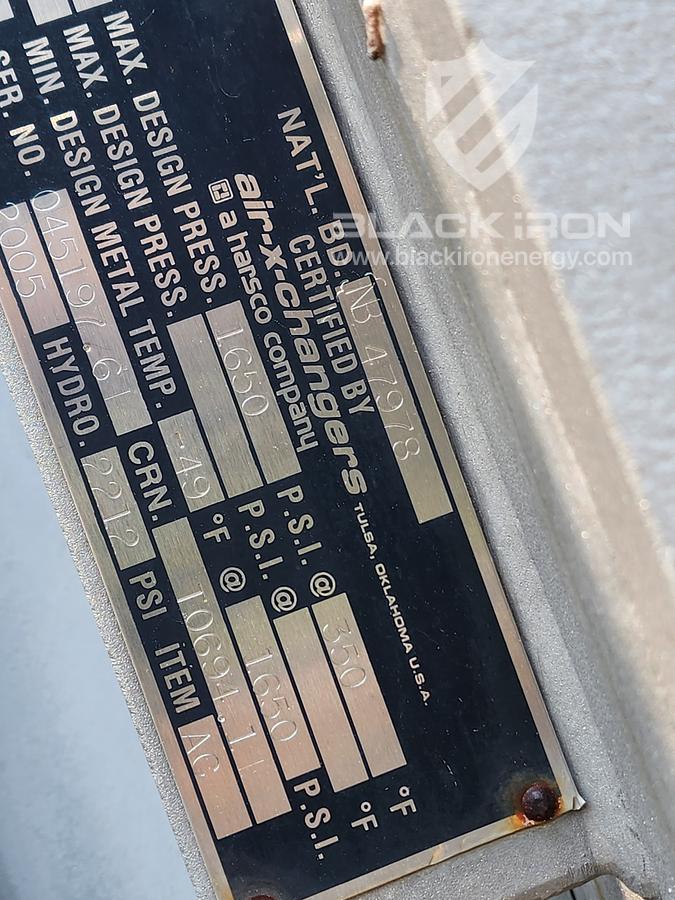

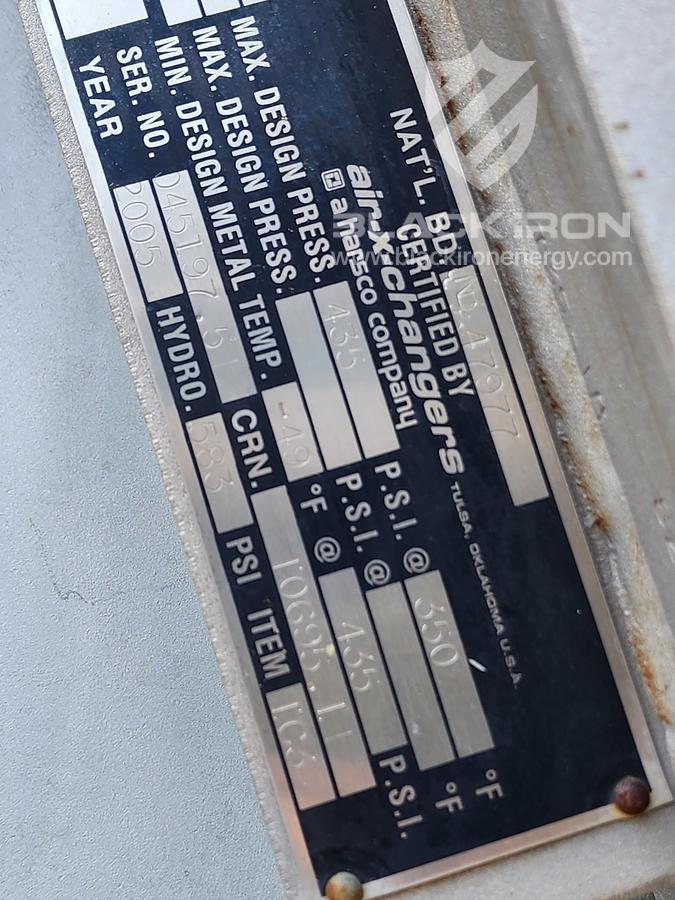

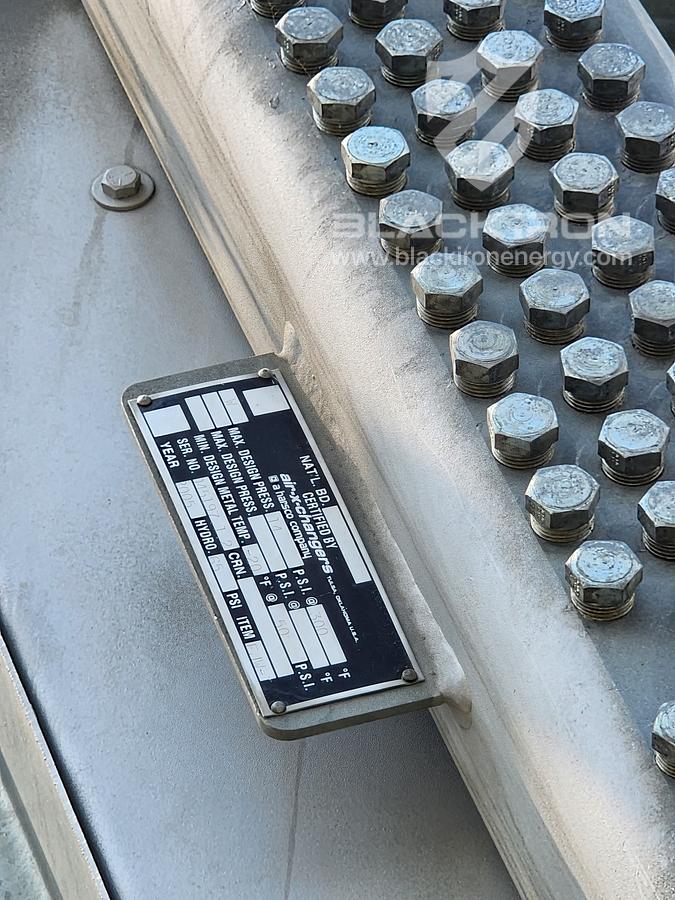

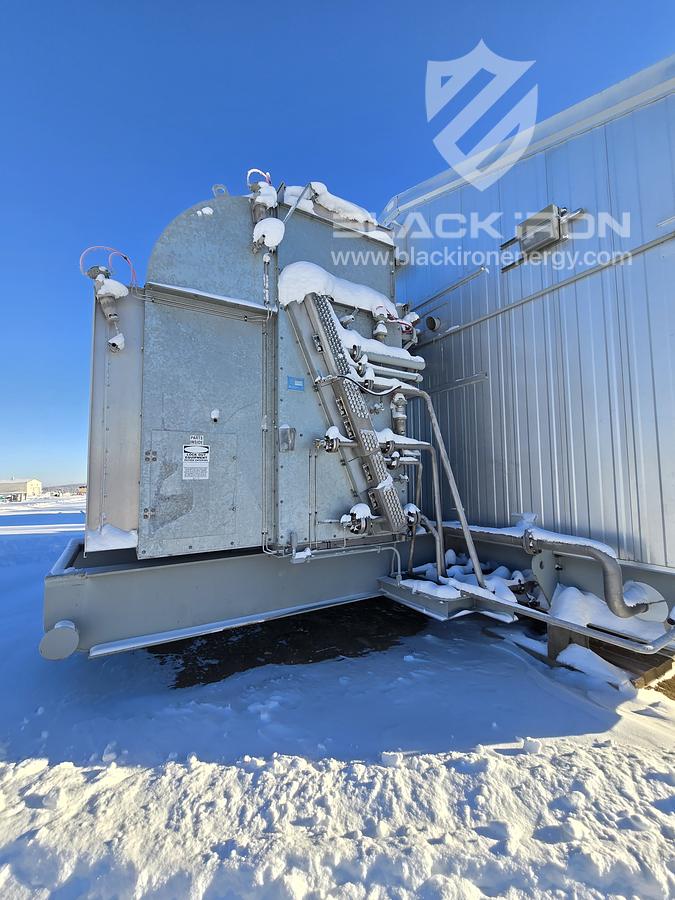

• Air-X-Changer 72-AEH jackshaft driven skid mounted cooler c/w 316SS gas section tubes, separate louver control on each gas section, and auto warm air recirc system.

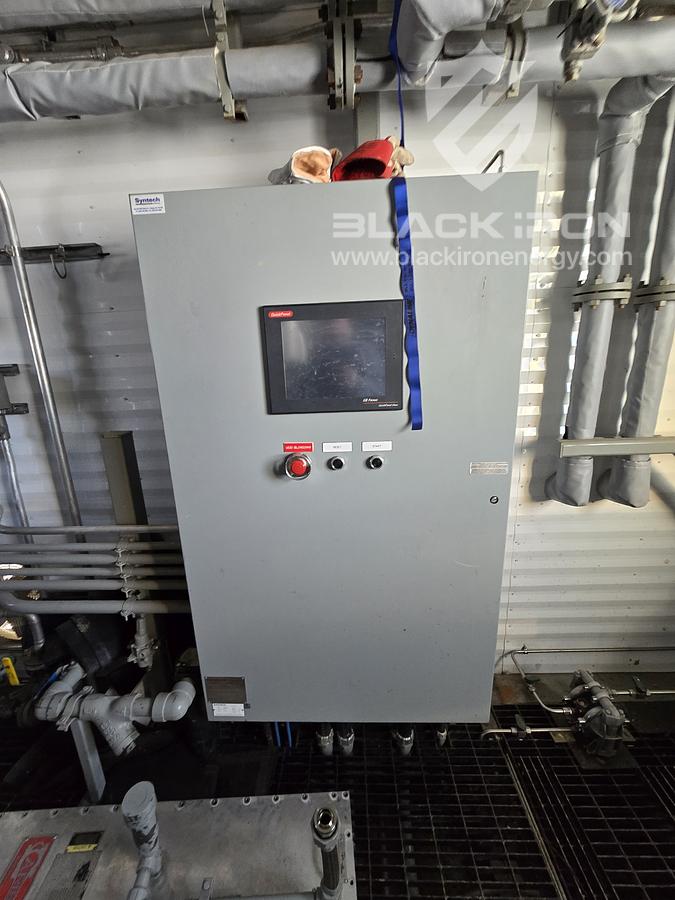

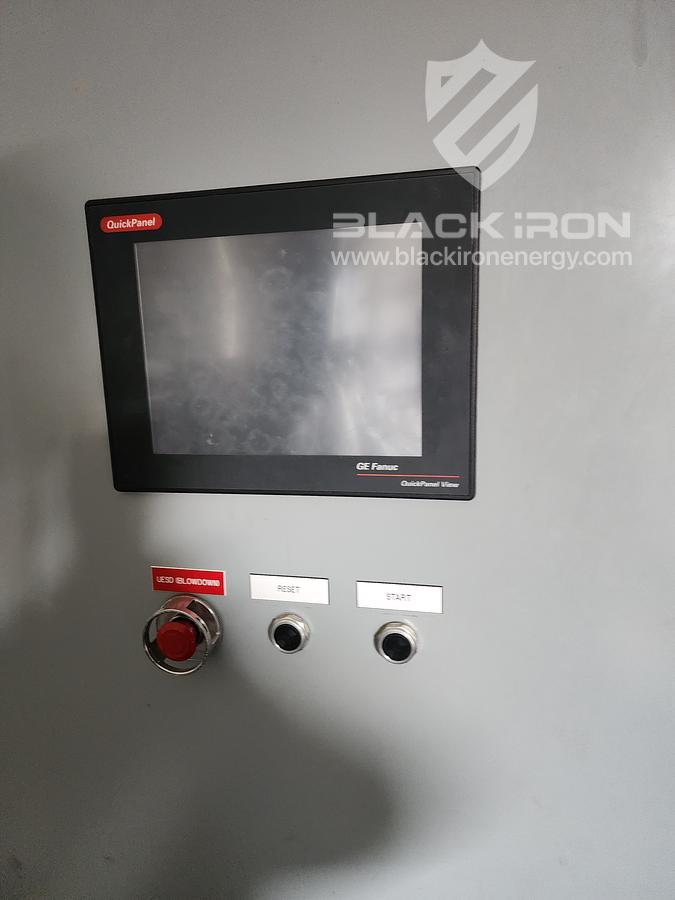

• GE Fanuc PLC control panel.
• Hot Auto Recycle (stage 4 discharge to initial suction).
• Cold Auto Recycle (final discharge to initial suction).
• Auto blowdown.
• Sweet gas maintenance purge.
• Heat exchanger on Stage 3 discharge.

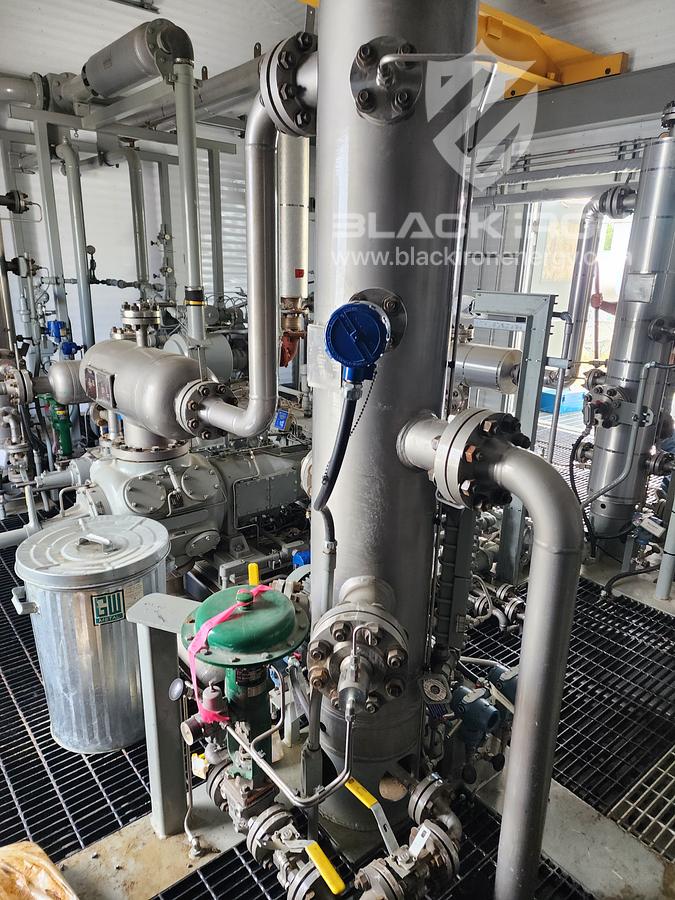

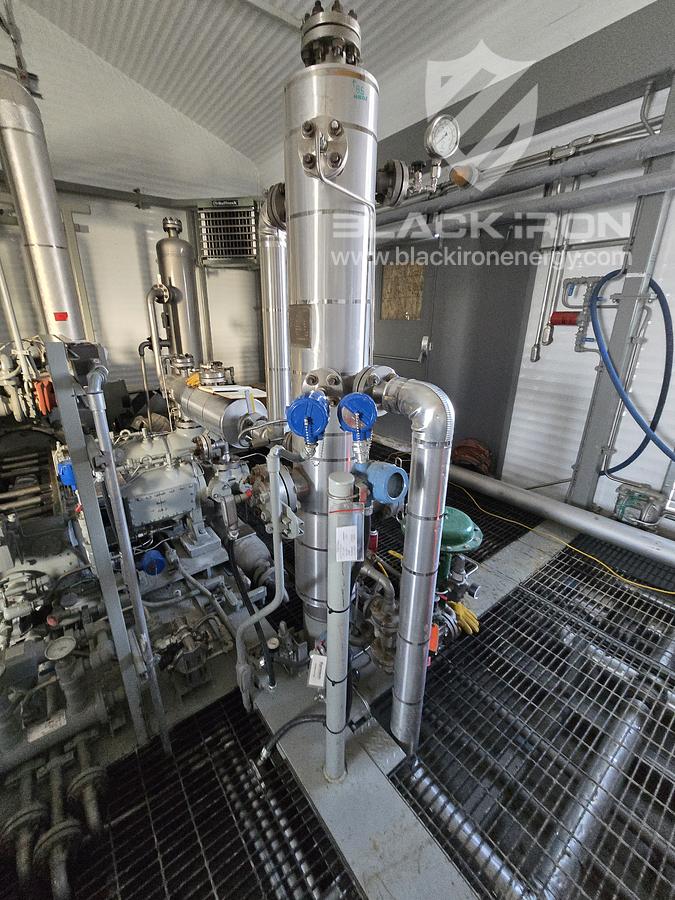

• Cascading scrubber drains.
• Sour water flash drum on Stage 2 scrubber drain.

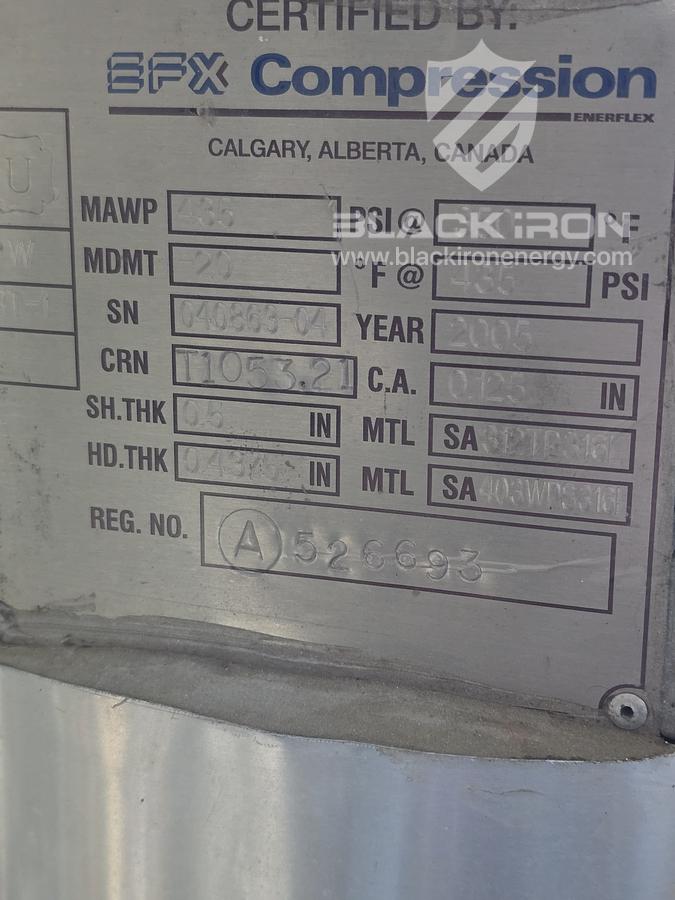

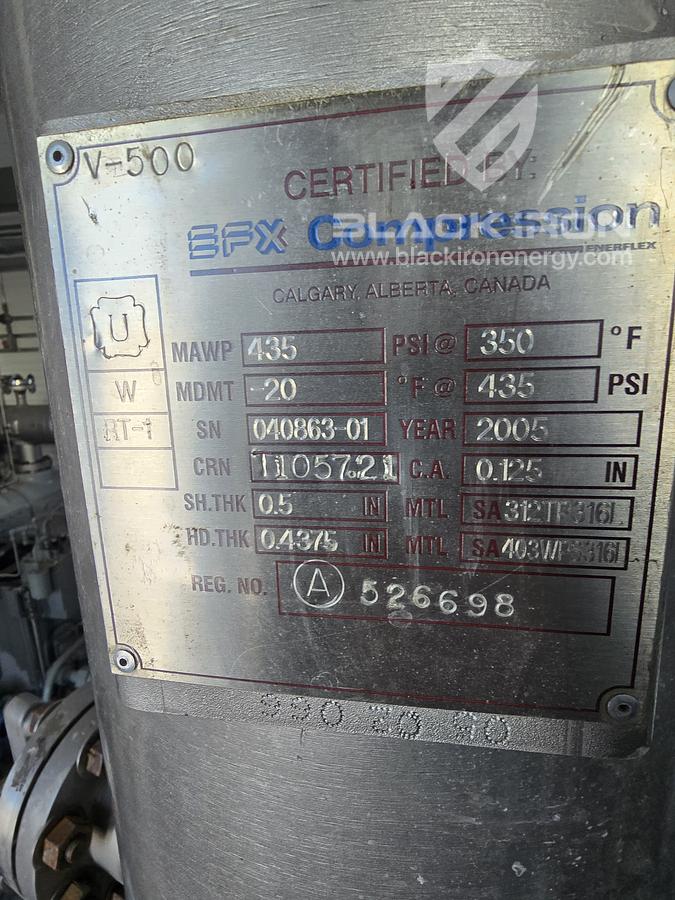

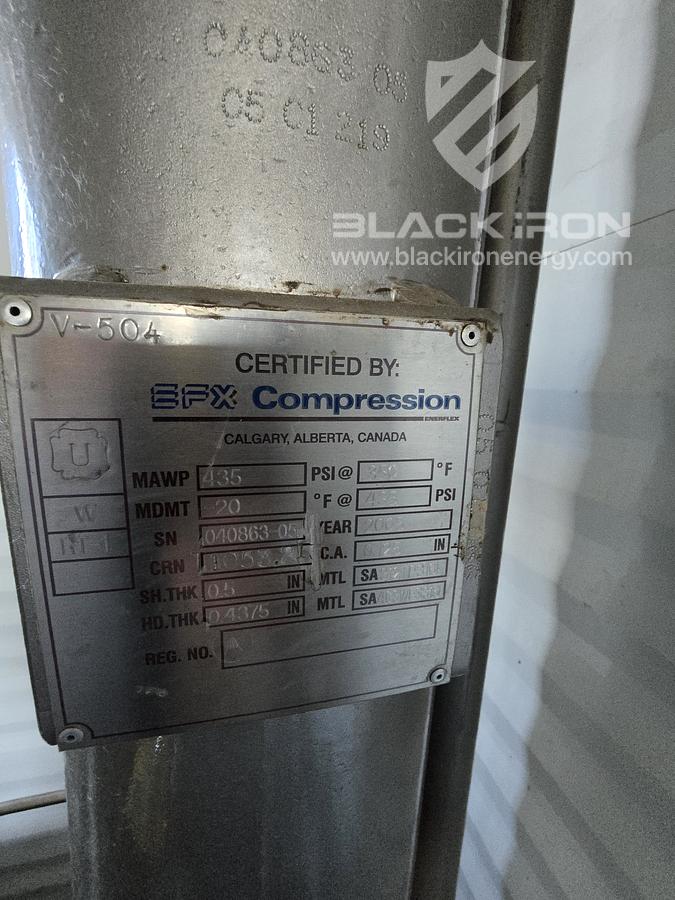

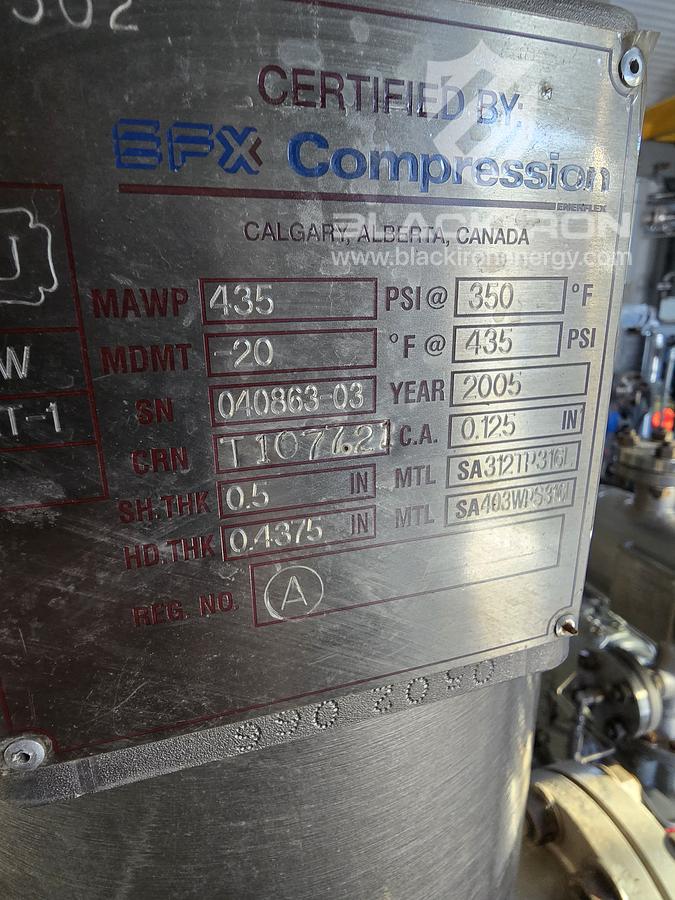

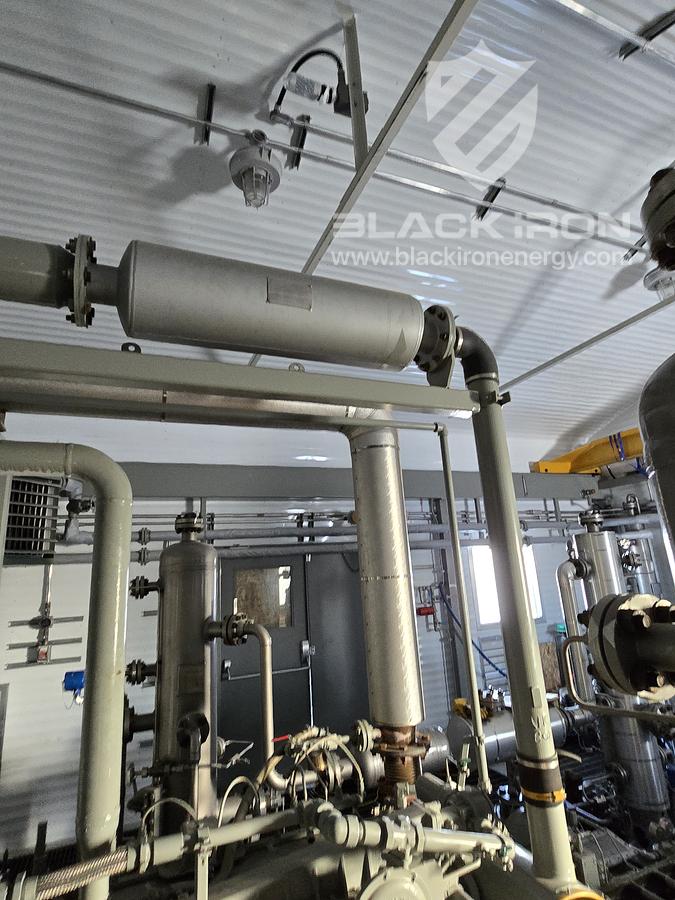

• All flanged, 316SS vessels, piping, & valves.
• Final discharge rated 1650 psig MAWP.

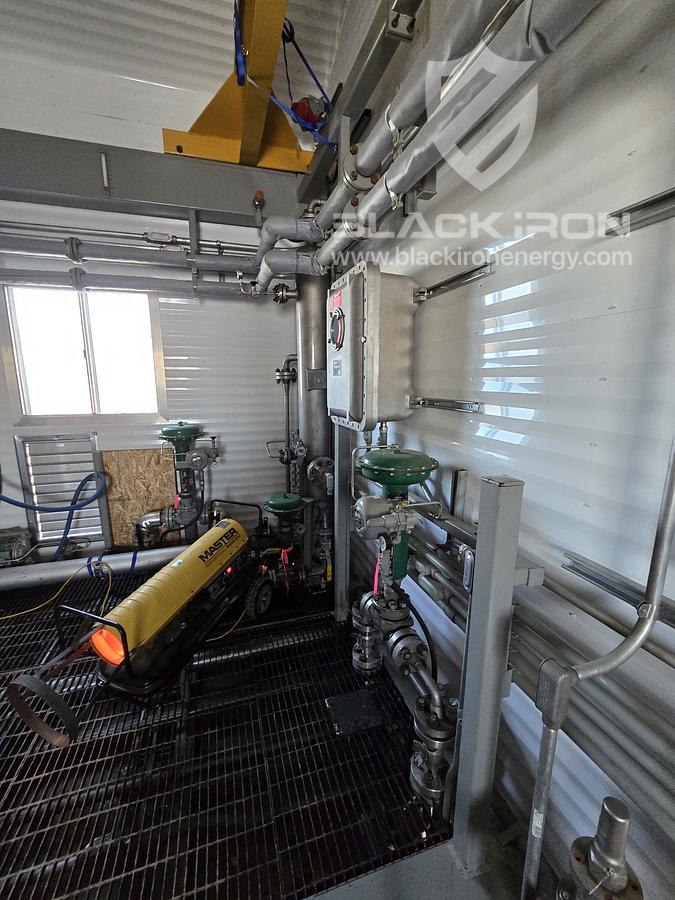

• (3) Ruffneck glycol building heaters.
• Oil & Glycol transfer stations.

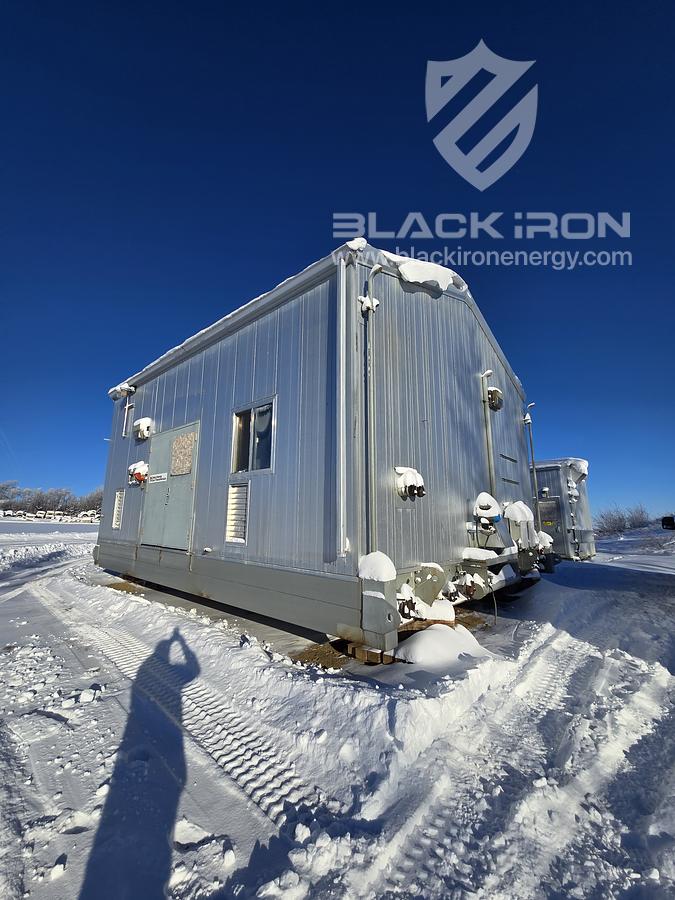

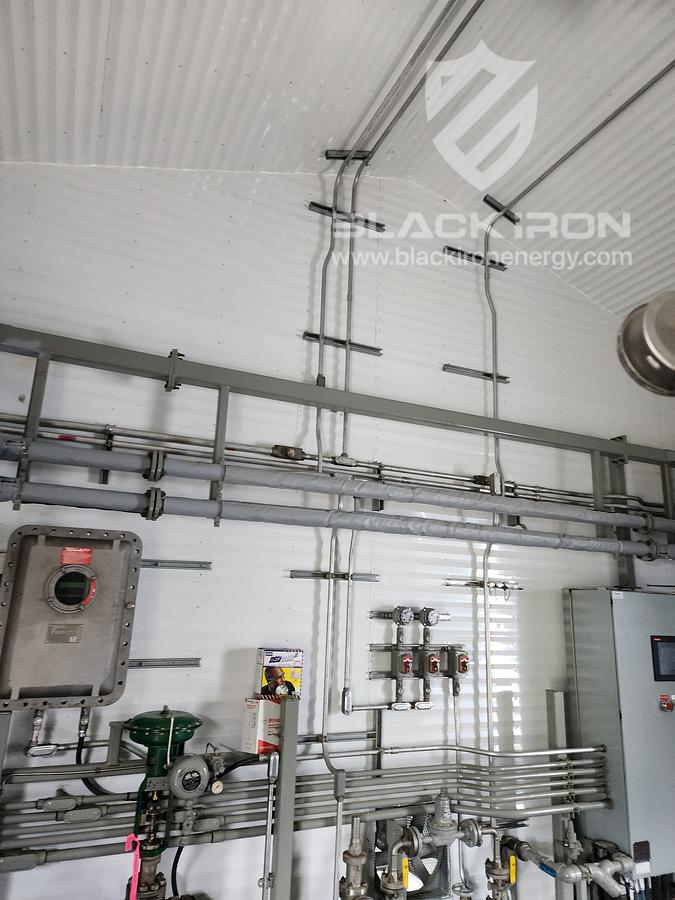

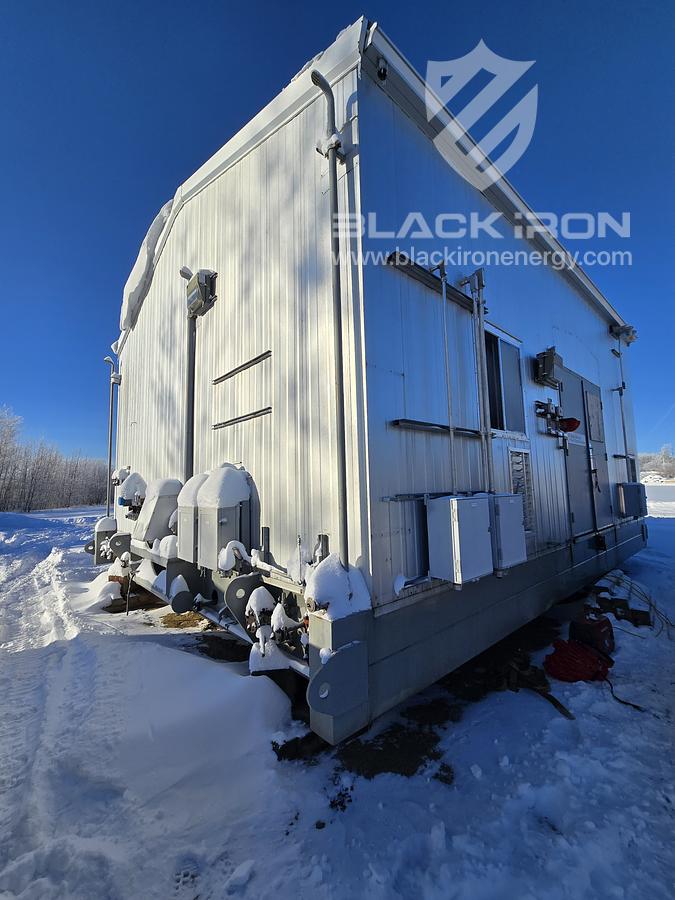

• Full building electrical.

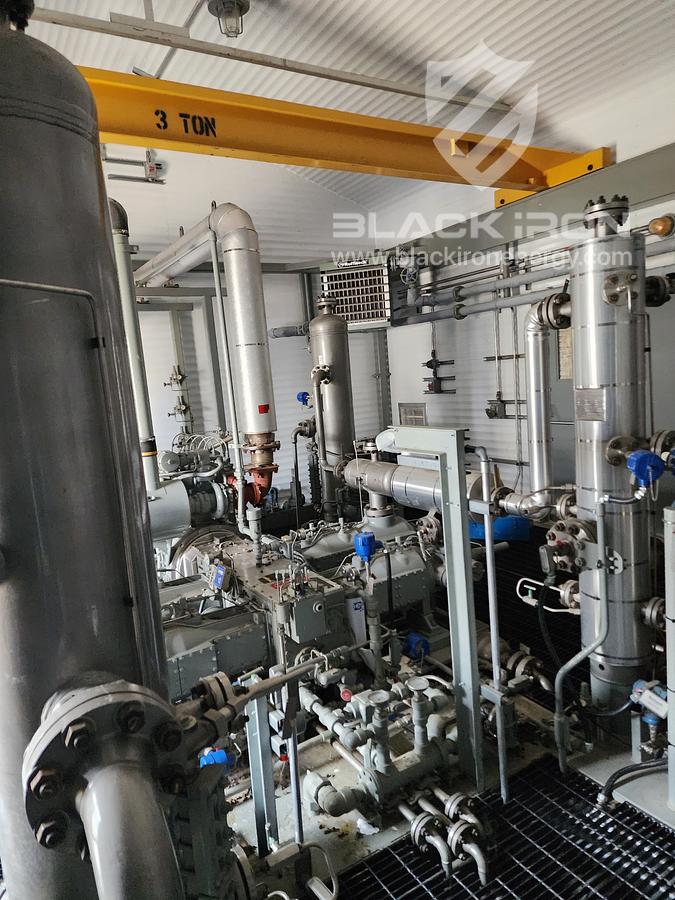

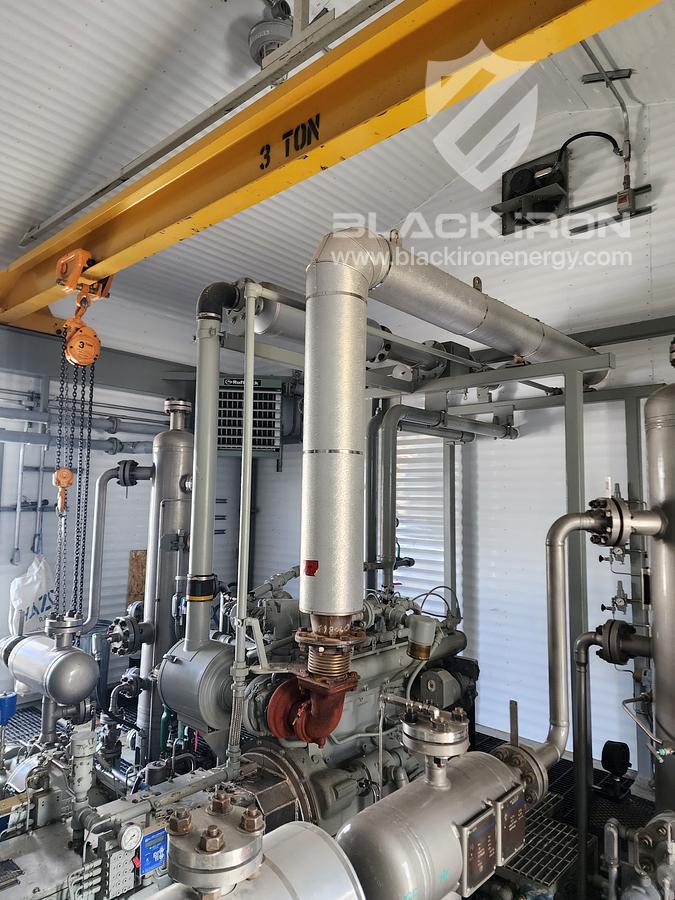

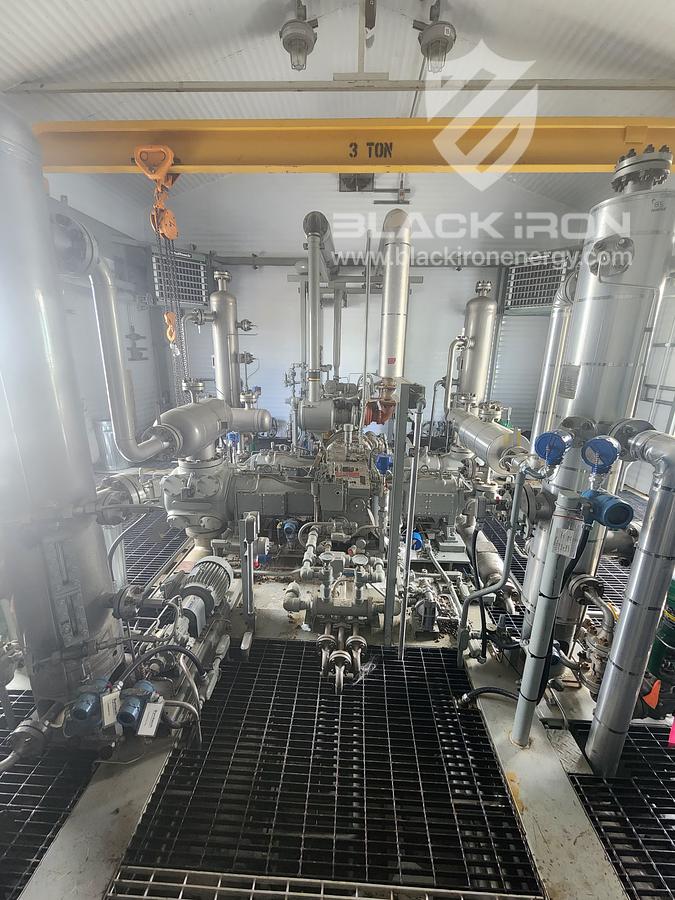

• 3-ton bridge crane.

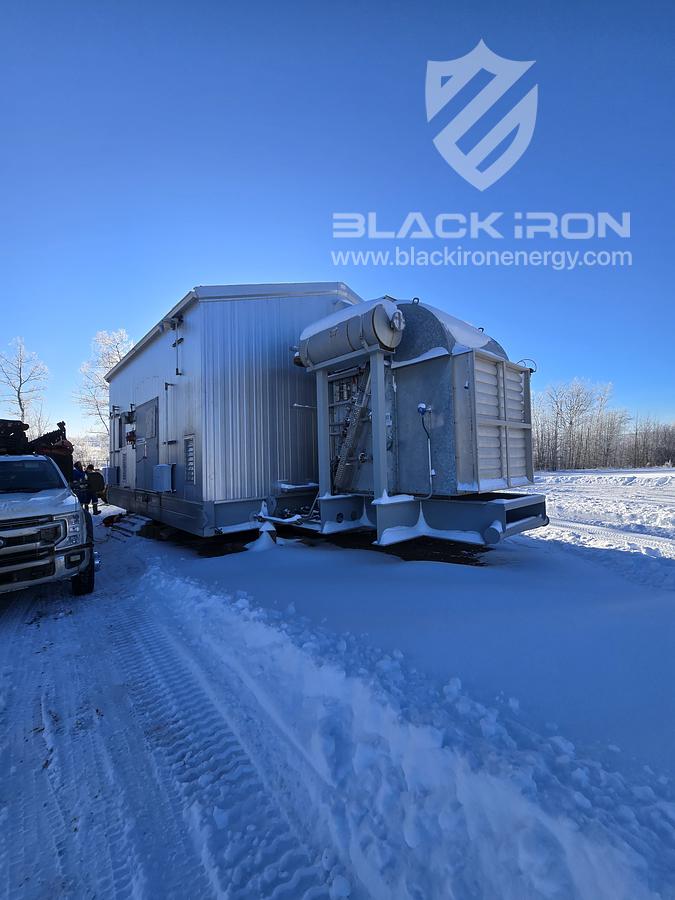

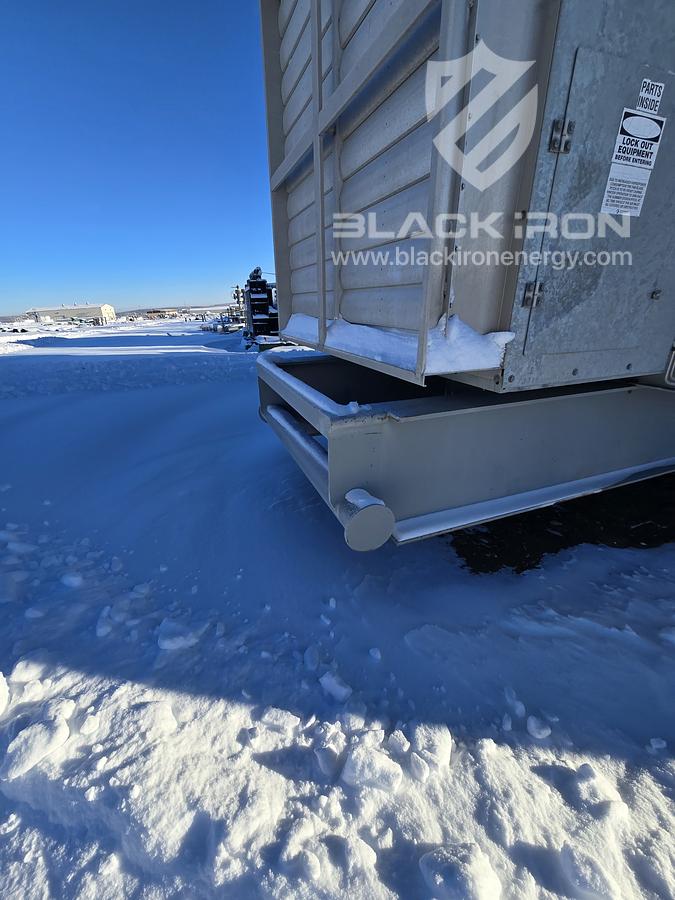

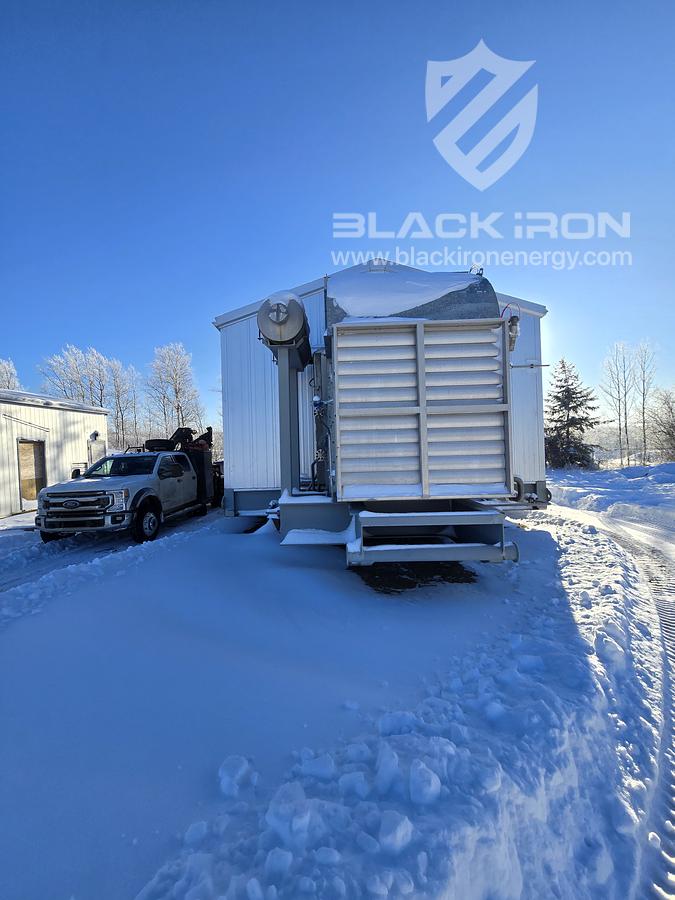

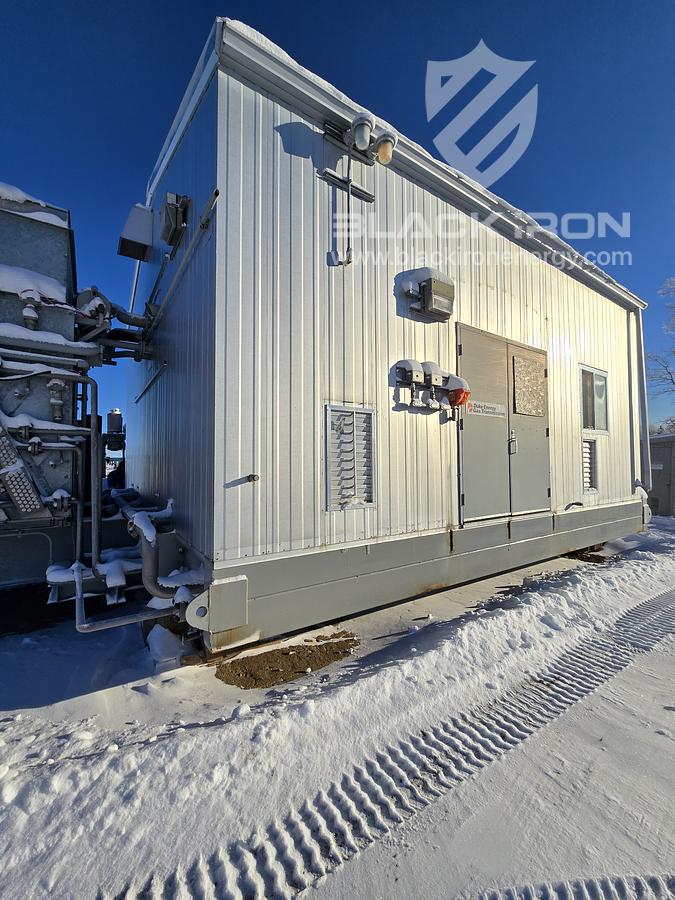

• 3-piece skid:
• Overall dimensions: 40’-11”L x 22’-8”W x 21’H
• Center section dimensions: 40’-11”L x 14’W x 13’-7”H
• Wing dimensions: 28’-7”L x 4’-4”W x 10’-10”H
