Name: Dual 40 hp EMD Instrument Air Package
SKU: BI-10402
Availability: InStock

orCall +1 403 536 6376

Packaged by Northwest Equipment in 2013.

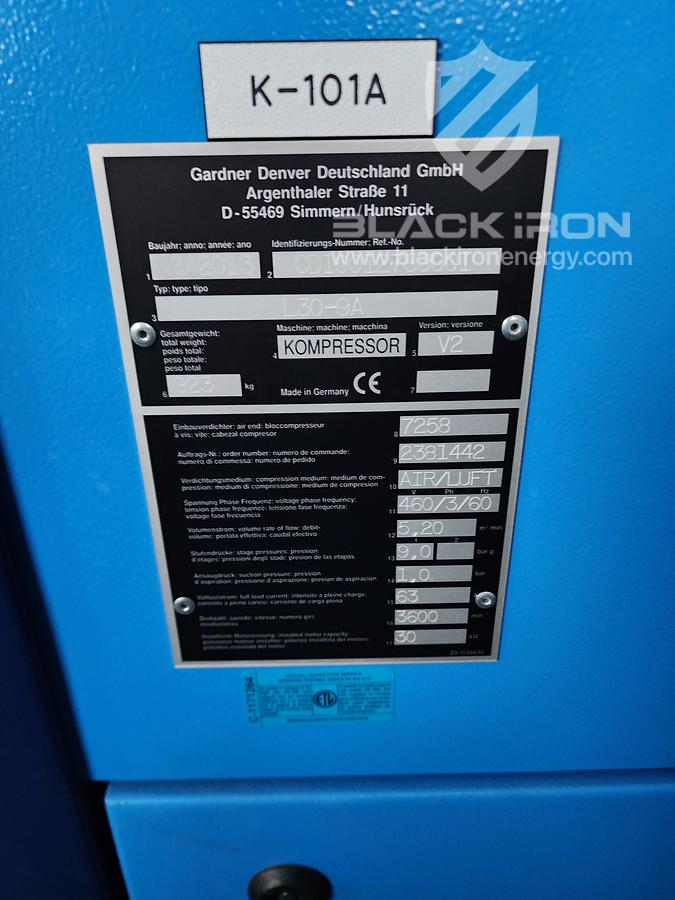

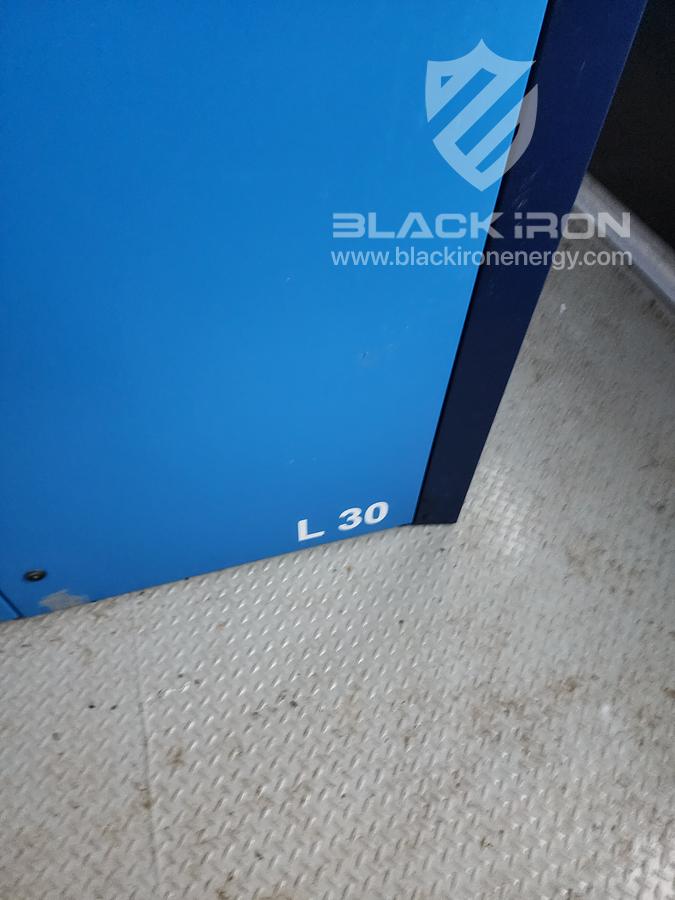

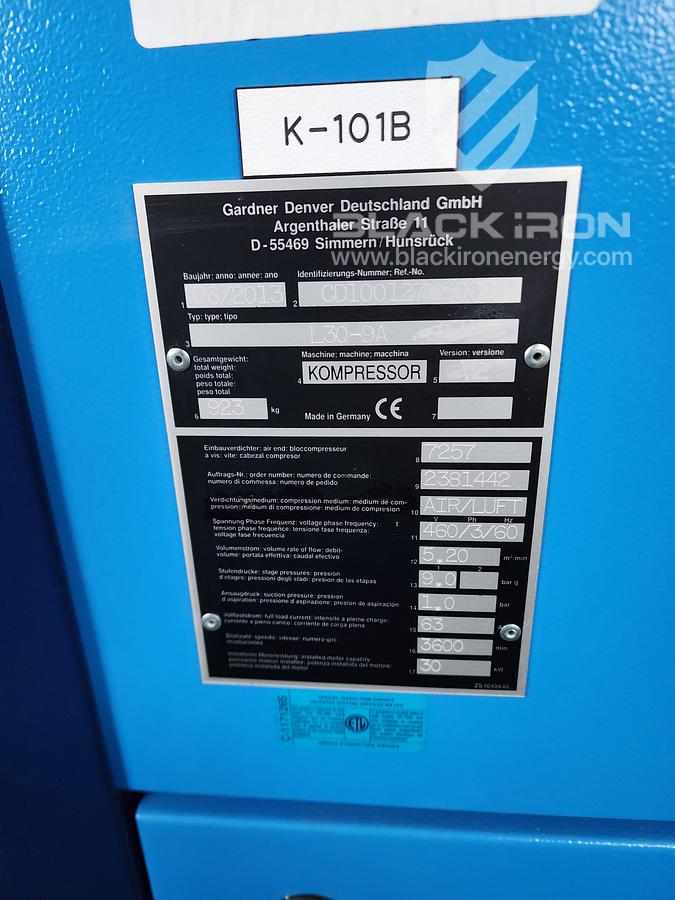

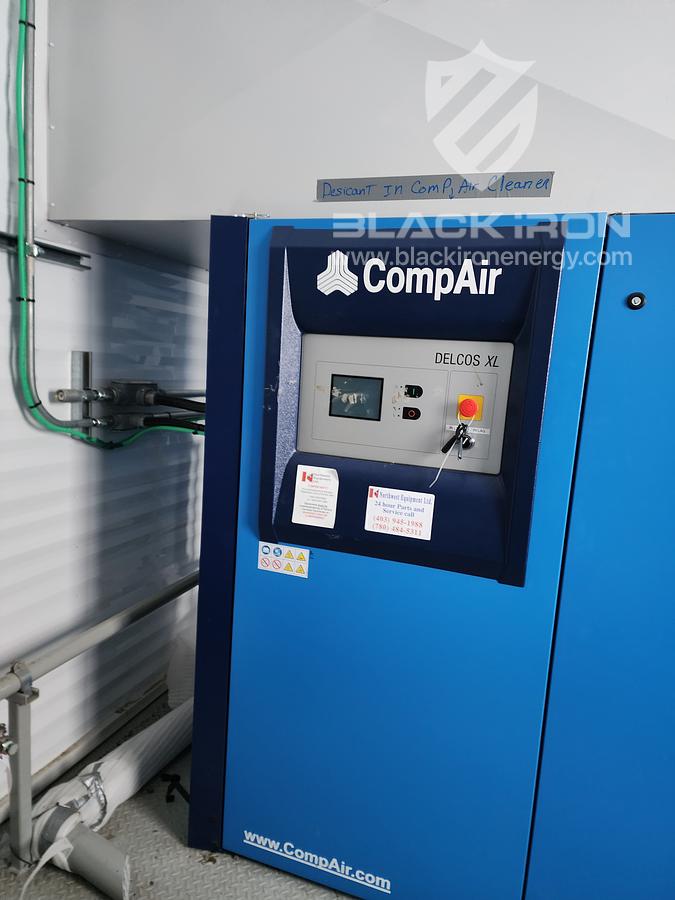

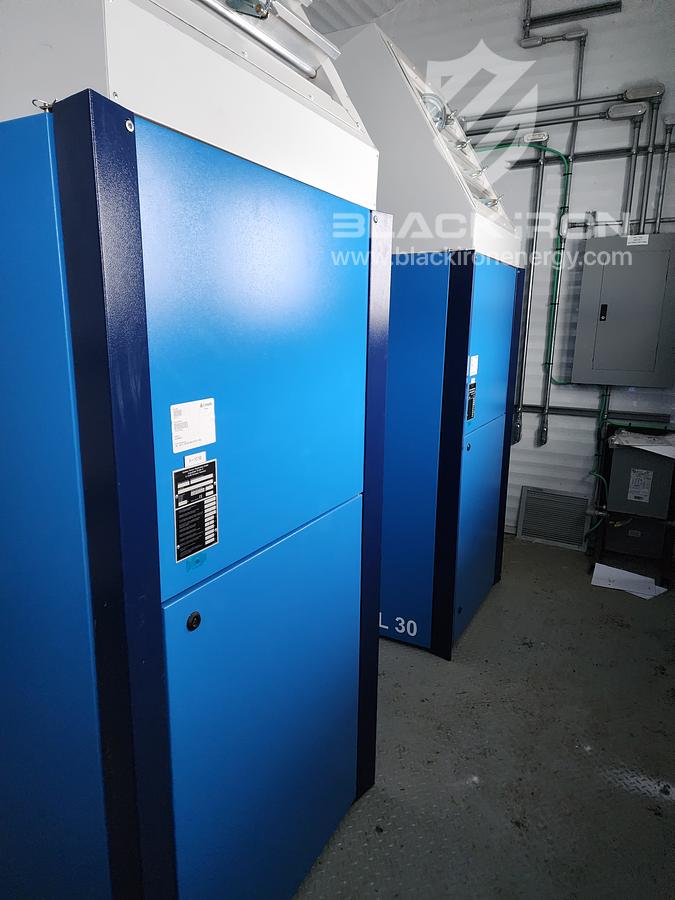

(2) CompAir/Gardner Denver L30-125 rotary screw air compressors rated 168 SCFM @ 130 psig (1-operating & 1-standby).
(2) 460V Electric motor drivers rated 40 hp @ 3600 rpm.

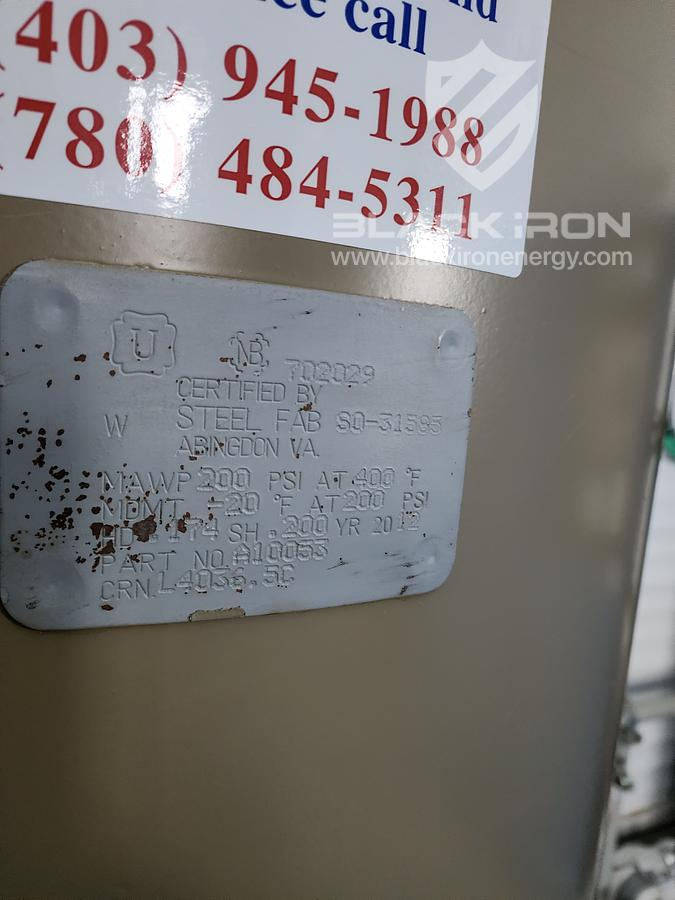

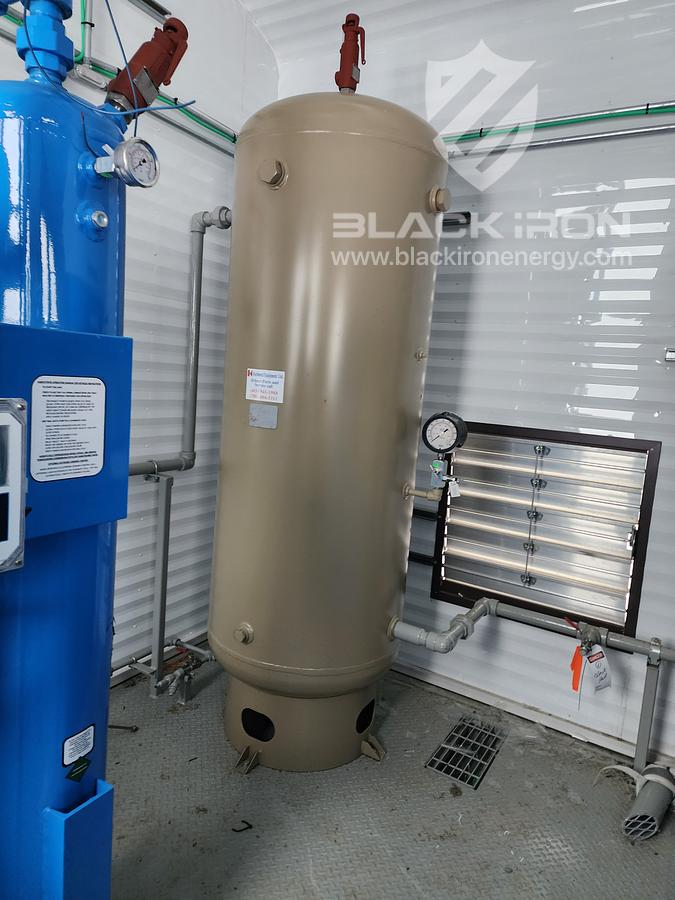

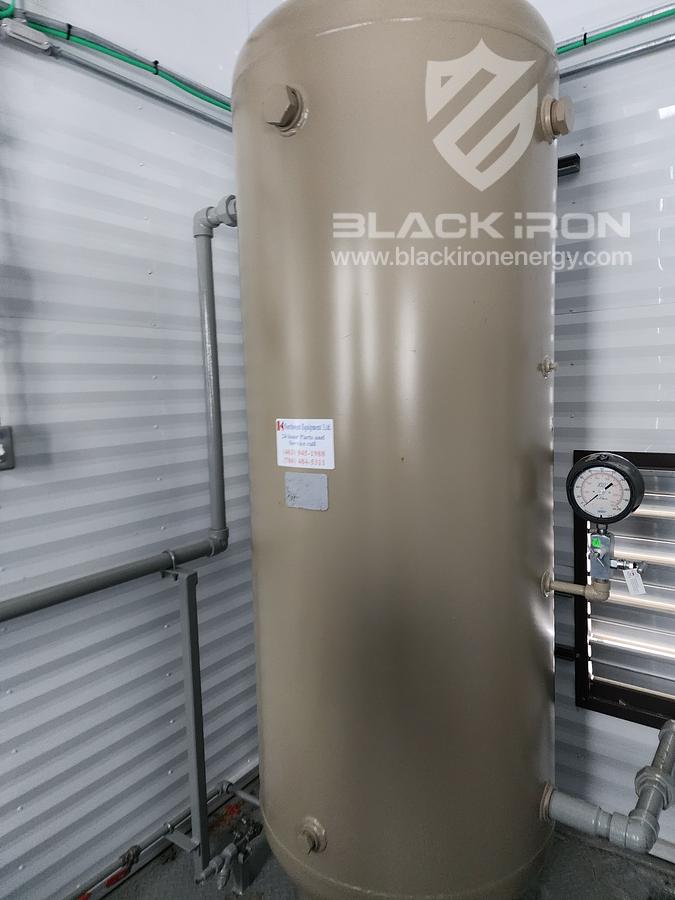

(1) 30” OD x 84” S/S 240 gal. wet air receiver rated 200 psig @ 204/-29C.
(1) Airtek pre-filter & (1) Airtek after-filter.

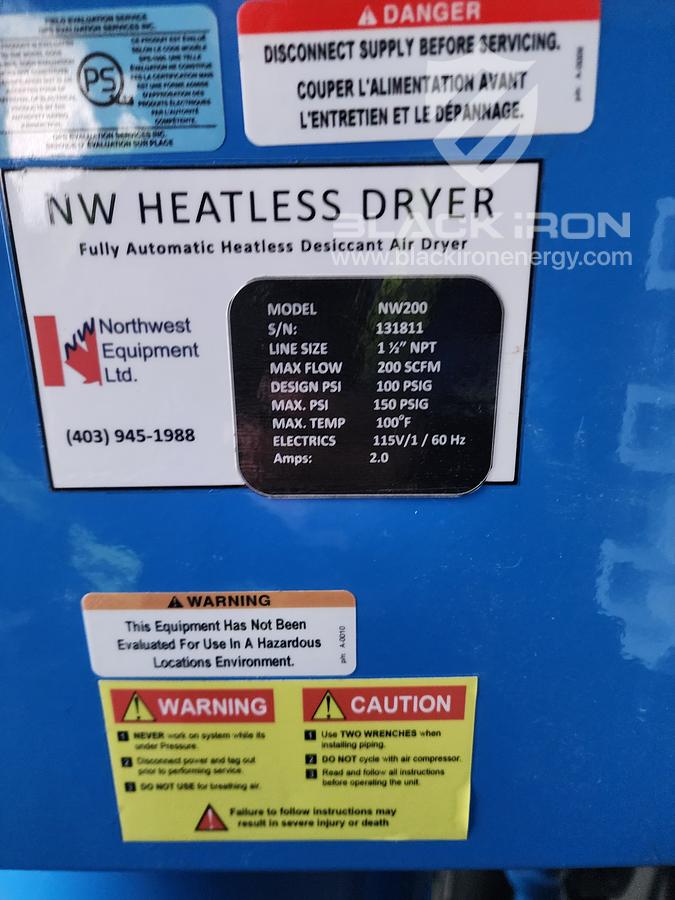

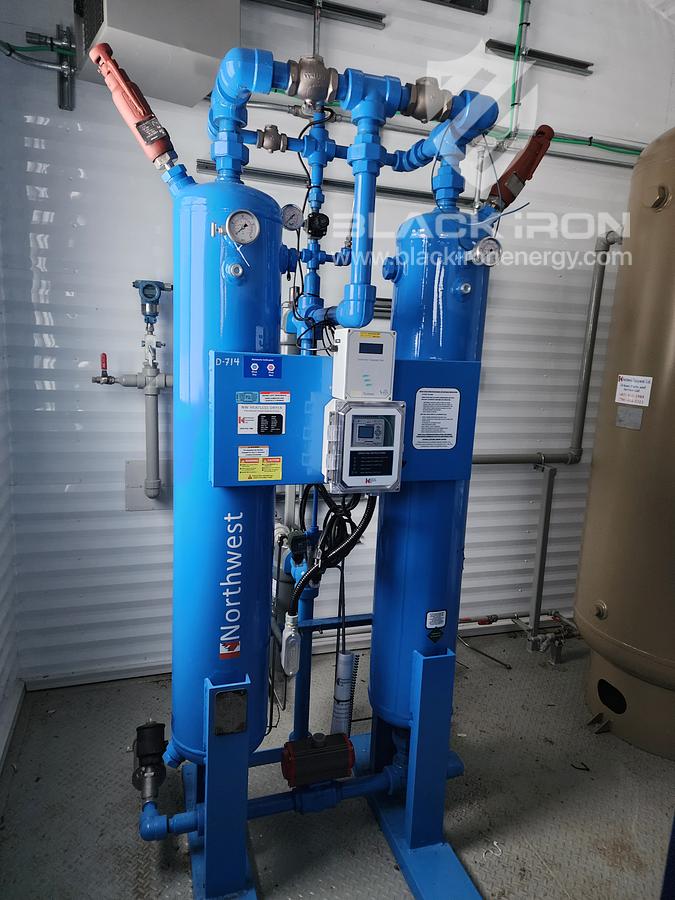

(1) Northwest MW200 heatless regenerative desiccant air dryer system rated 254 SCFM at 130 psig.
(1) 60” OD x 174” S/S 2000 gal. dry air receiver rated 150 psig @ 230/-45C
(1) 10 kW 480V Ruffneck building heater.
AB/BC/SK CRN.

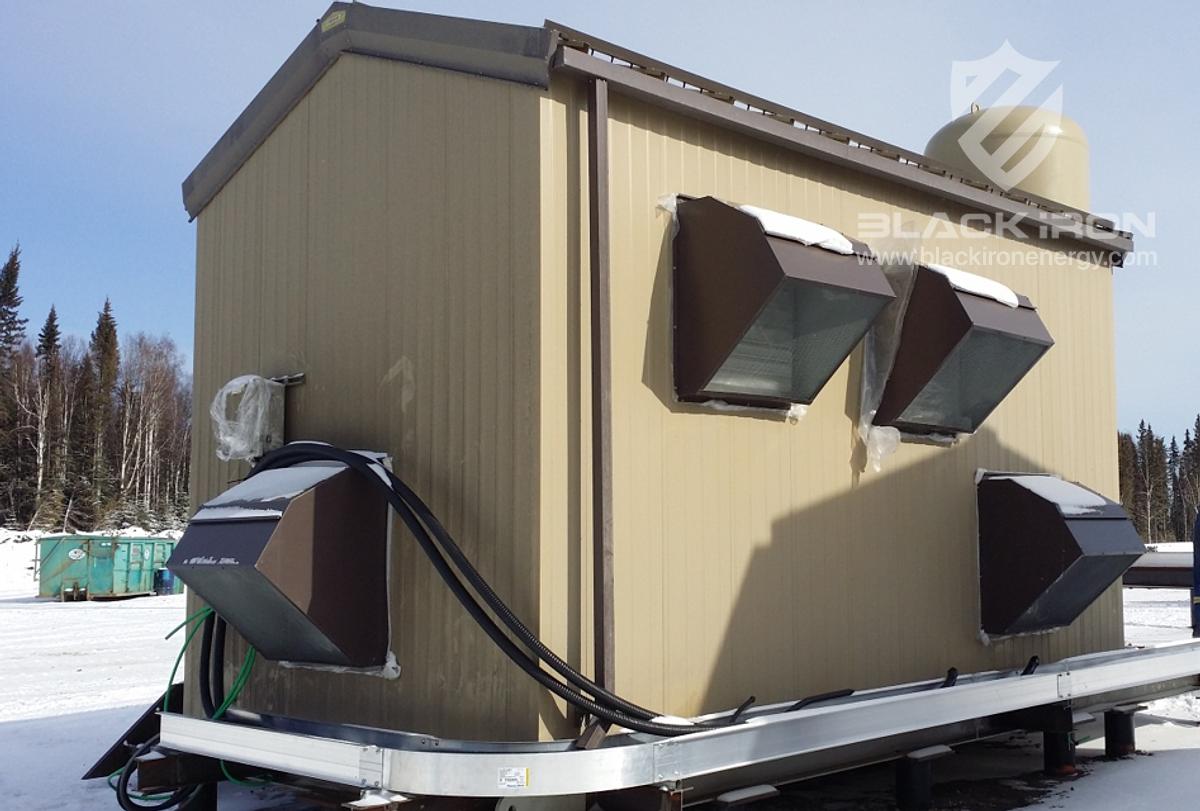

Approx. Shipping Dimensions: 11’ W x 26’ L x 13’ H (16’ H including dry air receiver vessel).
Tag: North Liard Sour Gas Processing Facility
Site Description: D-64-I/94-N-09
