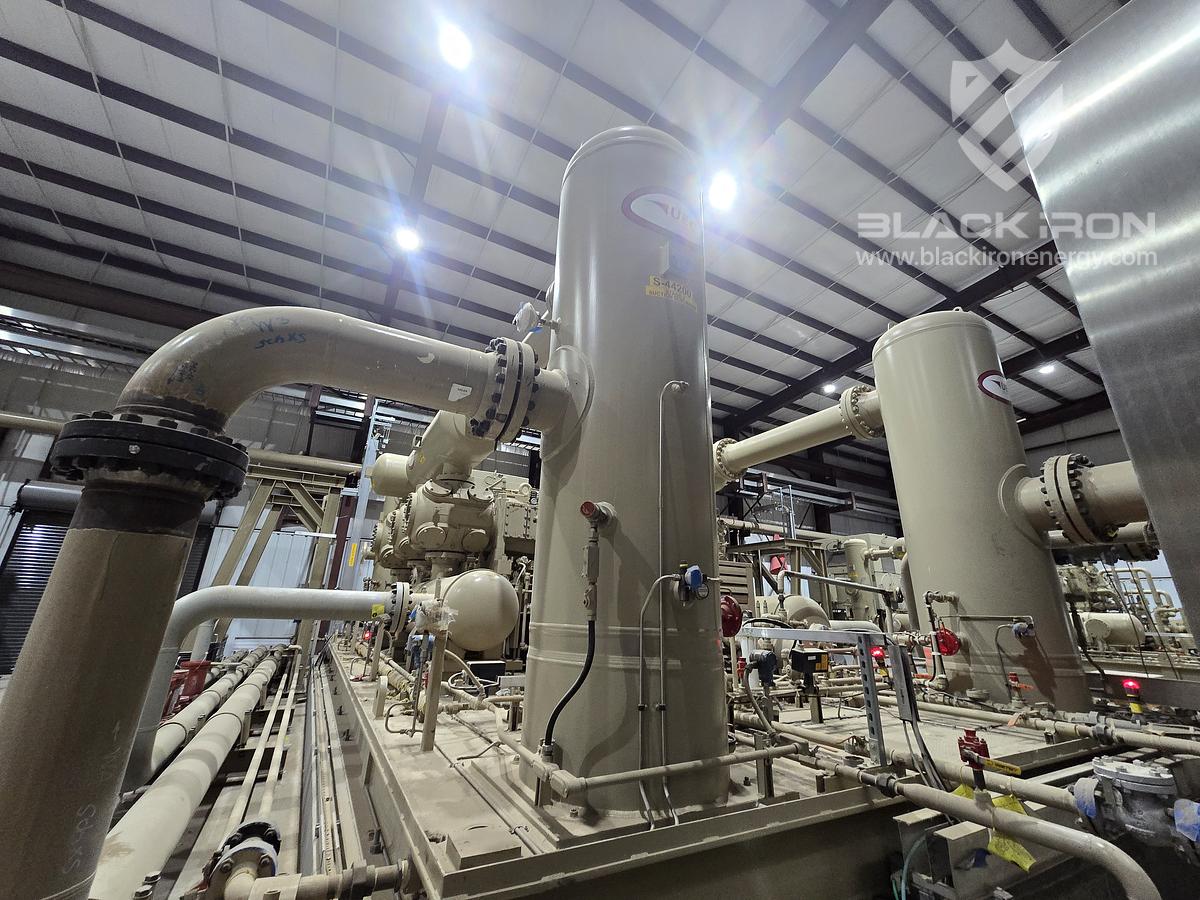

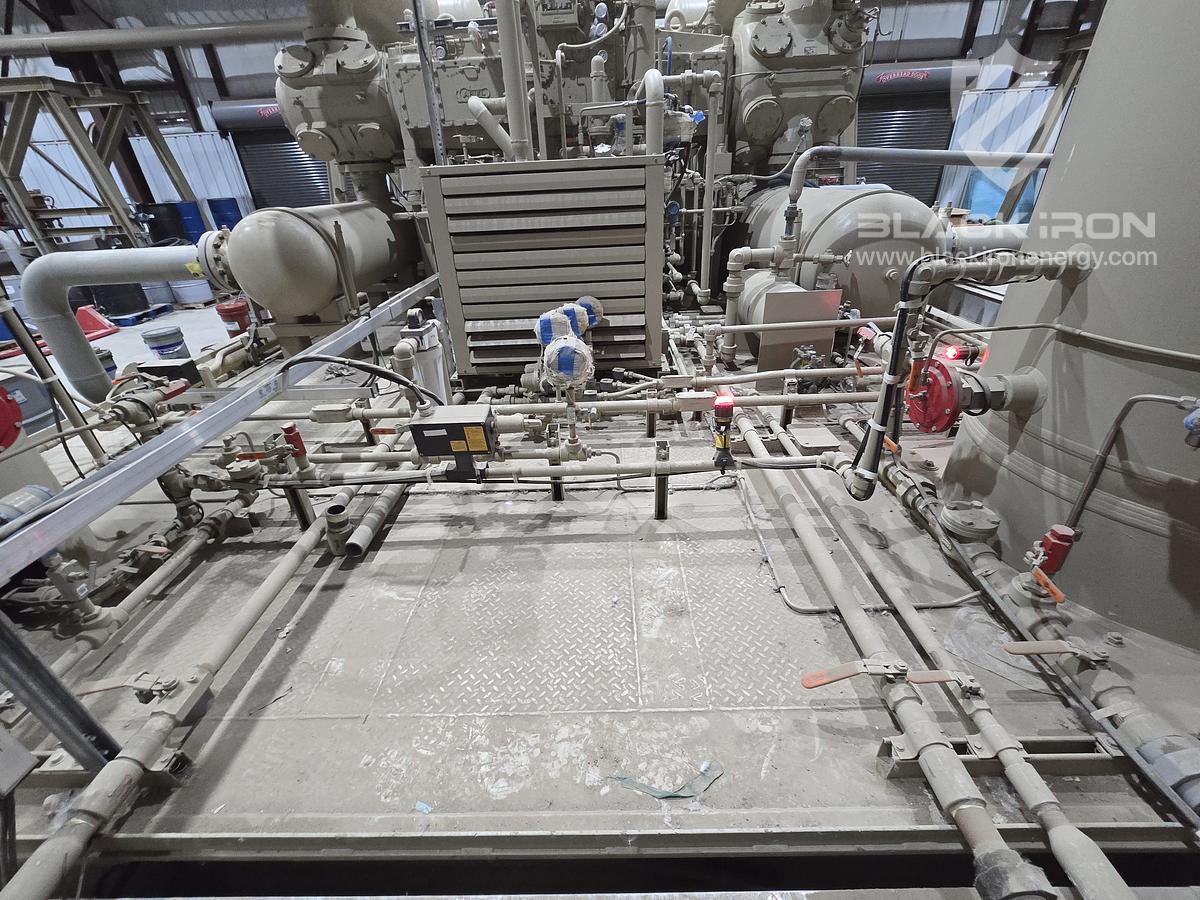

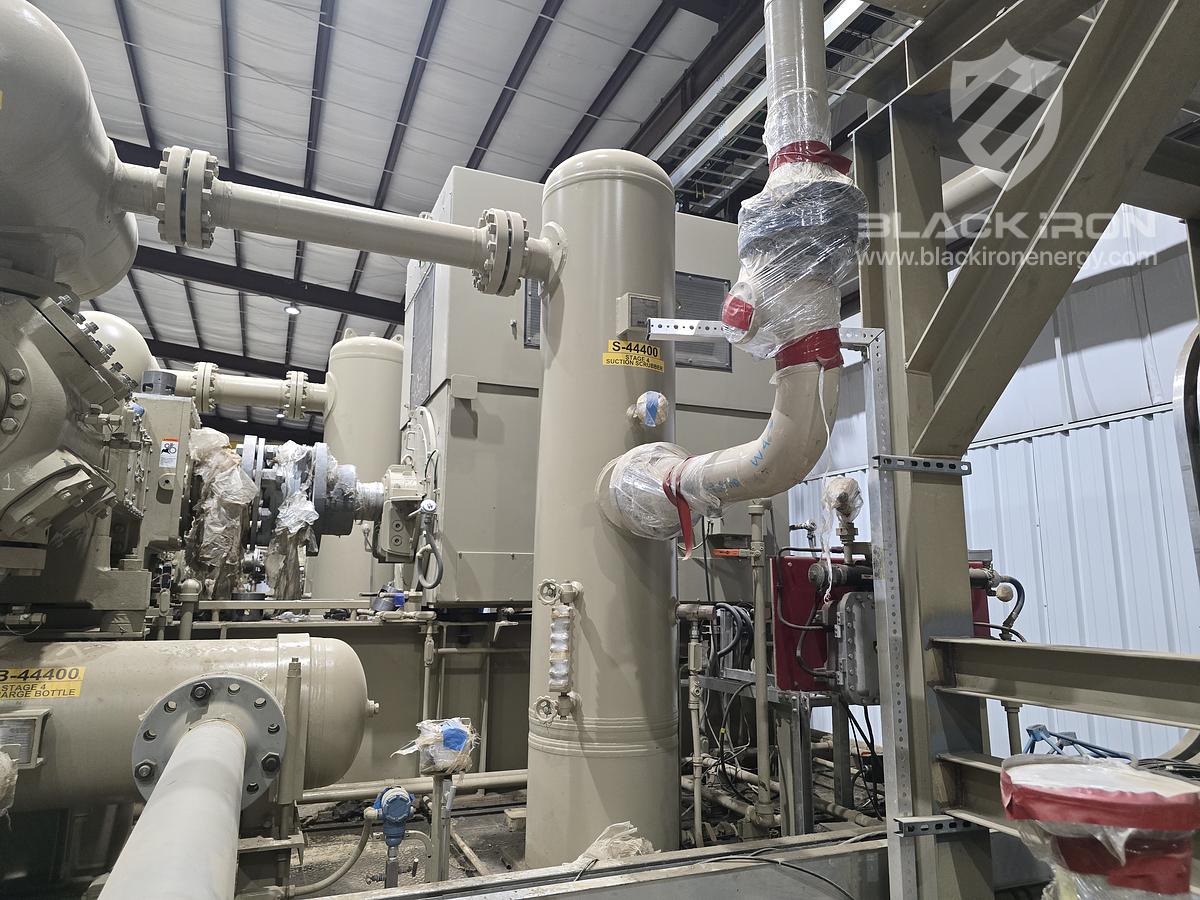

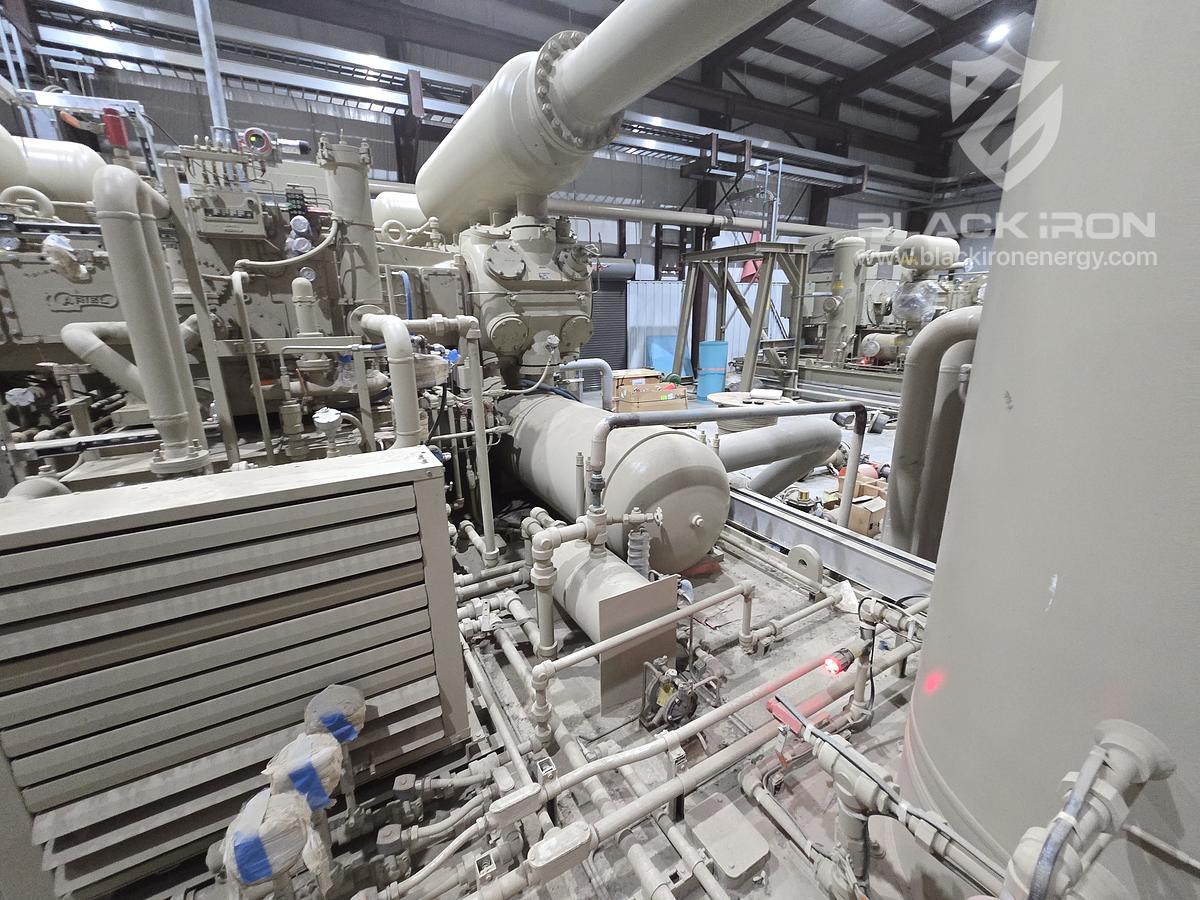

5500 hp GE Electric Drive Ariel KBZ/6 4-Stage (1 of 4 Available)

Tag: C-44000

The units are all zero hour, installed but never commissioned and some were not fully assembled, which is why some components appear to be missing. All units were preserved.

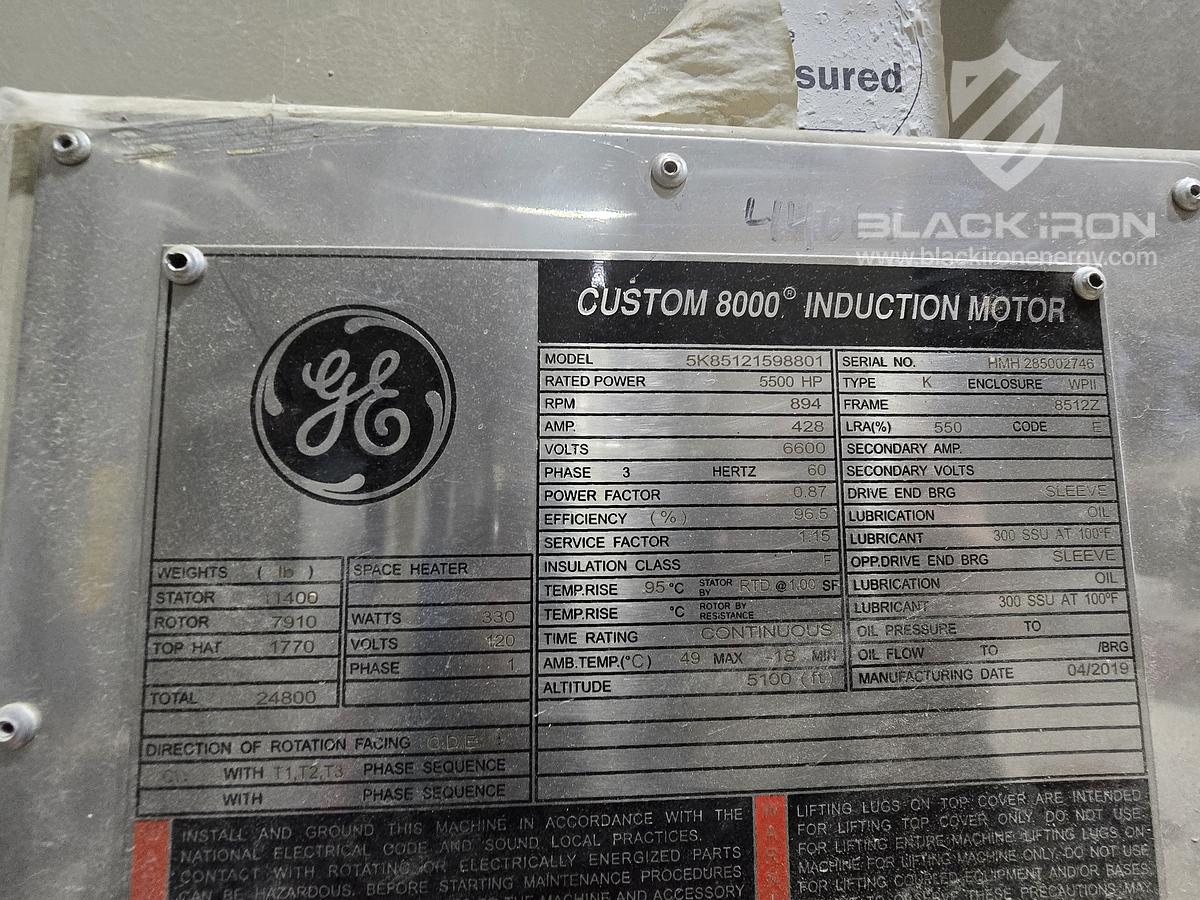

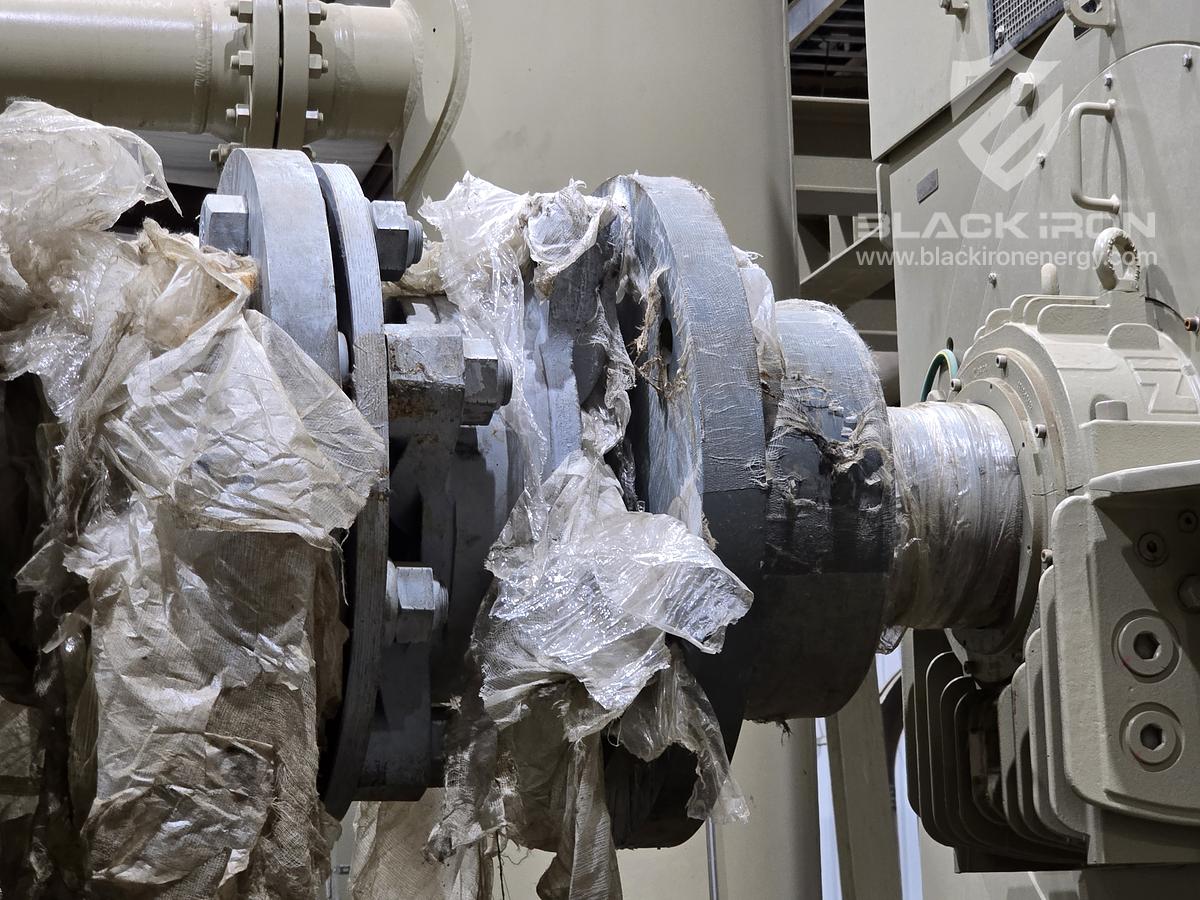

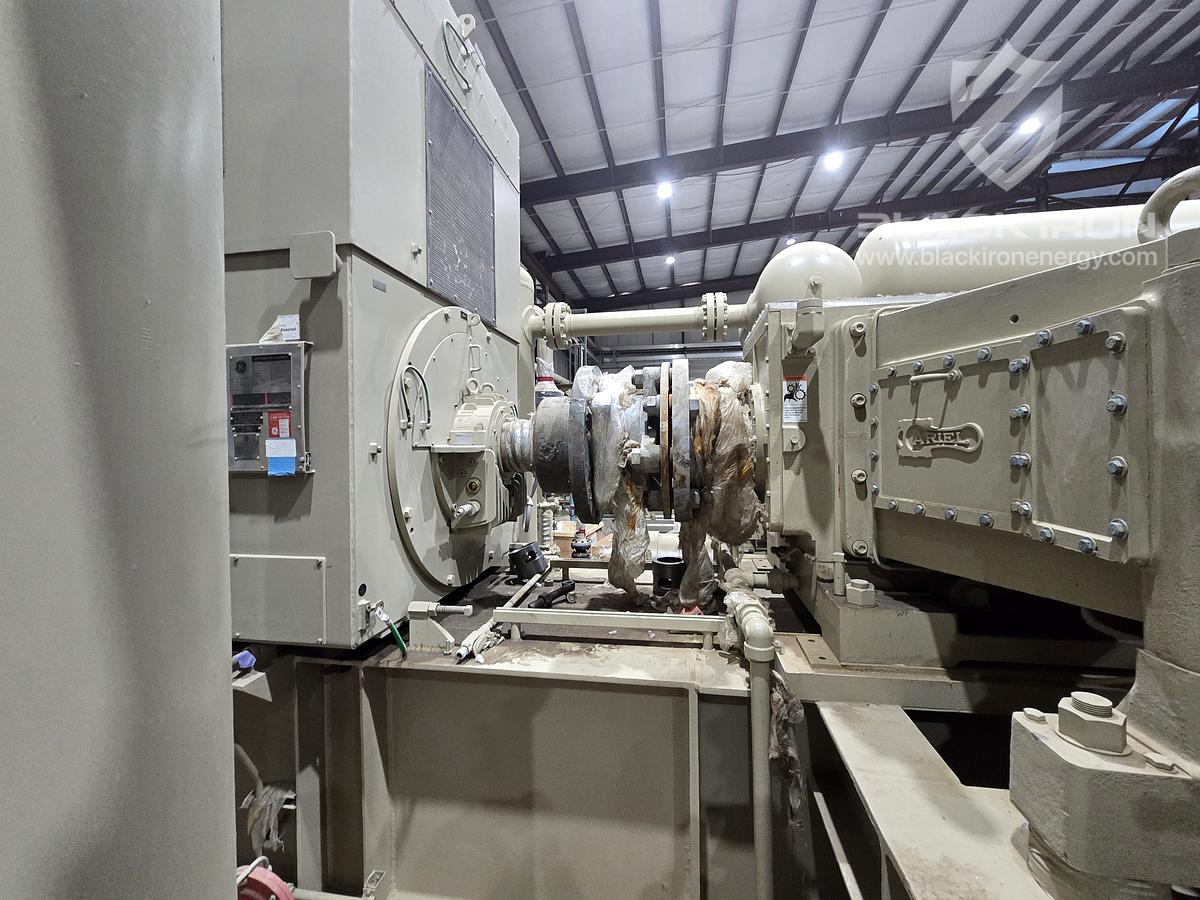

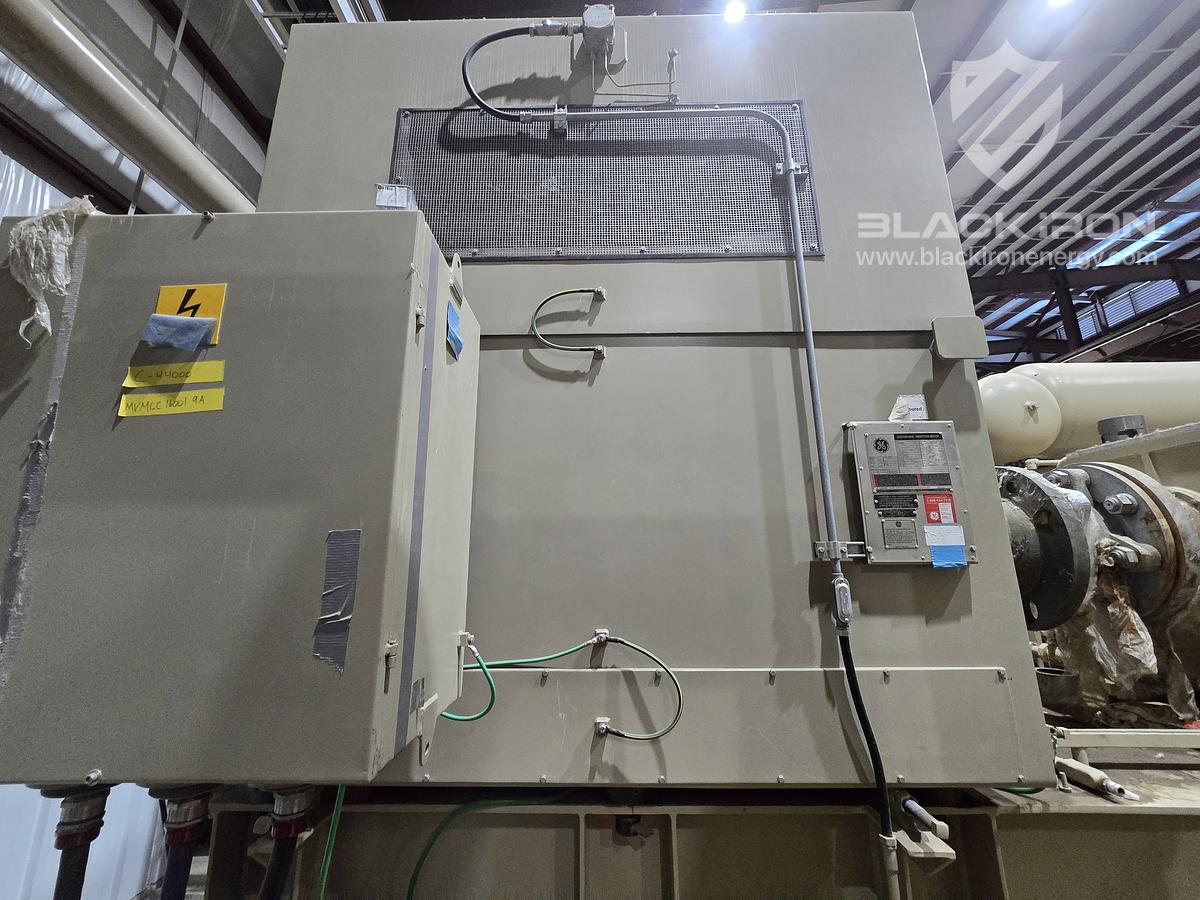

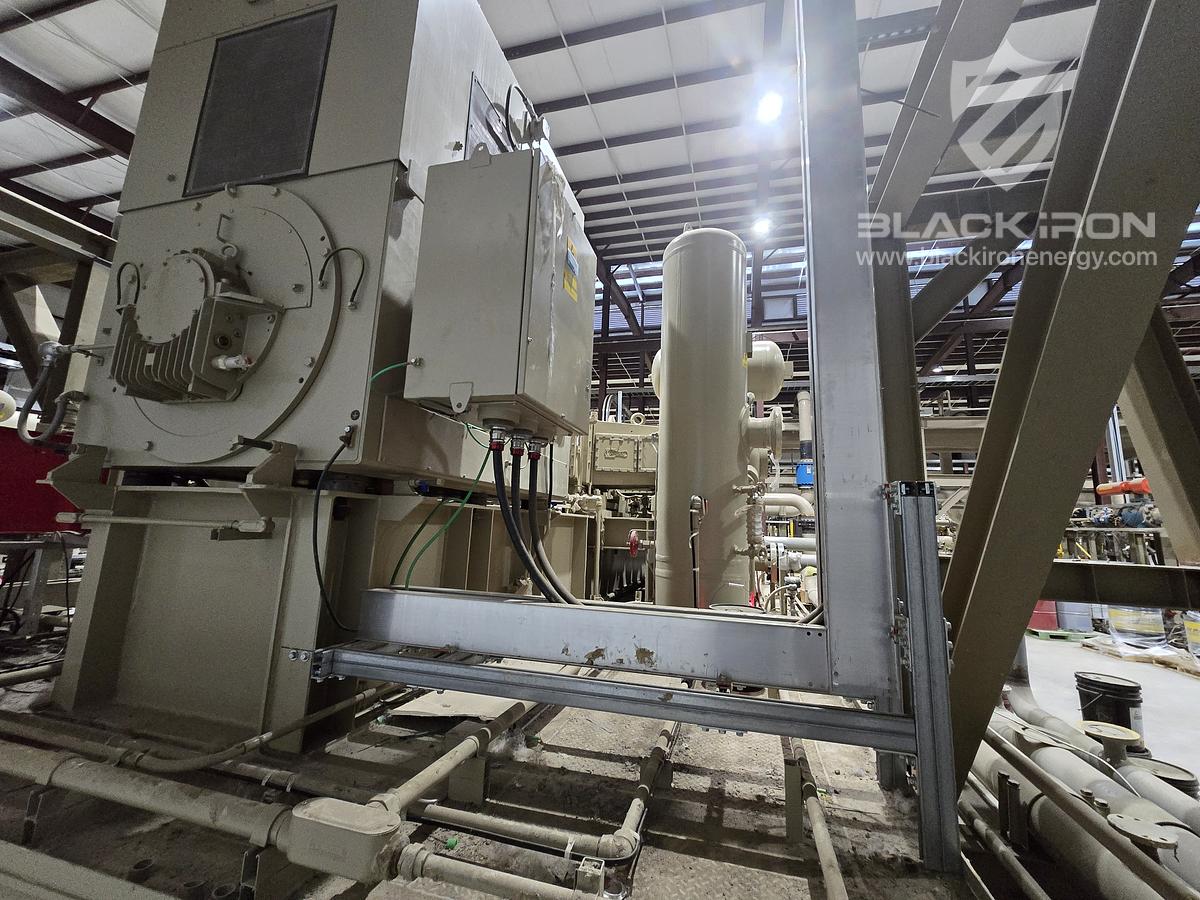

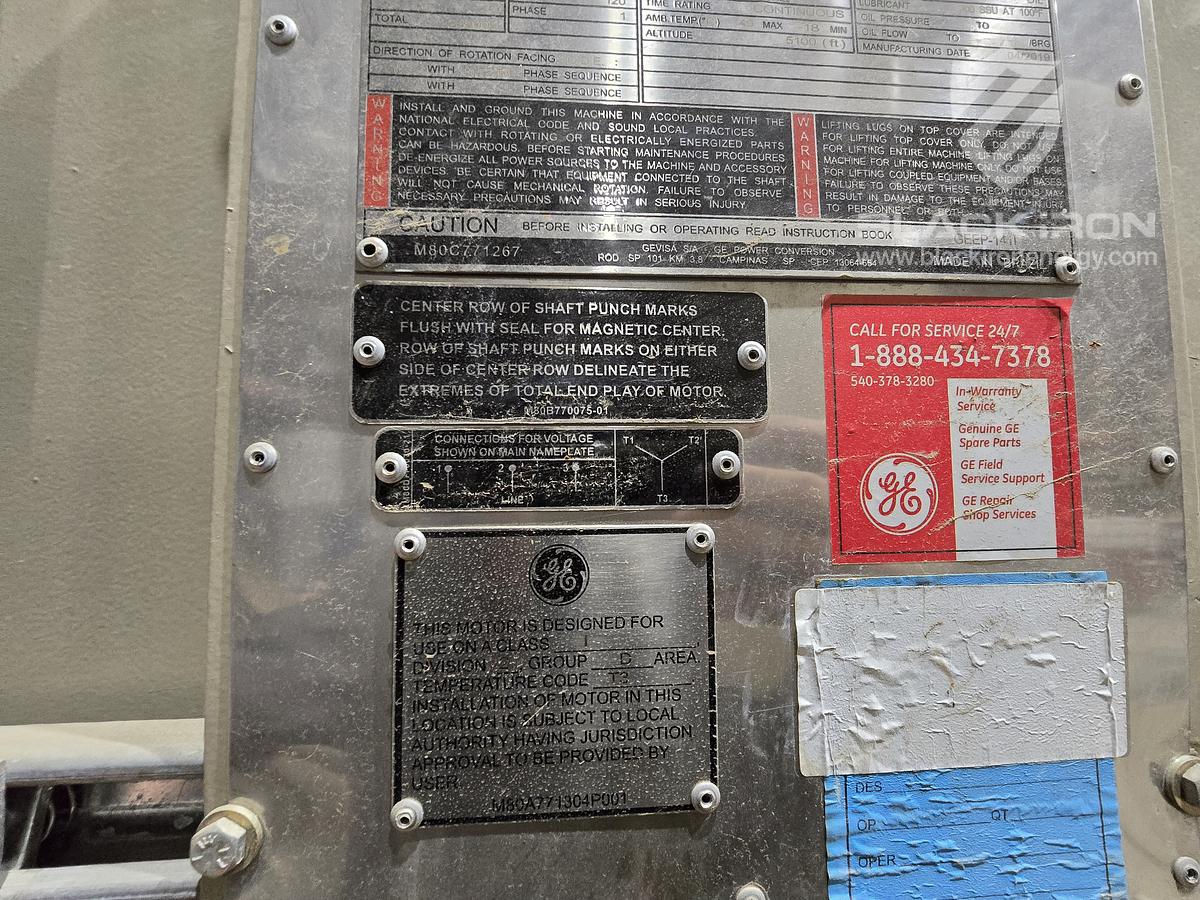

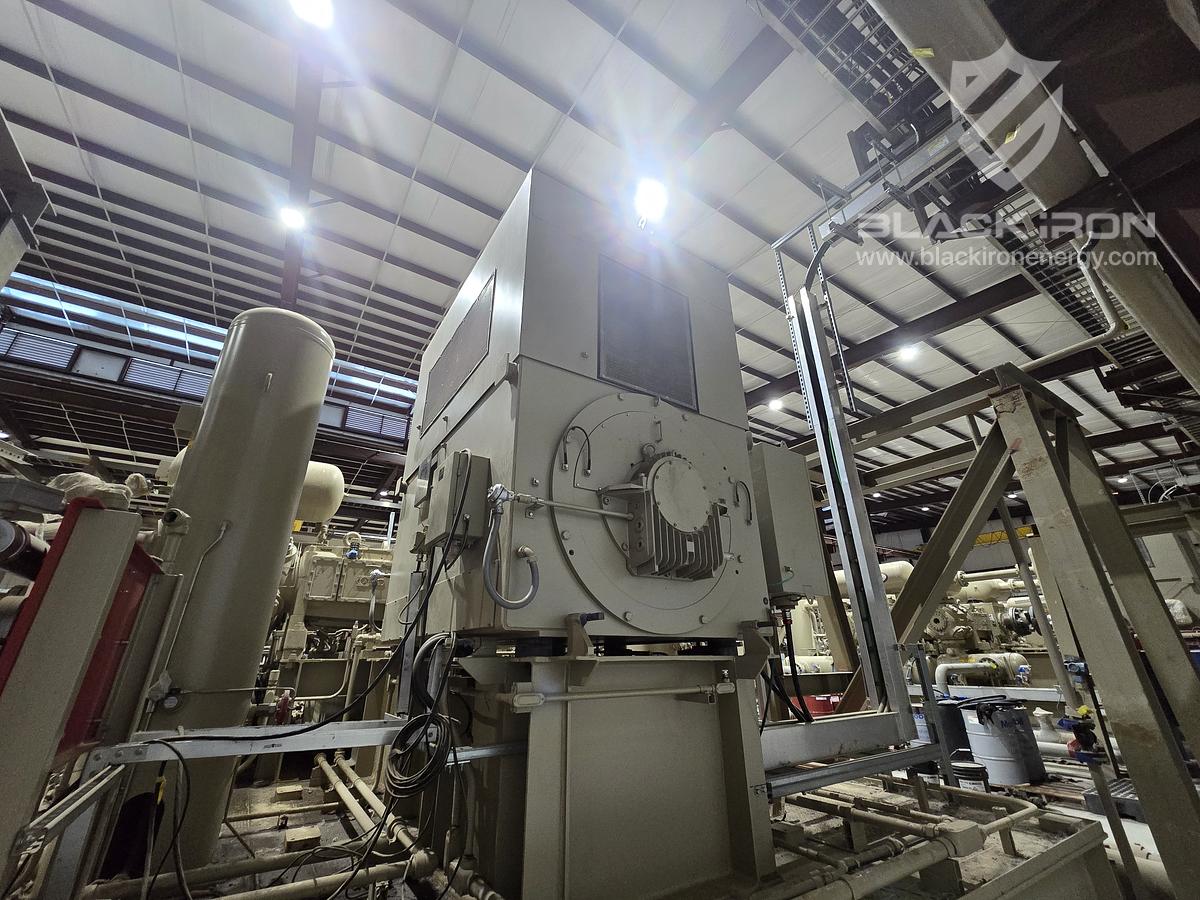

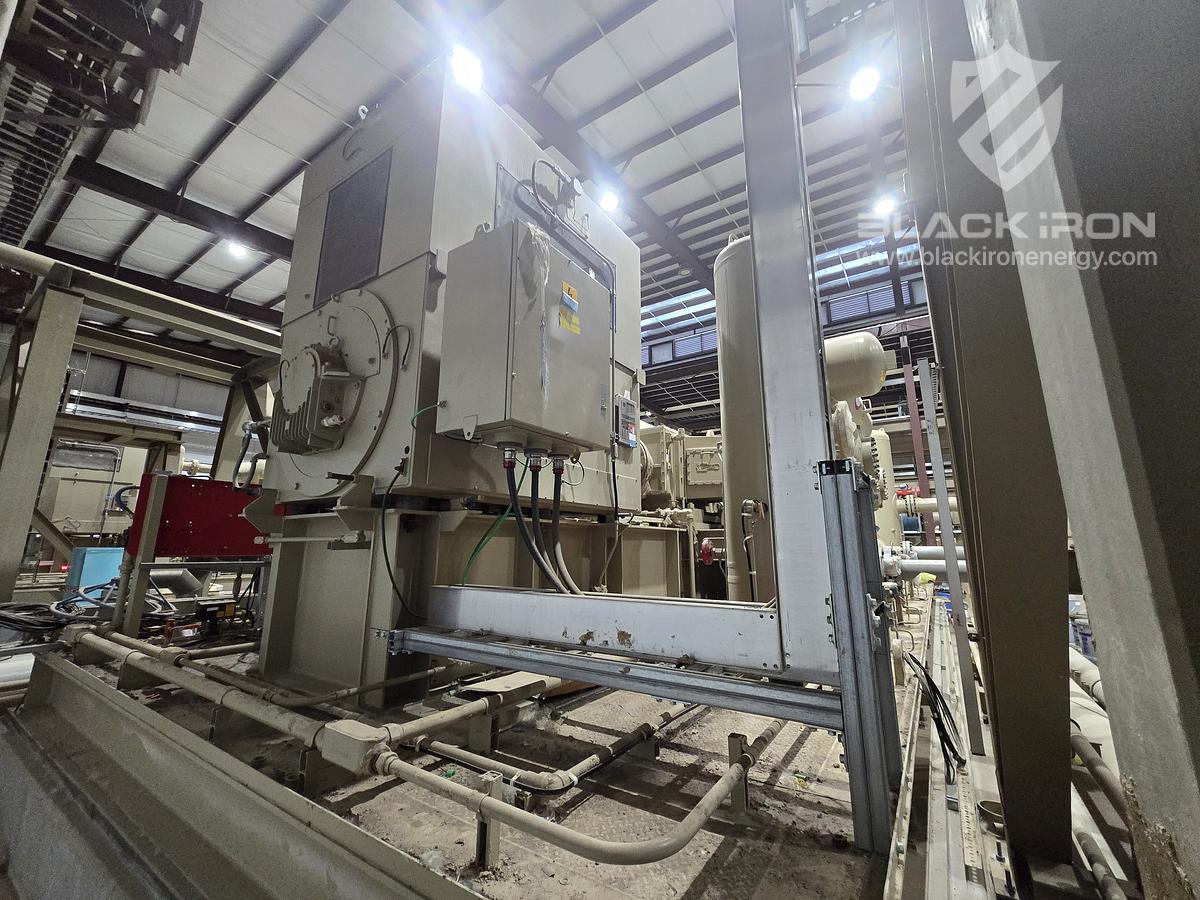

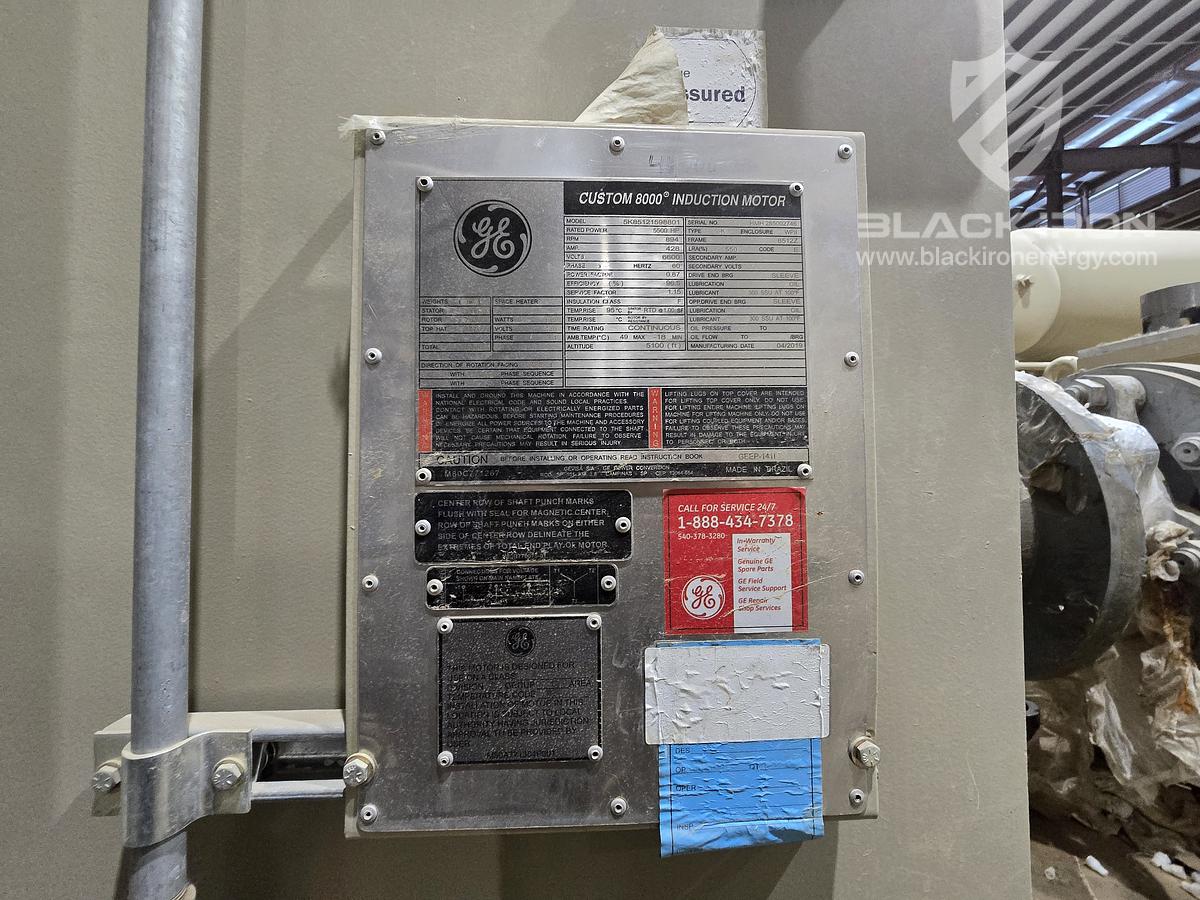

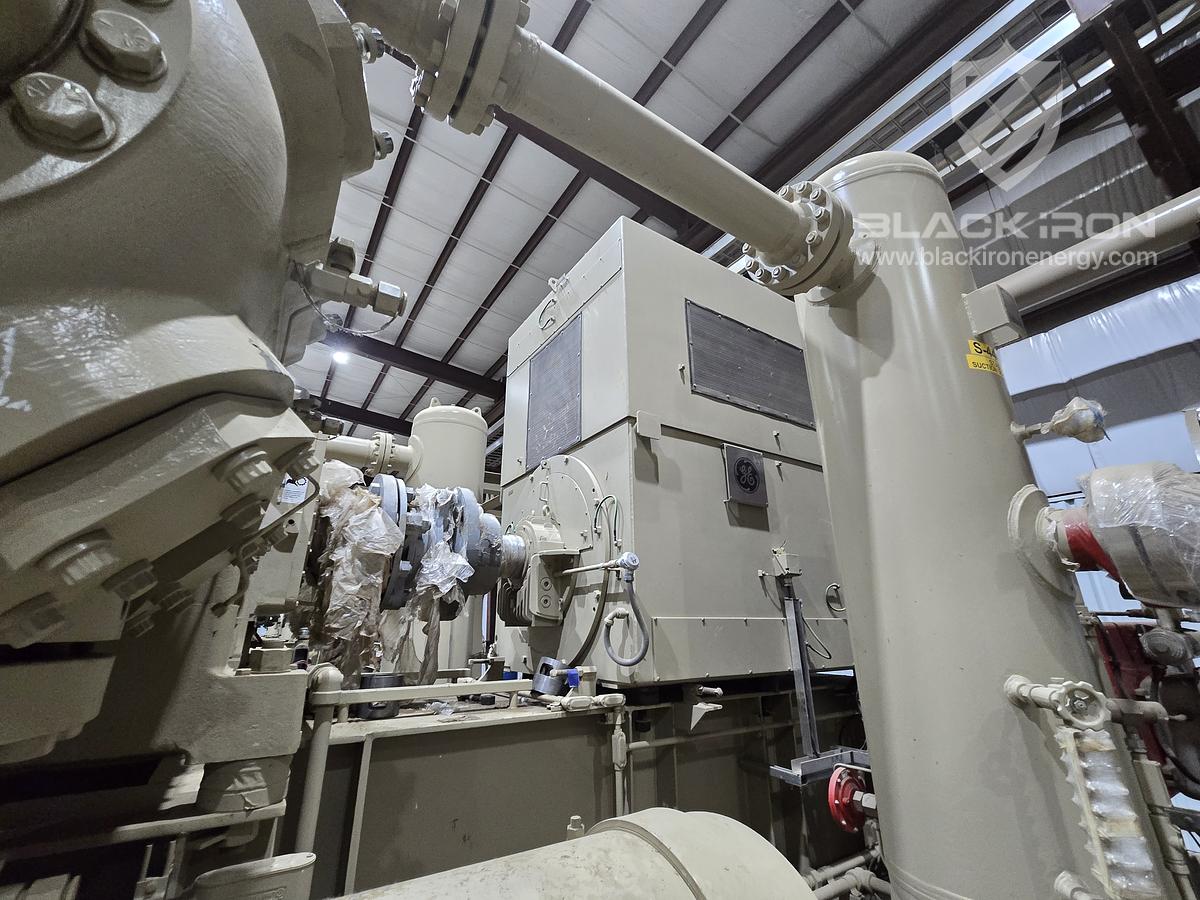

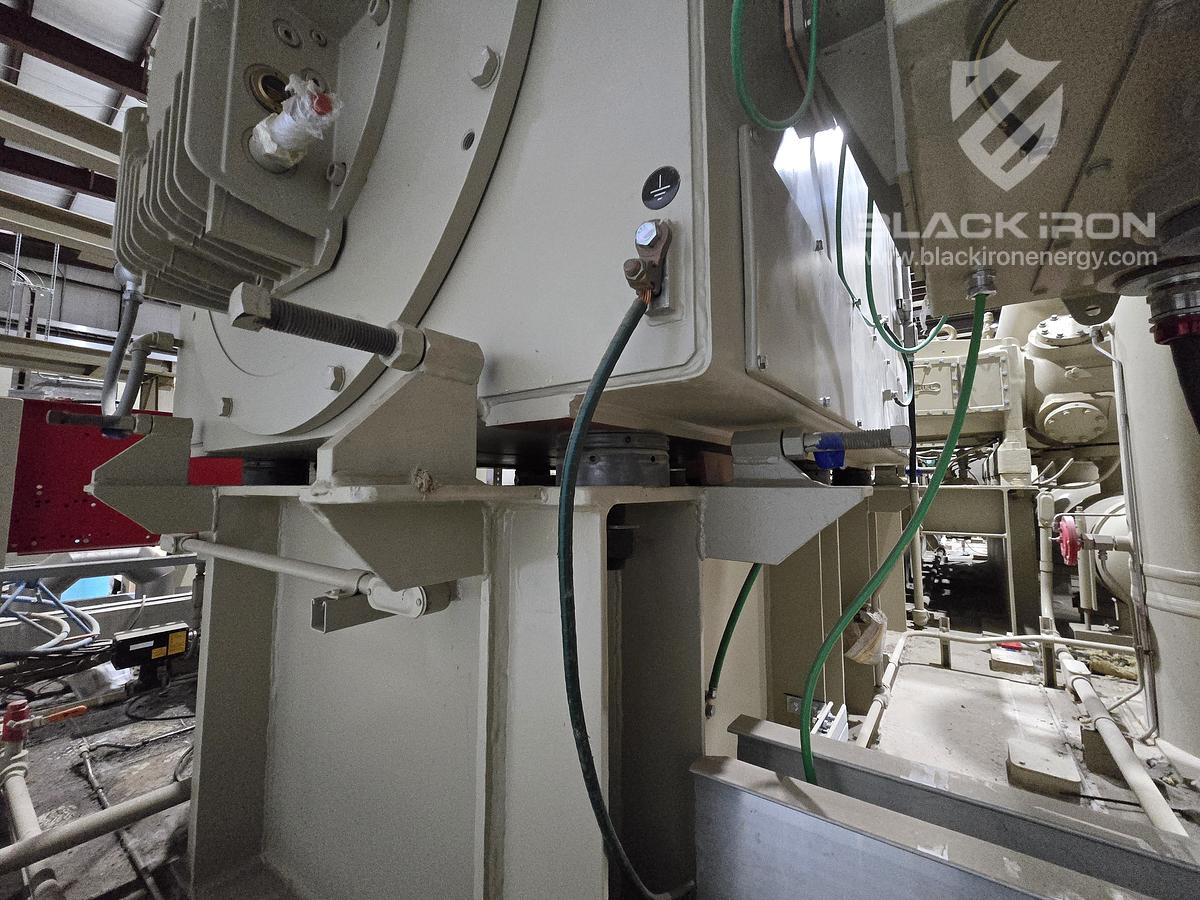

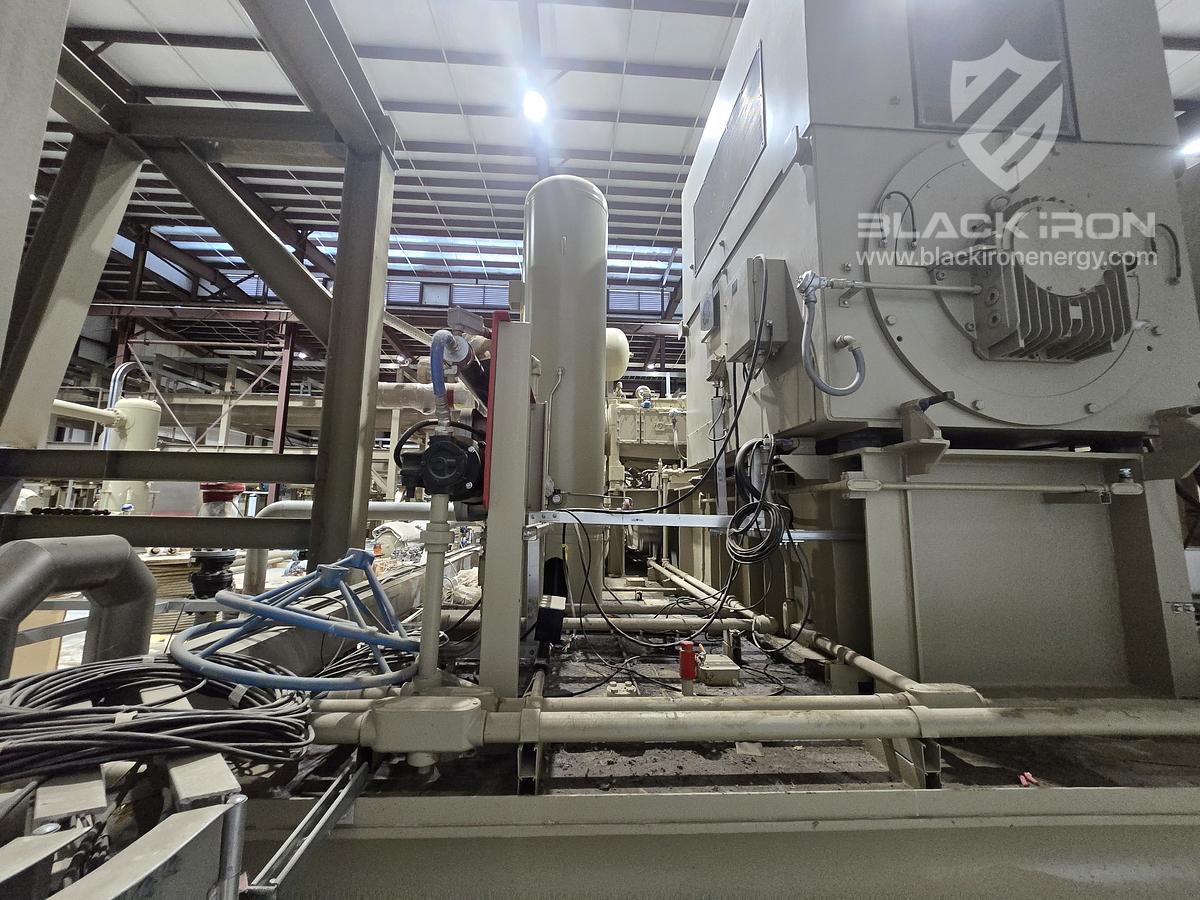

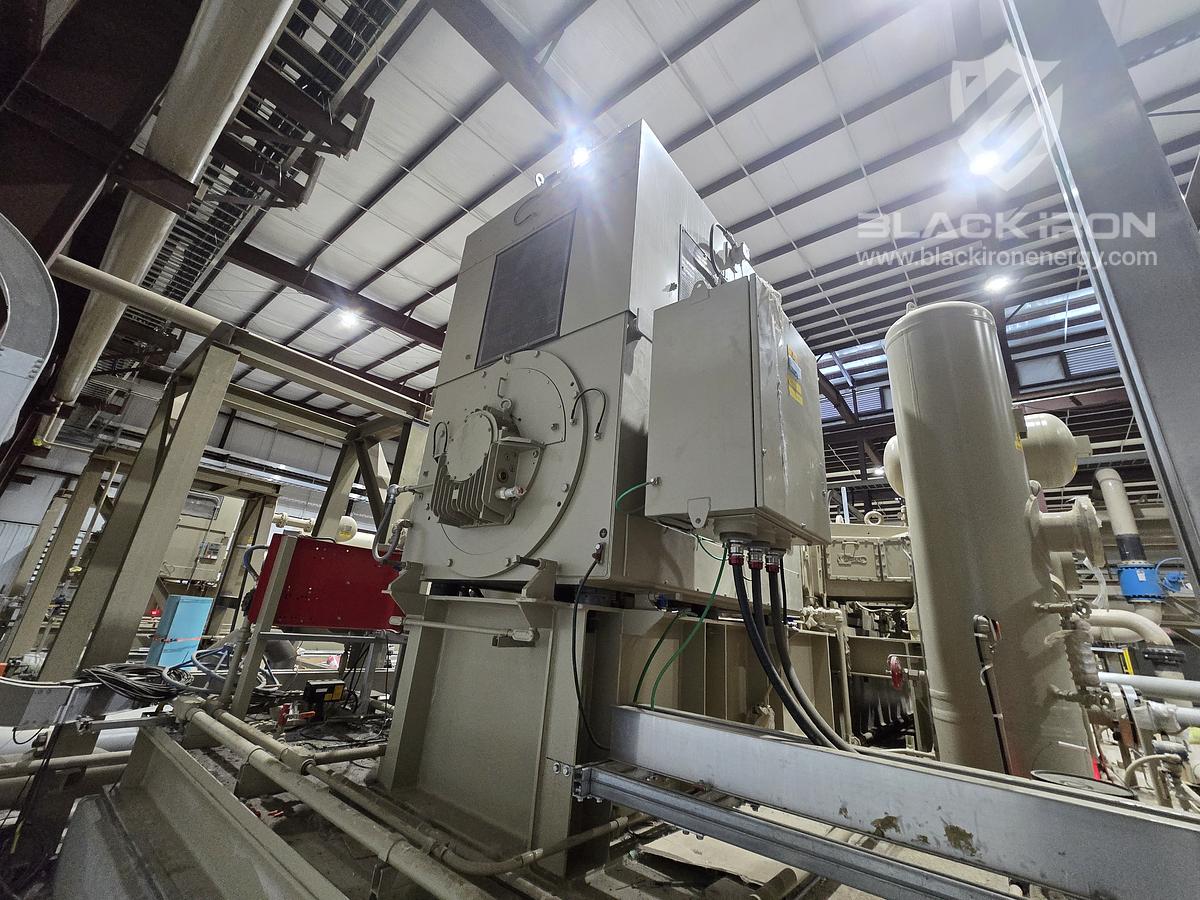

6600 VAC/3 Ph/60 Hz GE electric motor driver rated 5500 hp at 894 rpm

120 V, 330 W space heater

PF = 0.87, SF = 1.15

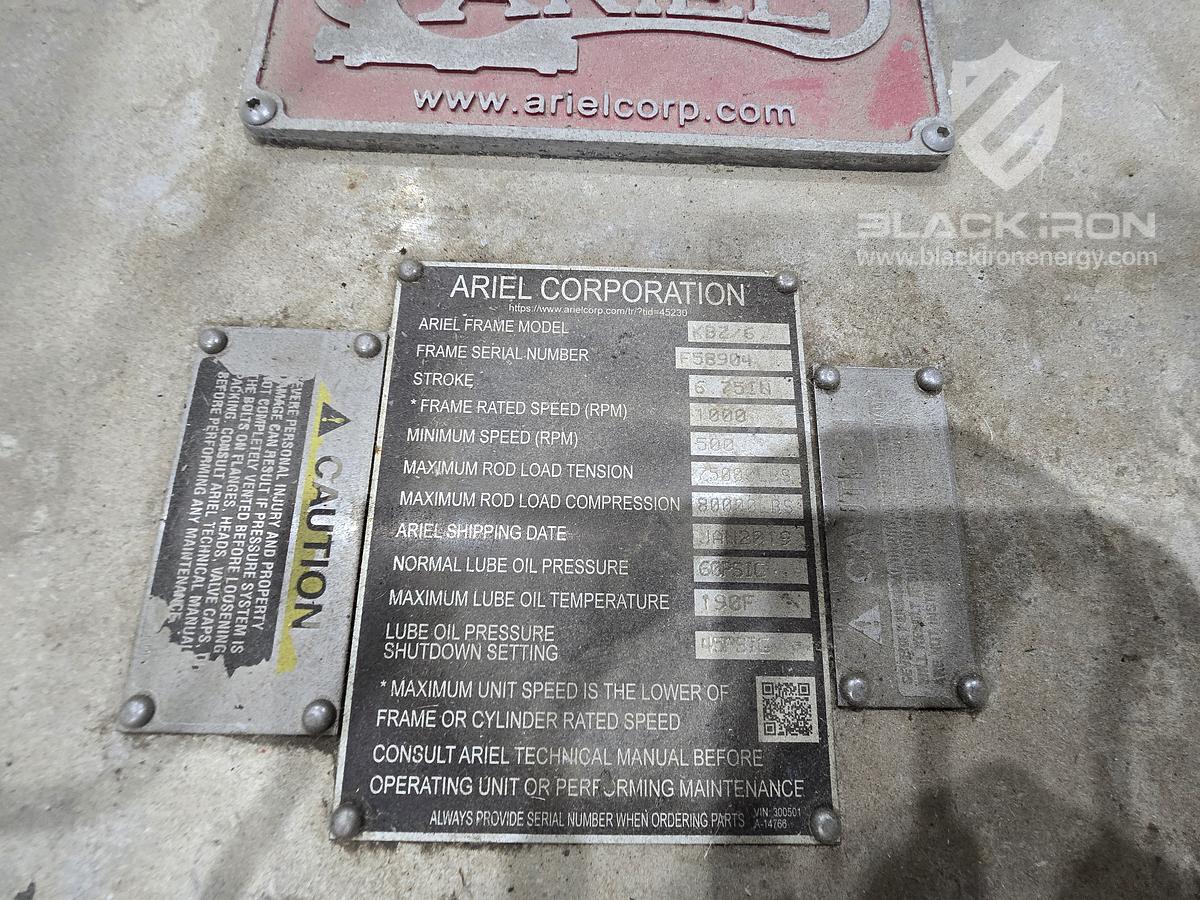

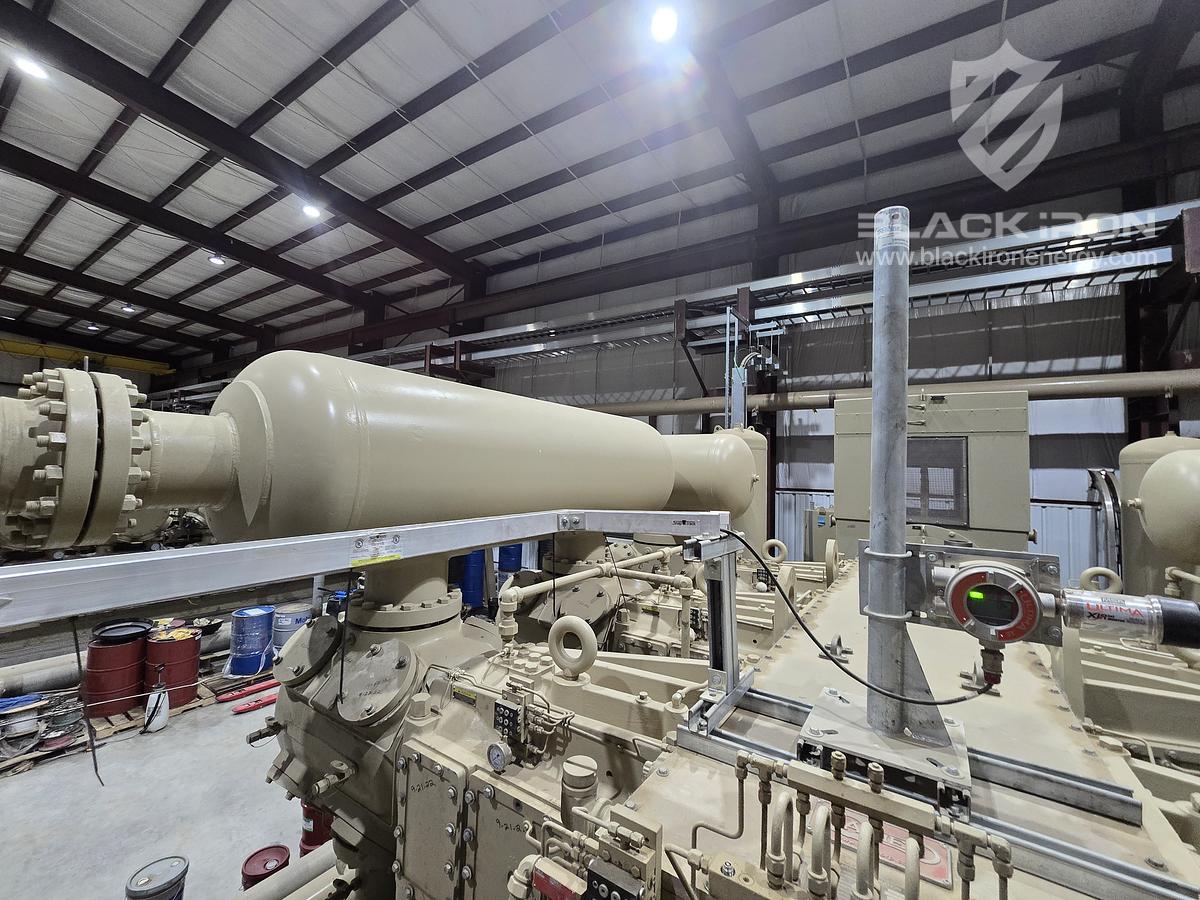

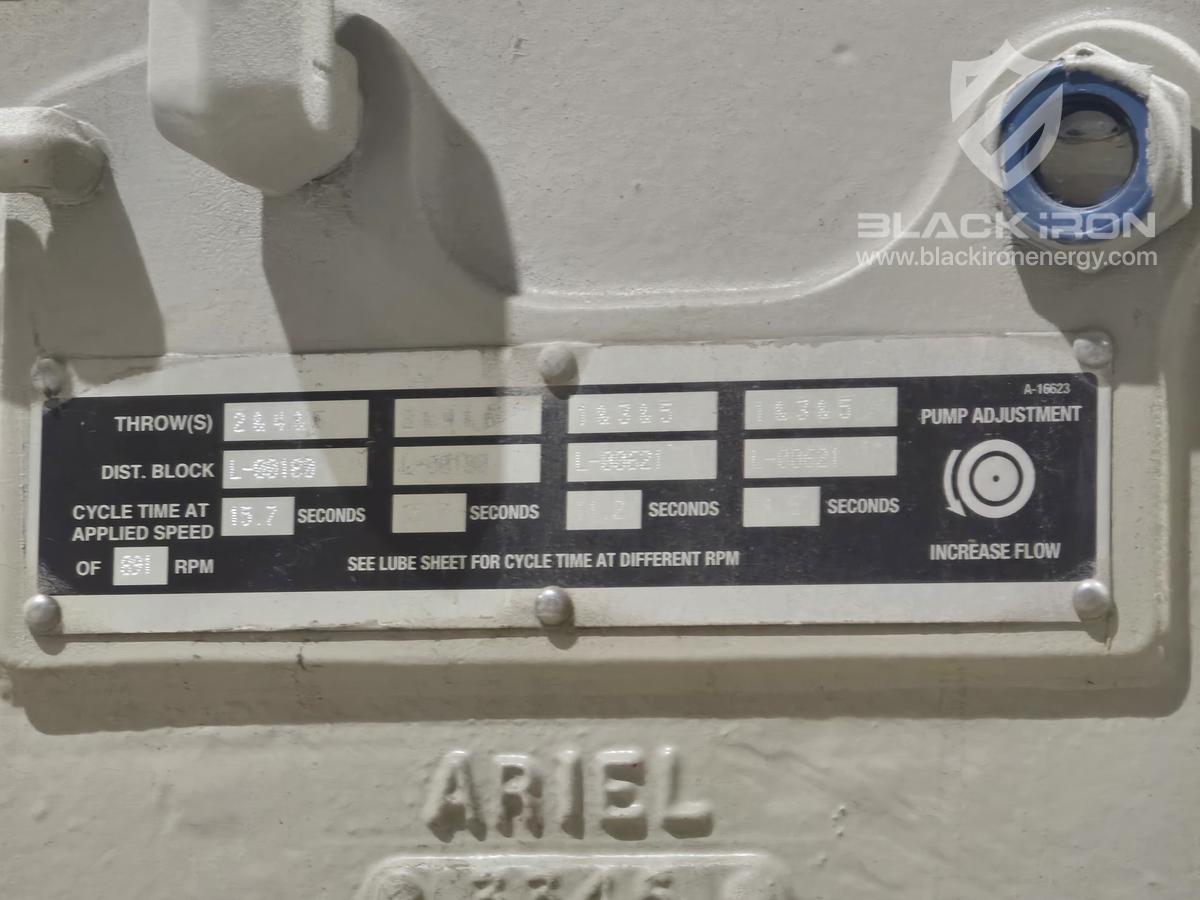

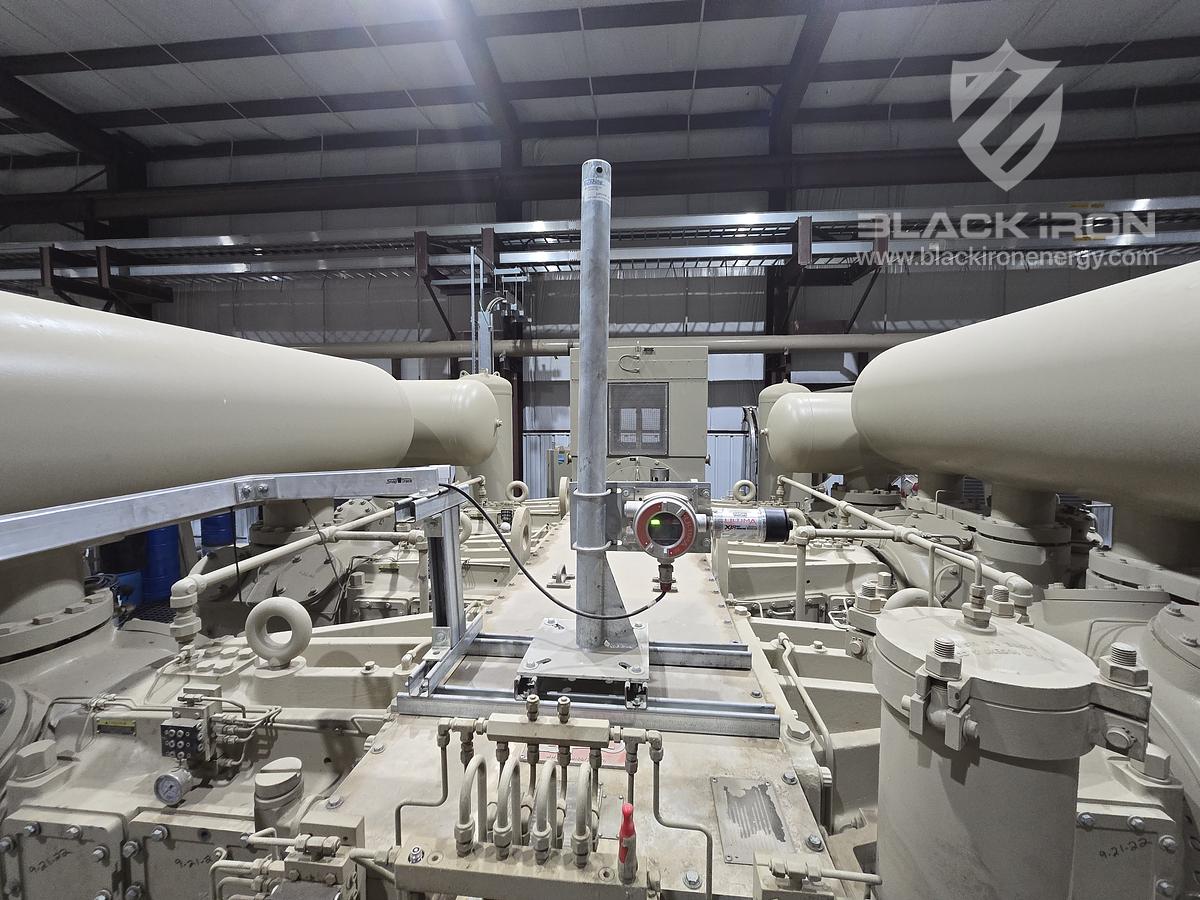

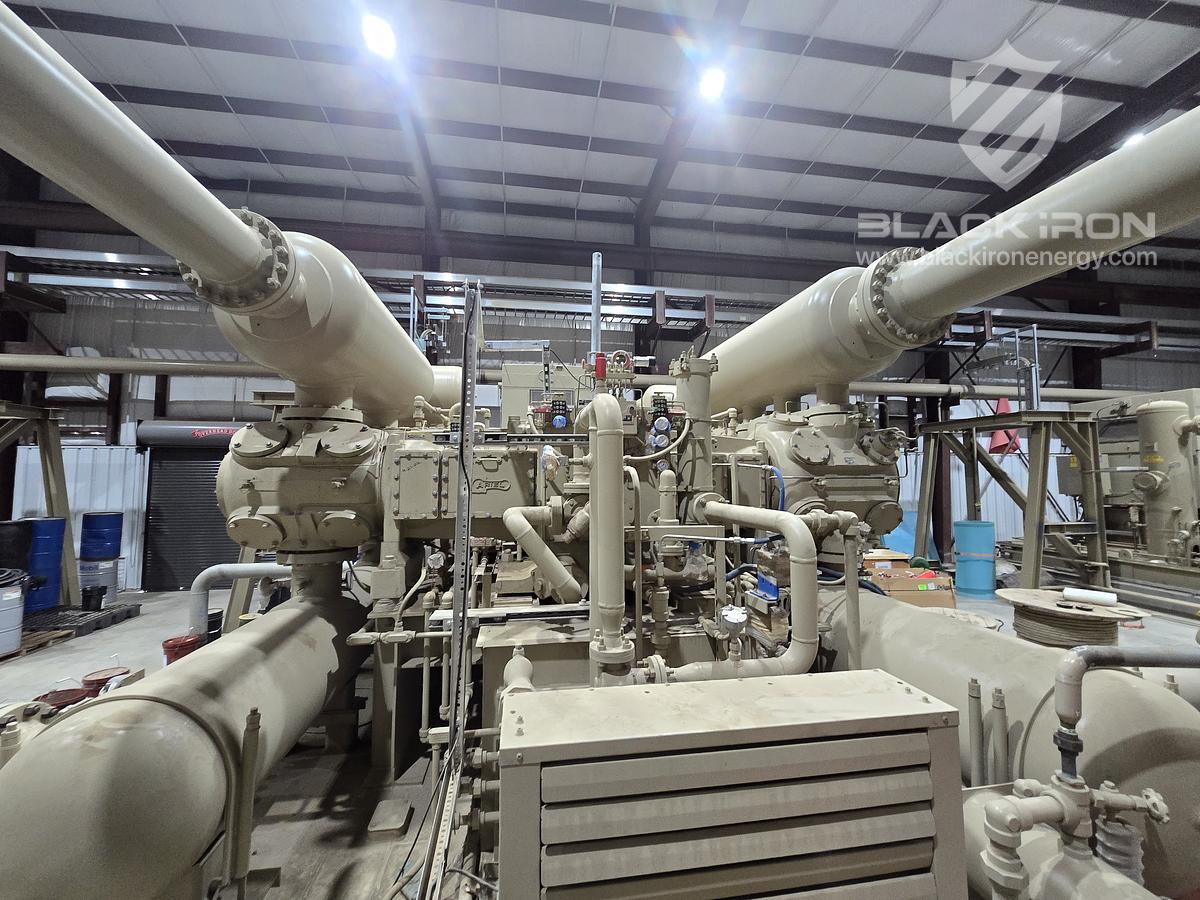

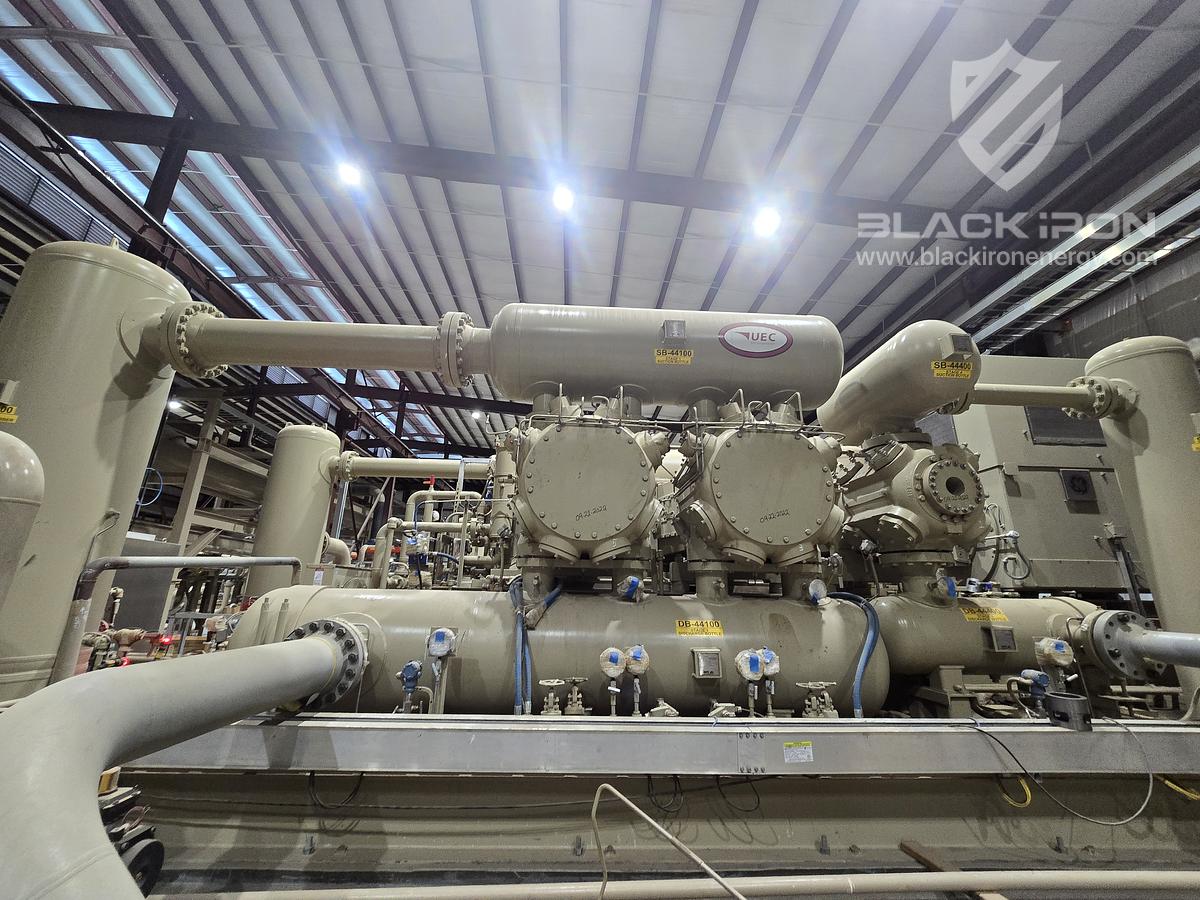

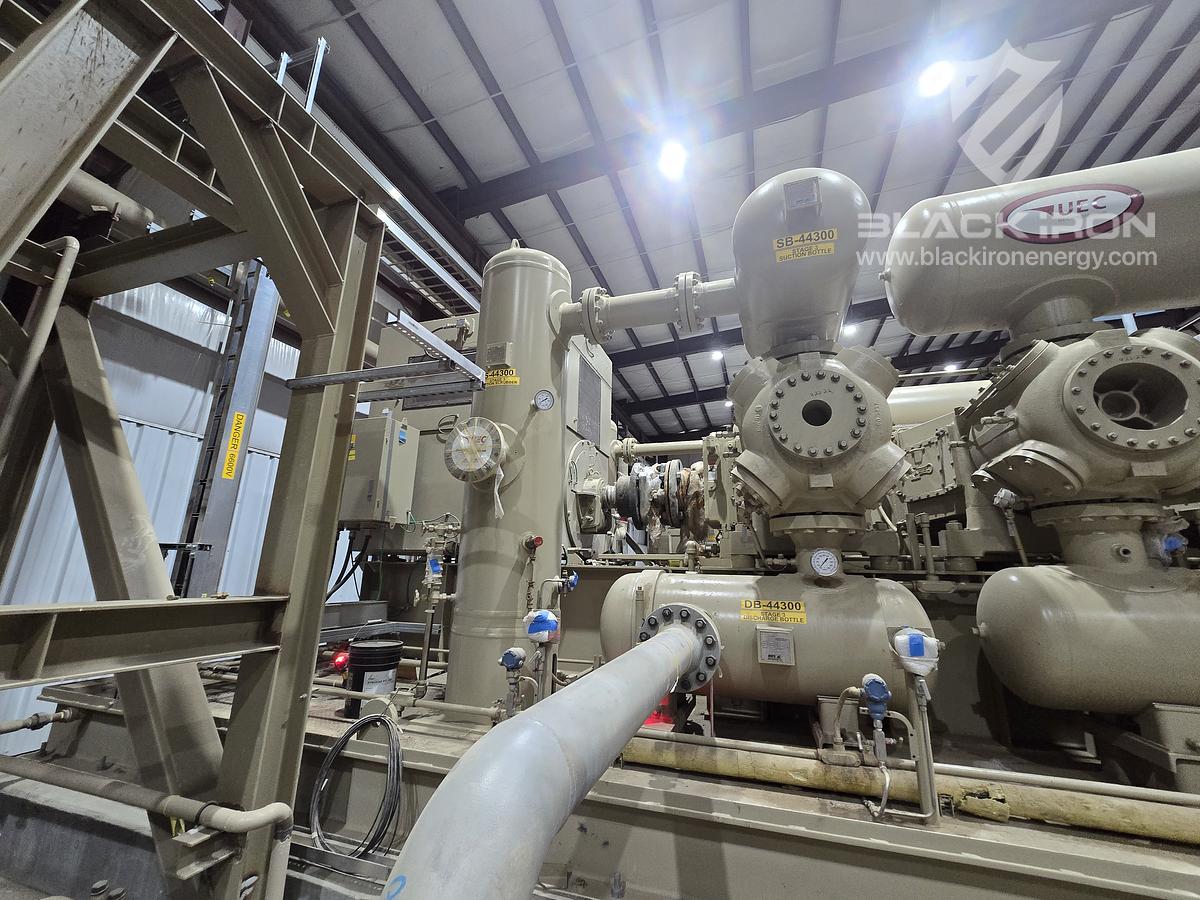

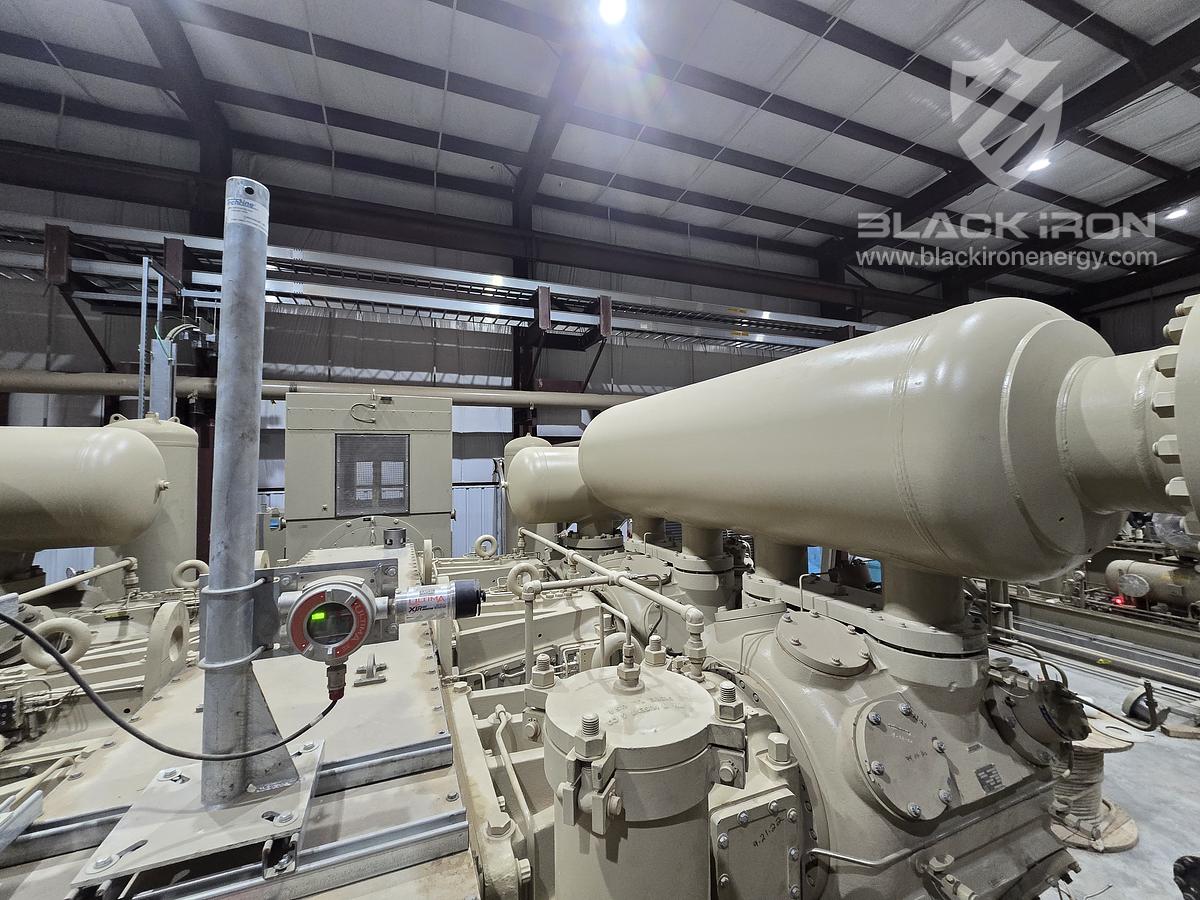

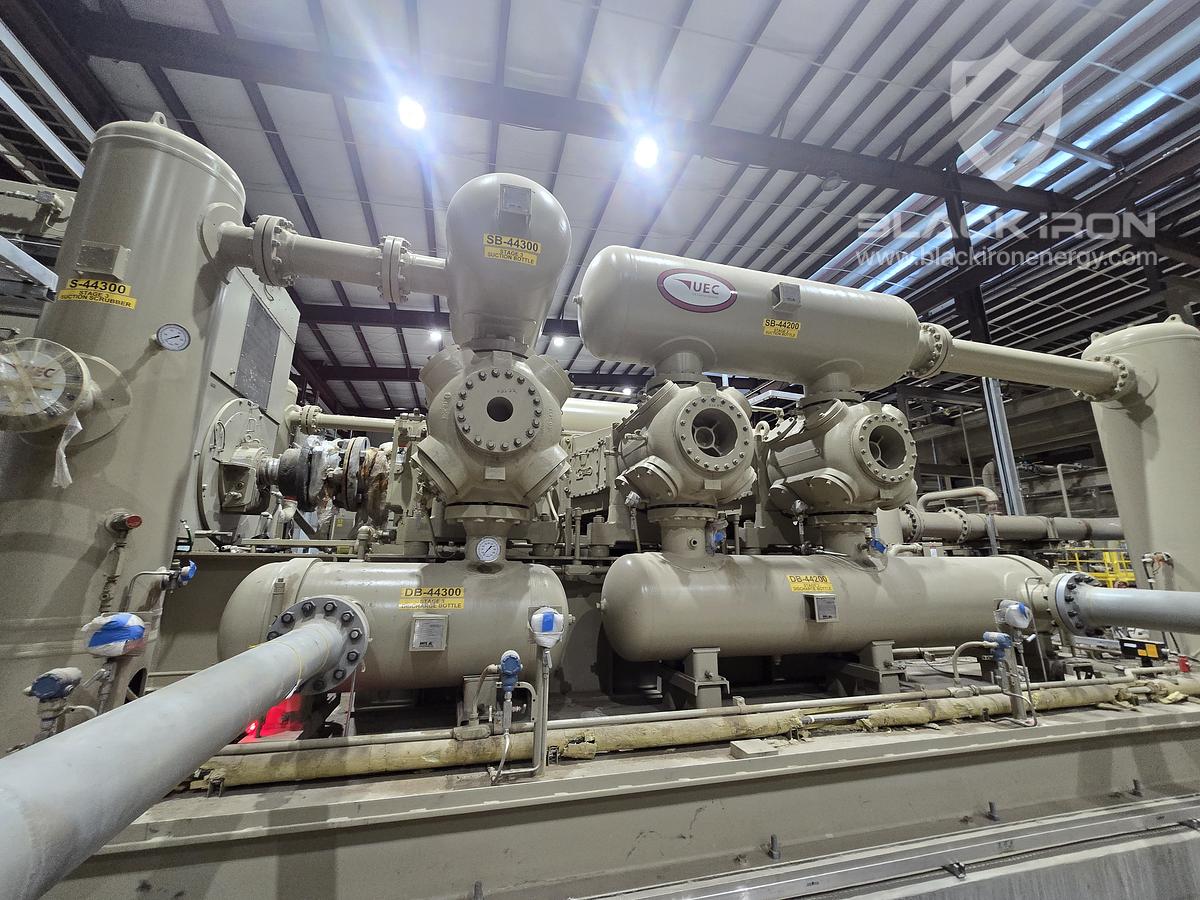

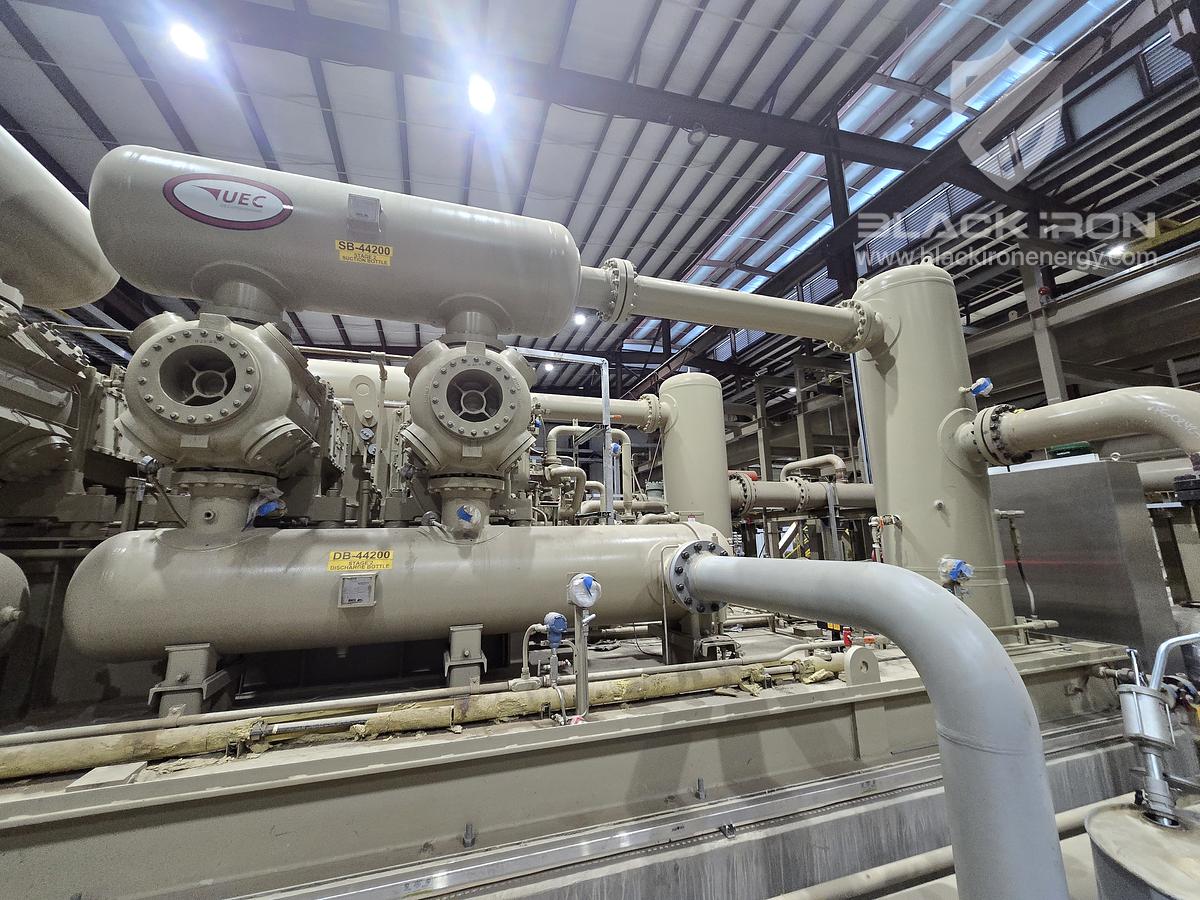

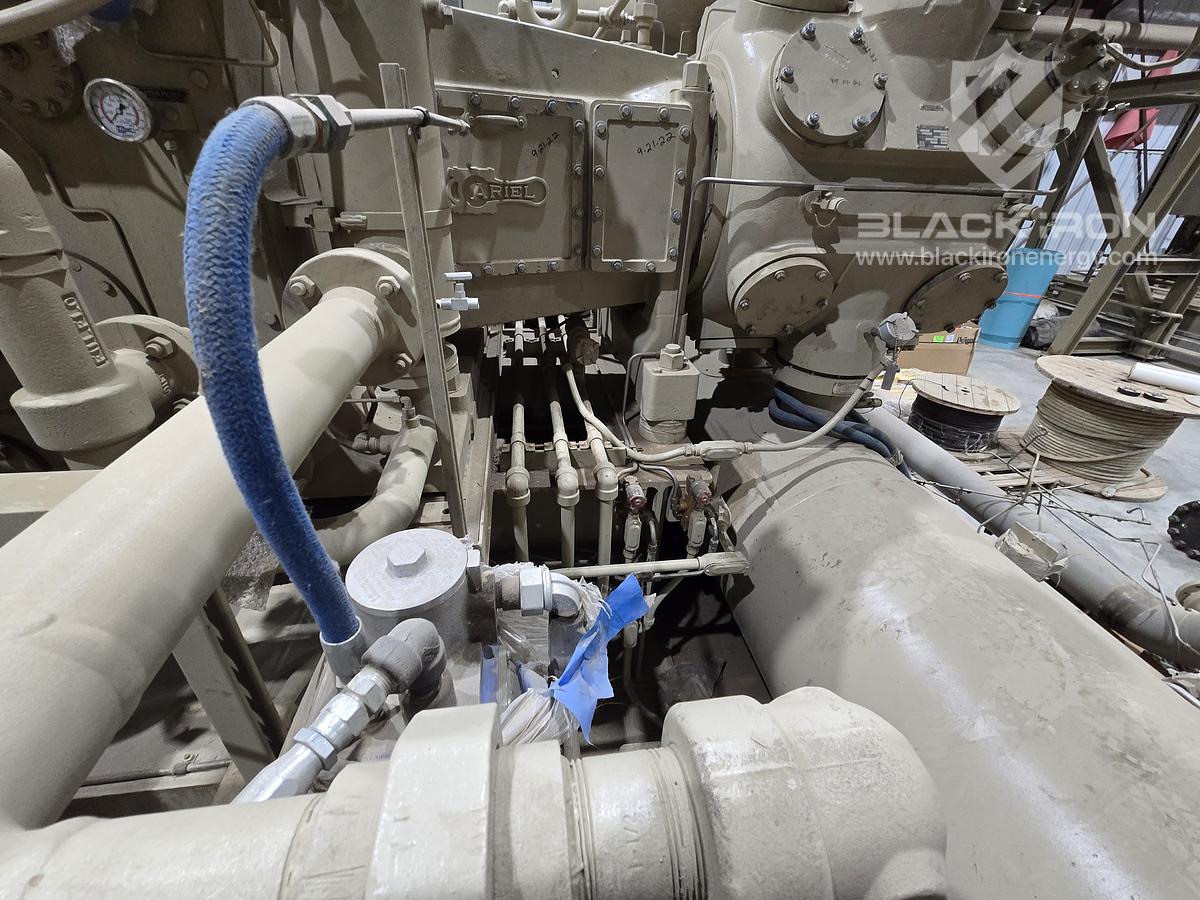

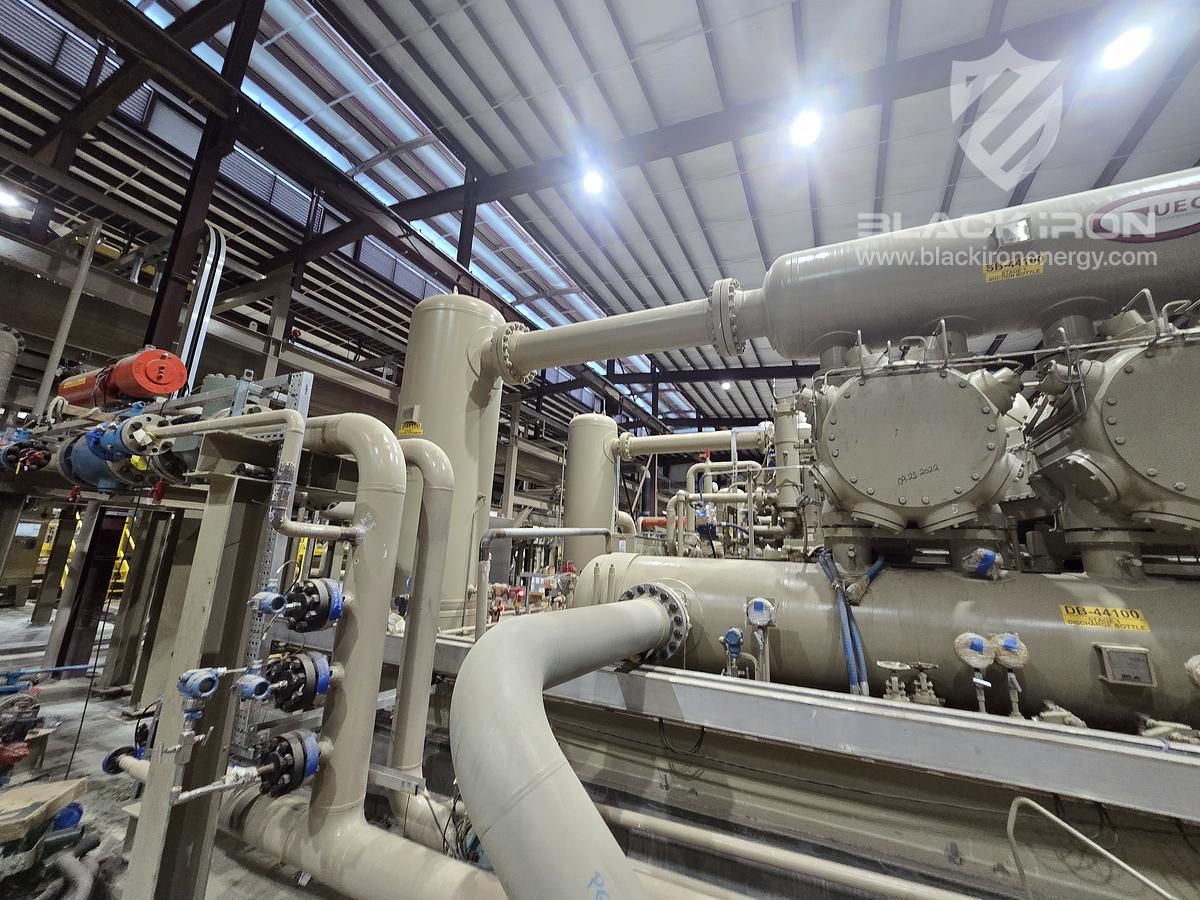

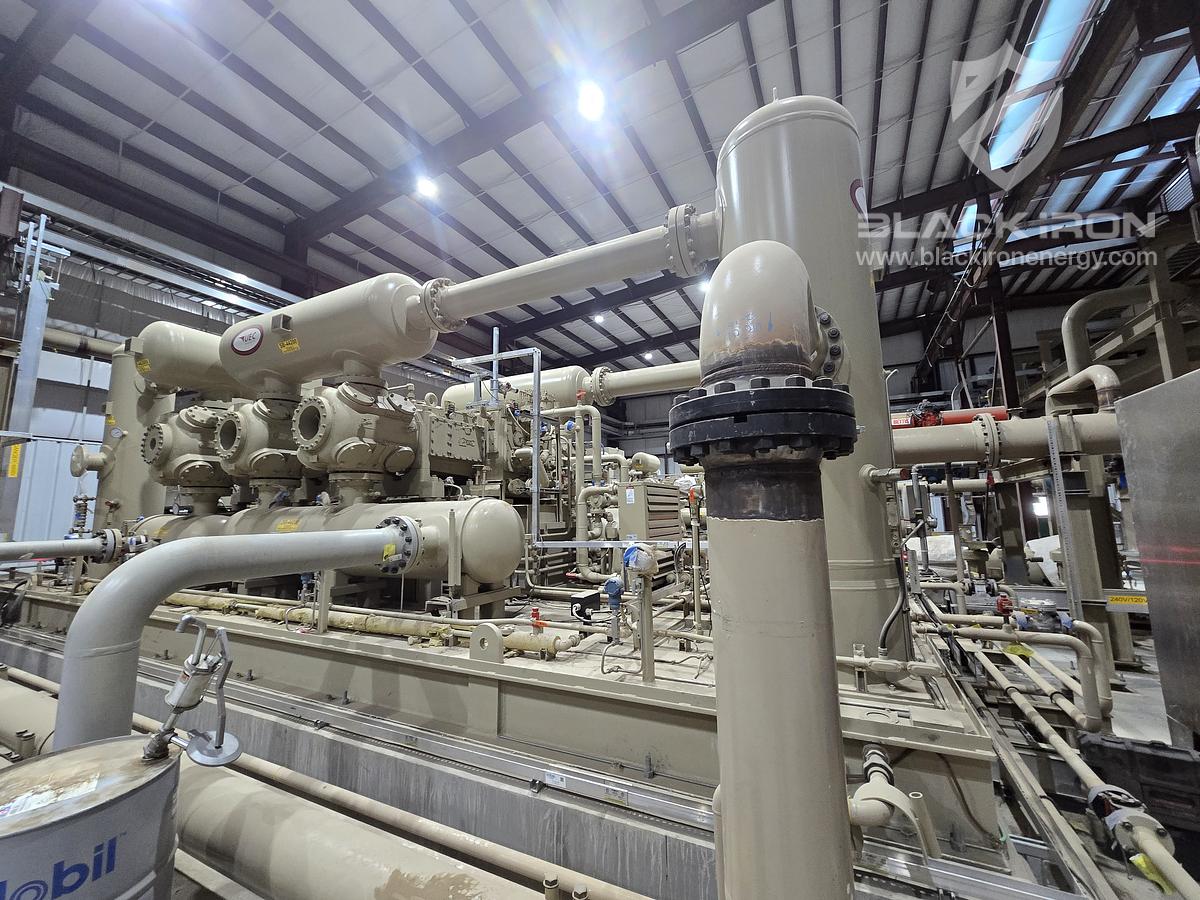

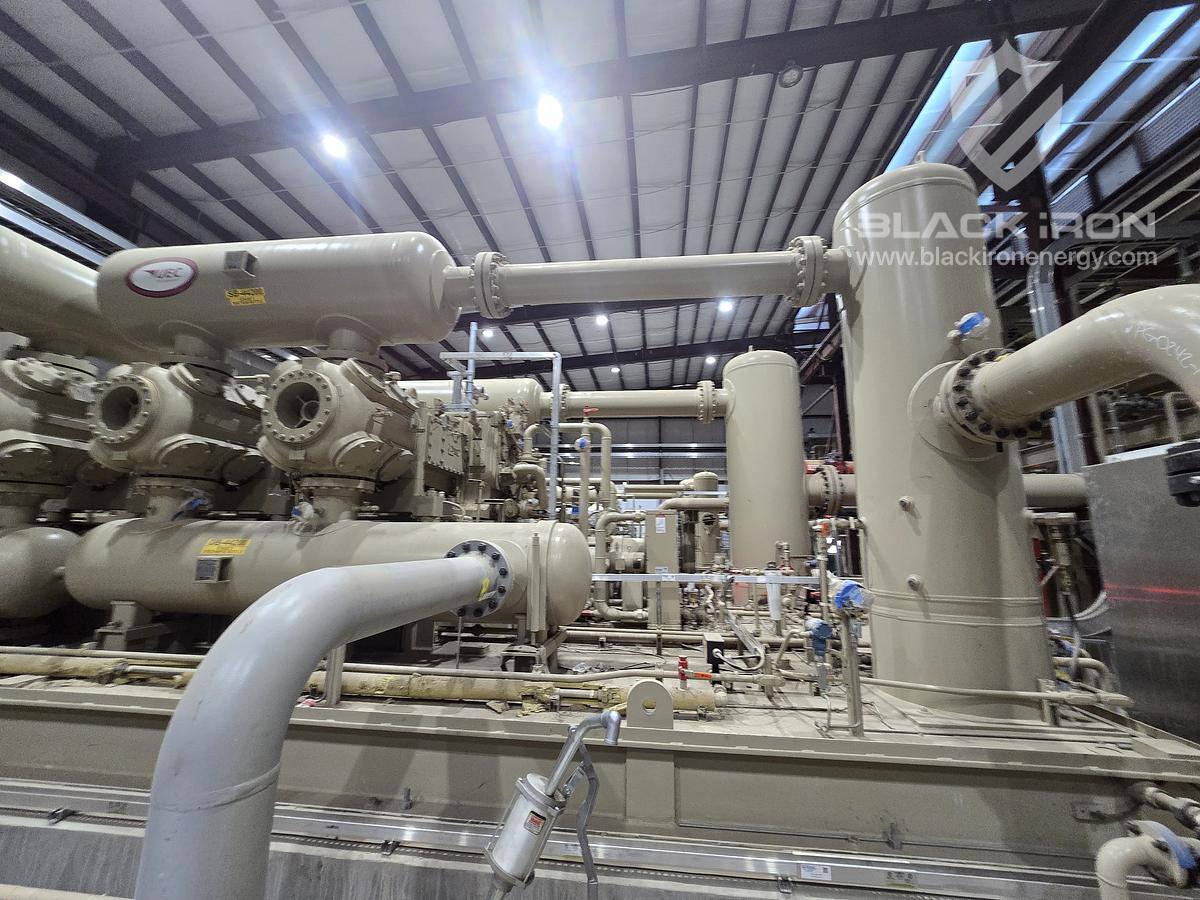

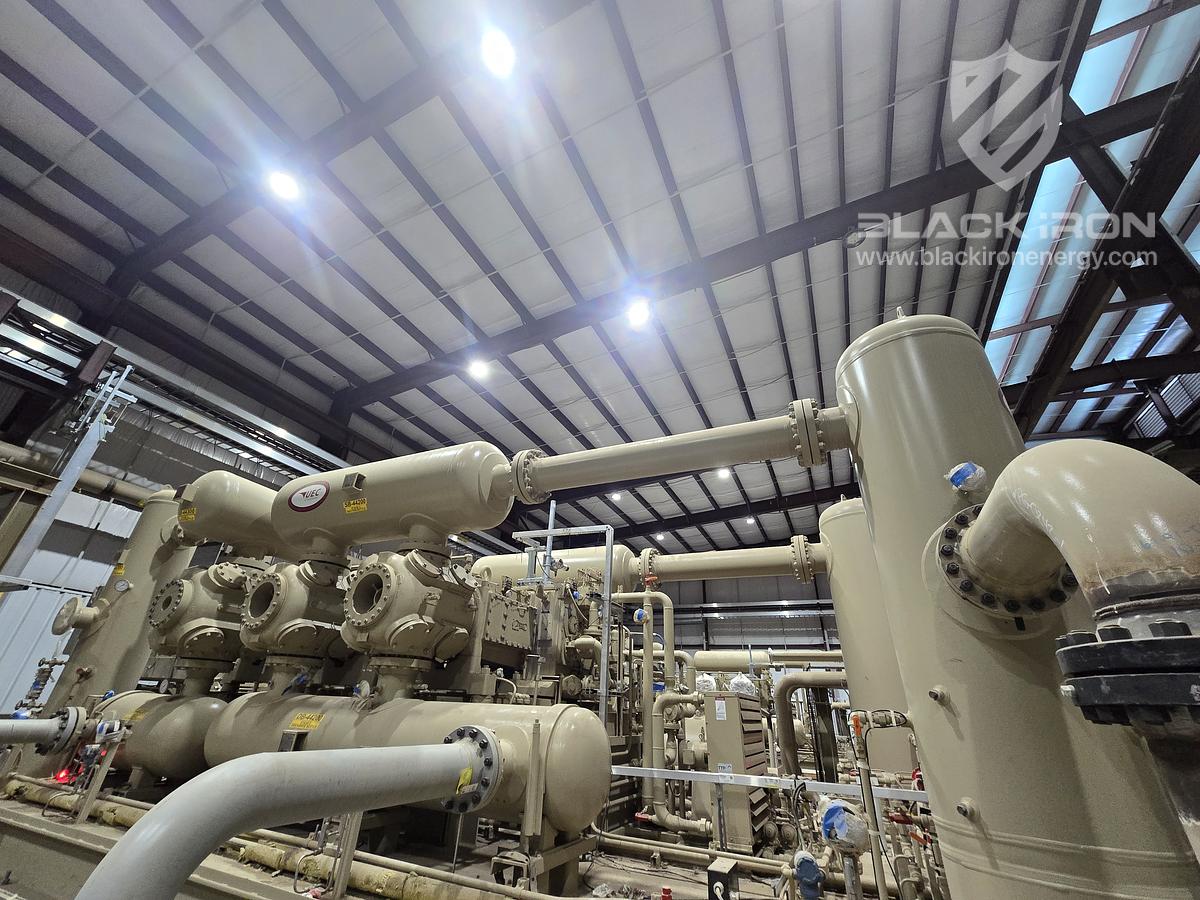

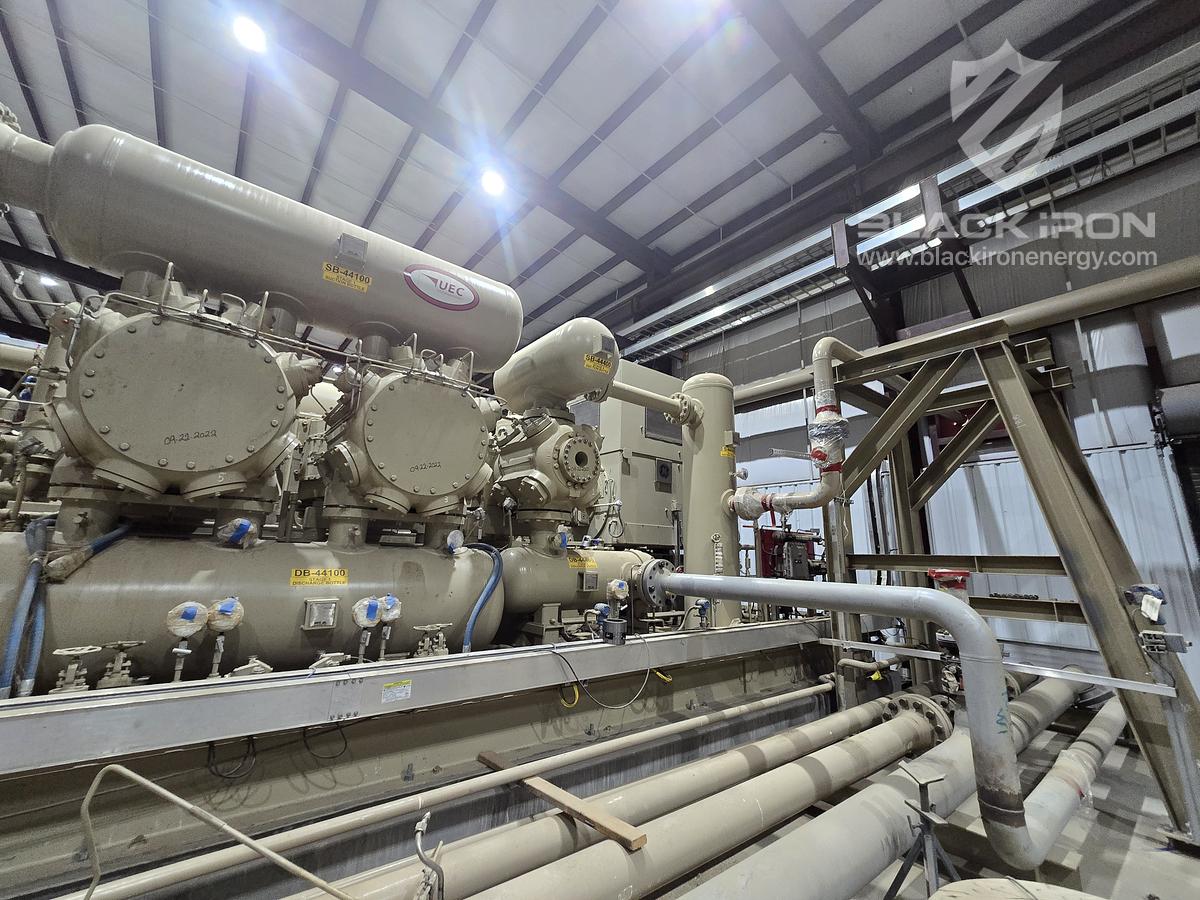

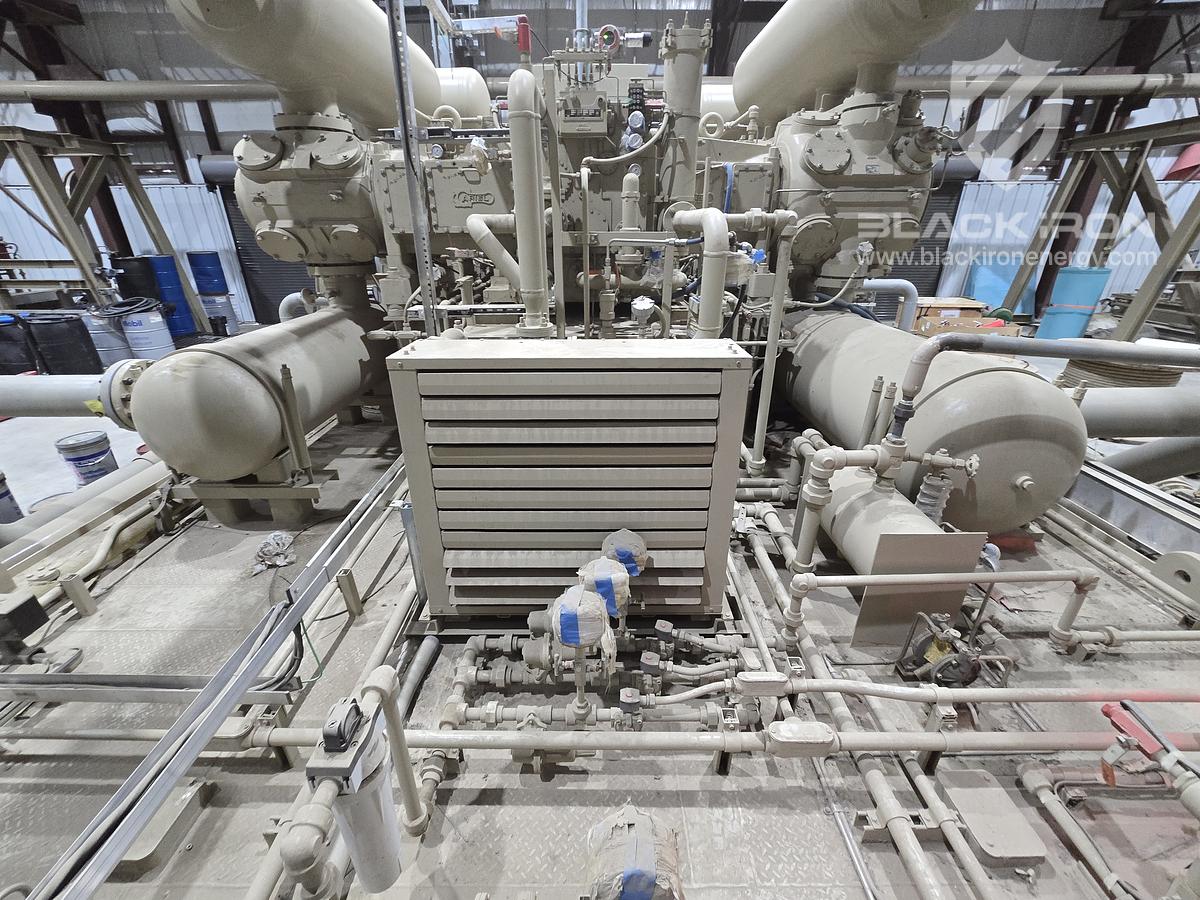

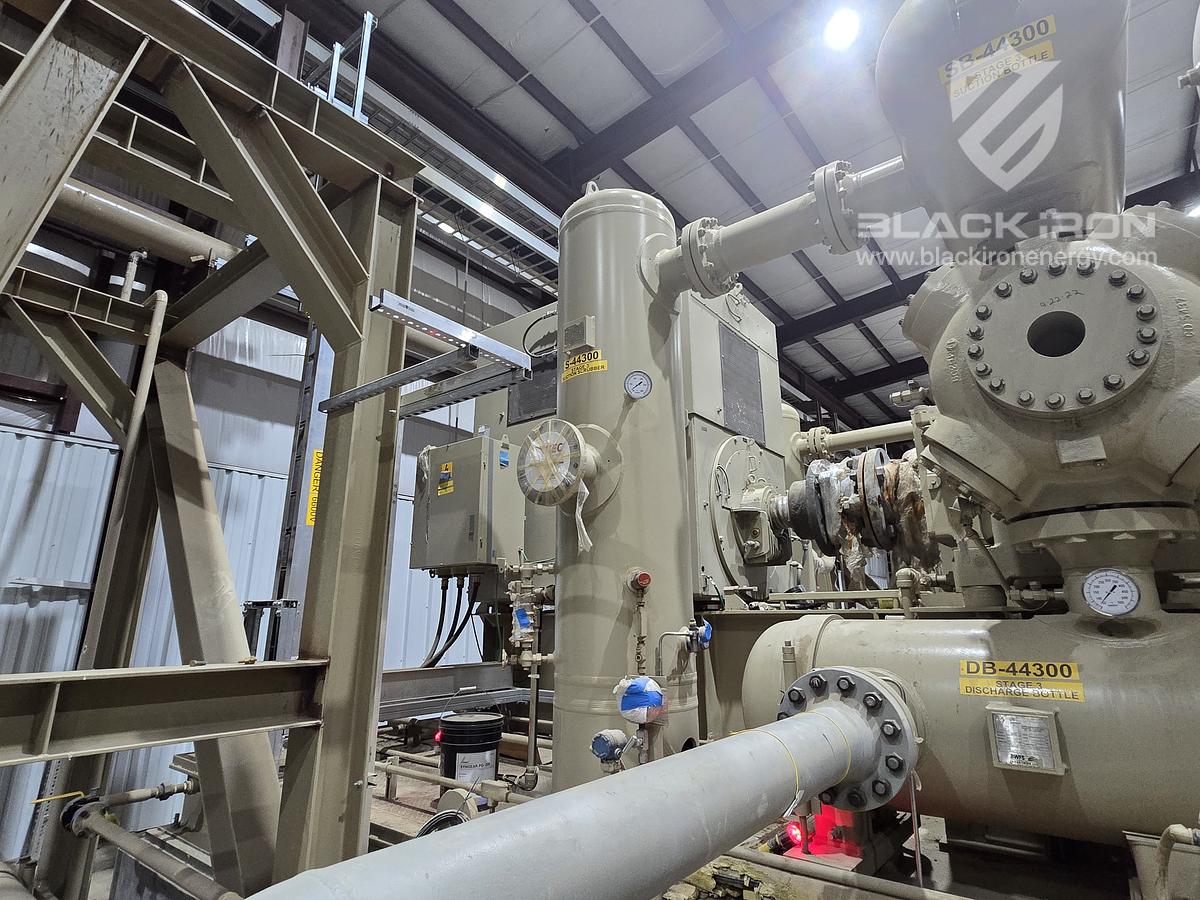

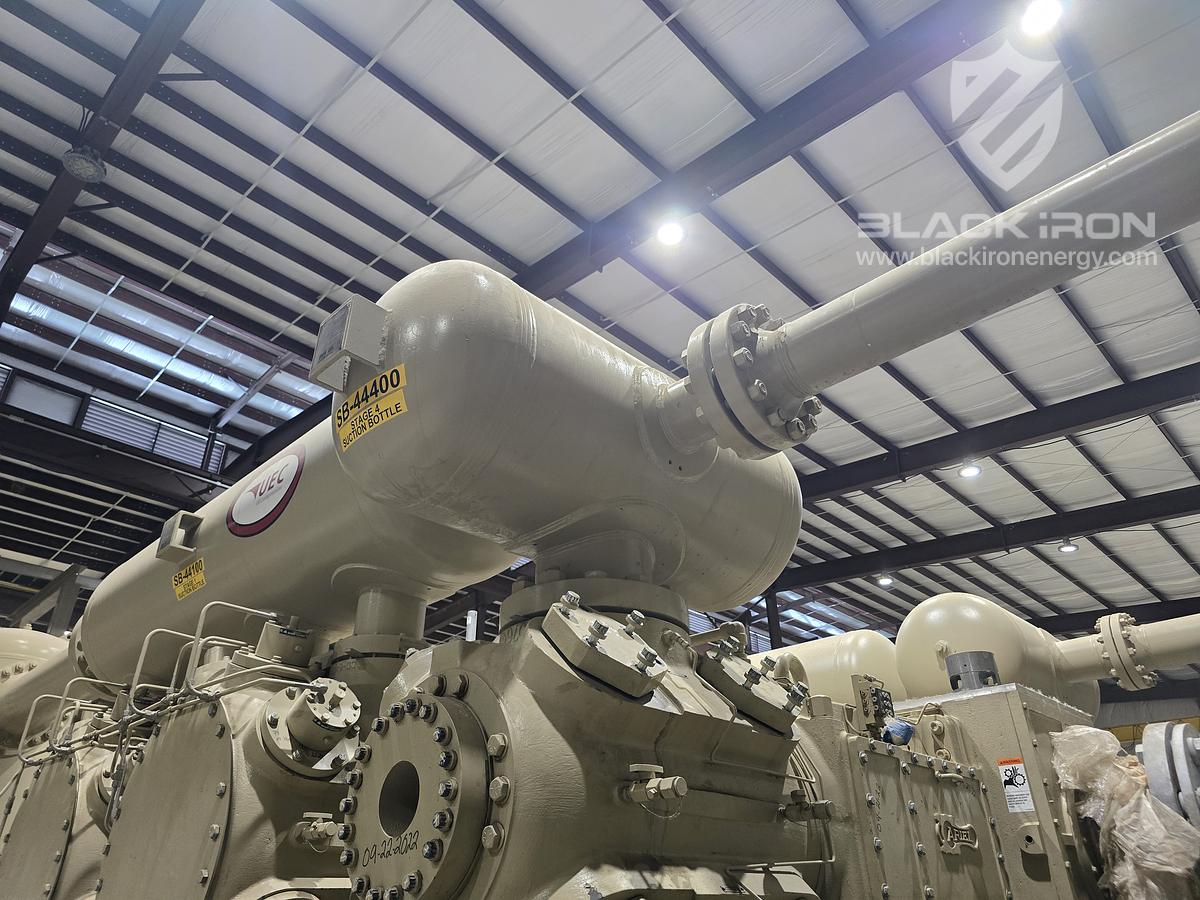

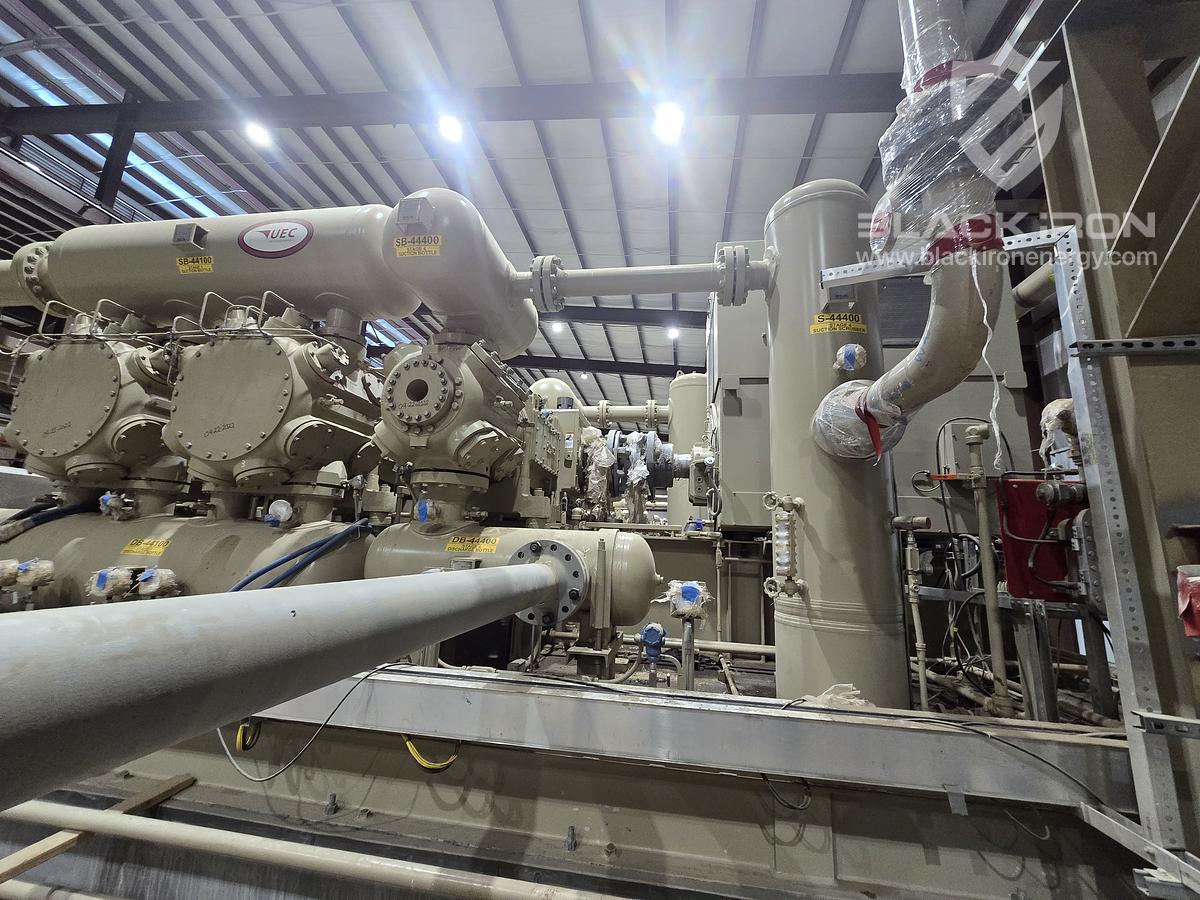

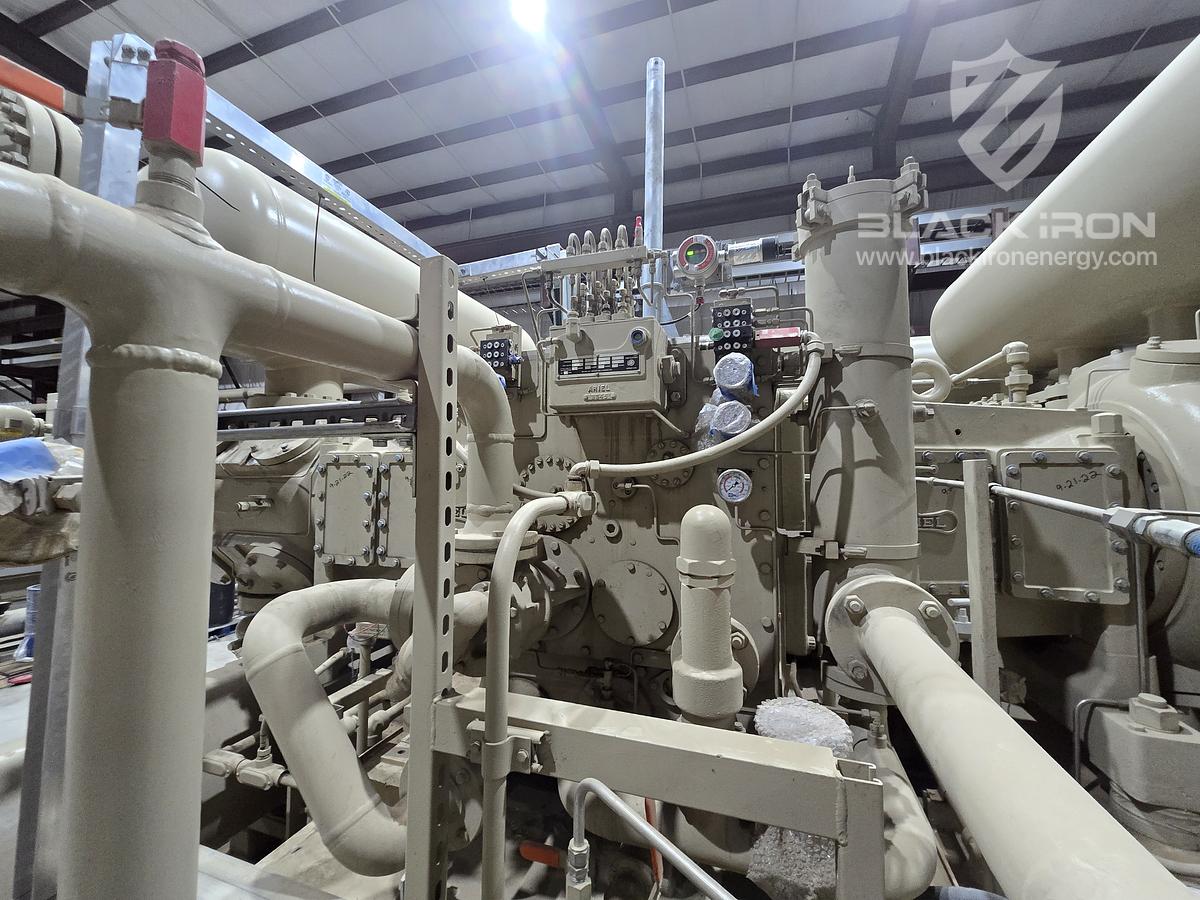

Ariel KBZ/6 recip compressor frame

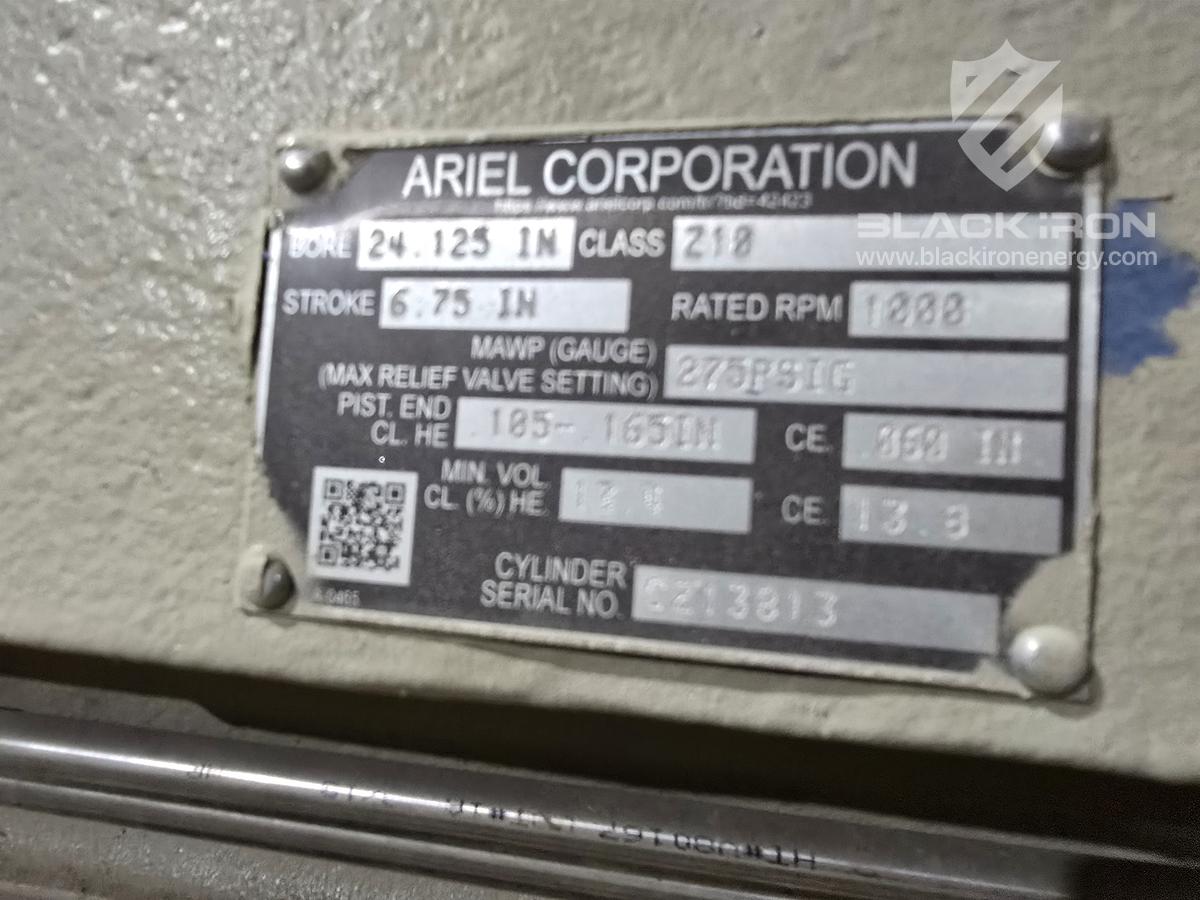

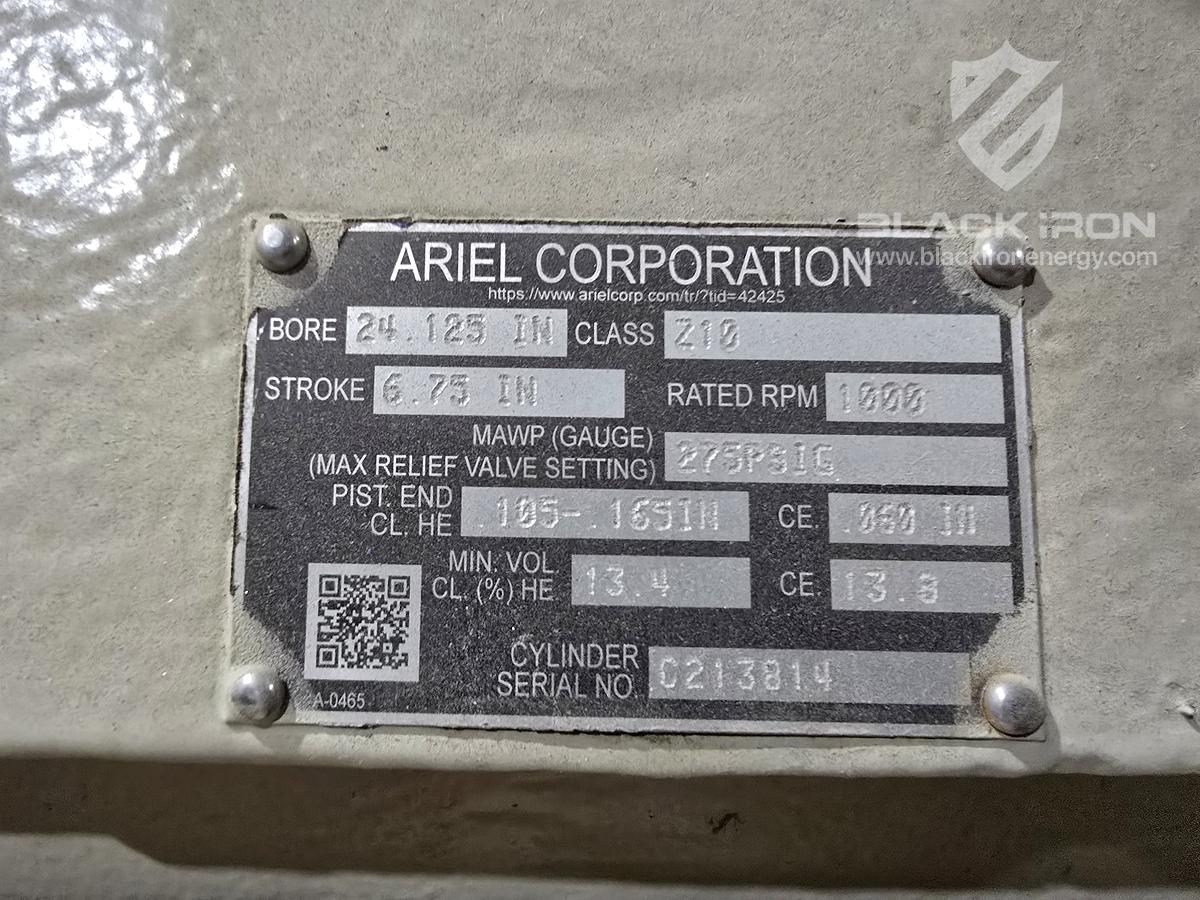

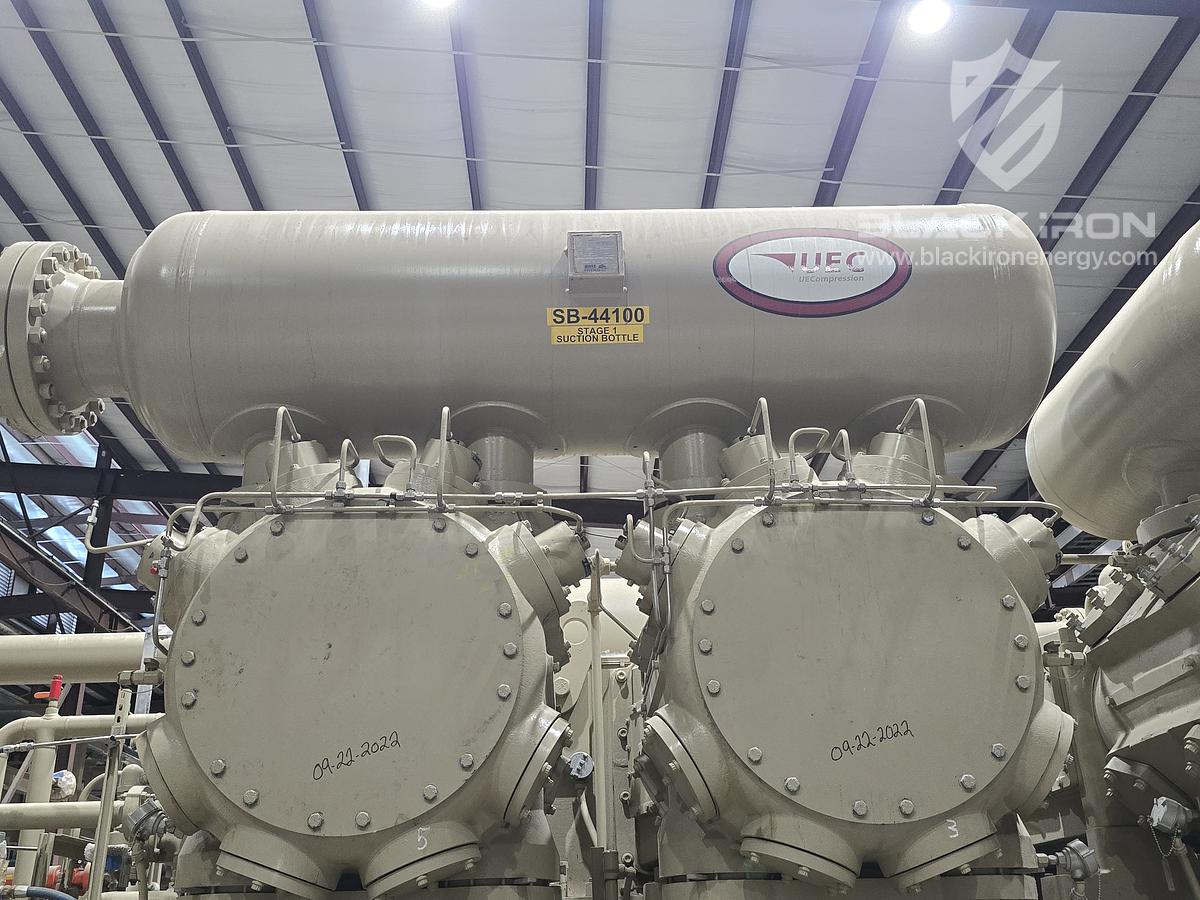

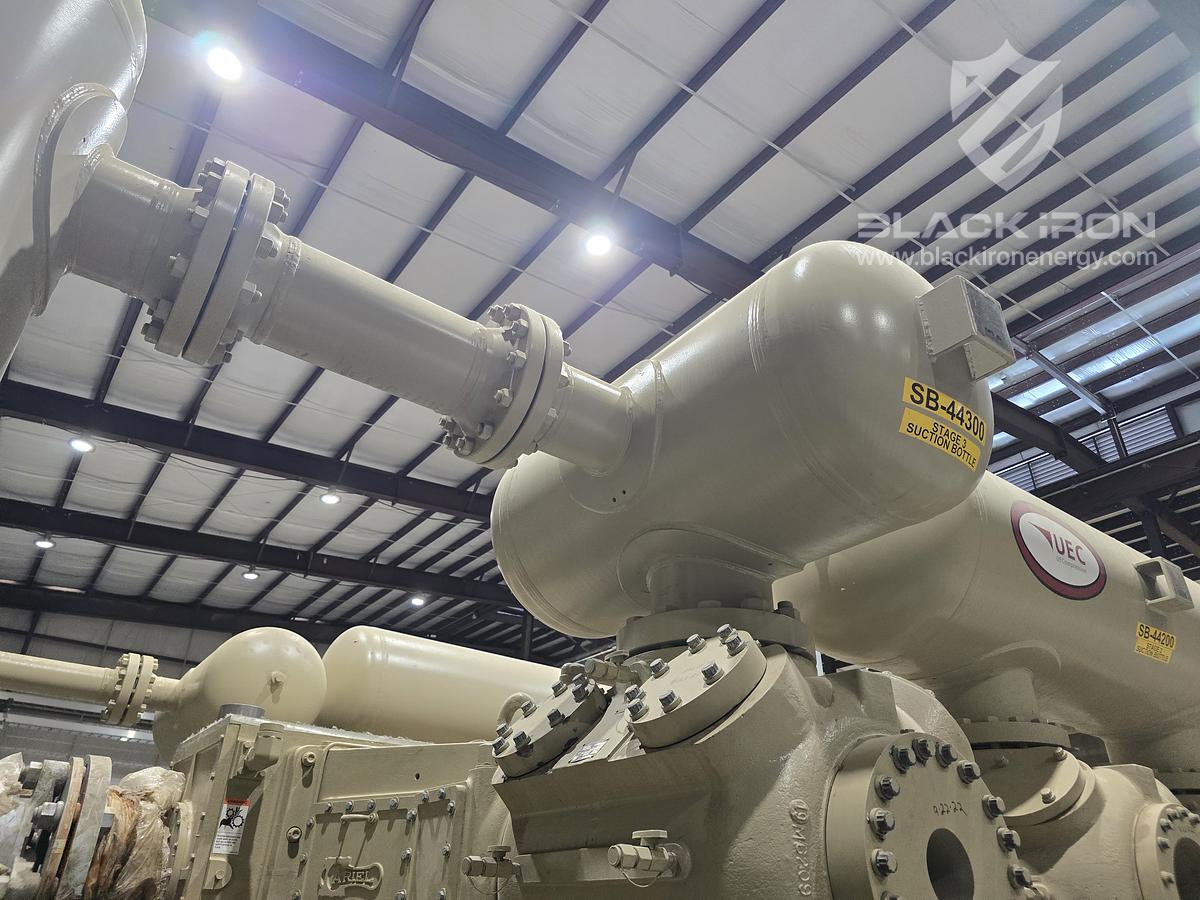

(2) 24.125" Z:10U cylinders rated 275 psig MAWP w/ PVCP

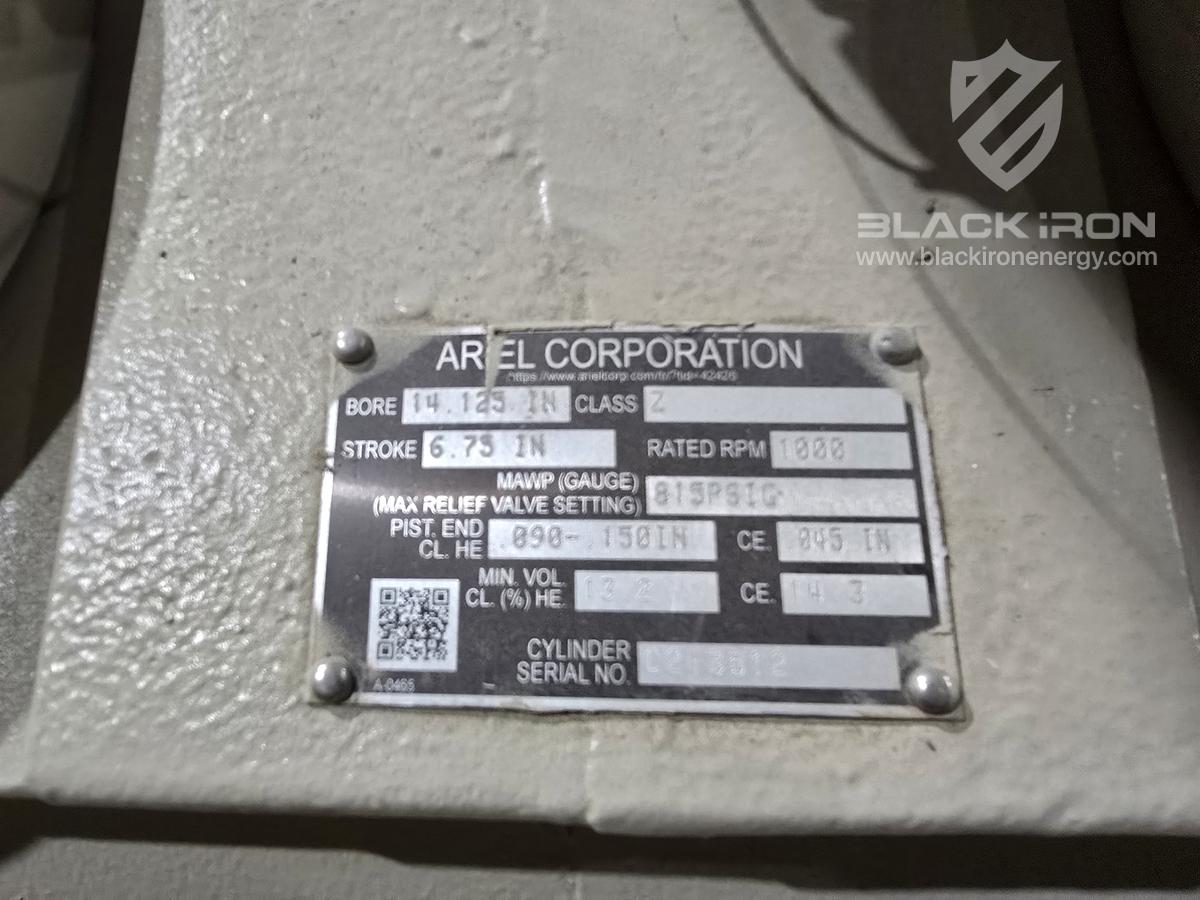

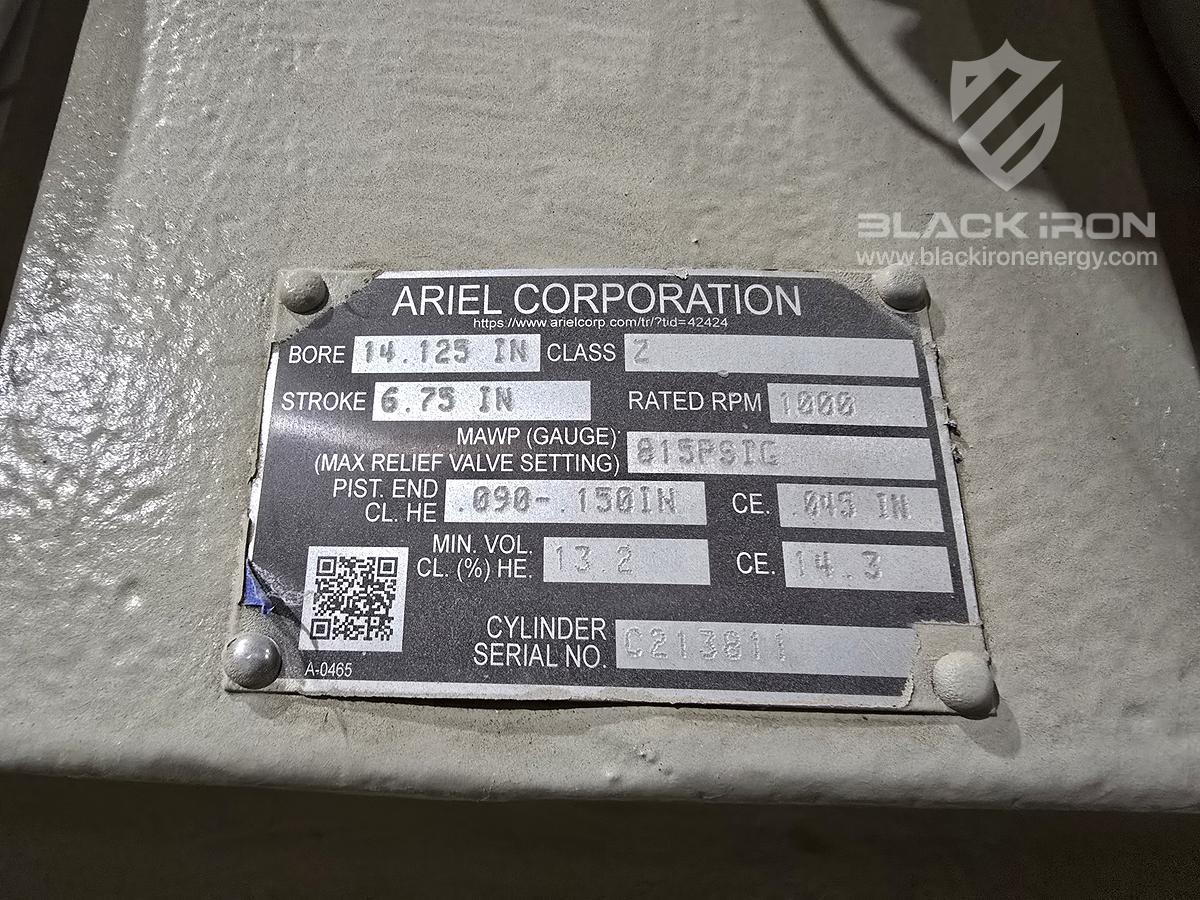

(2) 14.125" Z cylinder rated 815 psig MAWP (no VVCP)

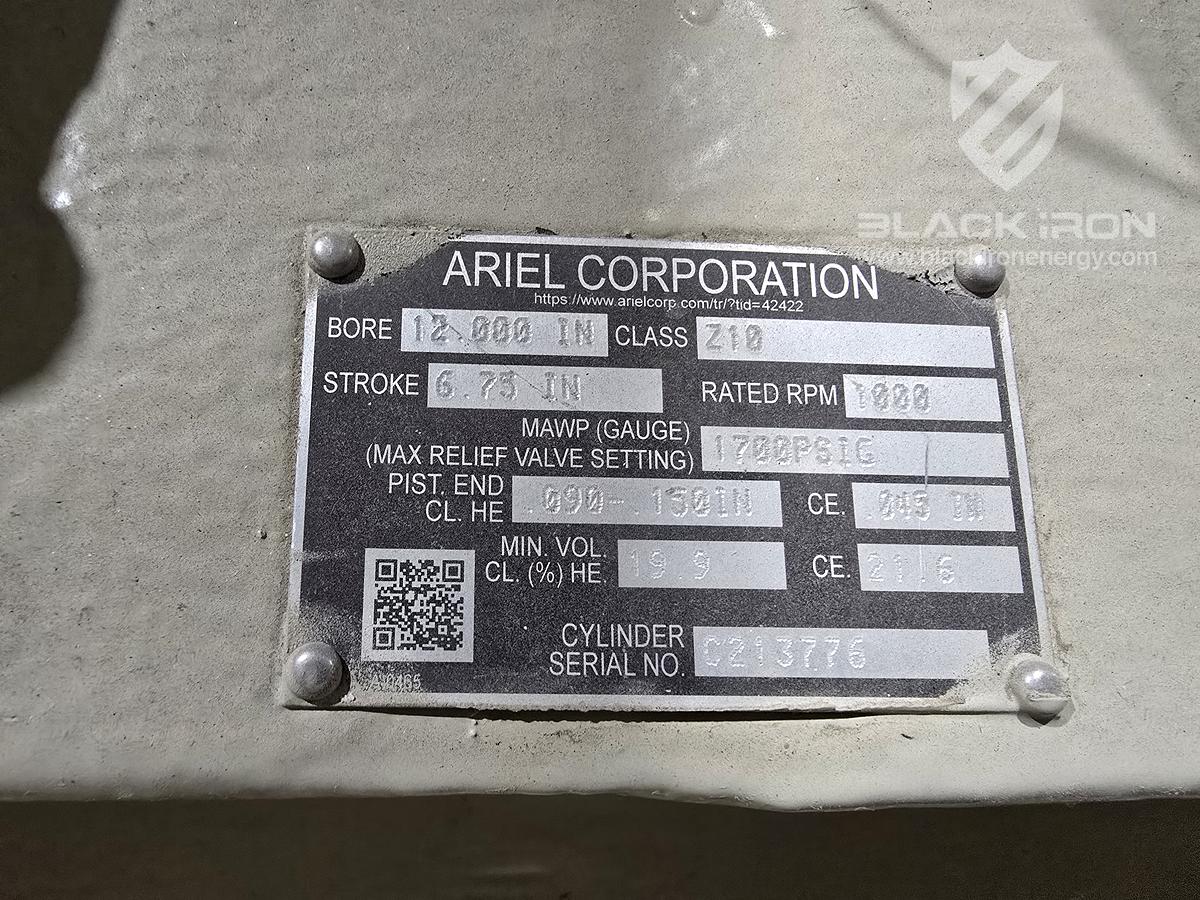

(1) 12.000" Z:10 cylinder rated 1700 psig MAWP (no VVCP)

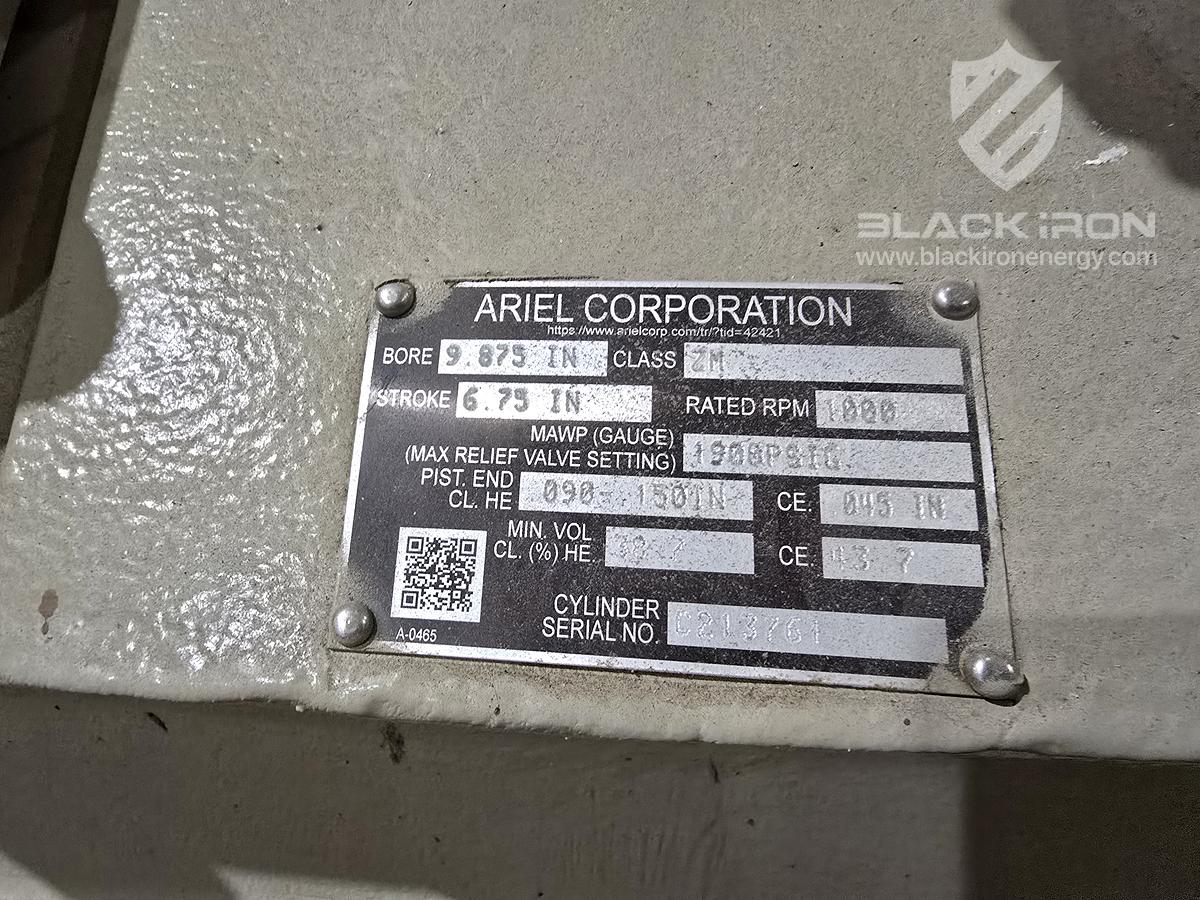

(1) 9.875" ZM cylinder rated 1900 psig MAWP (no VVCP)

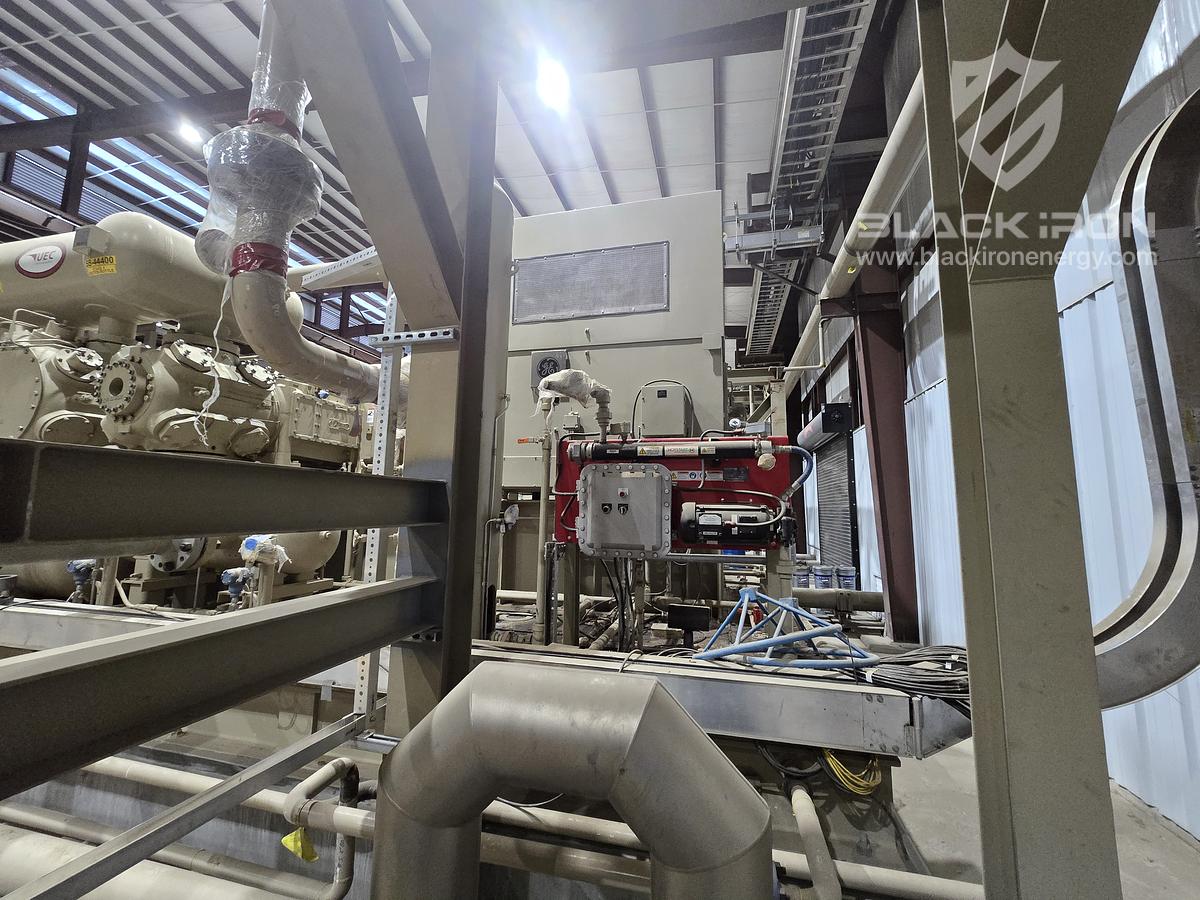

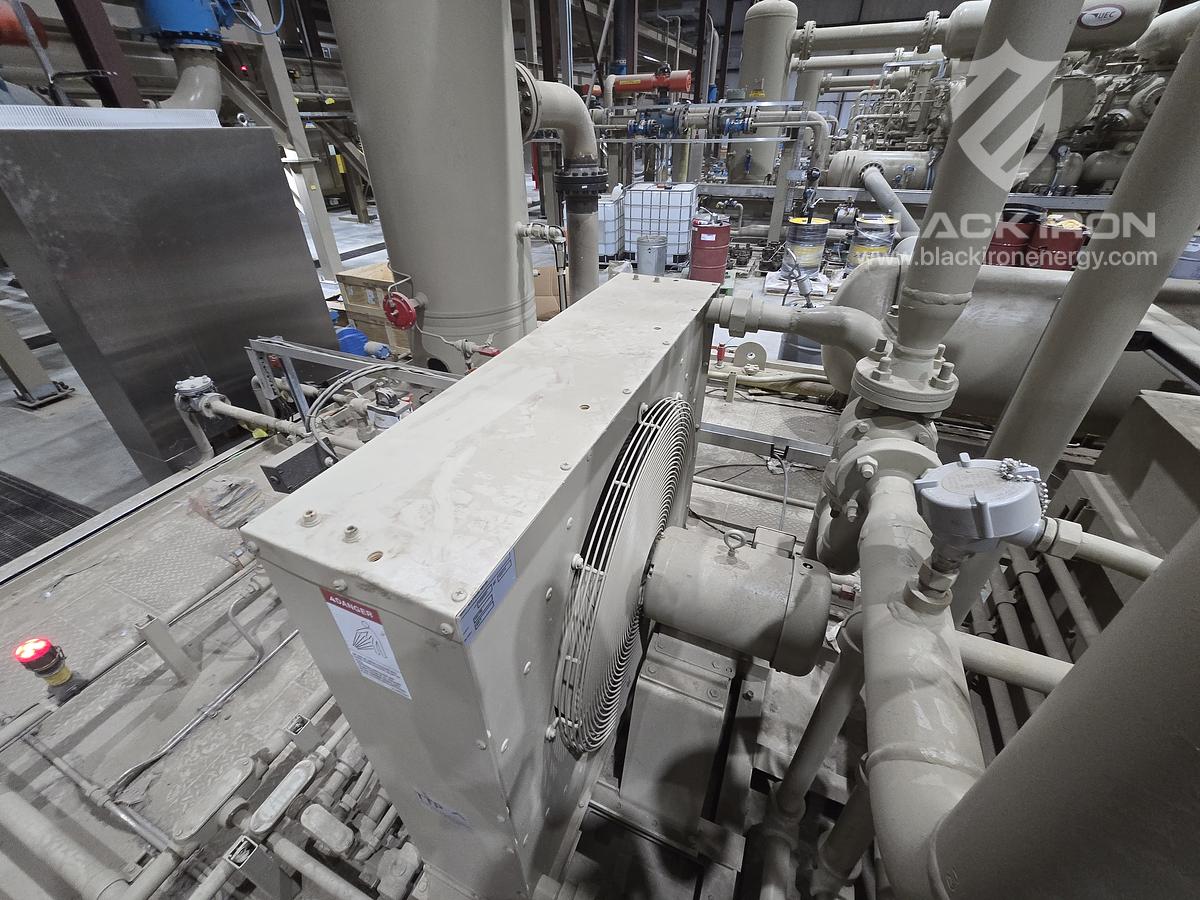

Circulating Kim Hotstart compressor oil heater

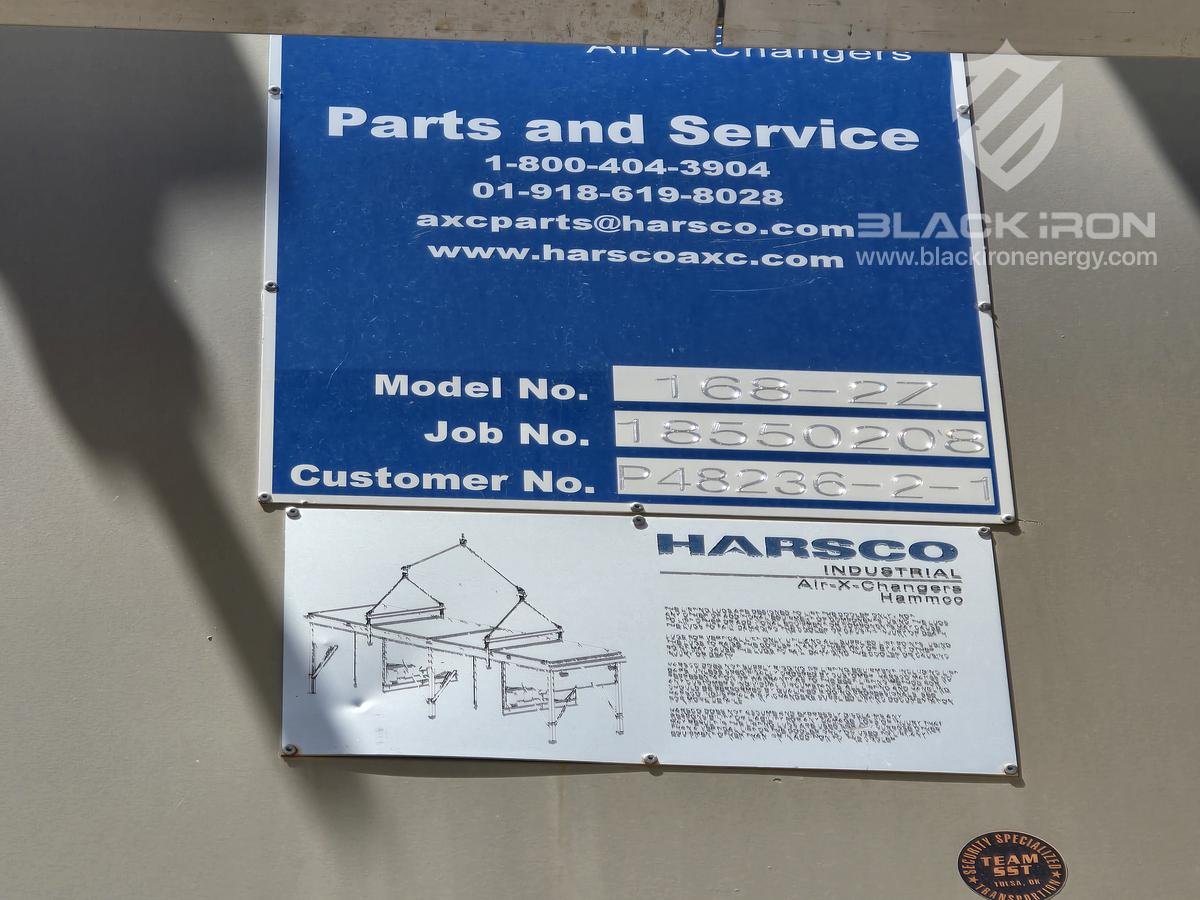

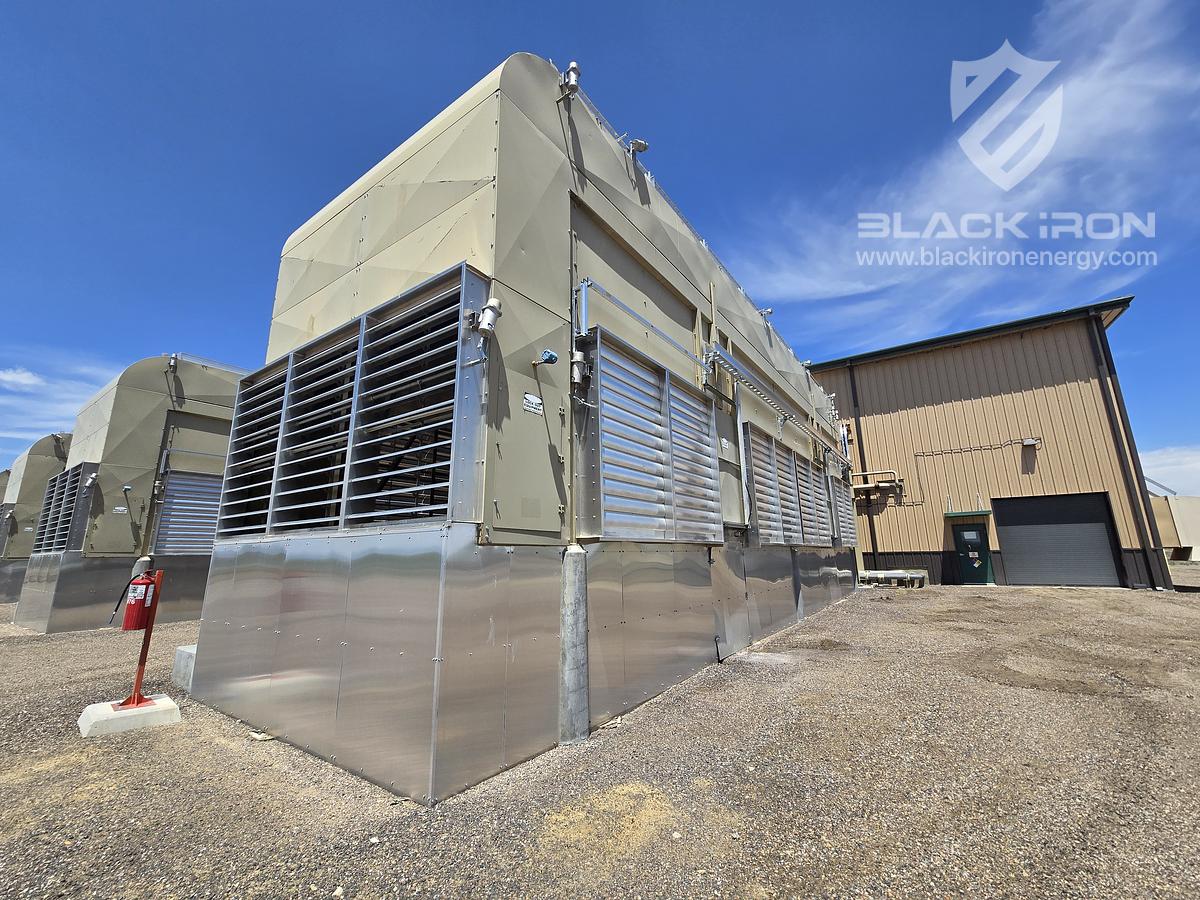

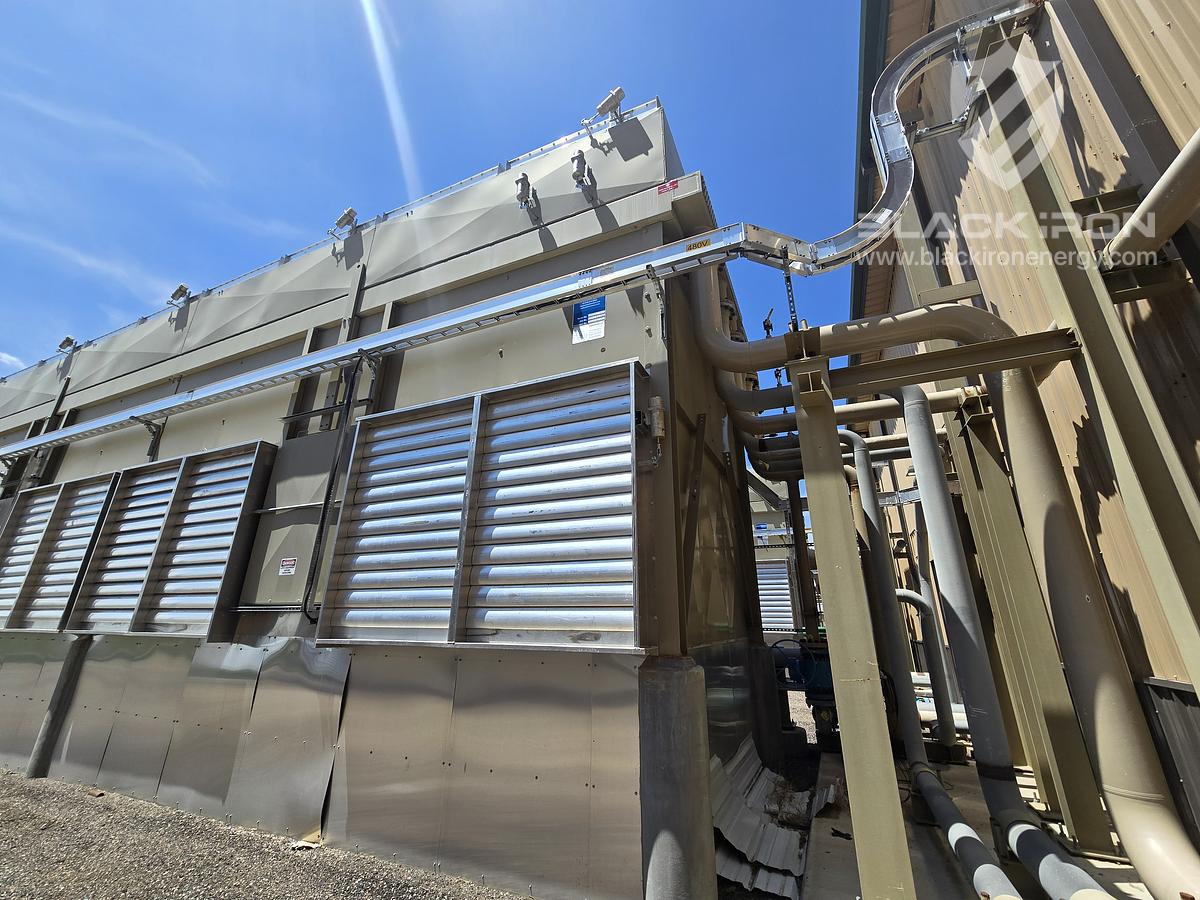

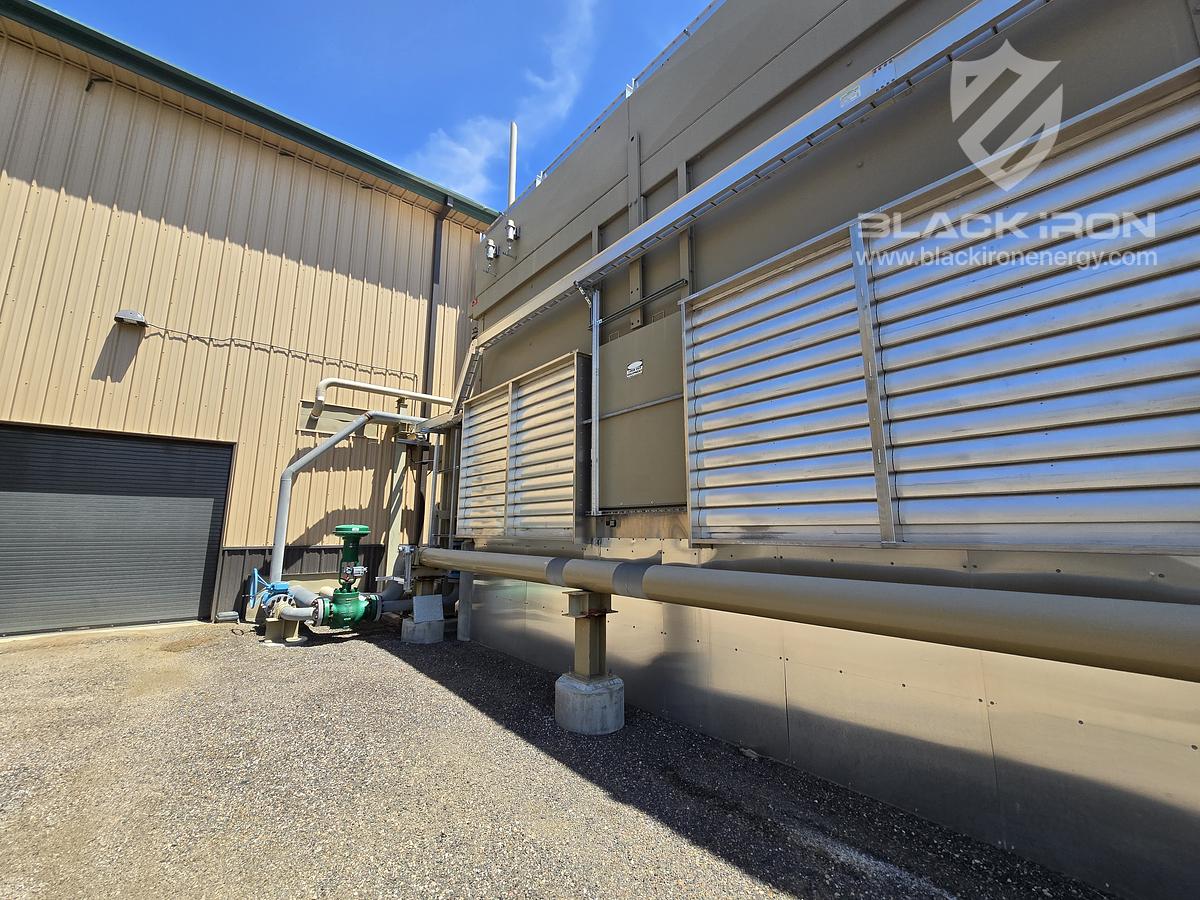

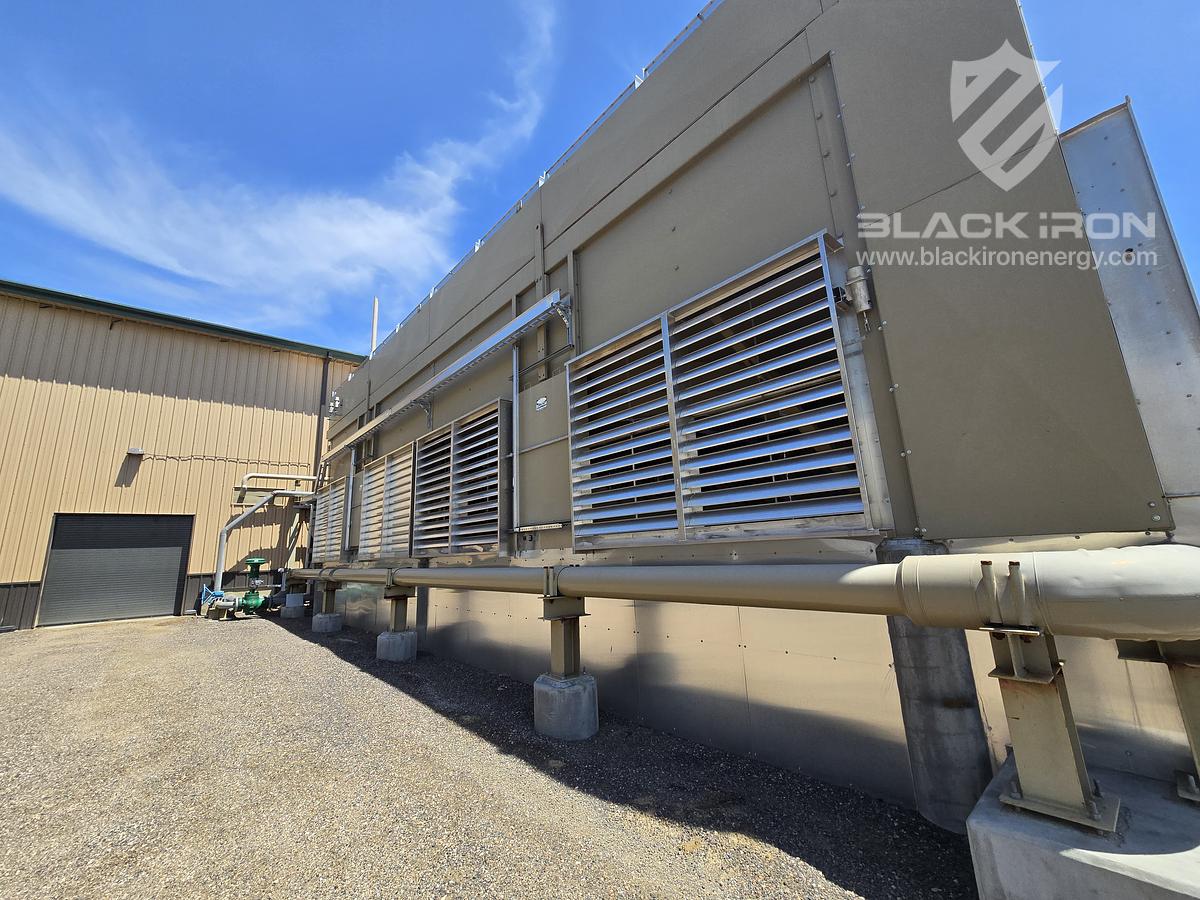

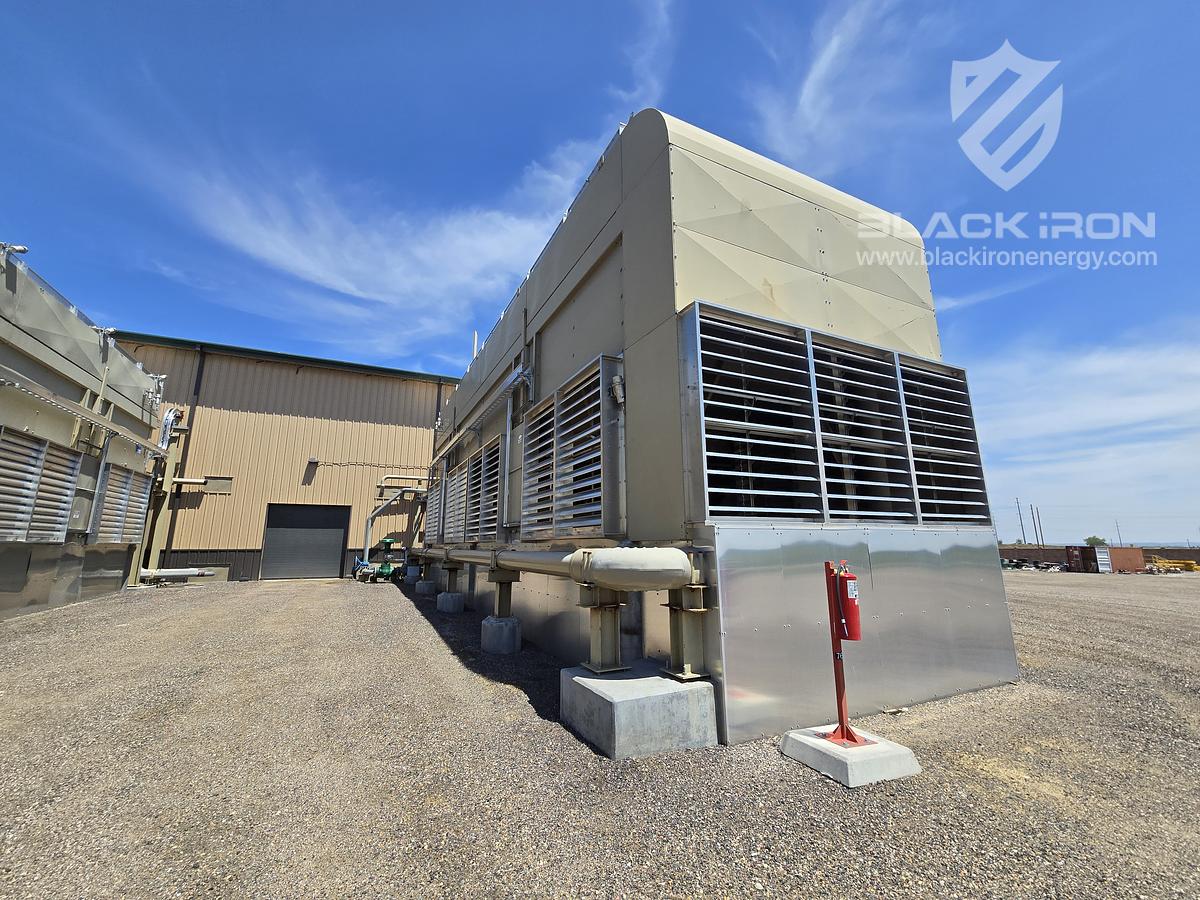

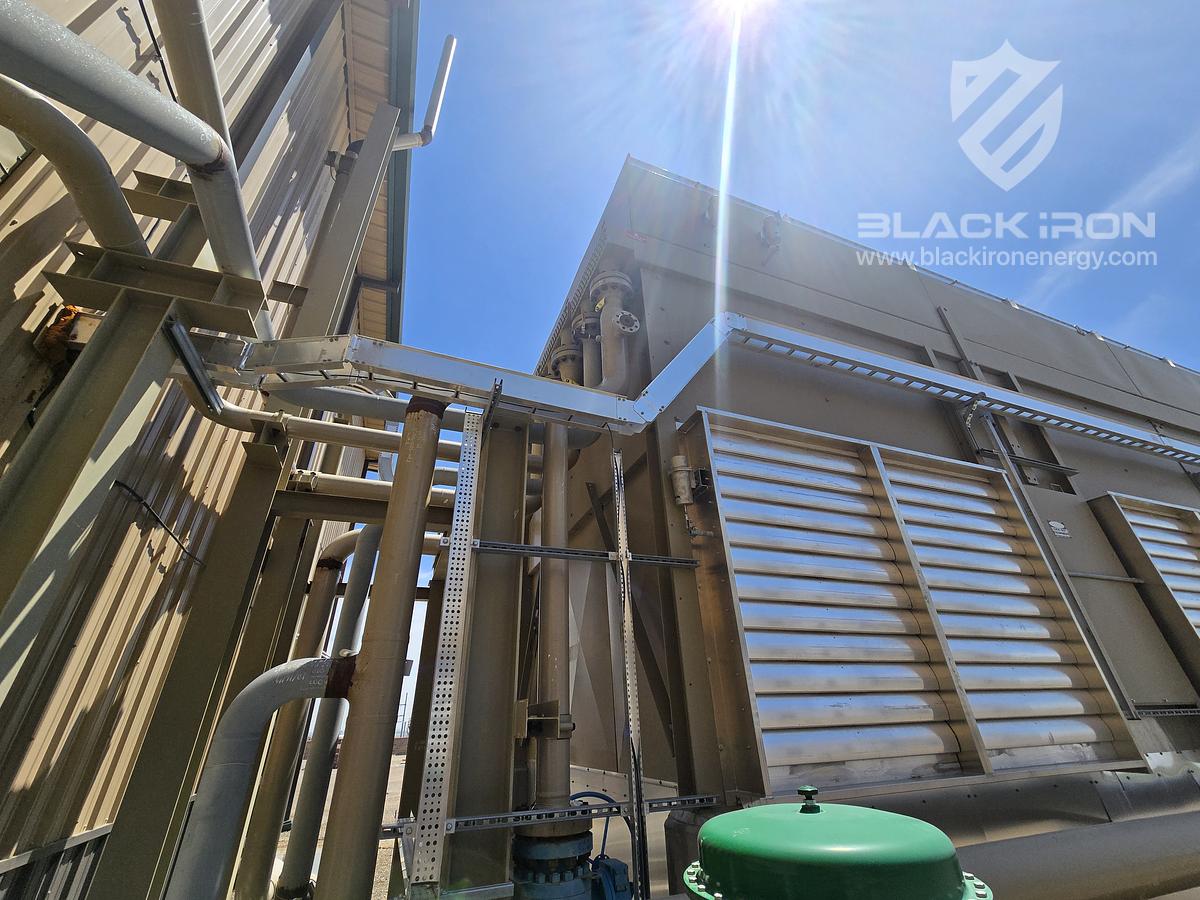

Air-X-Changer 168-2Z EMD cooler c/w warm air recirc

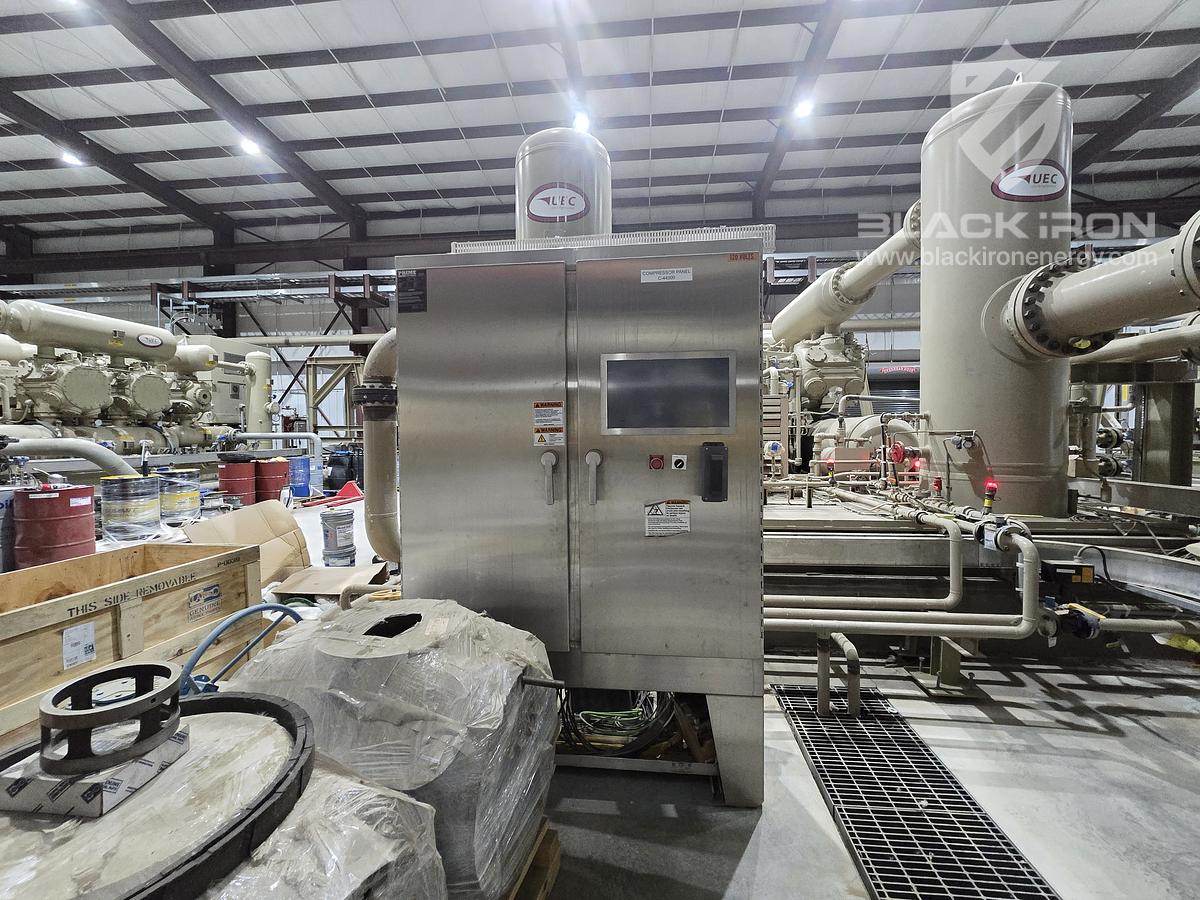

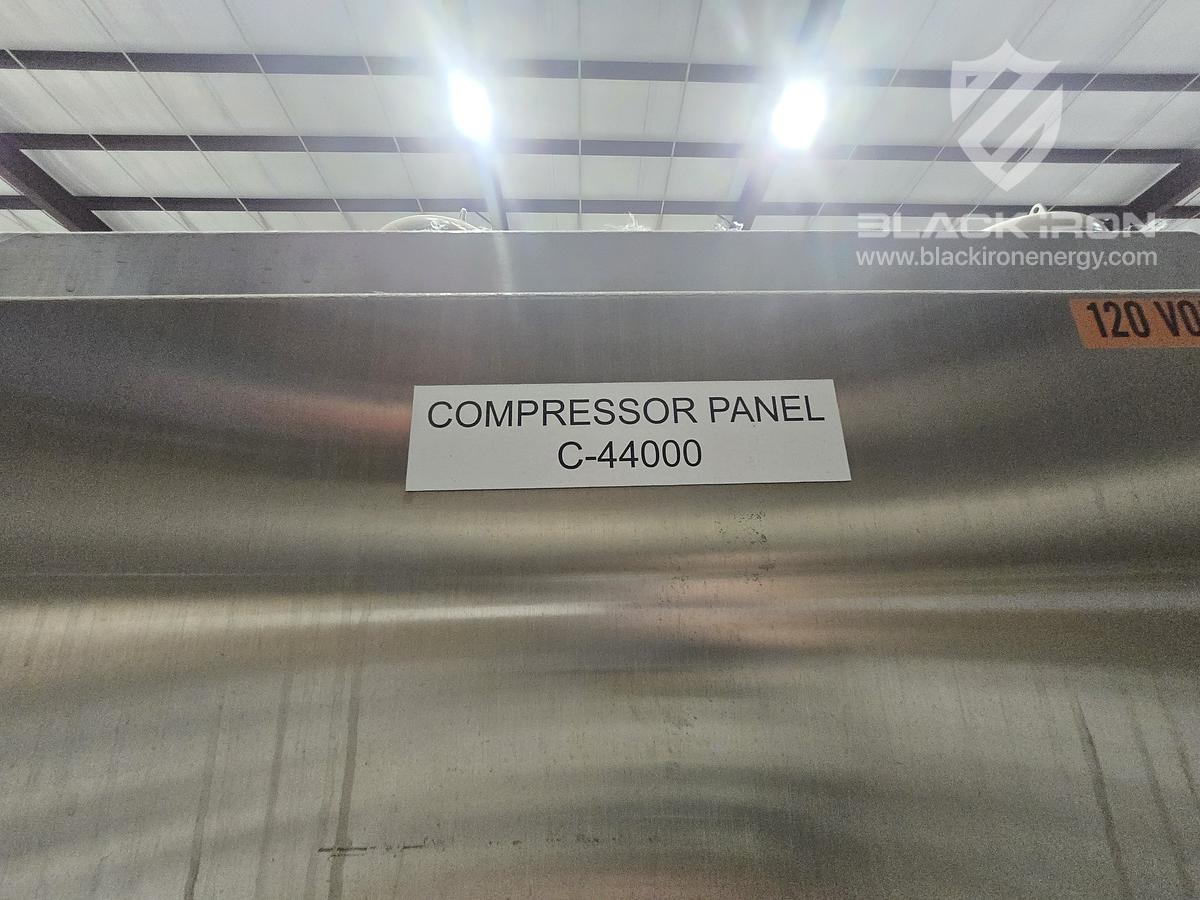

Control Panel
