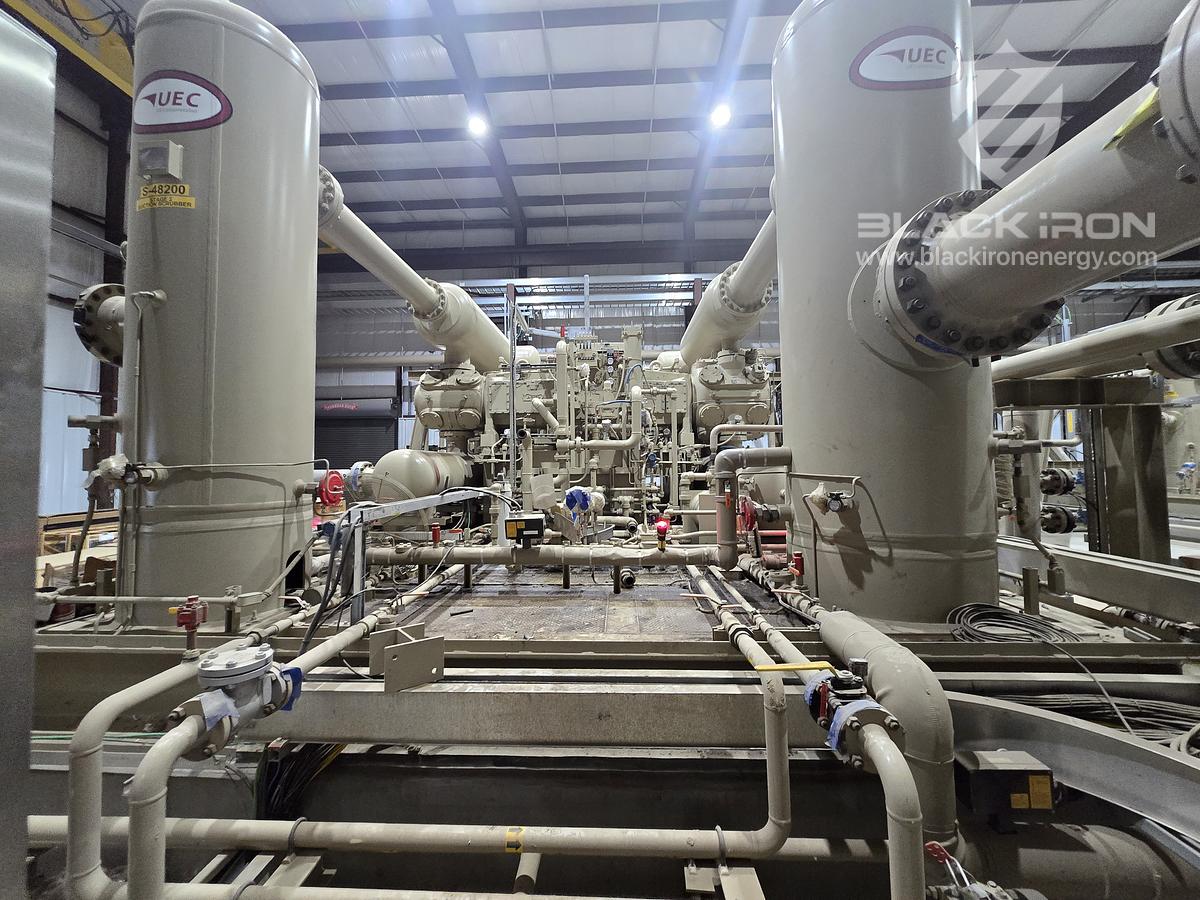

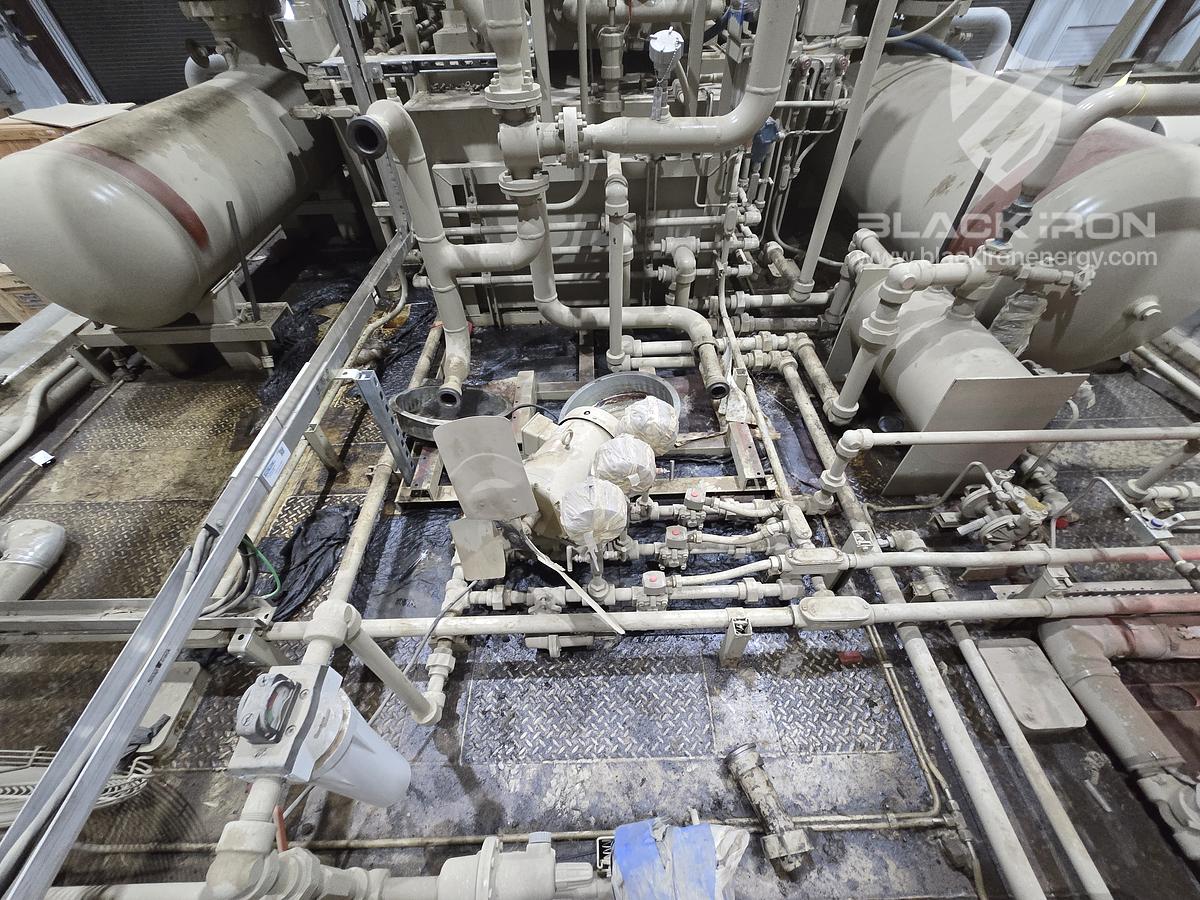

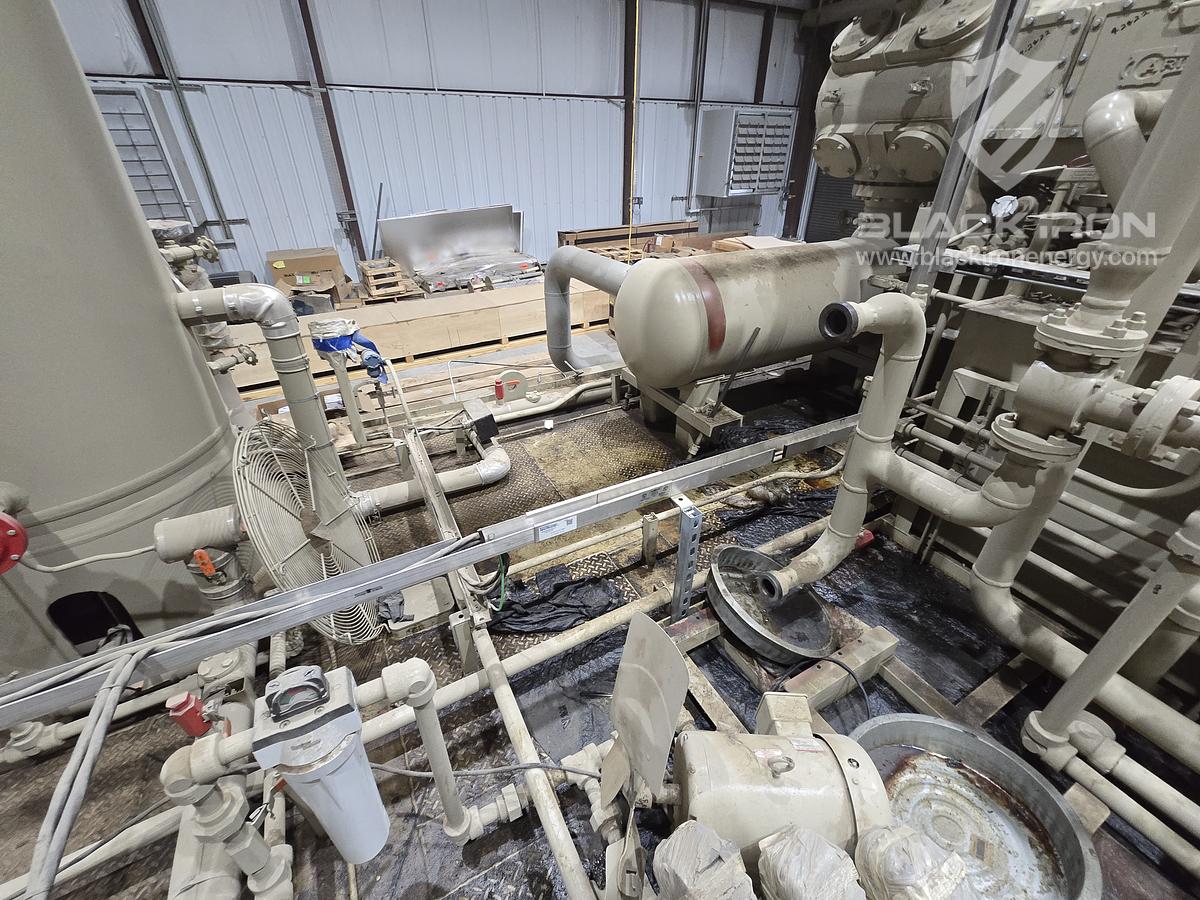

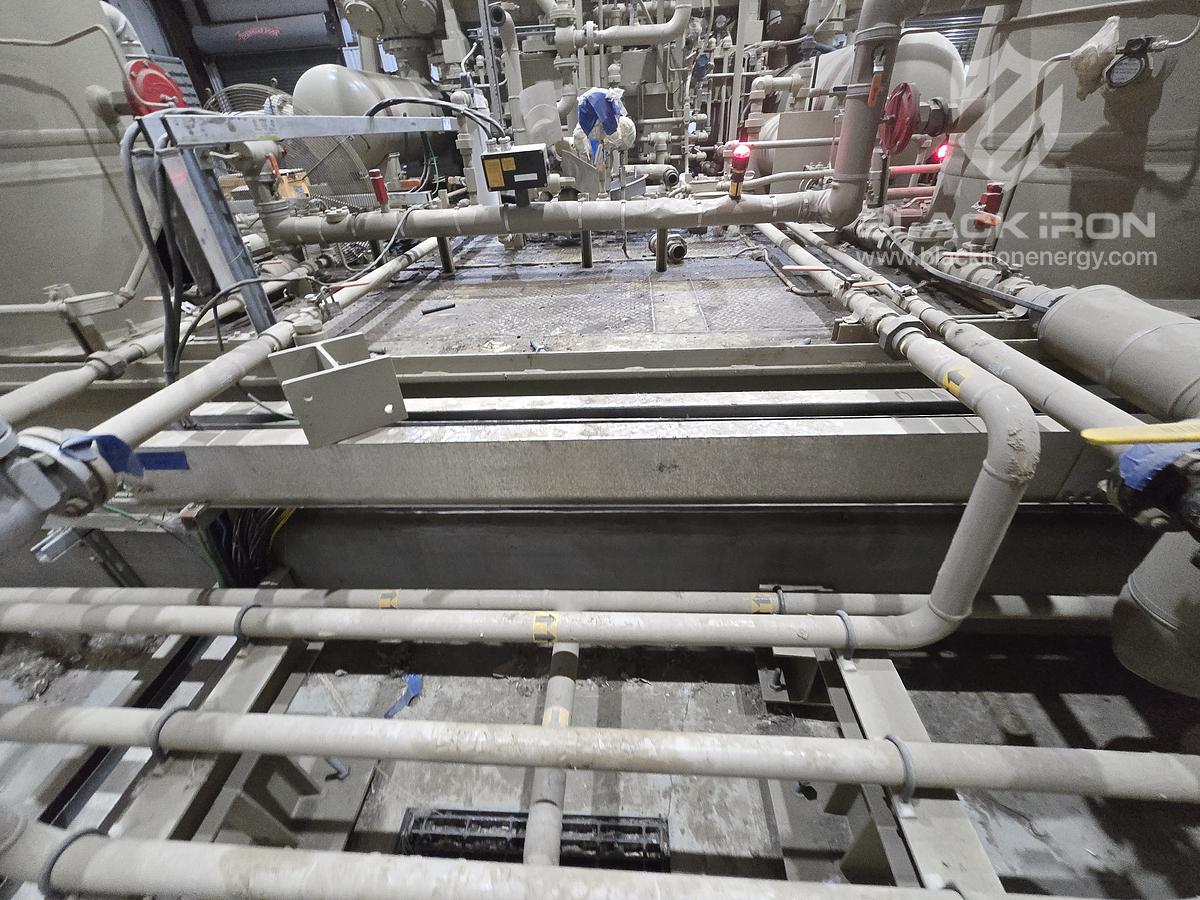

5500 hp GE Electric Drive Ariel KBZ/6 4-Stage (1 of 4 Available)

Tag: C-48000

The units are all zero hour, installed but never commissioned and some were not fully assembled, which is why some components appear to be missing. All units were preserved.

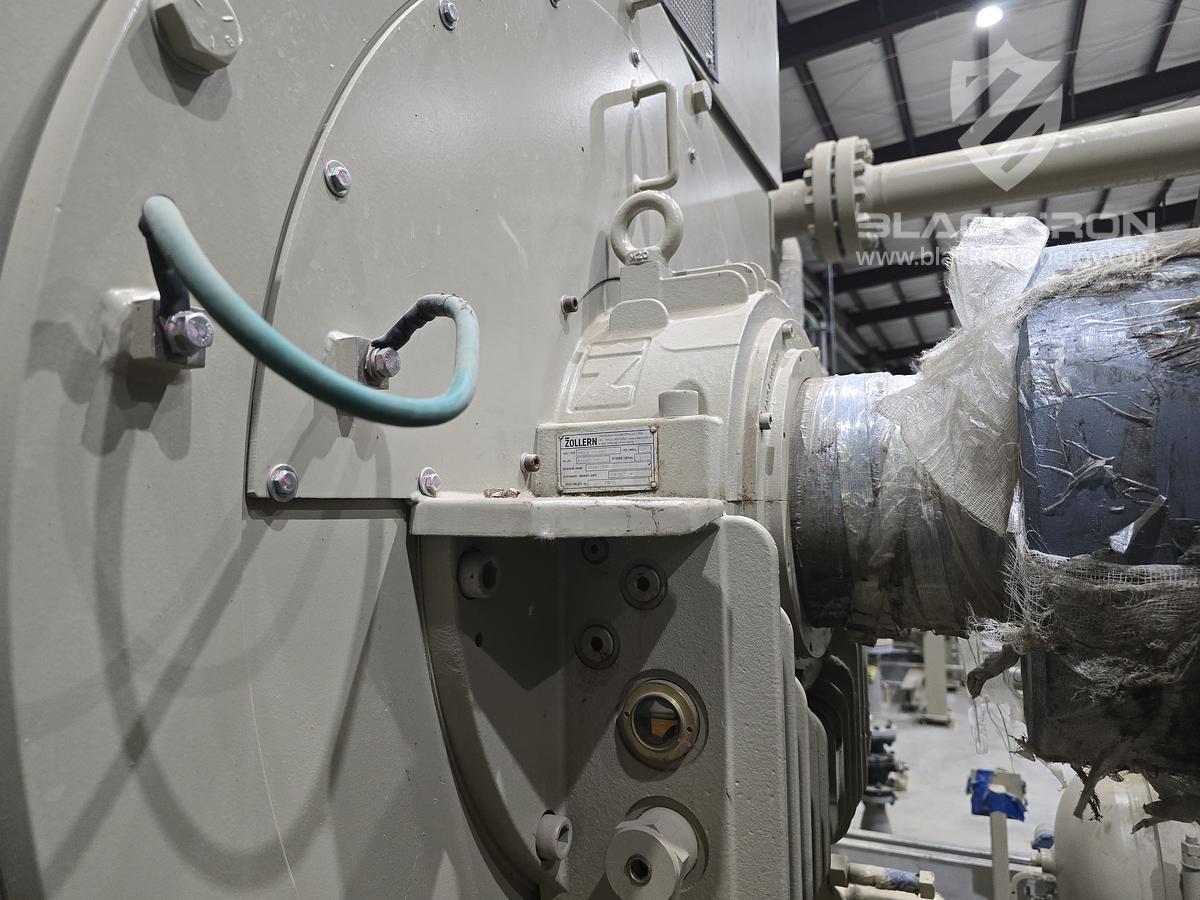

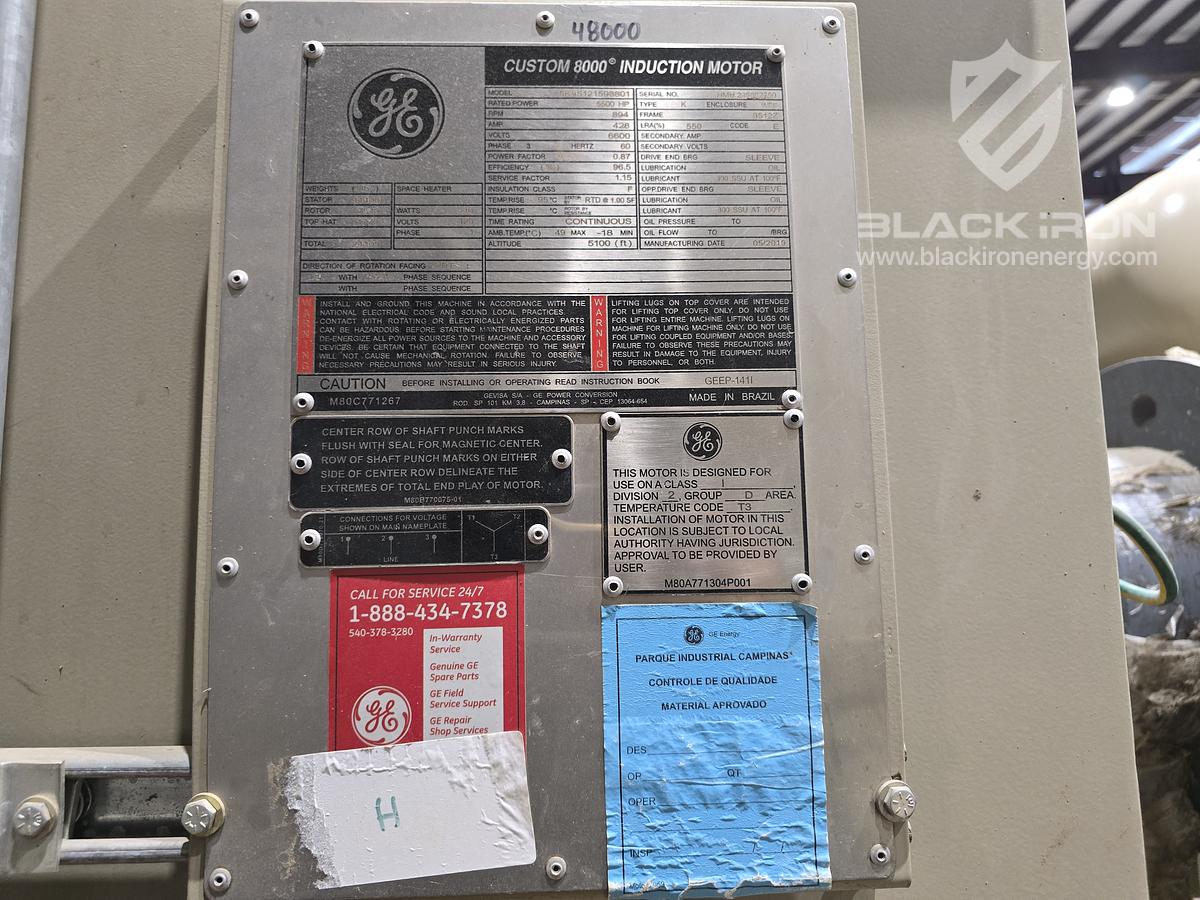

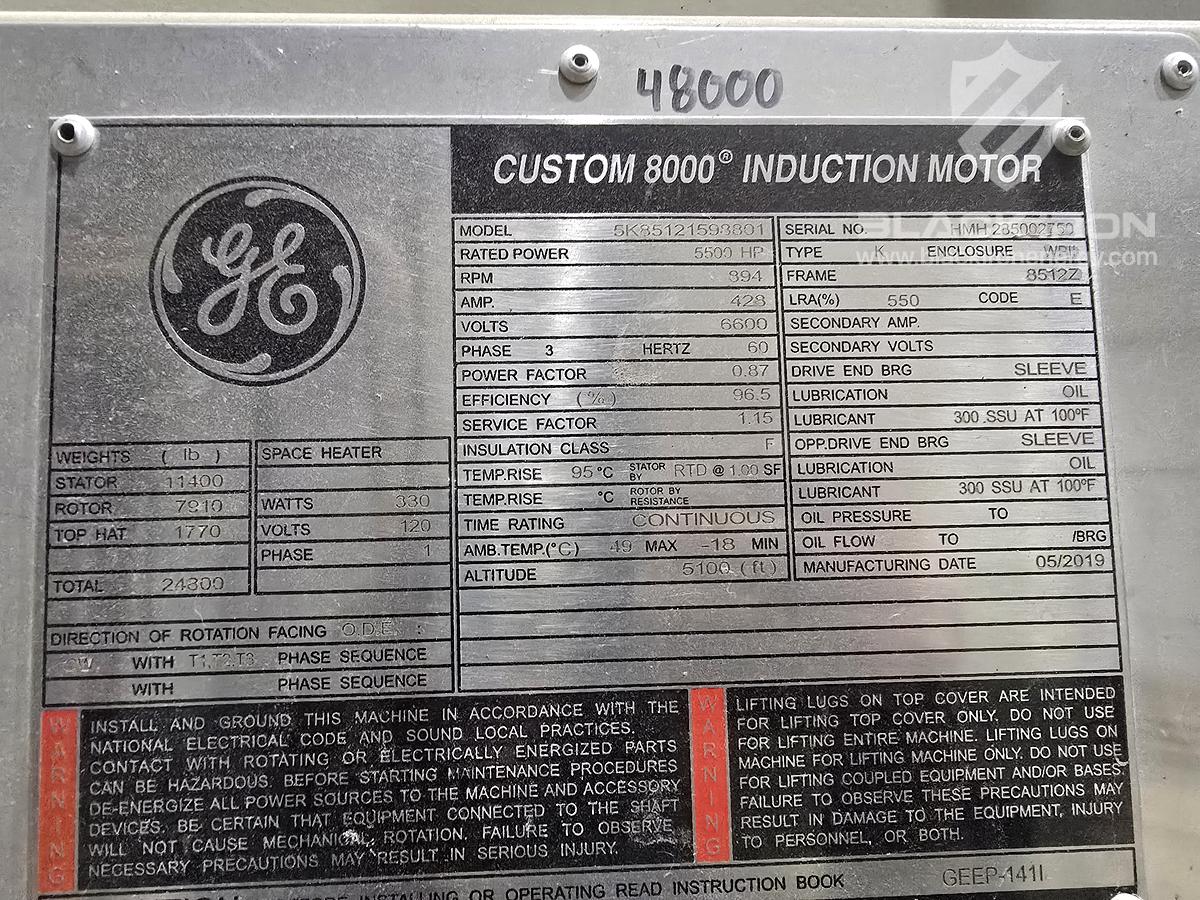

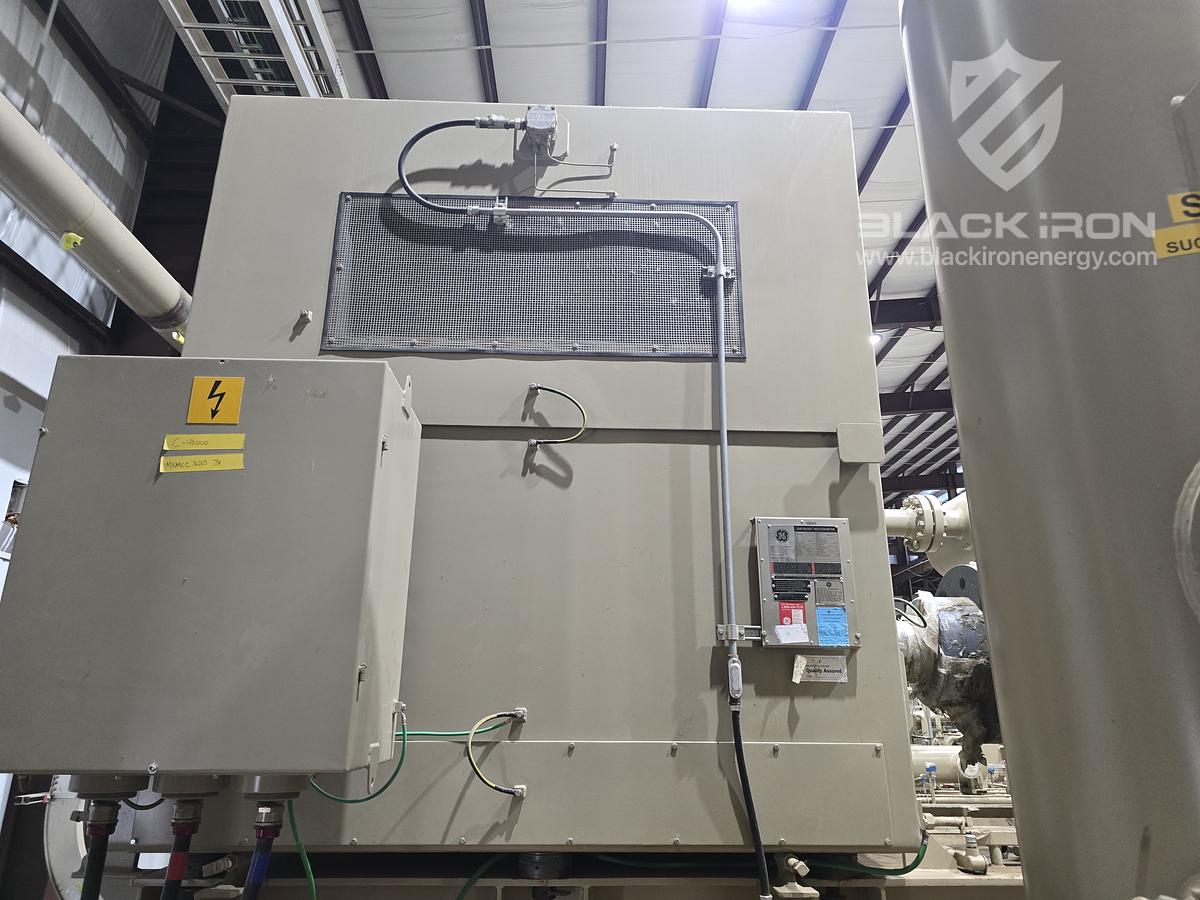

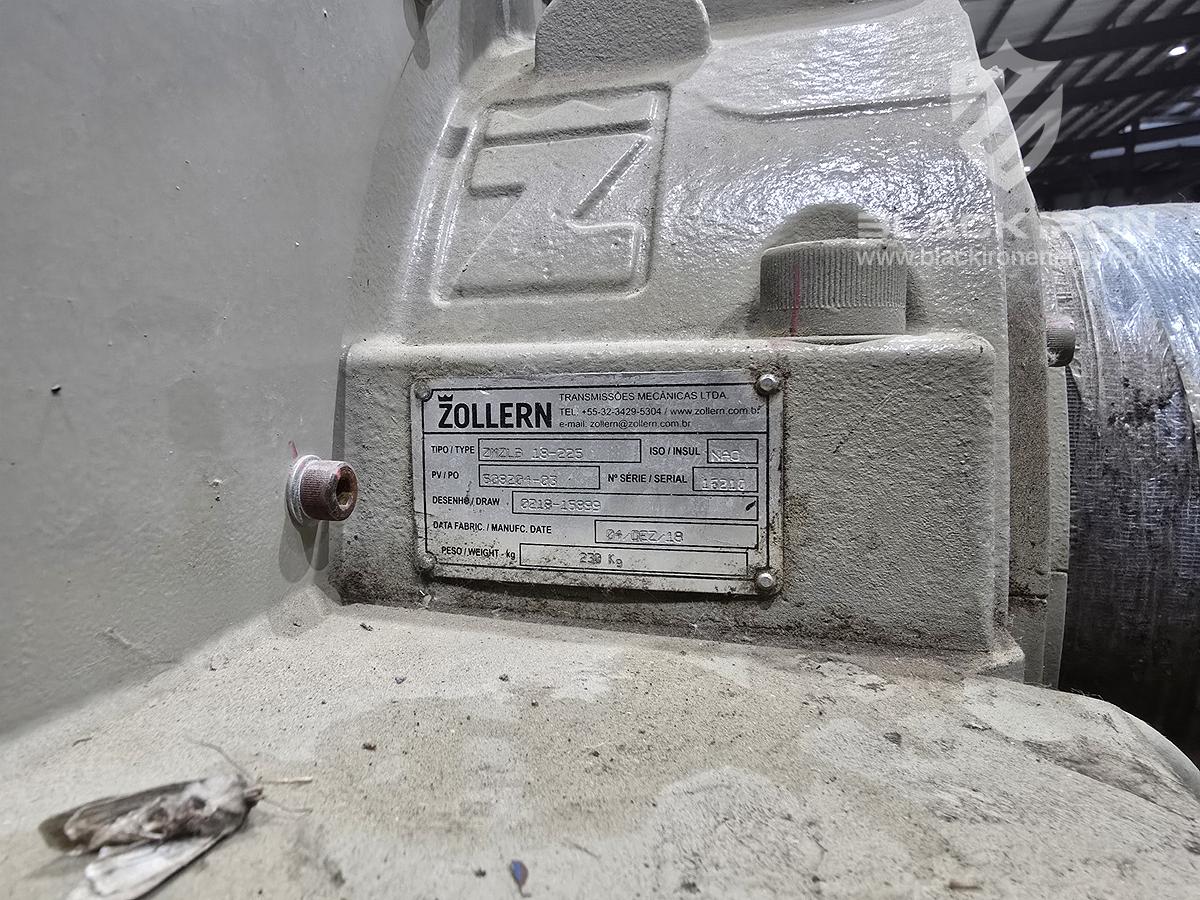

6600 VAC/3 Ph/60 Hz GE electric motor driver rated 5500 hp at 894 rpm

• 120 V, 330 W space heater
• PF = 0.87, SF = 1.15

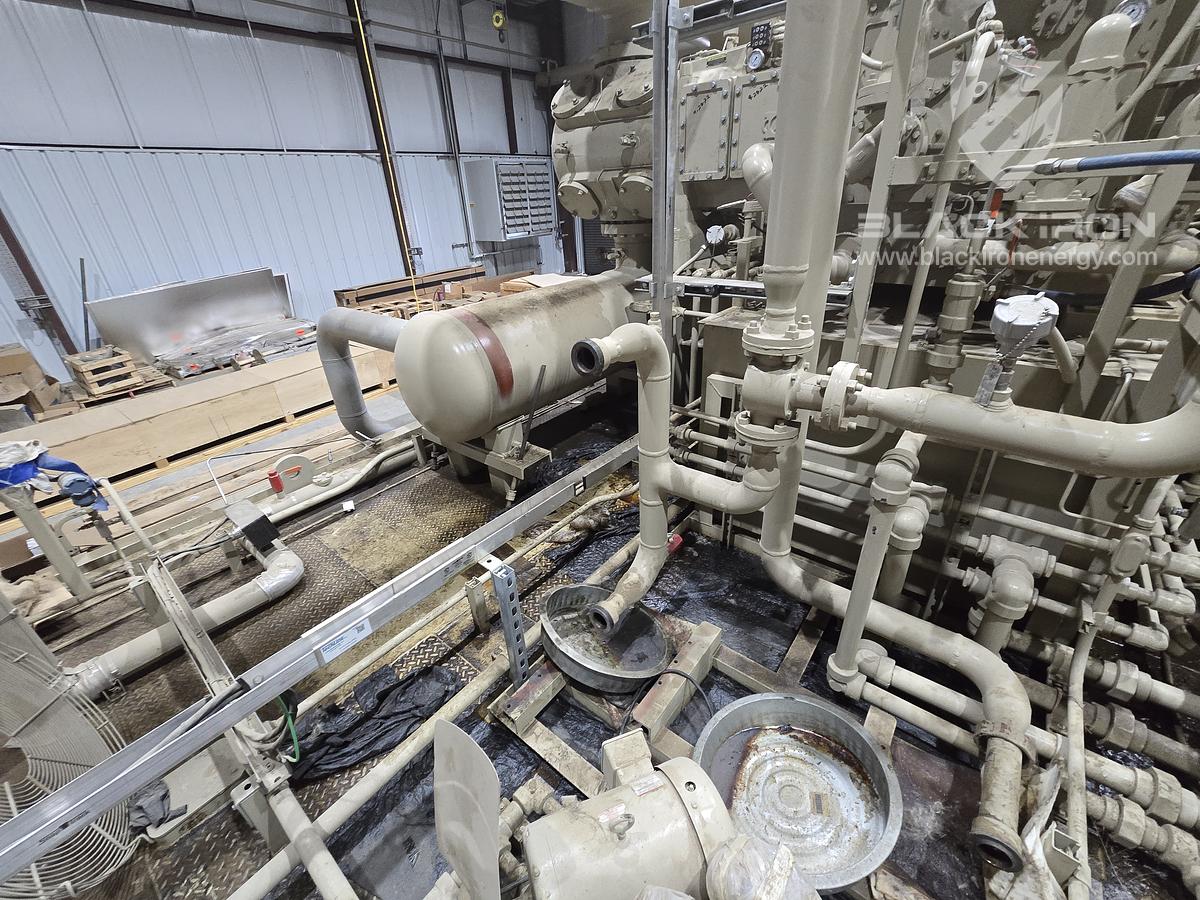

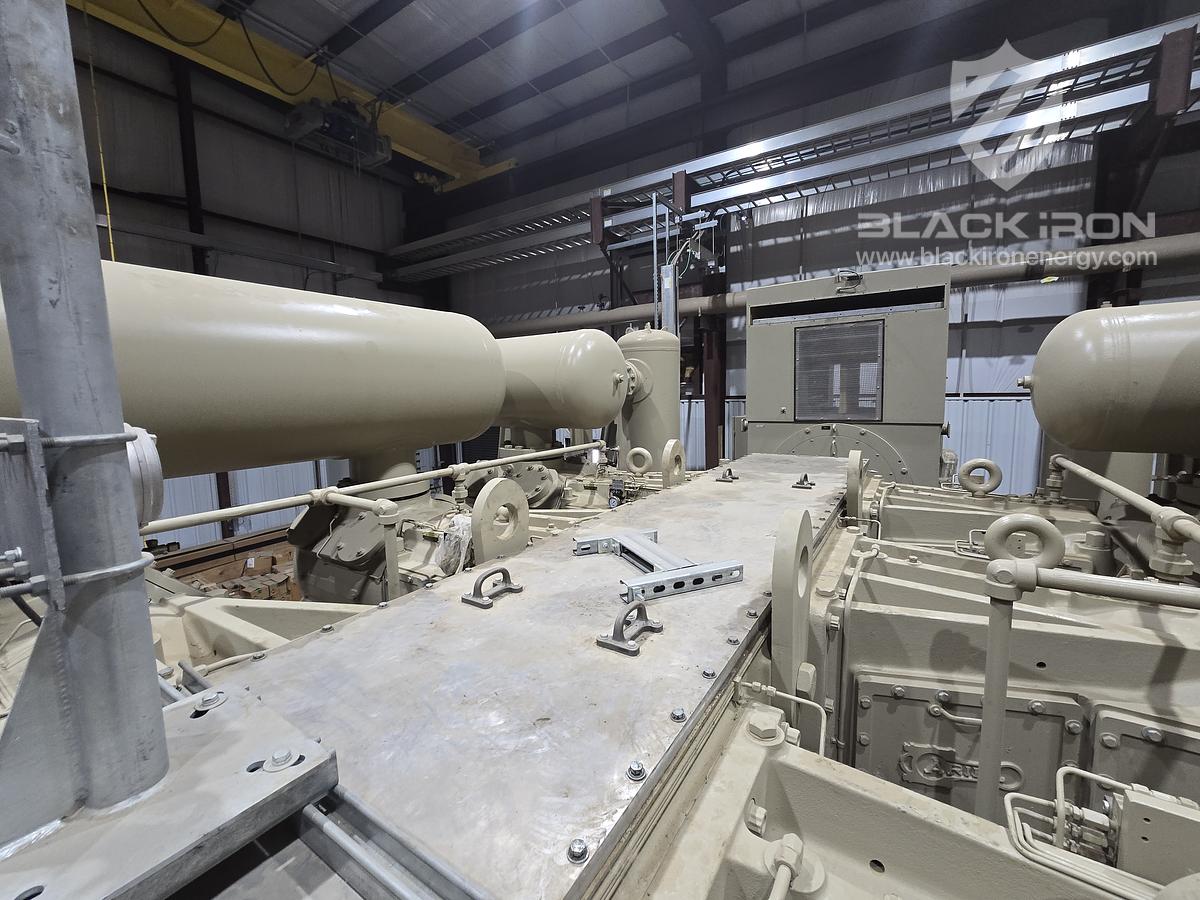

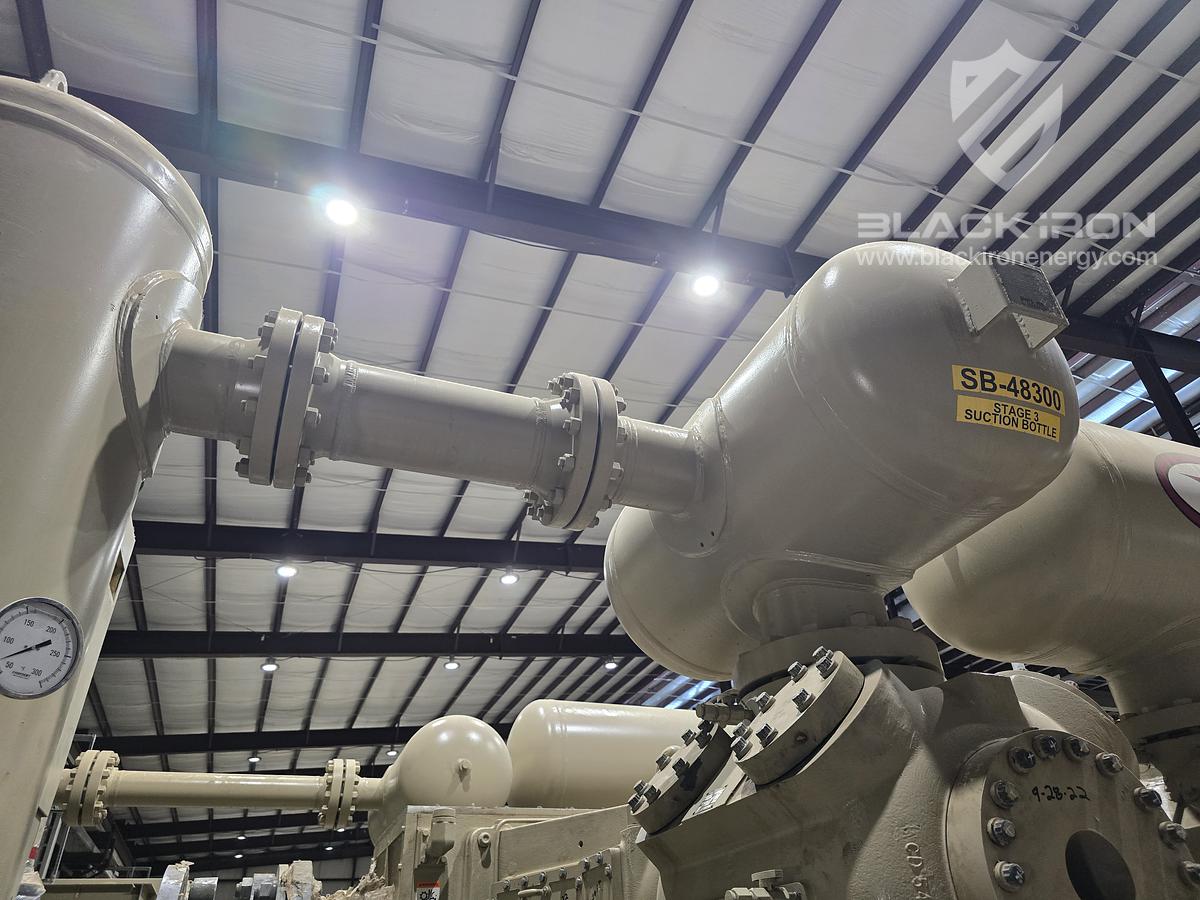

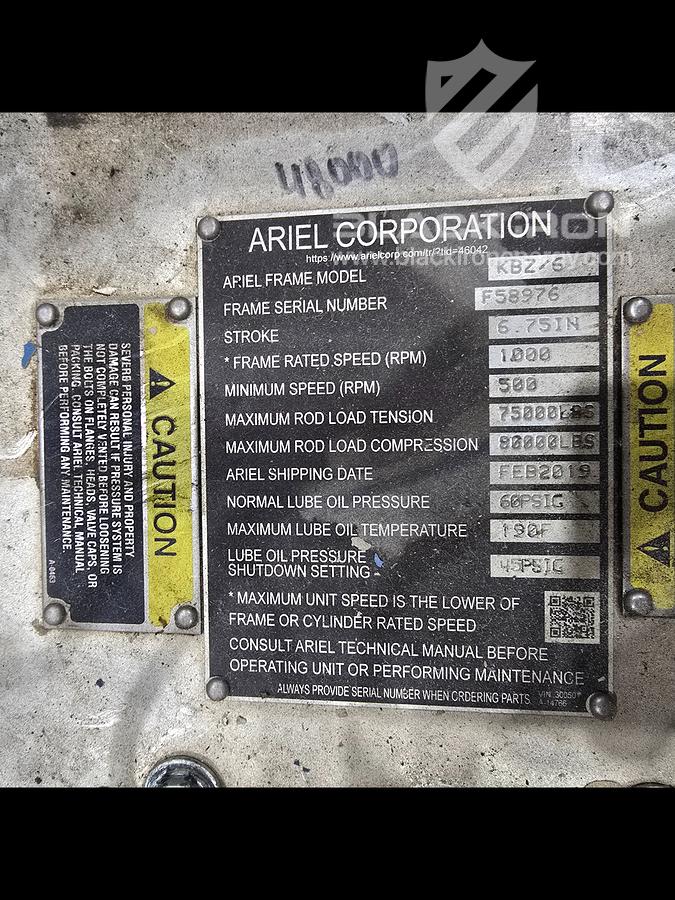

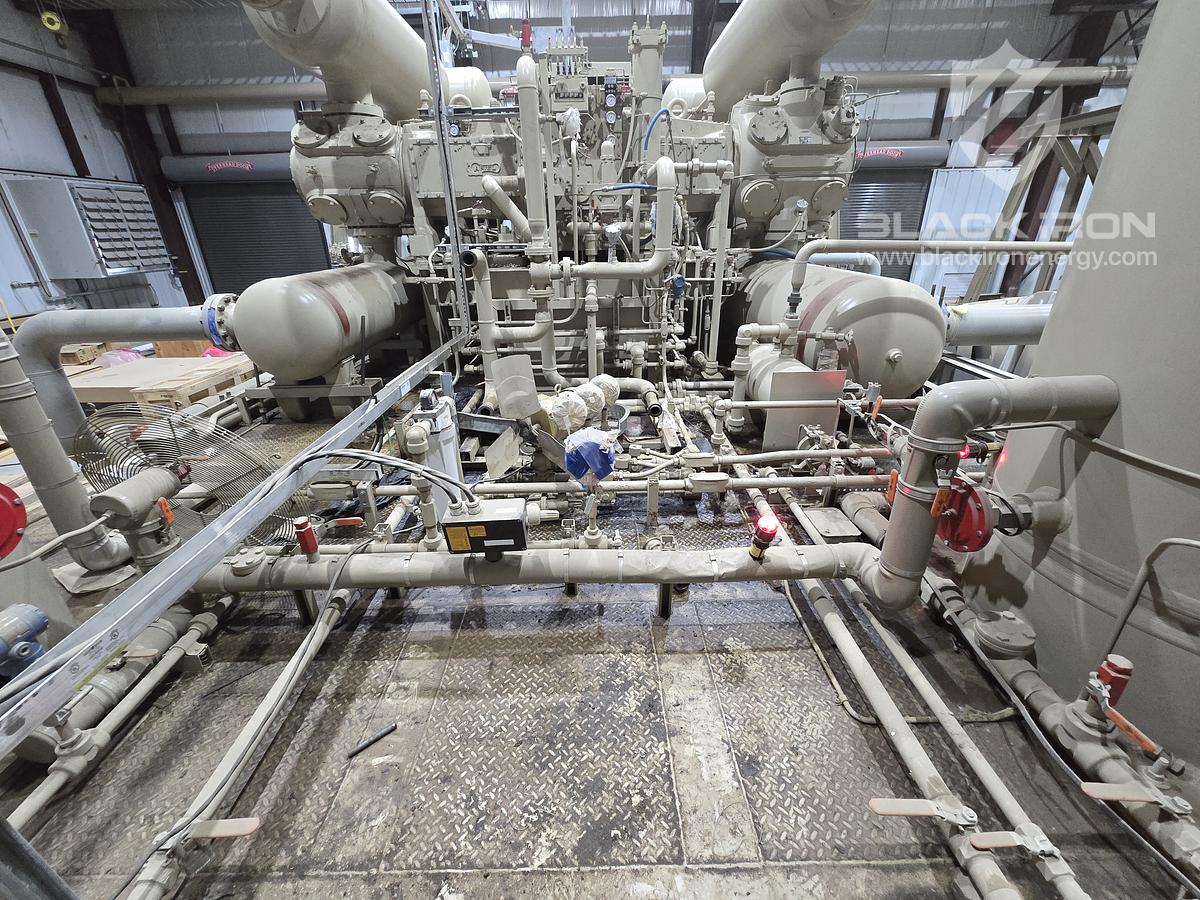

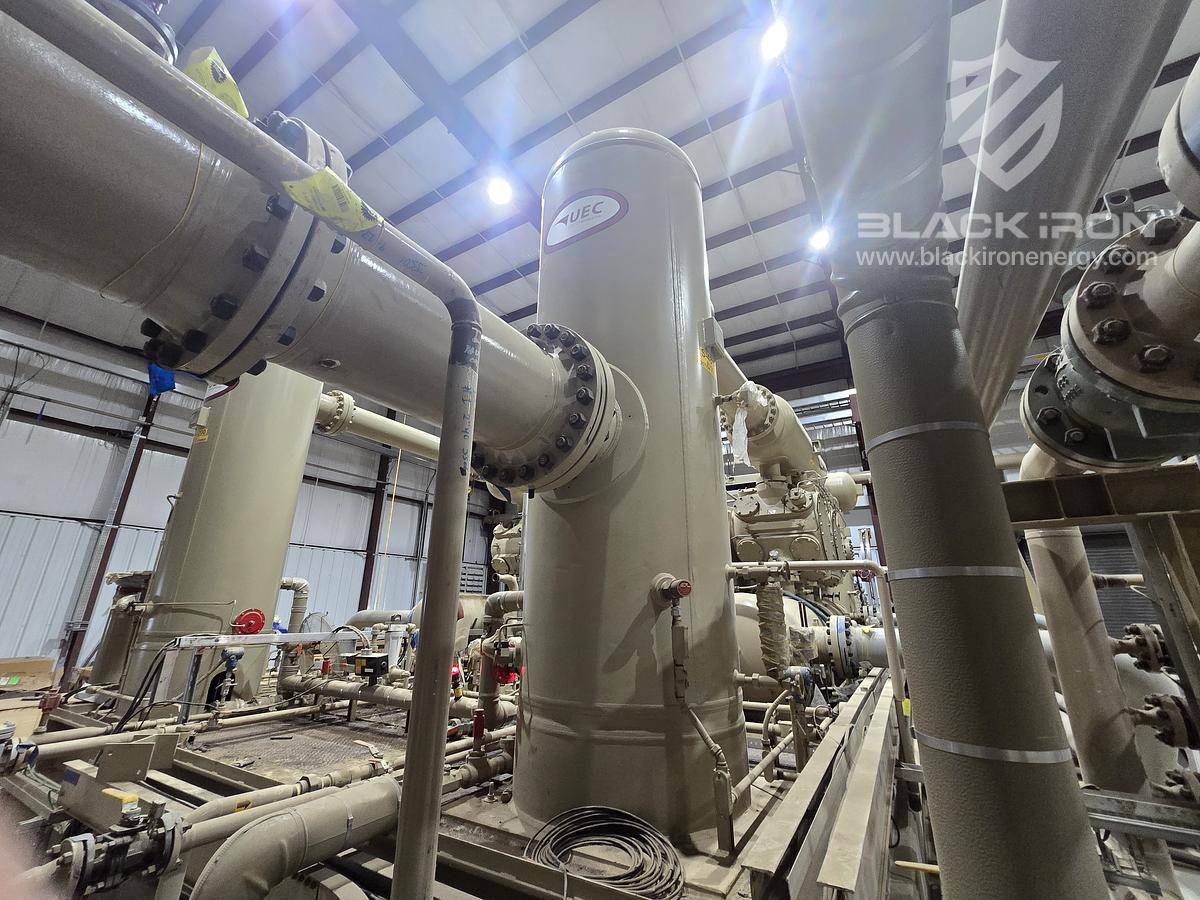

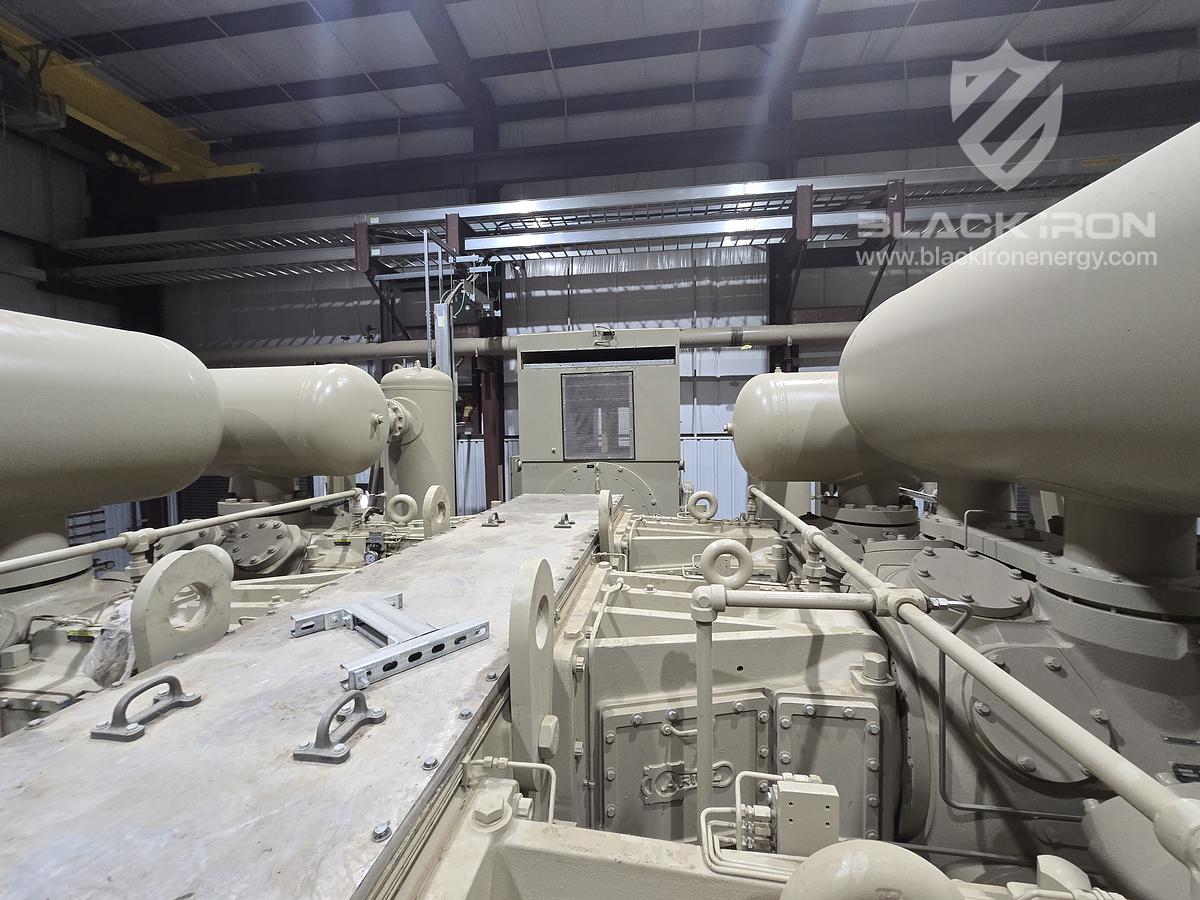

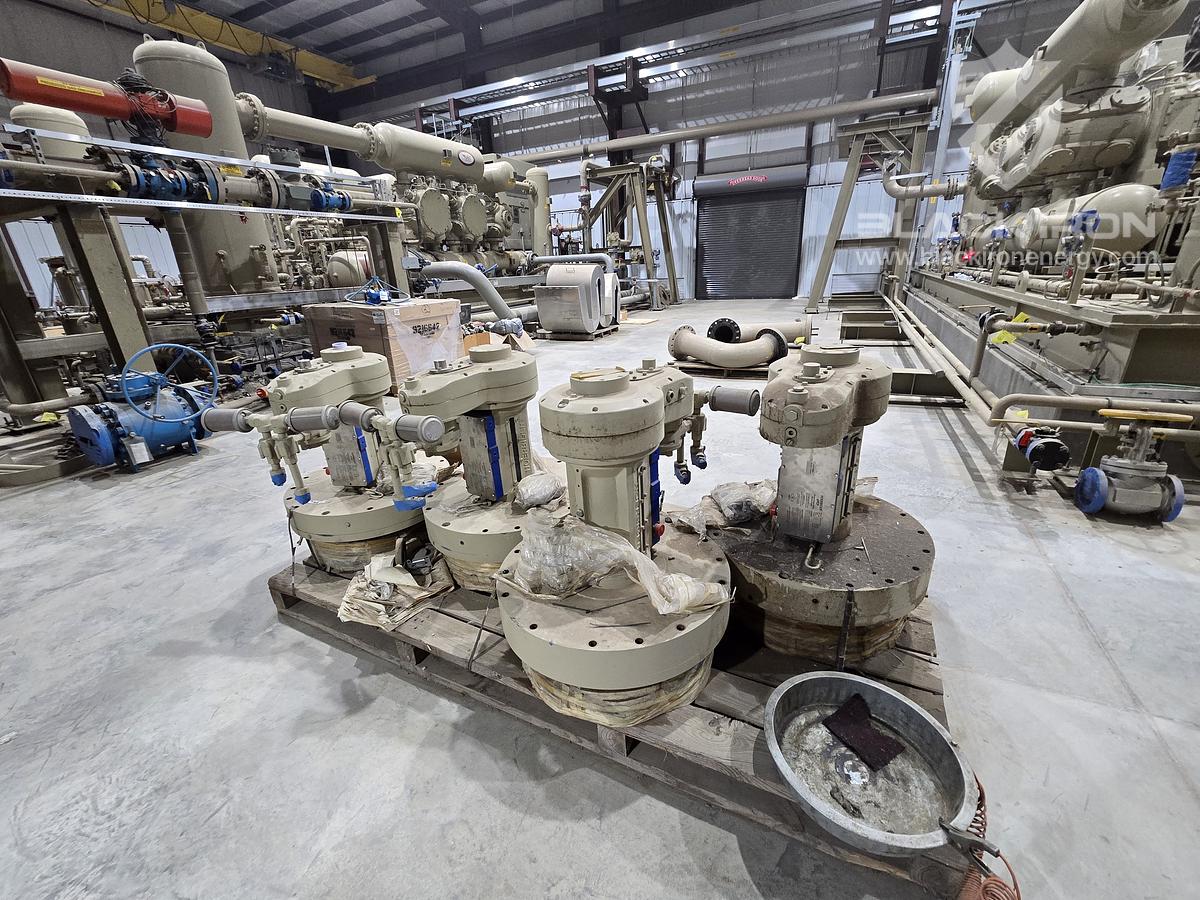

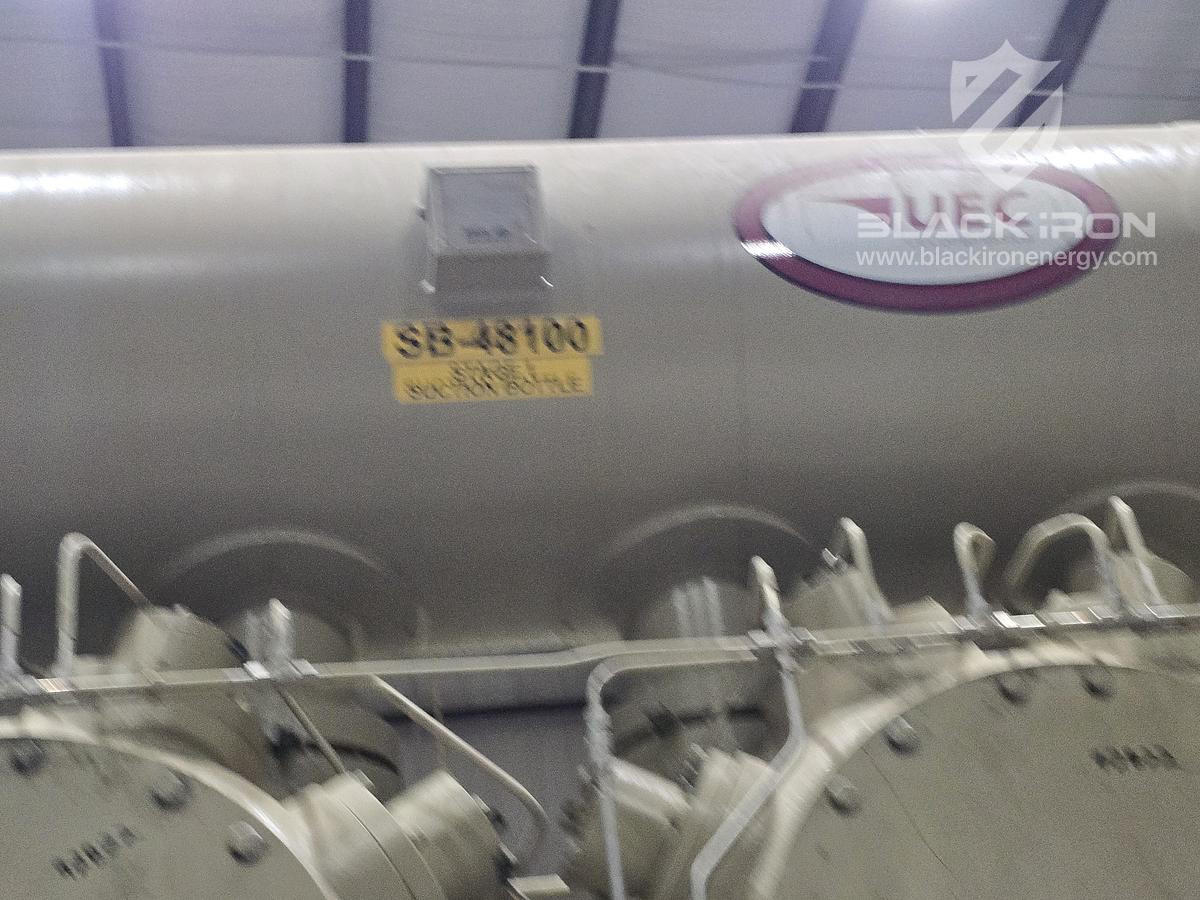

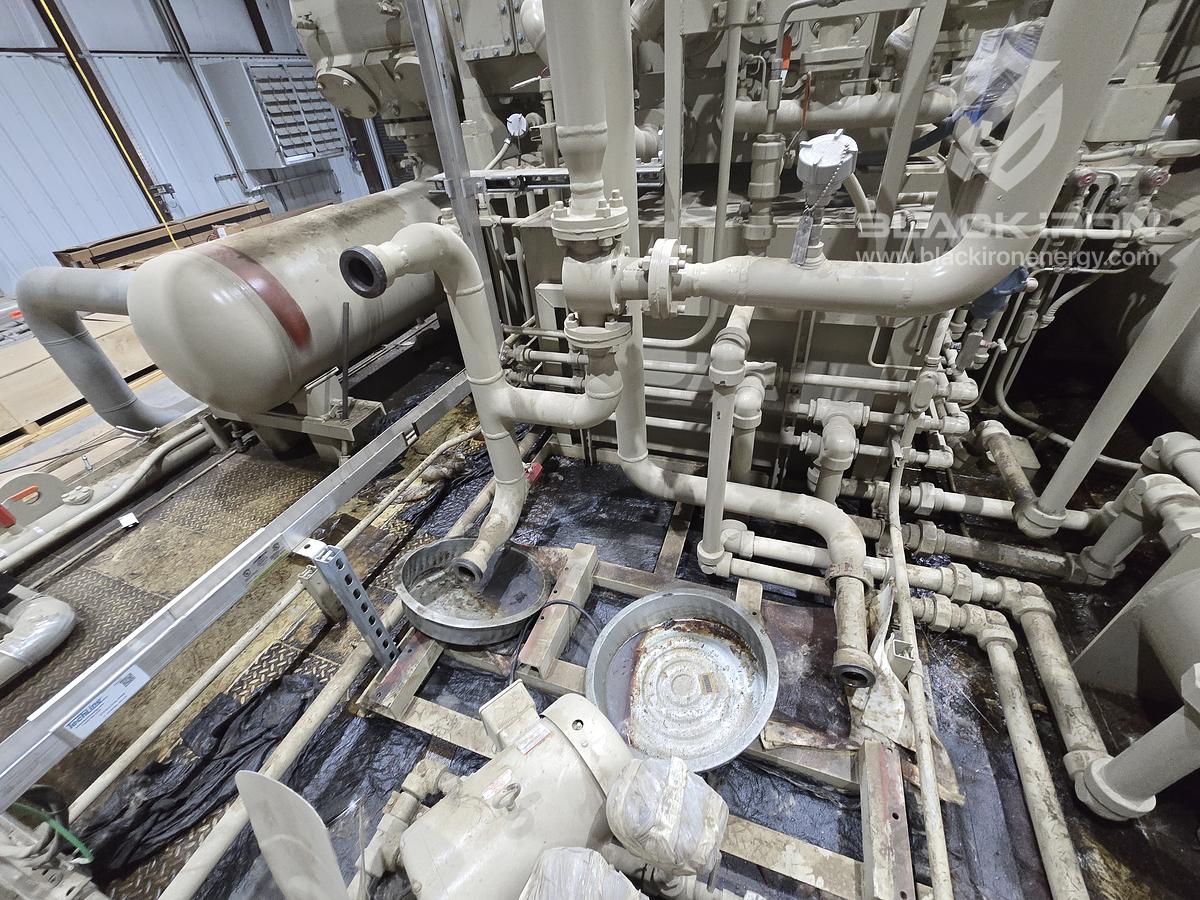

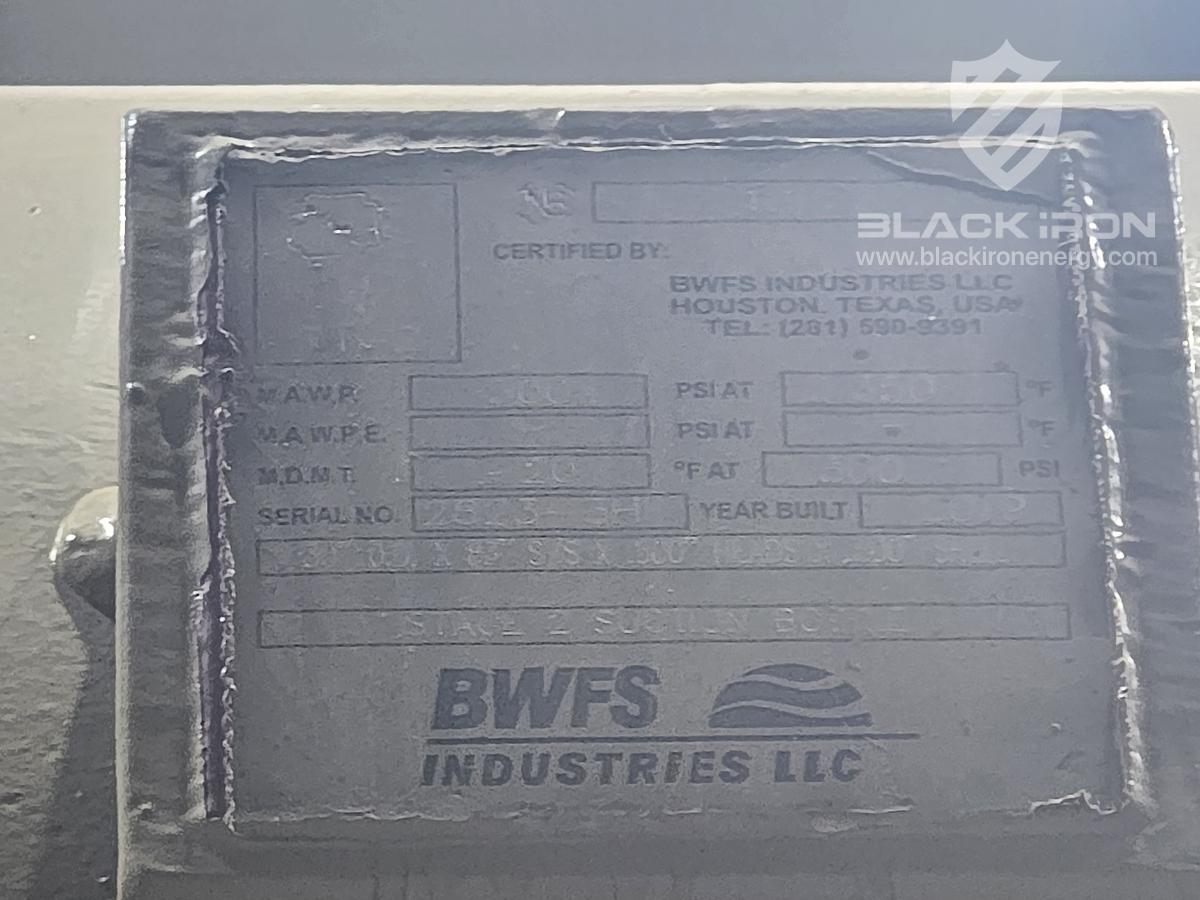

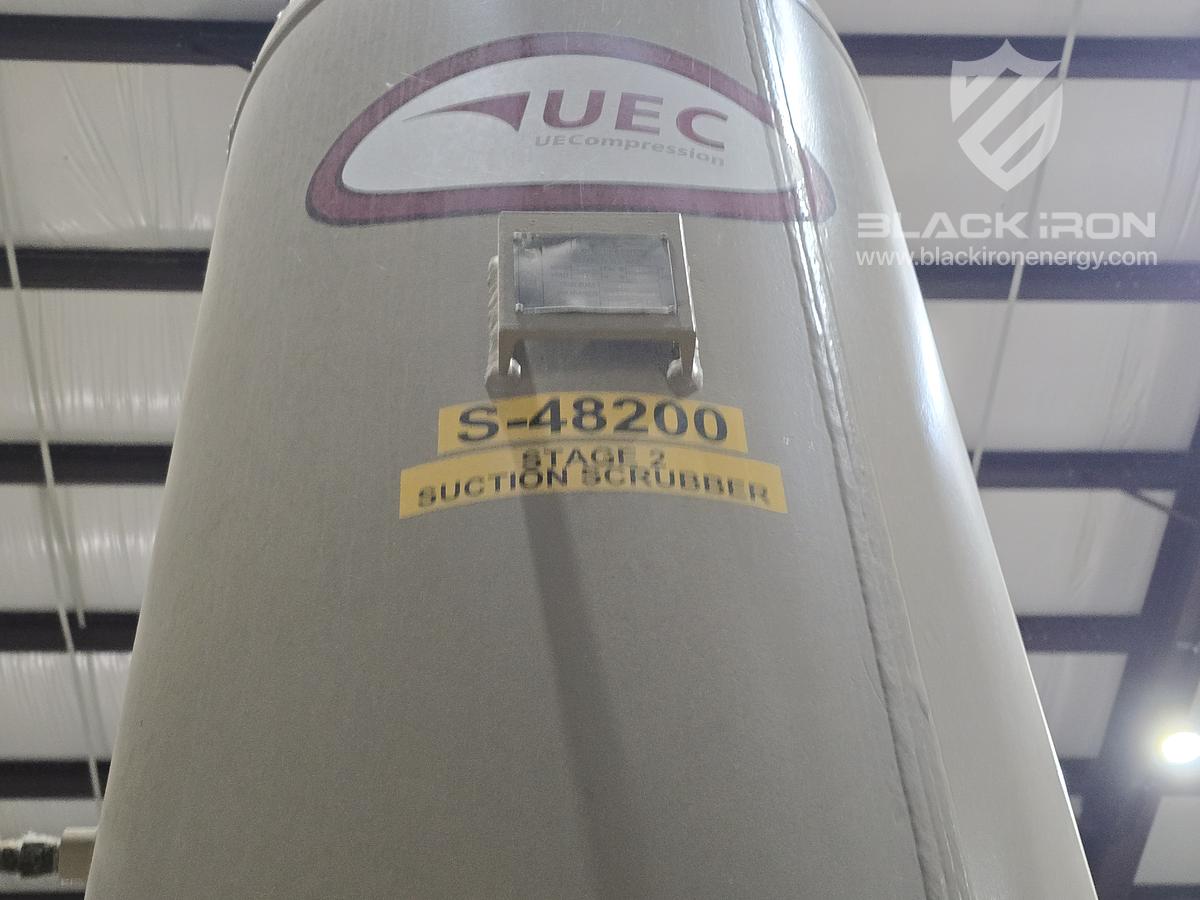

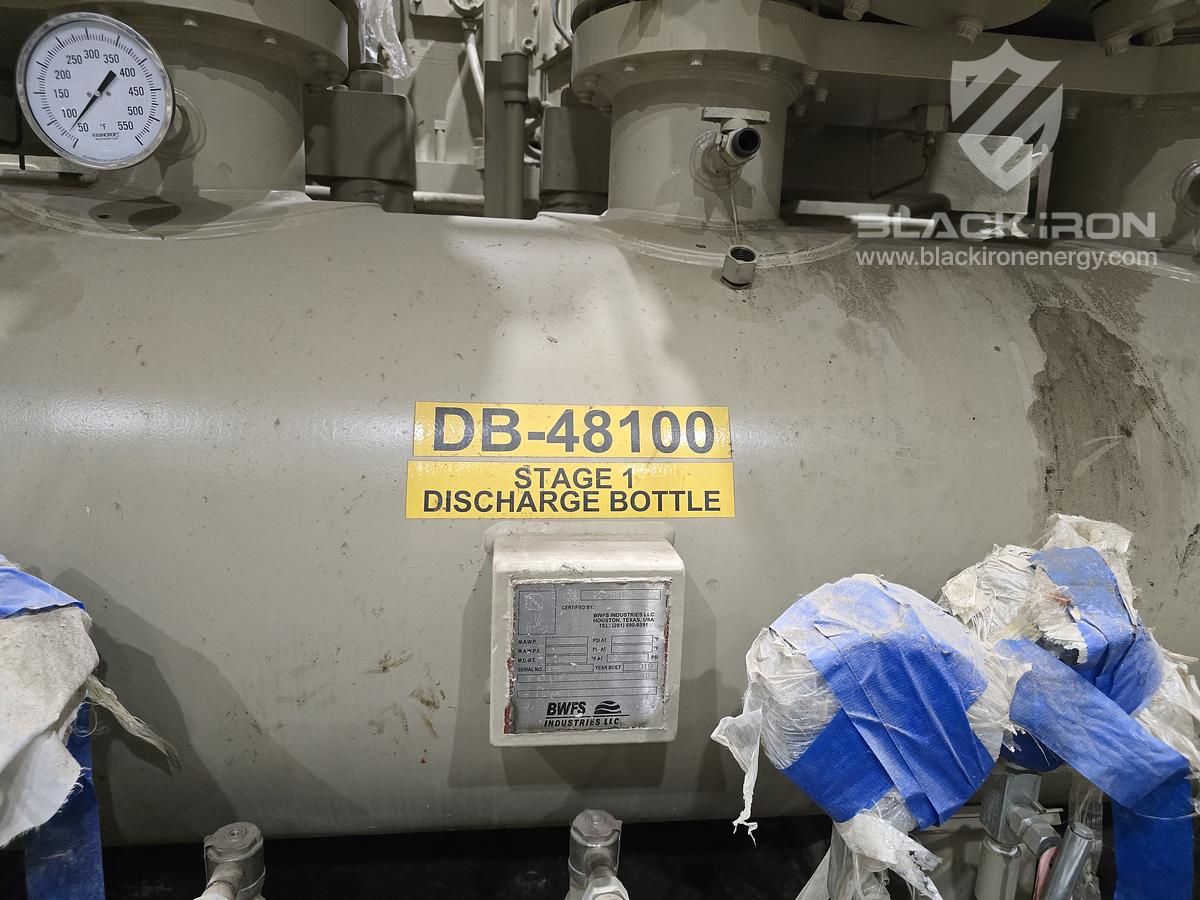

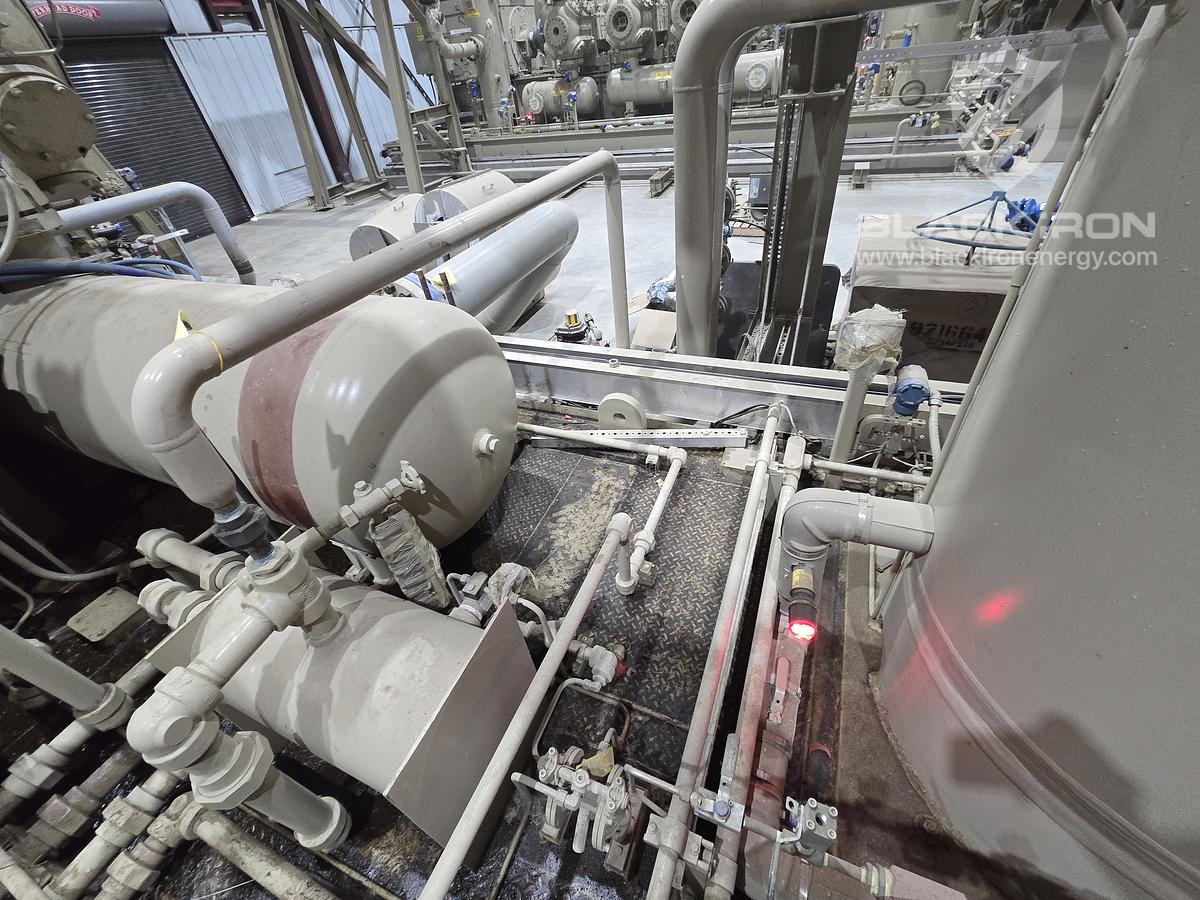

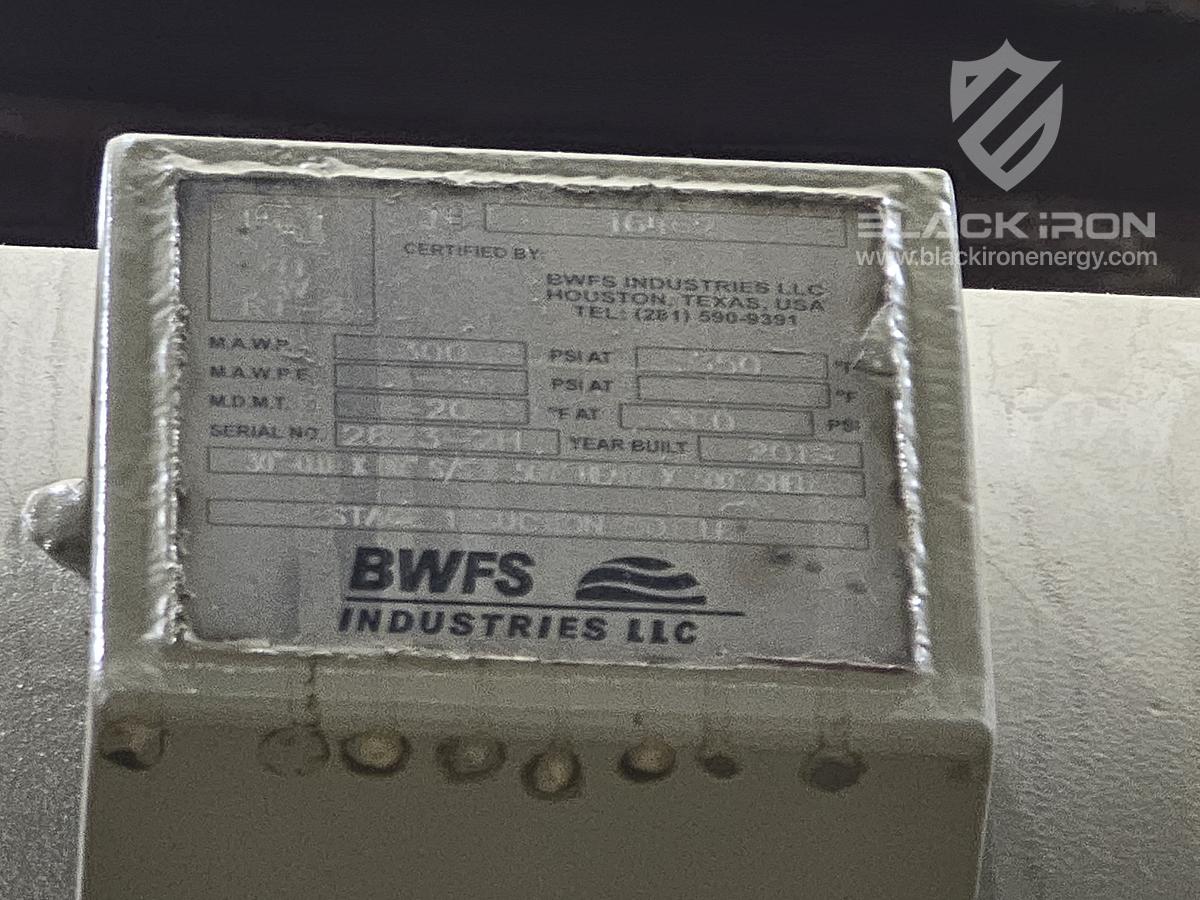

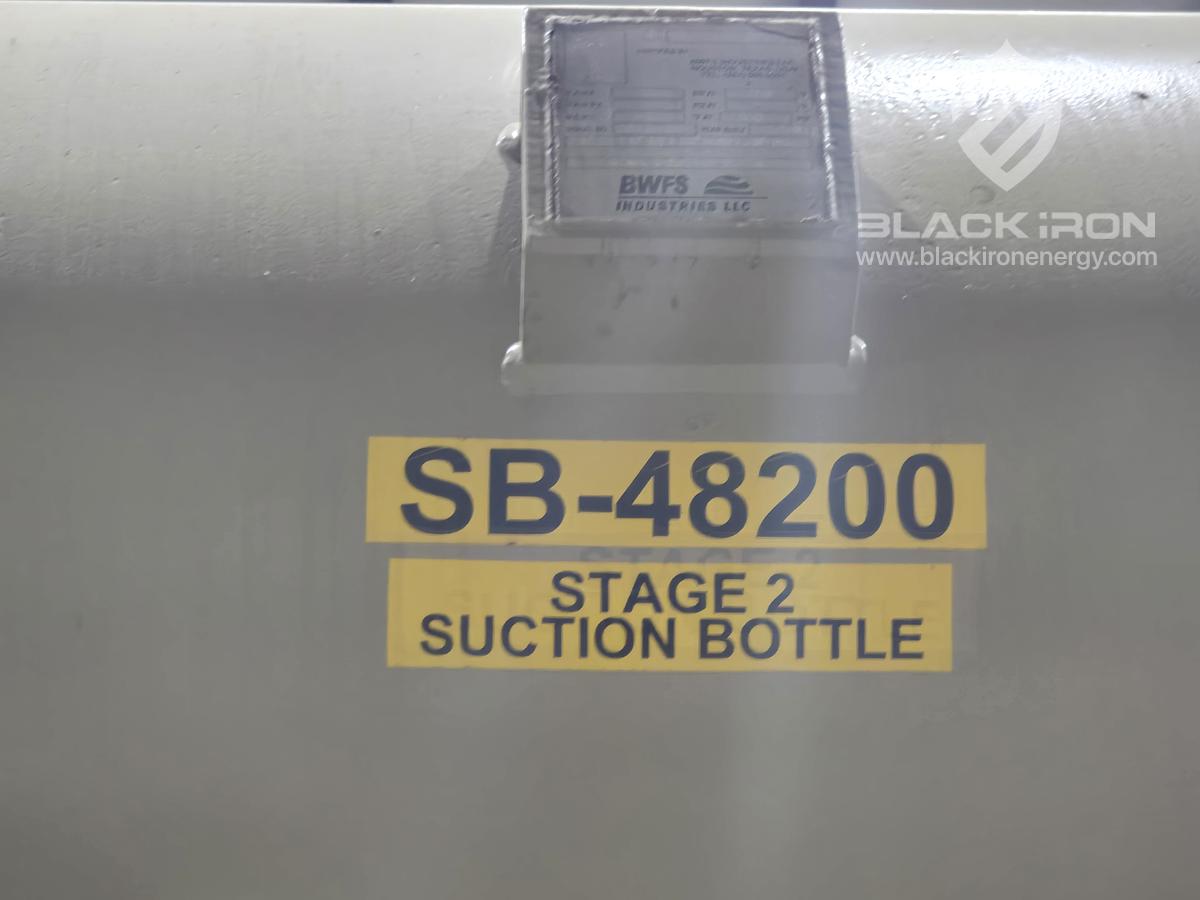

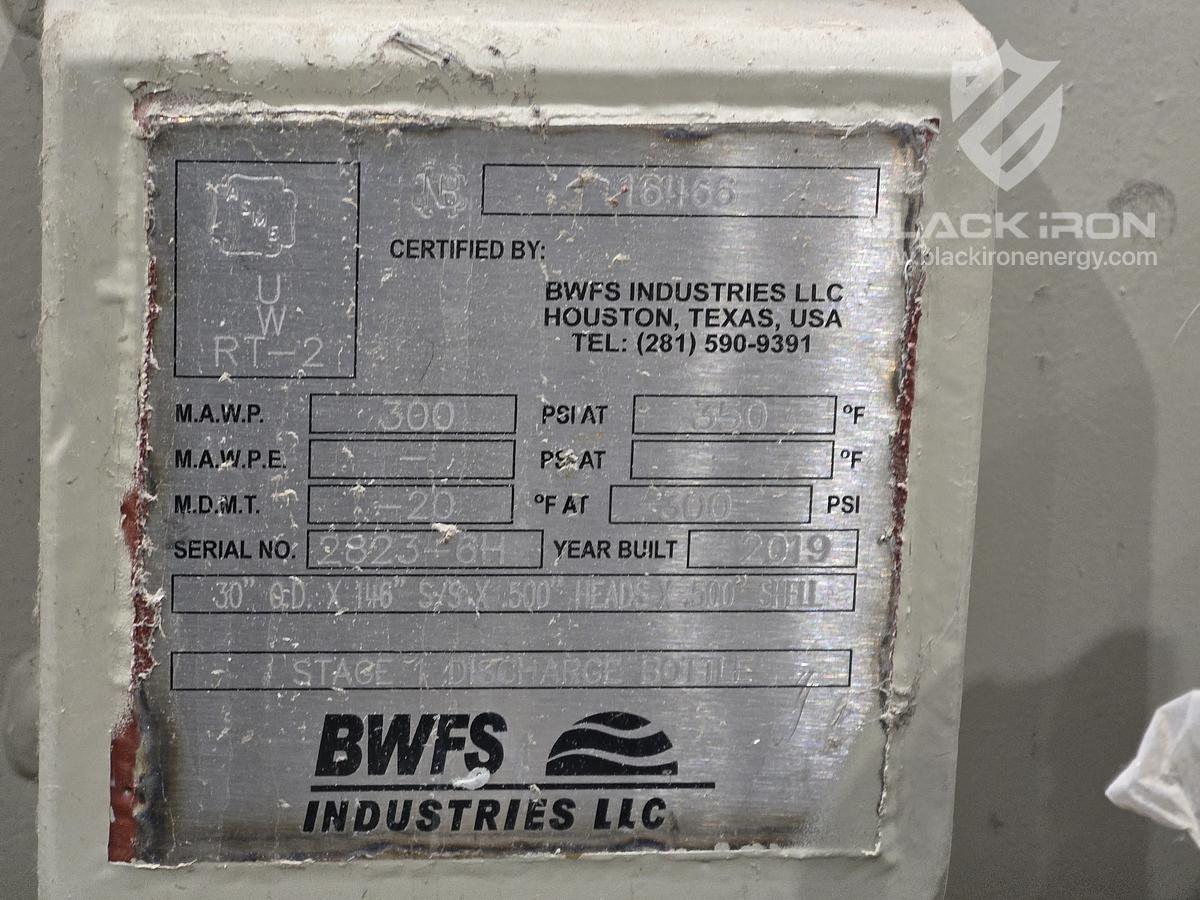

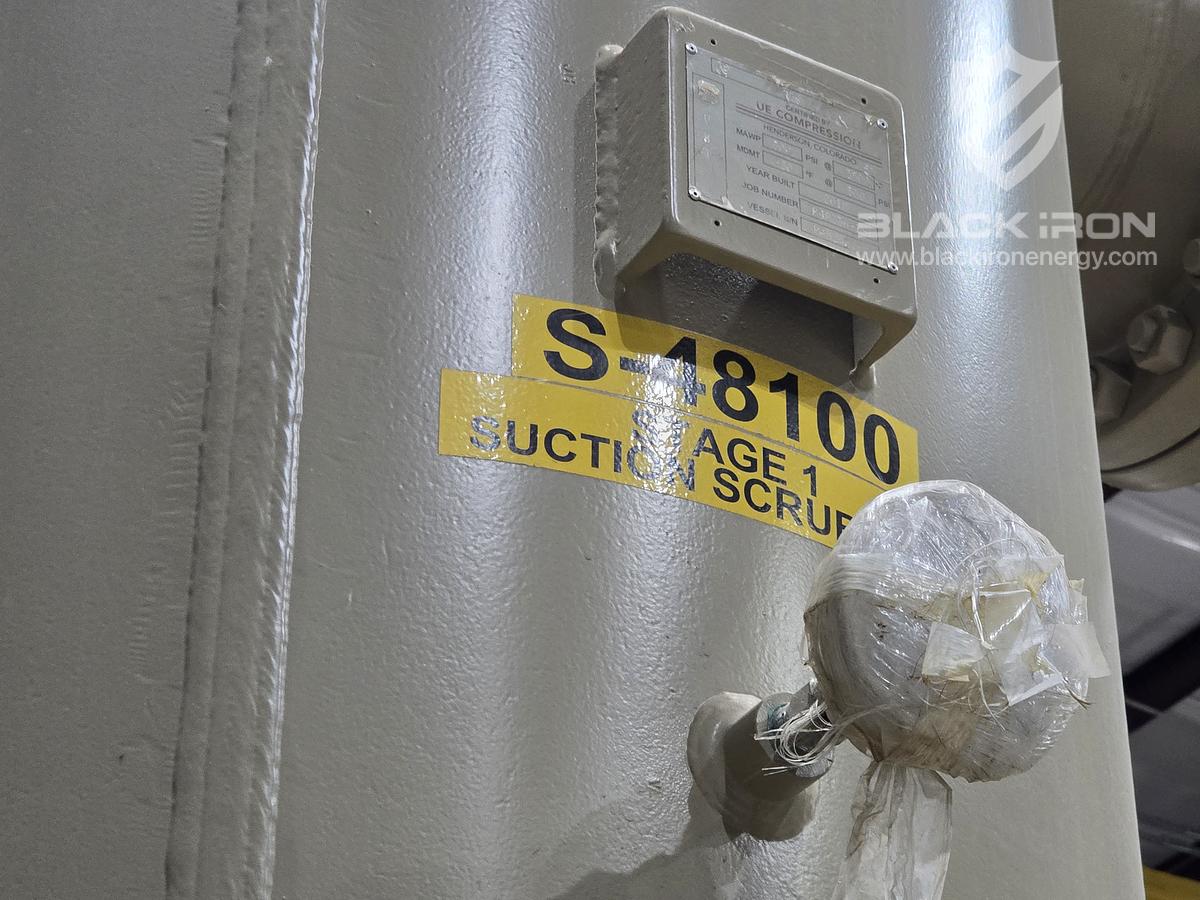

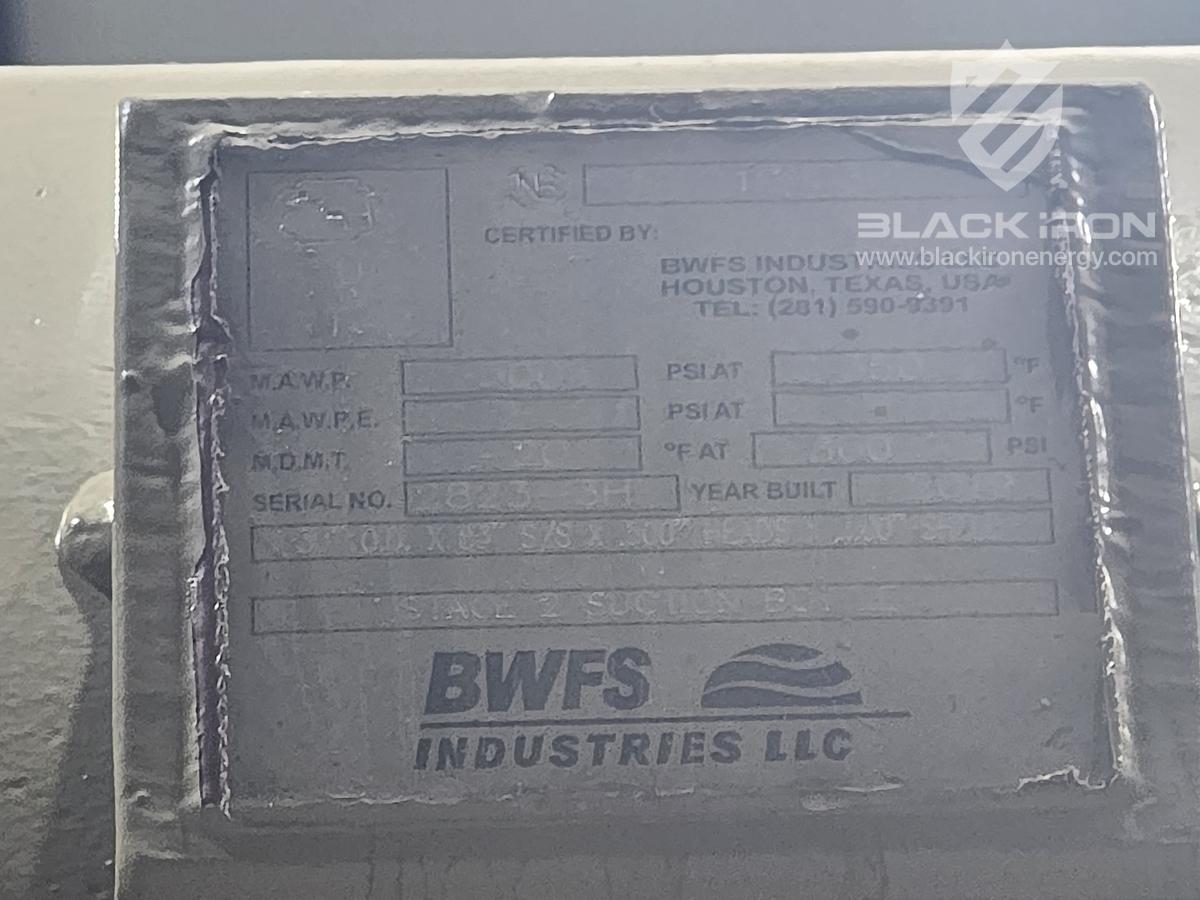

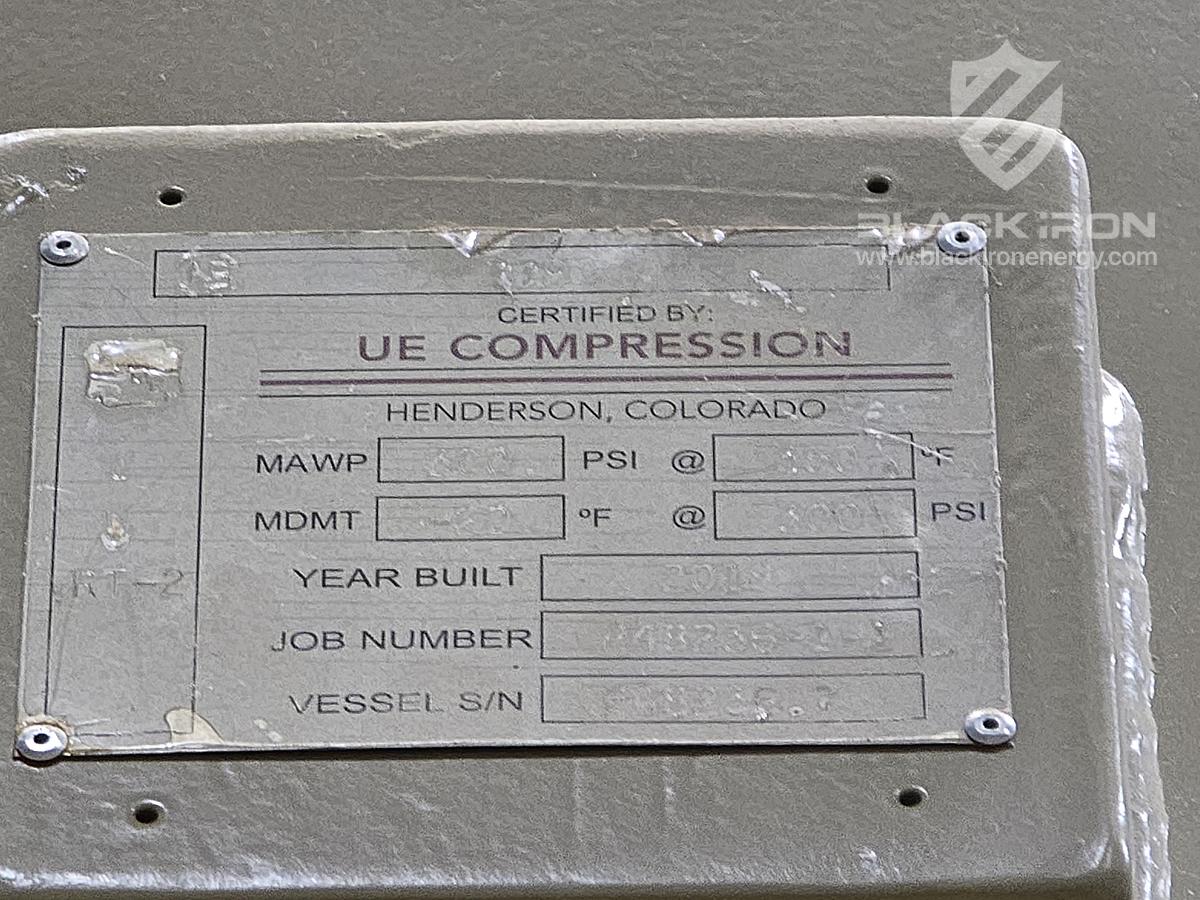

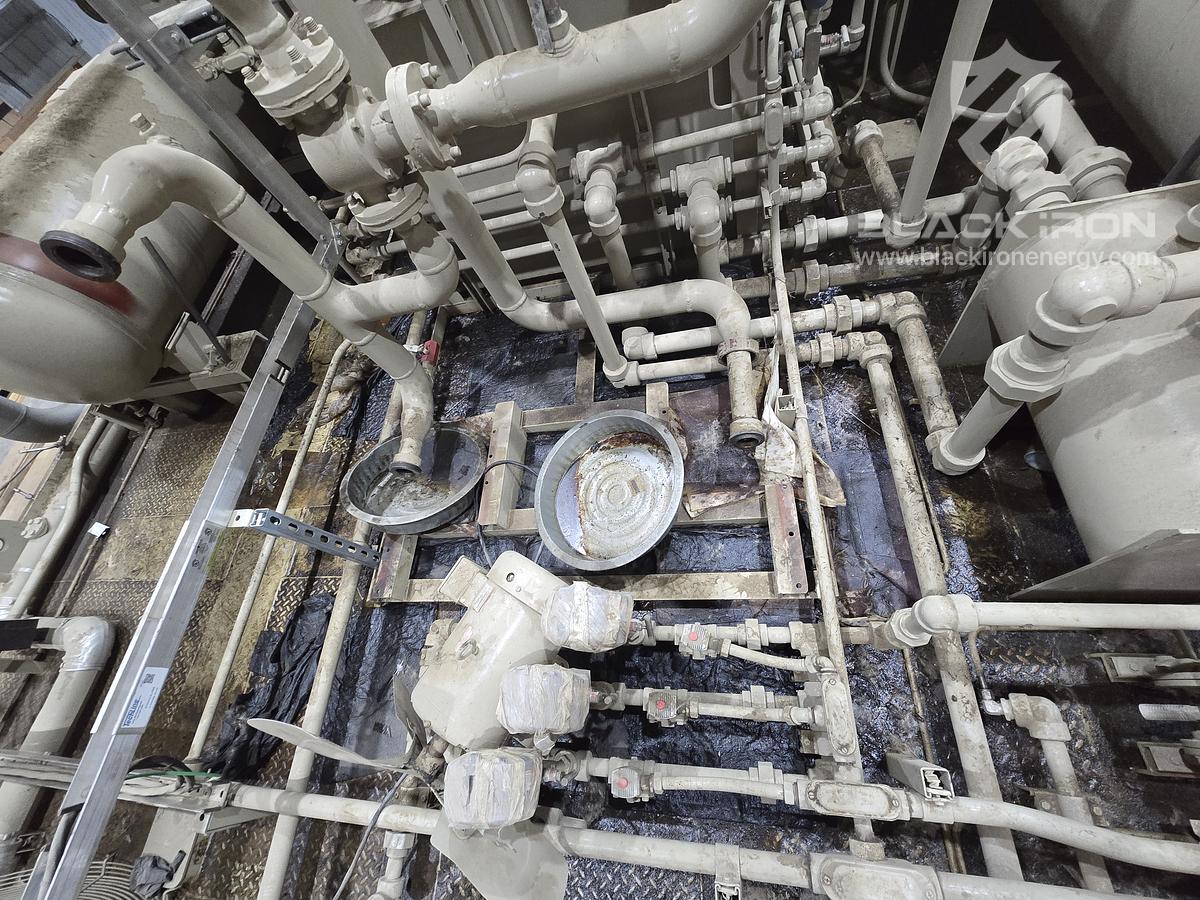

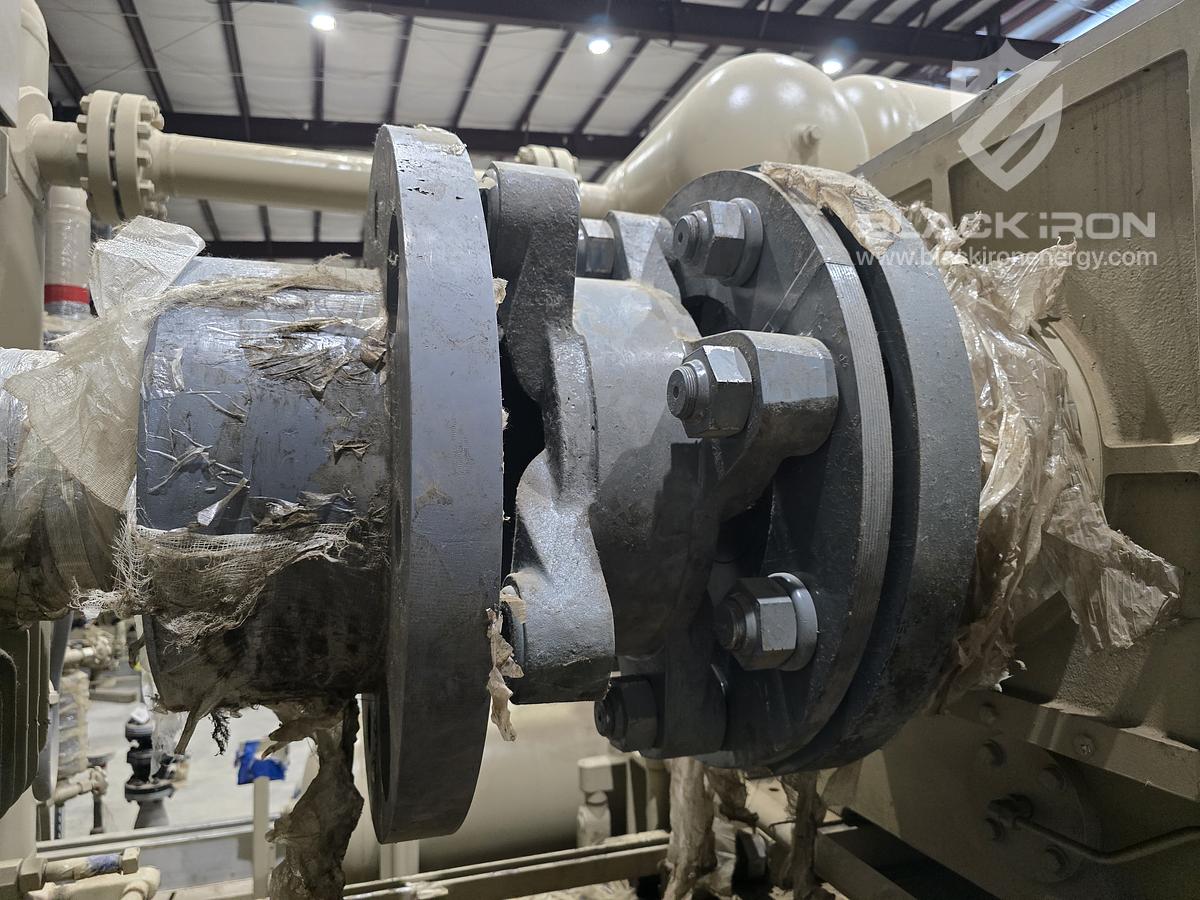

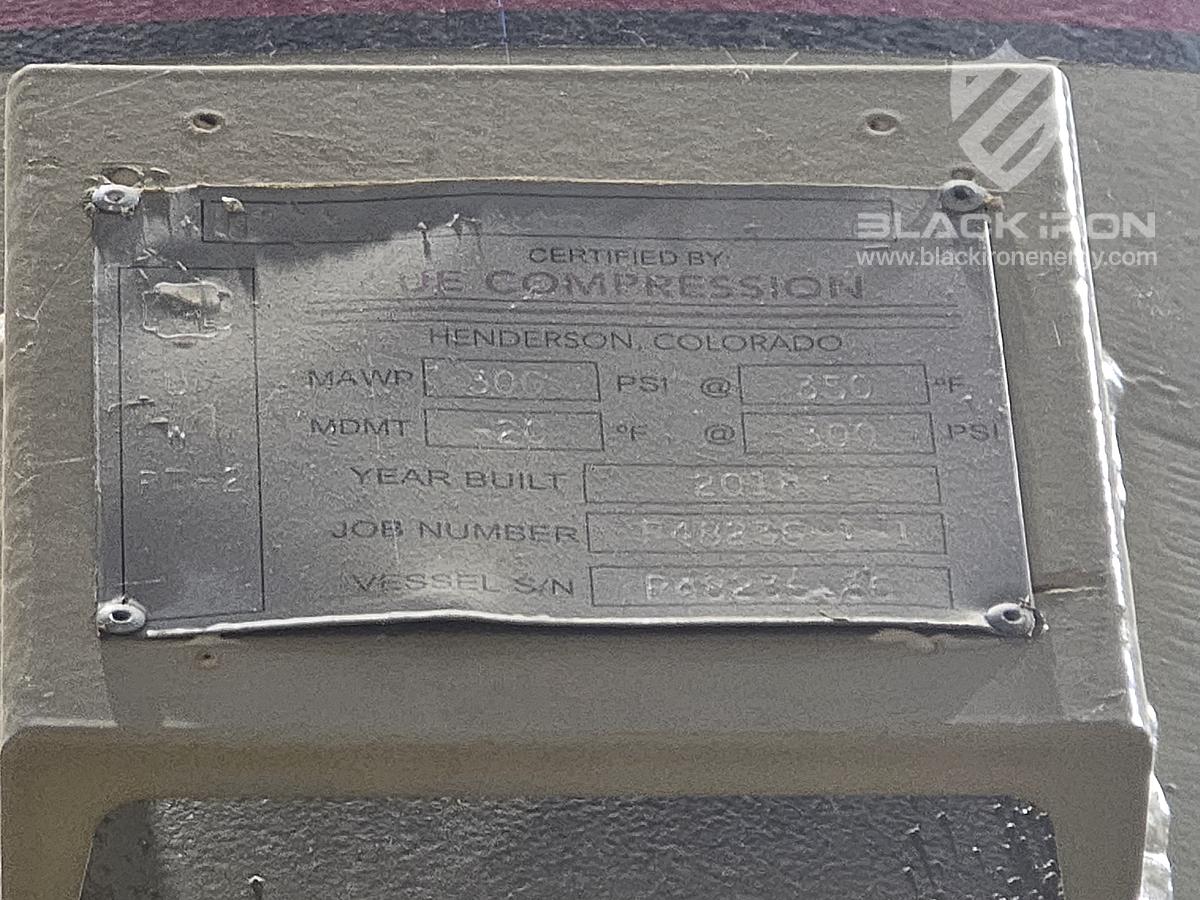

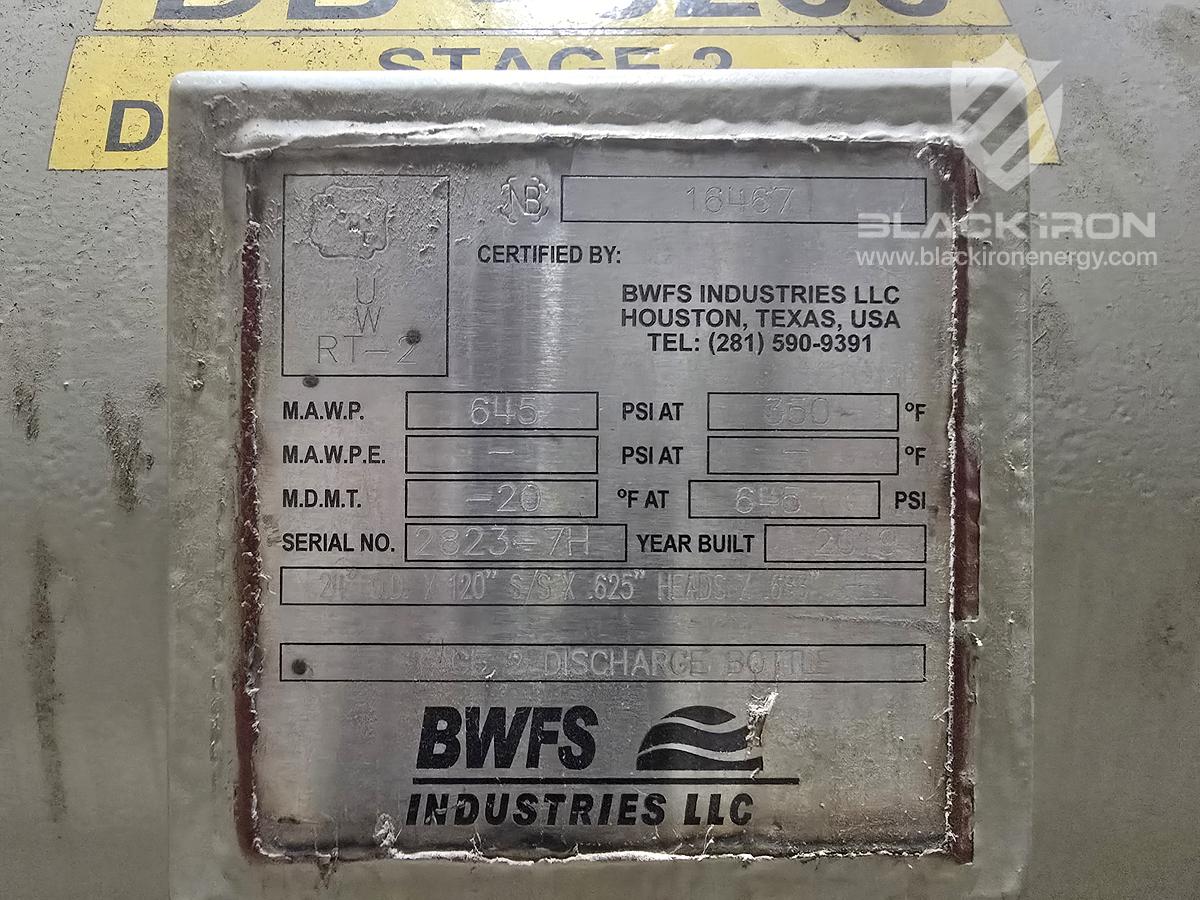

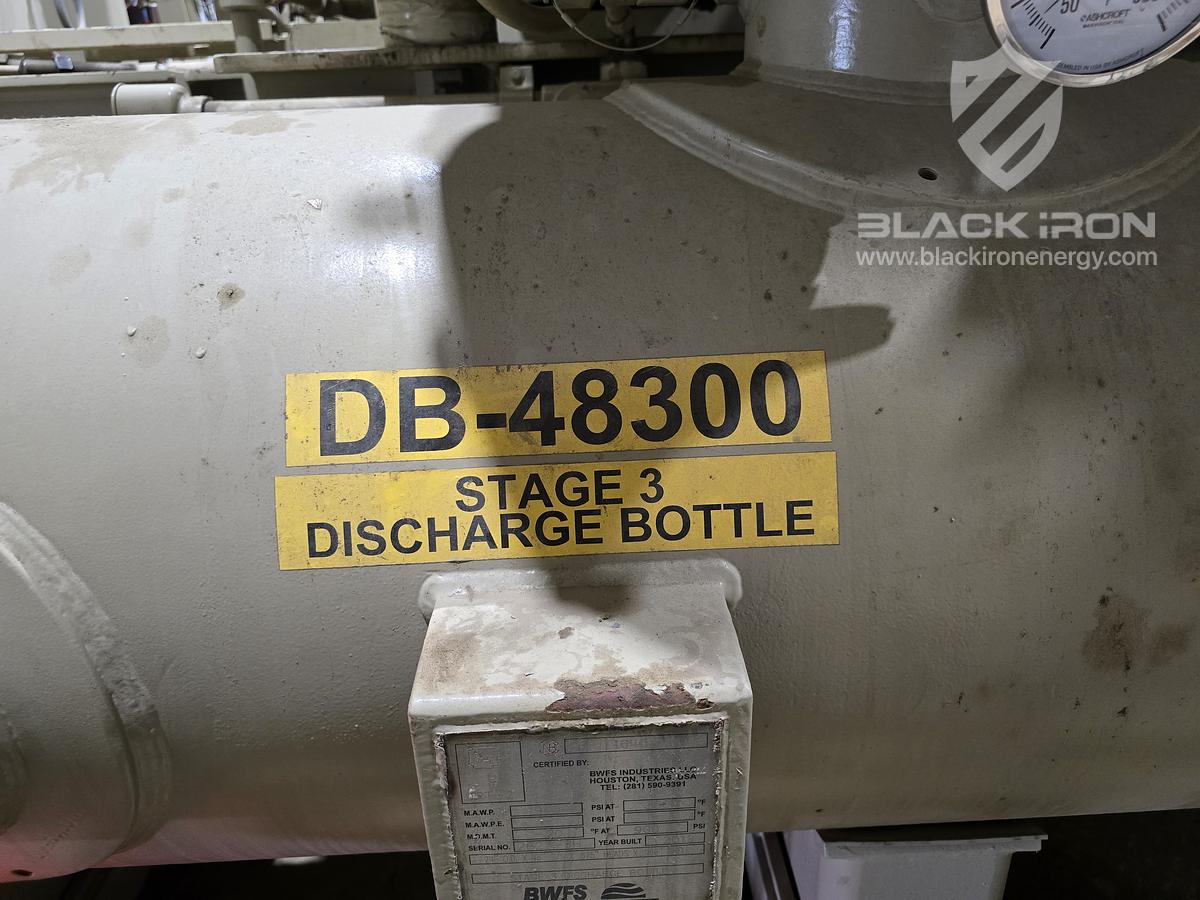

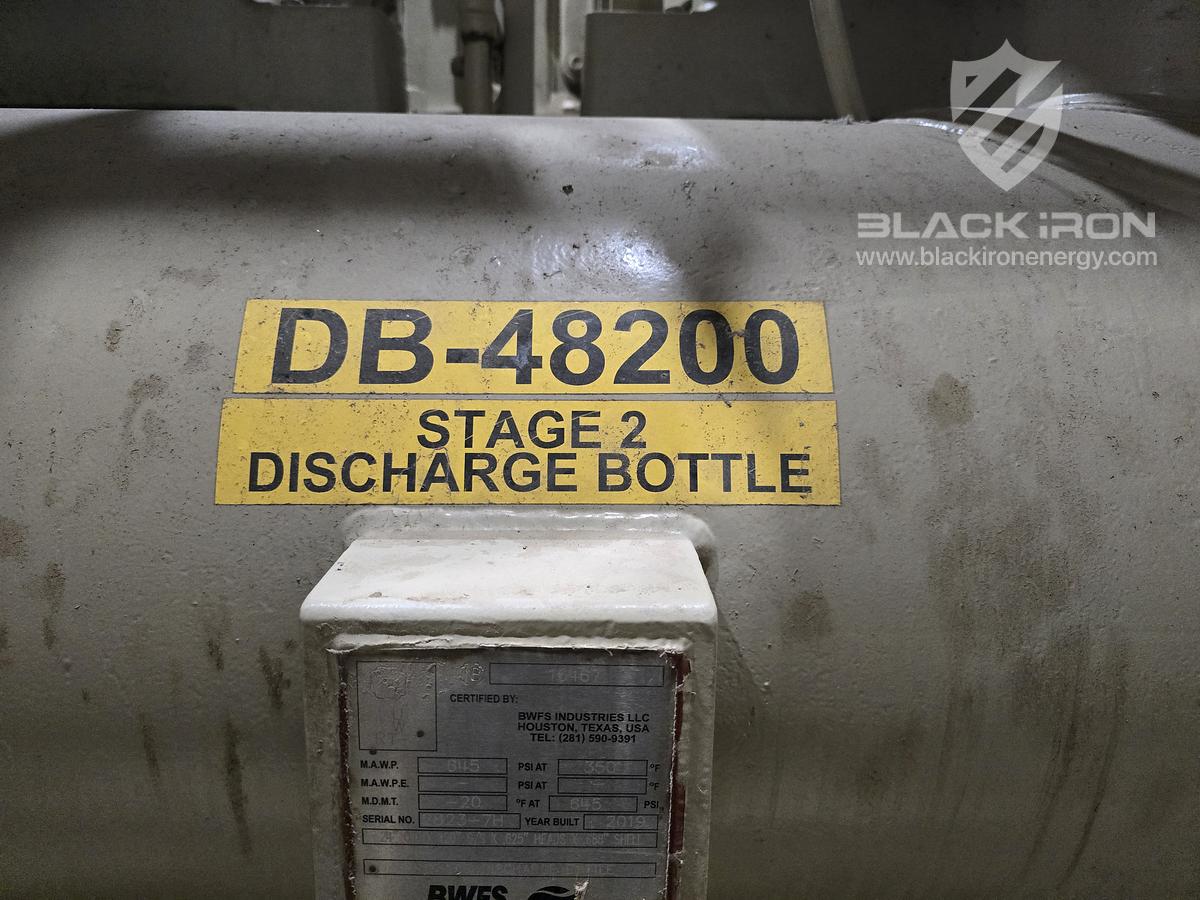

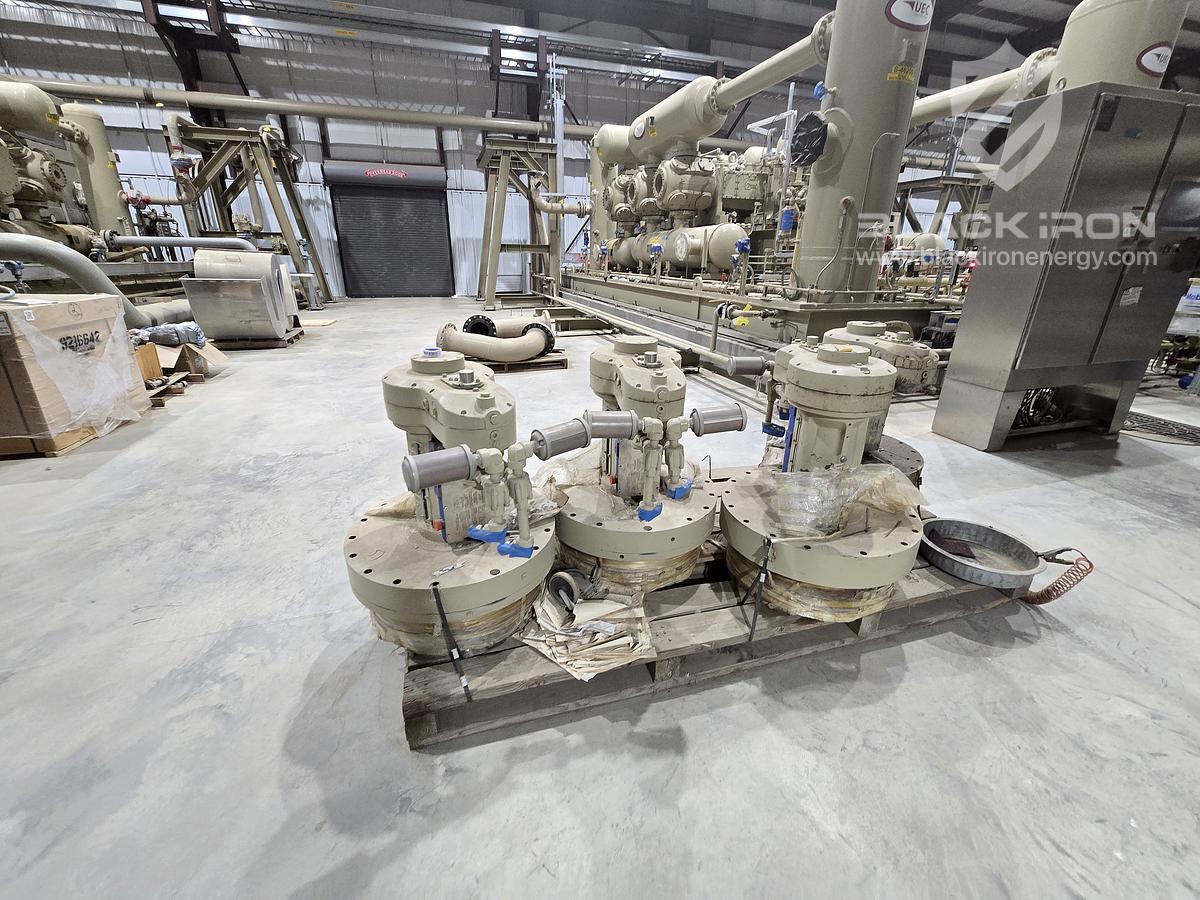

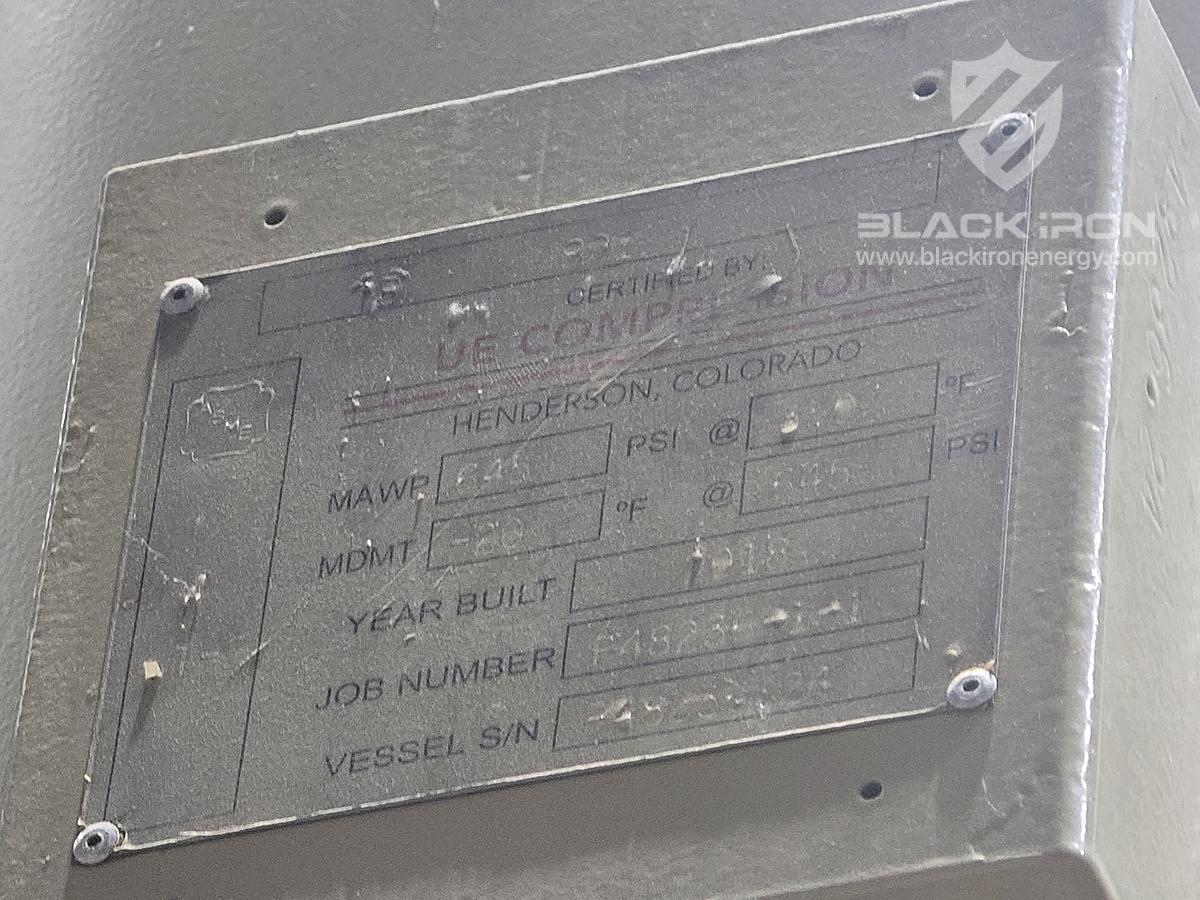

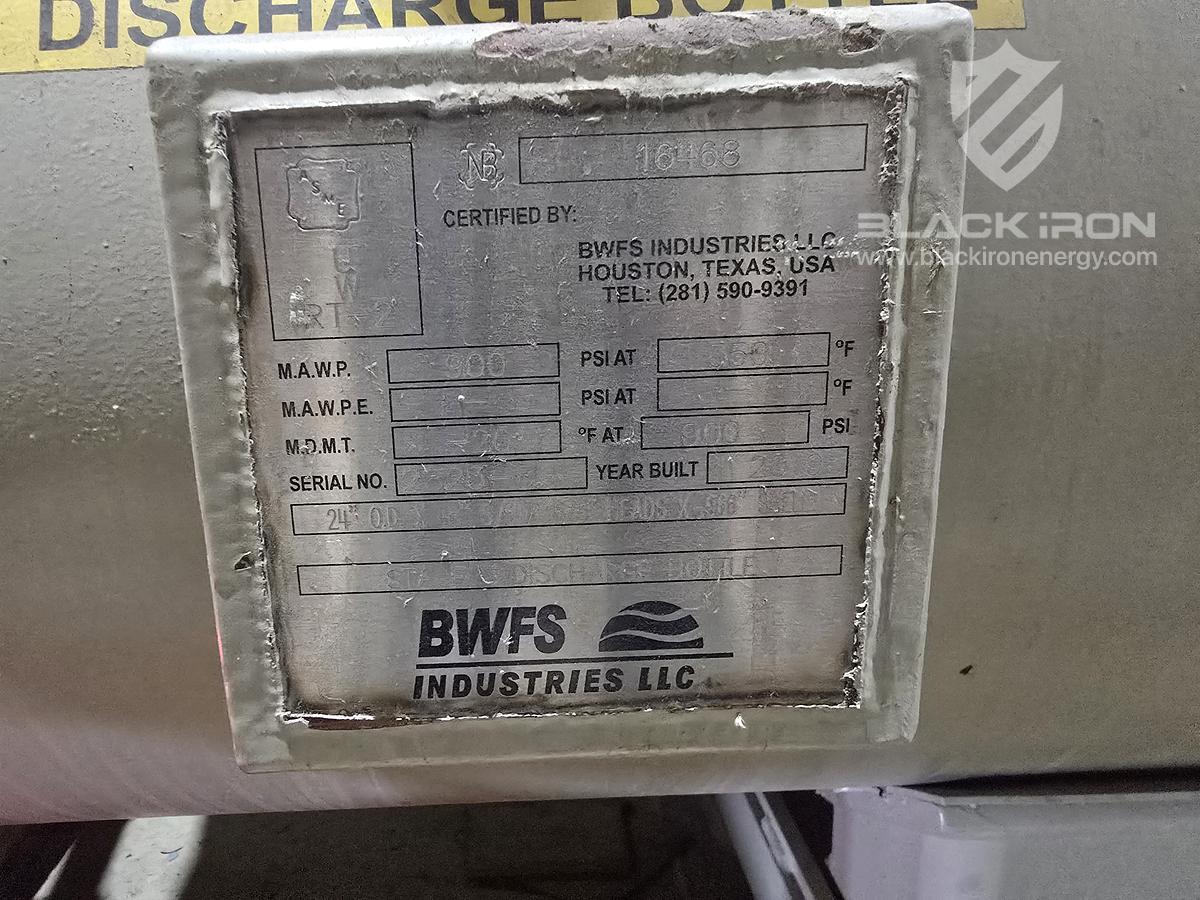

Ariel KBZ/6 6-throw, 4-stage recip compressor frame

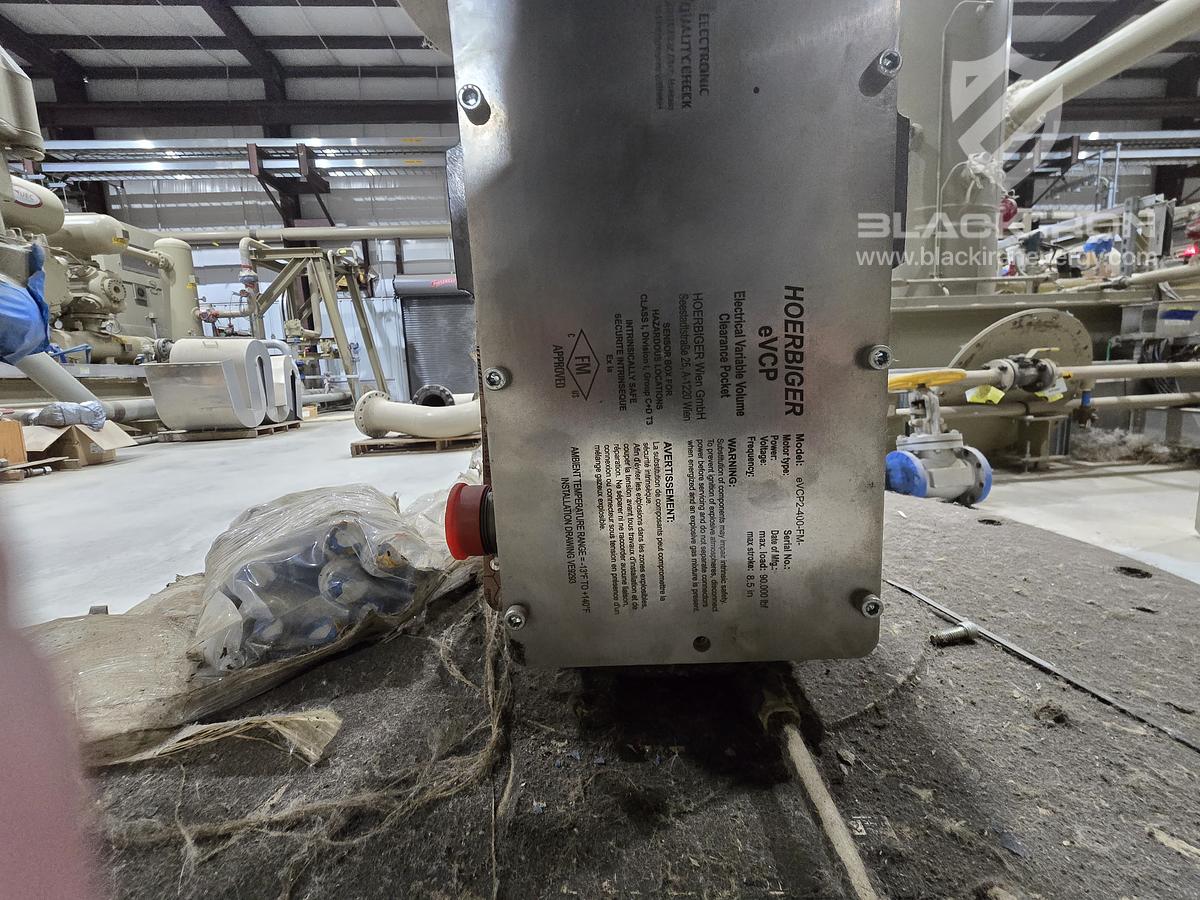

• (2) 24.125" Z:10U cylinders, each rated 275 psig MAWP w/ VVCP and head end valve unloaders.
• (2) 14.125" Z cylinders, each rated 815 psig MAWP (no VVCP)

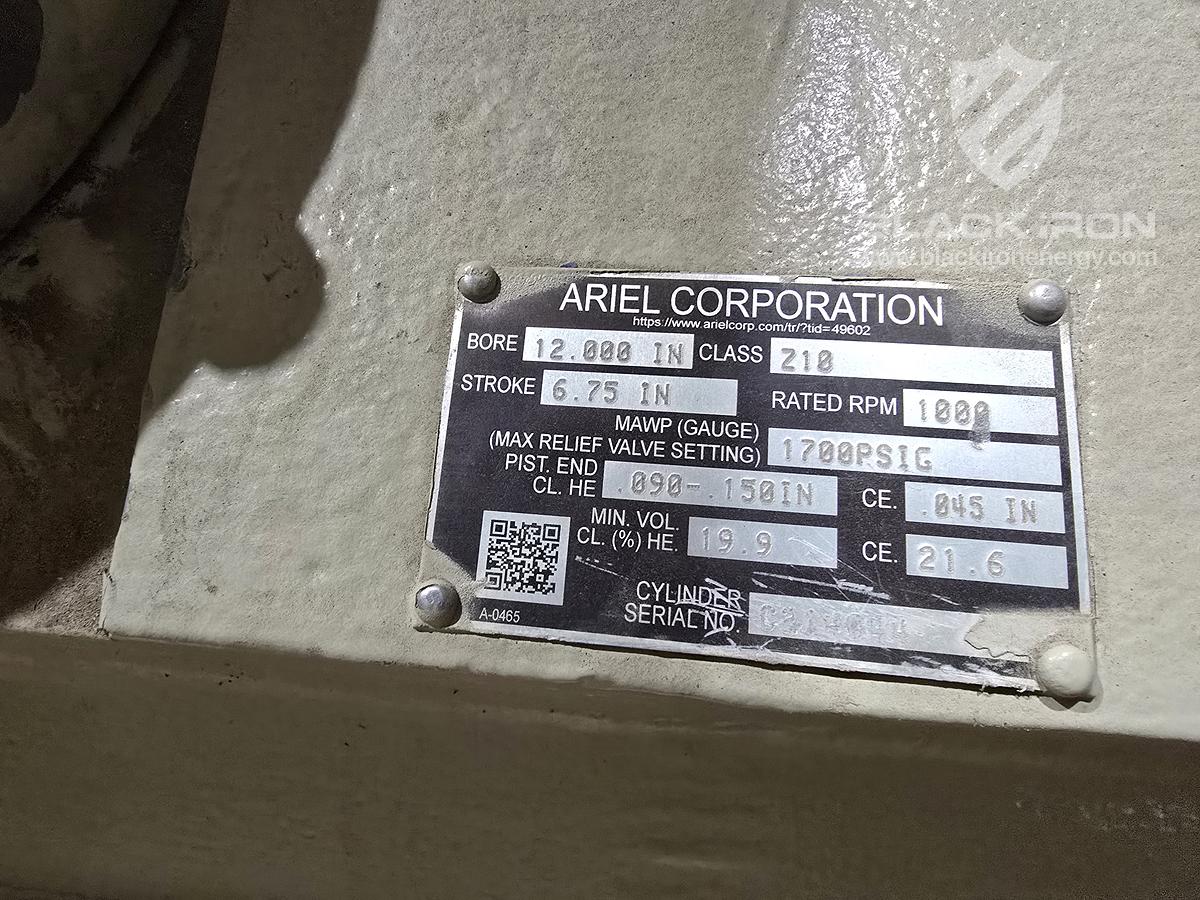

• (1) 12.000" Z:10 cylinder rated 1700 psig MAWP (no VVCP)
• (1) 9.875" ZM cylinder rated 1900 psig MAWP (no VVCP)
• Circulating Kim Hotstart compressor oil heater

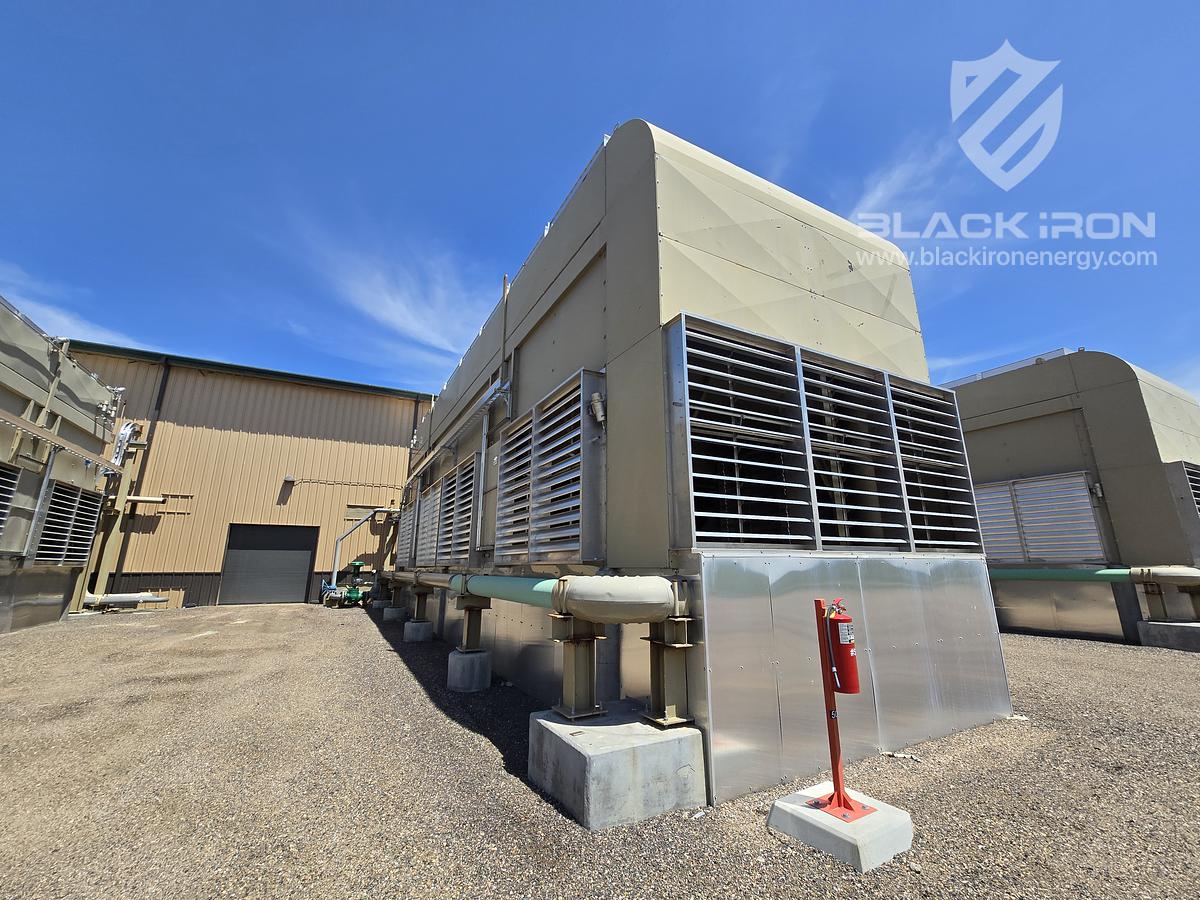

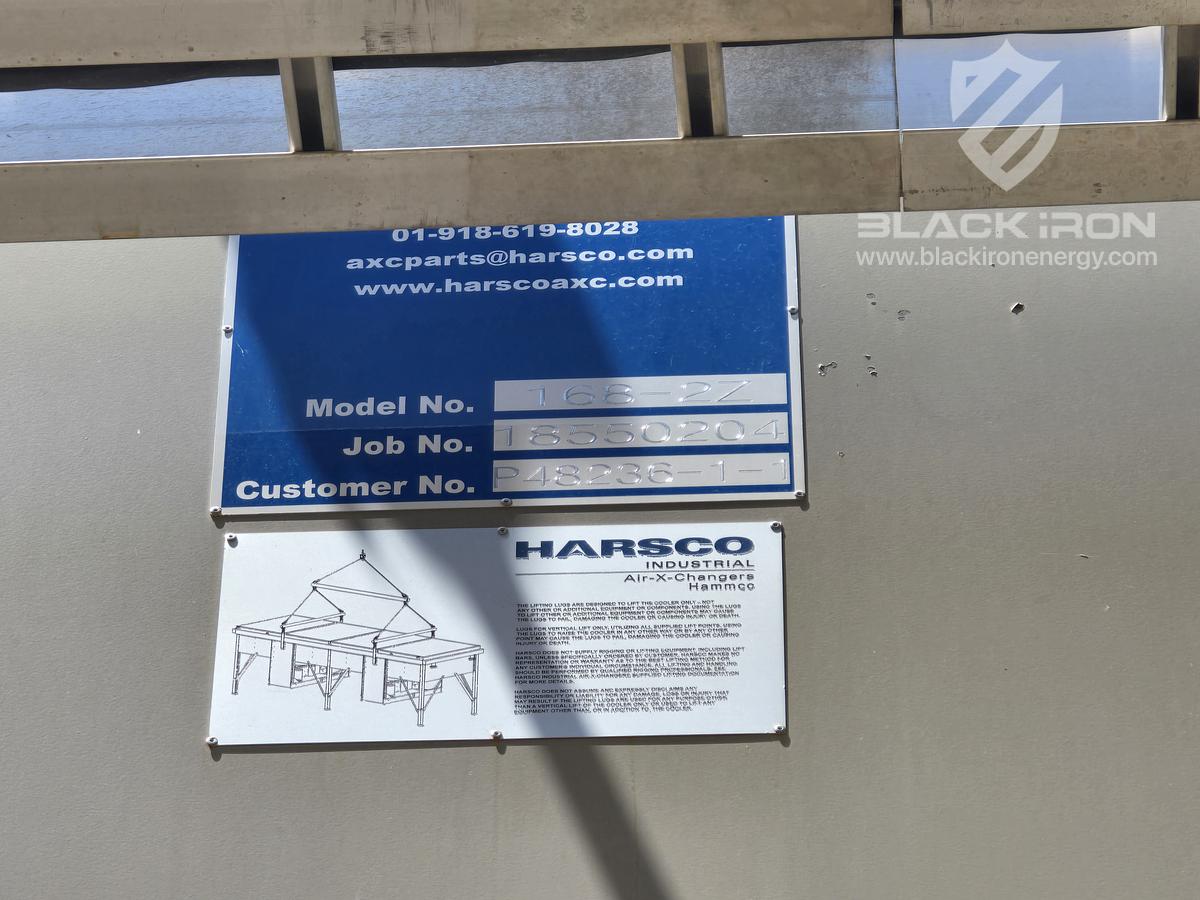

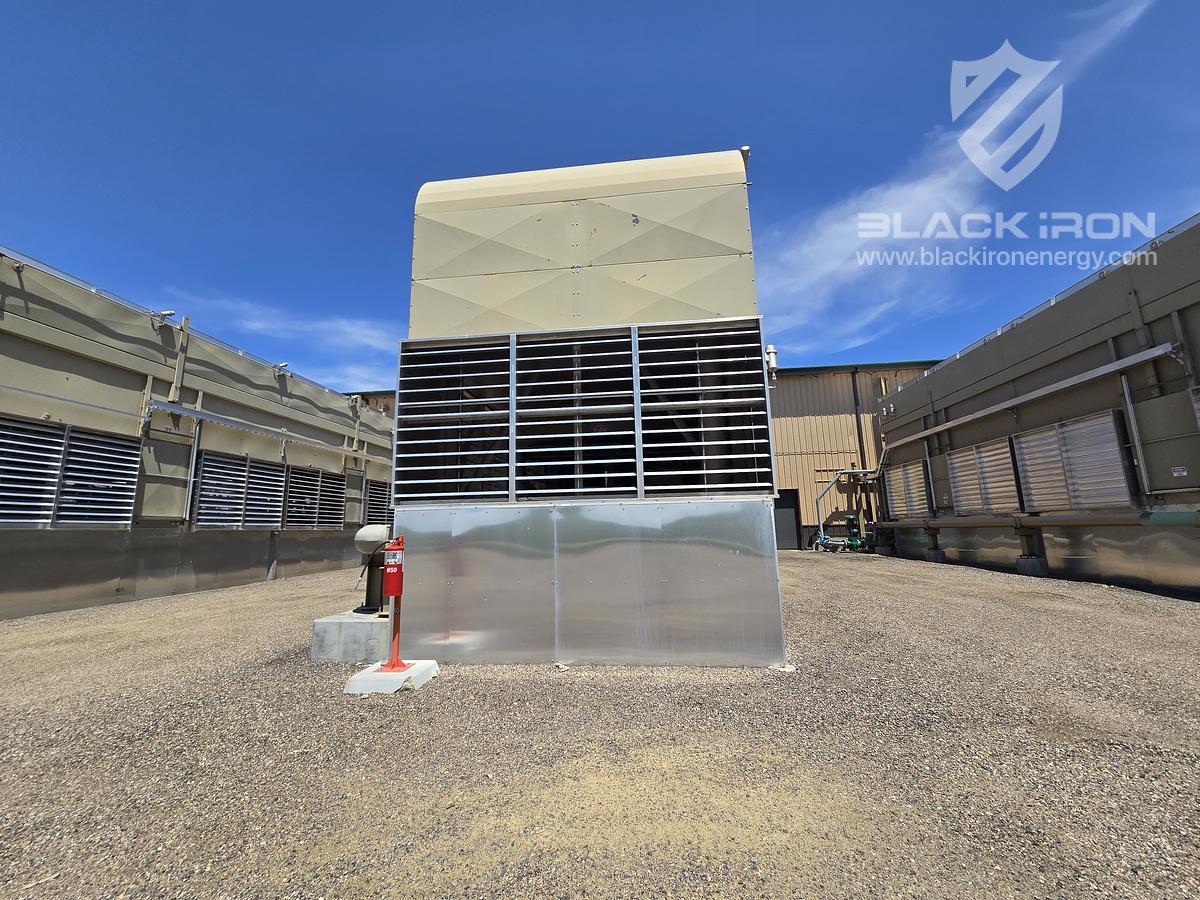

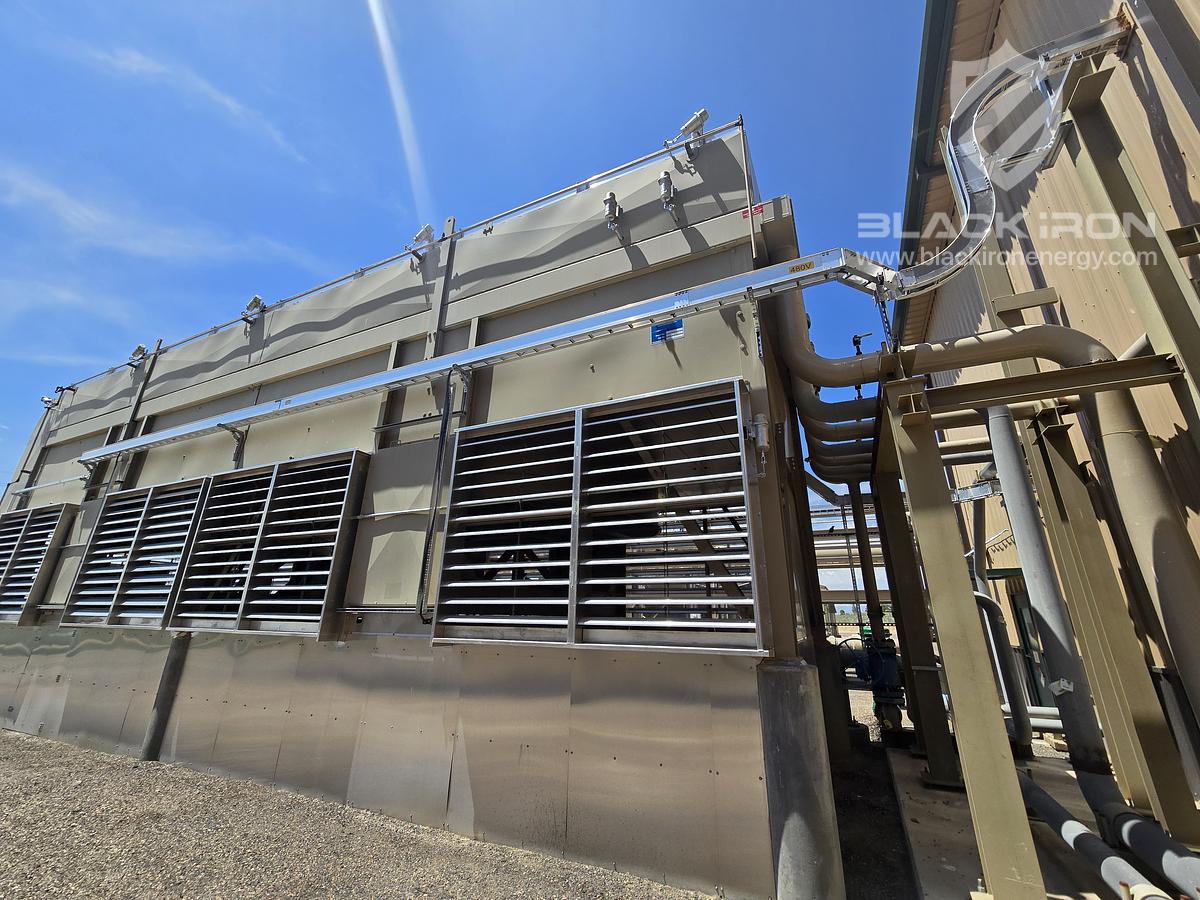

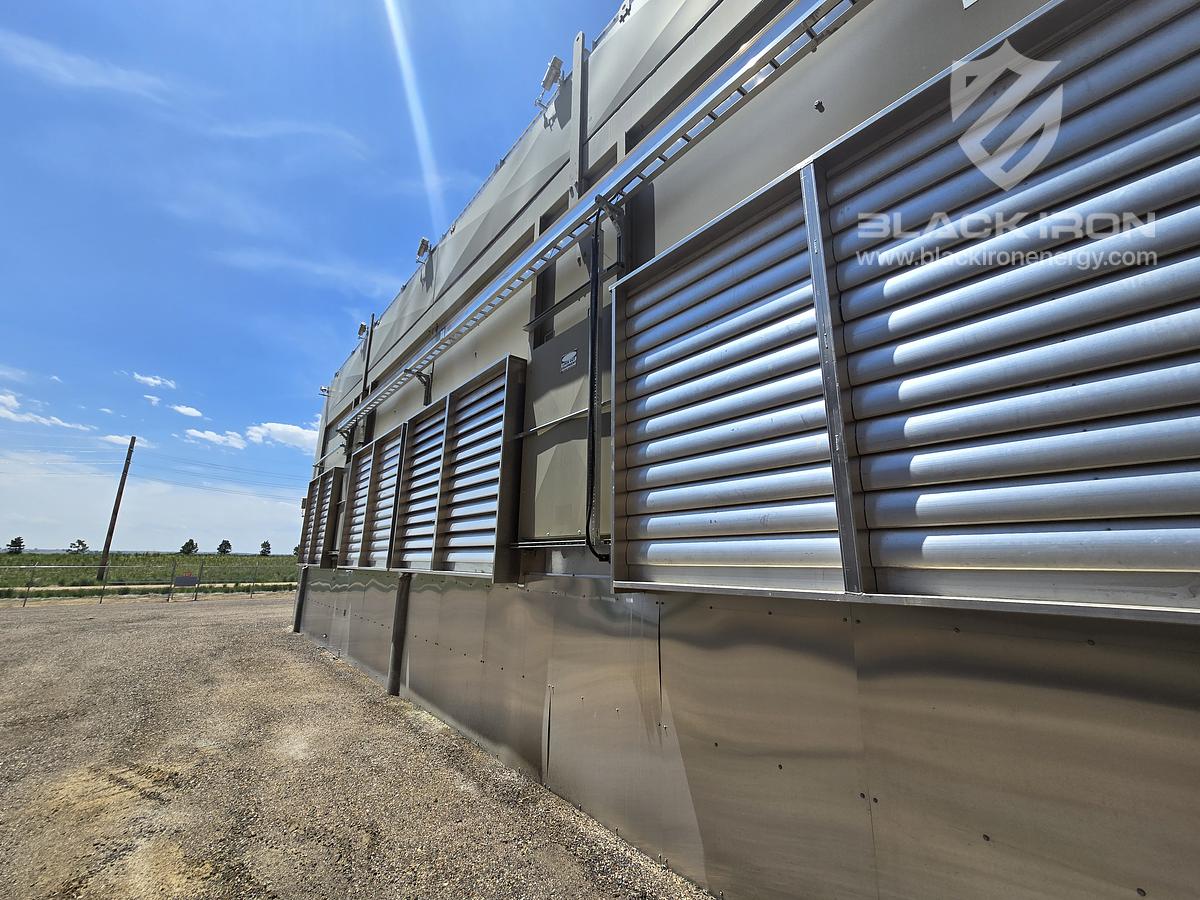

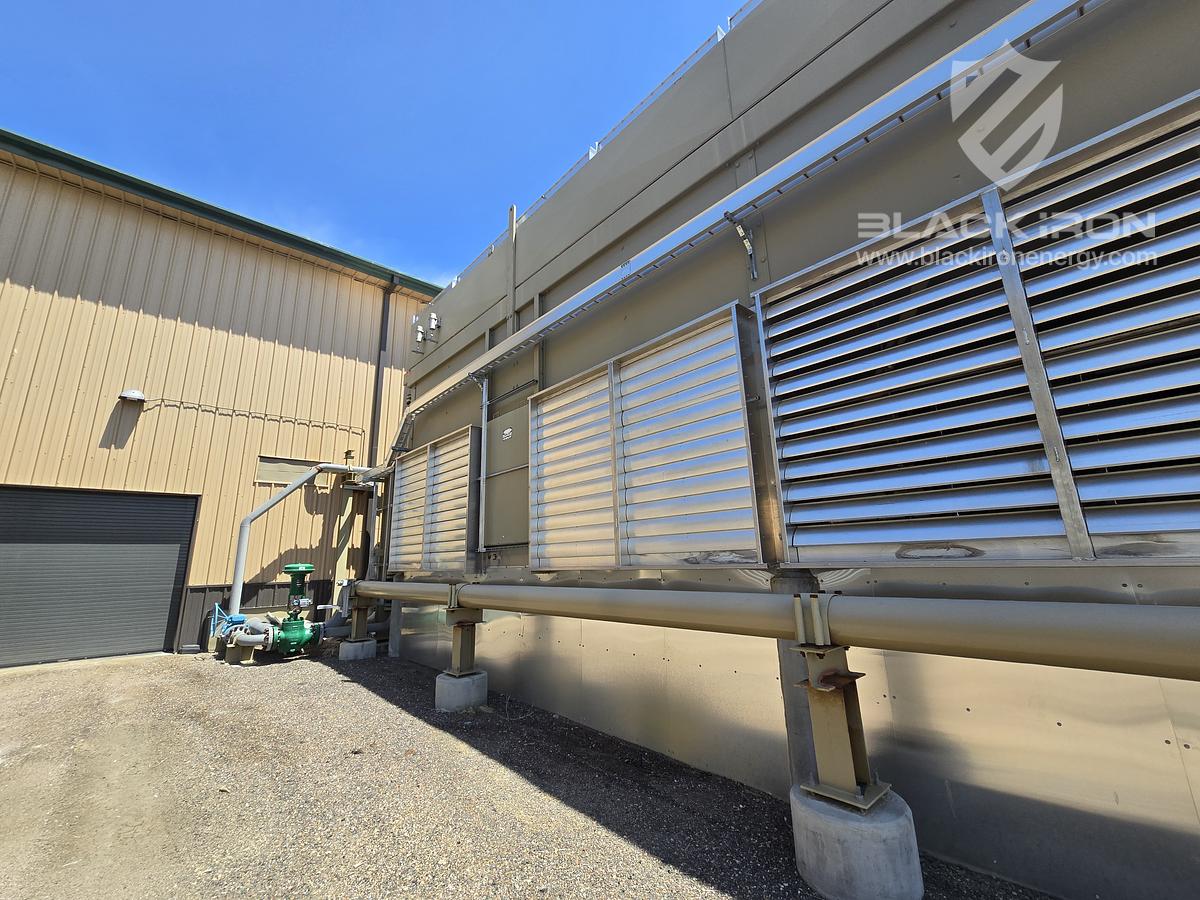

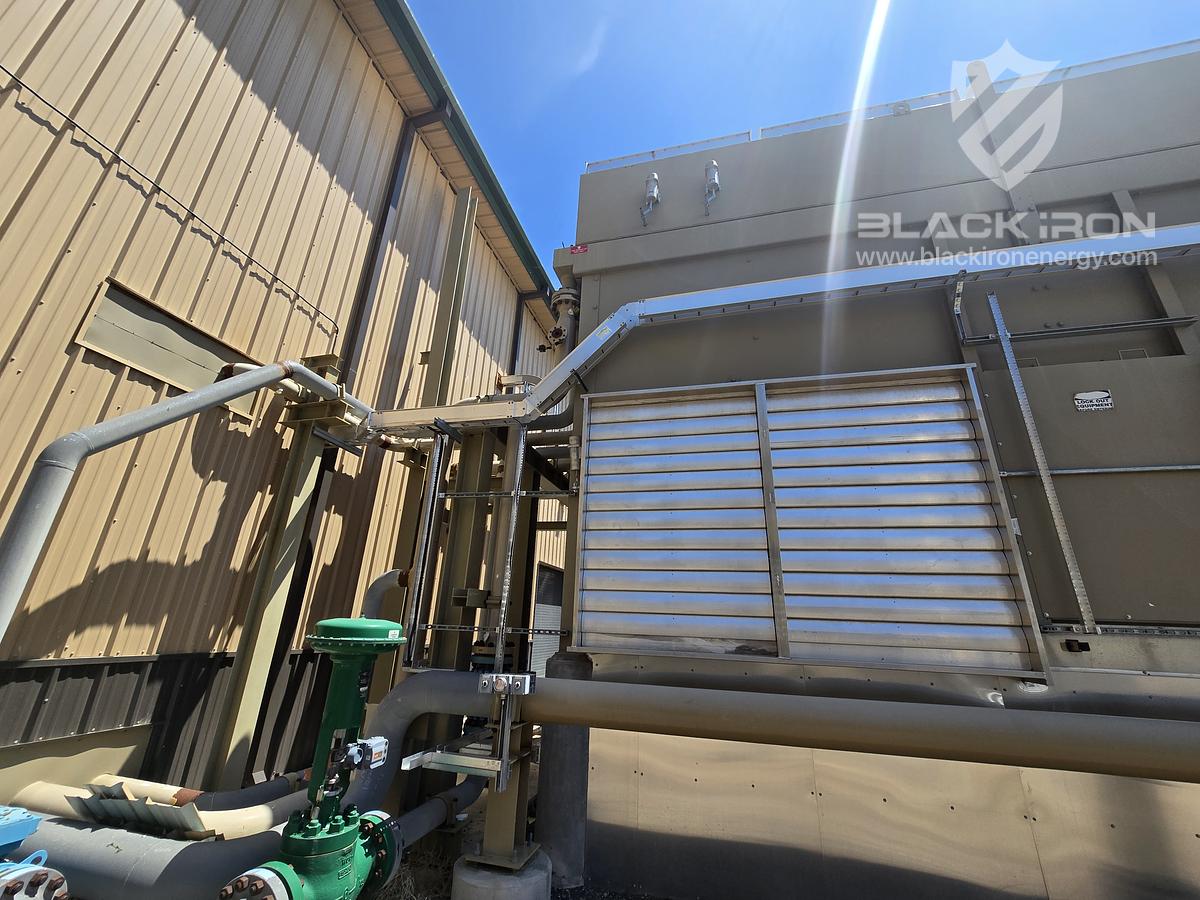

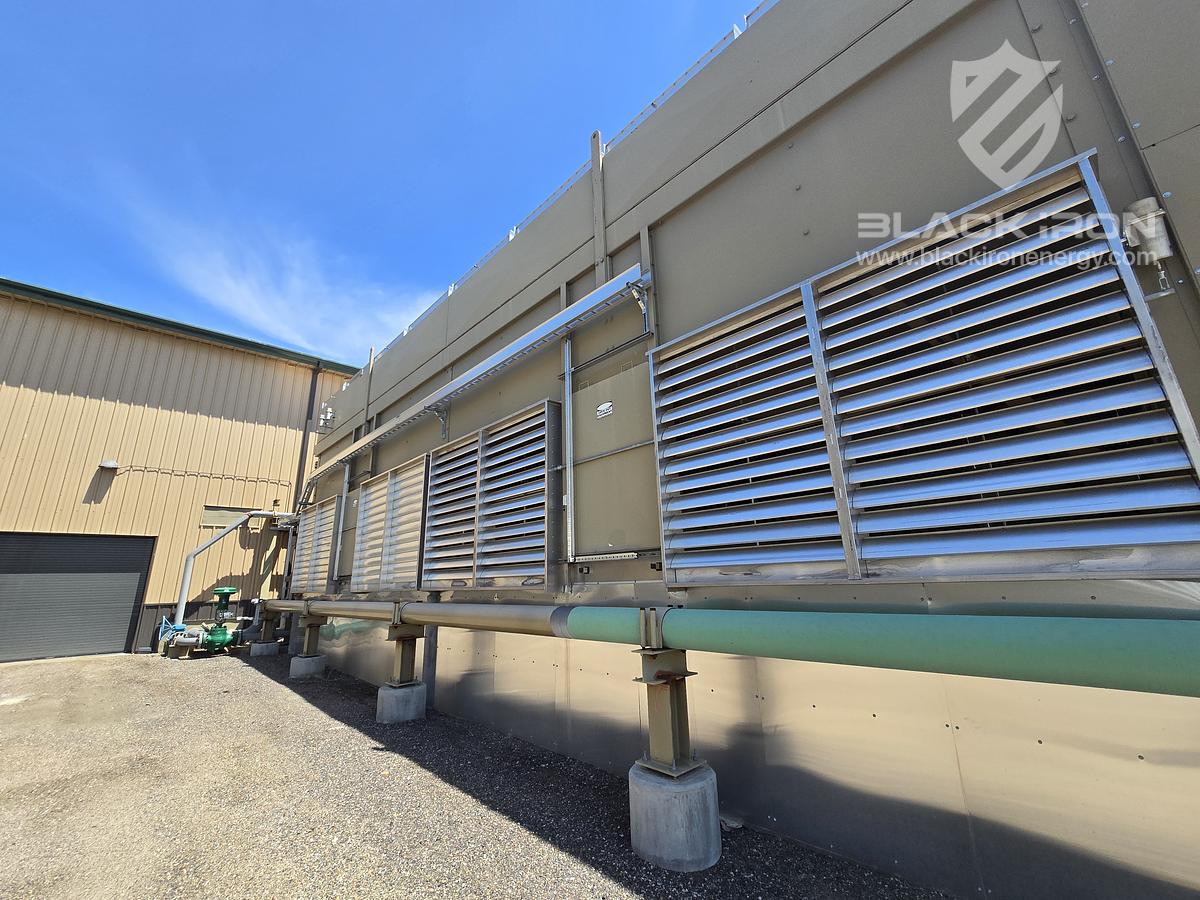

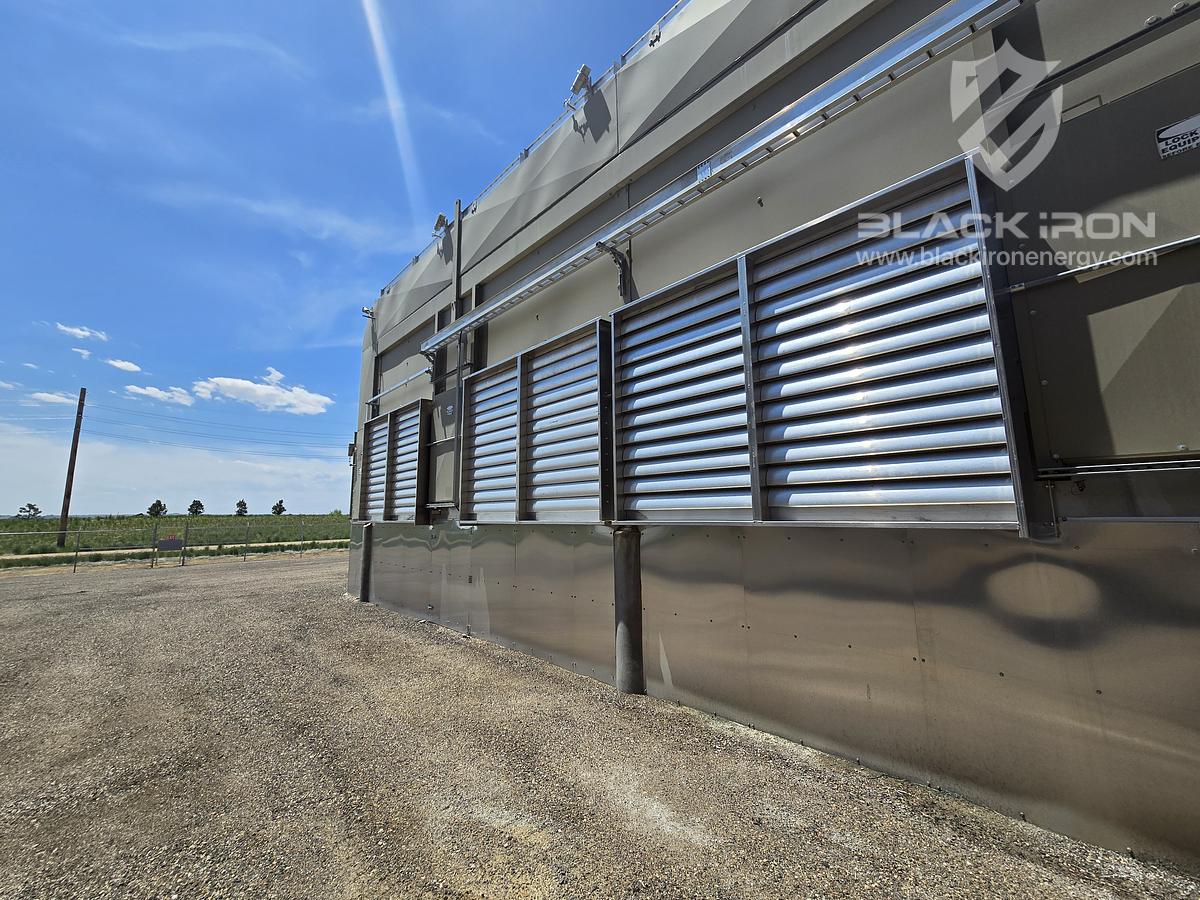

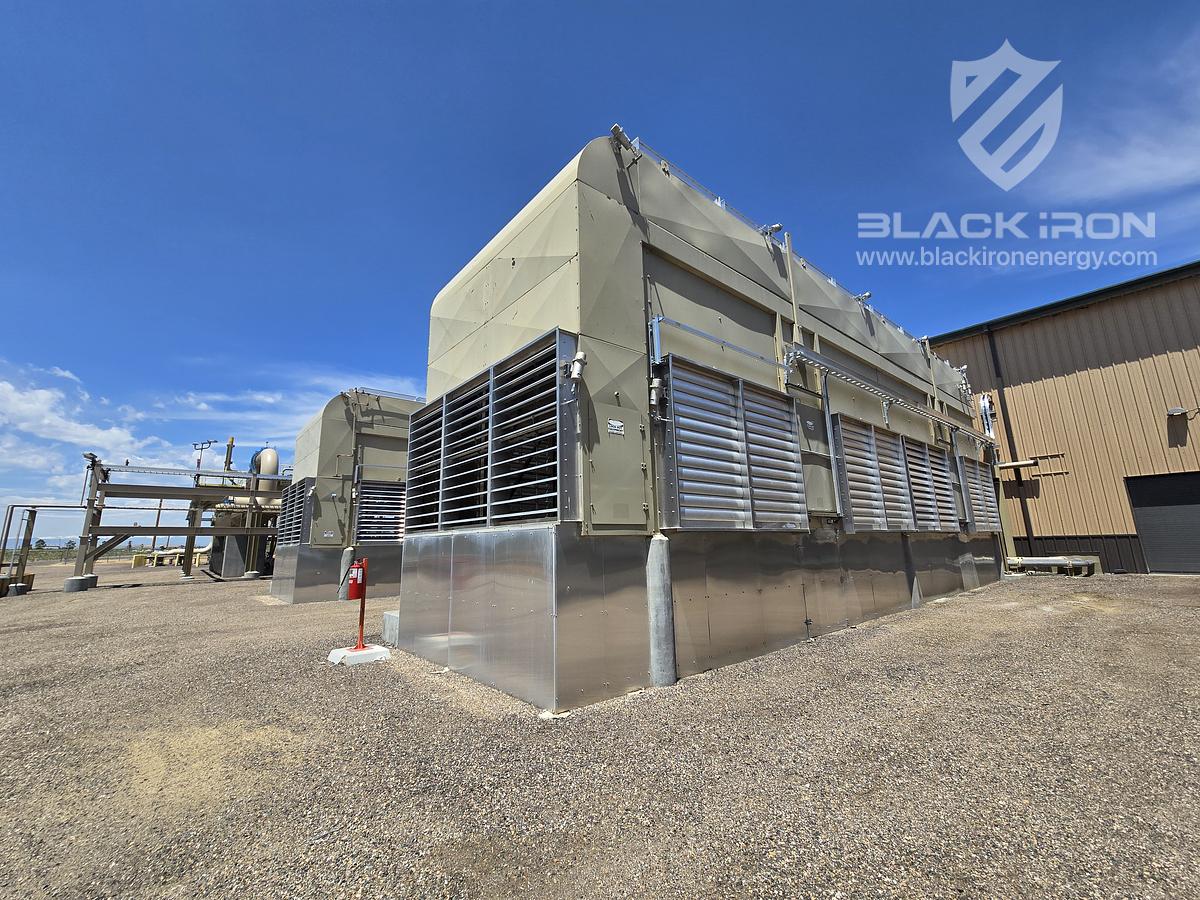

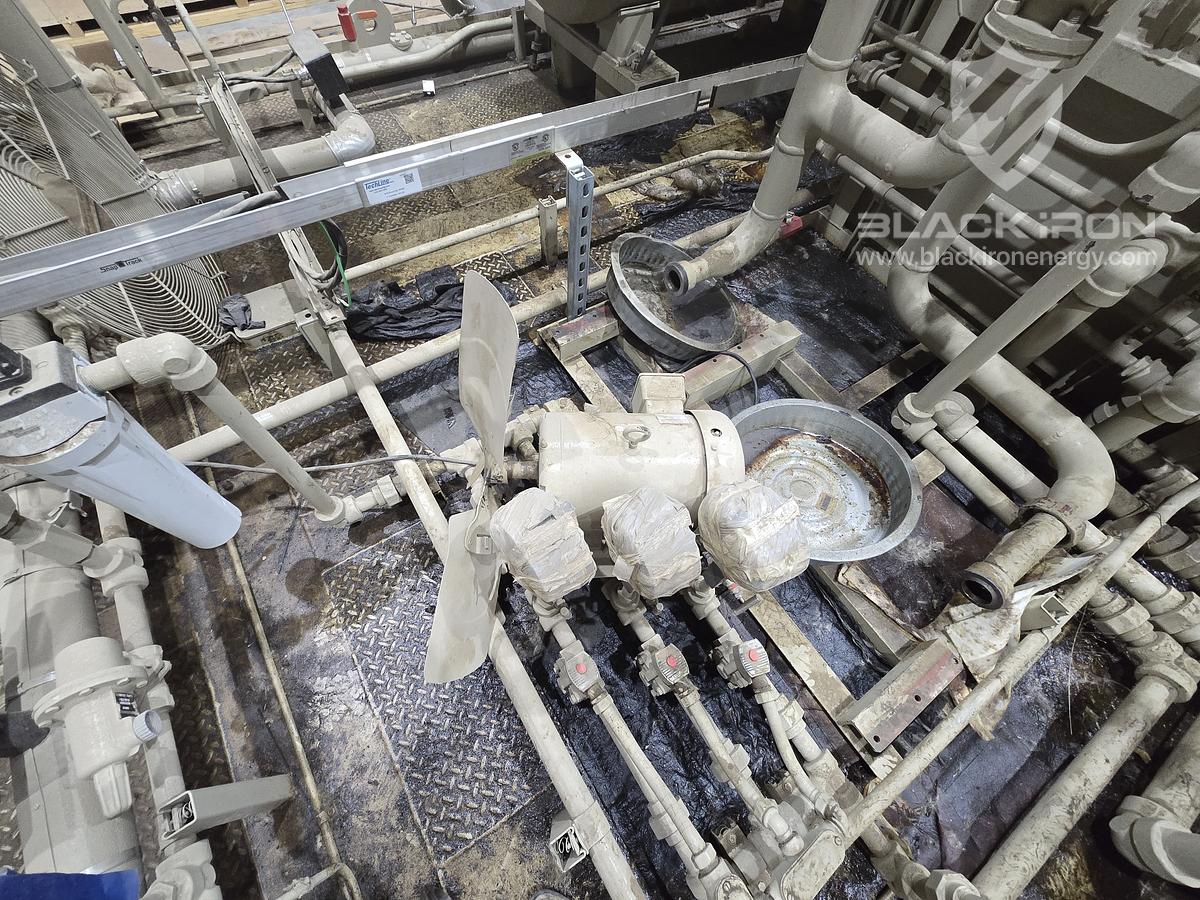

Air-X-Changer 168-2Z EMD cooler c/w (1) VFD motor driven fan, (1) fixed speed motor driven fan, and warm air recirc

• AC section rated 1750 psig MAWP at 350F

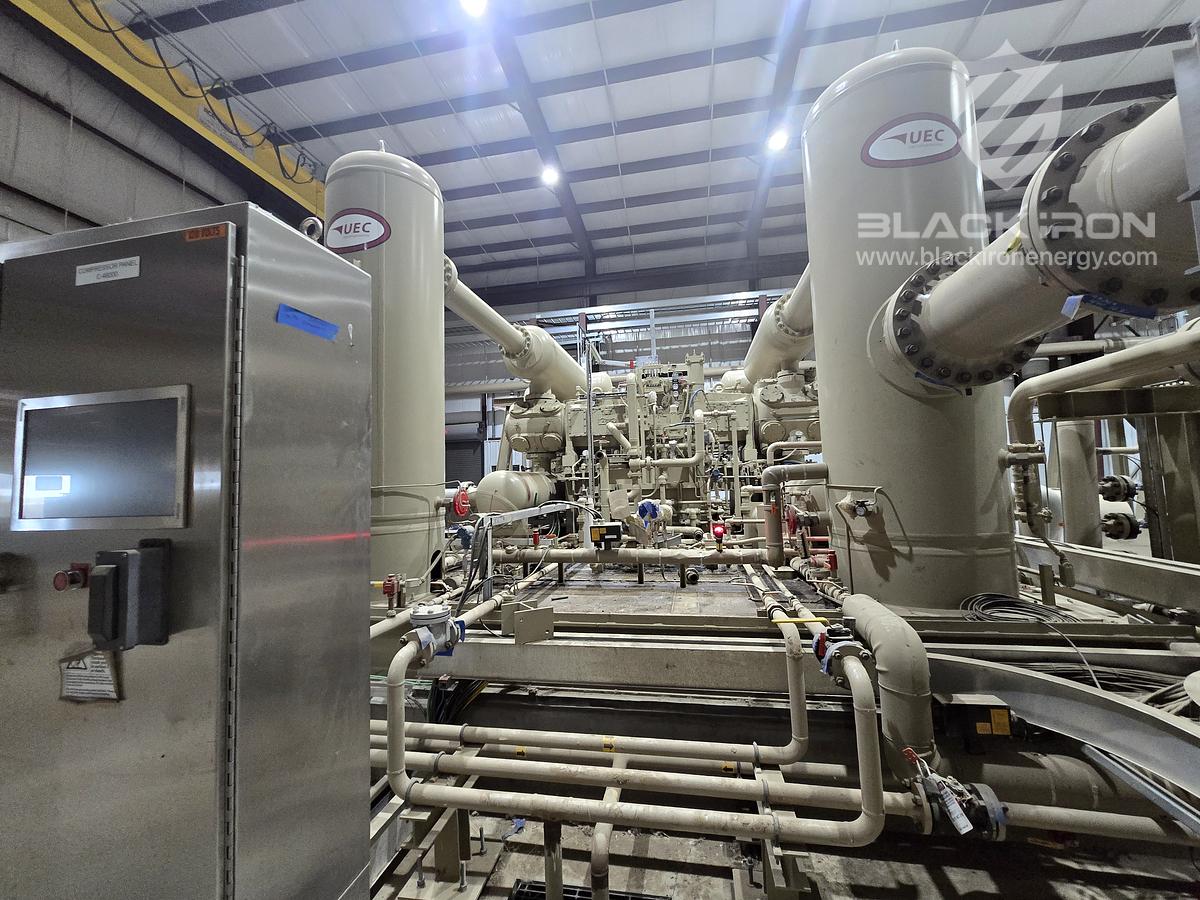

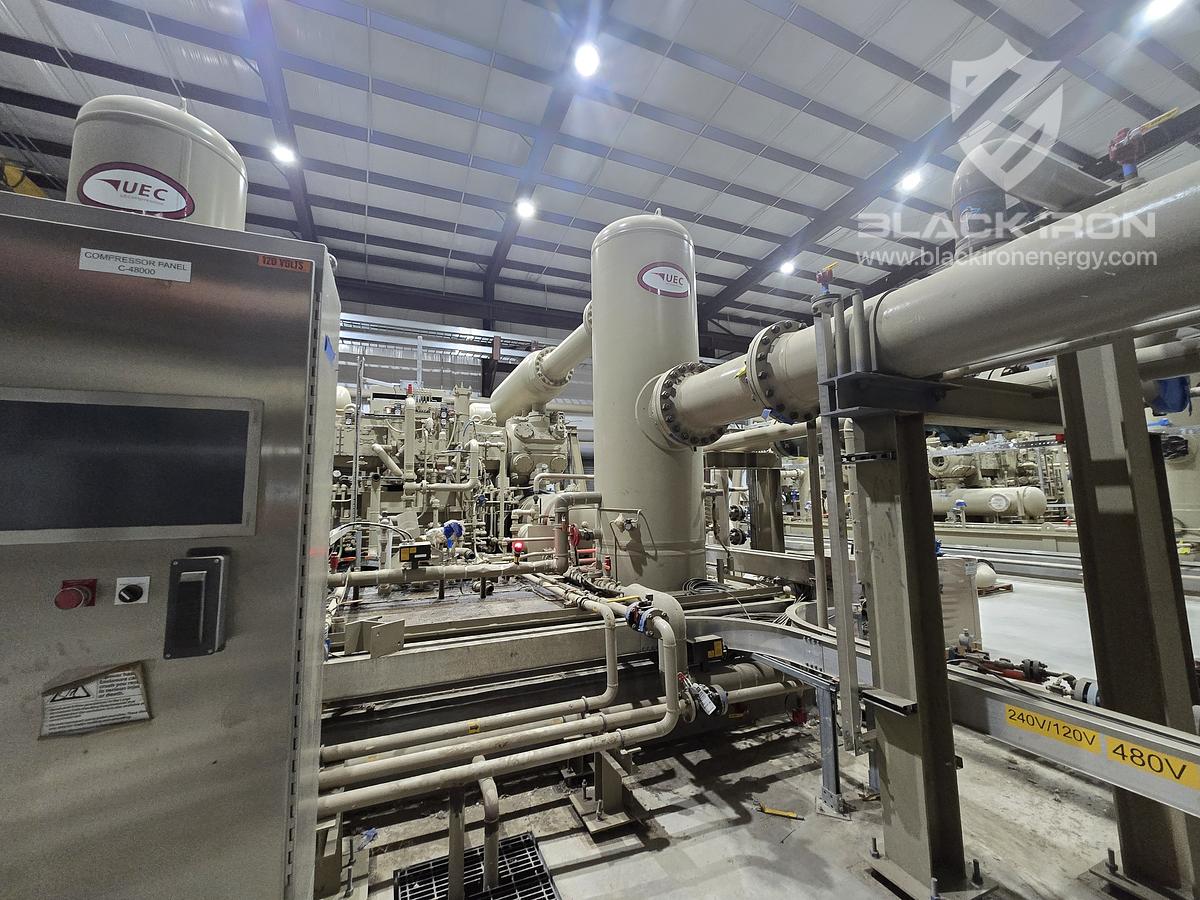

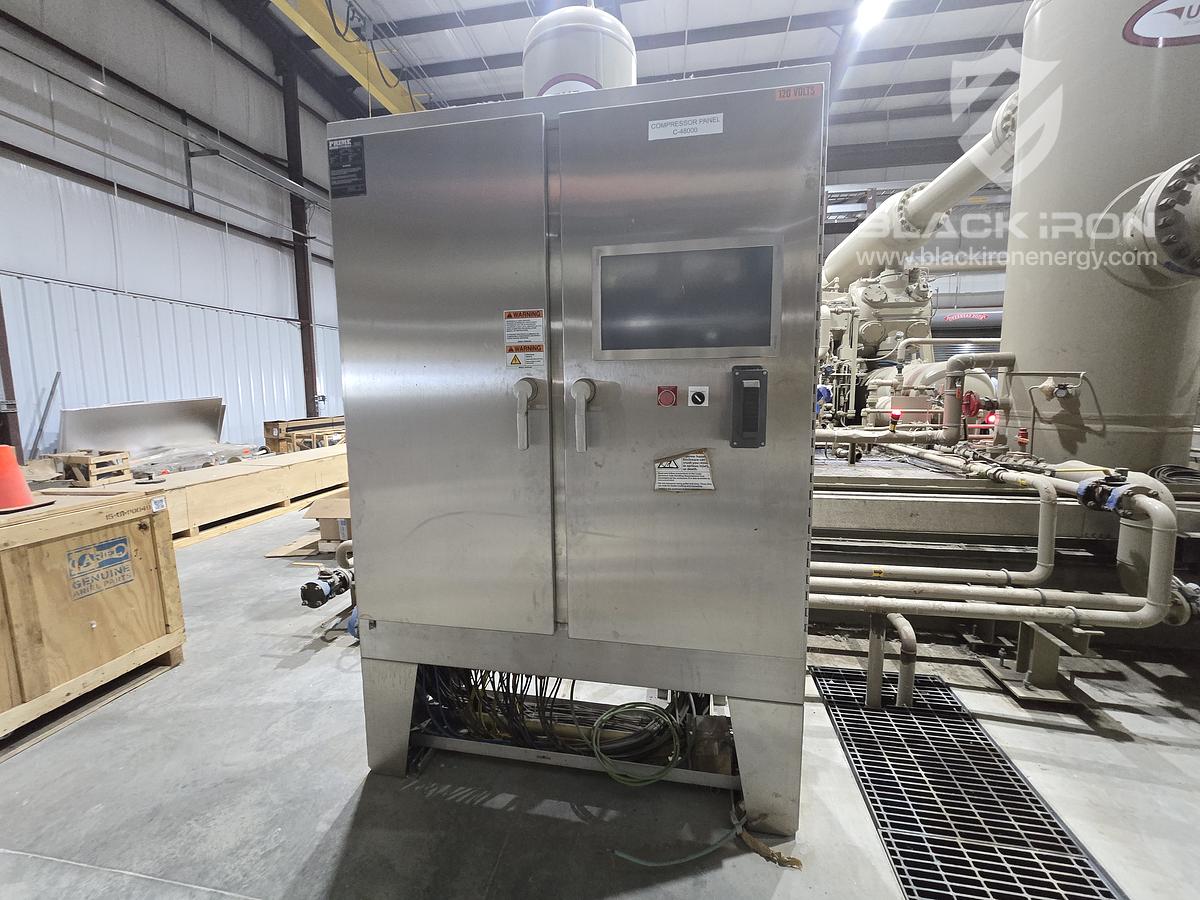

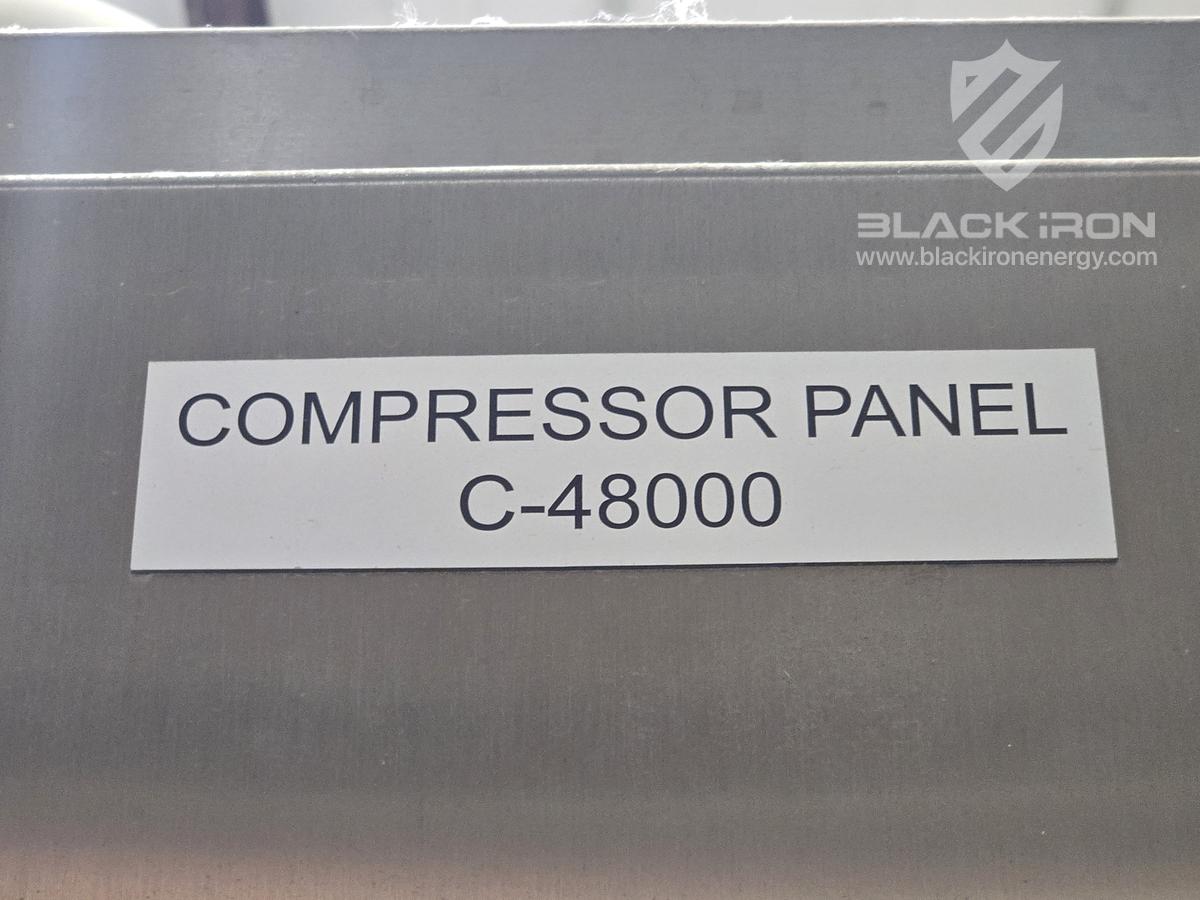

Allen-Bradley CompactLogix control panel by Prime Controls

SPCV, Suction/Discharge/Blowdown isolation valves.

Torsional, Pulsation, and Mechanical Analysis.

QA/QC manual.
