Dresser Rand - Centrifugal Compressor

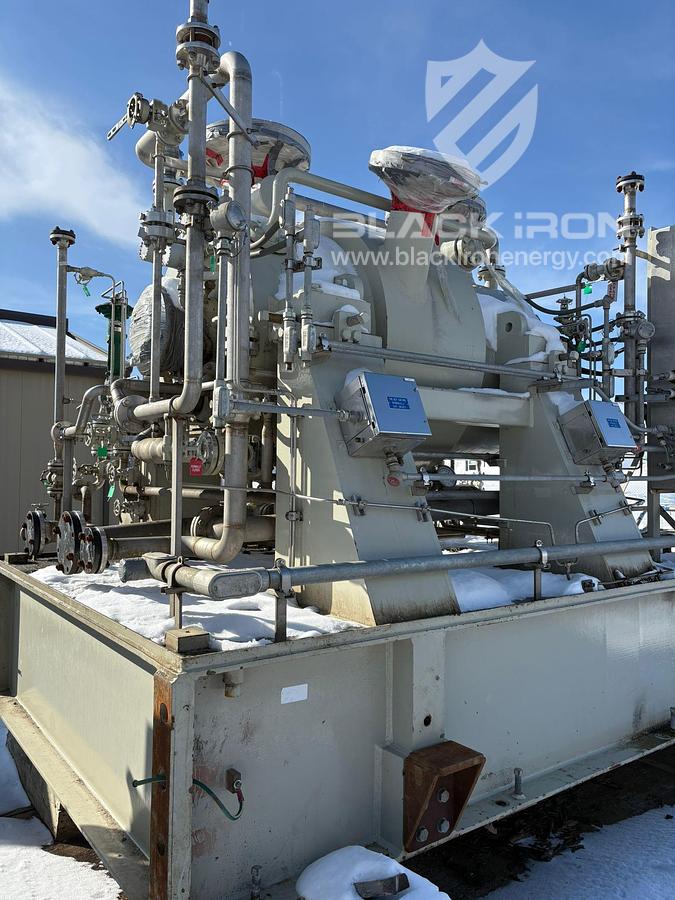

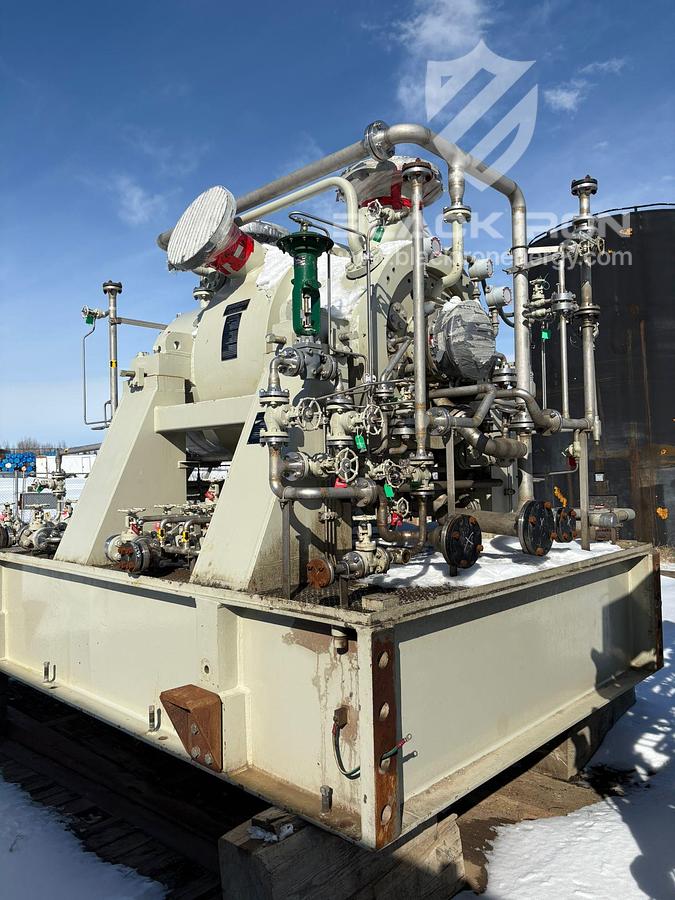

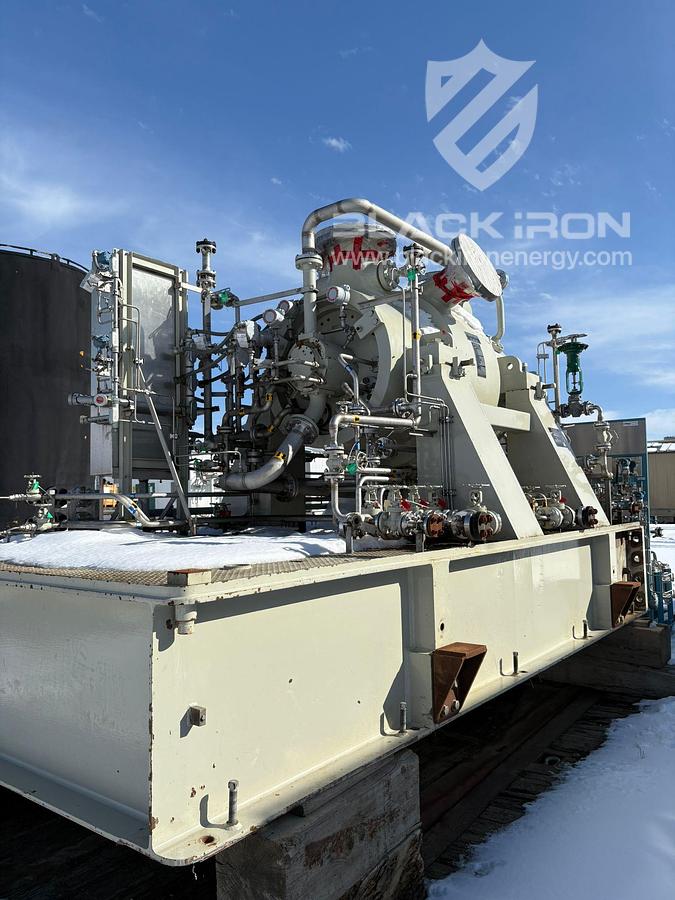

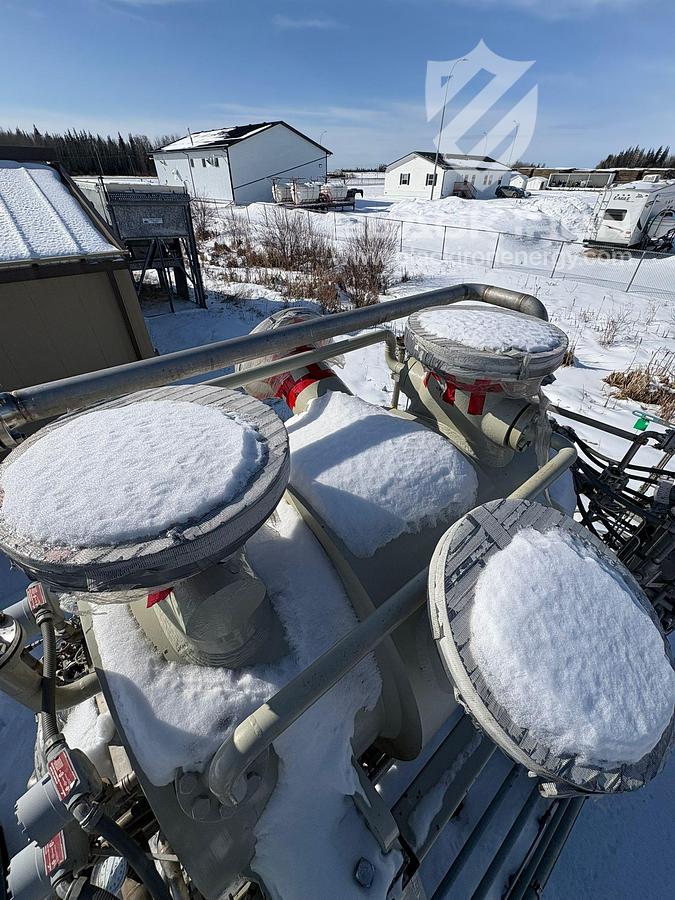

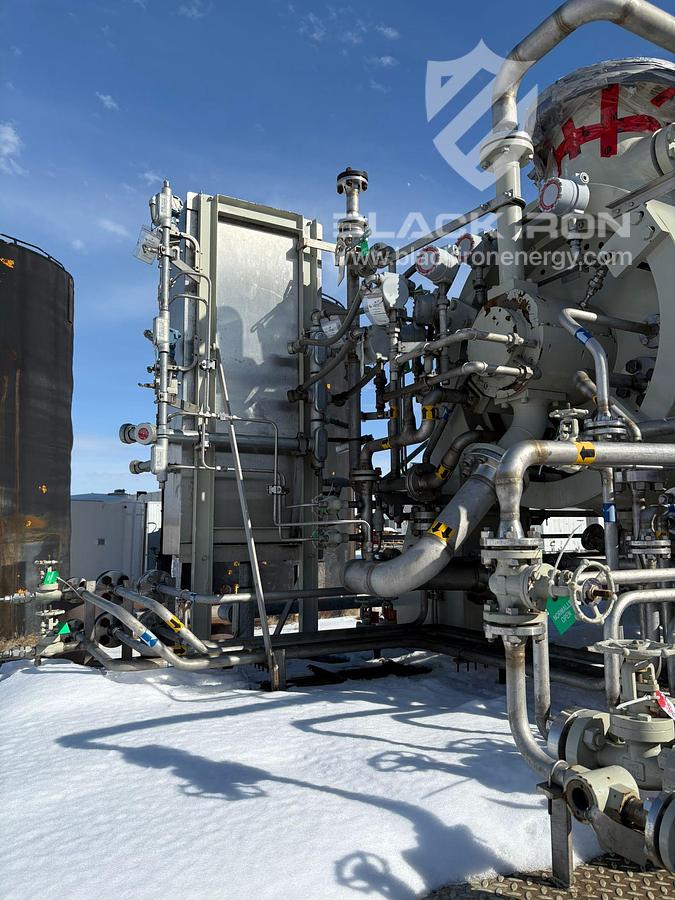

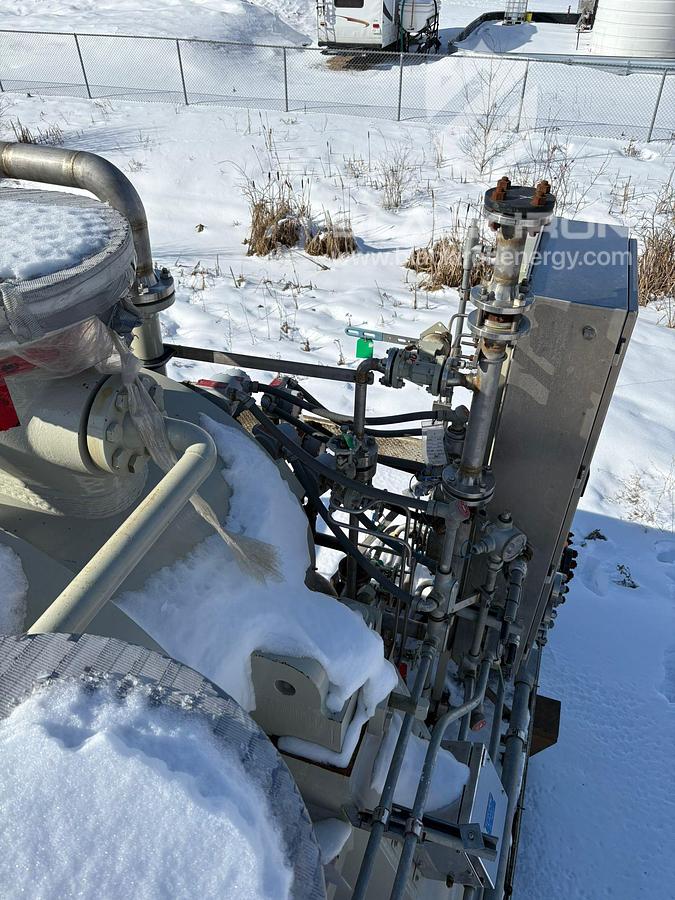

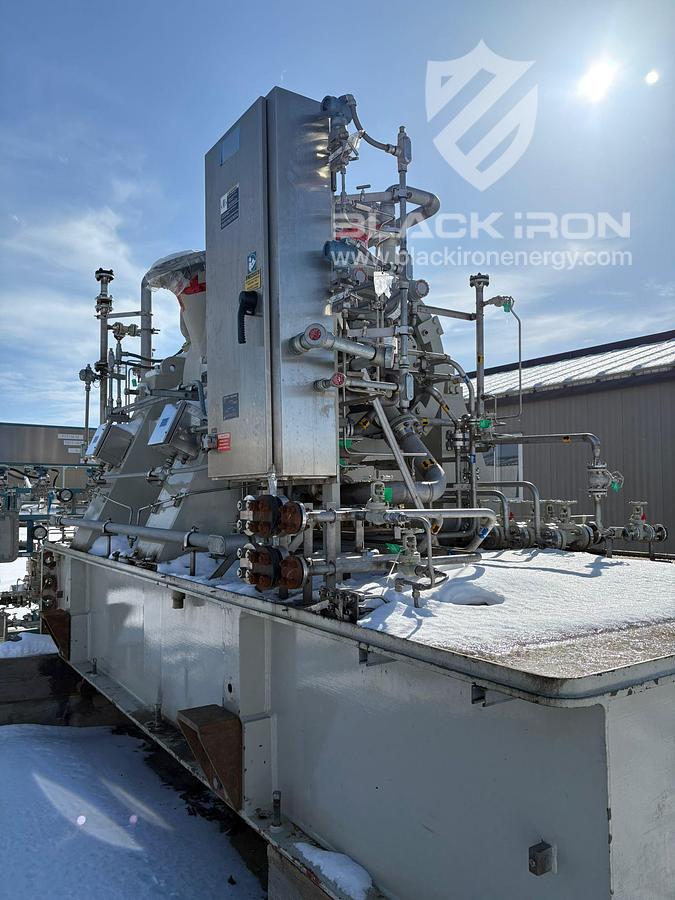

Dresser Rand Centrifugal Compressor (Compressor Only)

Originally powered by a Solar Mars100 turbine

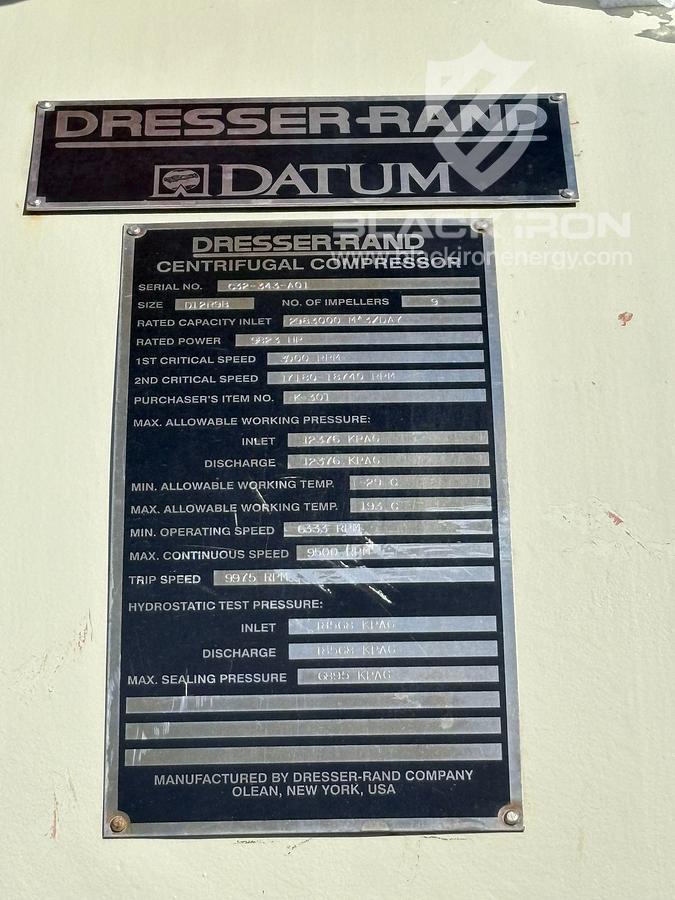

Size: D12R9B

Rated capacity Inlet 2,983,000 M3/Day

Rated power: 9823 Hp

1st Critical Speed 3000RPM

2nd Critical Speed: 17,180-18,740 RPM

MAWP: Inlet 1795 psi (12376 Kpag)

MAWP: Discharge 1795 psi (12376 Kpag)

Min. working temp. : -20 C

Max Working Temp. : 193 C

Min Operating Speed: 6333 RPM

Max Continuous Speed: 9500 RPM

Trip Speed: 9975 RPM

Hydrostatic Test Pressure

Inlet: 2693 Psi (18568 Kpag)

Discharge: 2693 Psi (18568 Kpag)

Max Sealing Pressure: 1000 Psi (6895 Kpag)

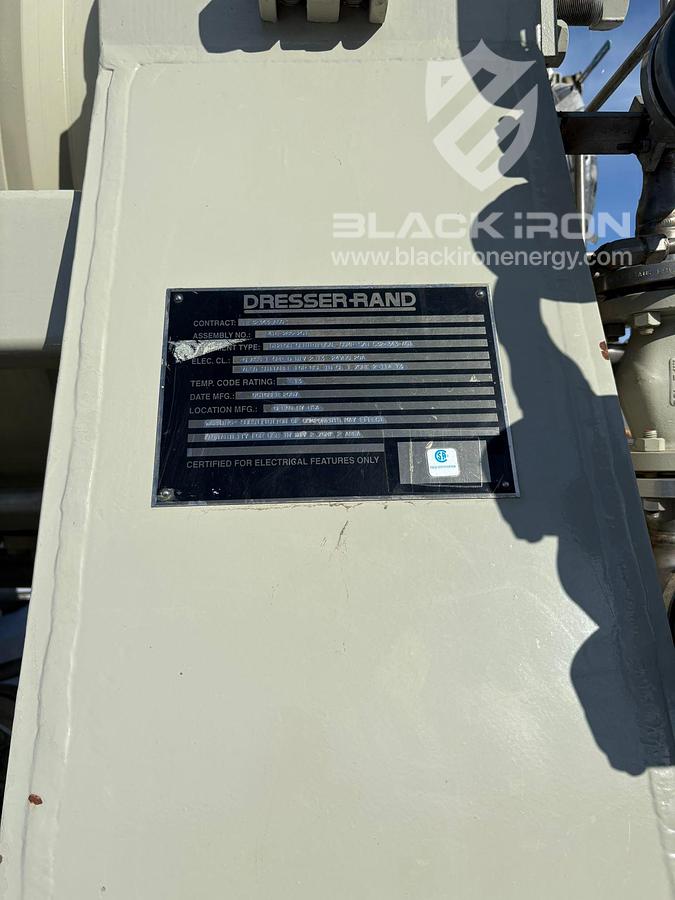

Date MFG: October 2007

Assembly No.: 418-285-201

Elec. Cl: Class I, Div 2

Manufactured in Olean, NY, U.S.A

There was approximately 20,000 hours on the Mars100 at the time of disconnection and removal. Actual runtime on the compressor is unknown.
