Skid-Mounted Pump Package – Dual Electric Motor Pumps w/ Filter Vessel & PSV – 150# ANSI

Key Features

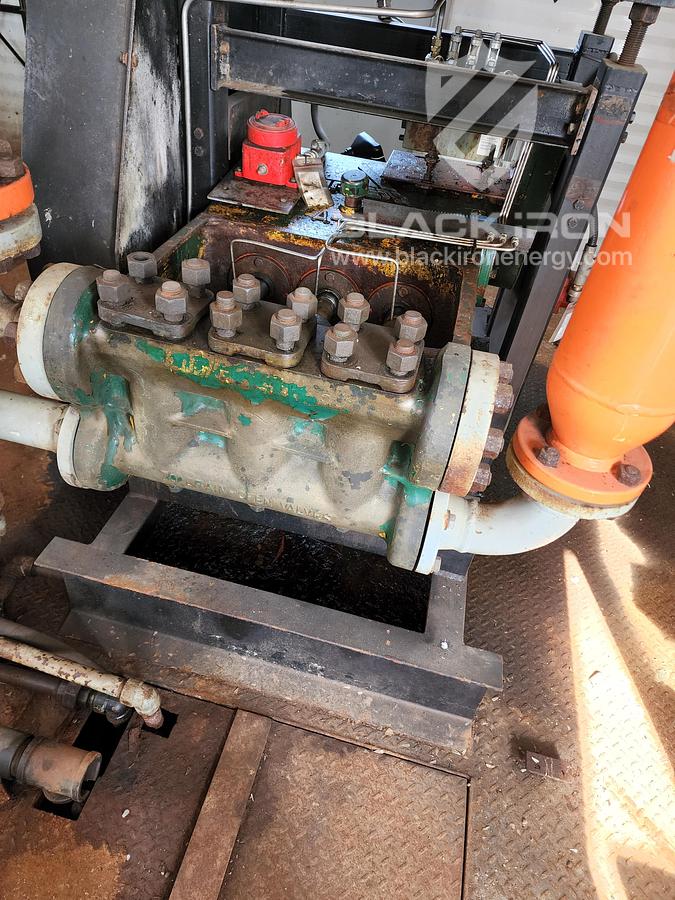

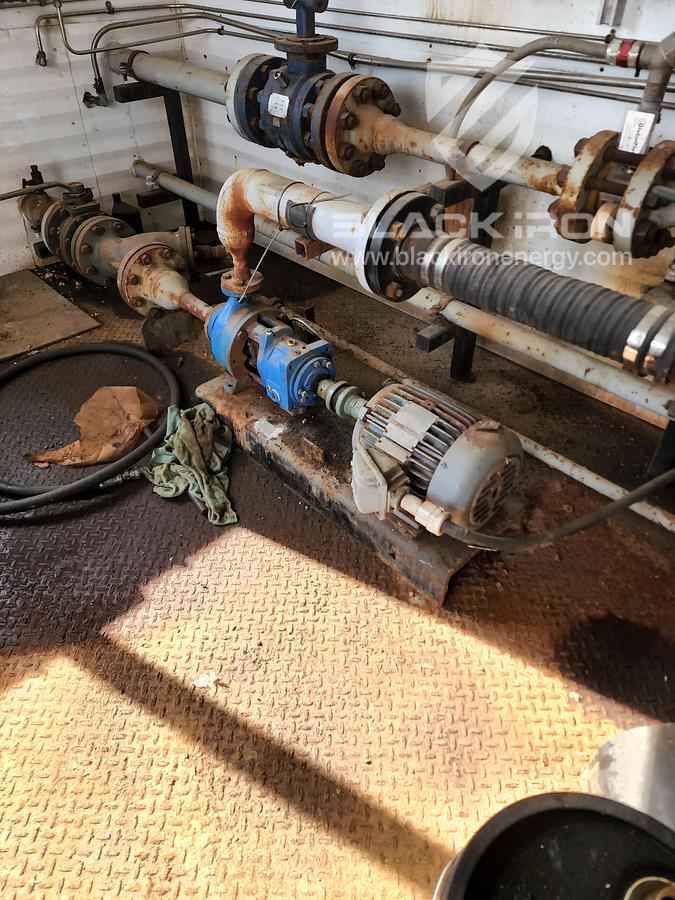

• P-201 & P-202: Centrifugal pumps, 2"x3"-10, 3196 series with mechanical seals

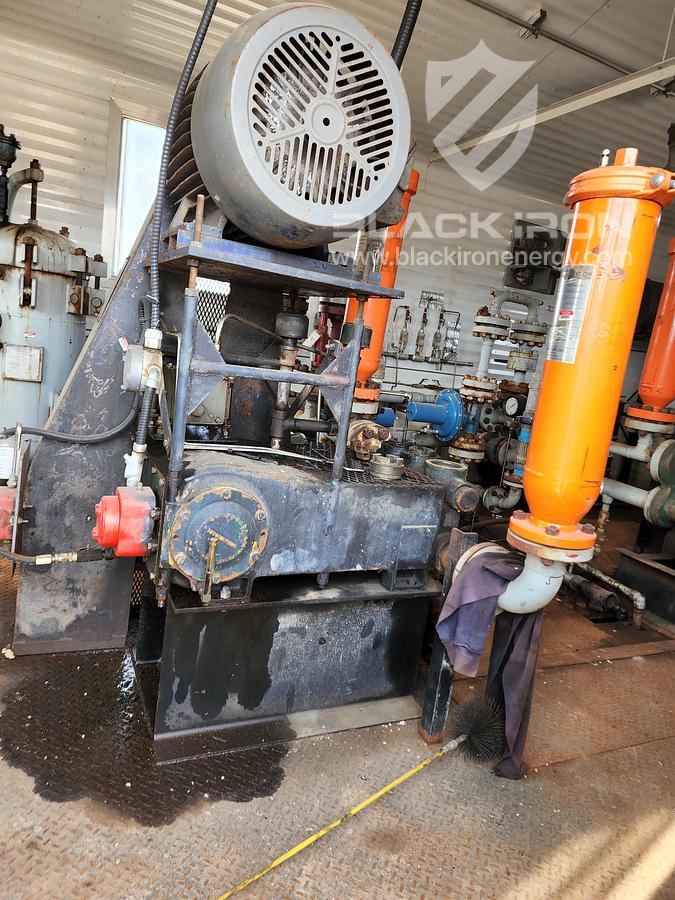

• Motors: 20 HP, 1800 RPM, 460V, 3-phase TEFC motors

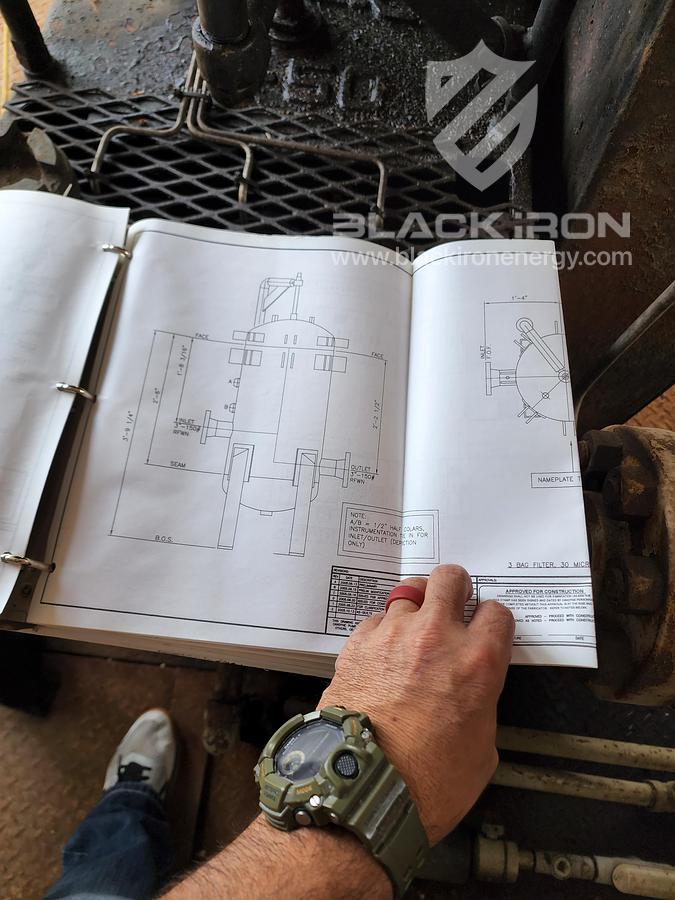

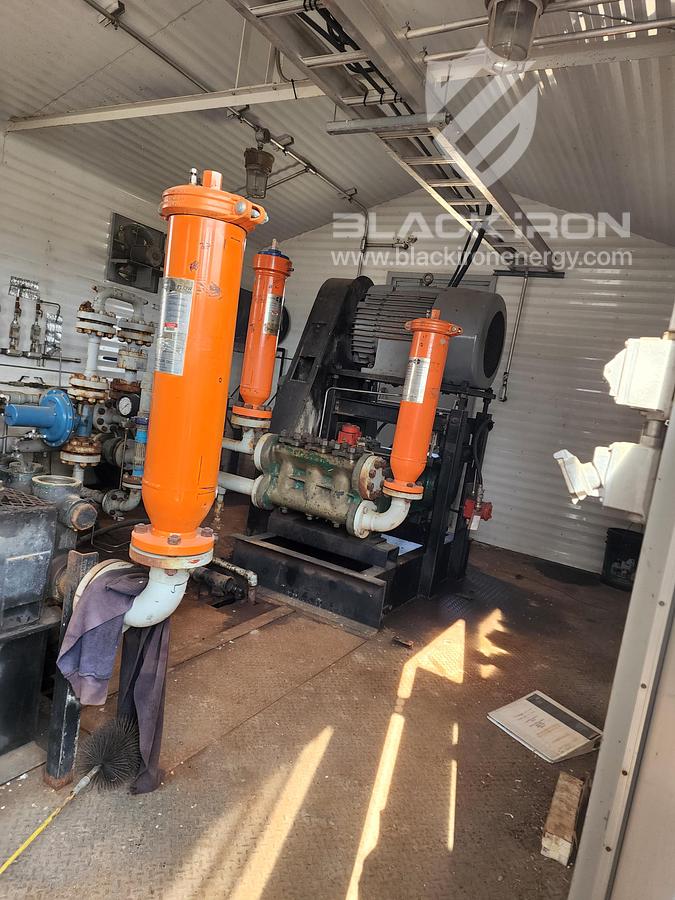

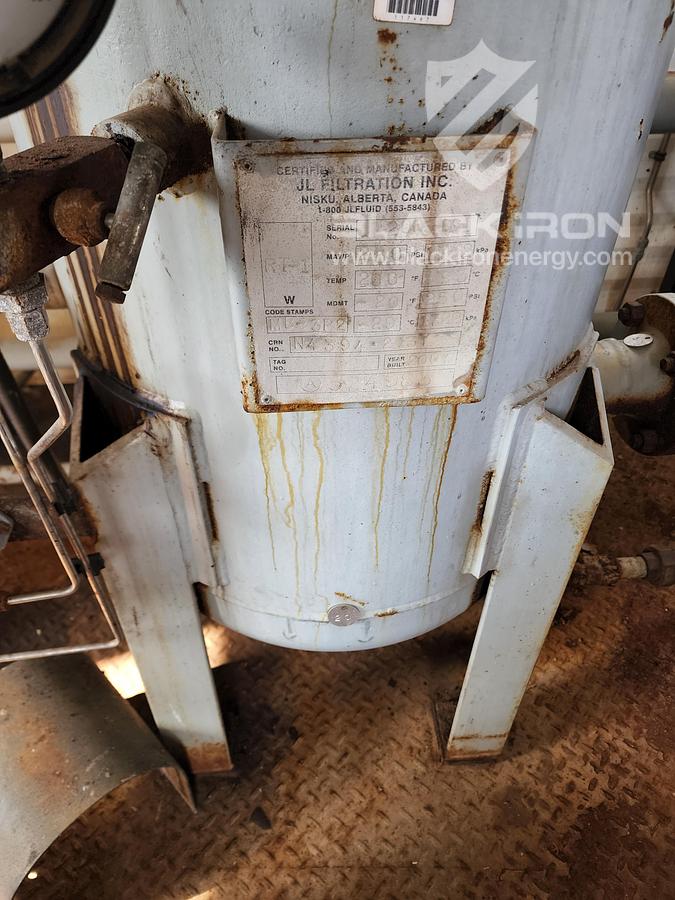

• Filtration Unit (F-101): 3" inlet/outlet, vertical filter housing
• Relief Valve (PSV-101): With bypass line to sump
• Instrumentation: Flow, pressure, and level transmitters, local gauge readouts

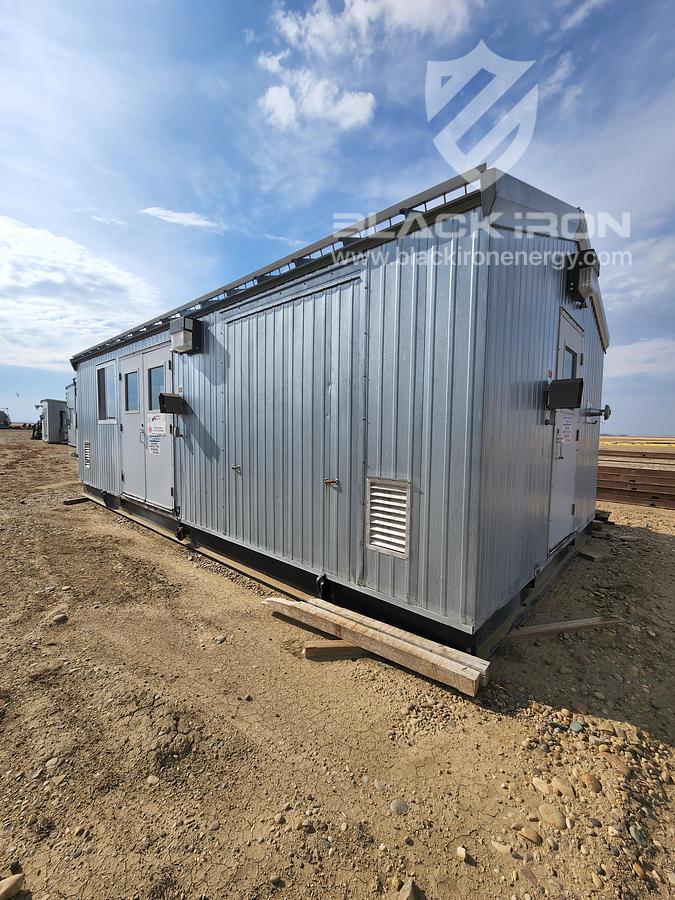

• Skid Construction: Steel skid with containment sump, lifting lugs, structural frame

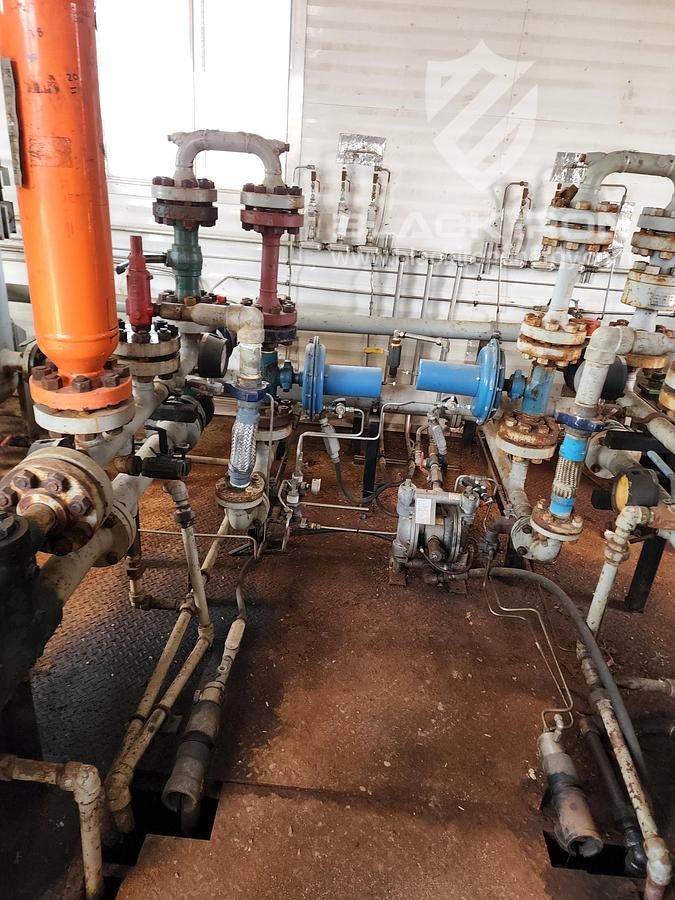

• Piping: All ANSI 150# R.F. flanged, 3" suction/discharge, 2" PSV lines
• Control & Safety: Pressure switches (shutdown), local valve access, hard-piped drains
• Service: Suitable for process fluid transfer, crude oil, water, chemicals, or fuel systems
