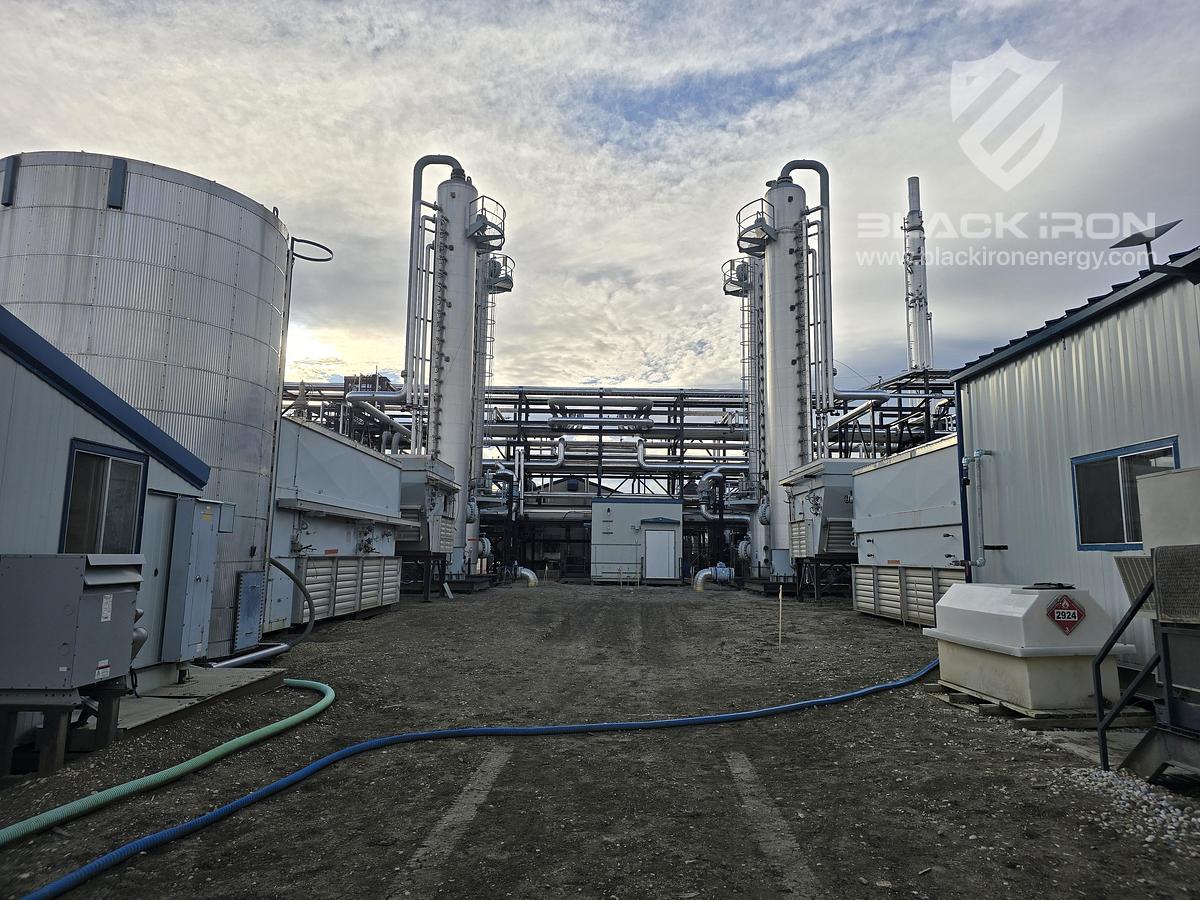

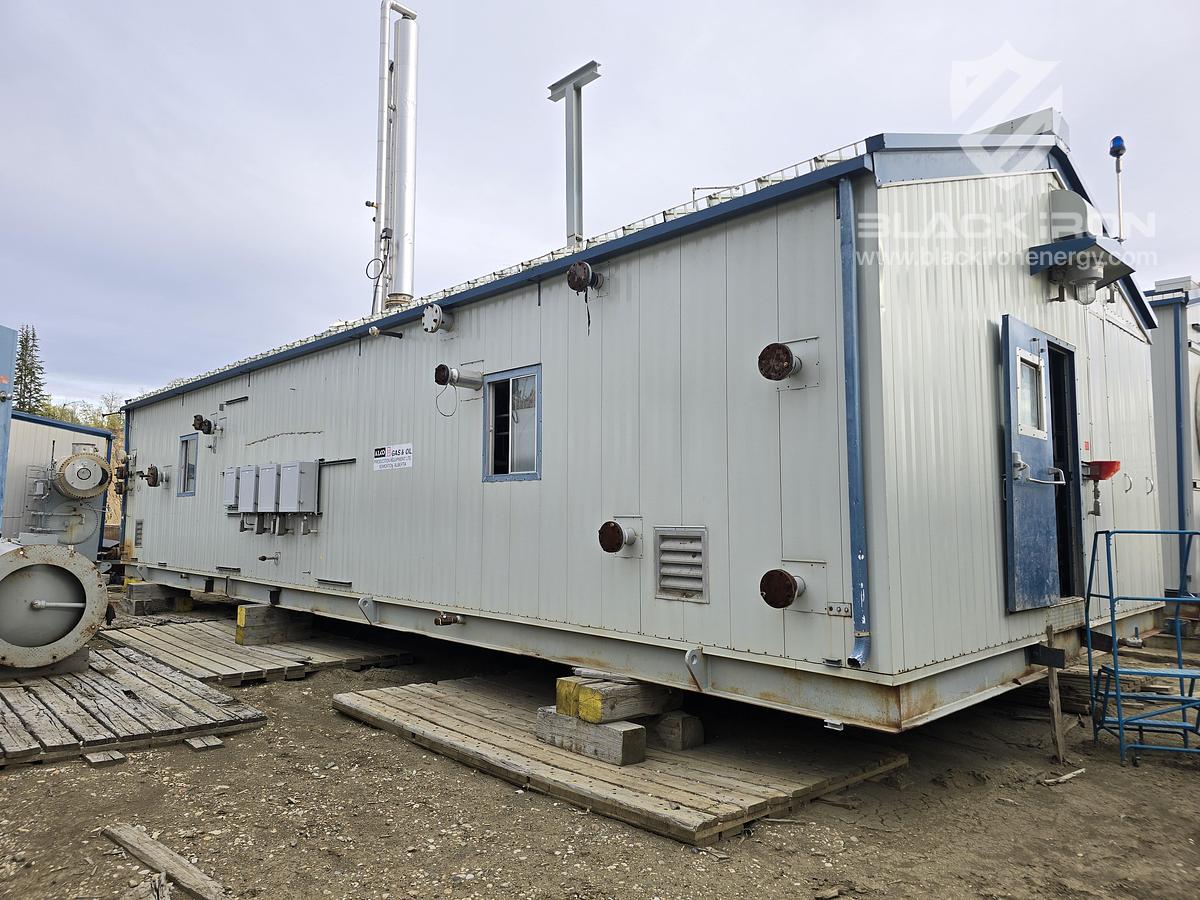

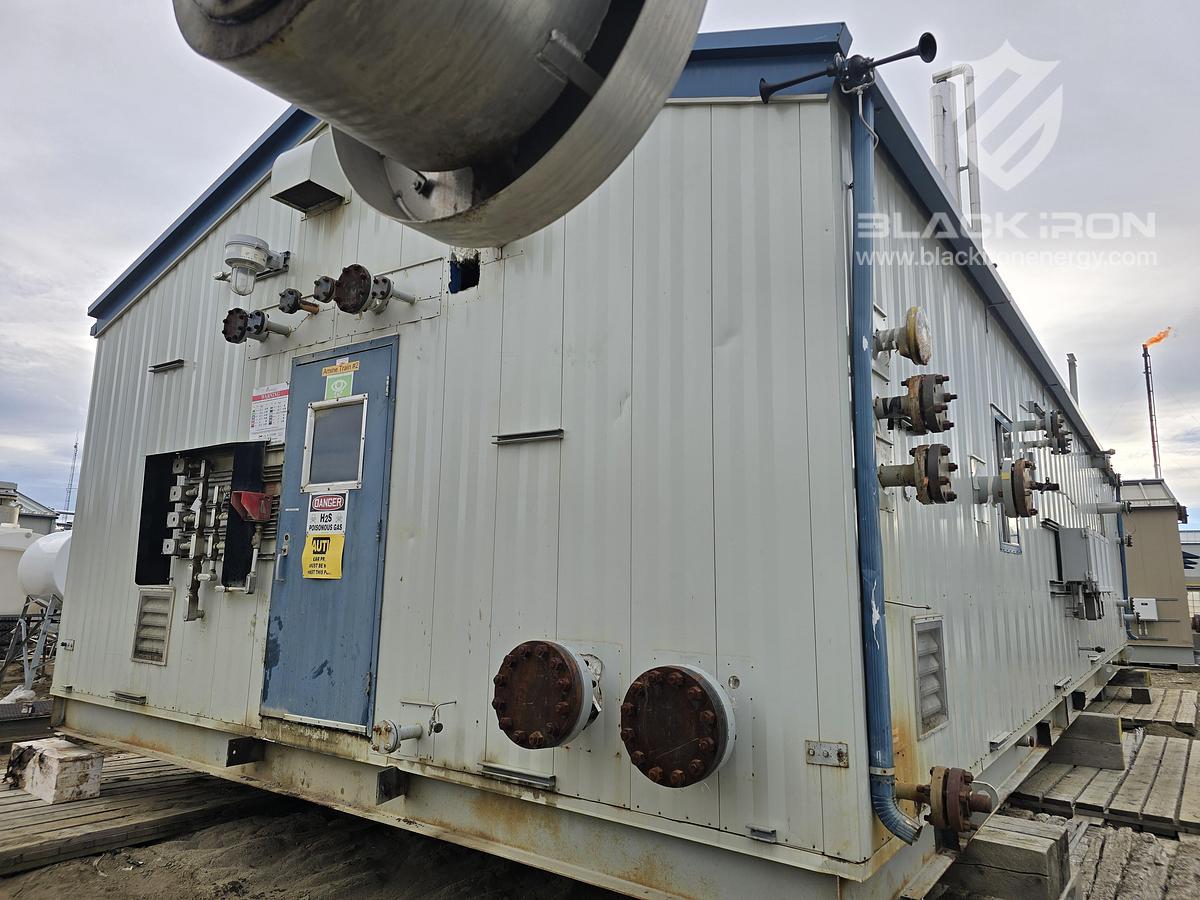

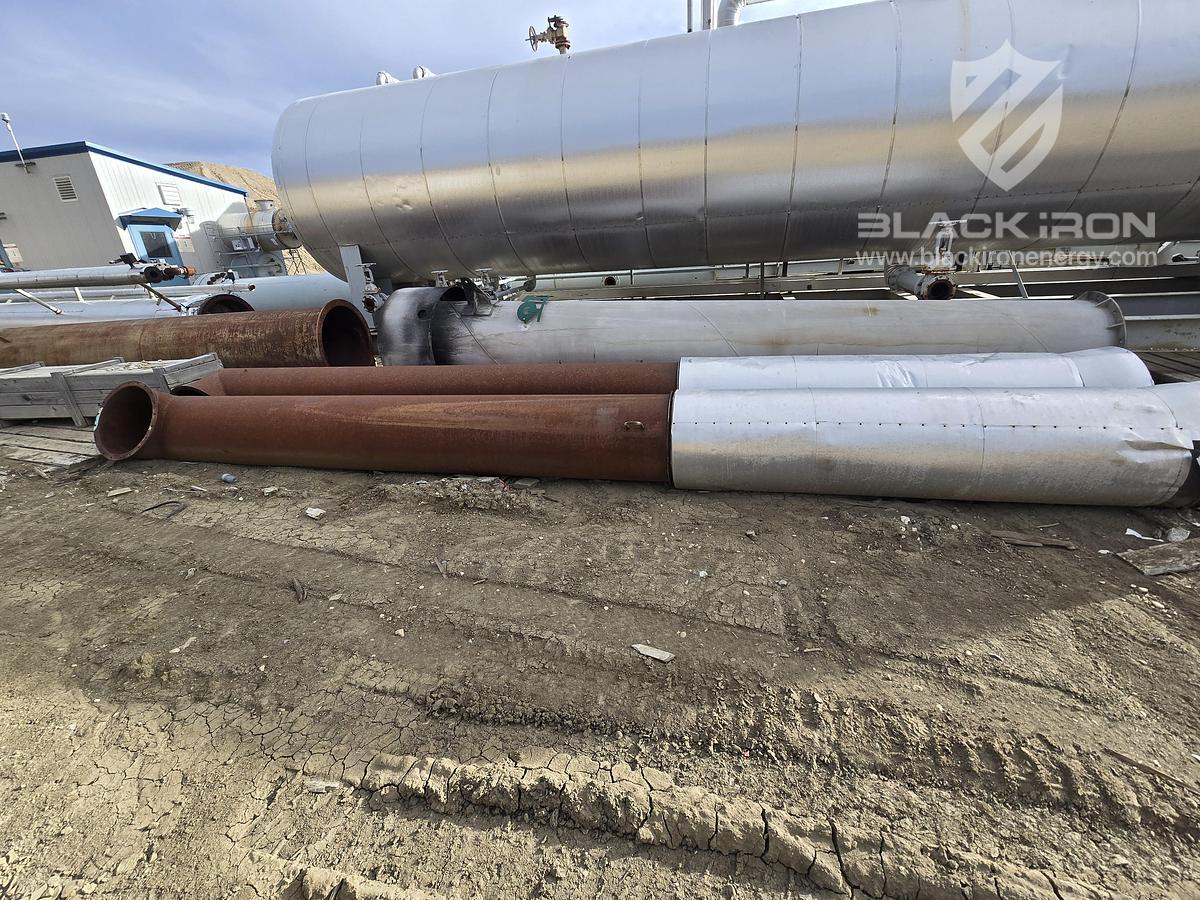

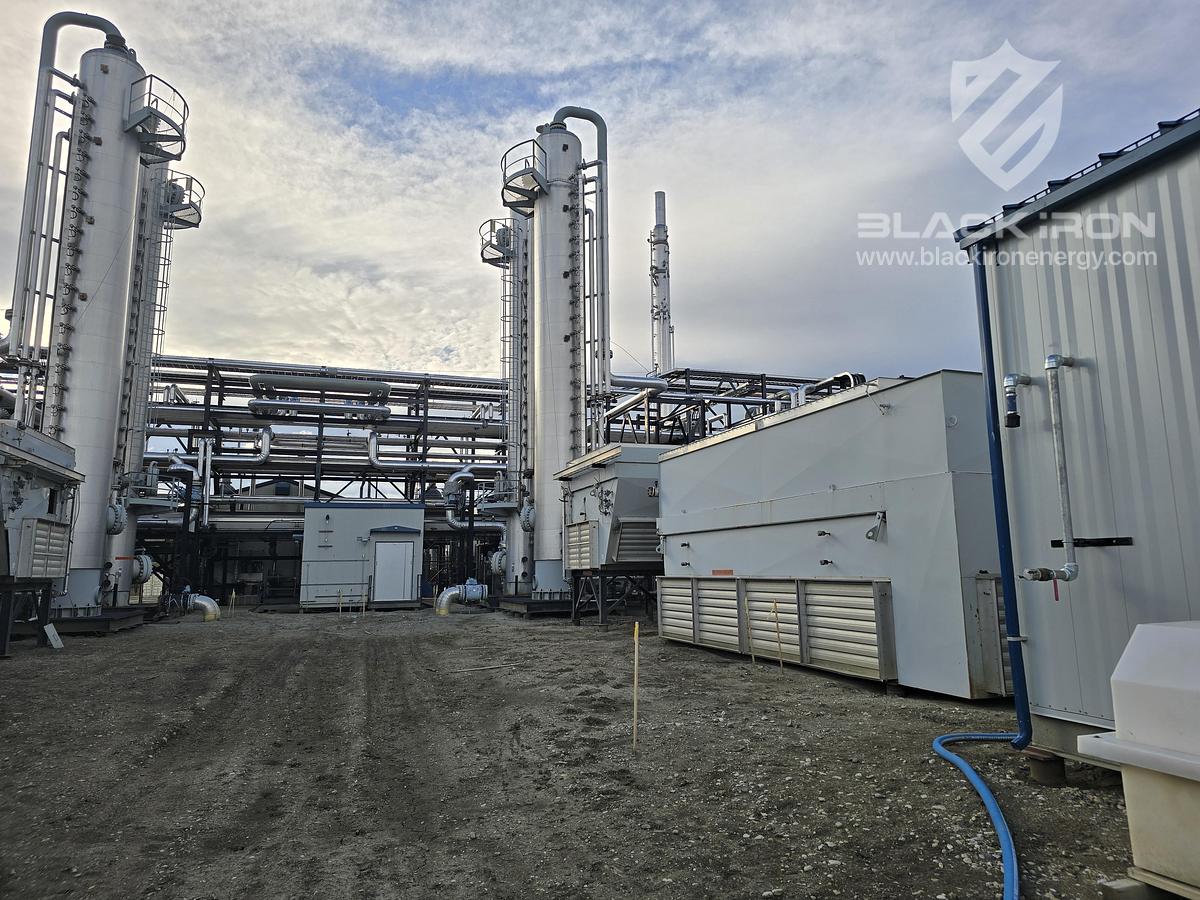

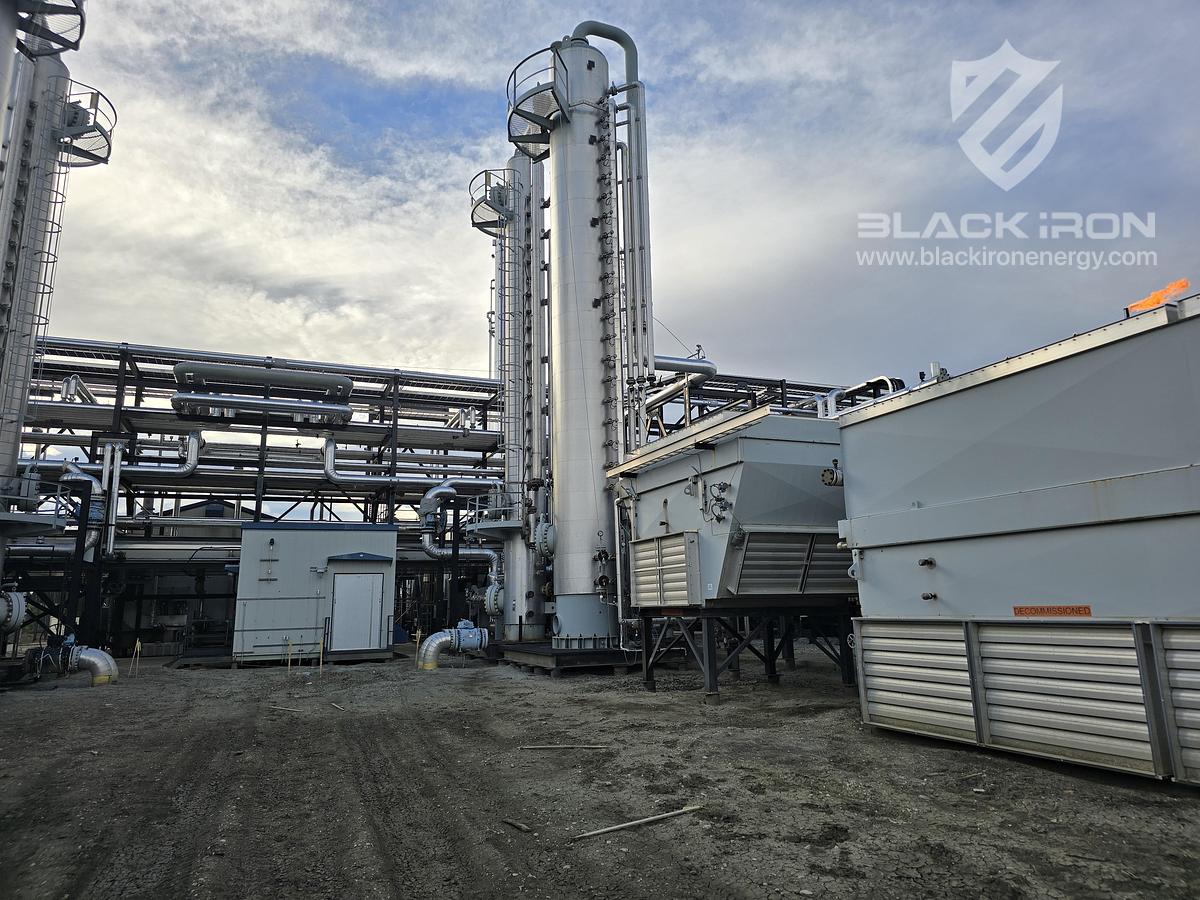

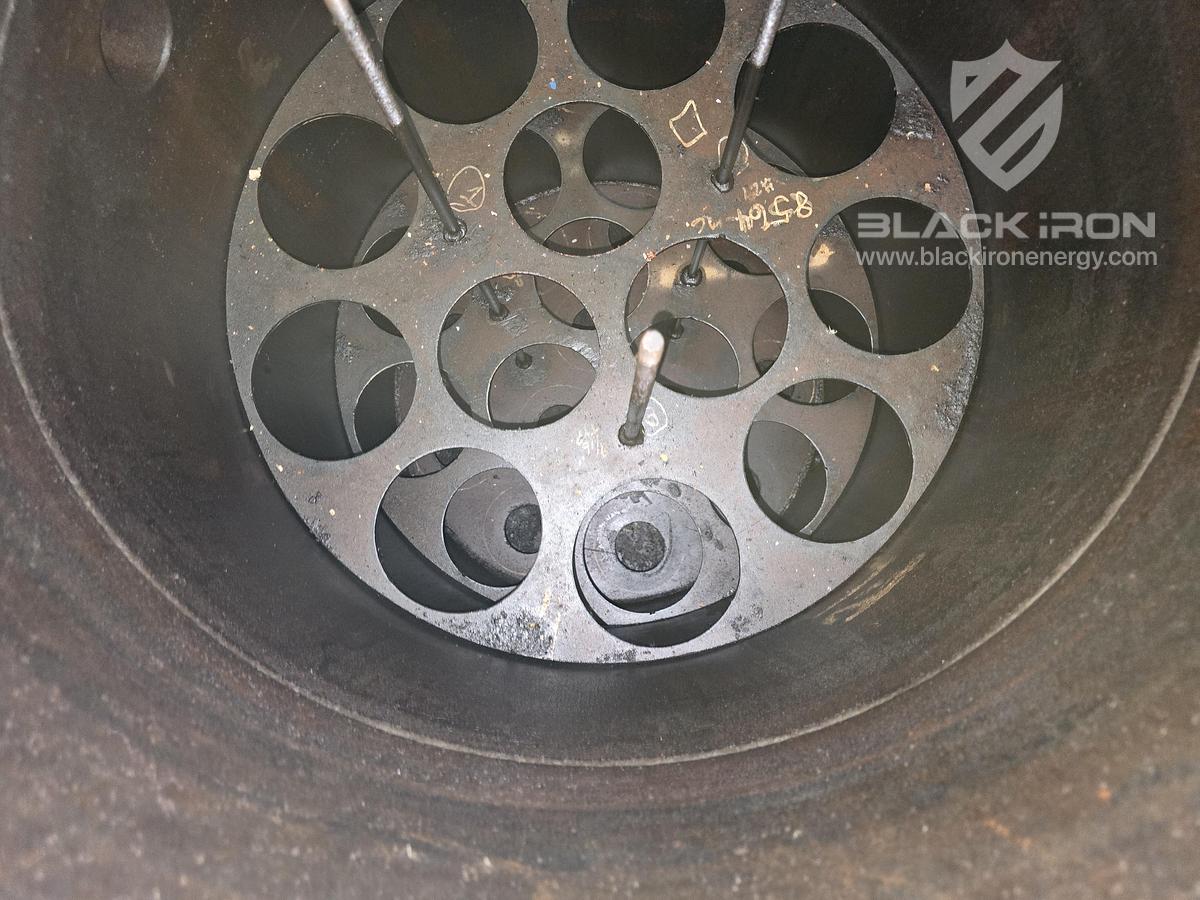

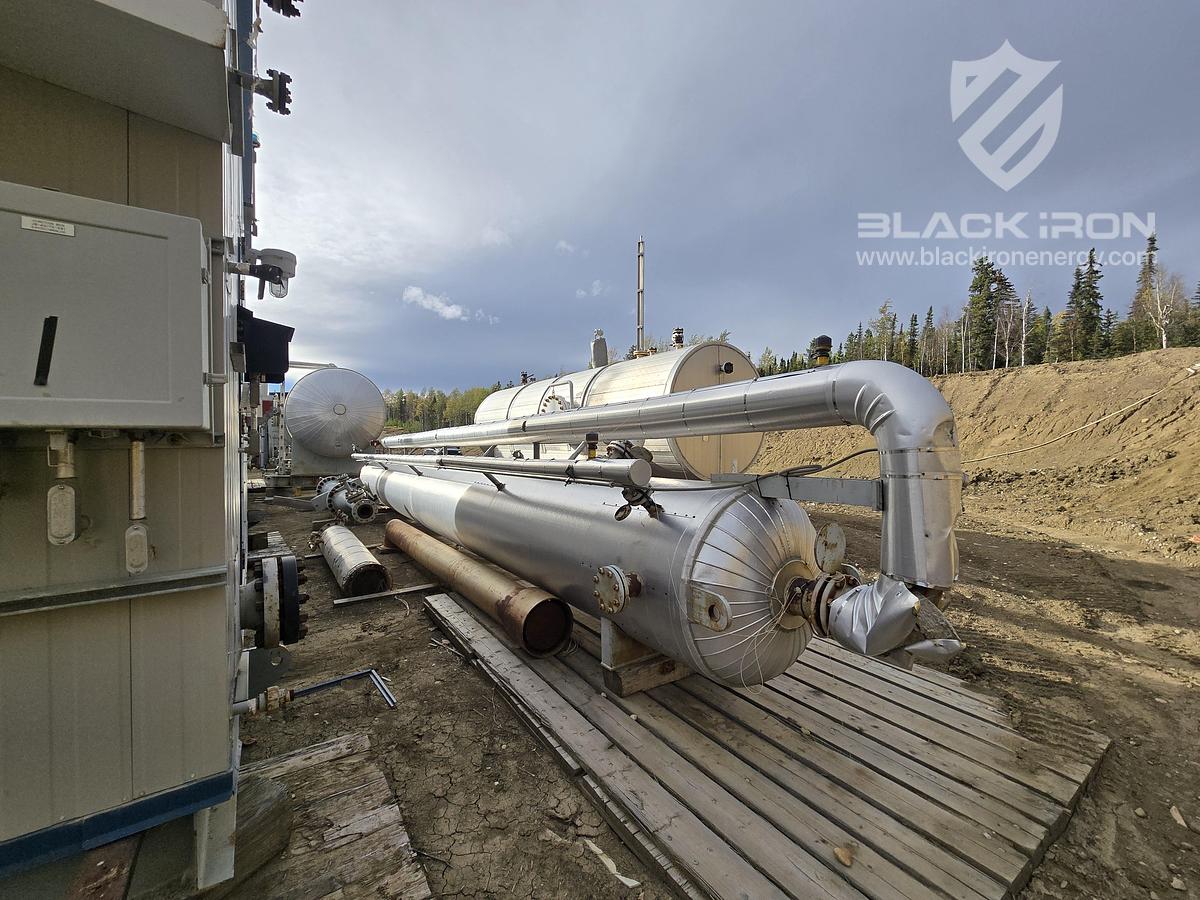

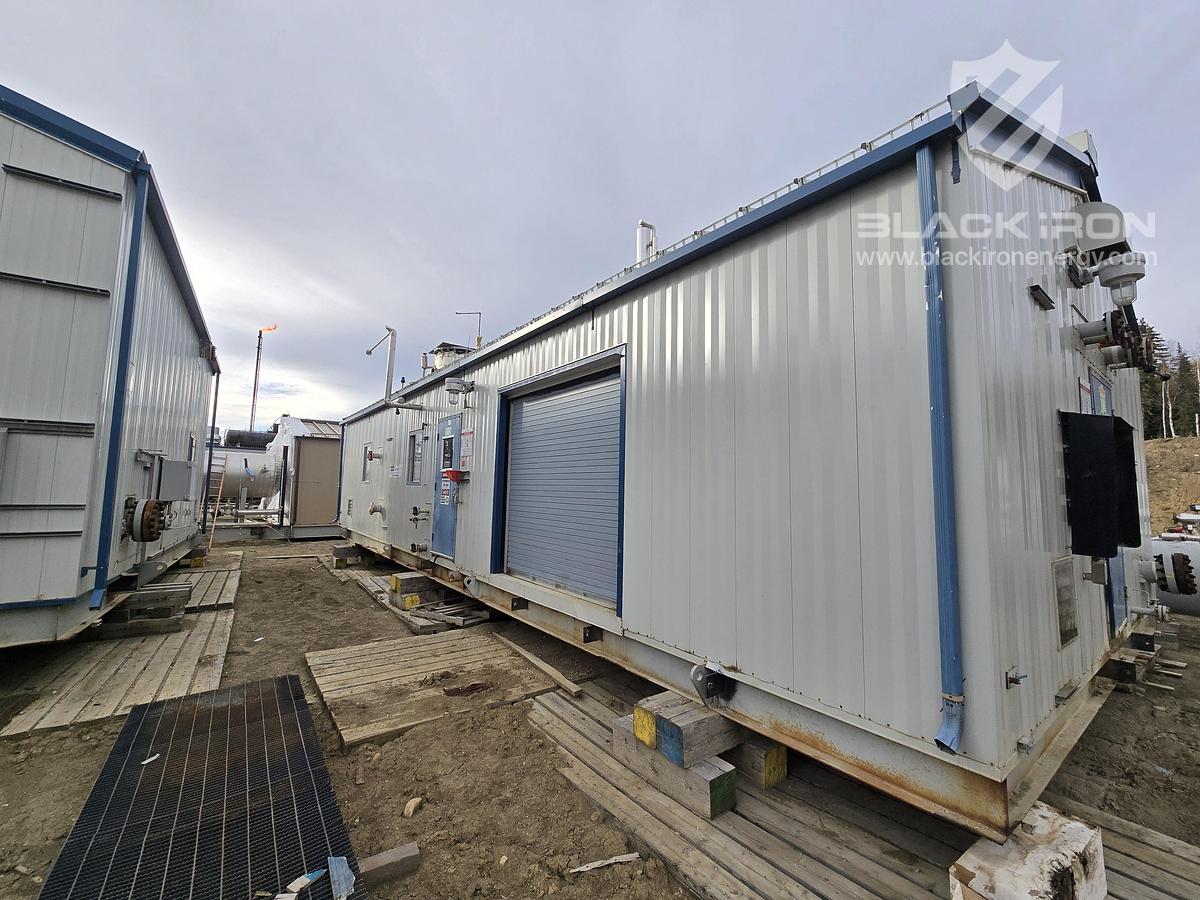

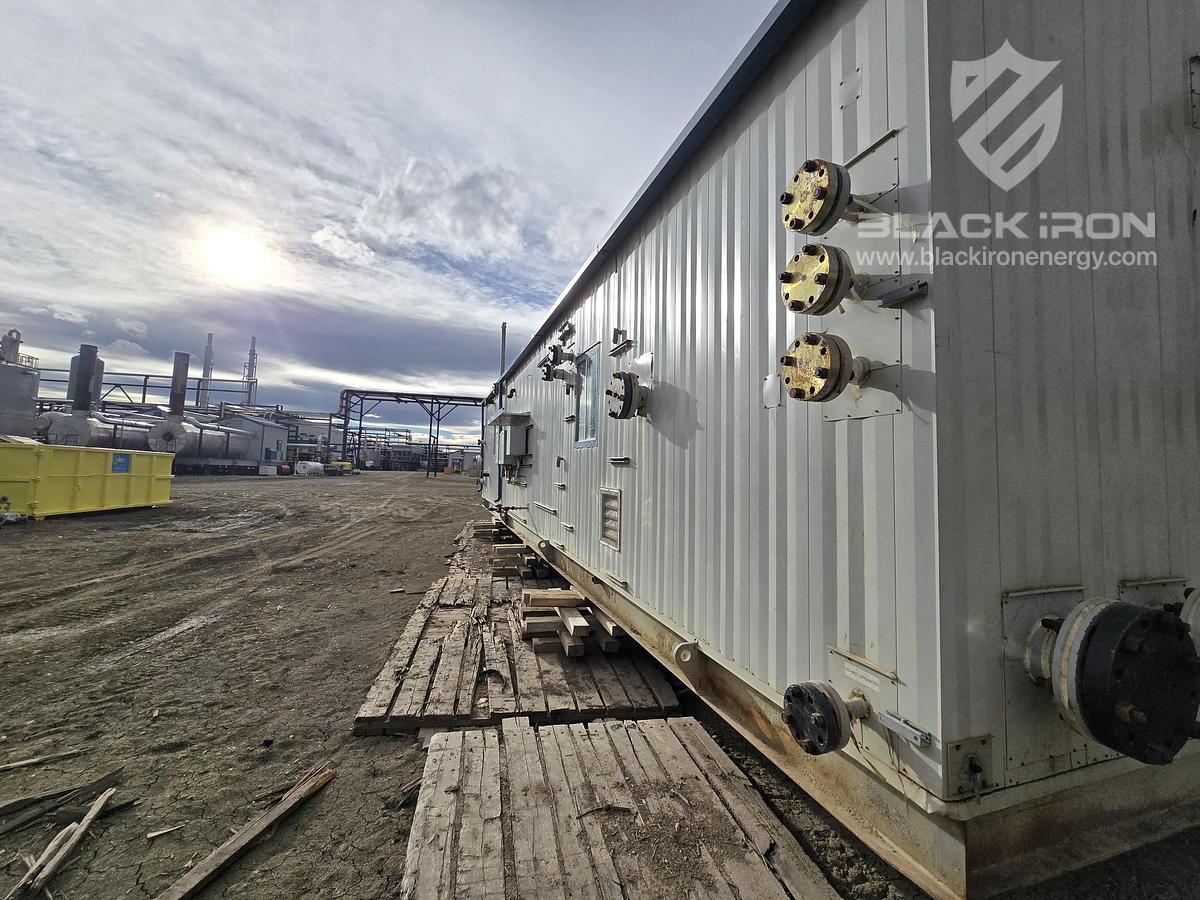

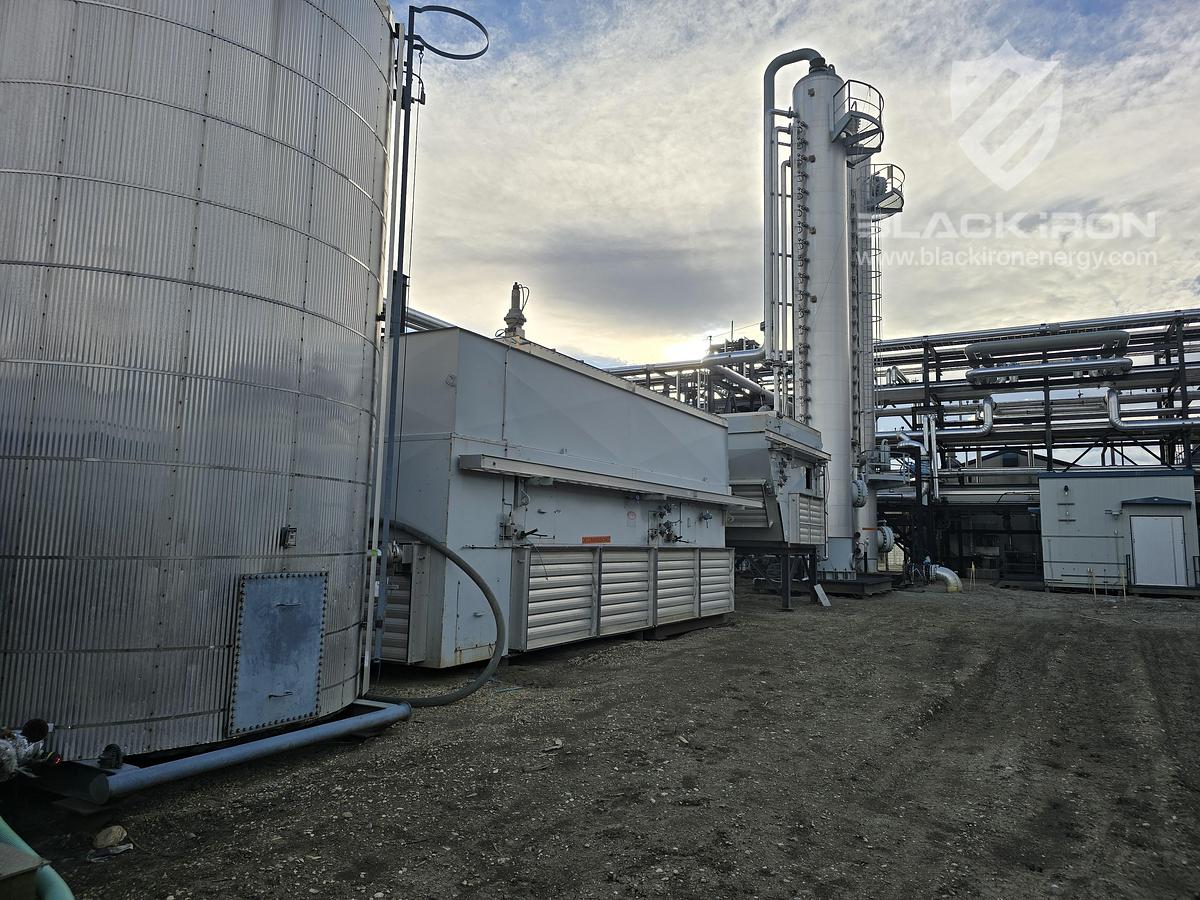

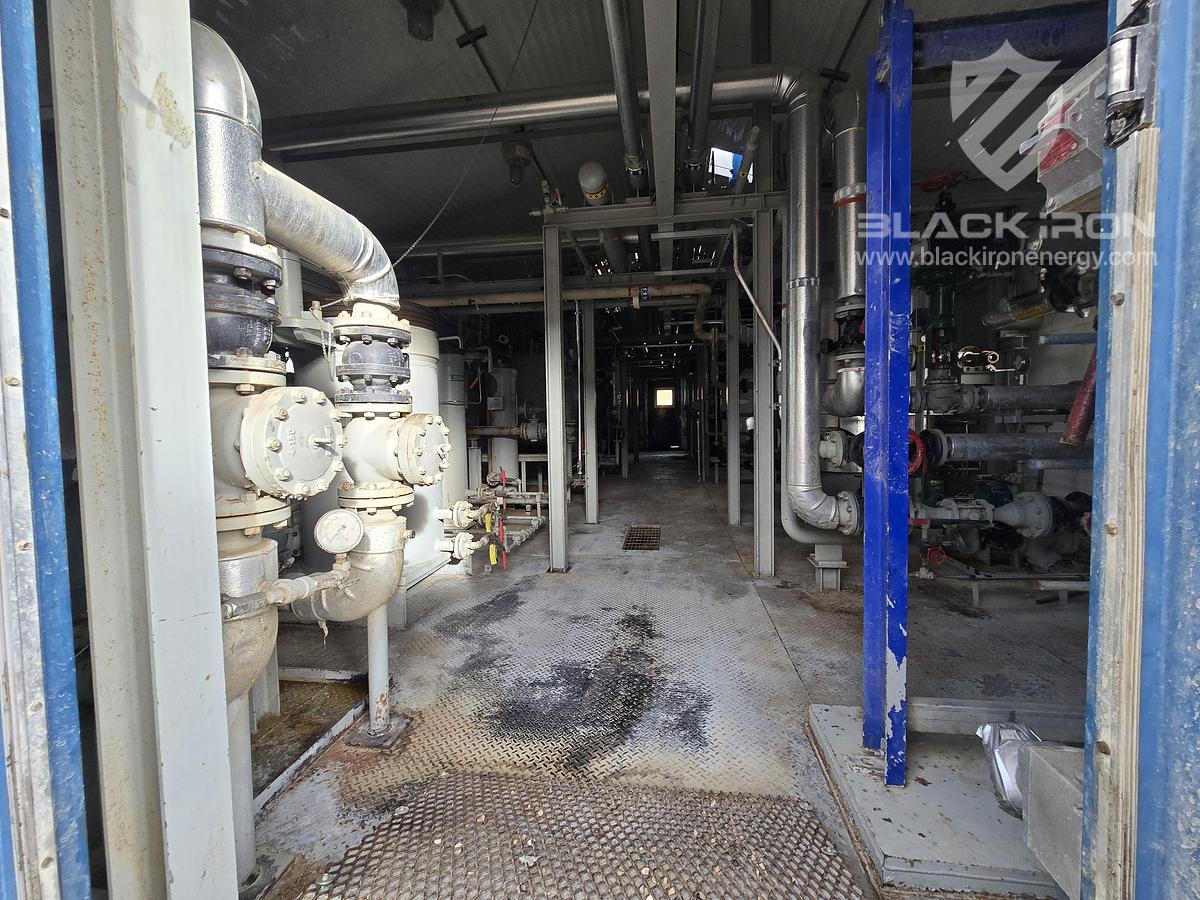

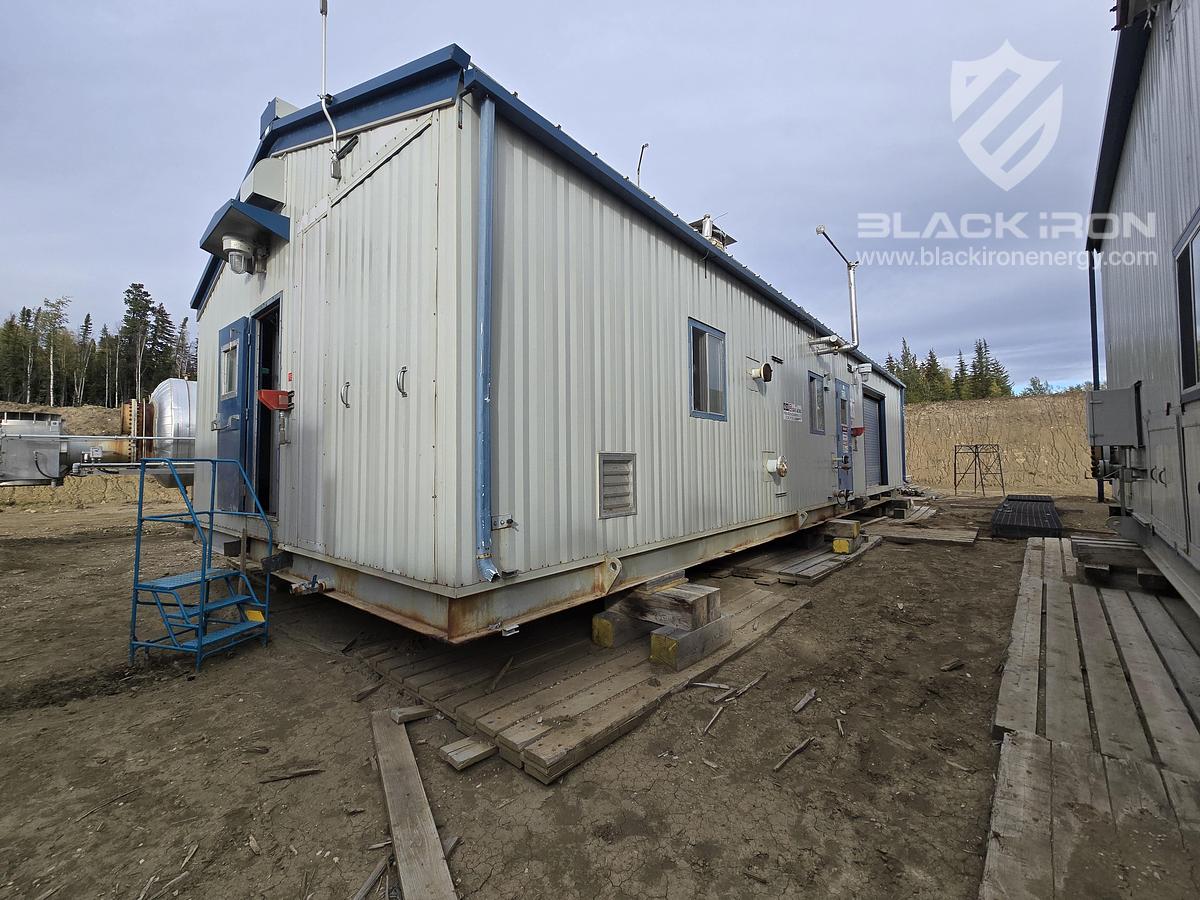

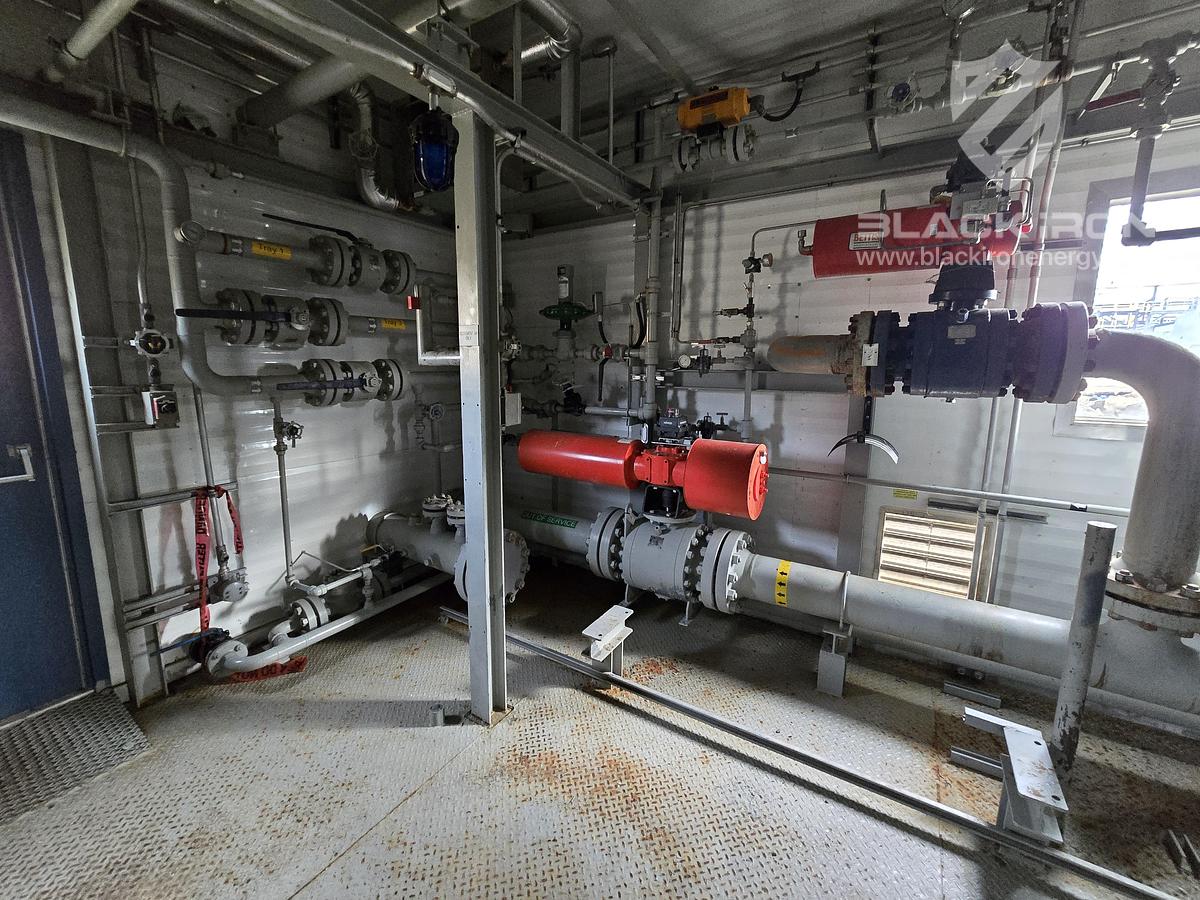

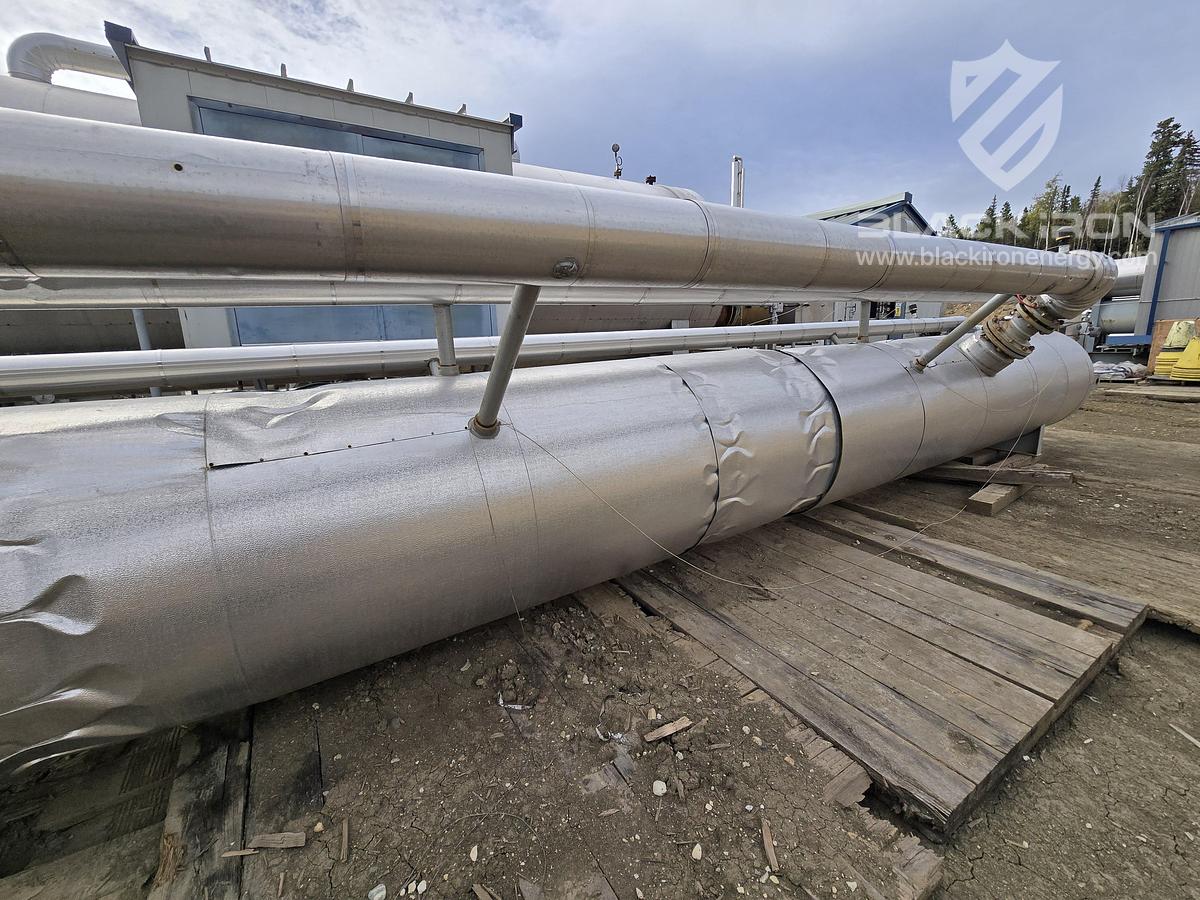

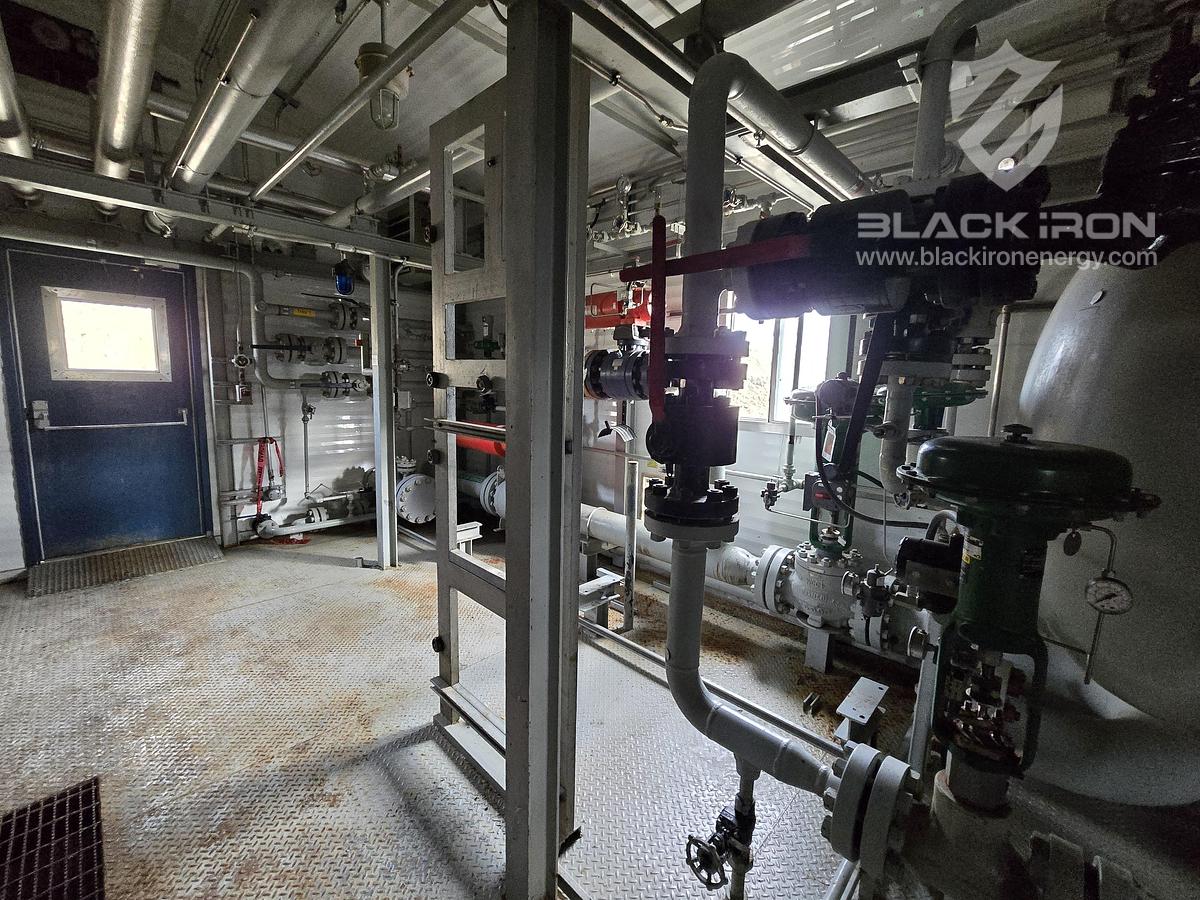

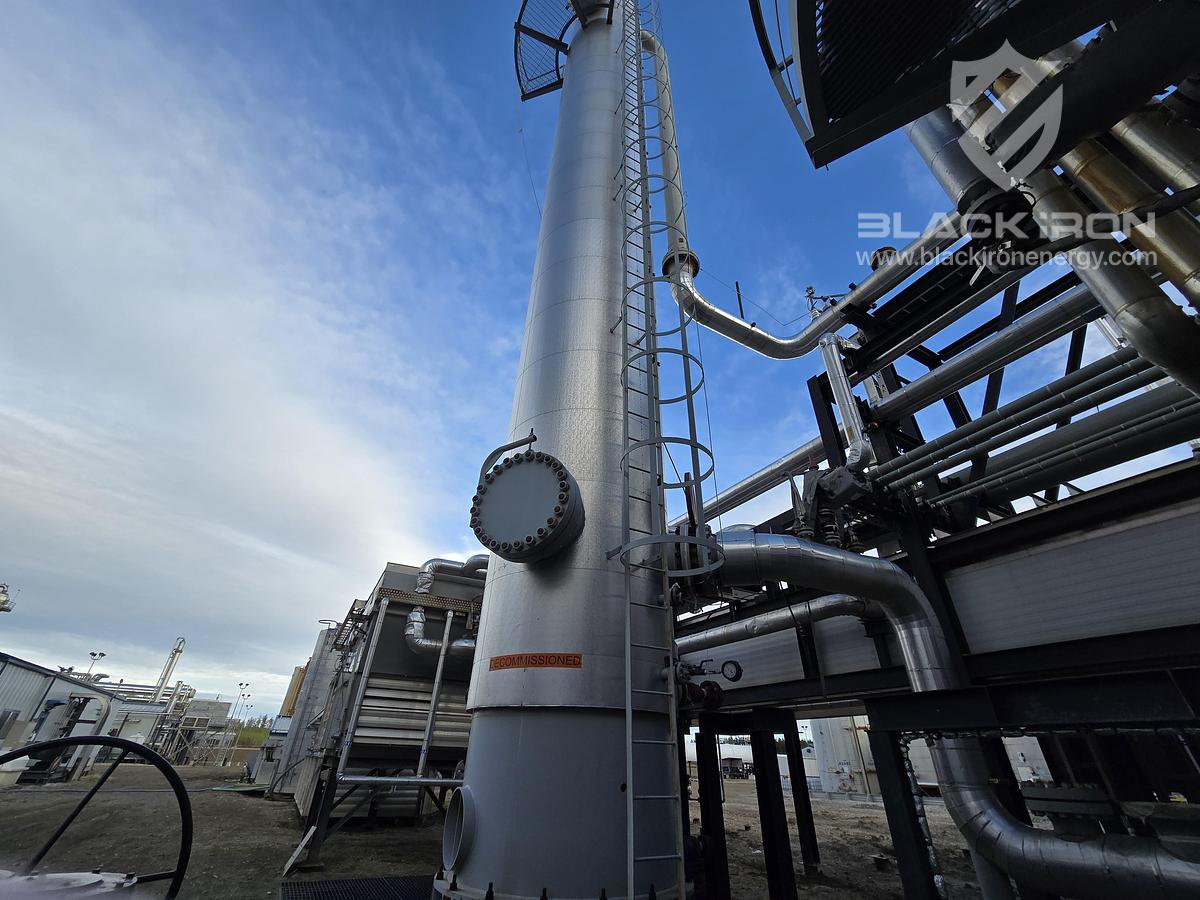

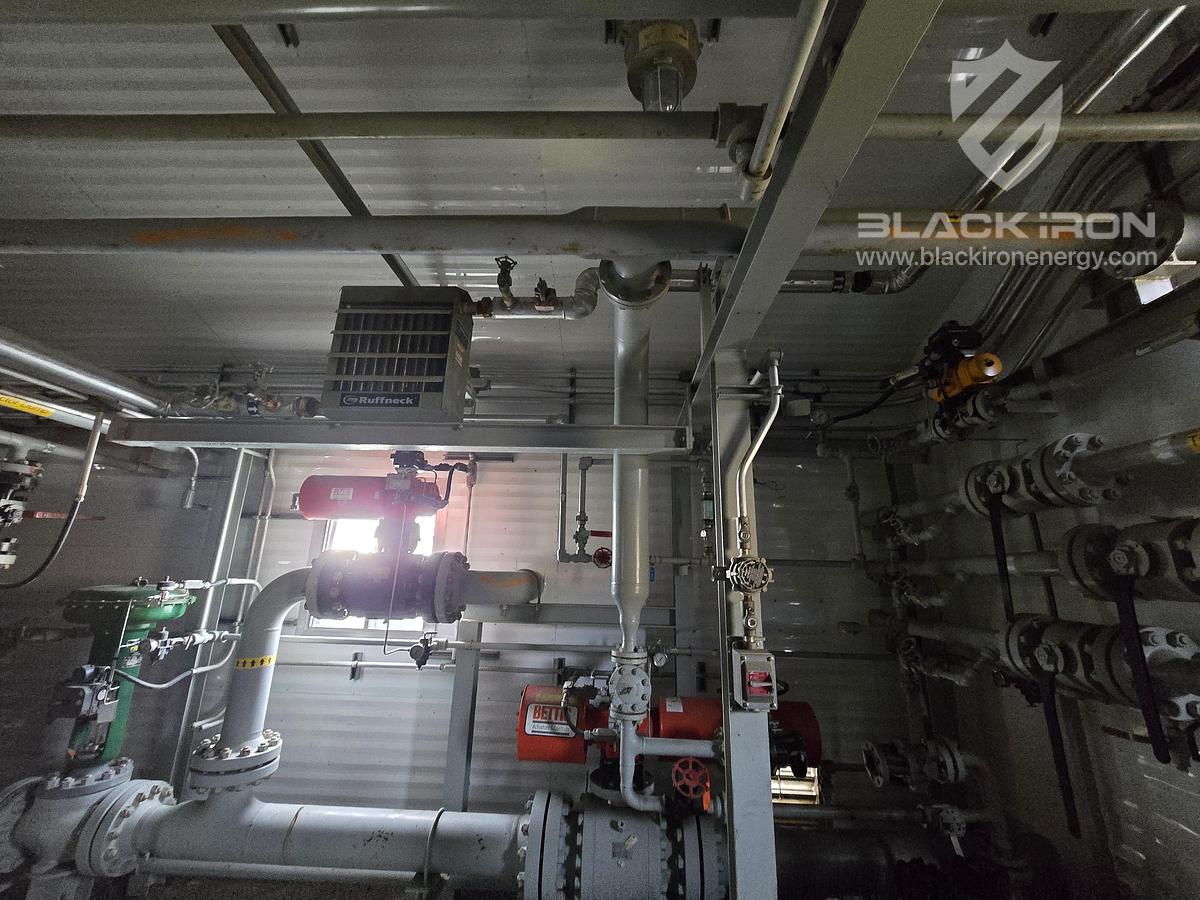

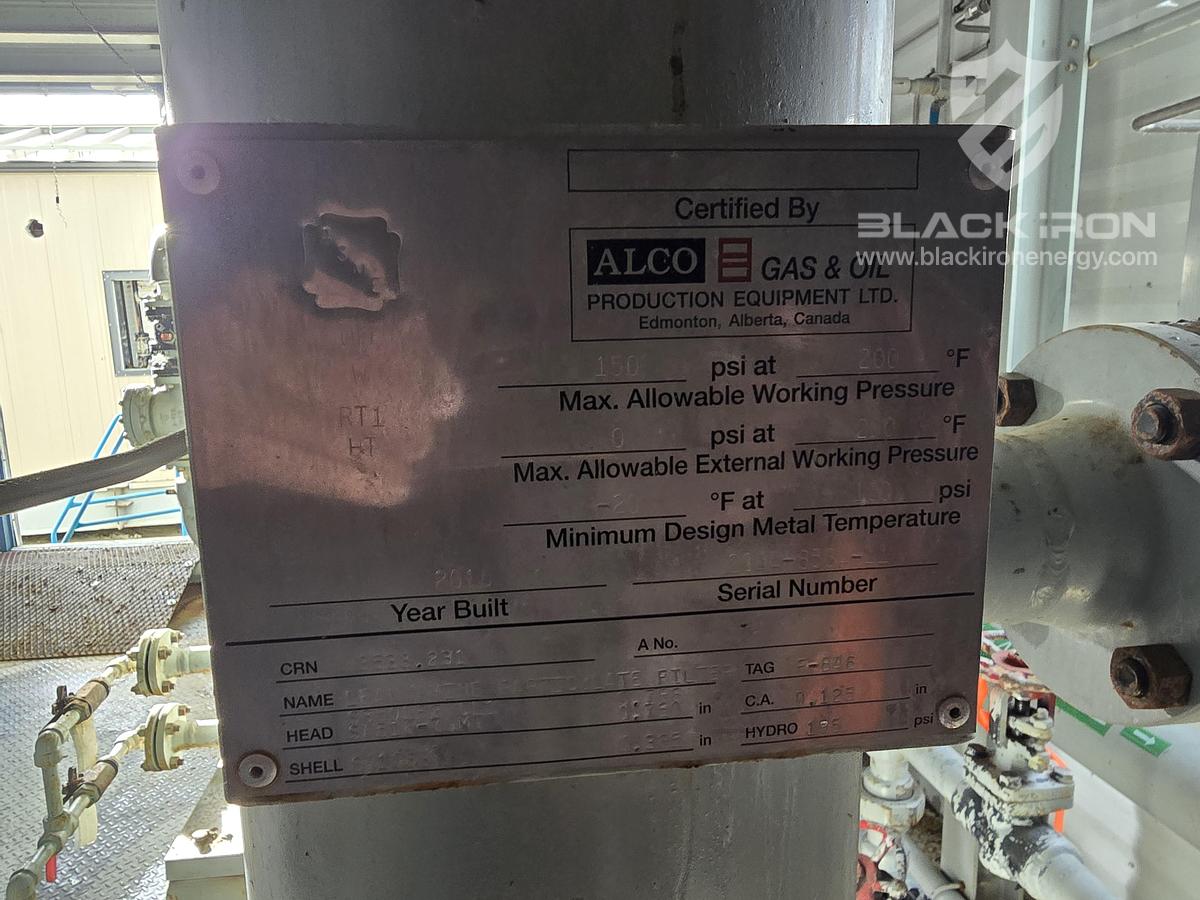

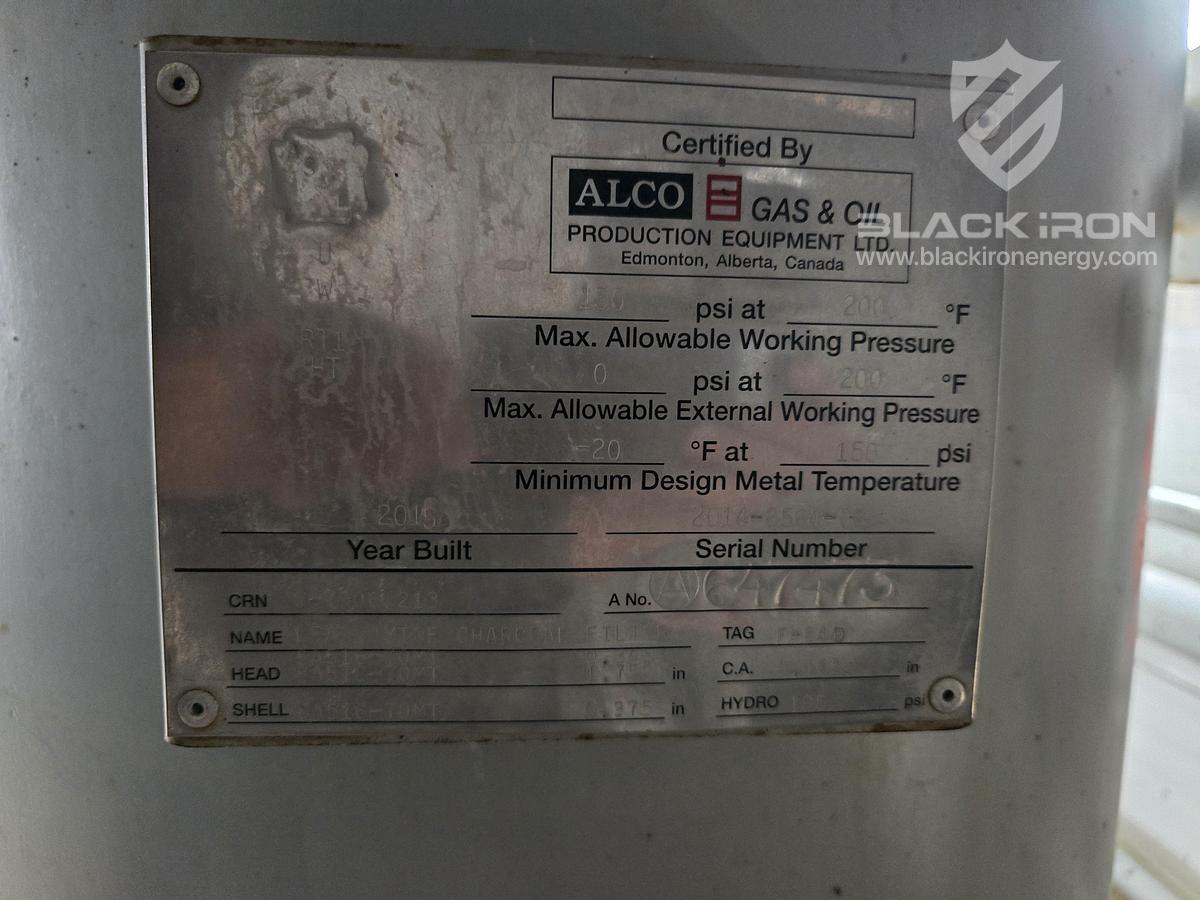

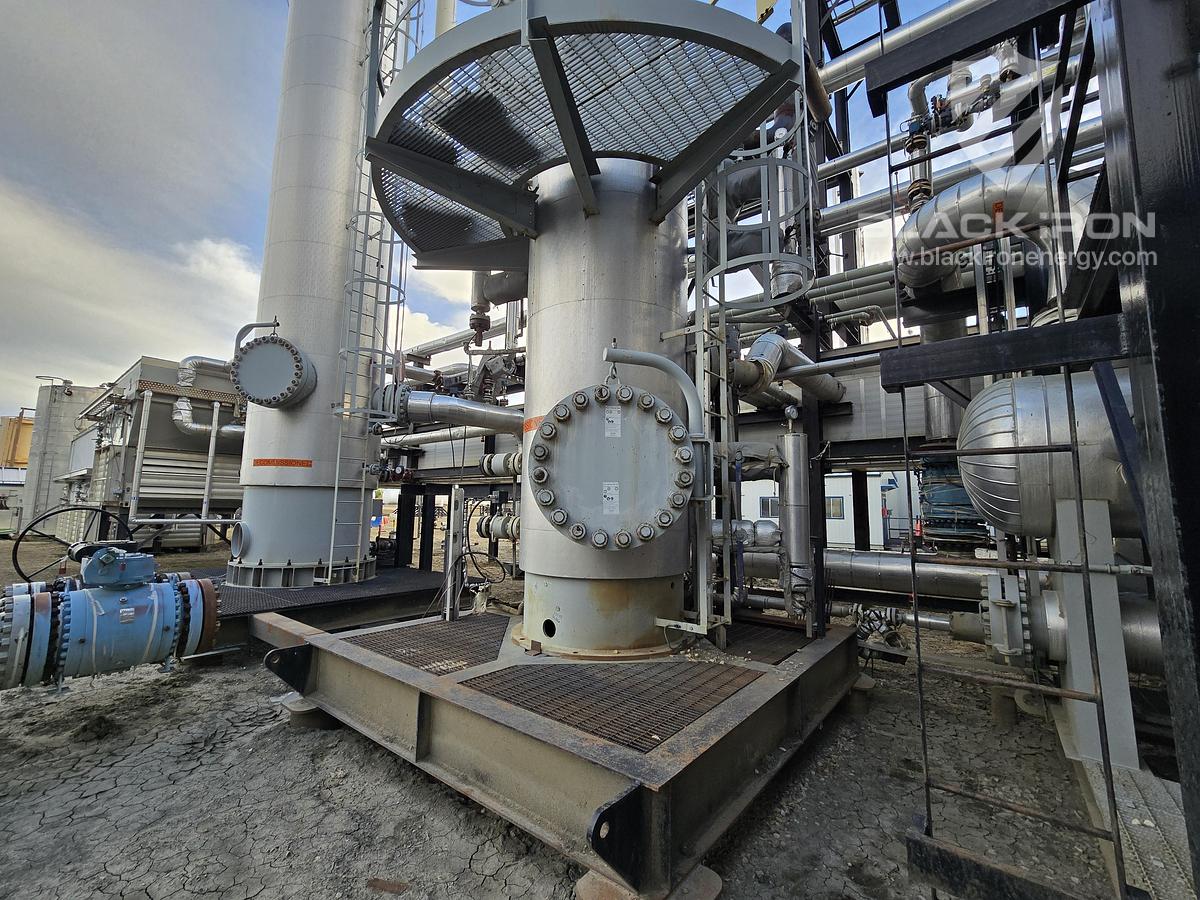

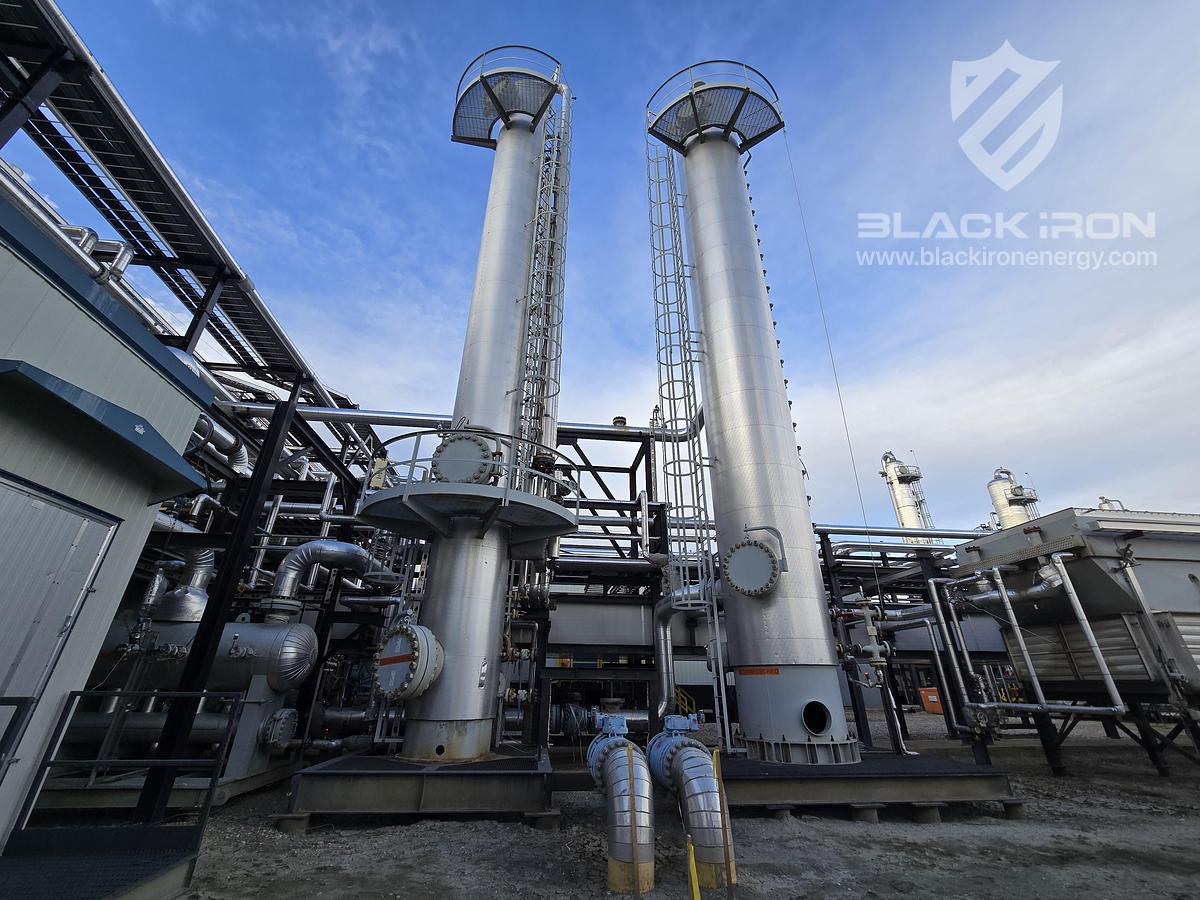

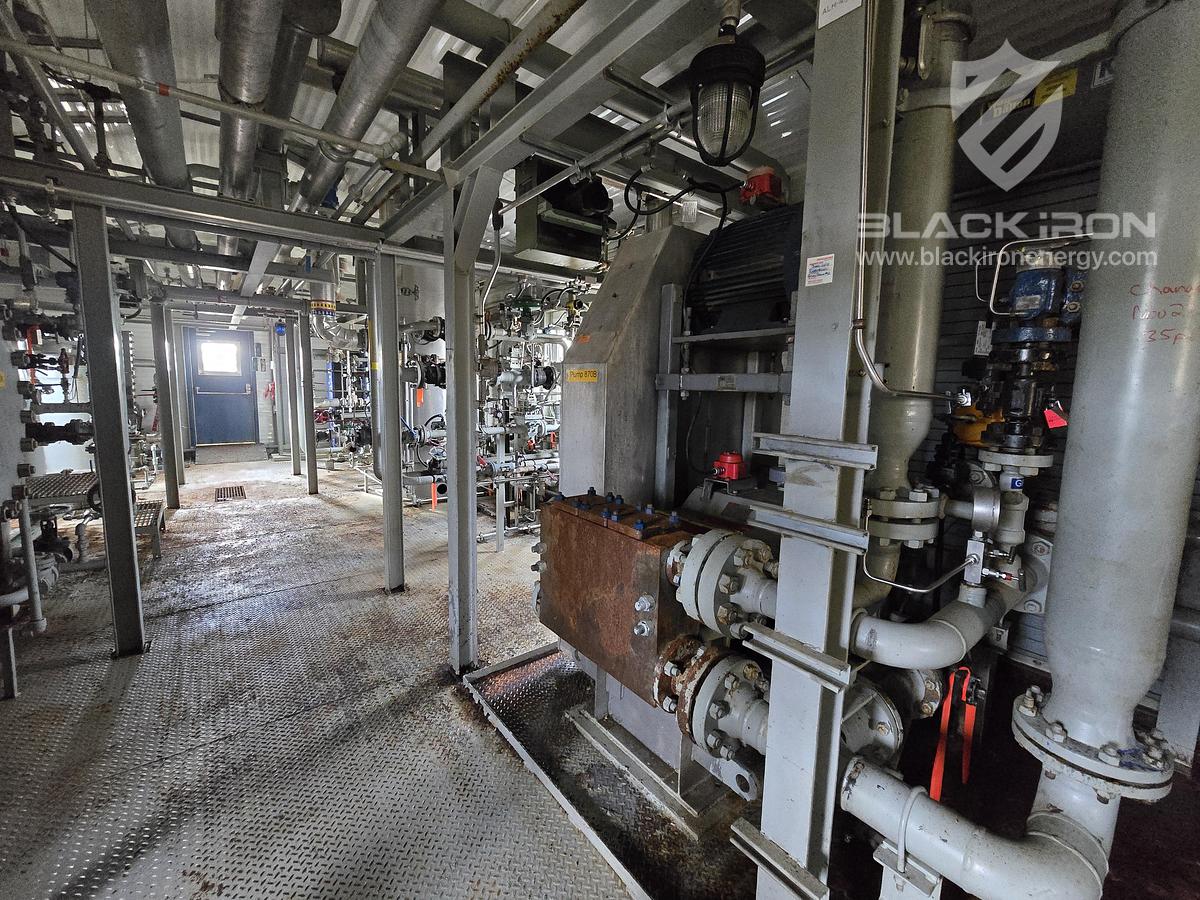

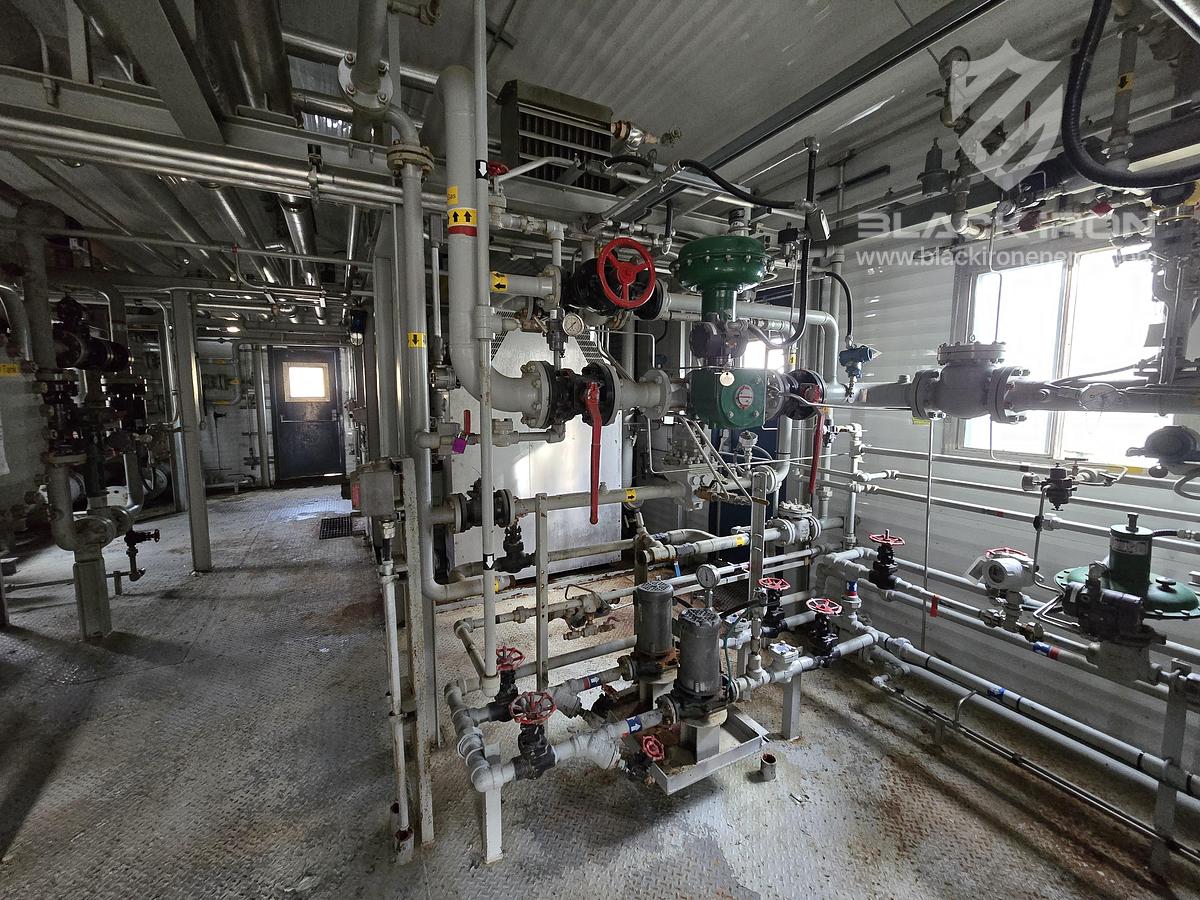

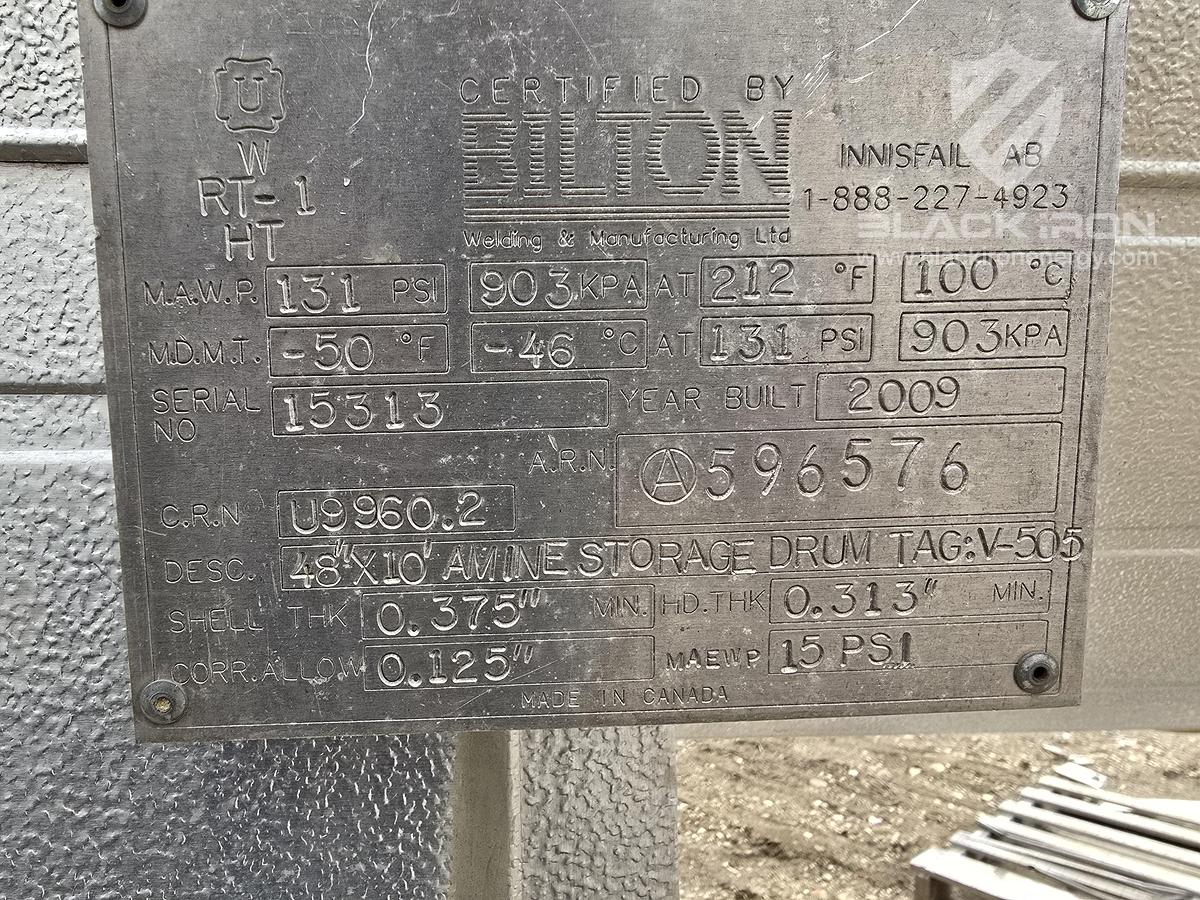

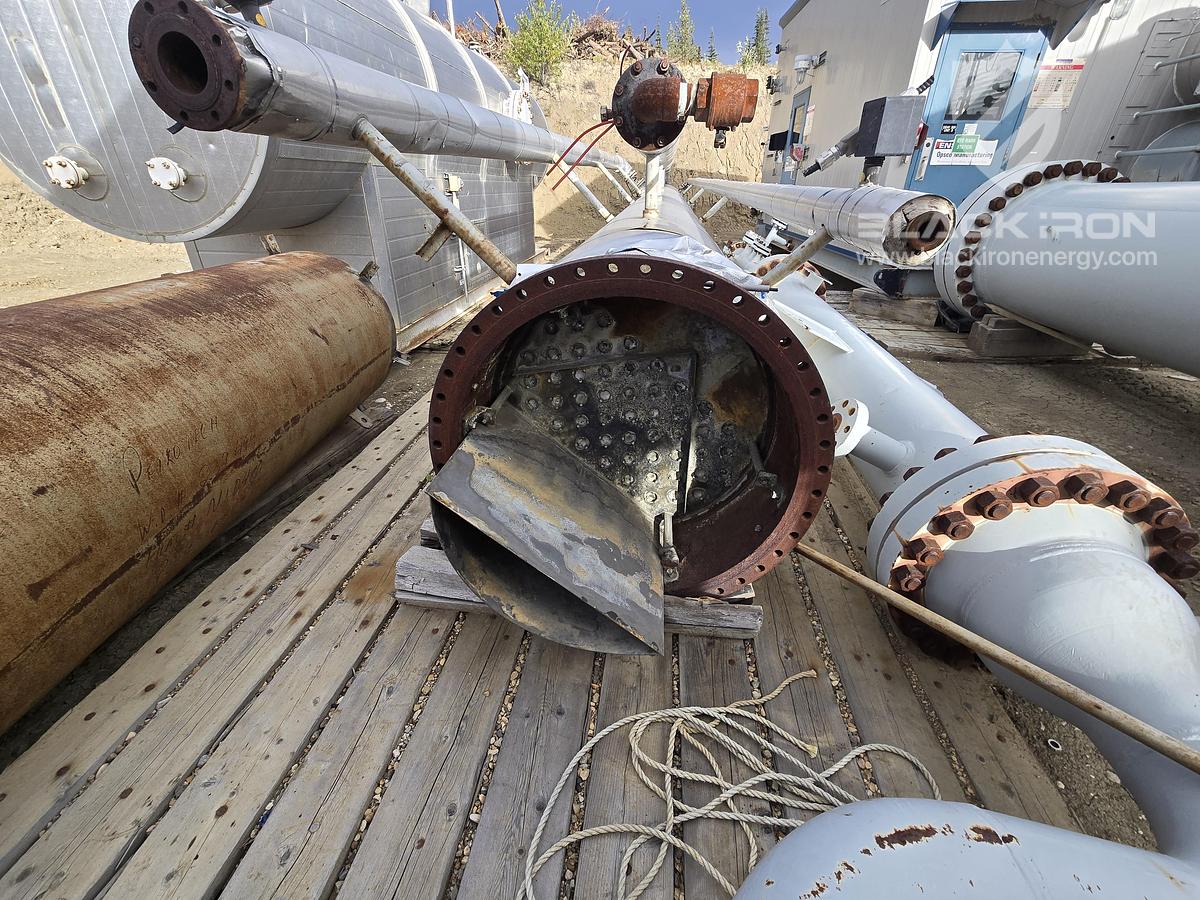

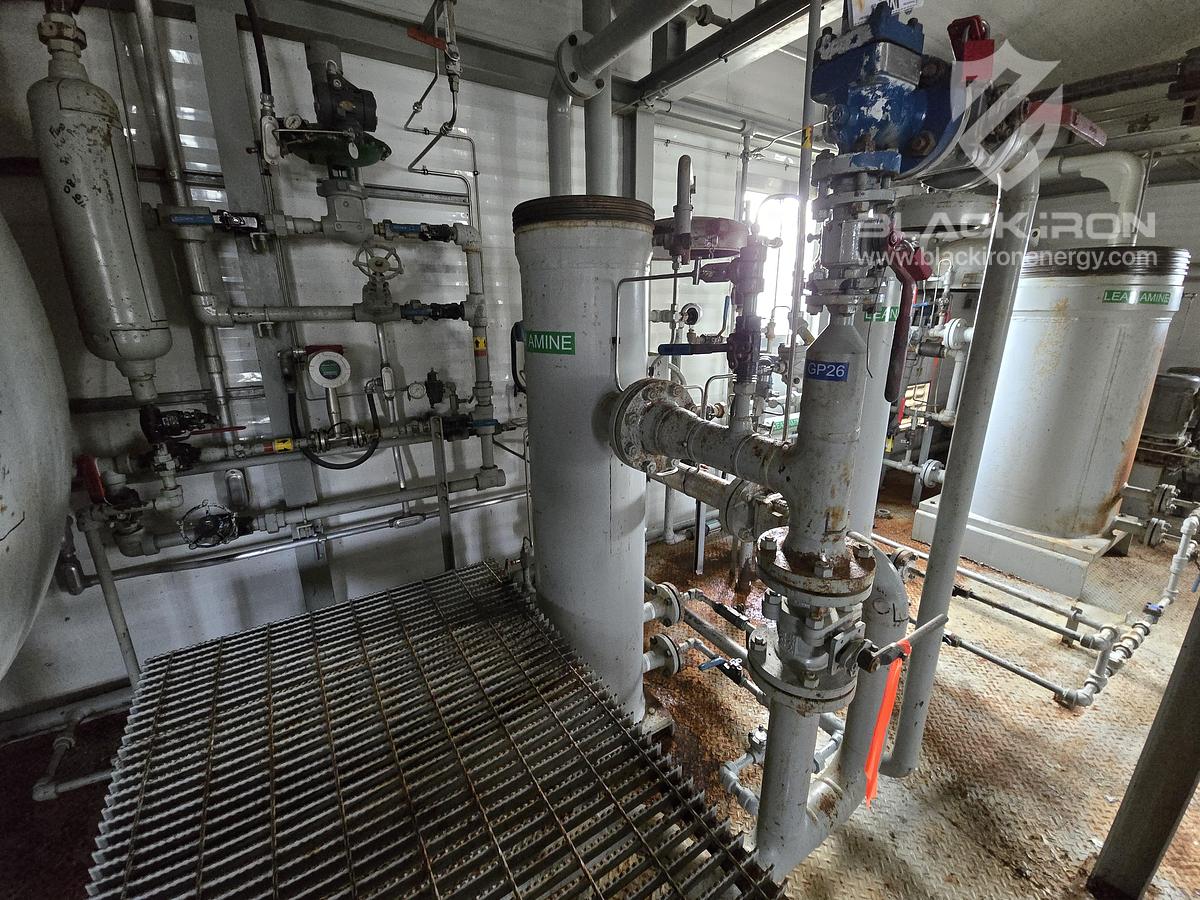

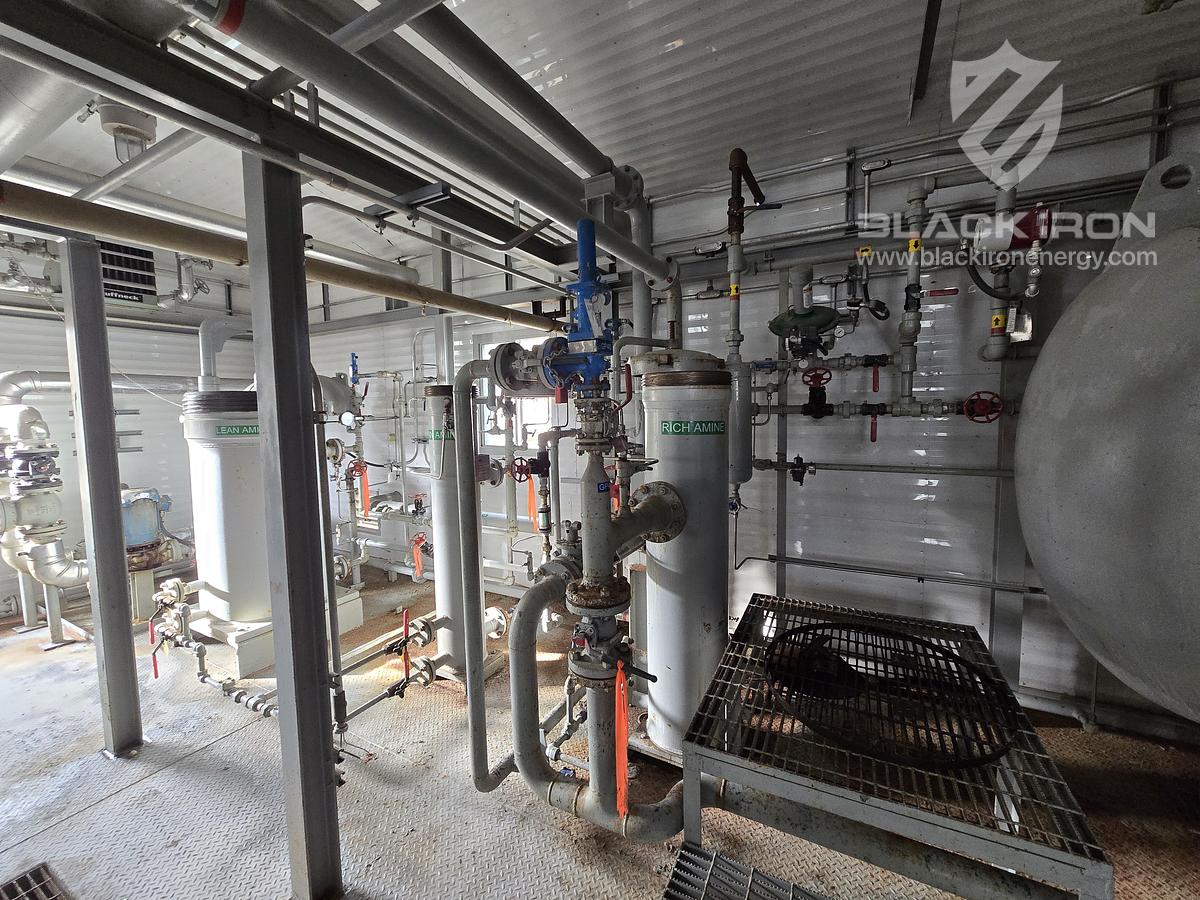

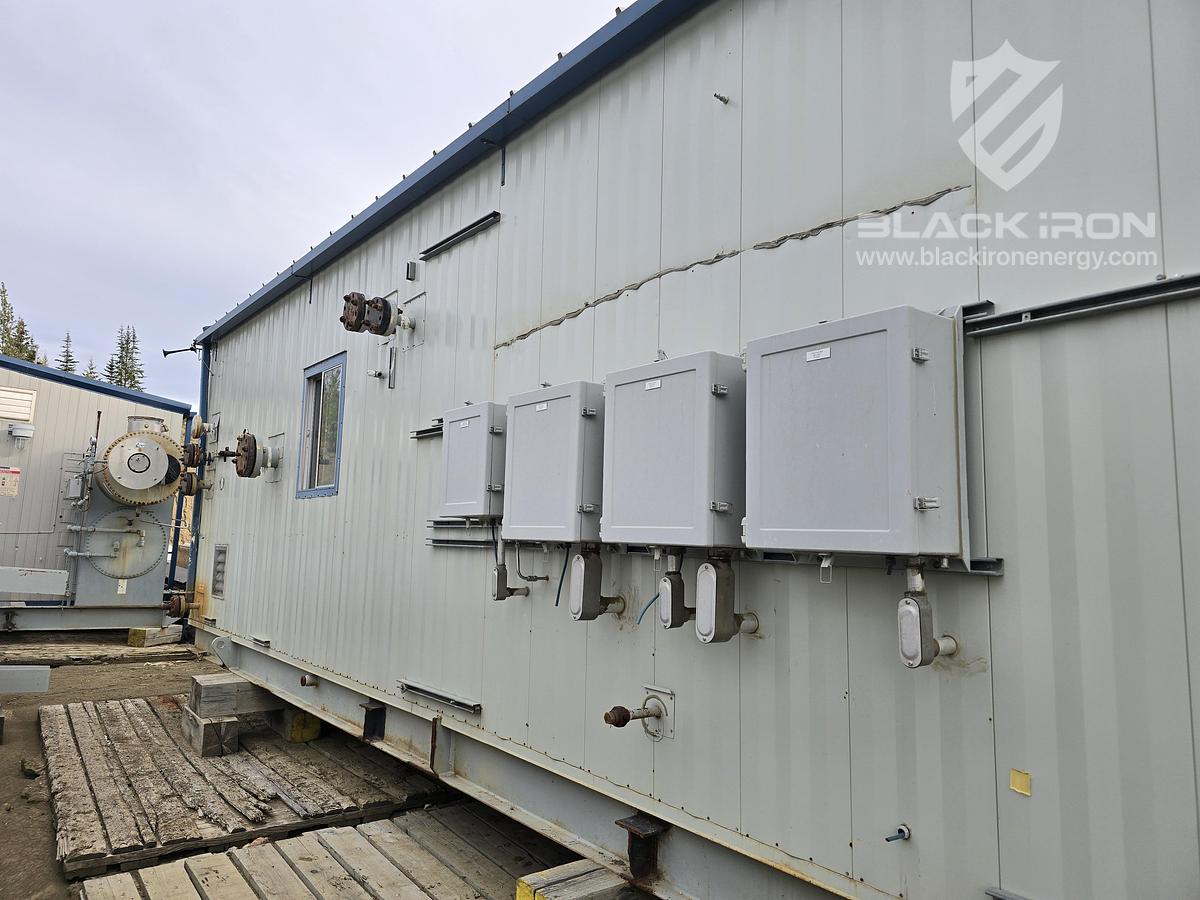

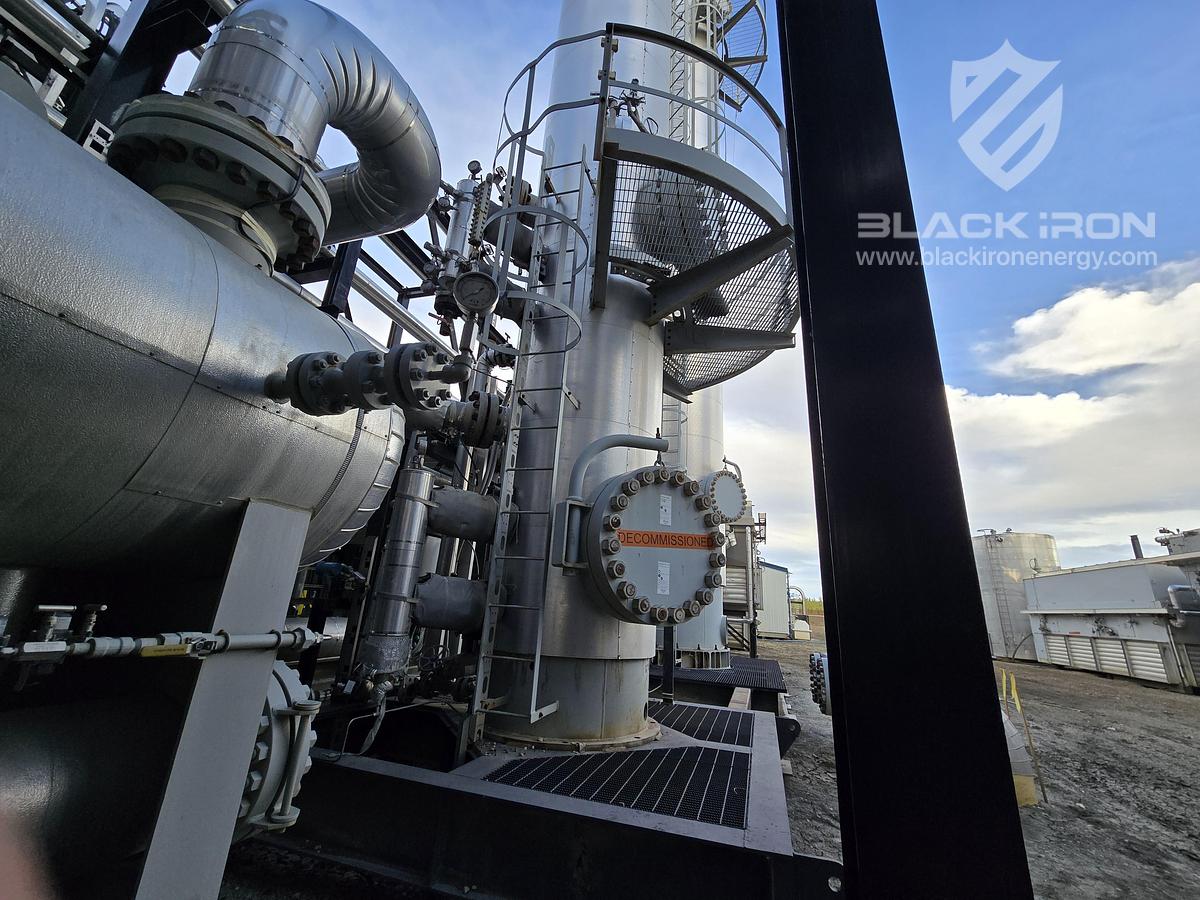

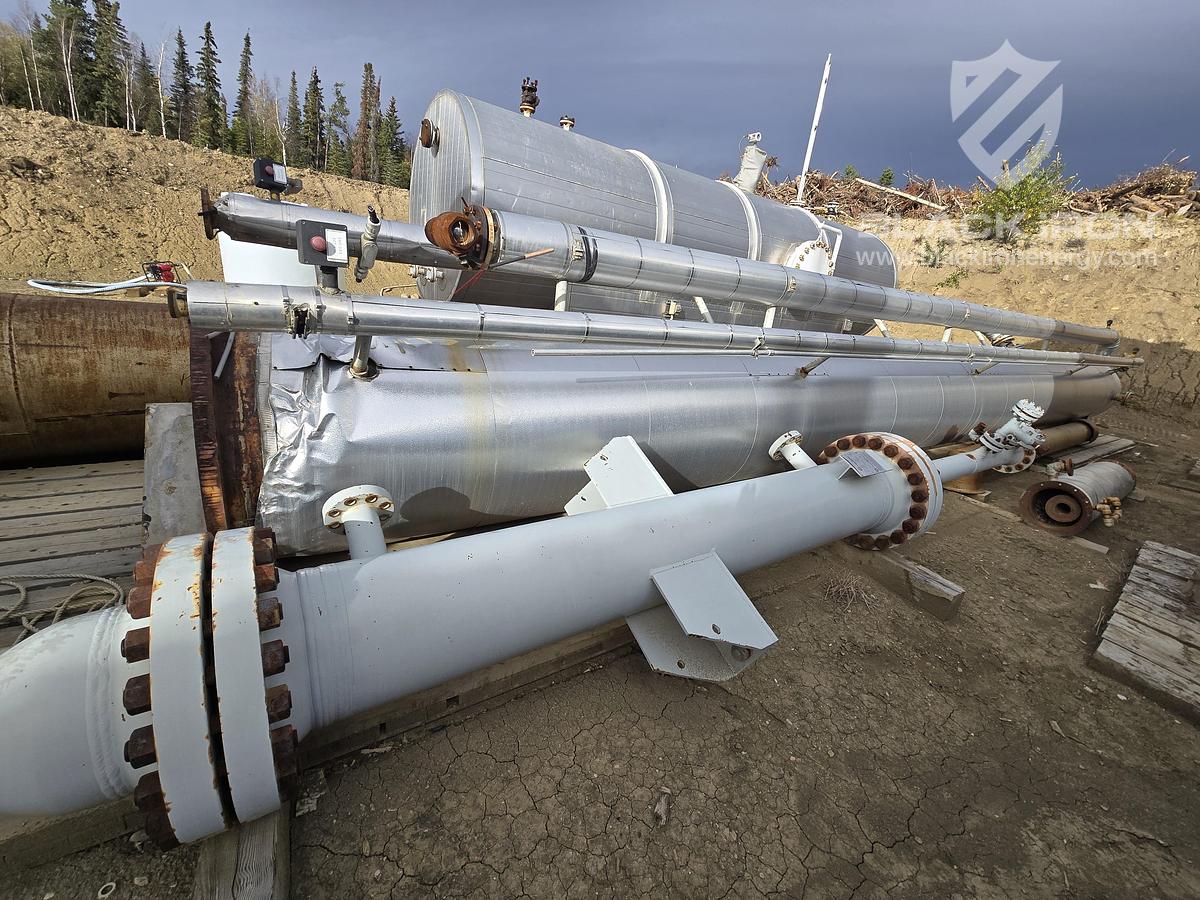

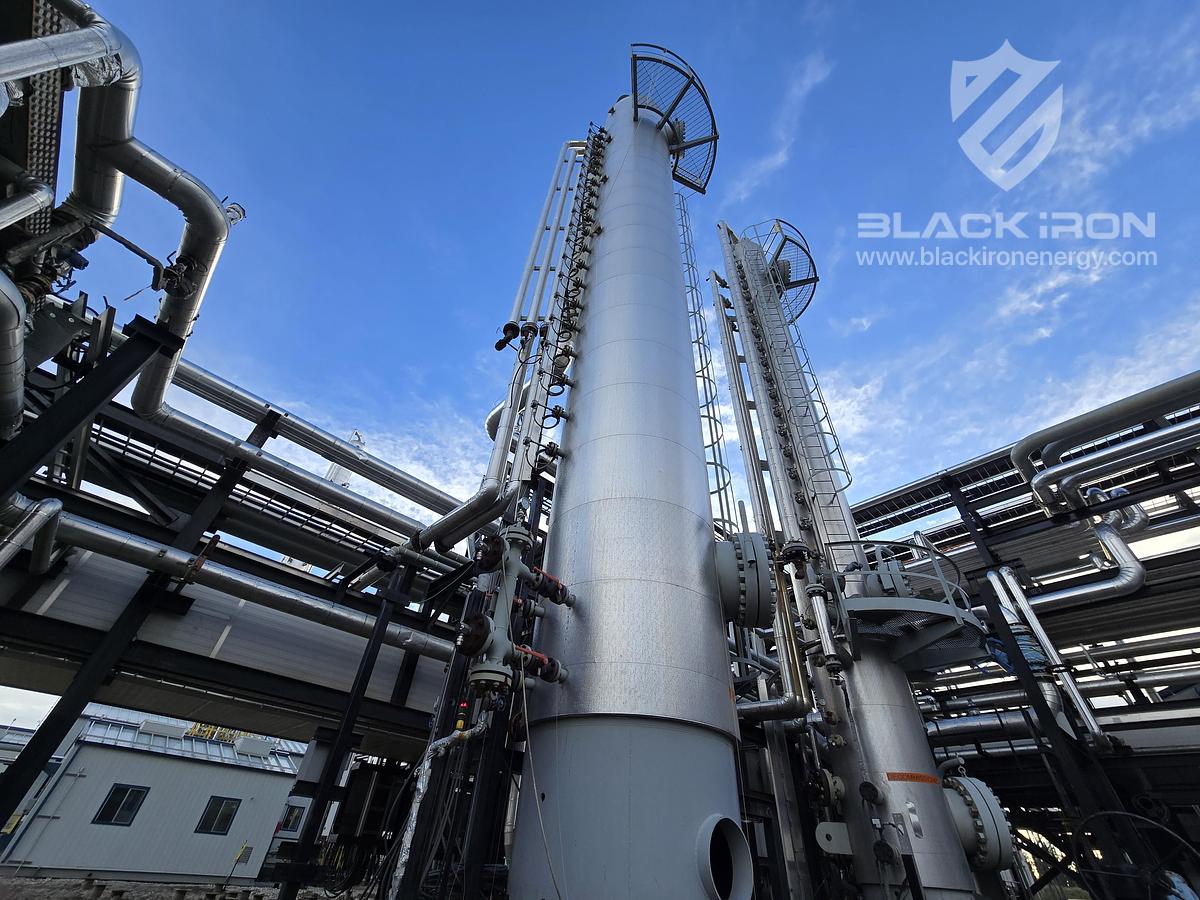

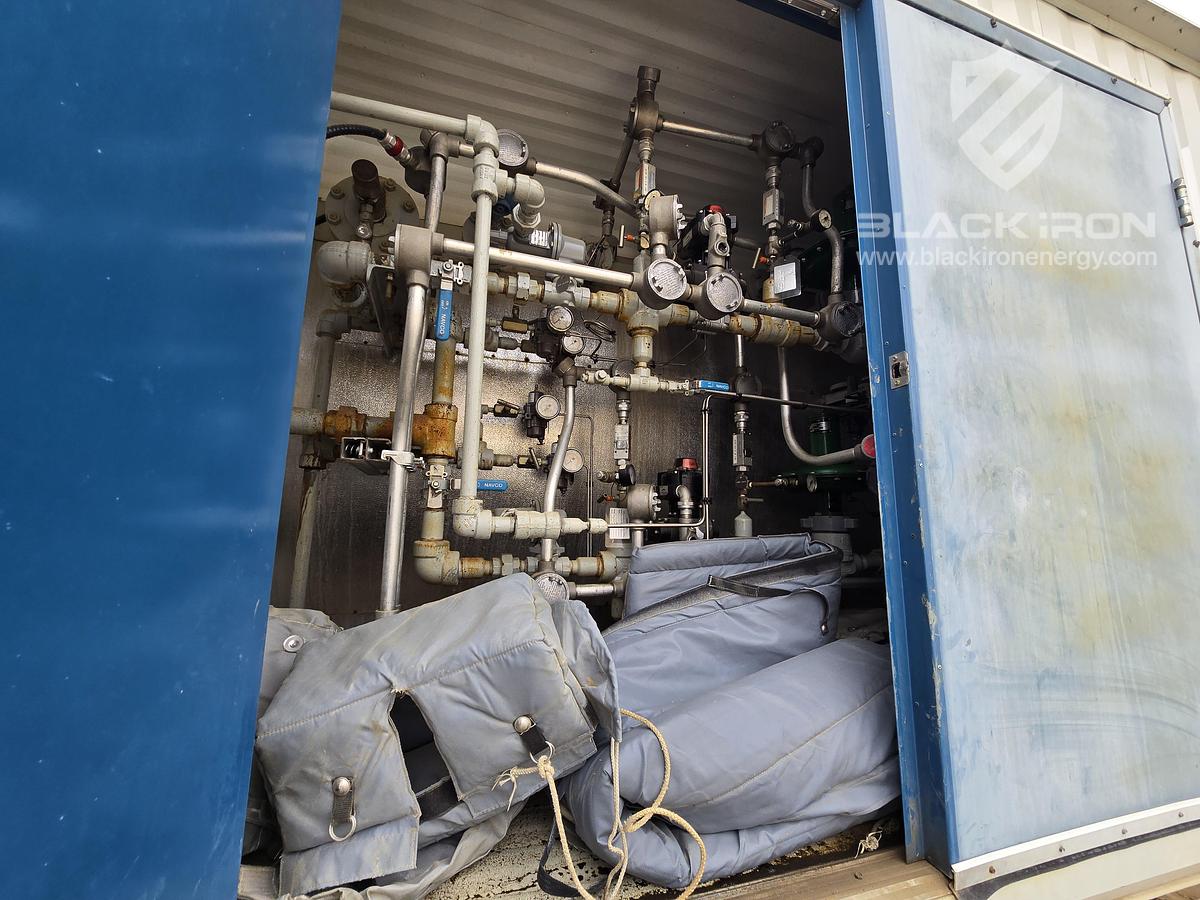

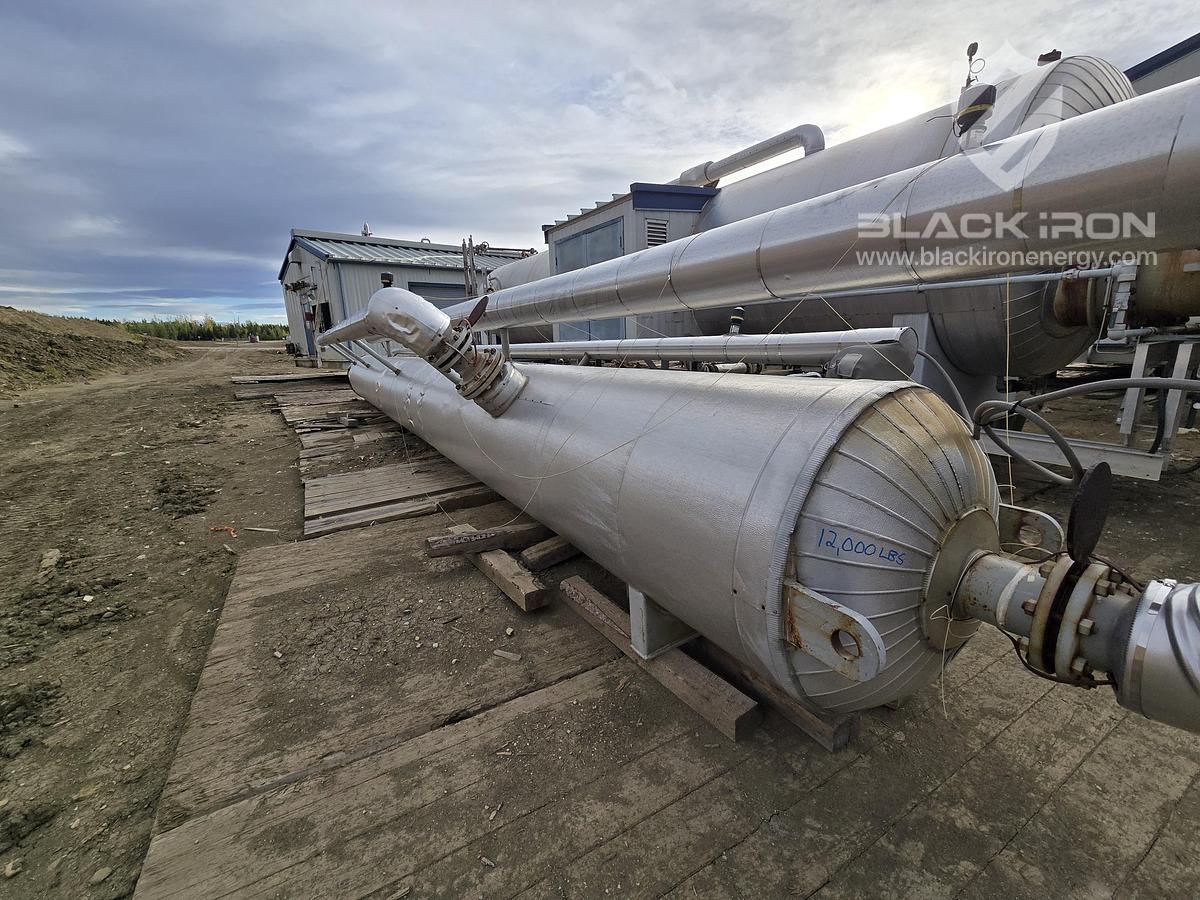

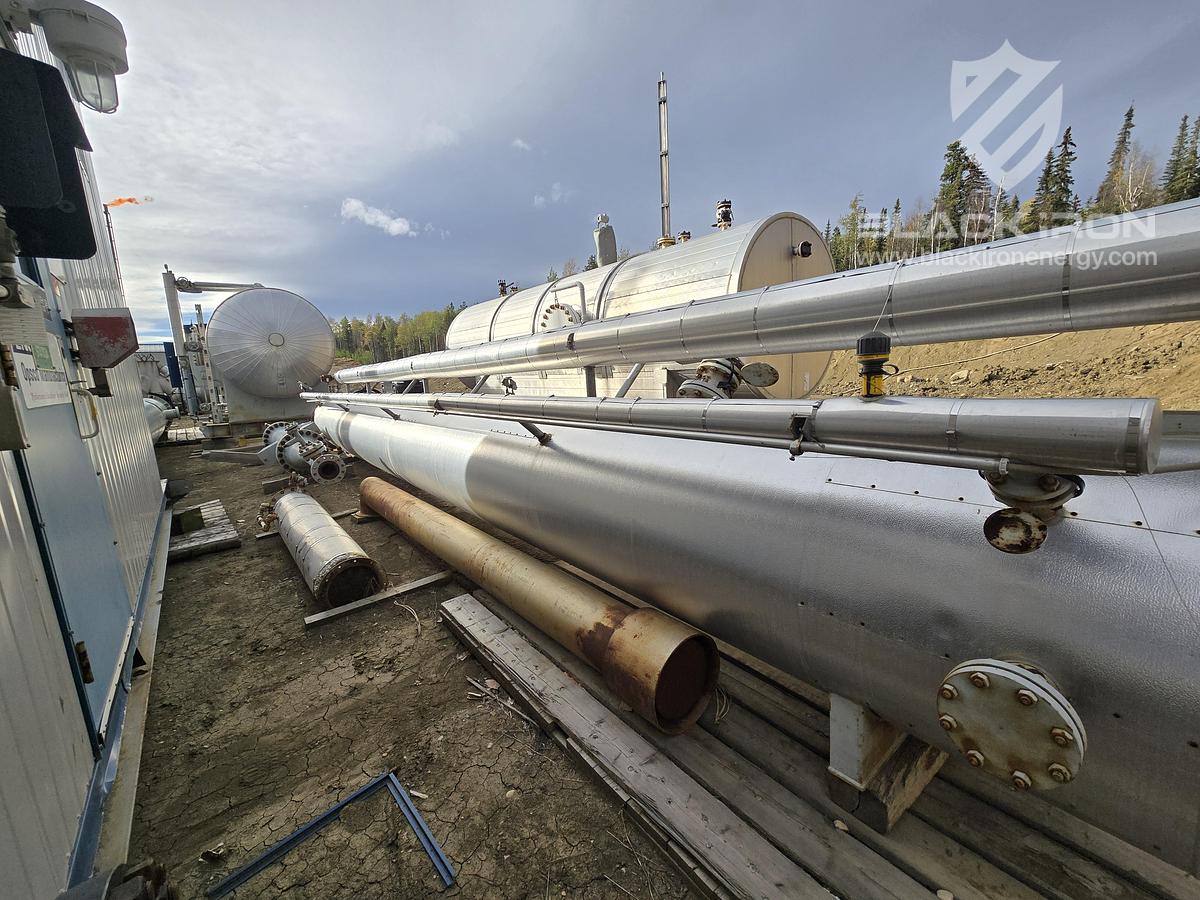

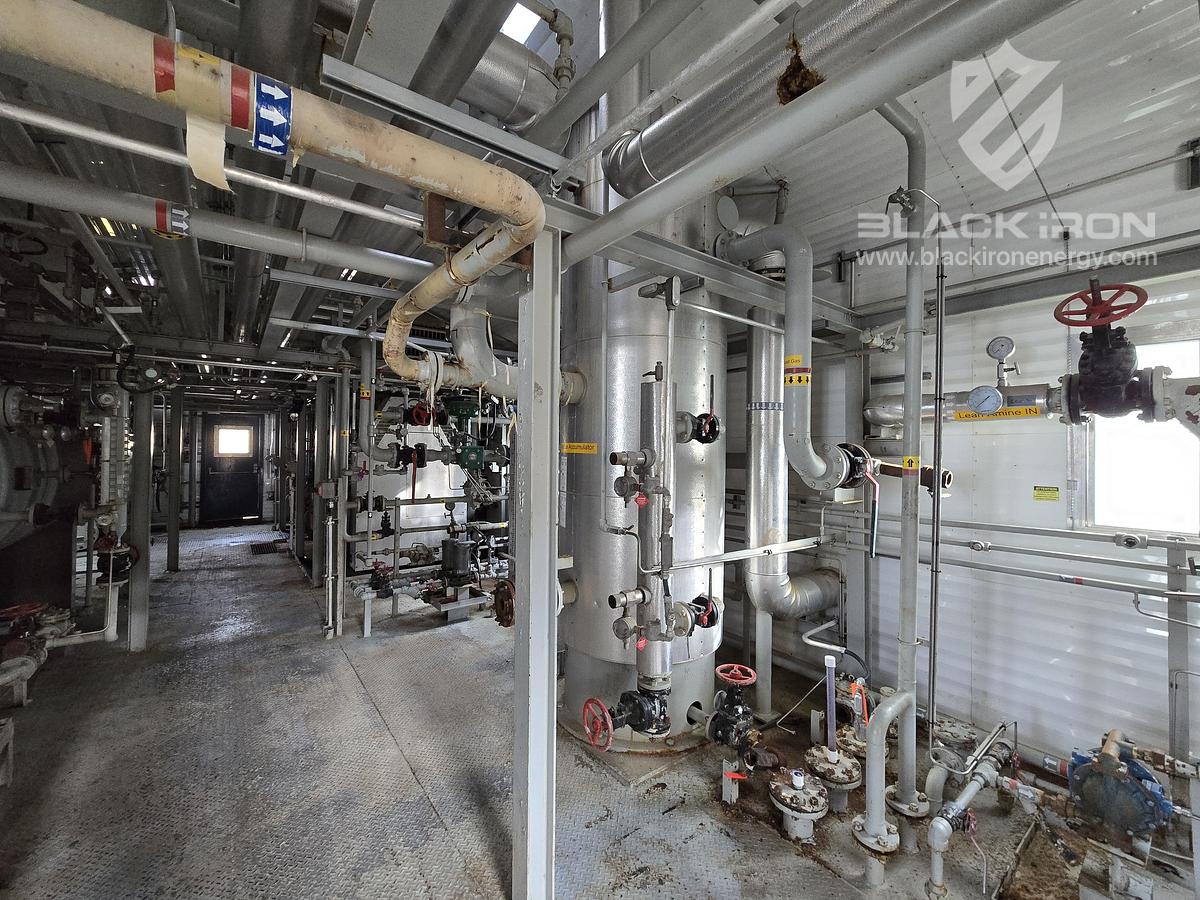

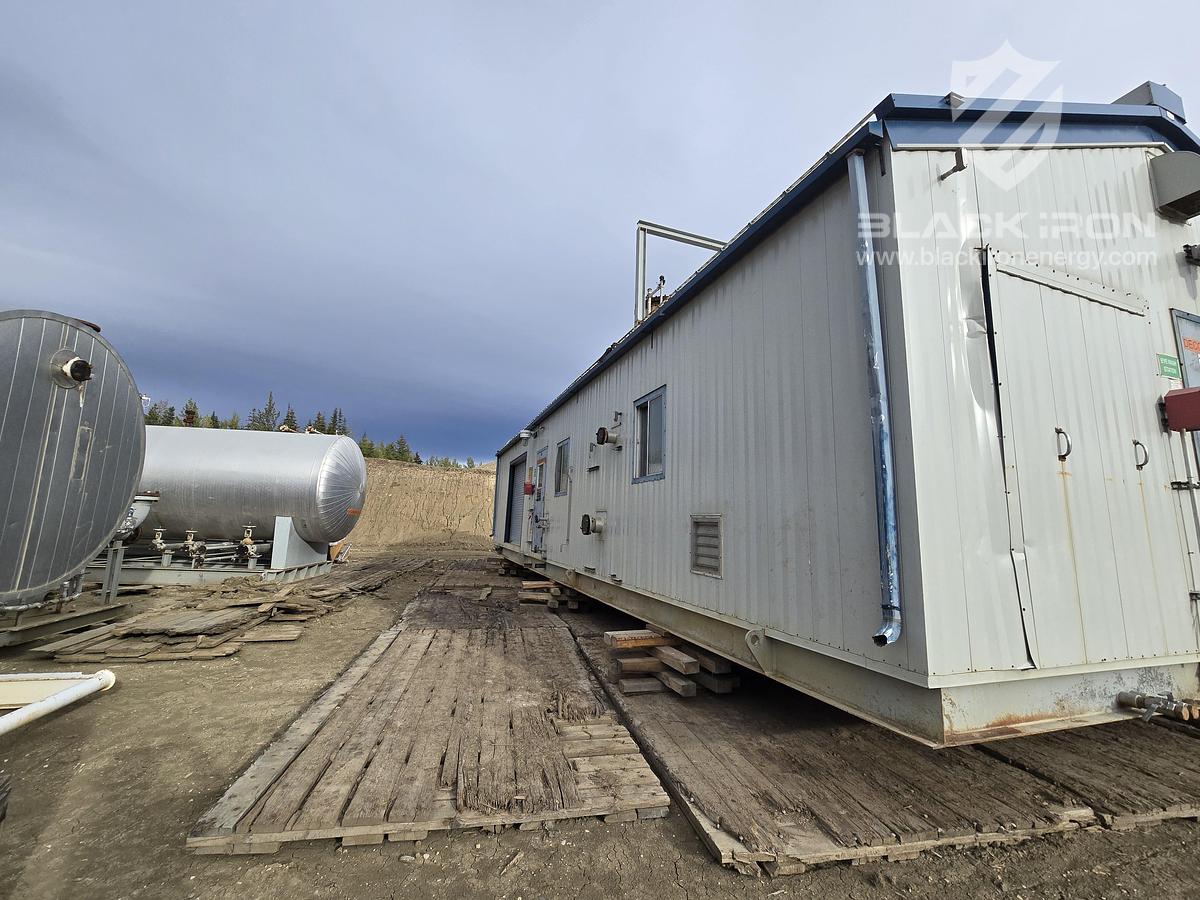

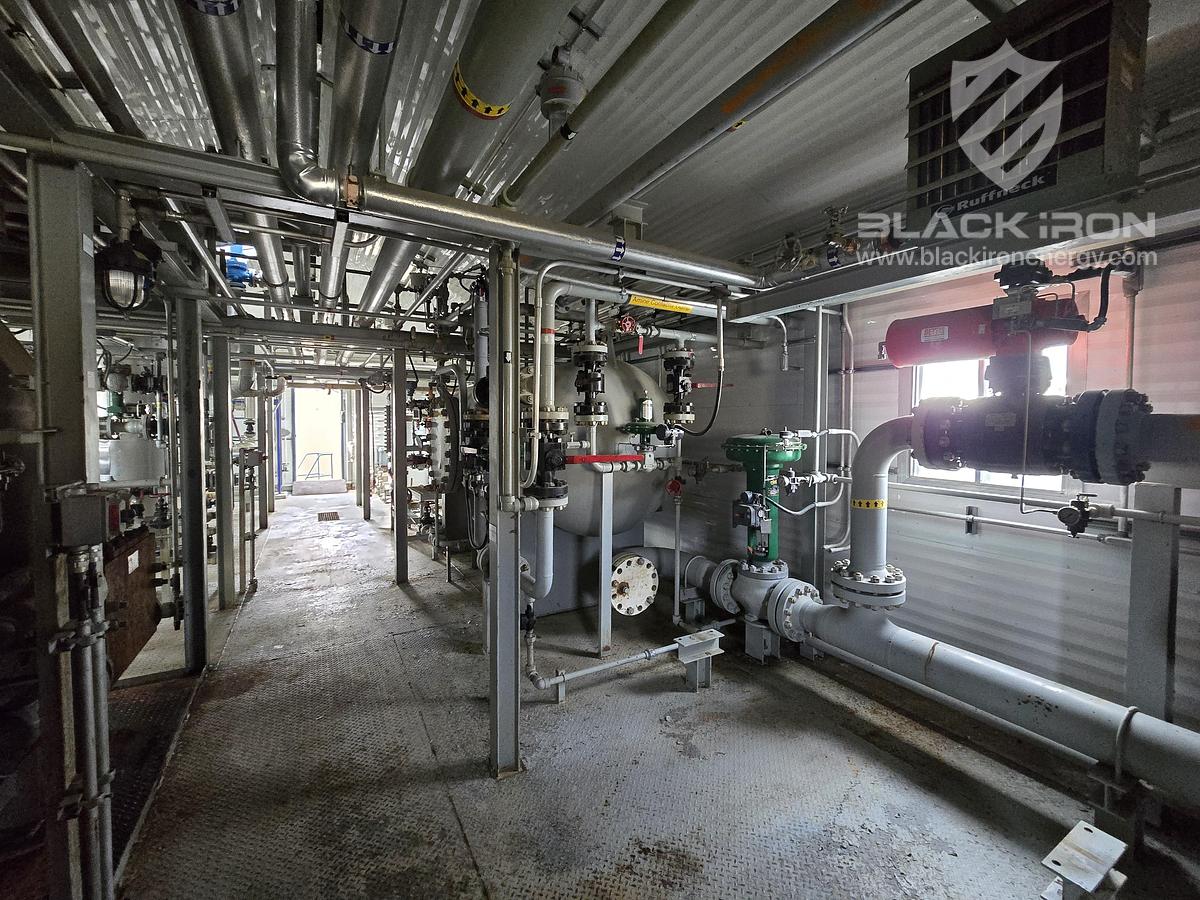

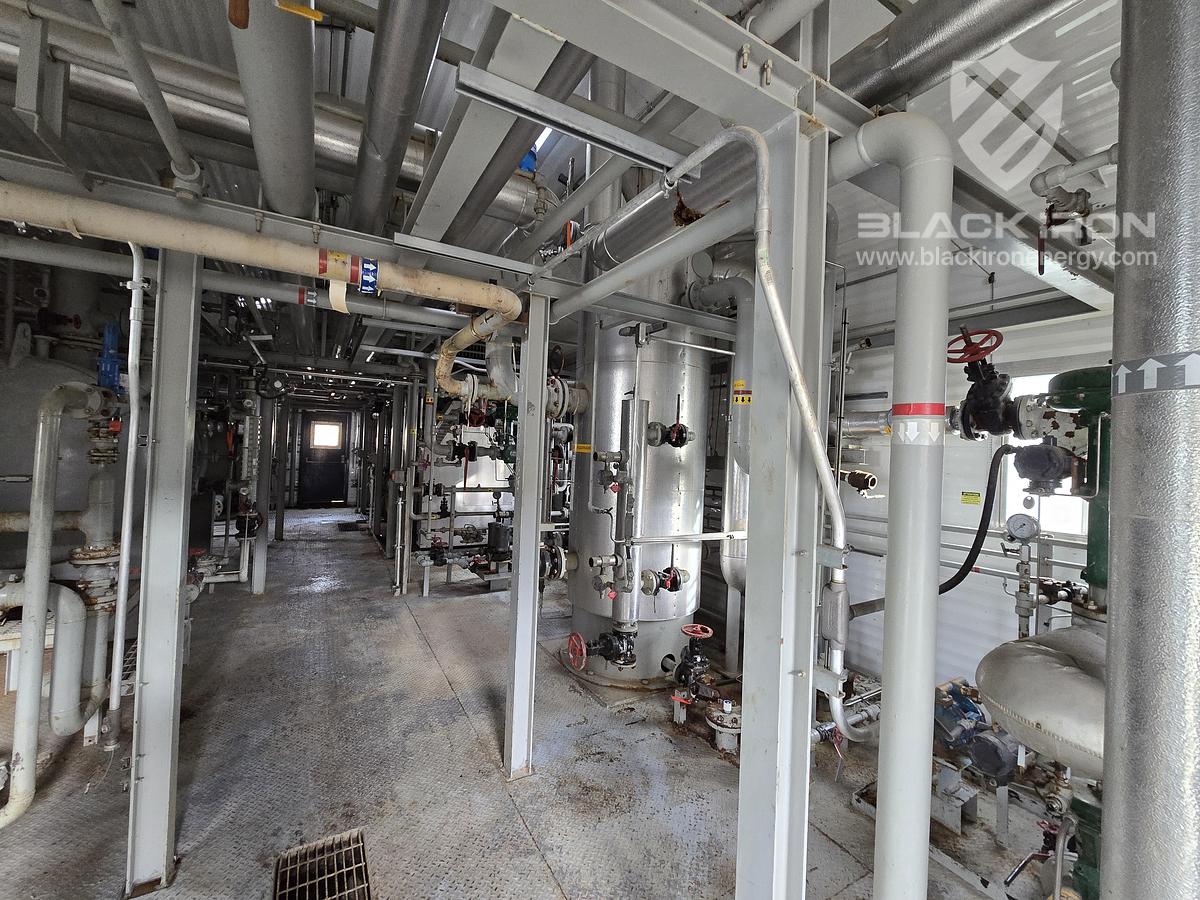

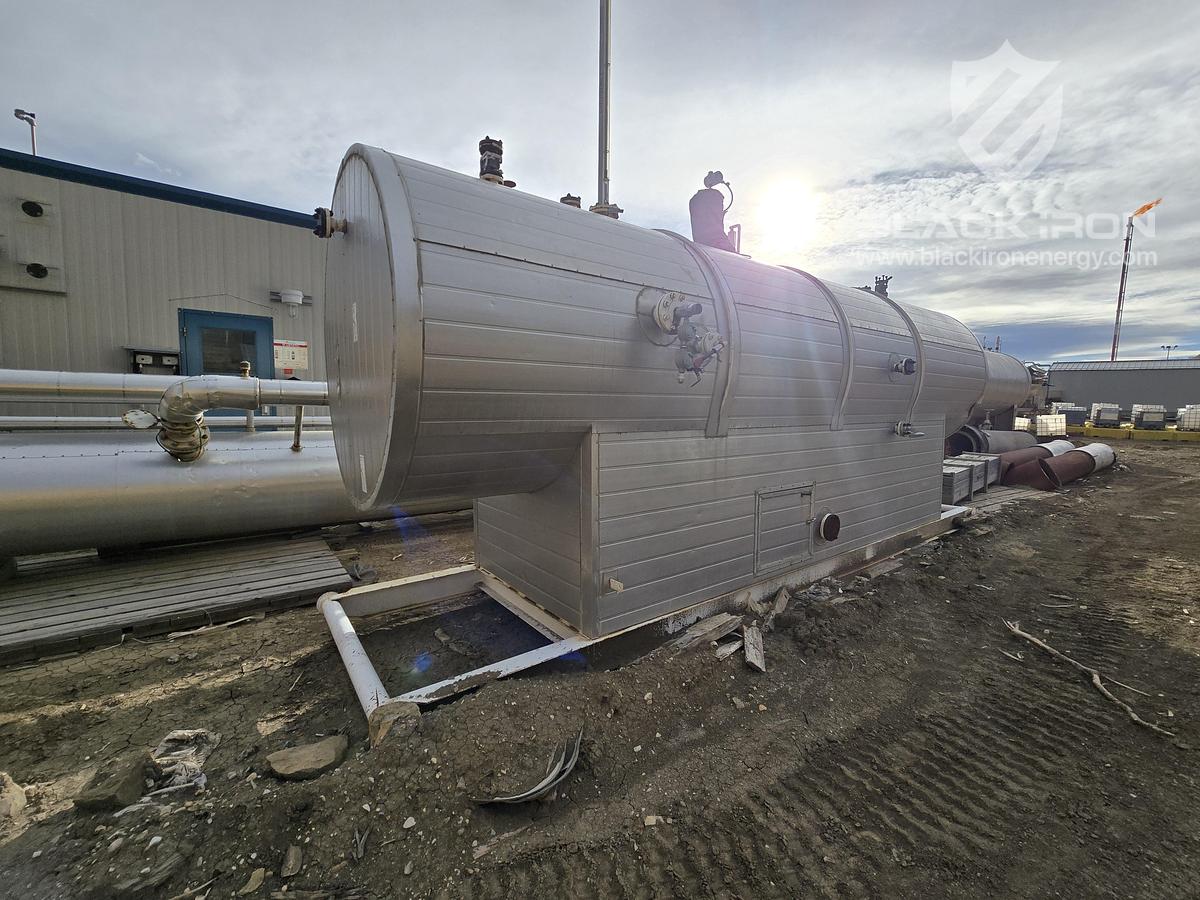

130 MMSCFD Amine Plant (2 Available)

Two identical plants are available.

Located in NE BC.

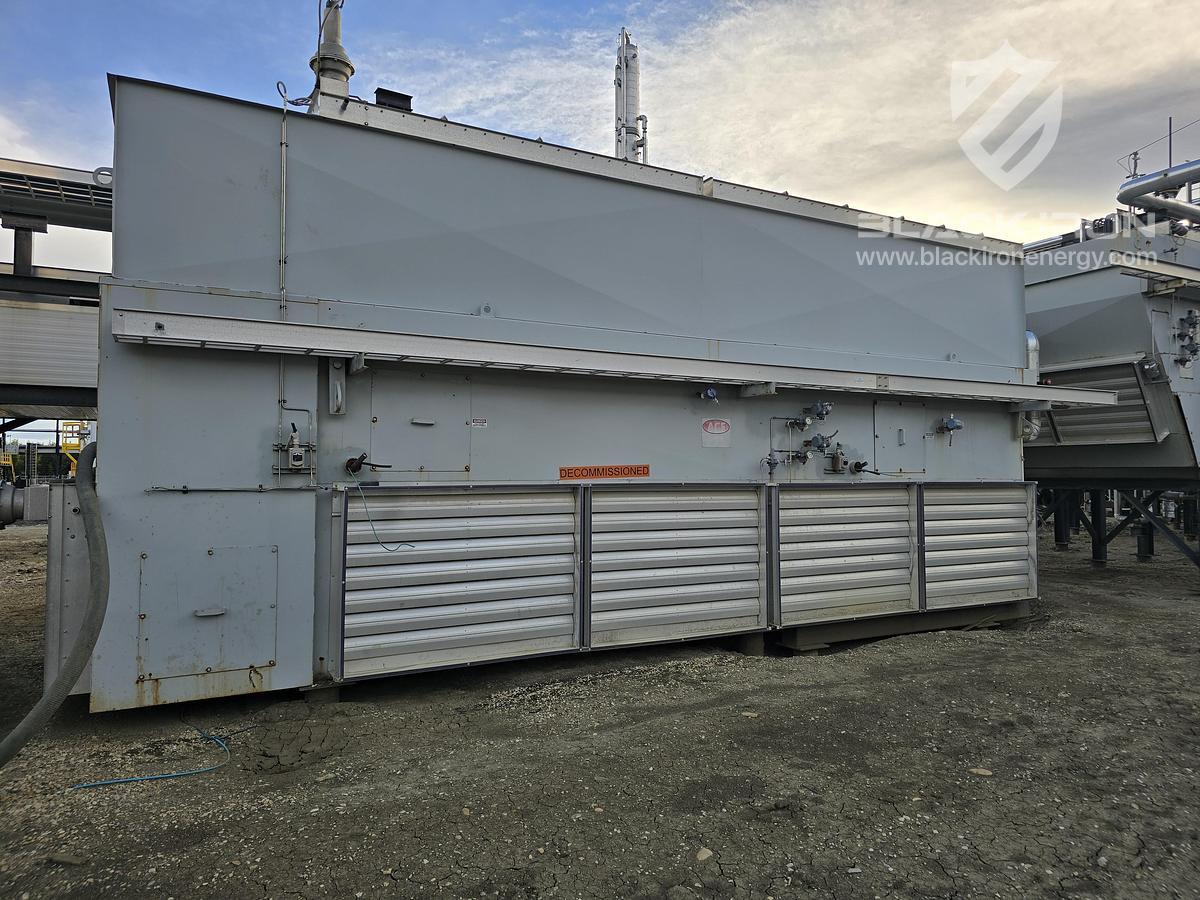

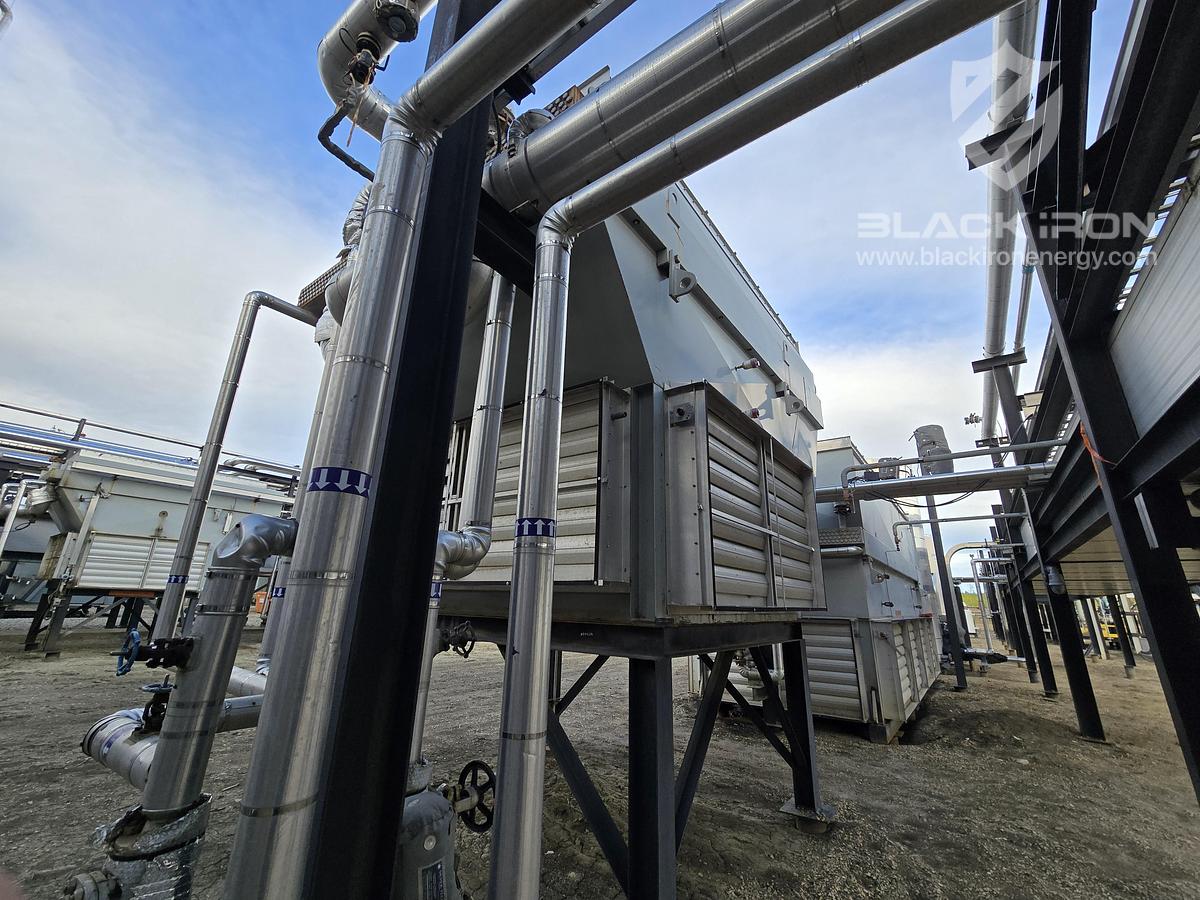

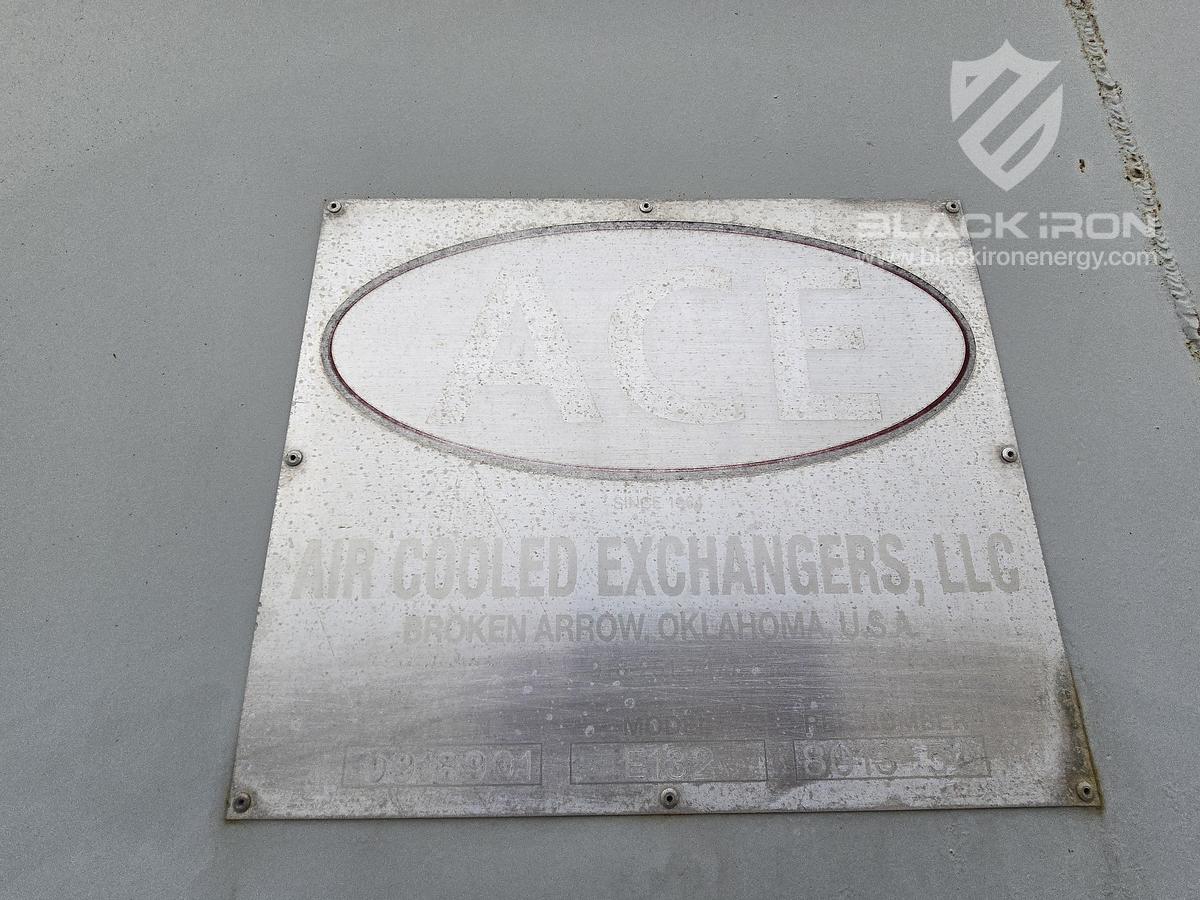

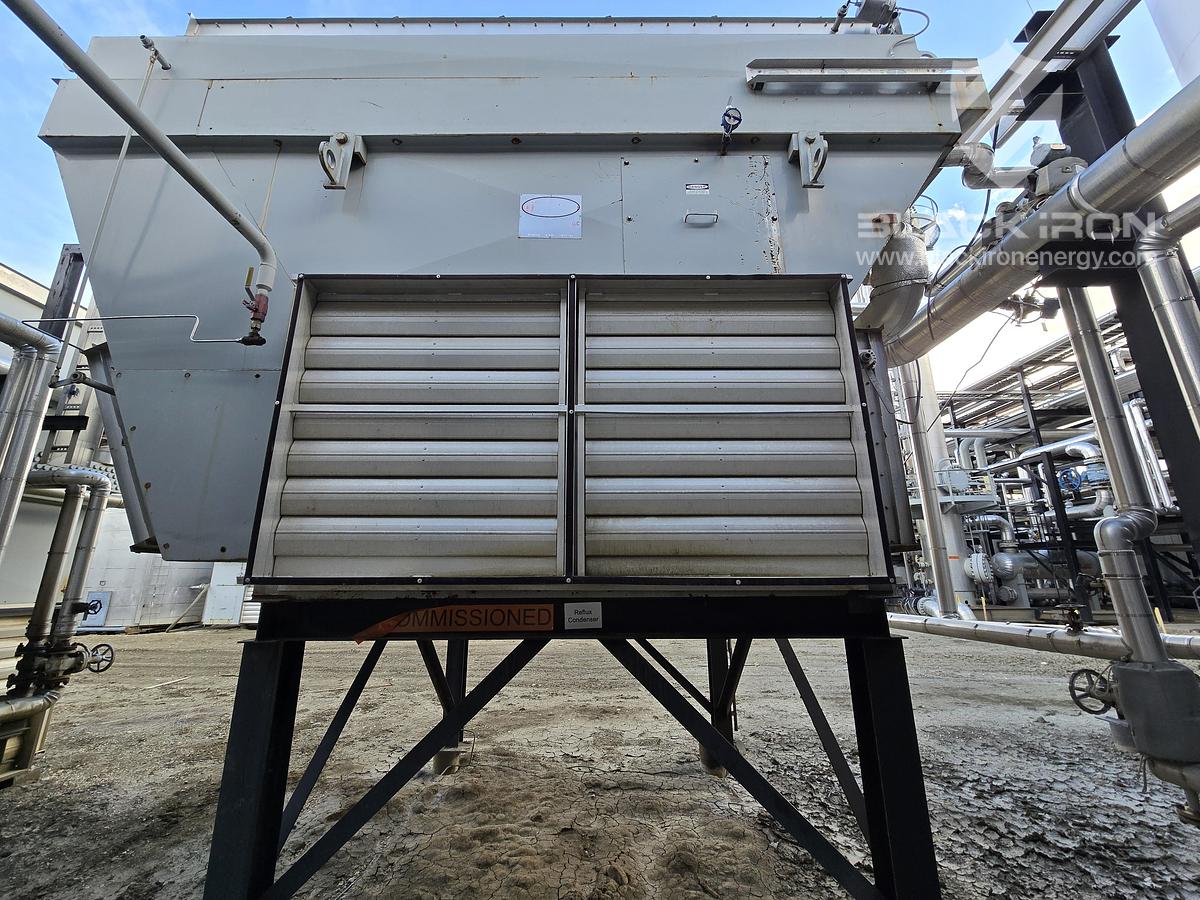

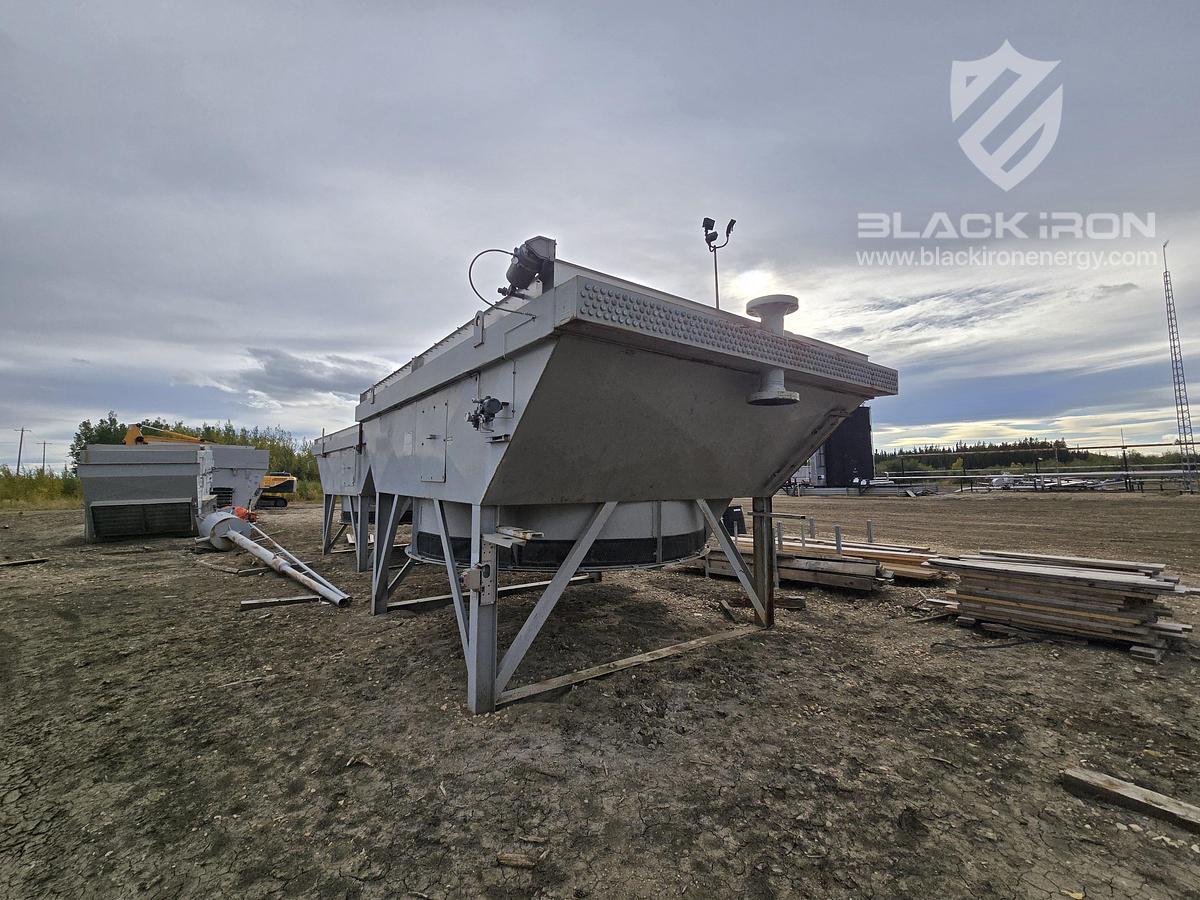

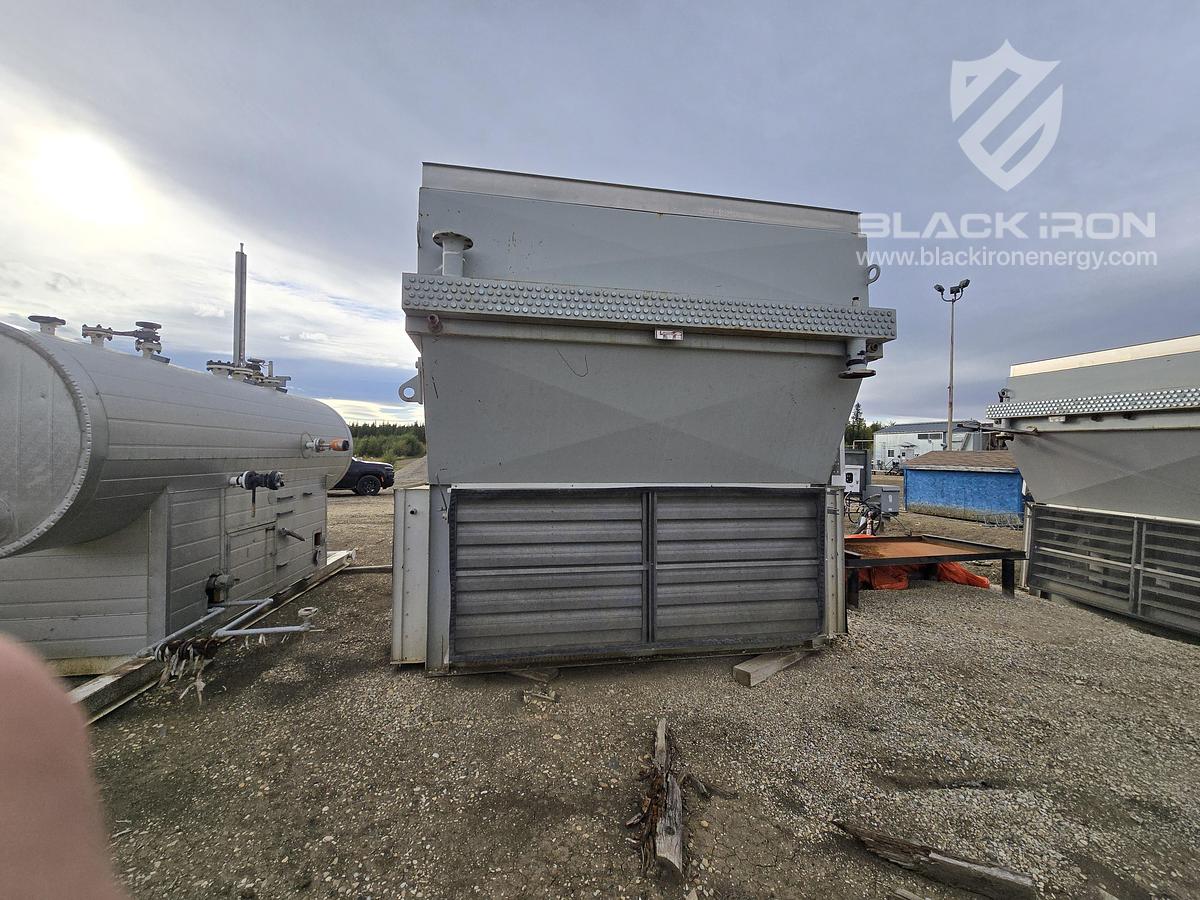

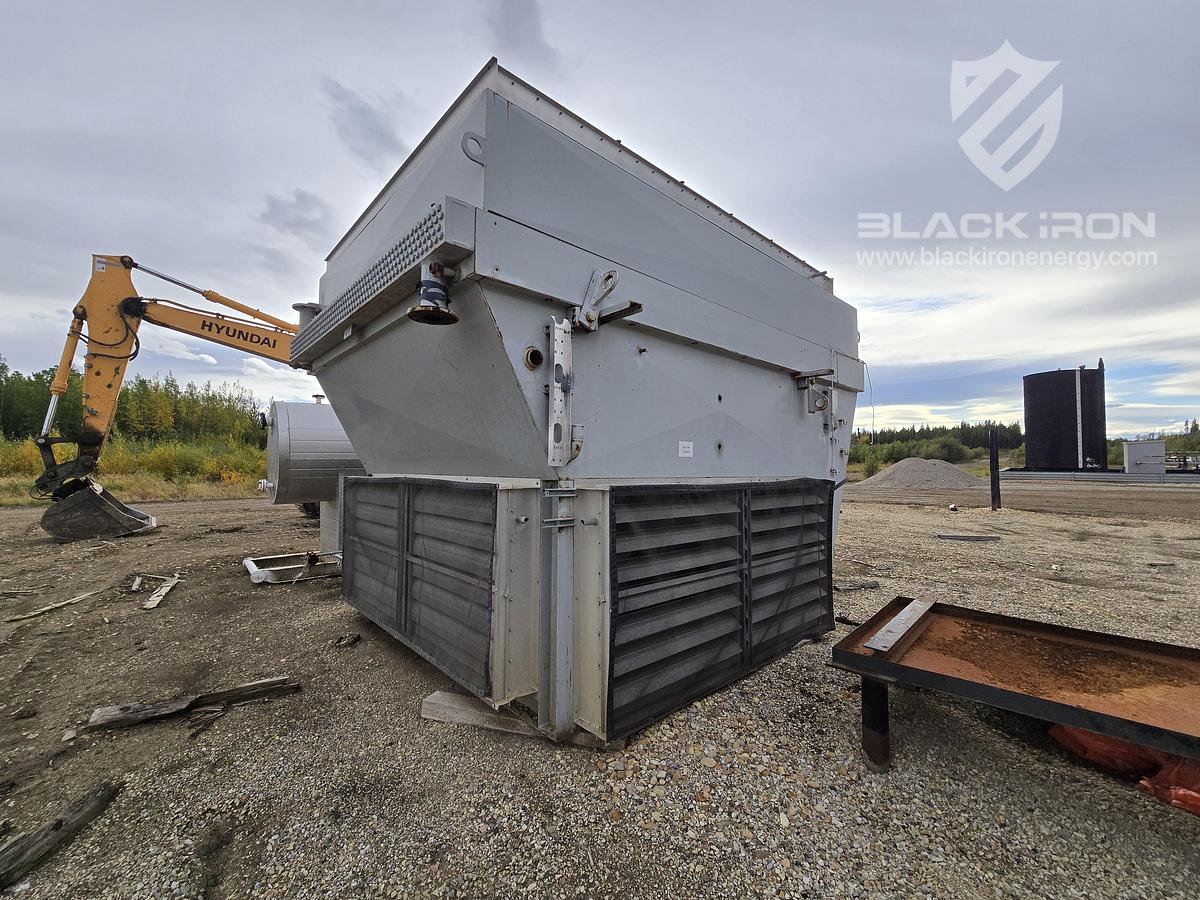

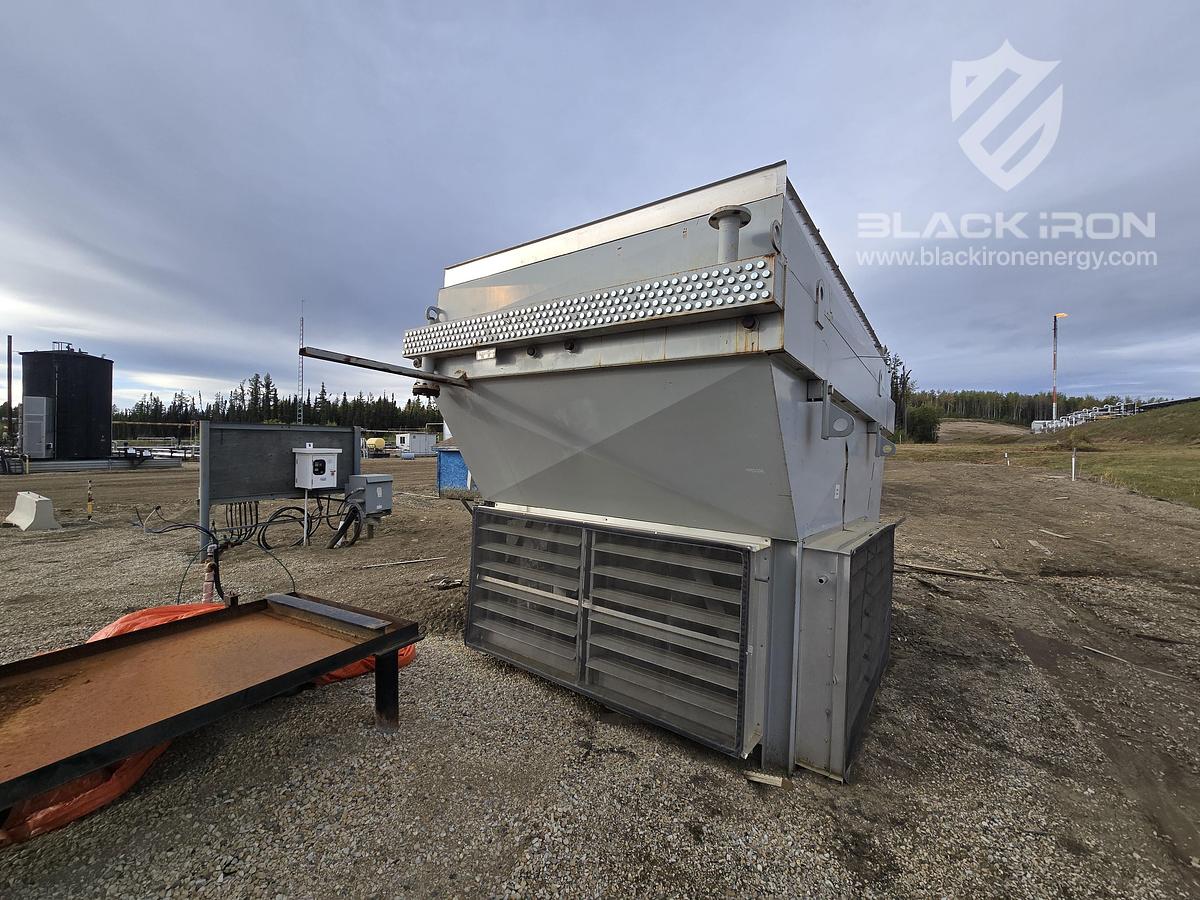

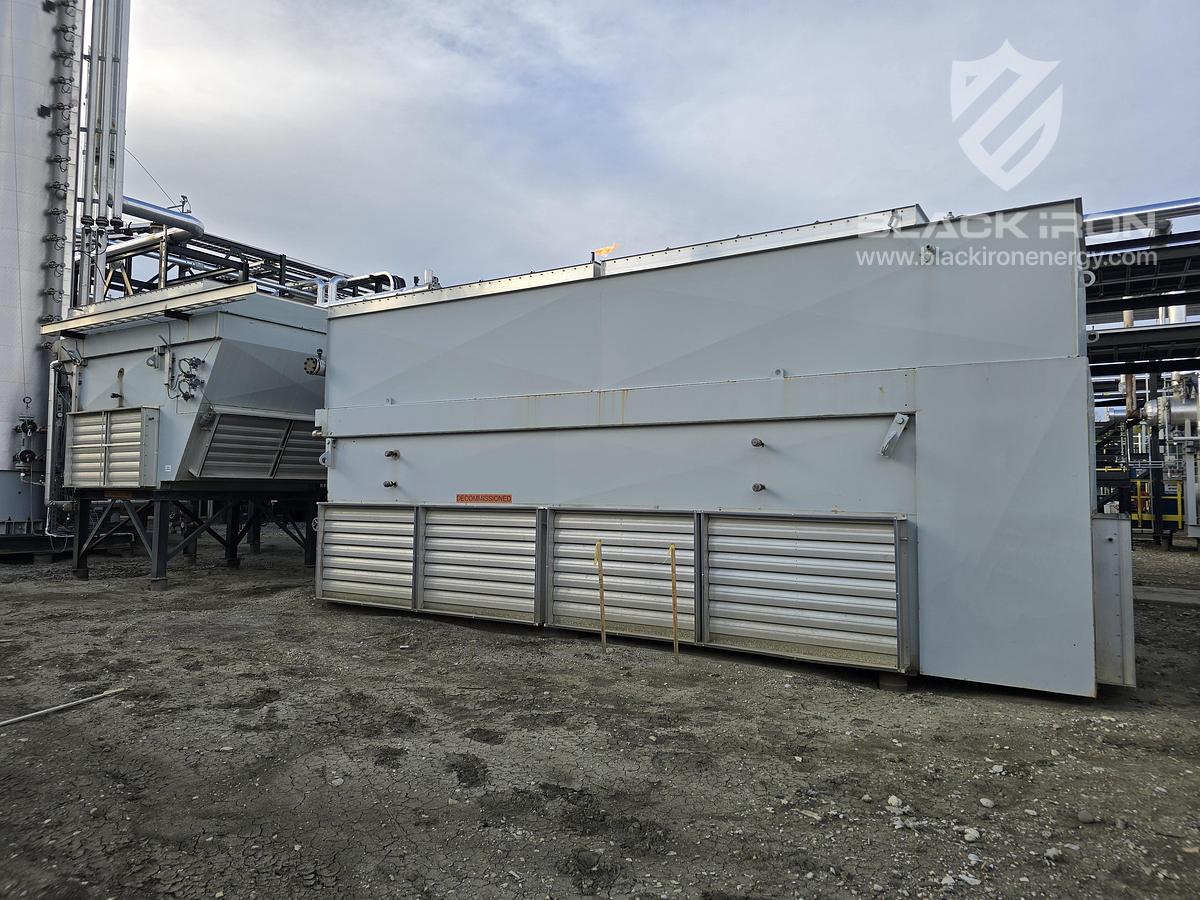

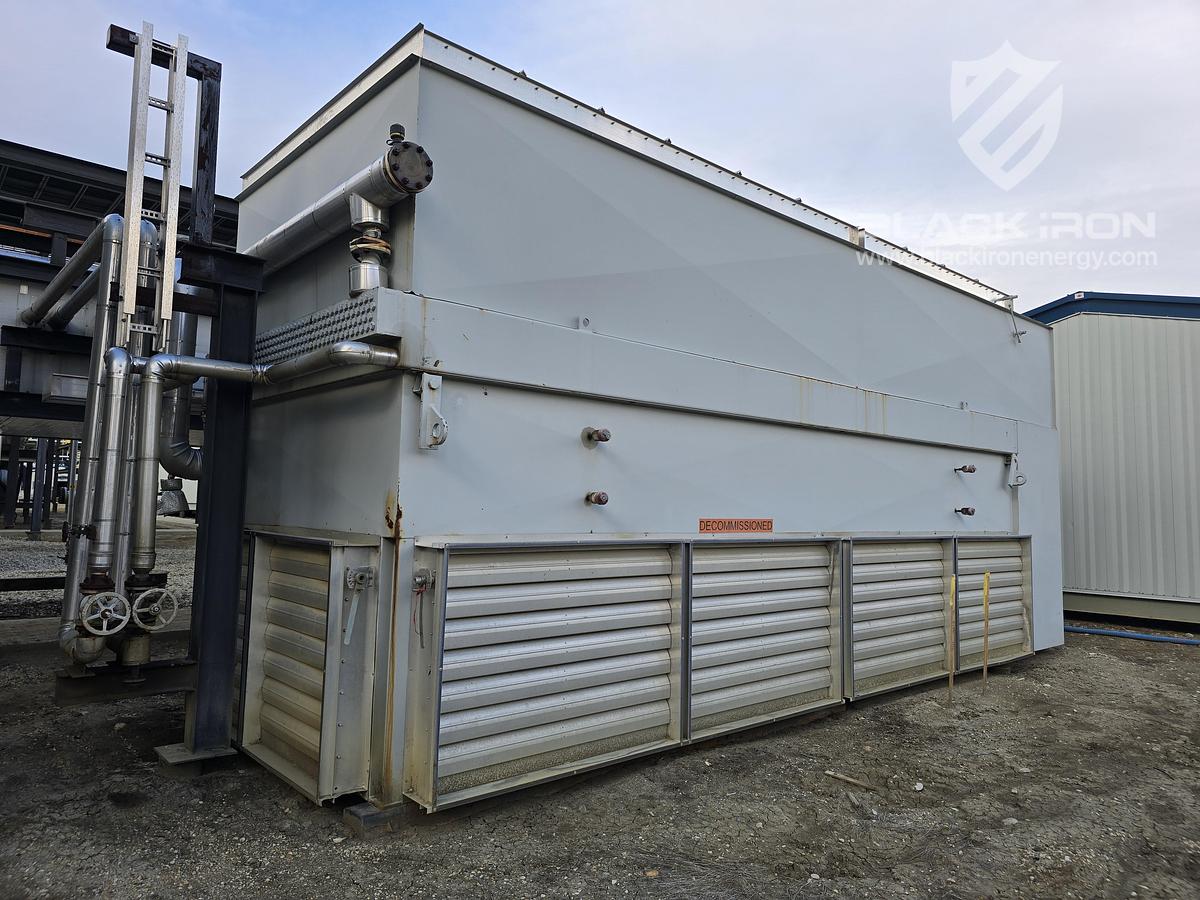

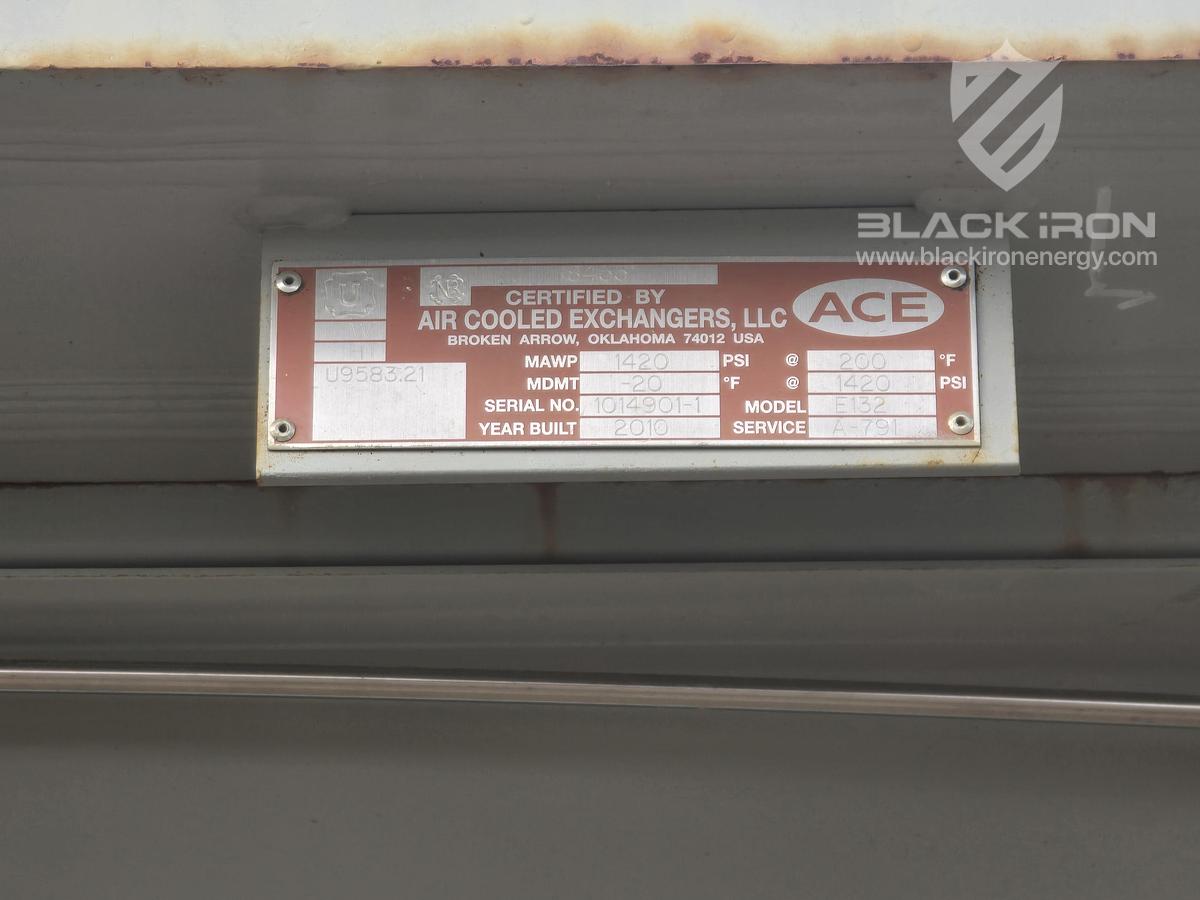

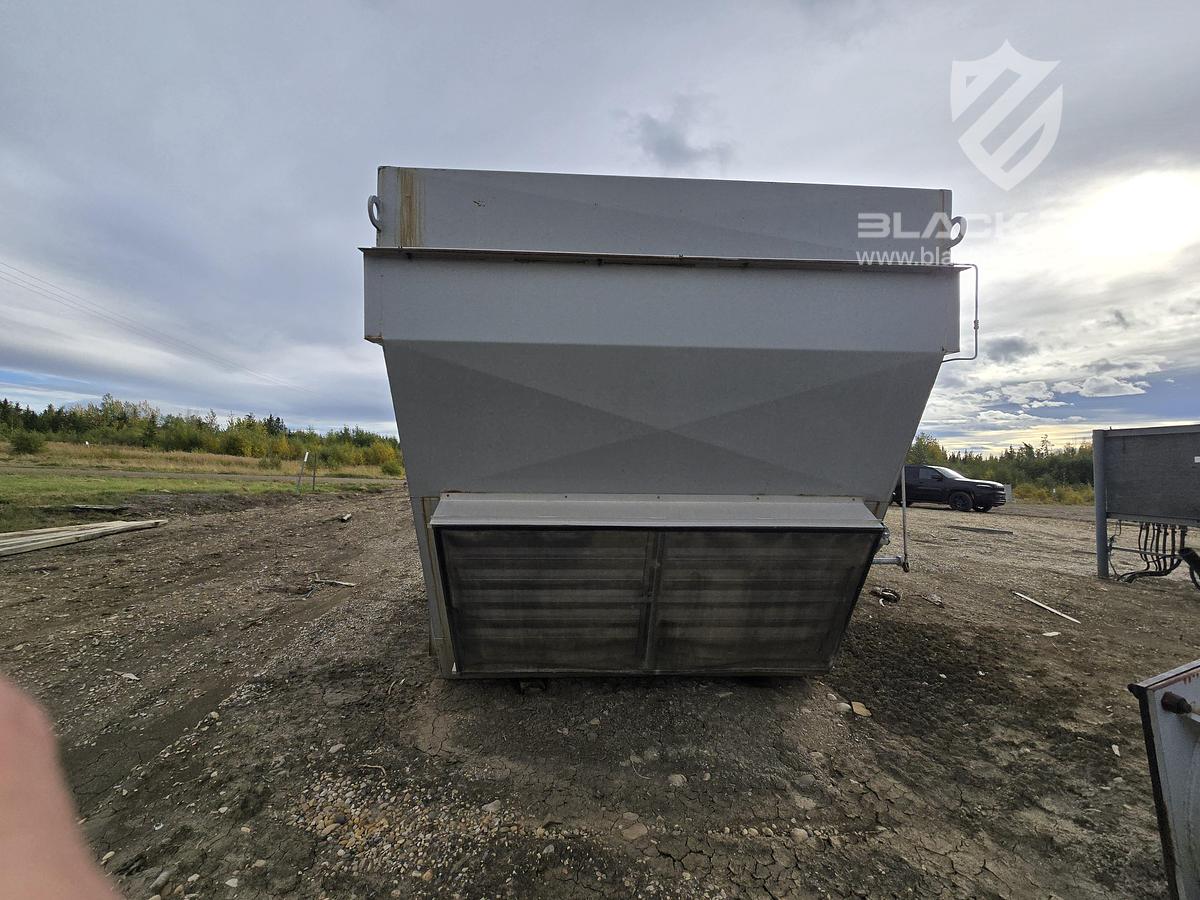

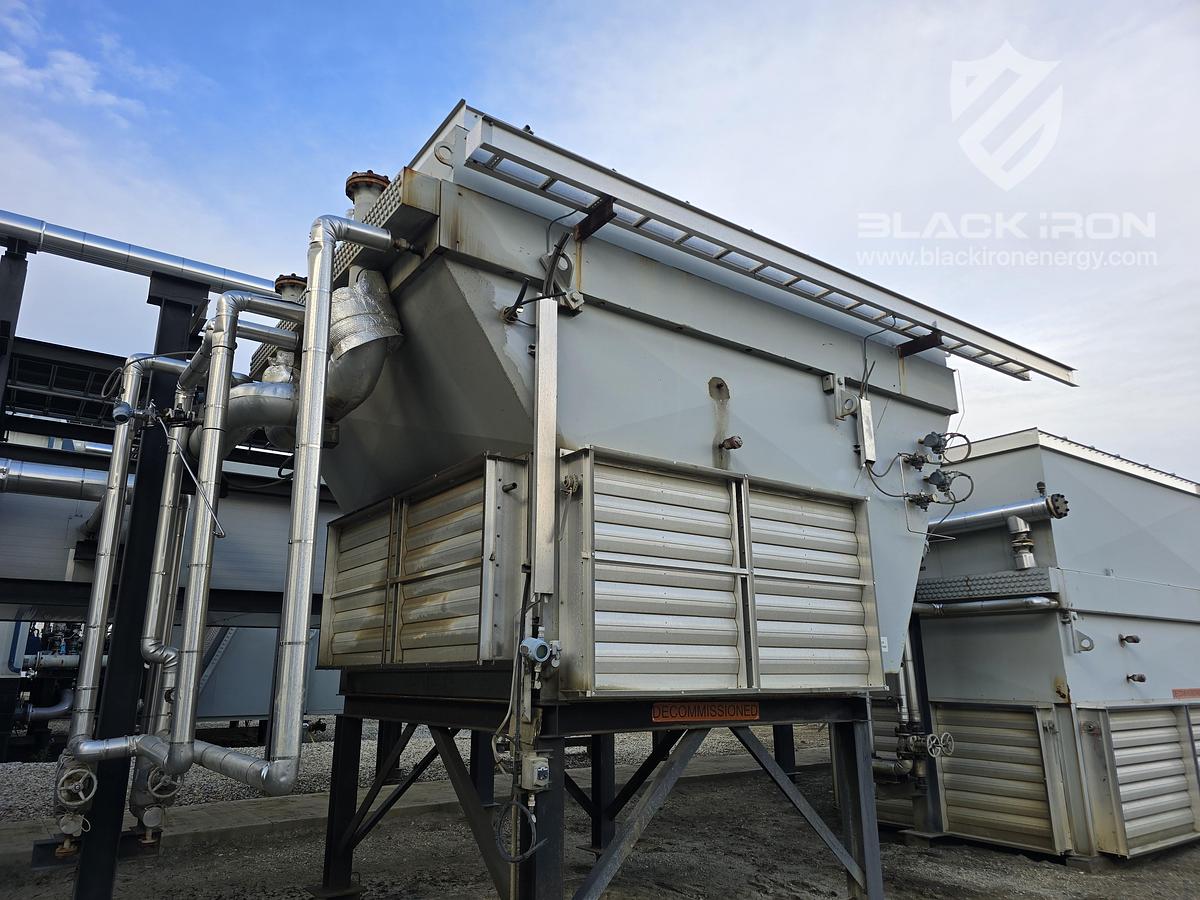

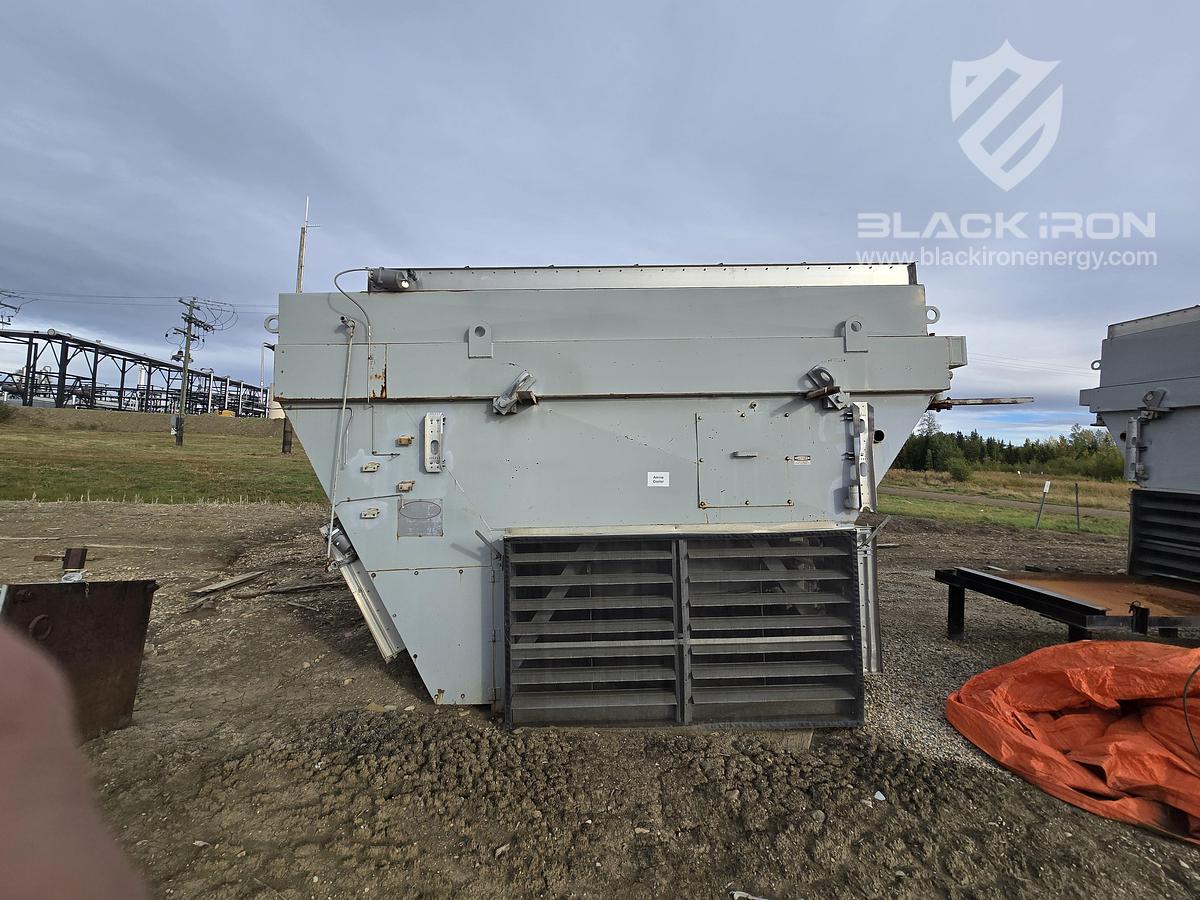

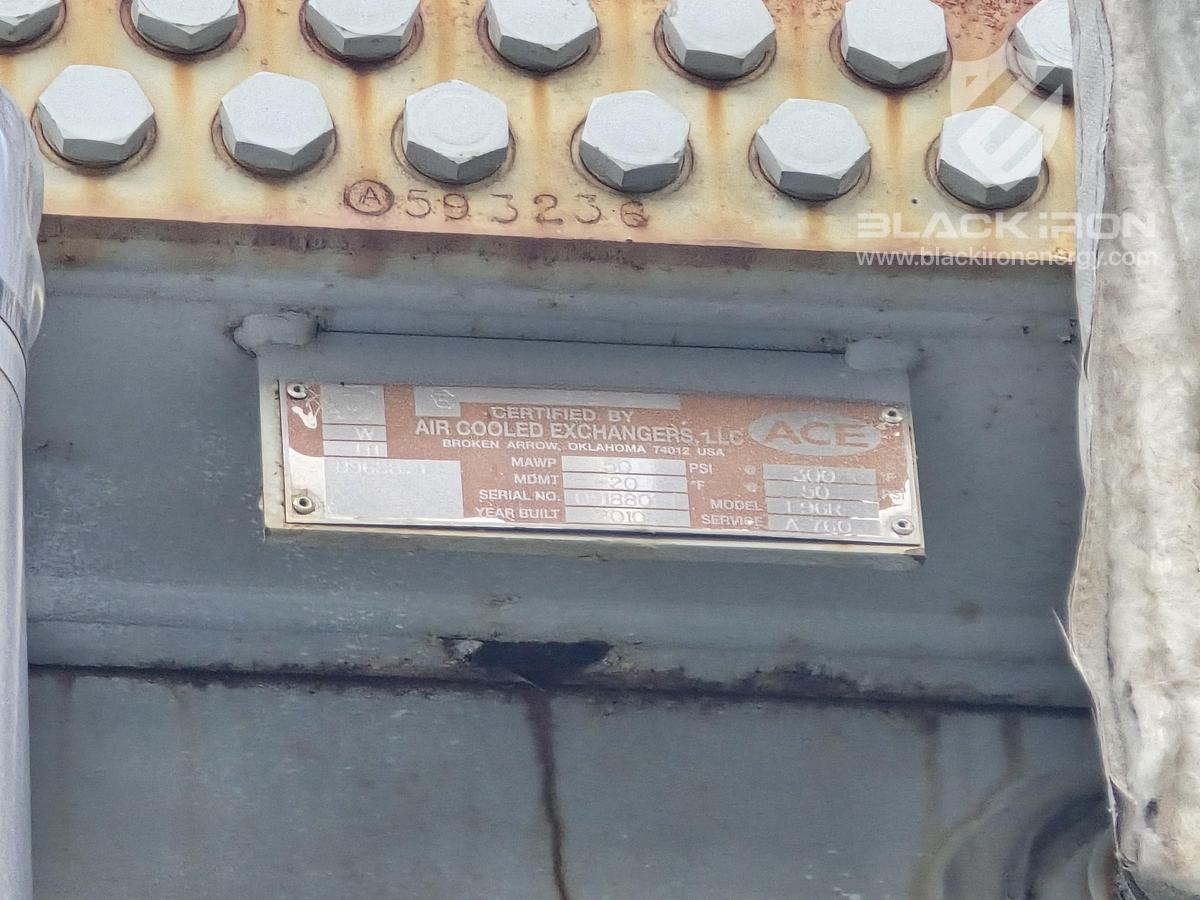

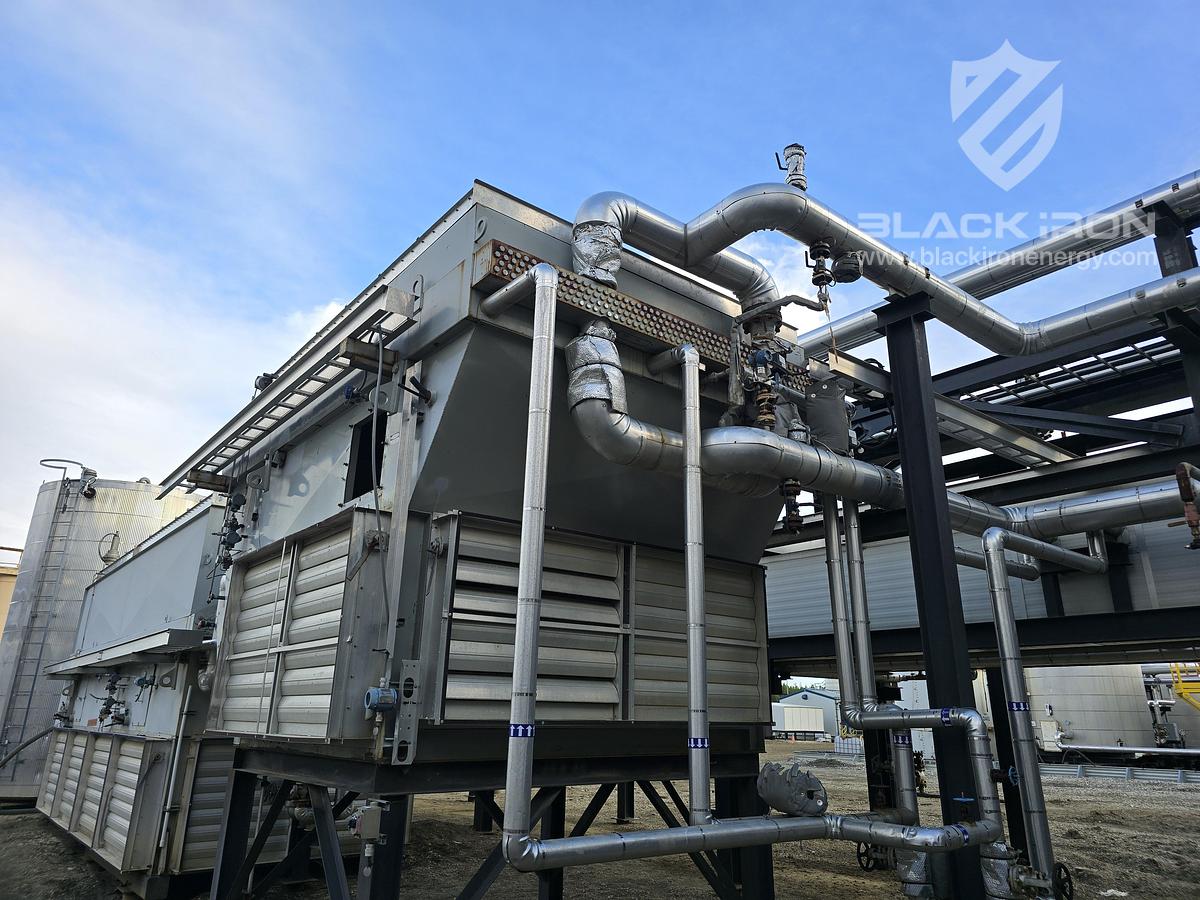

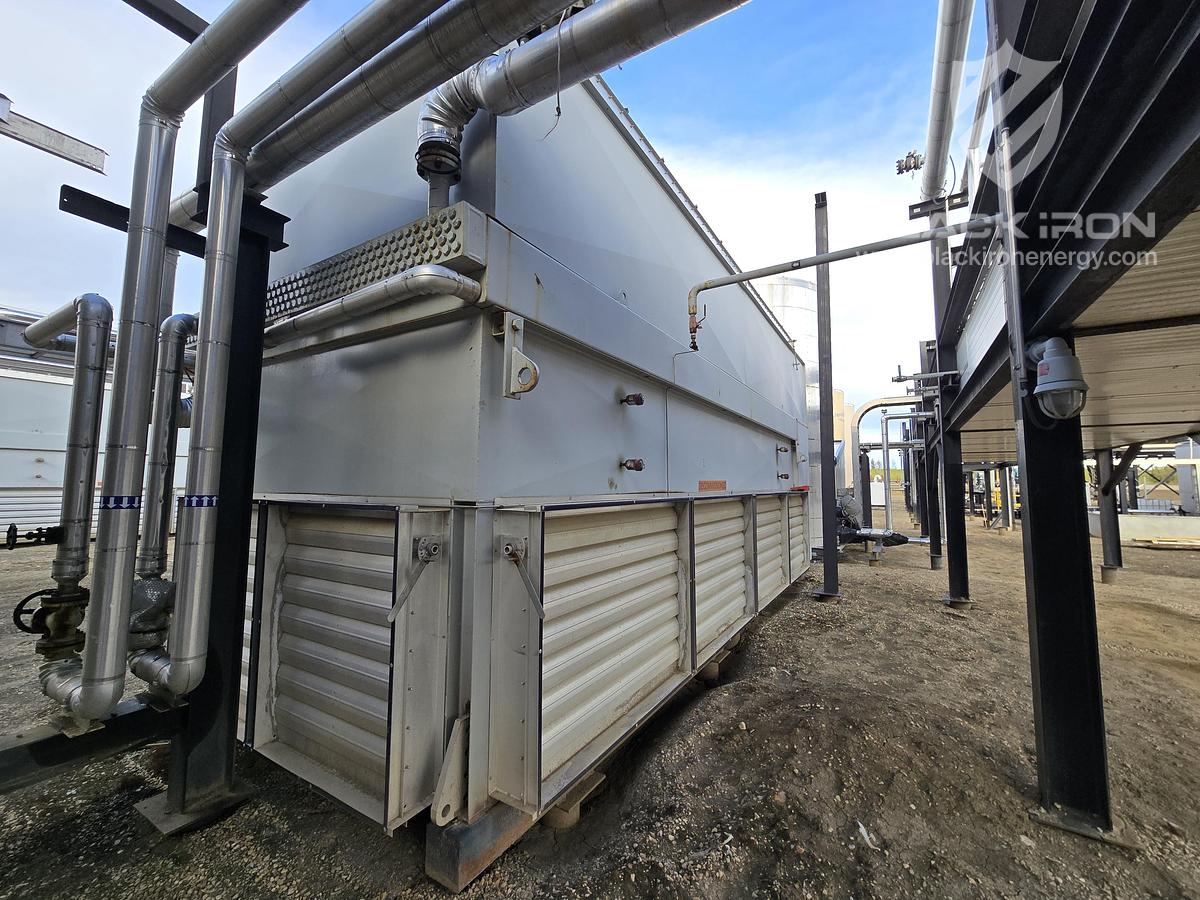

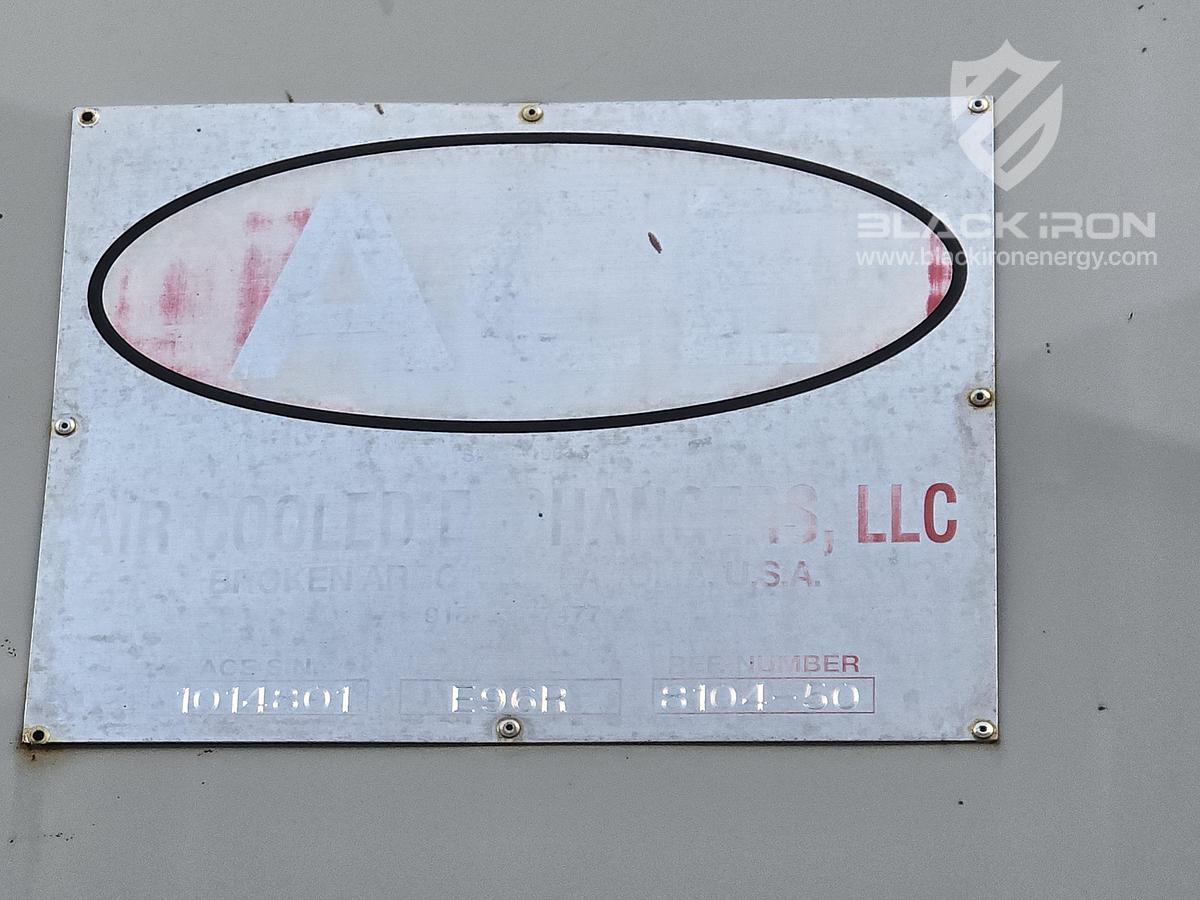

• Sweet gas after coolers (E790/791)

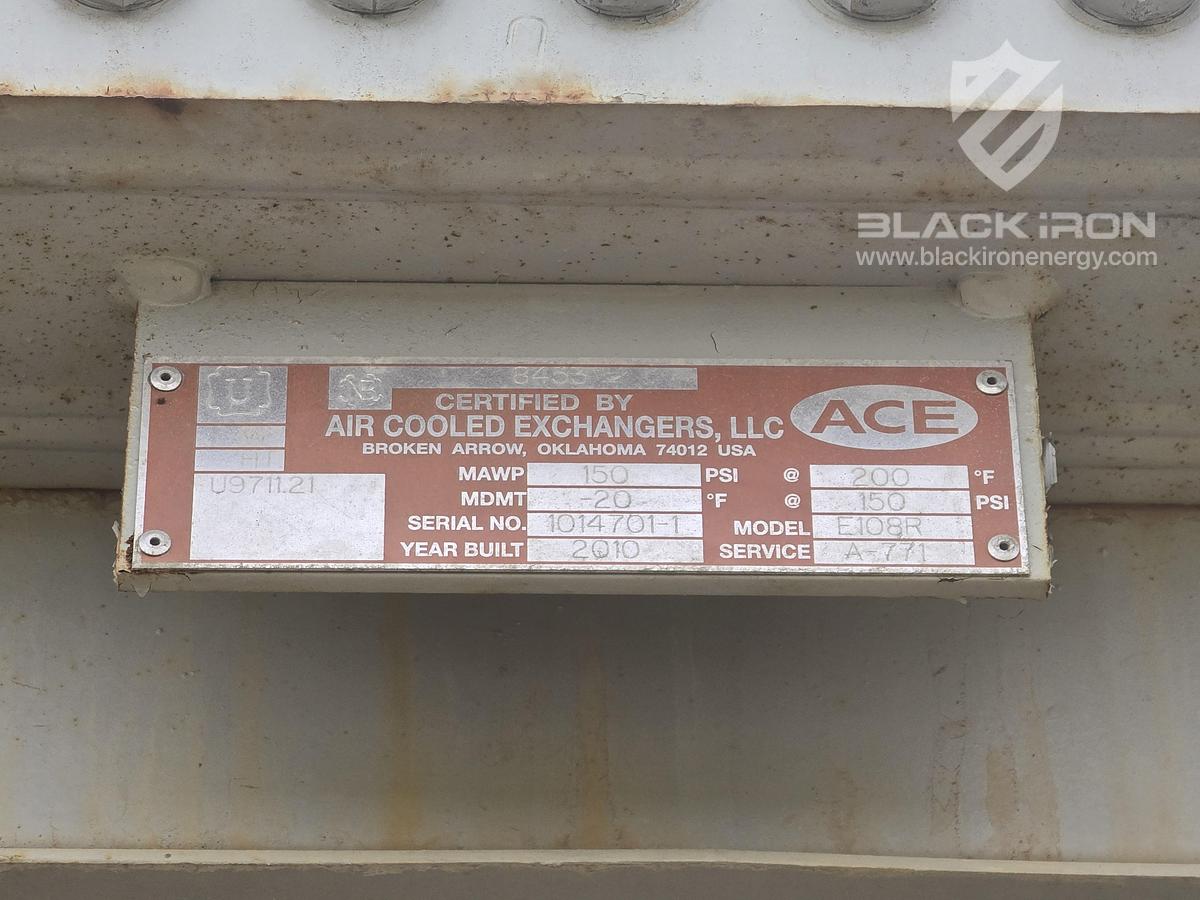

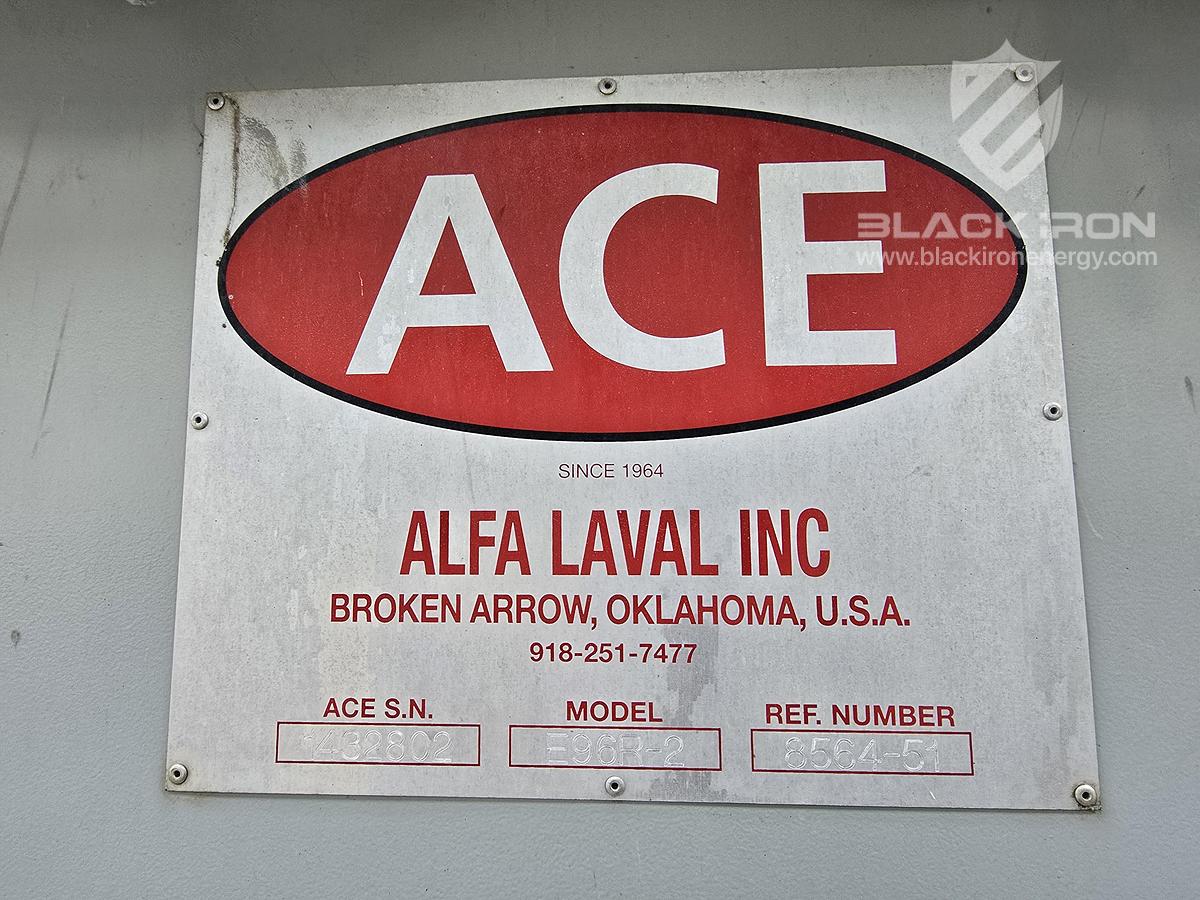

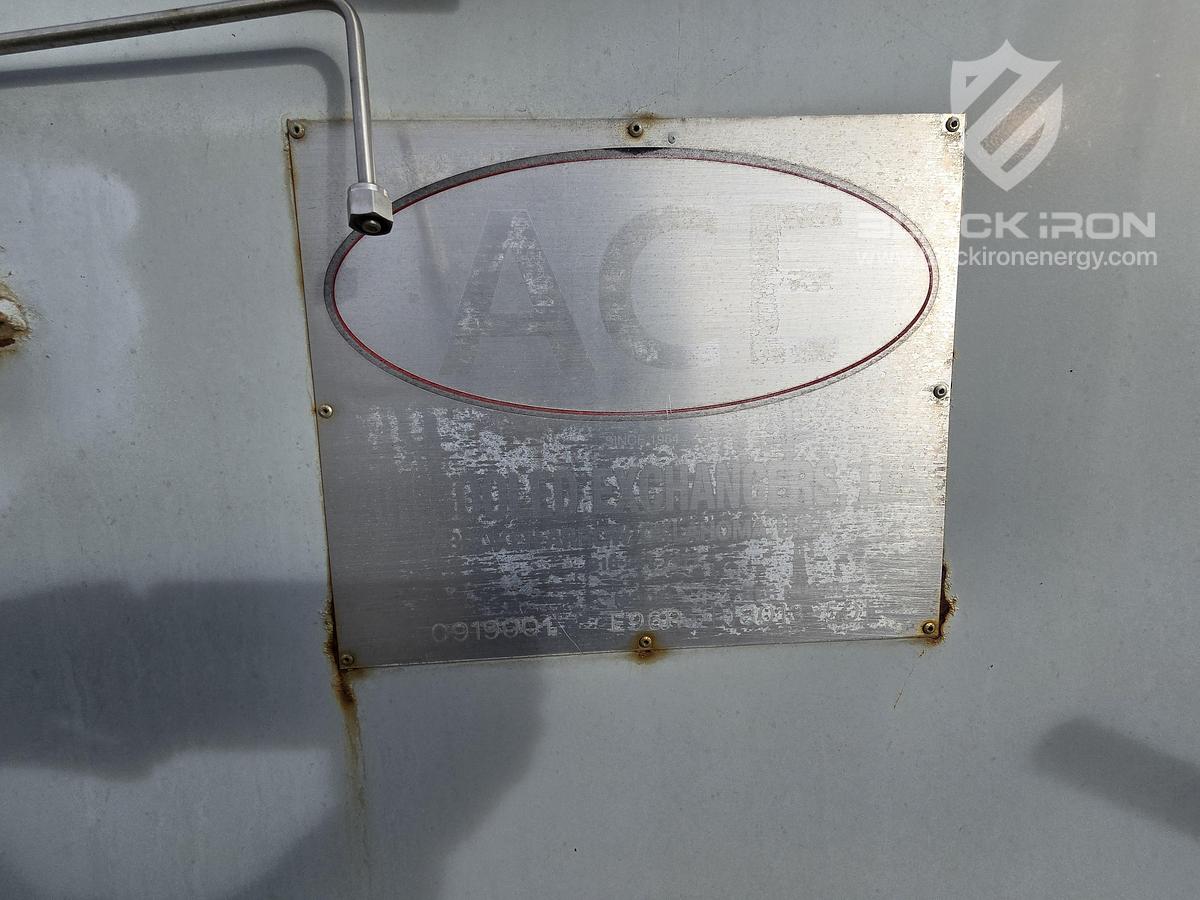

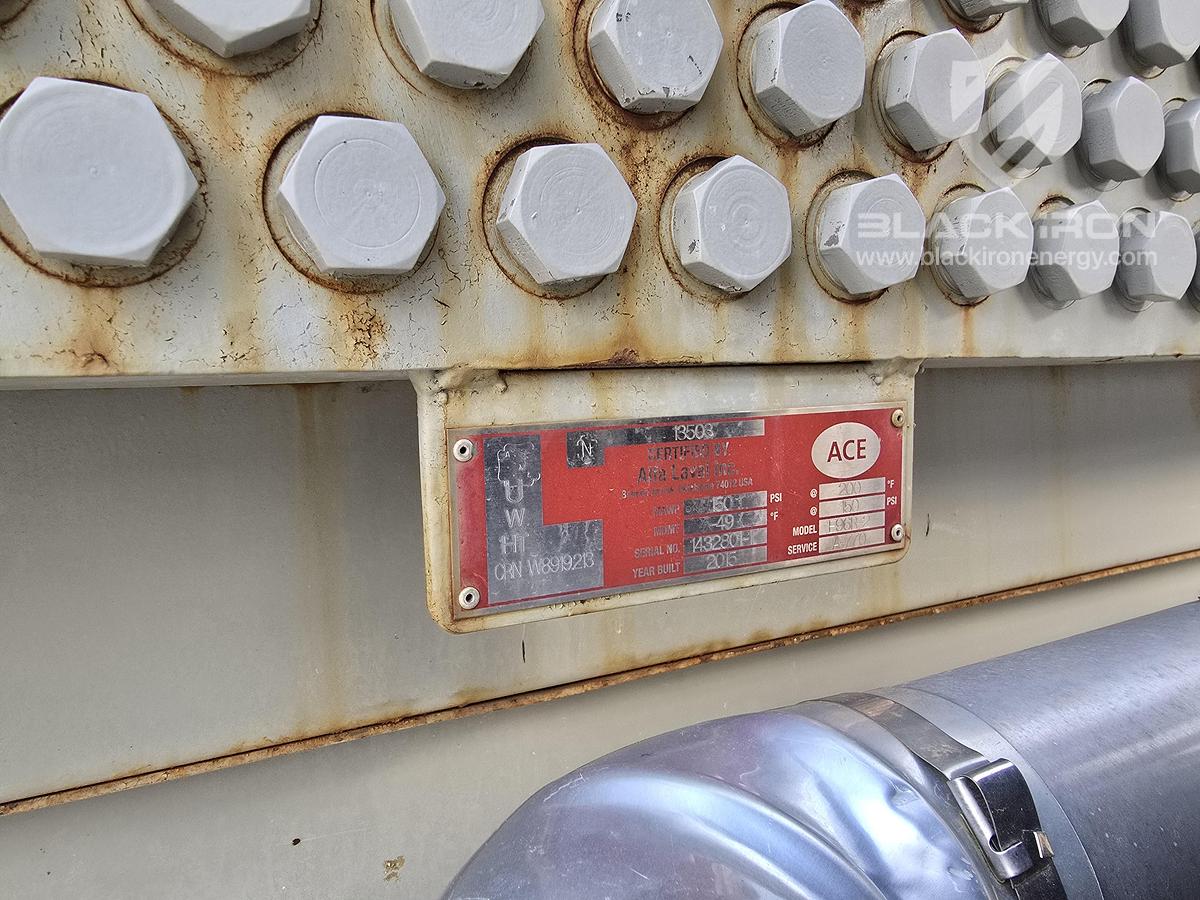

• ACE model E108-2-22
• 5516 kPag
• Design Duty 584 KW
• Sweet gas after cooler motors (EM-790A/B/791A/B)
• 18.65 KW @ 1800 RPM
• VFD
• 460 VAC
• 60Hz
• 3 Phase

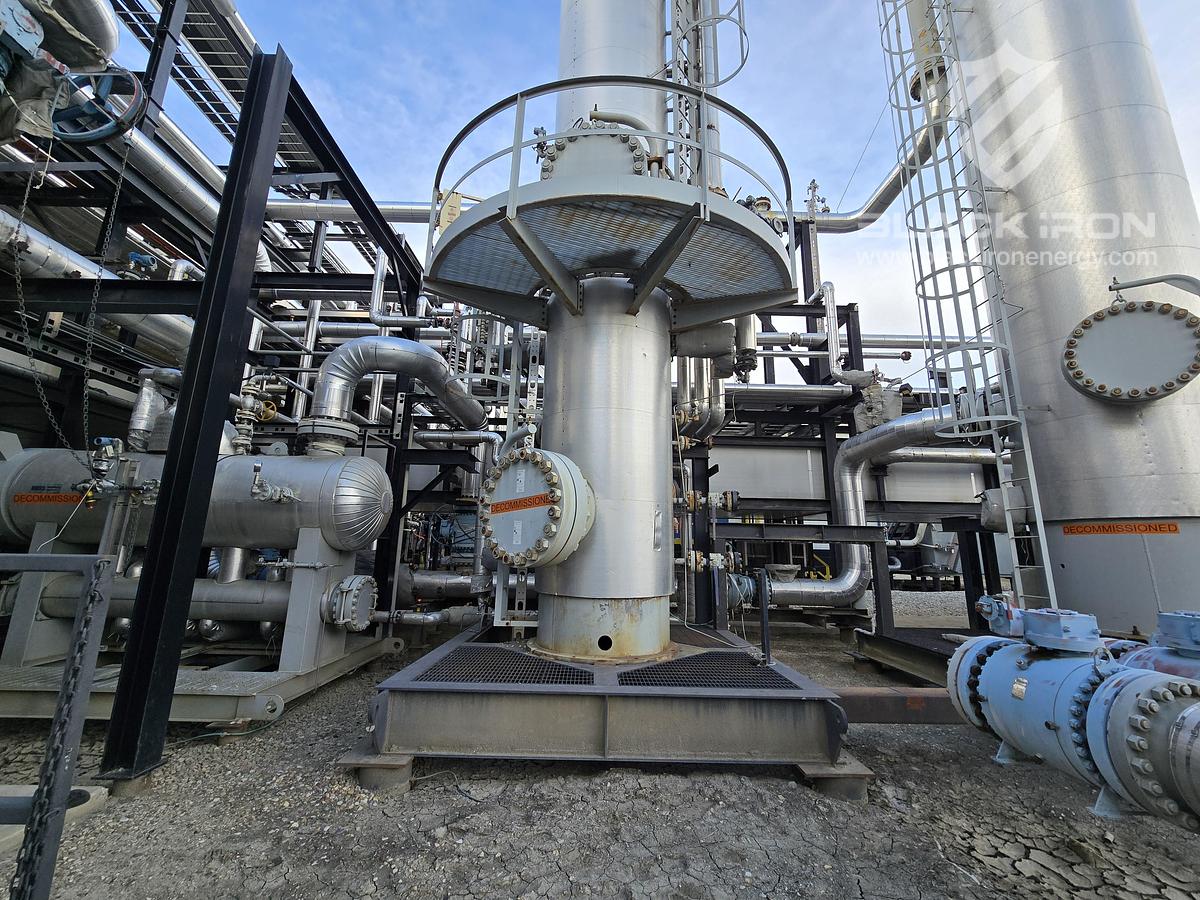

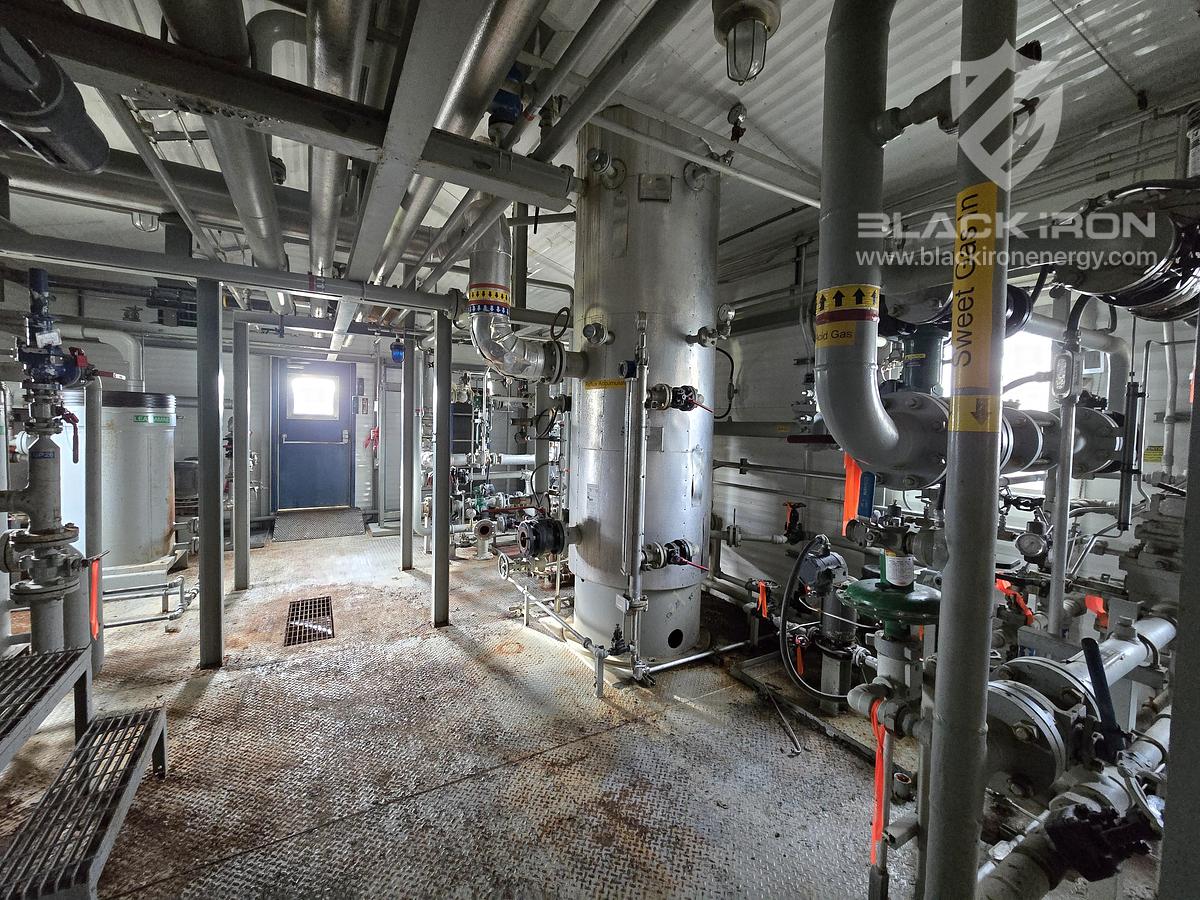

• Sweet gas after scrubber X2 (V-440/V-441)
• MAWP 5516 @ -45*
• Sour service
• 66"

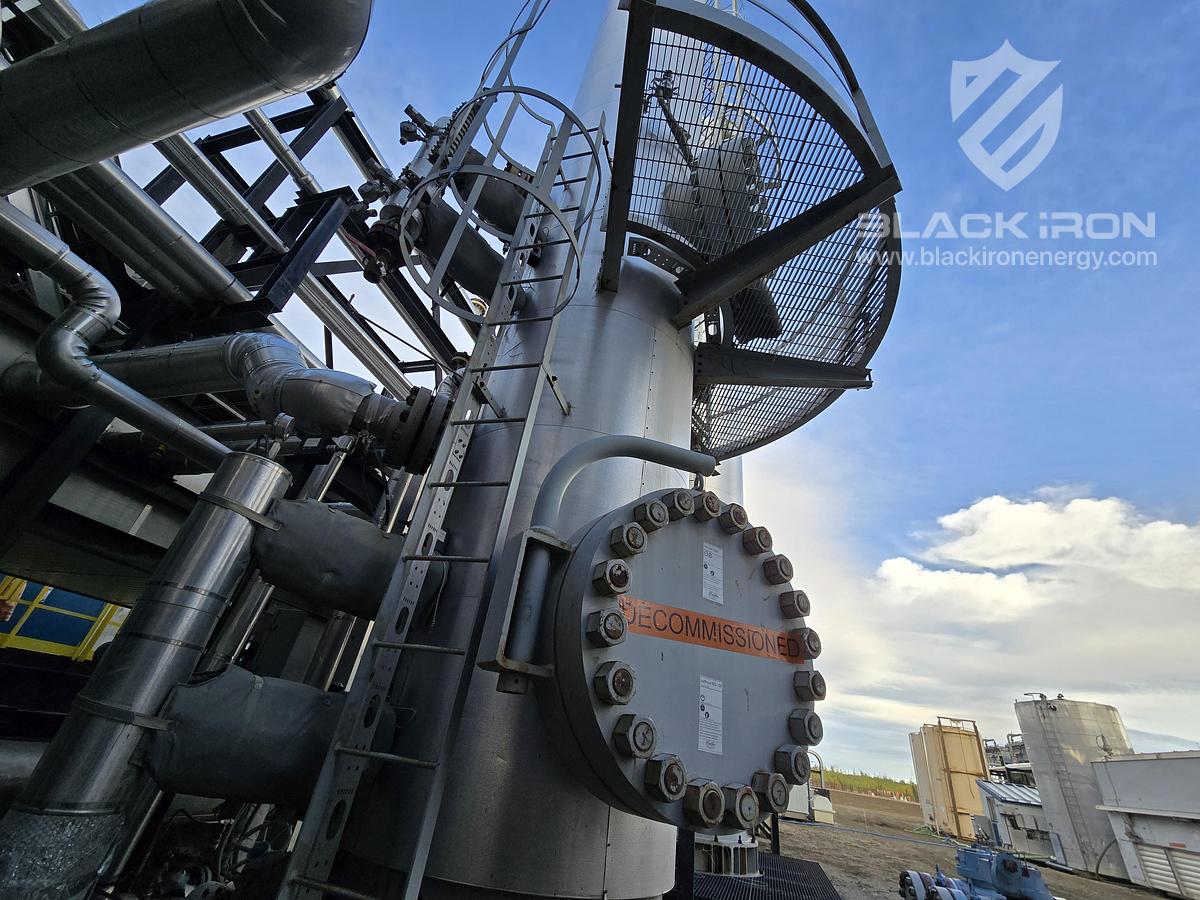

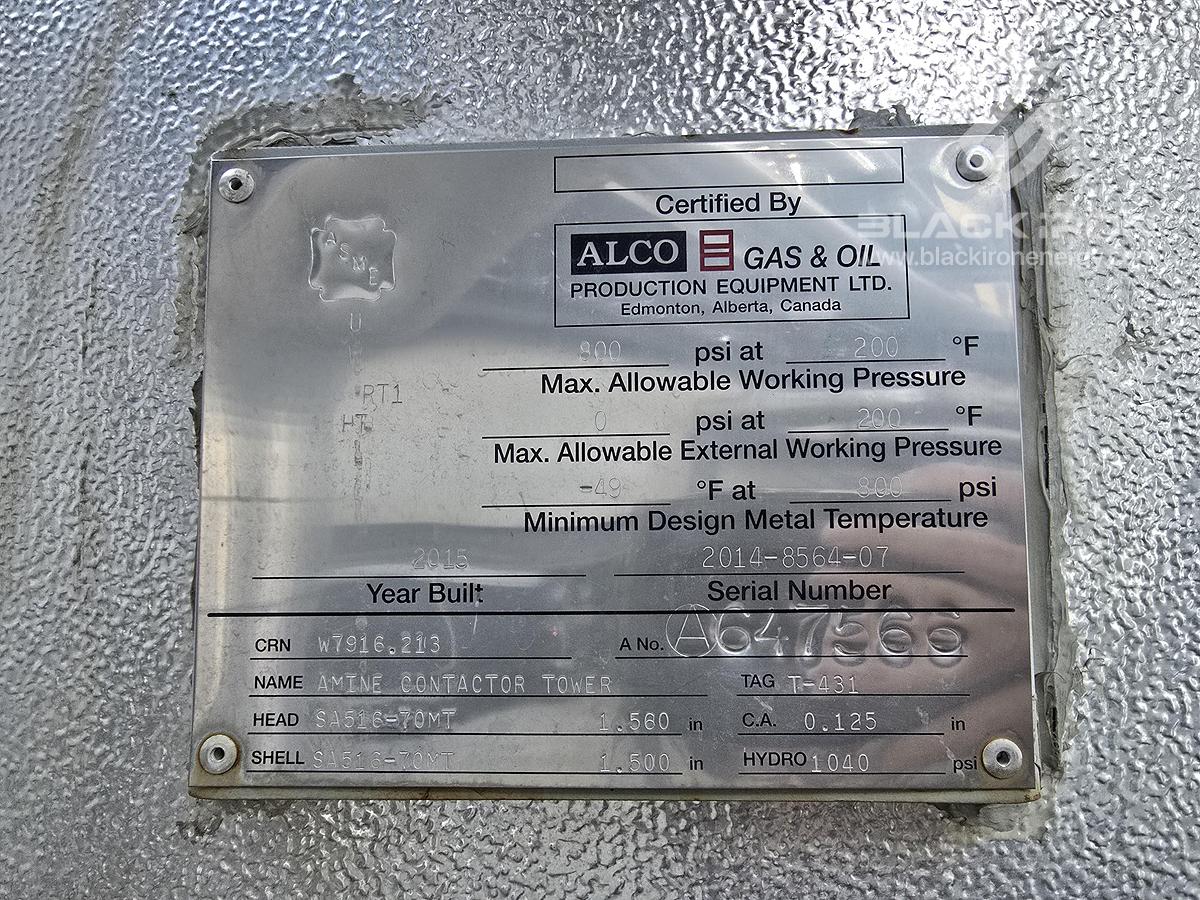

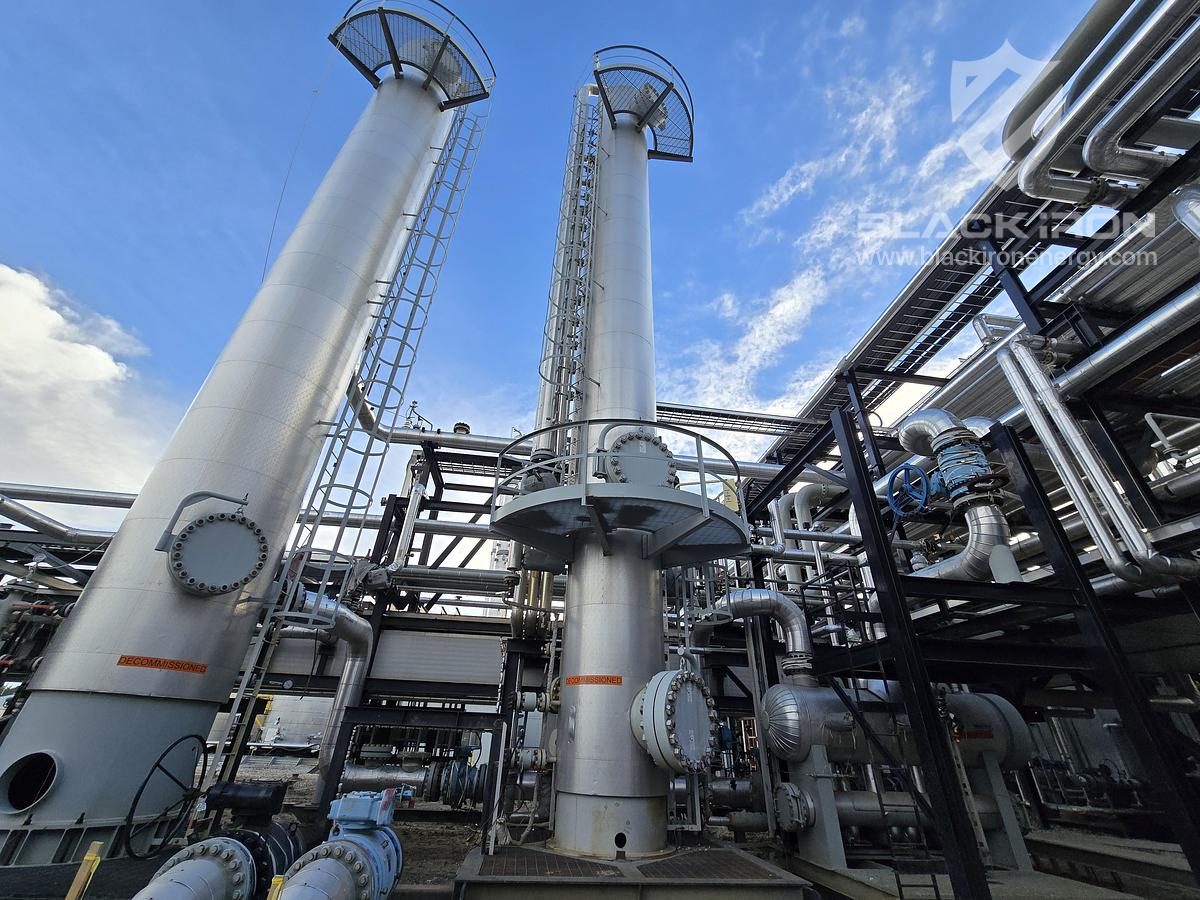

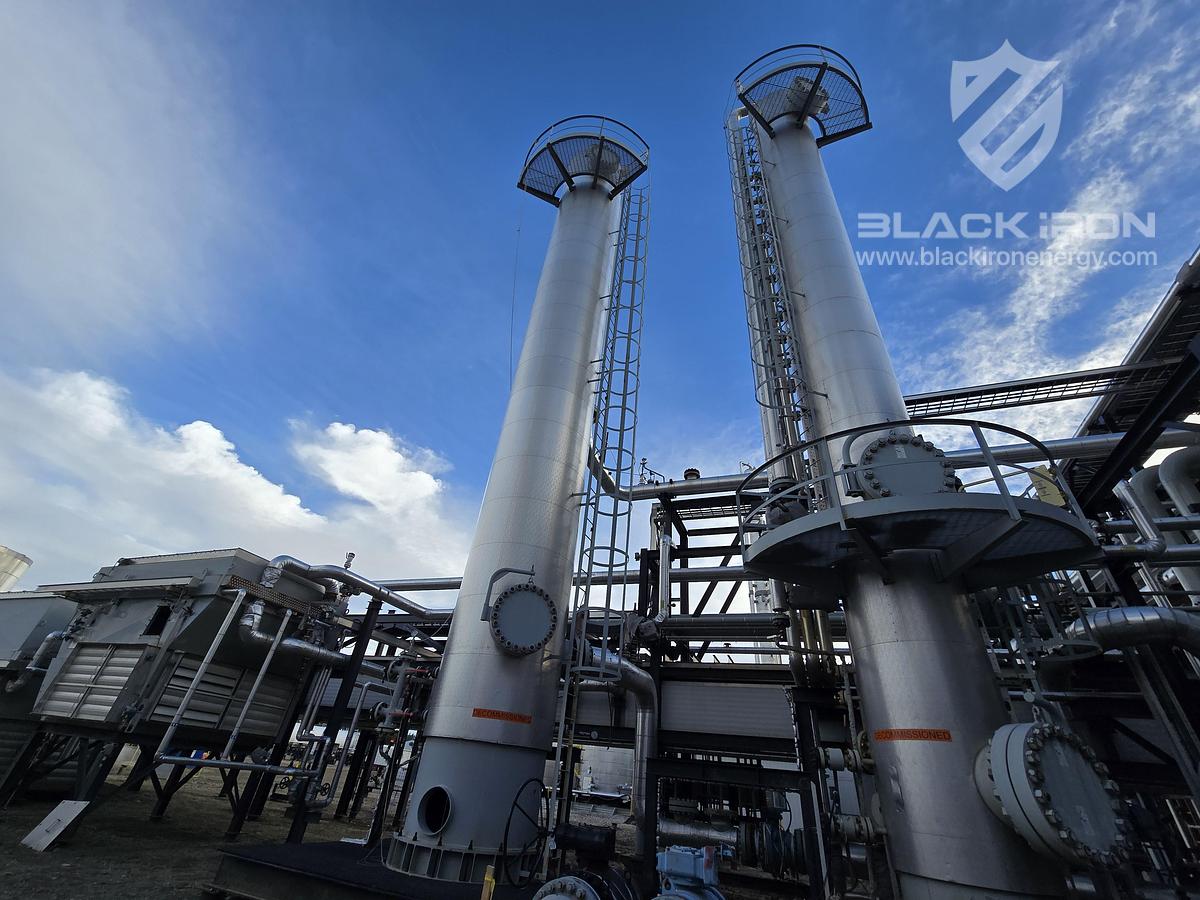

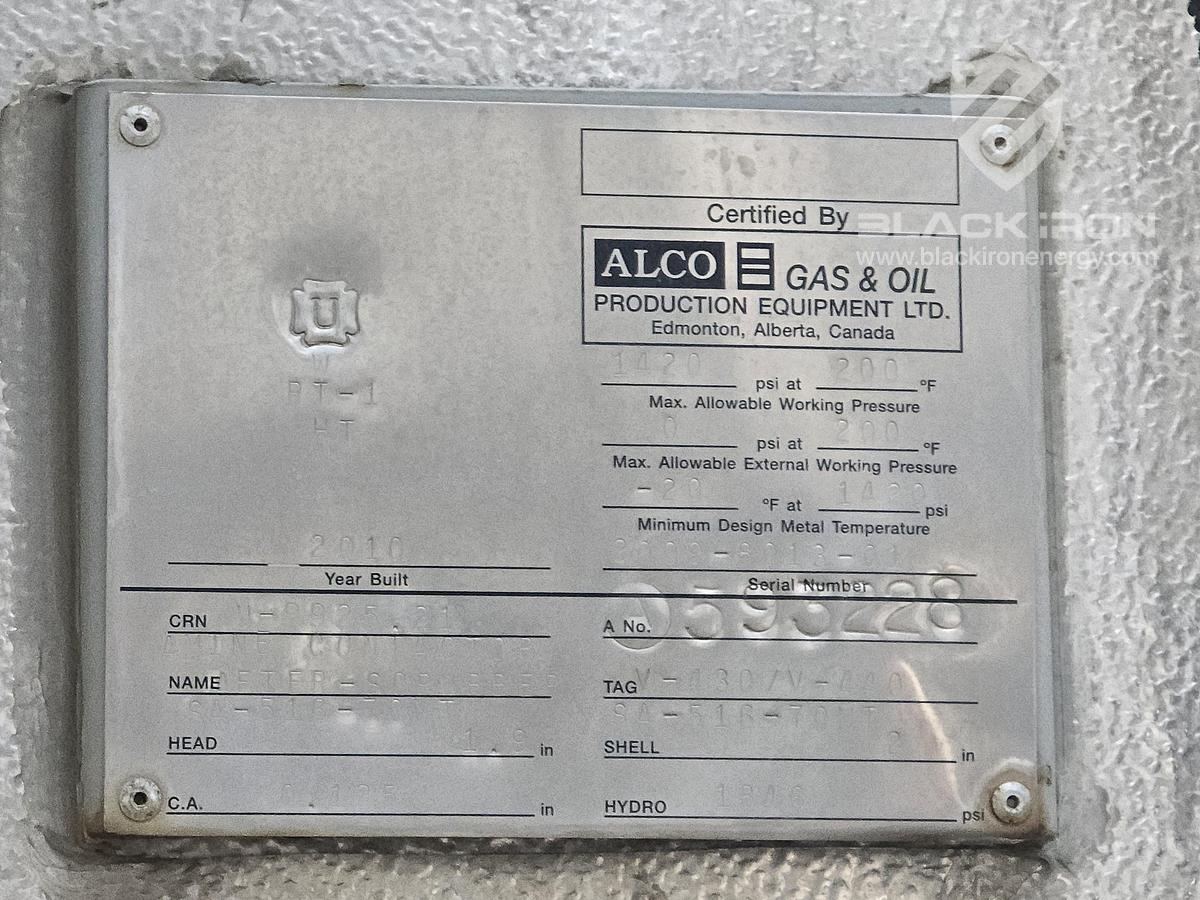

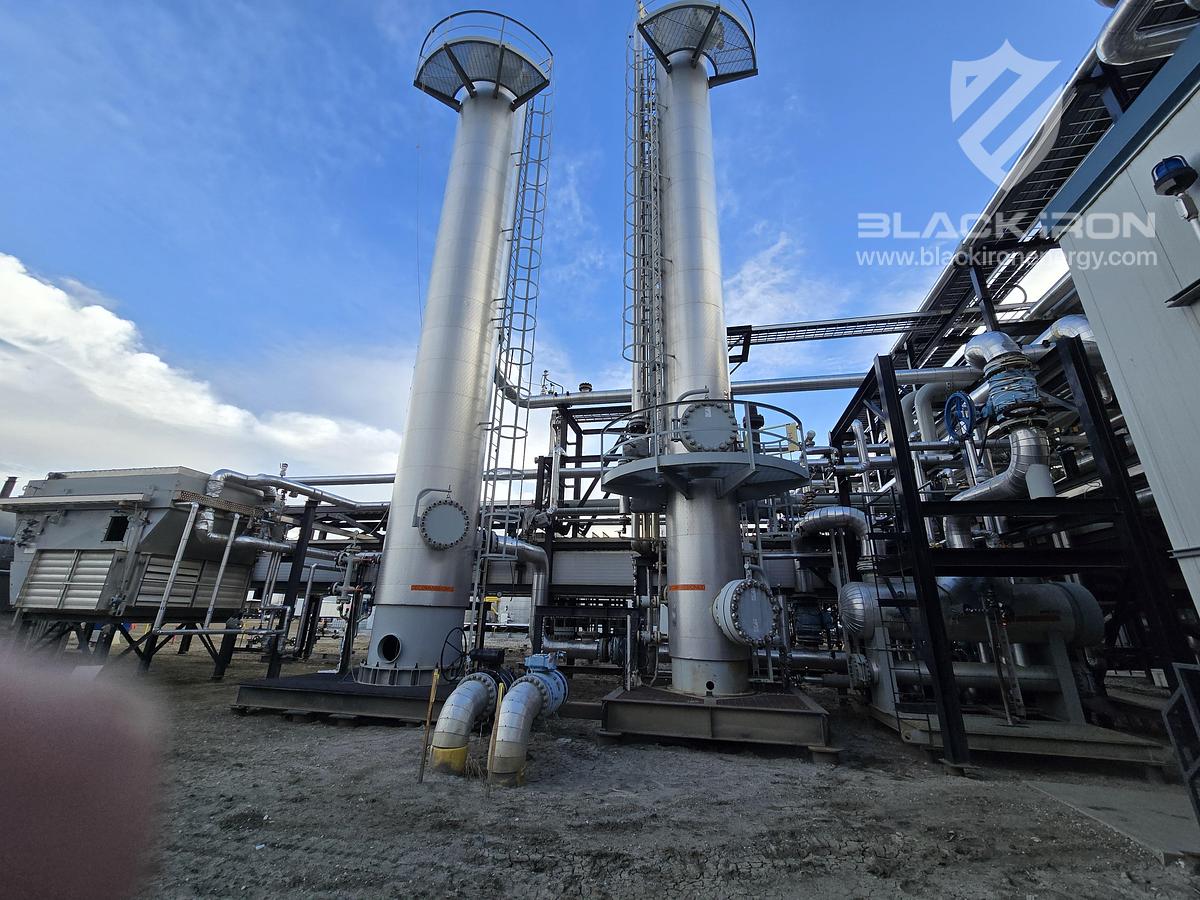

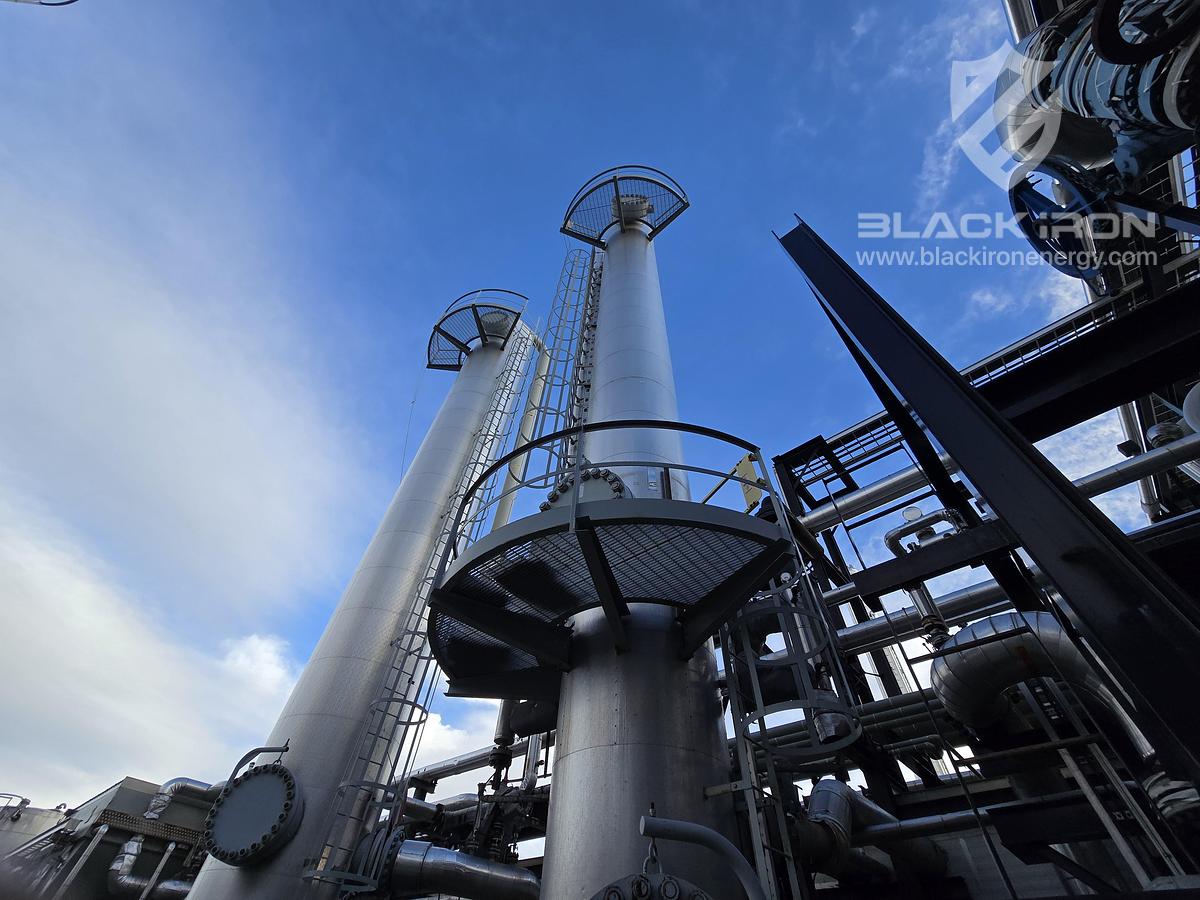

• Amine contactor (V-430)
• sour service
• 5516 kPag
• Single Phase W/ mistex
• 20 Valve trays
• 66"

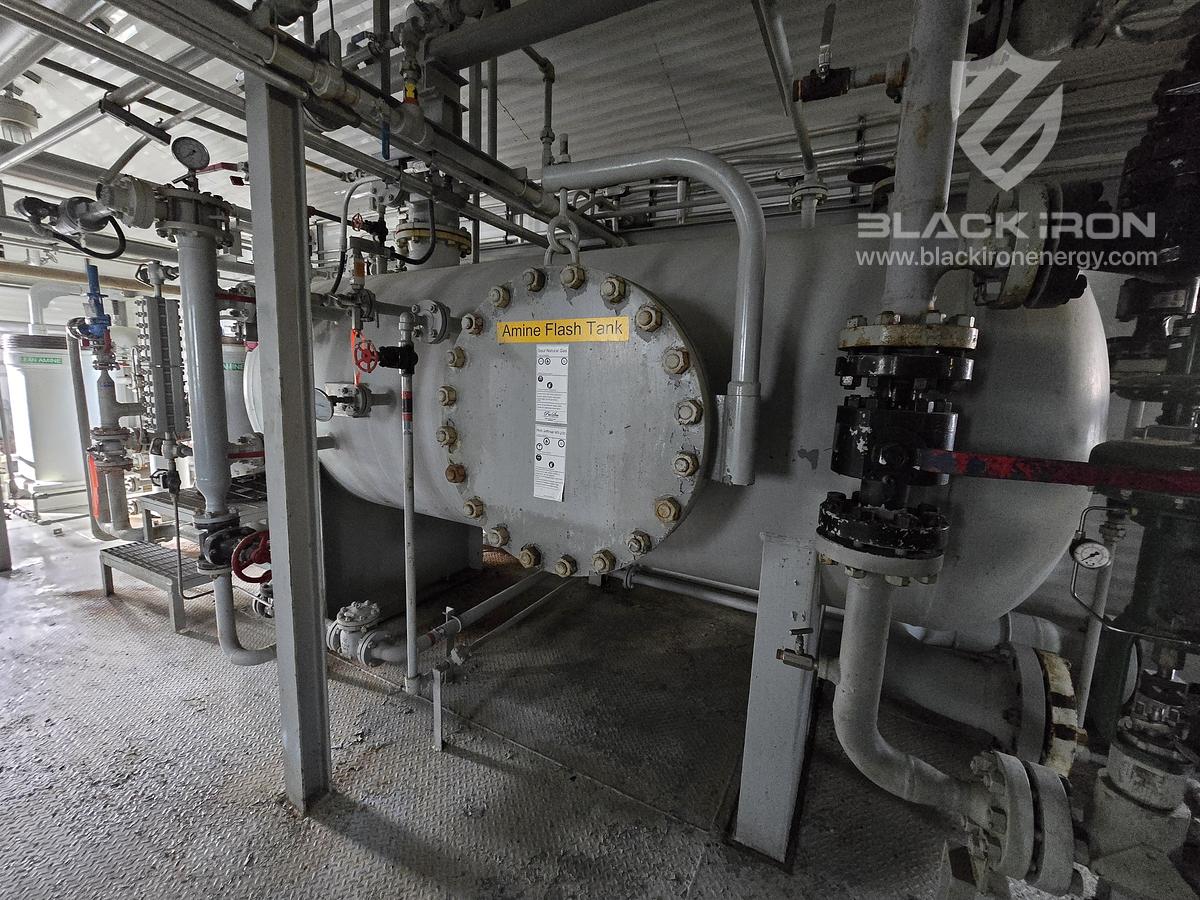

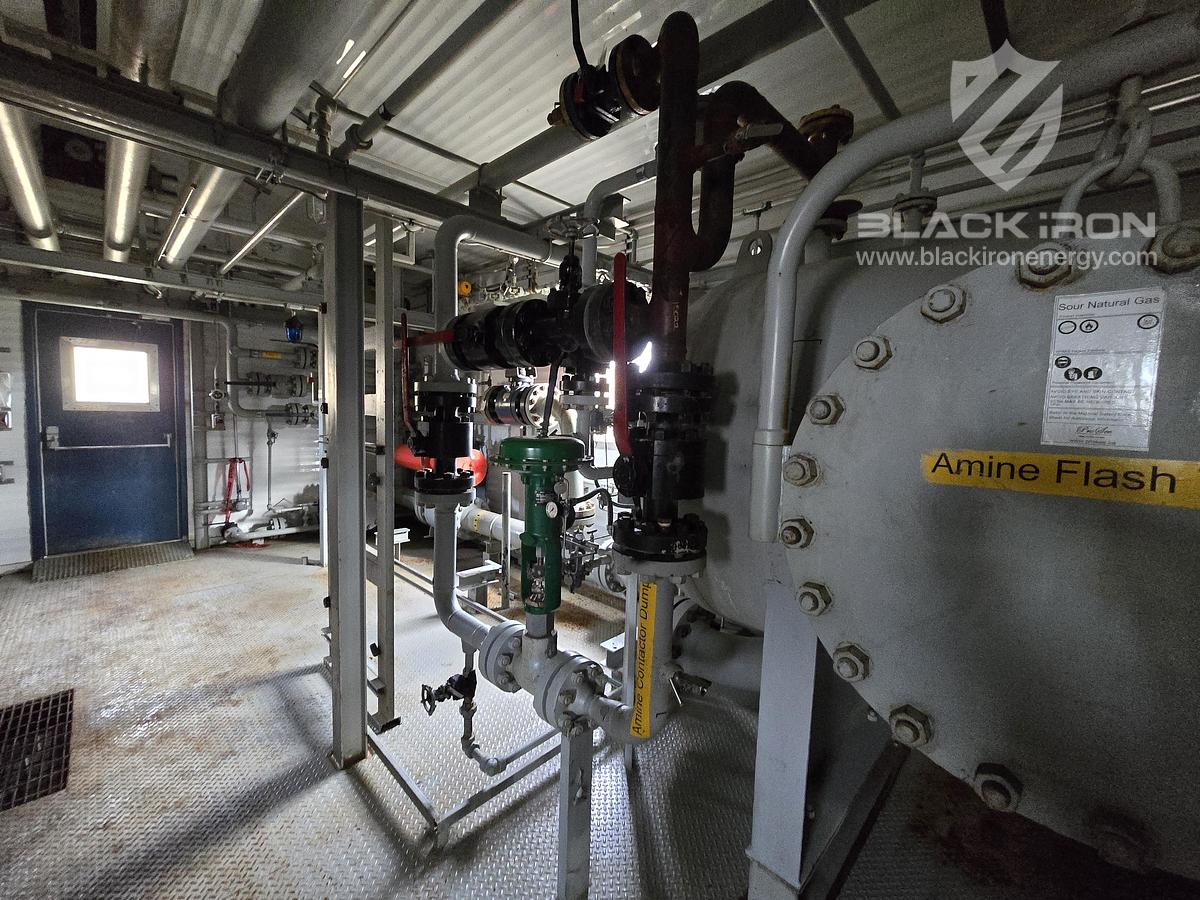

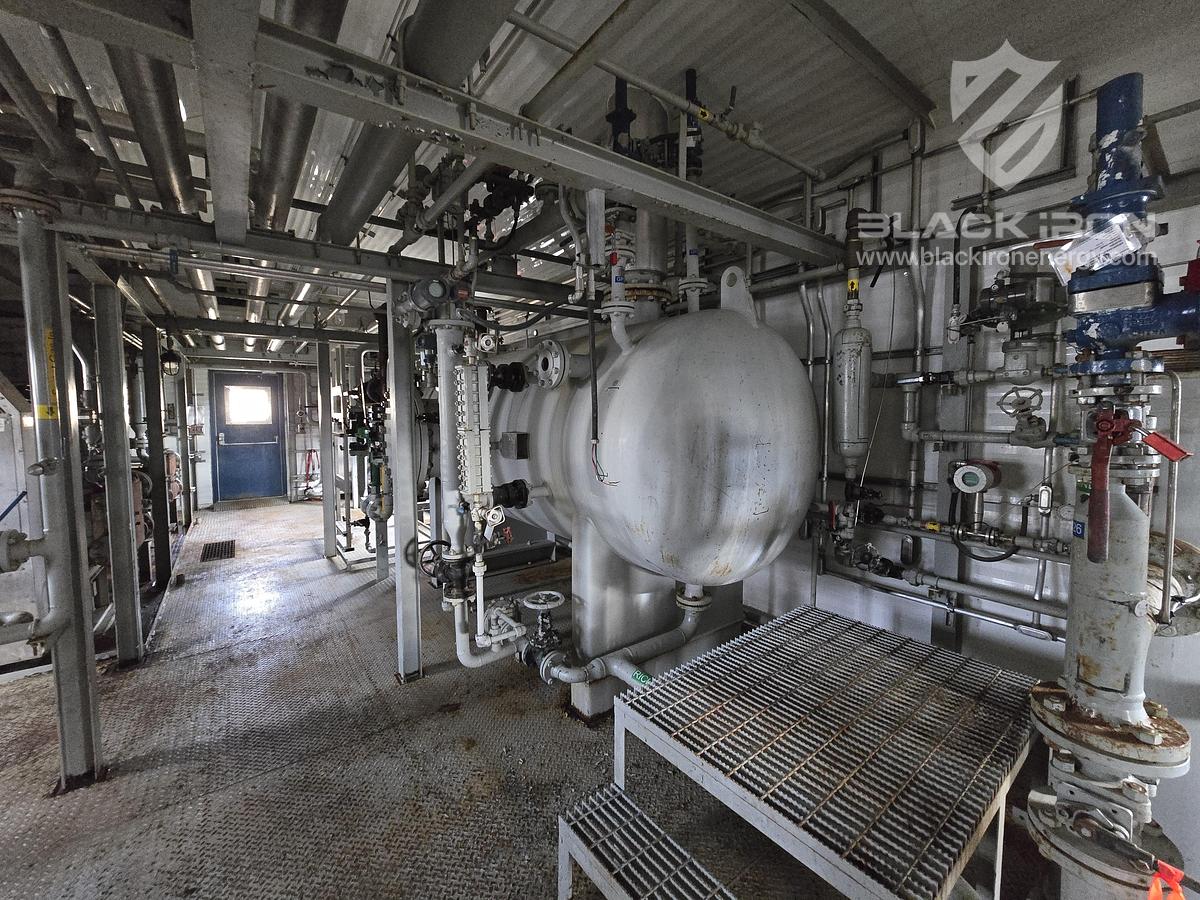

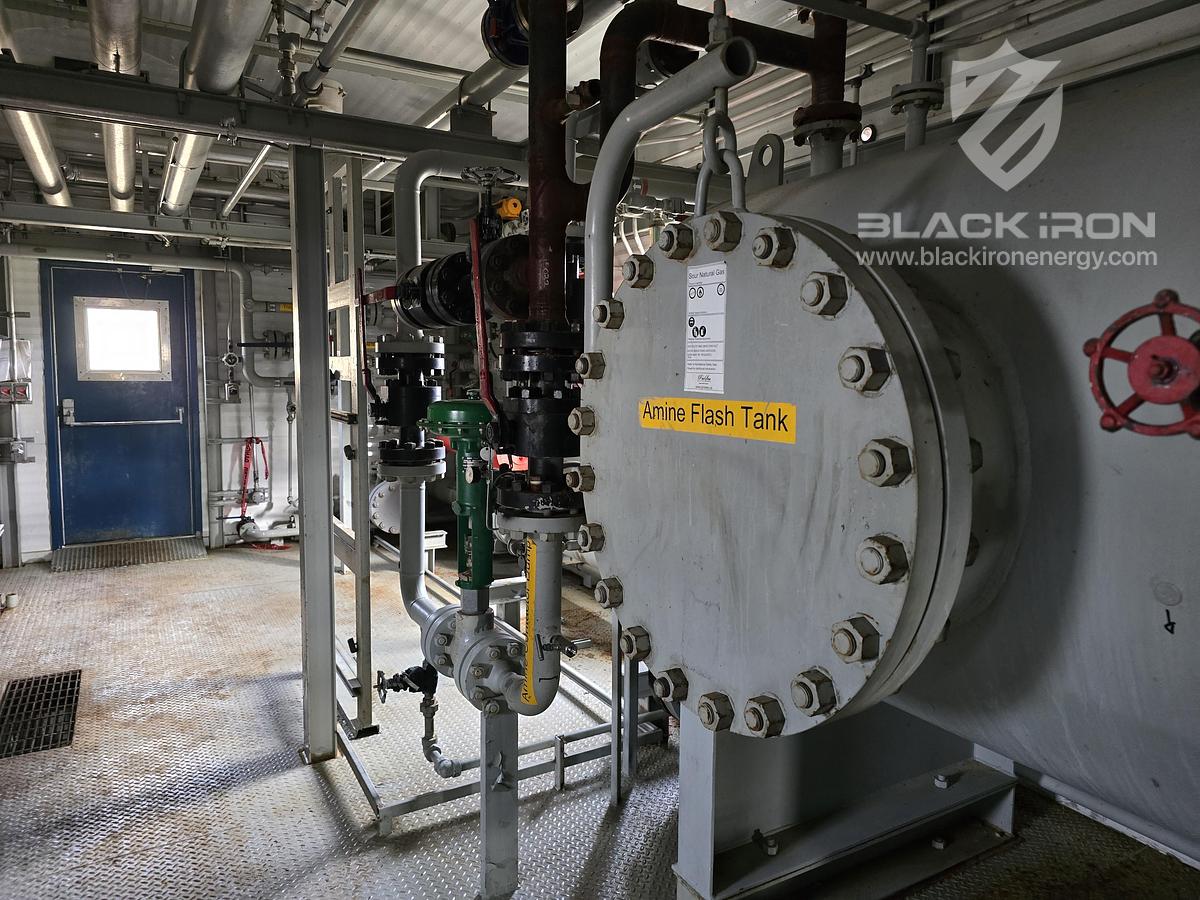

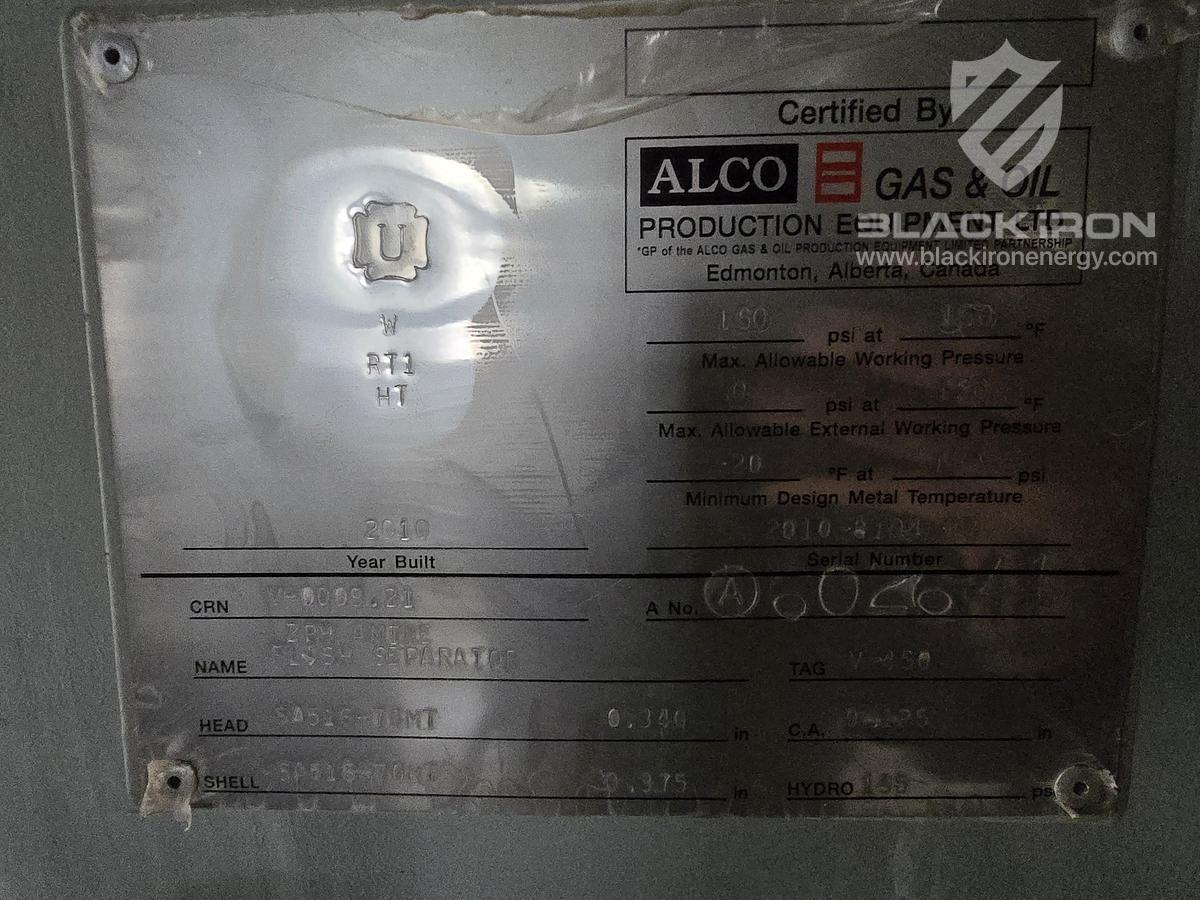

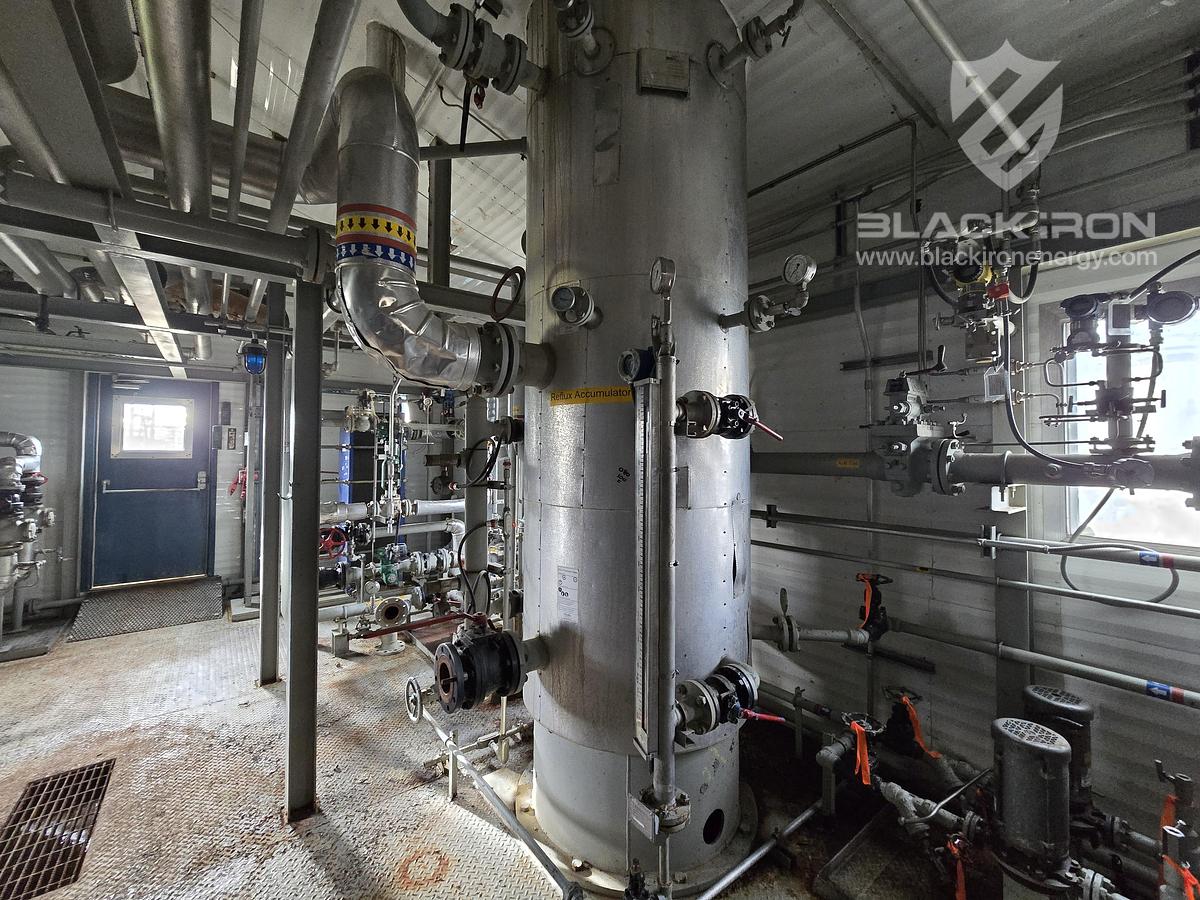

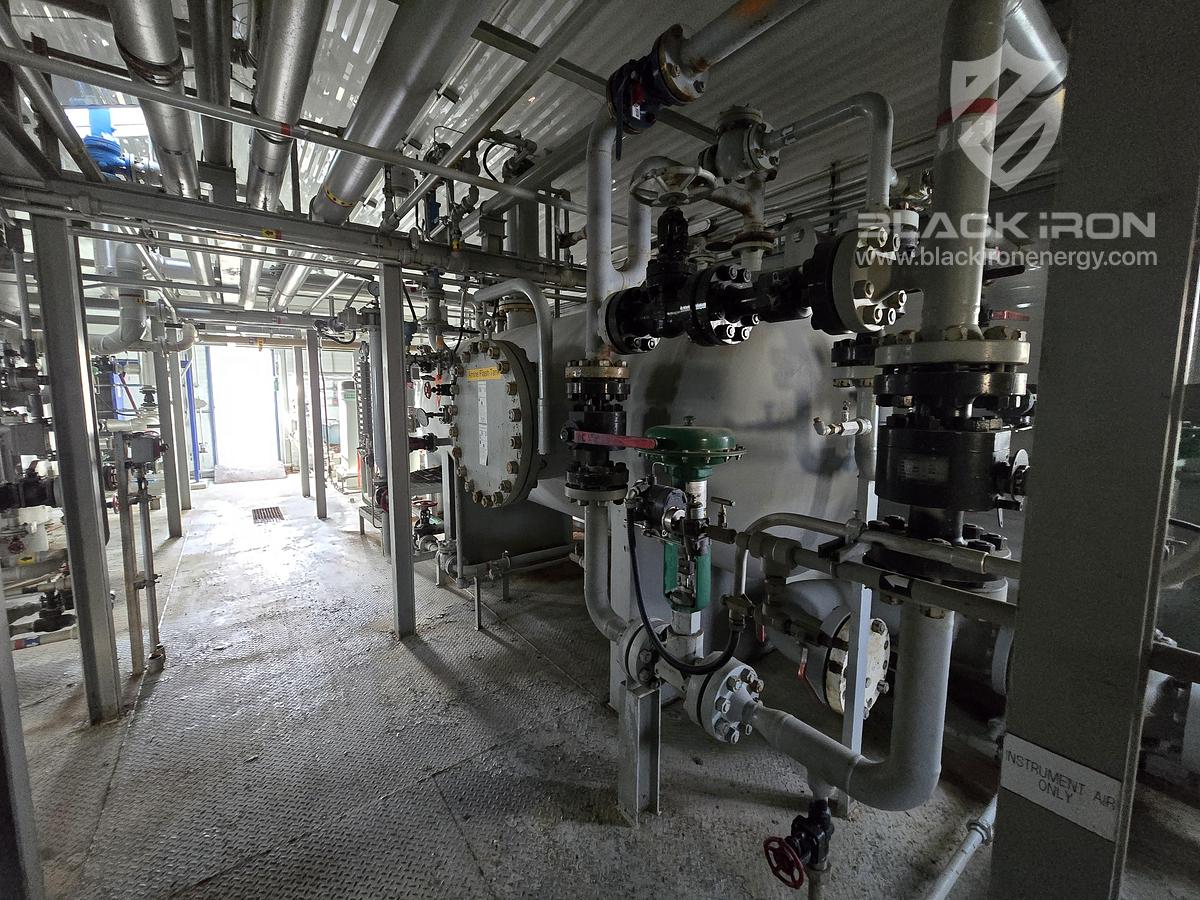

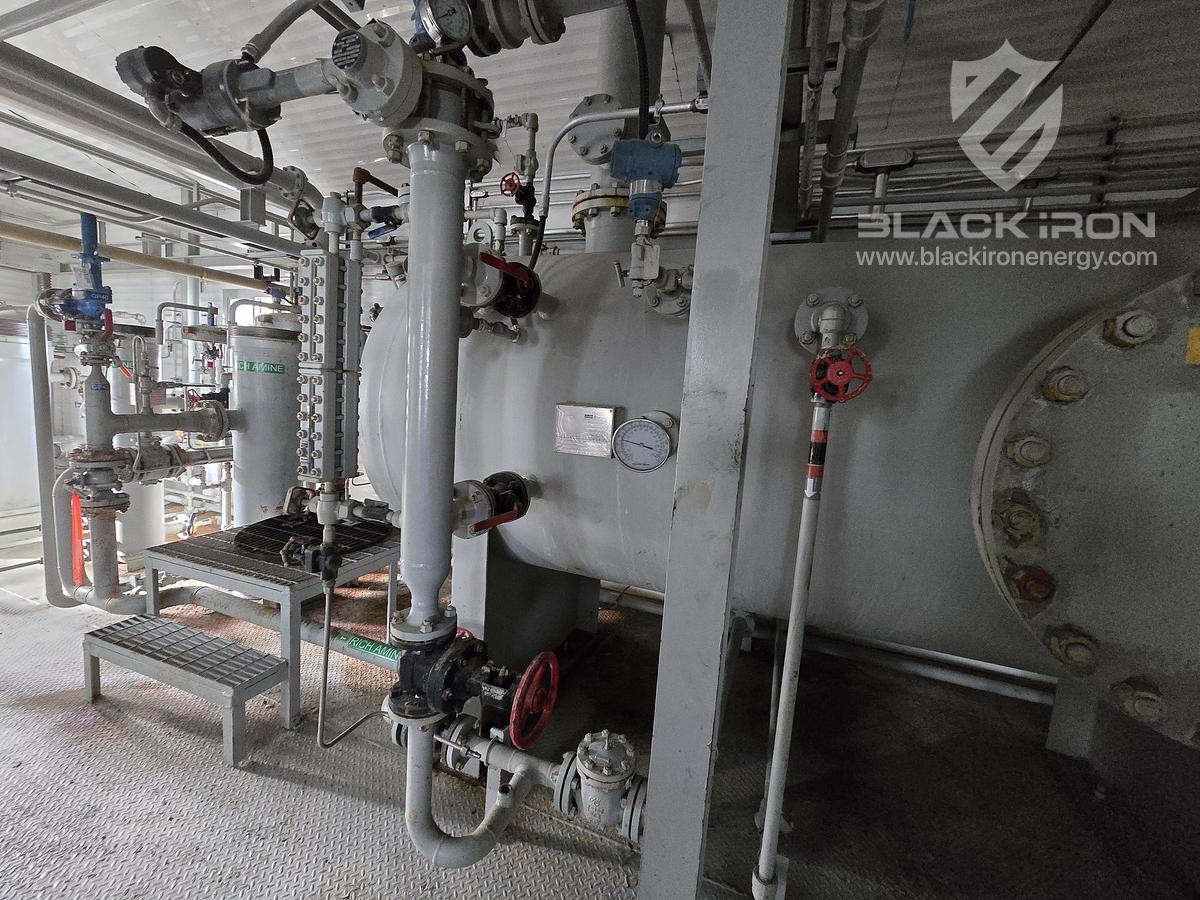

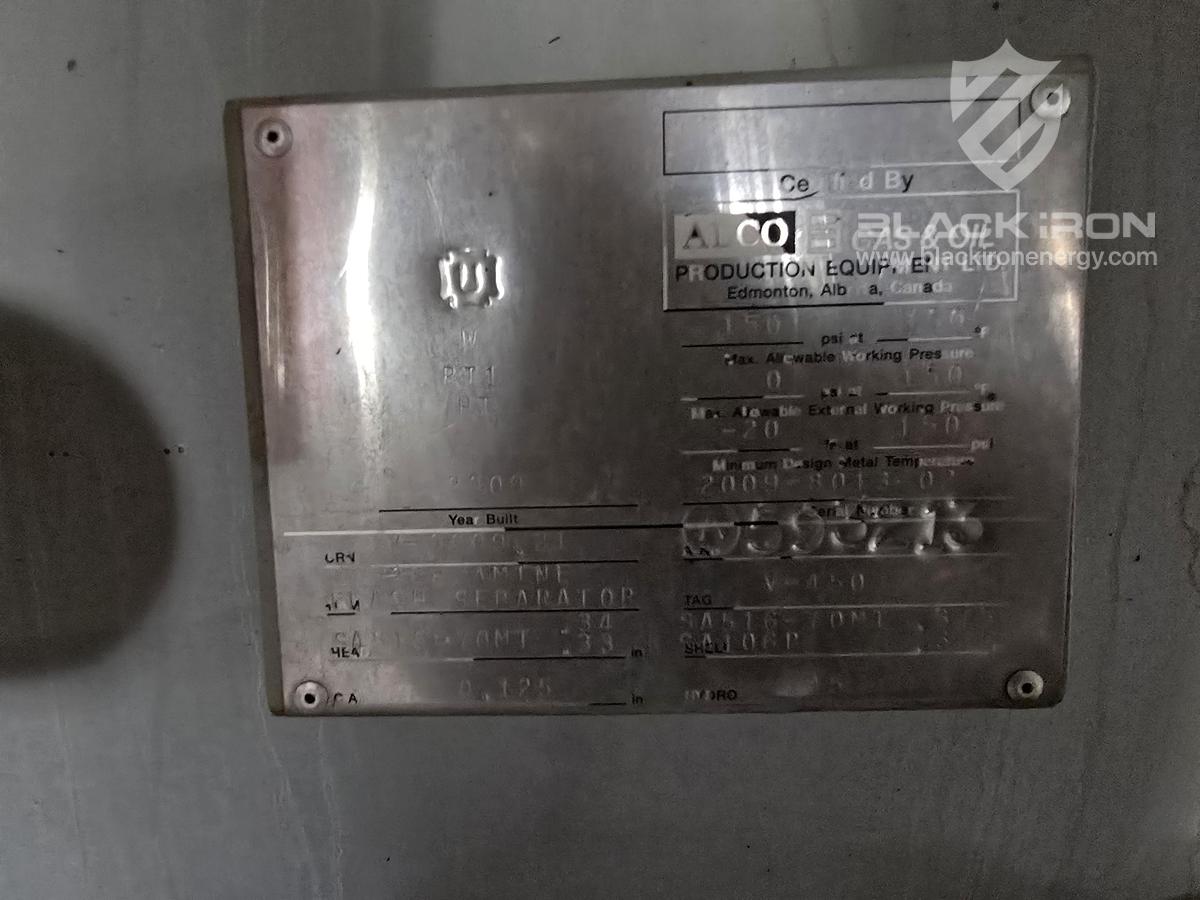

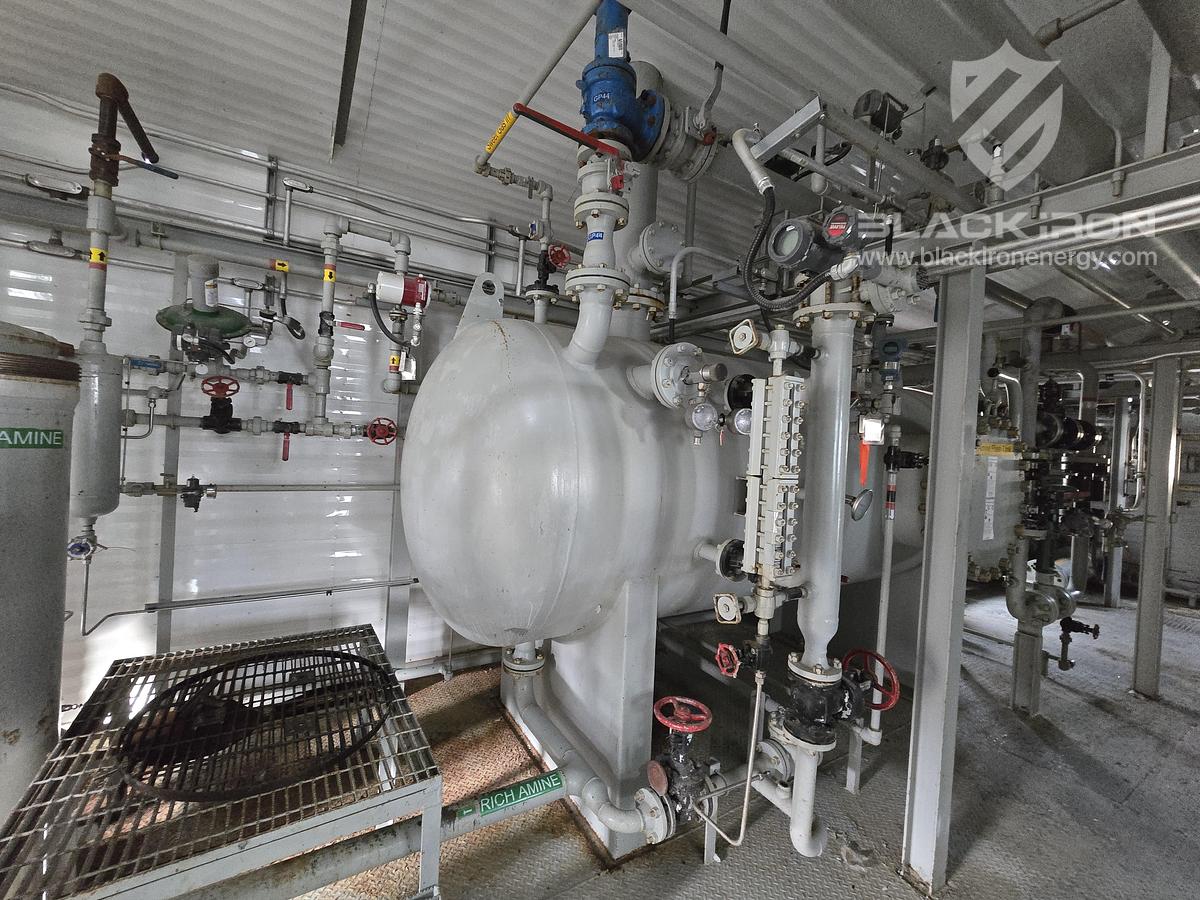

• Amine Flash Seperator (V-450)
• 1034 kPag
• Sour service
• 4572 Packed section
• 2 Phase W/ Skimmer
• 54"

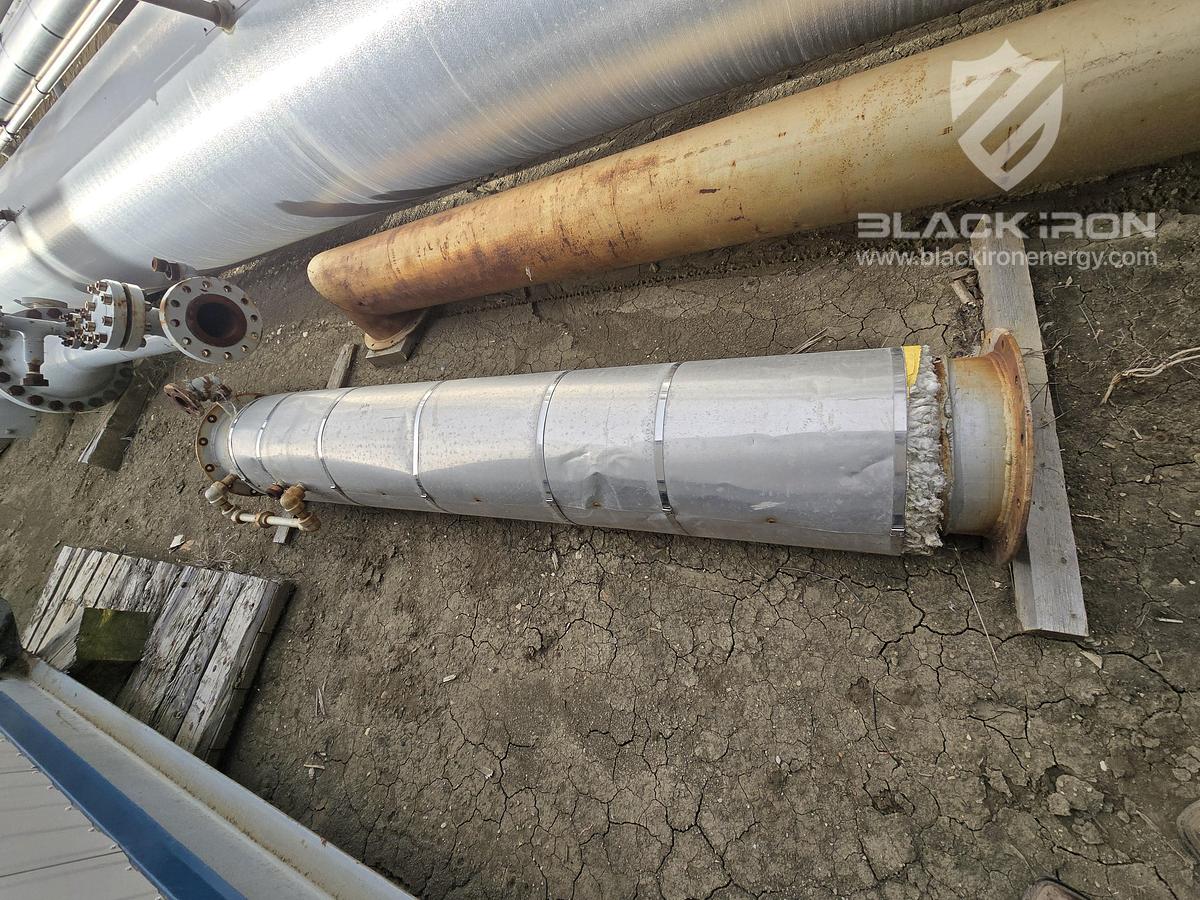

• Drip Pot (D-400)
• 1034 kPag

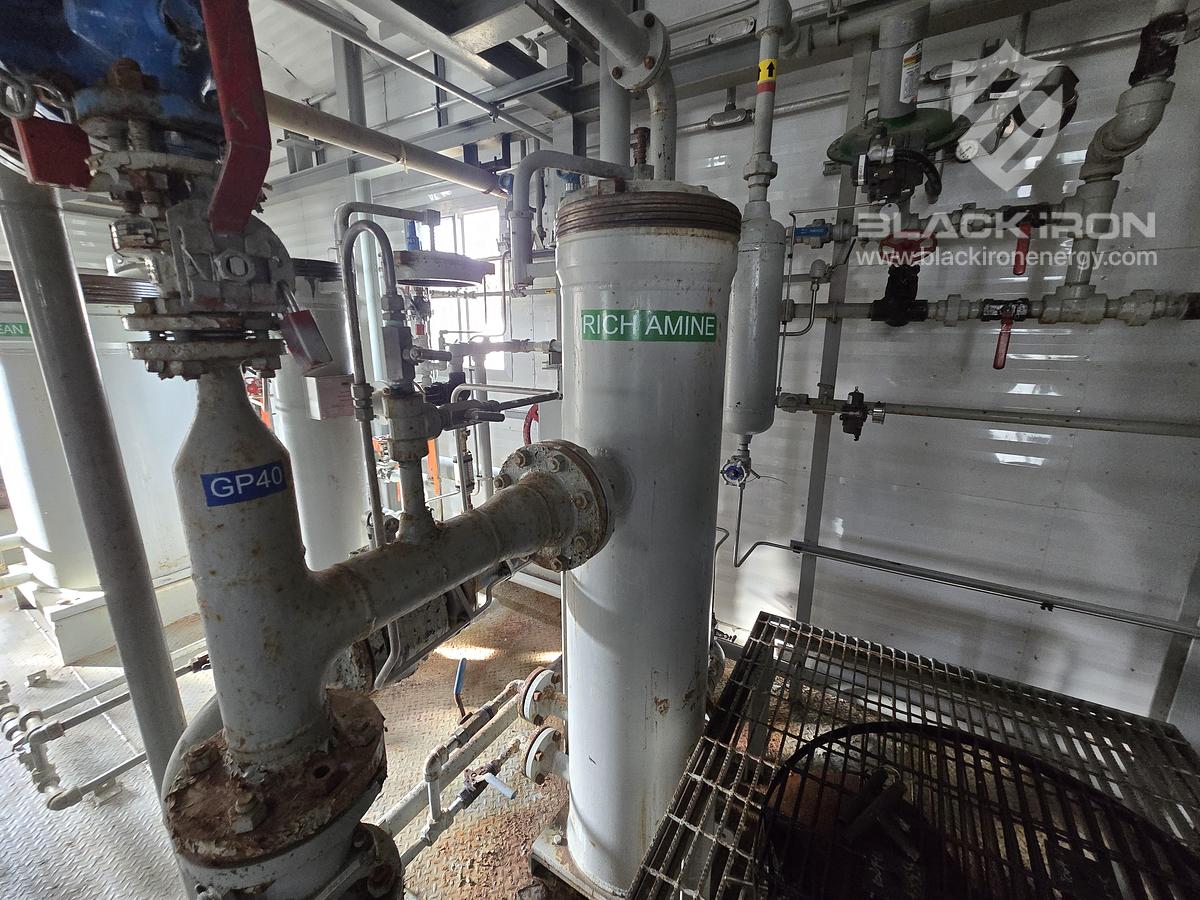

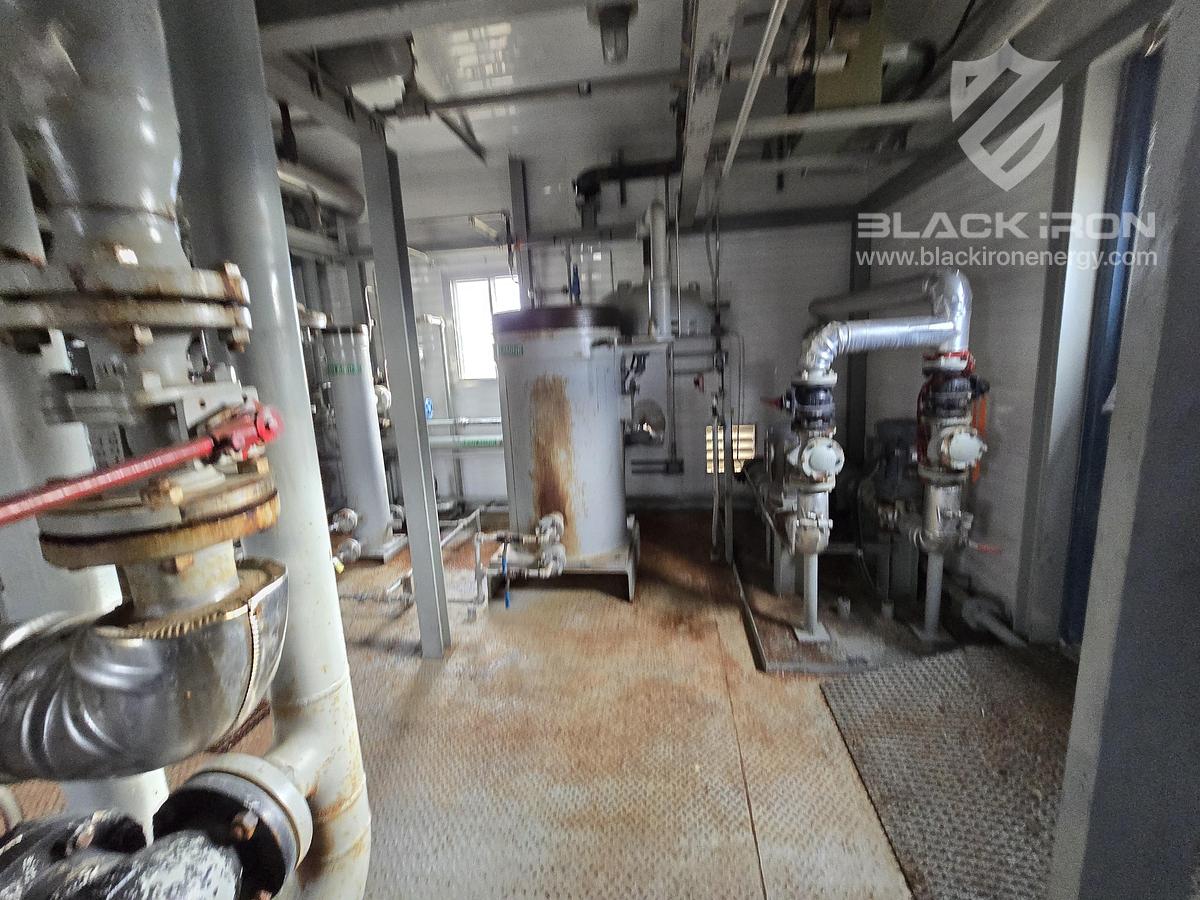

• Rich amine particulate filter (F-830)
• 1034 kPag
• 10 Micron particulate elements
• 356 swing bolt closure
• 29.53 m3/h

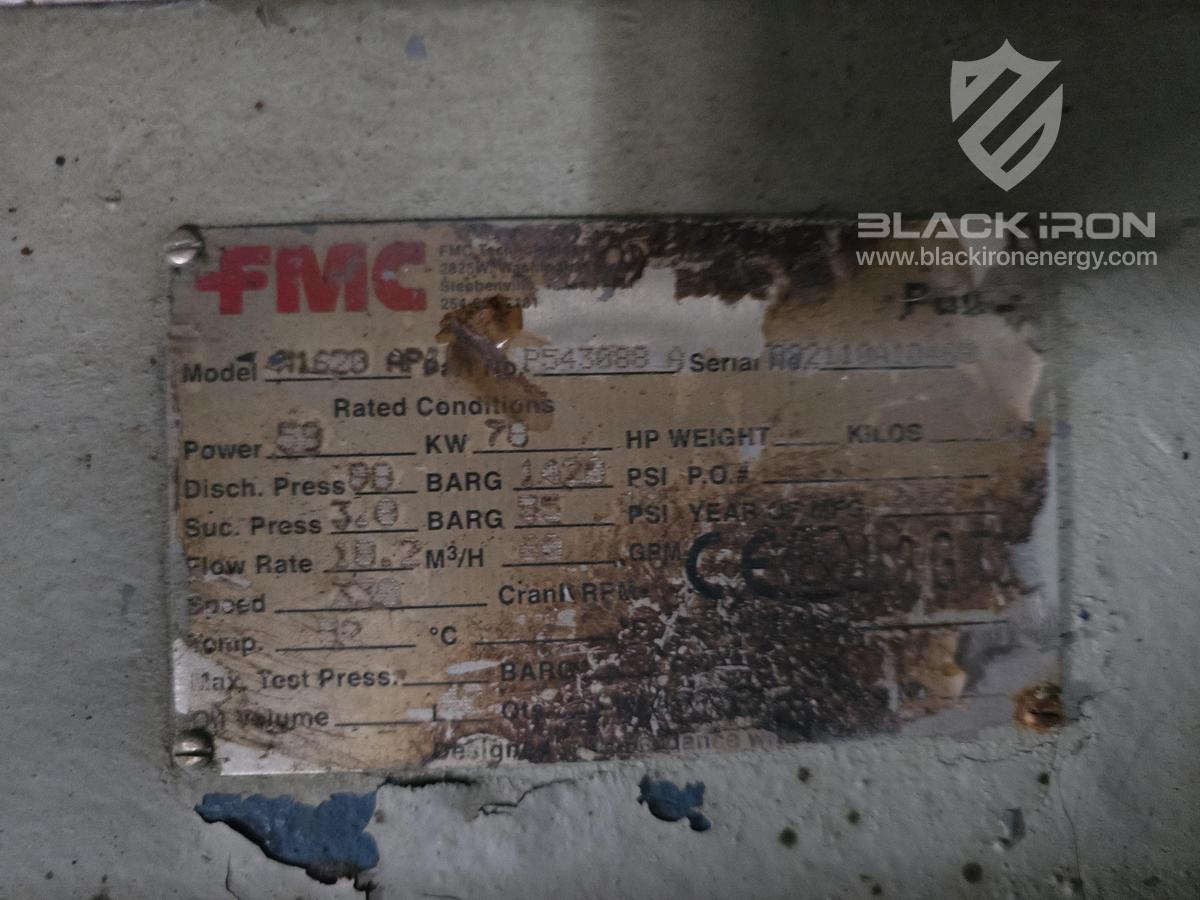

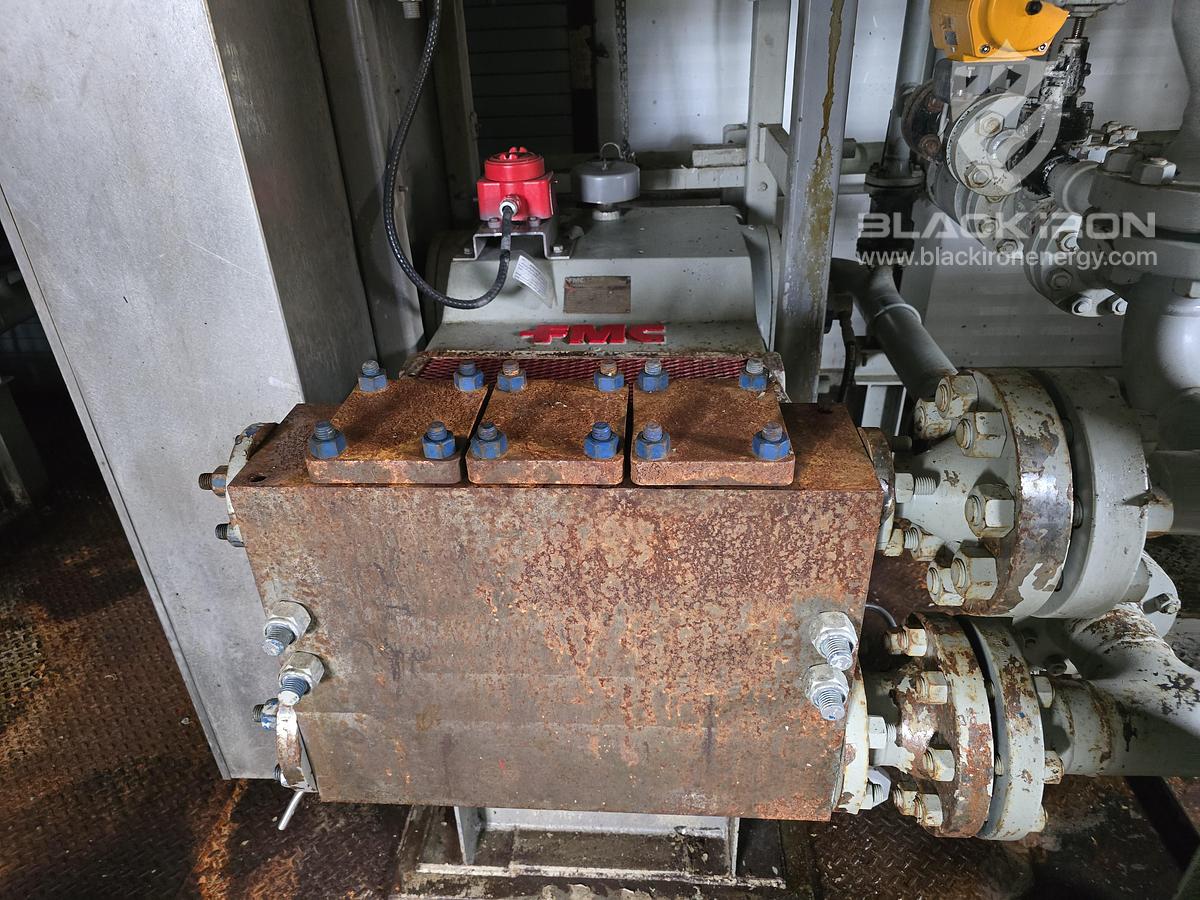

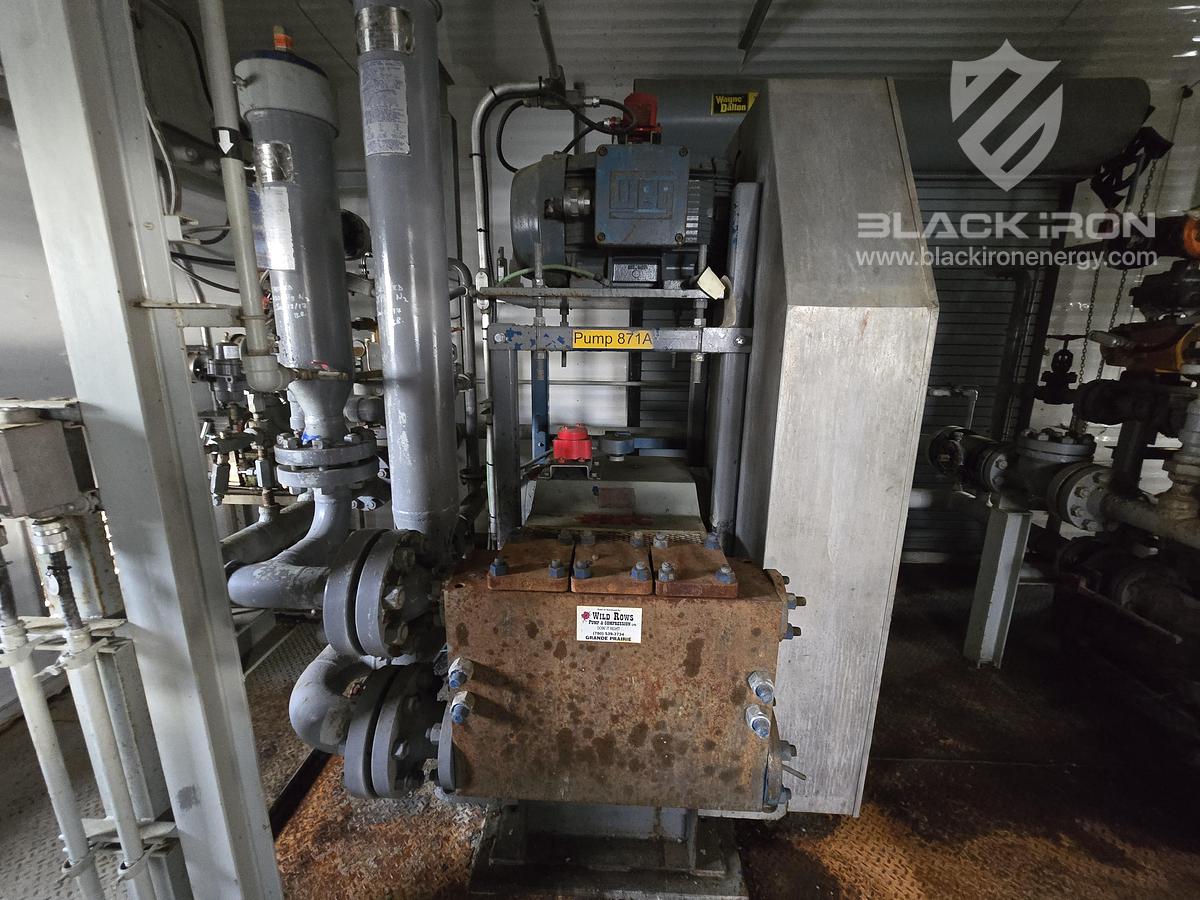

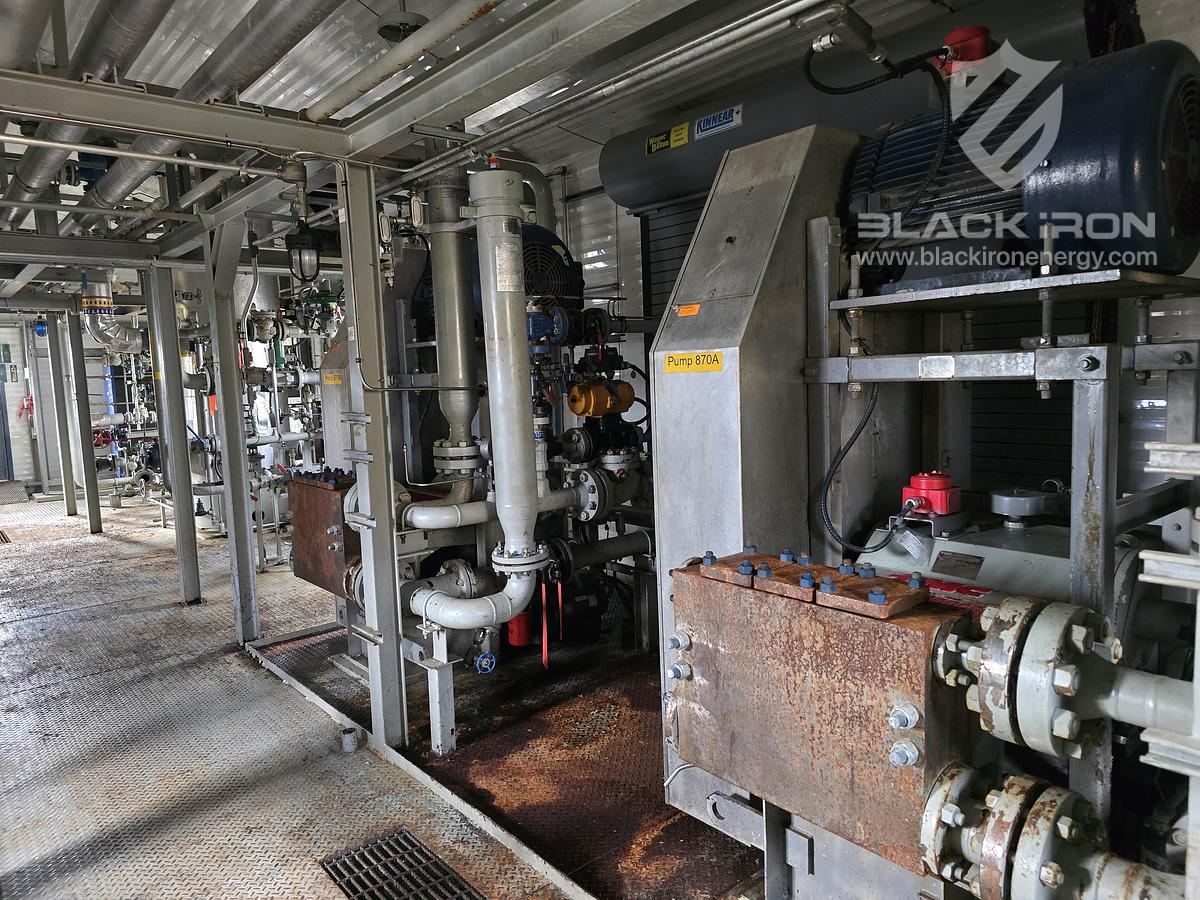

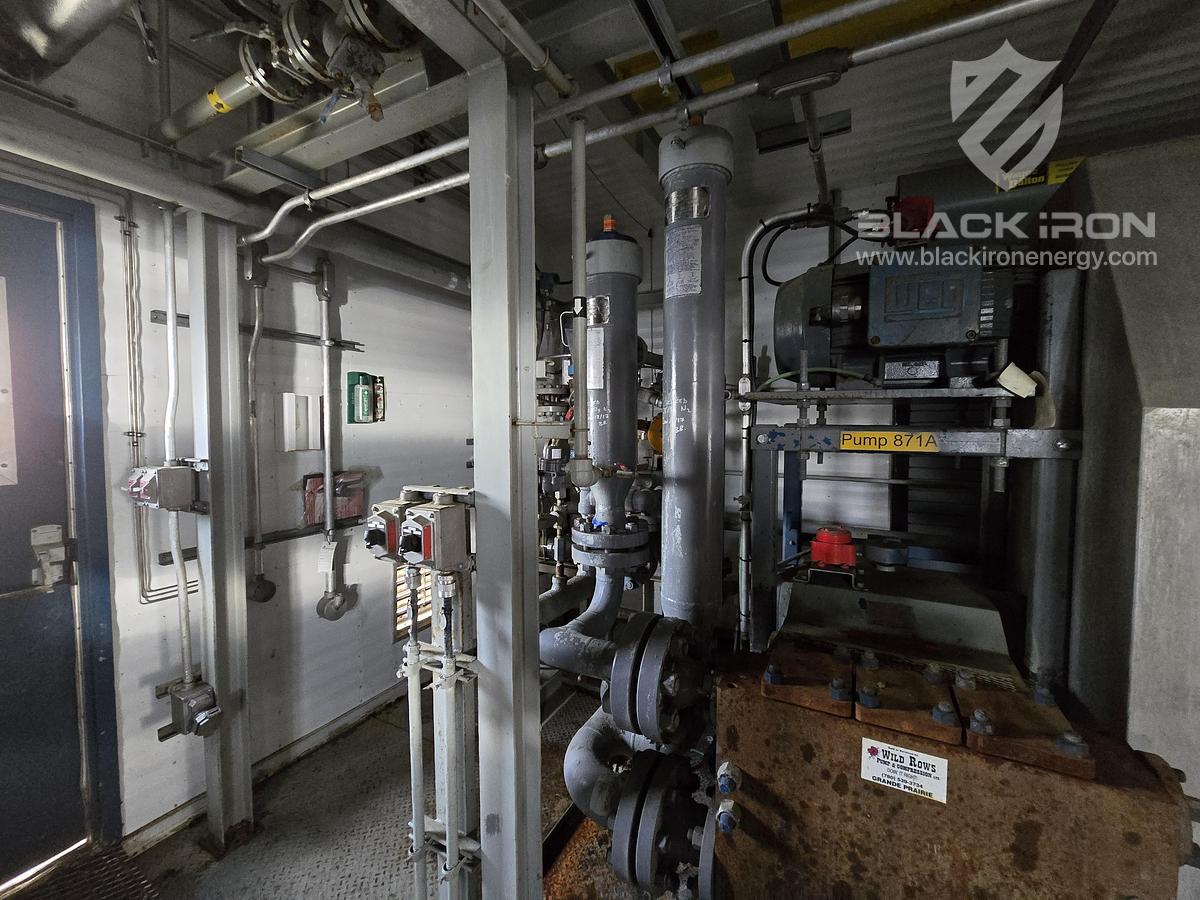

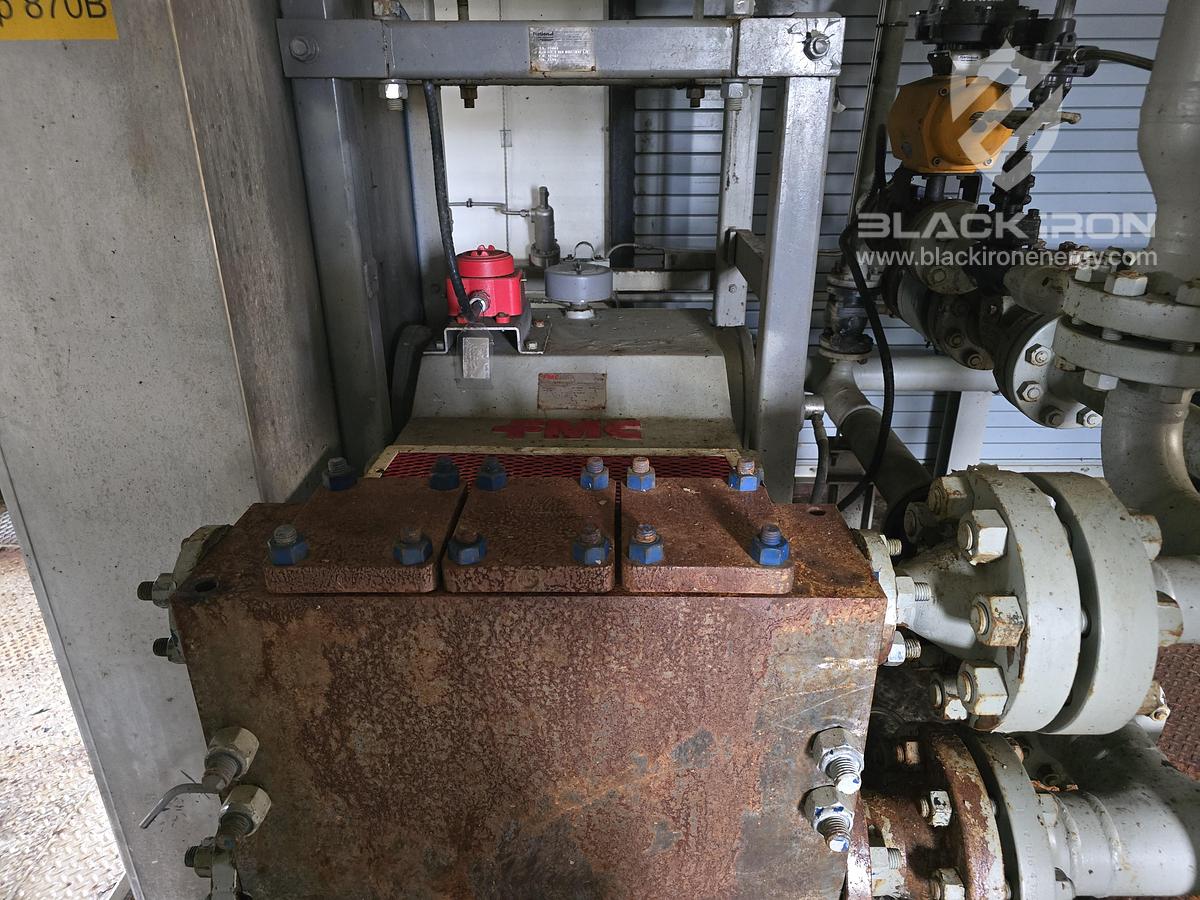

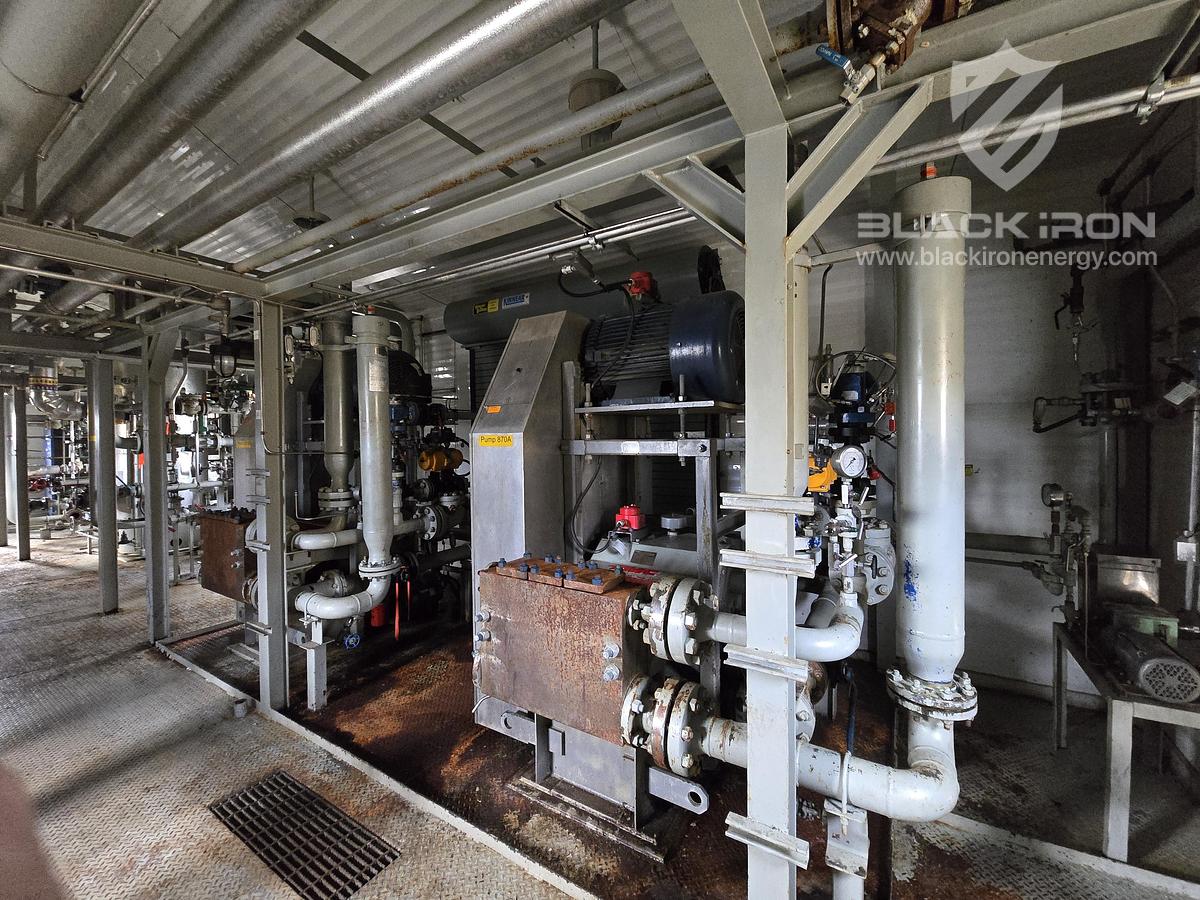

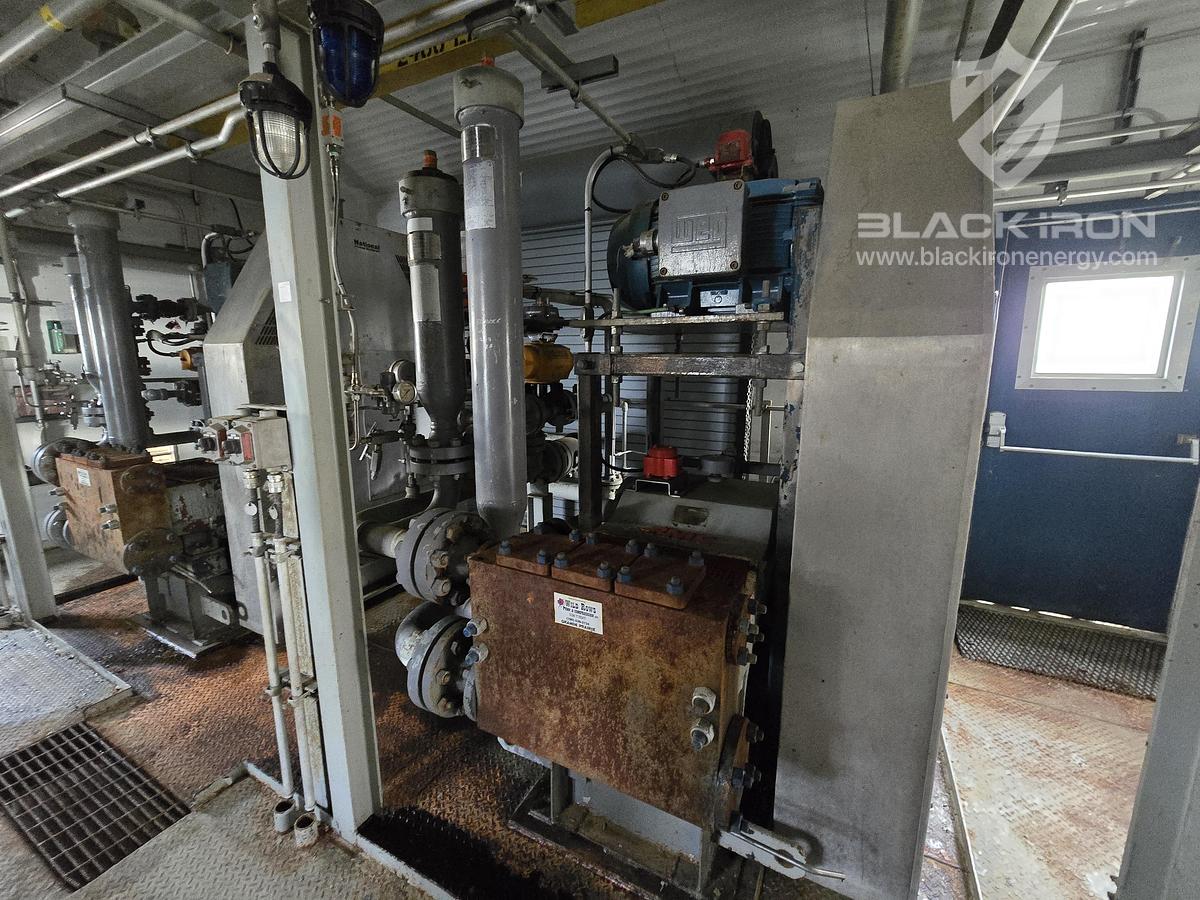

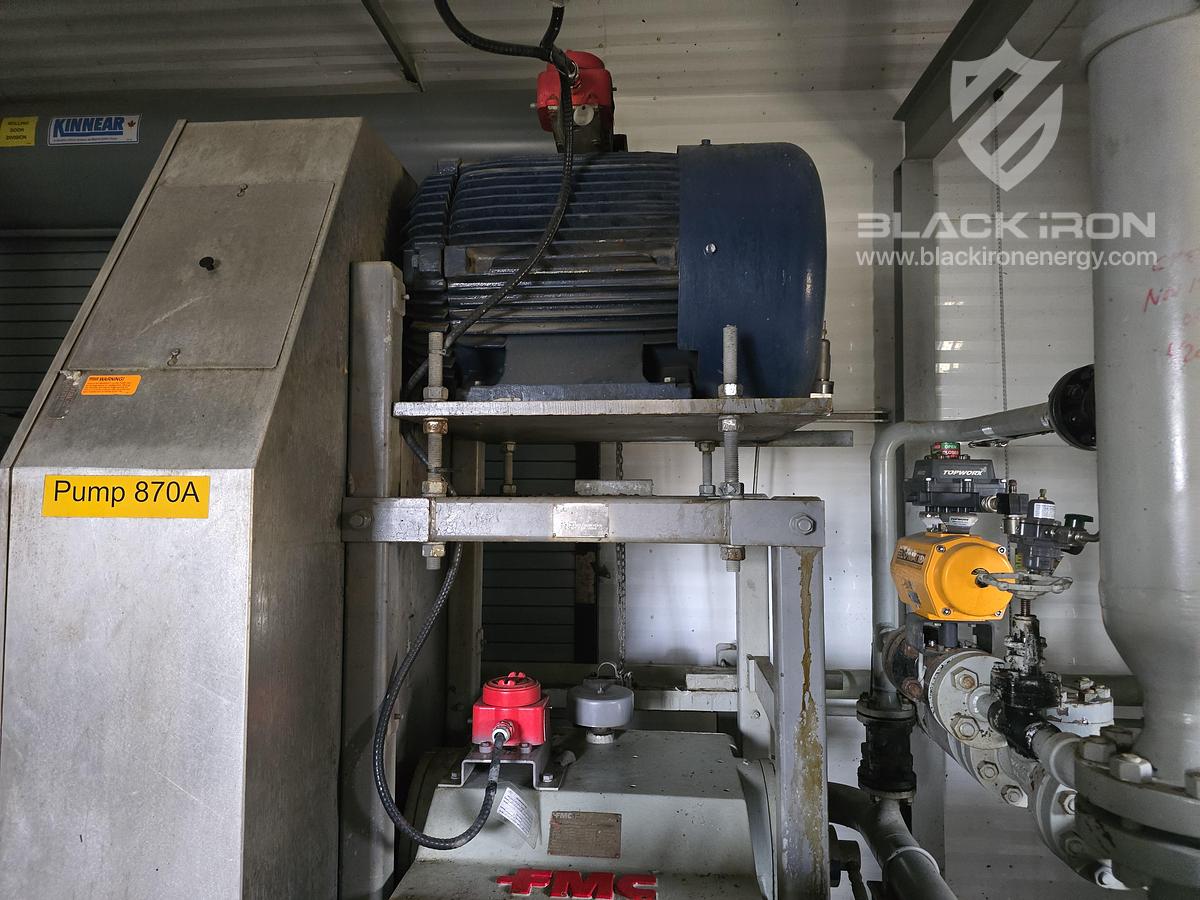

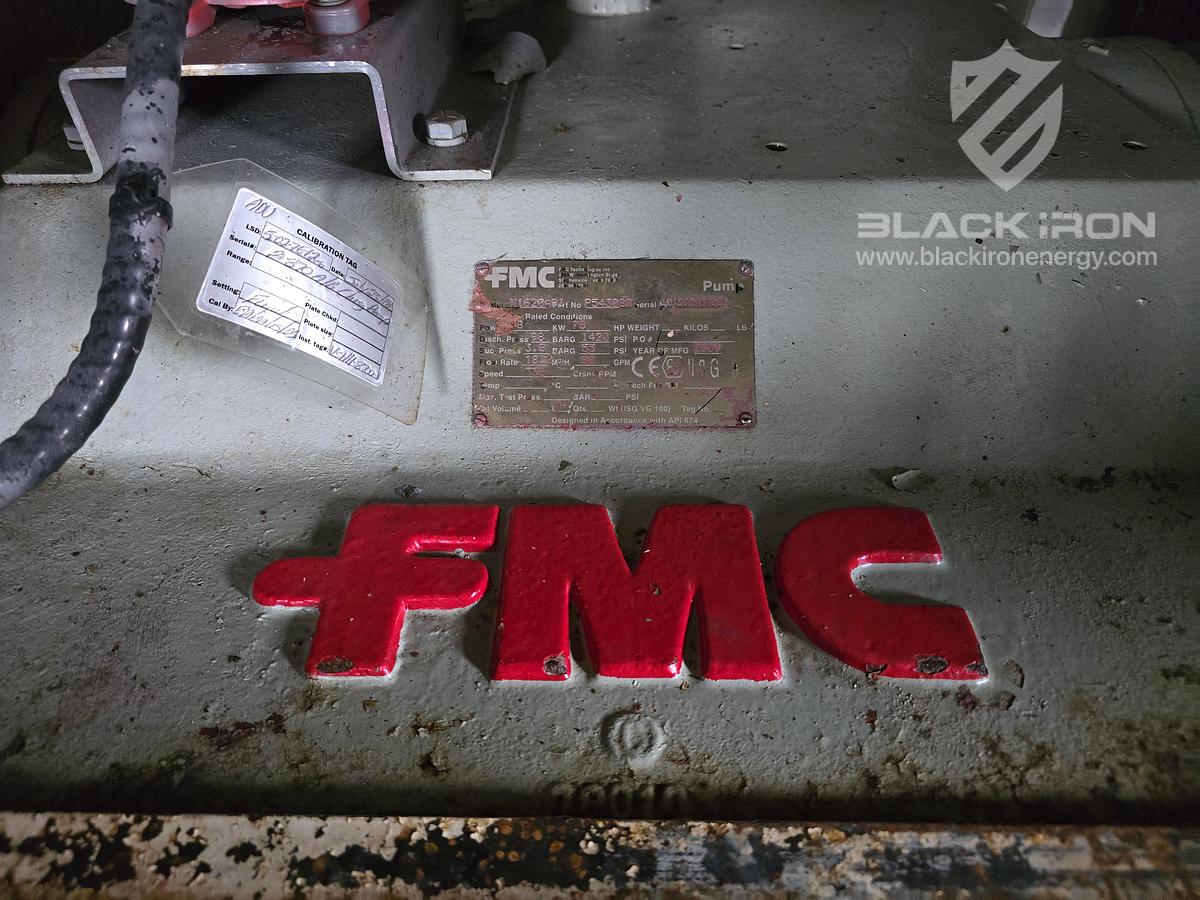

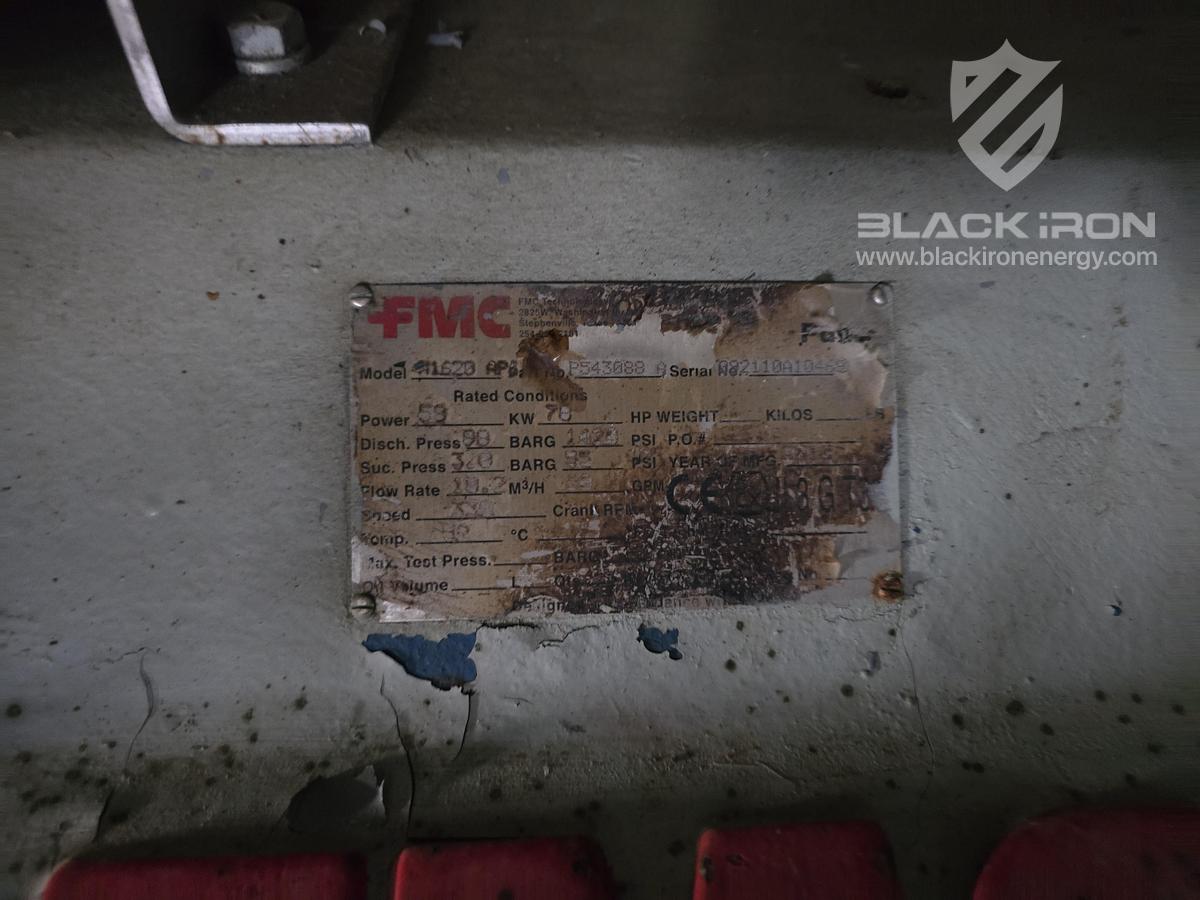

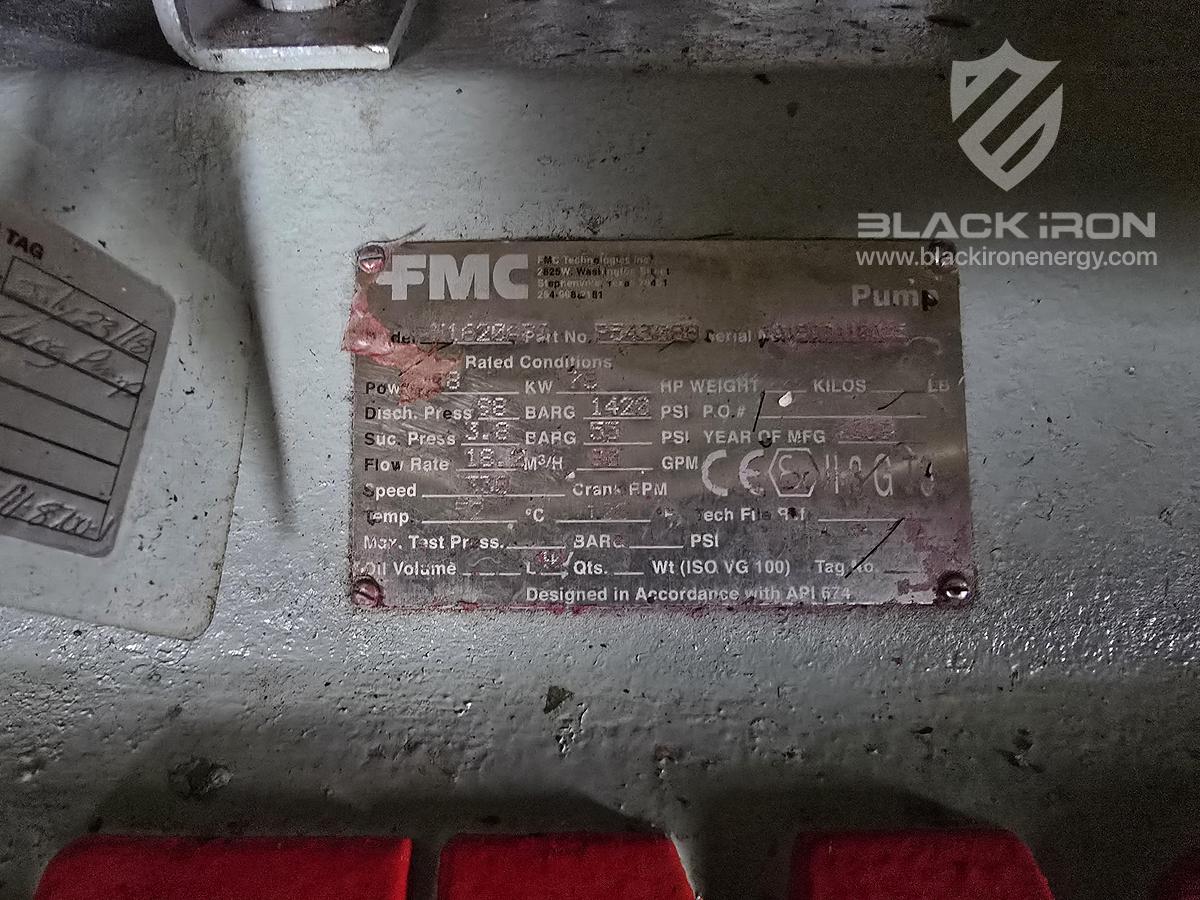

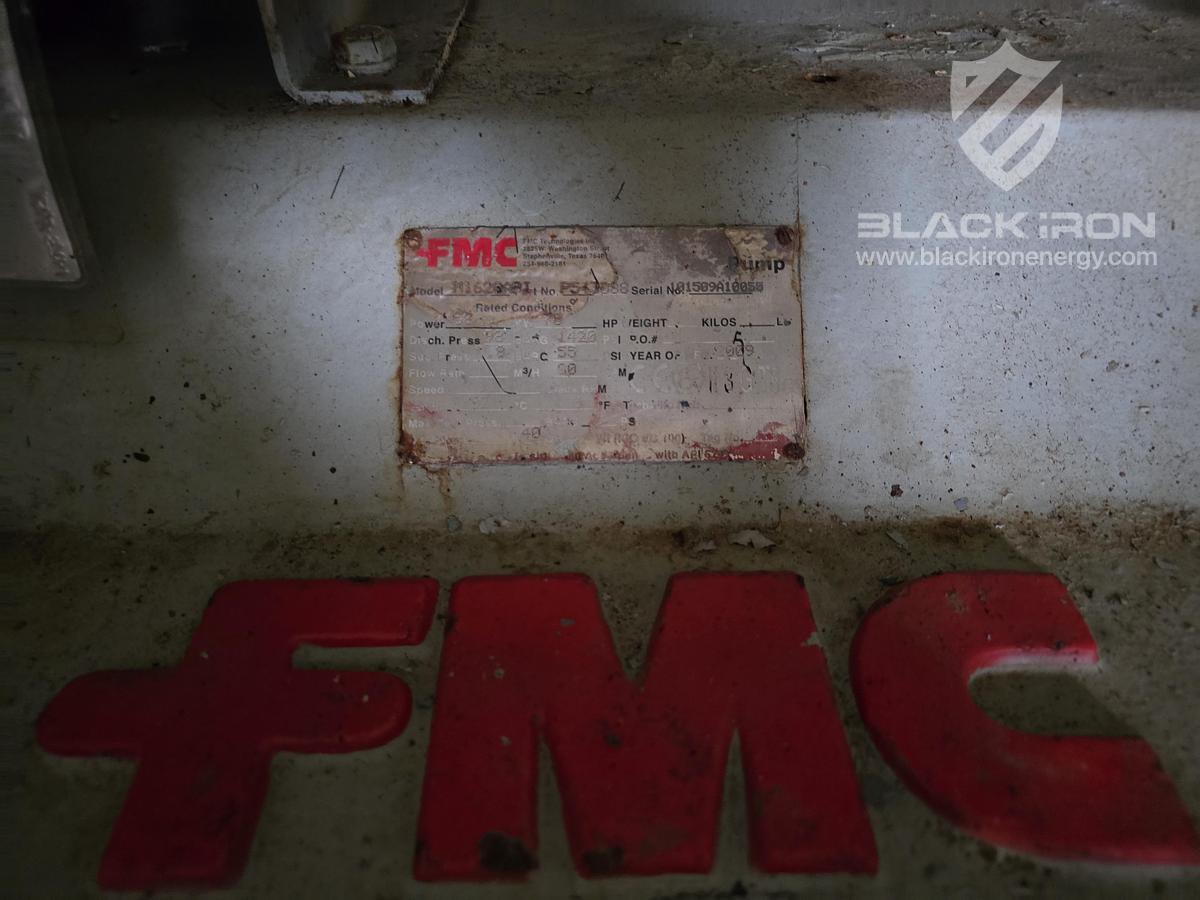

• Amine charge pumps (P-870A/B
• triplex reciprocating pumps
• 100 HP
• 3 Phase
• 60 Hz
• 460 VAC
• 29.5 m3/h @ 4117 kPag
• VFD Compatible (4:1)

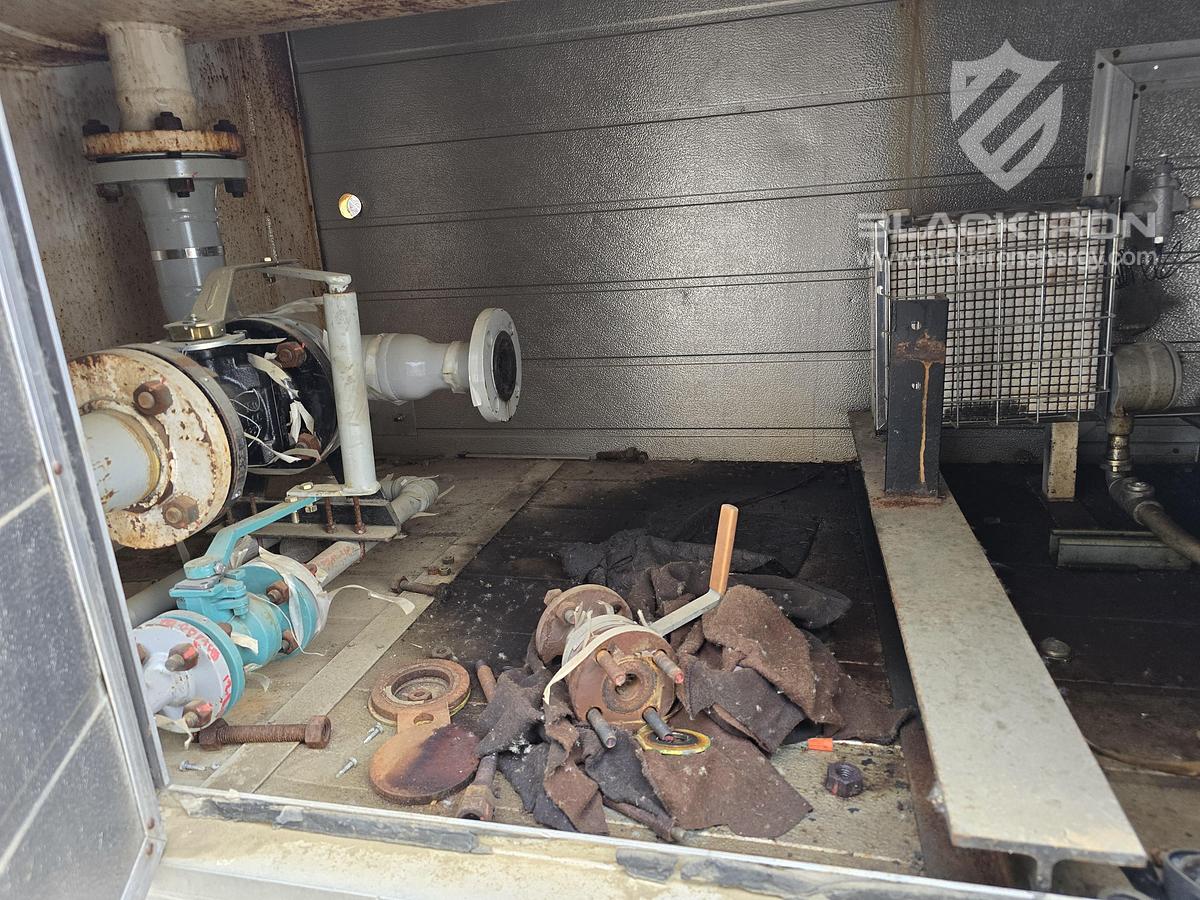

• Amine booster pumps (P-870A/B
• Dean CNV-206 1.5'x 3' x6
• inline centrifugal pumps
• 7.5Hp
• 3 Phase
• 60Hz
• 460 VAC
• 3600 RPM
• 39 m3/h @ 25.3 m
• Anti foam chemical injection pump (P-895)
• Texteam 4303 series
• 0.19Kw
• single phase
• 60Hz
• 120 VAC
• 0.04 Md (MAX) @ 82737 kPag
• 5 USG storage tank

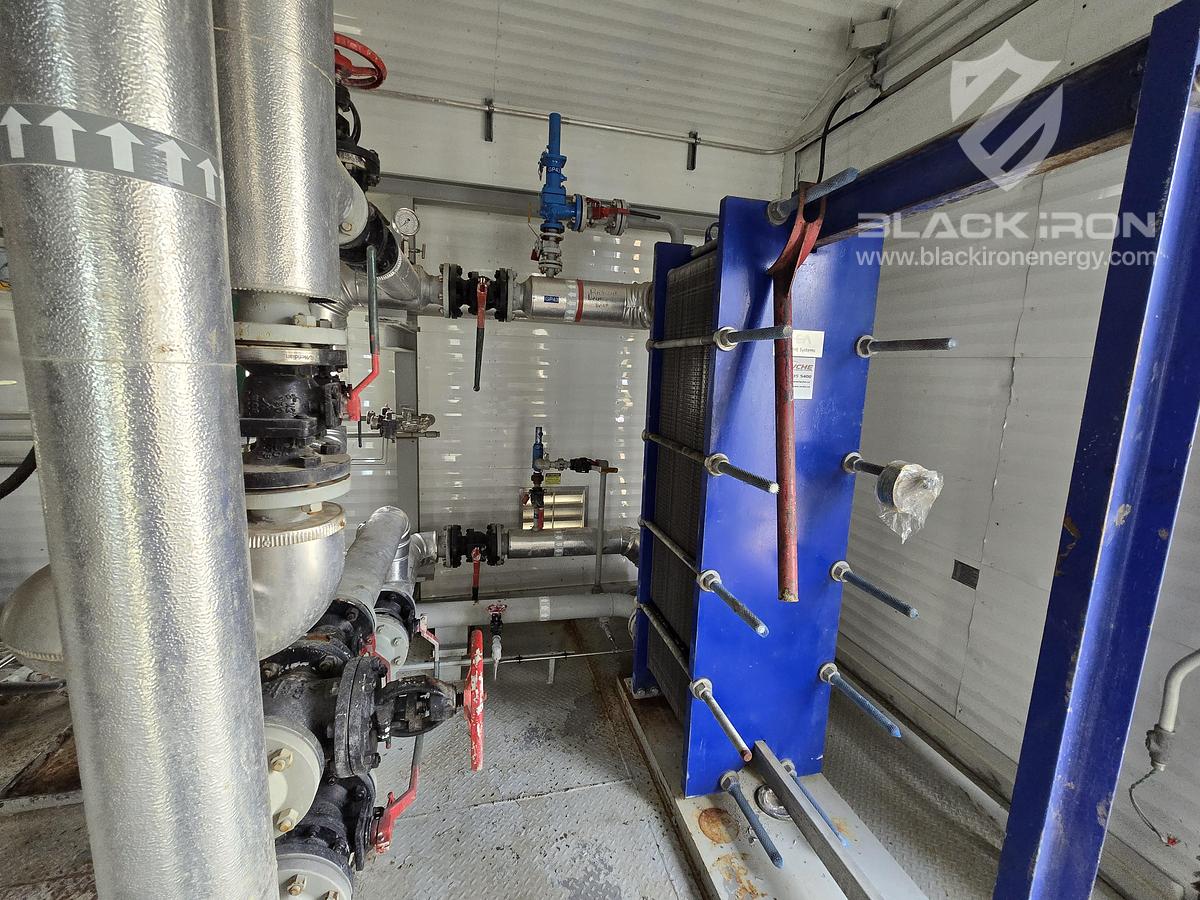

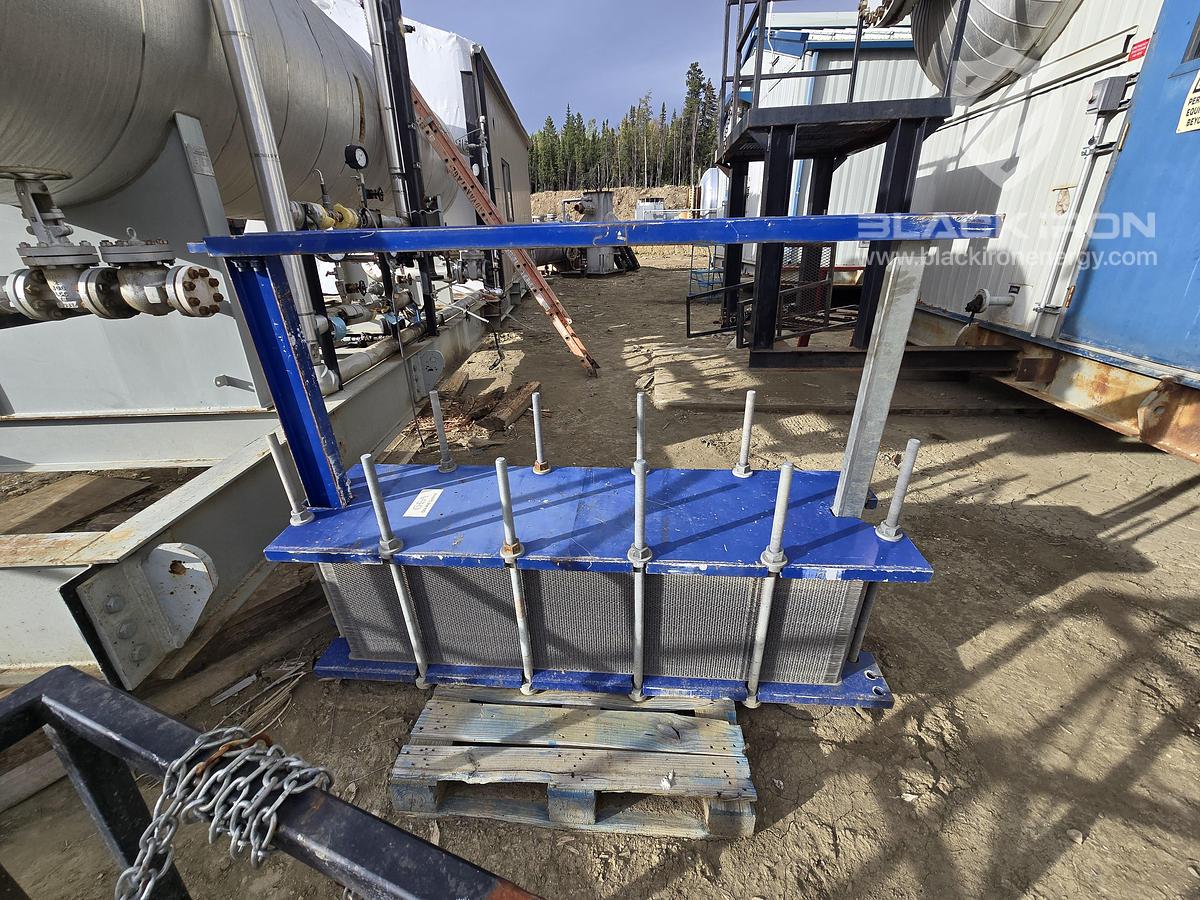

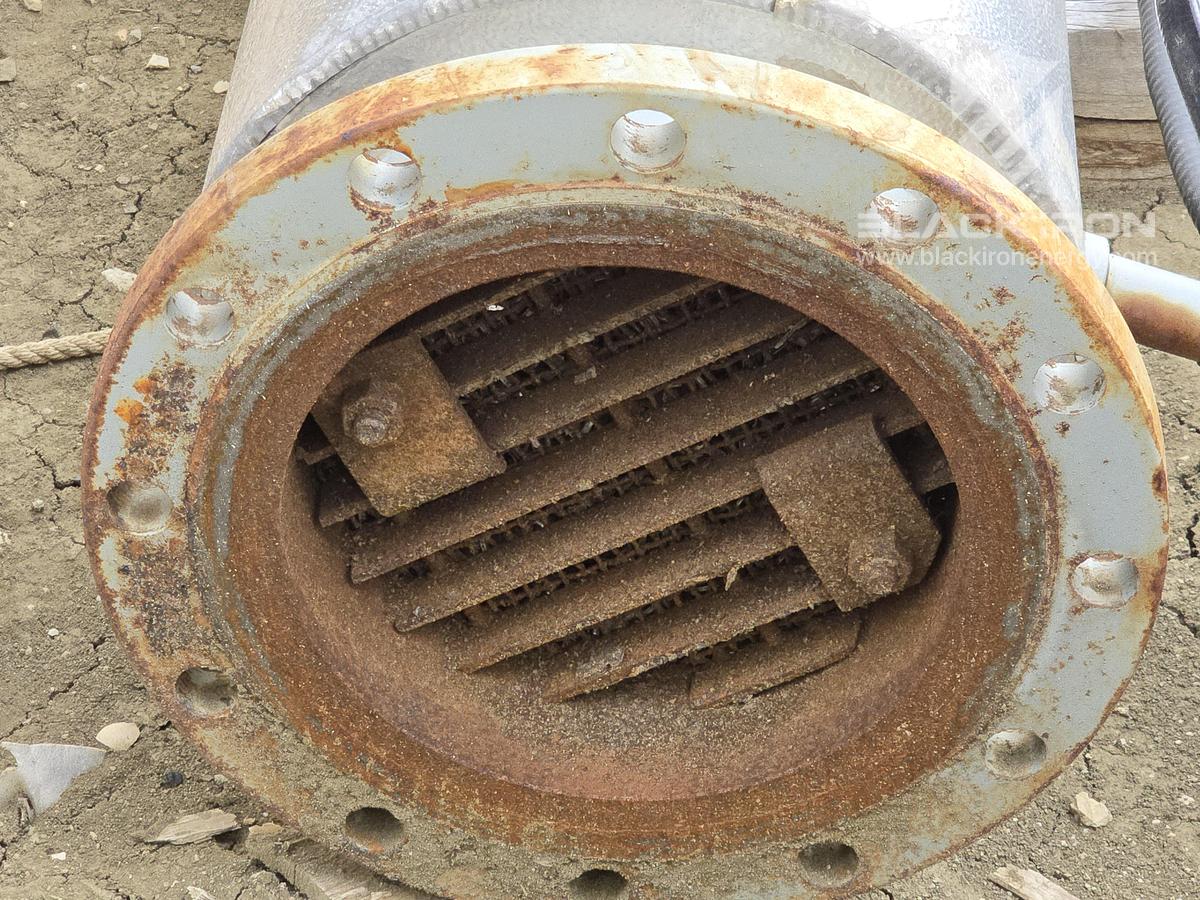

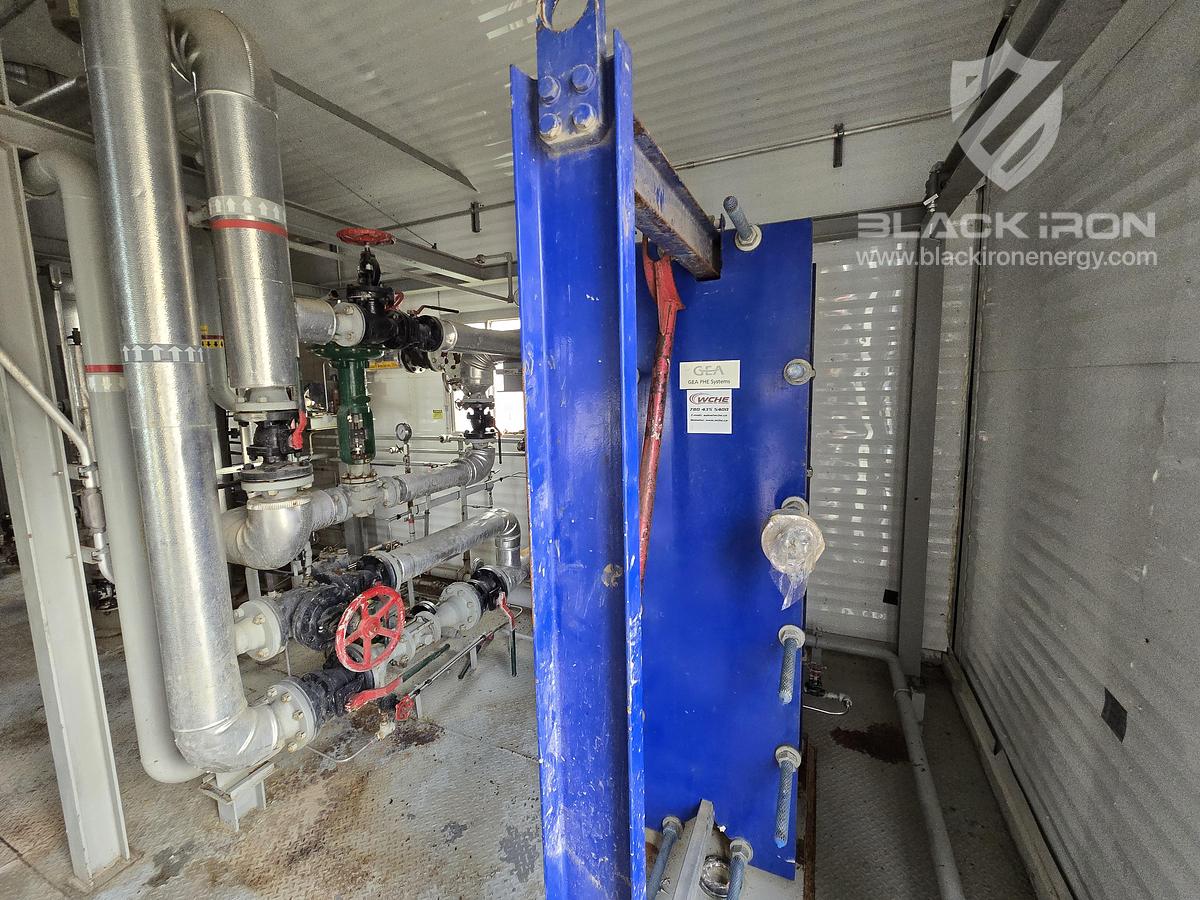

• Lean/Rich amine exchanger (E-750)
• (2) GEA VEX
• 1034 kPag
• Design duty 1484 Kw

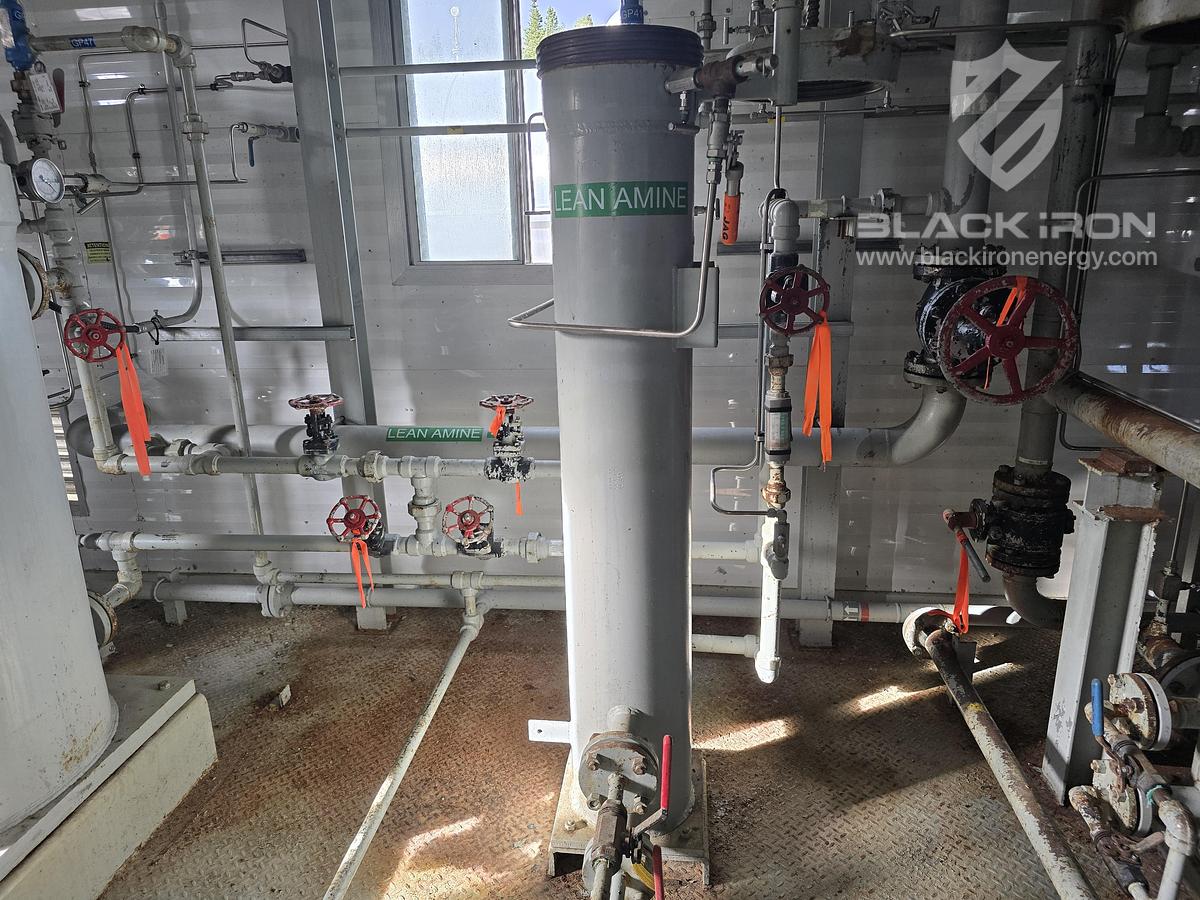

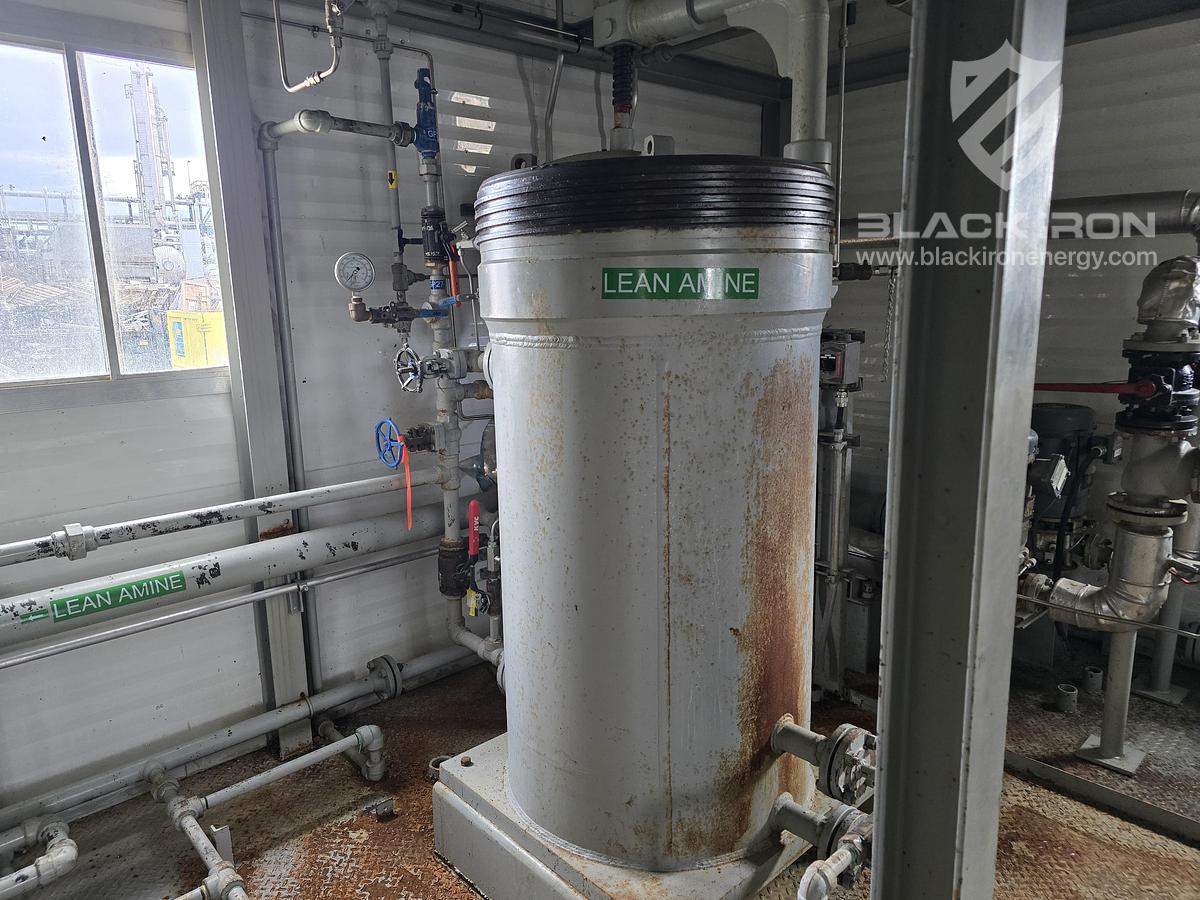

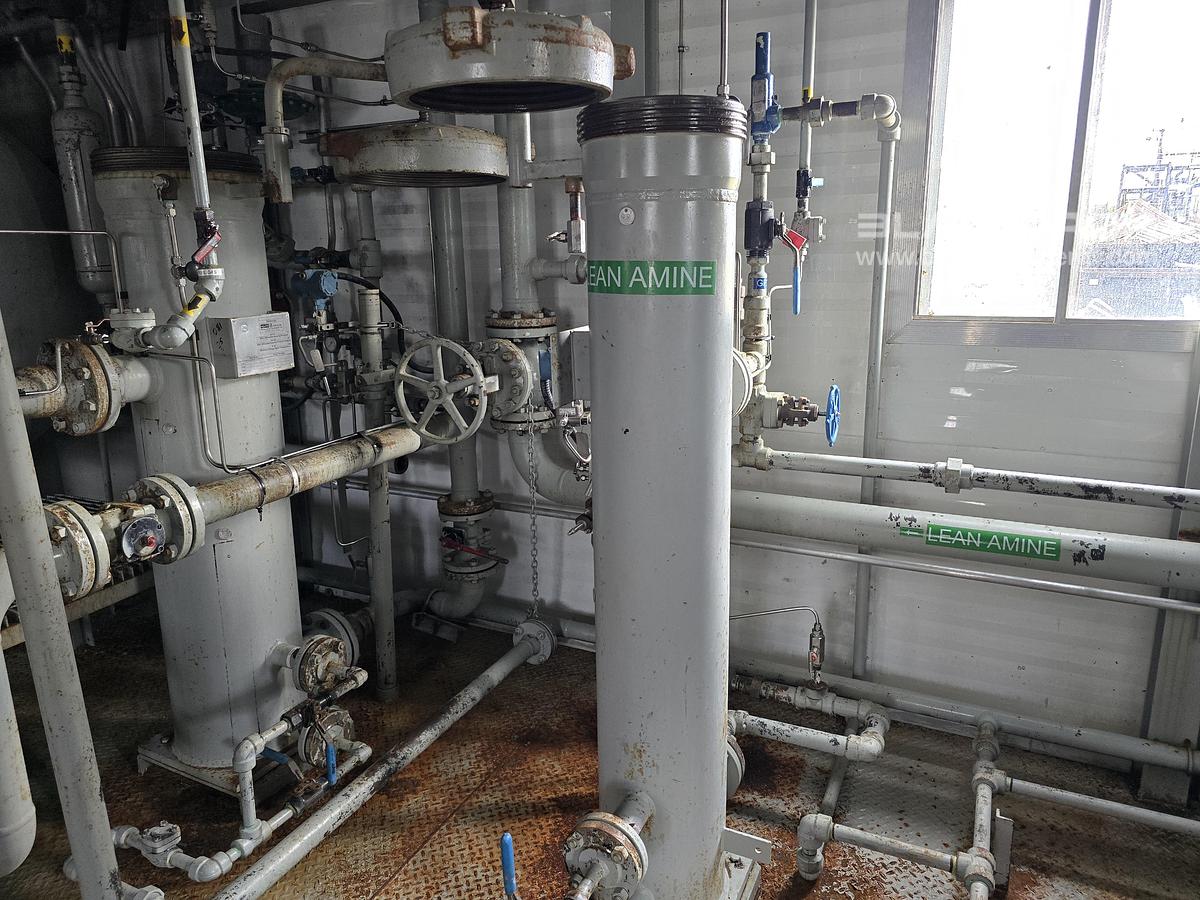

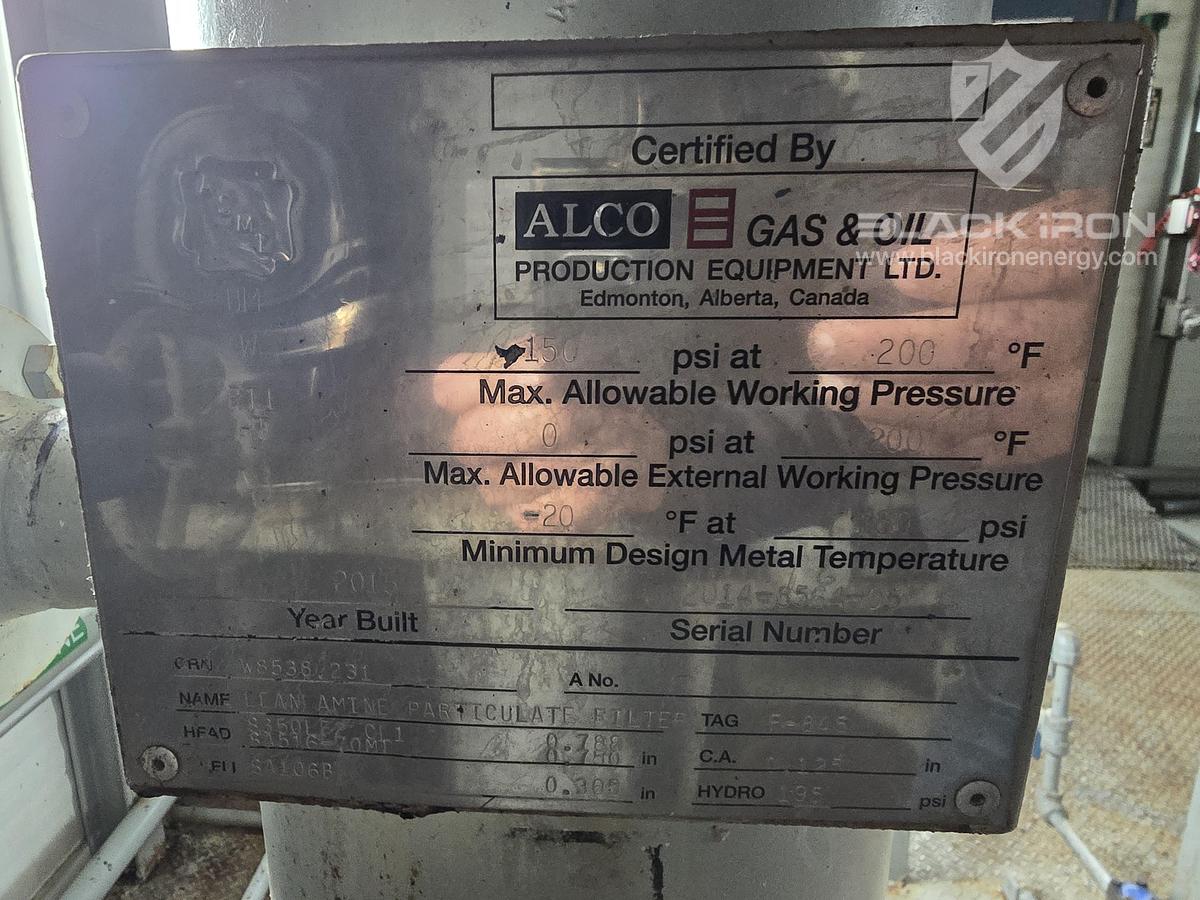

• Lean amine particulate filter (F-845
• 1034 kPag
• (2) 10 Micron particulate elements
• 8.86 m3/h (30% Slip stream)

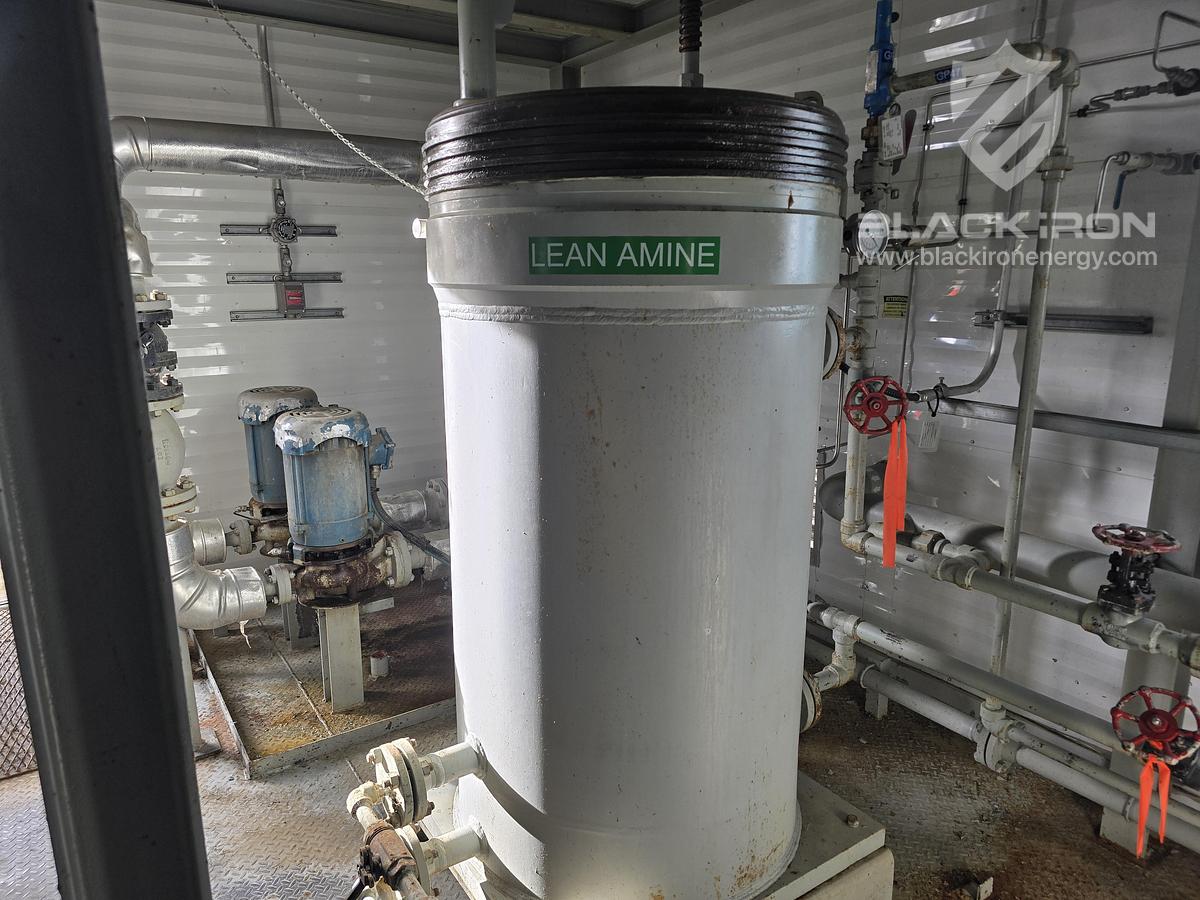

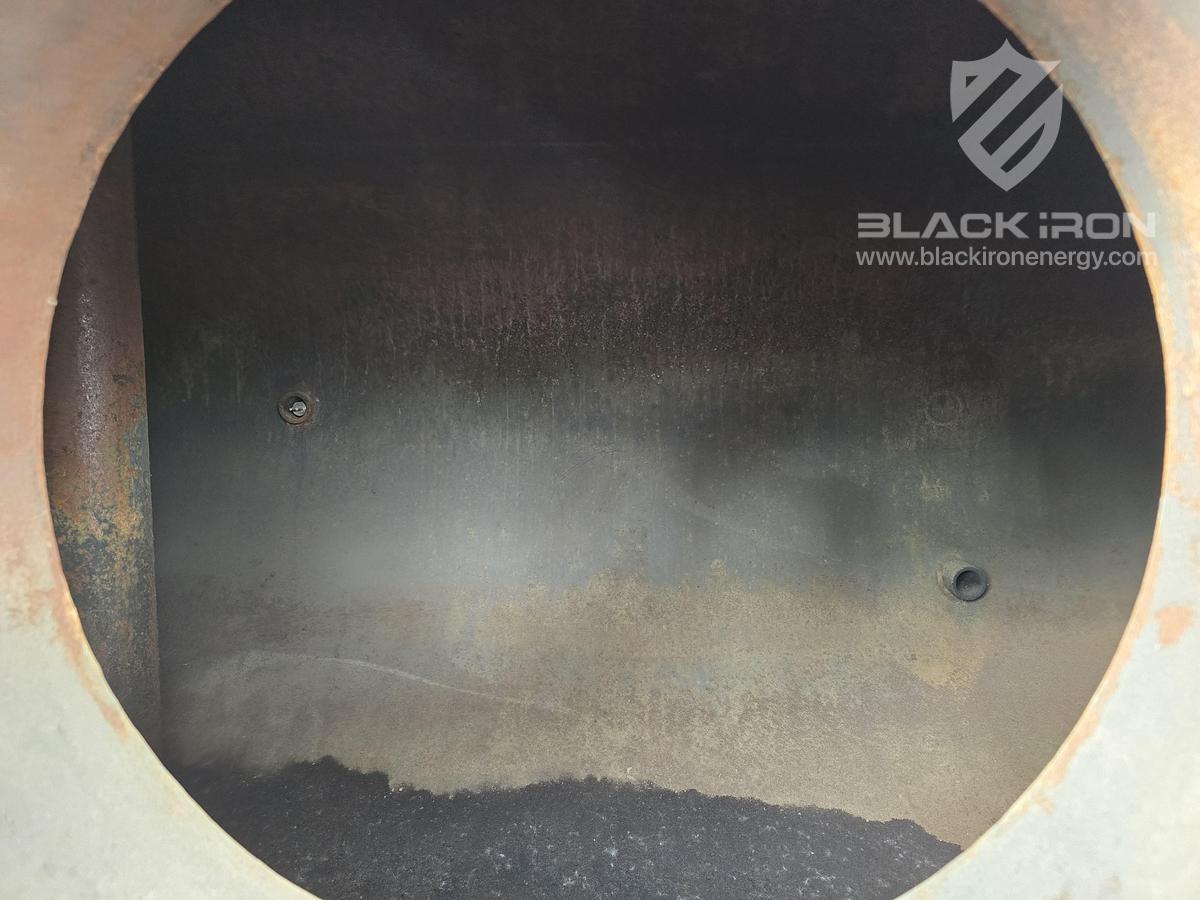

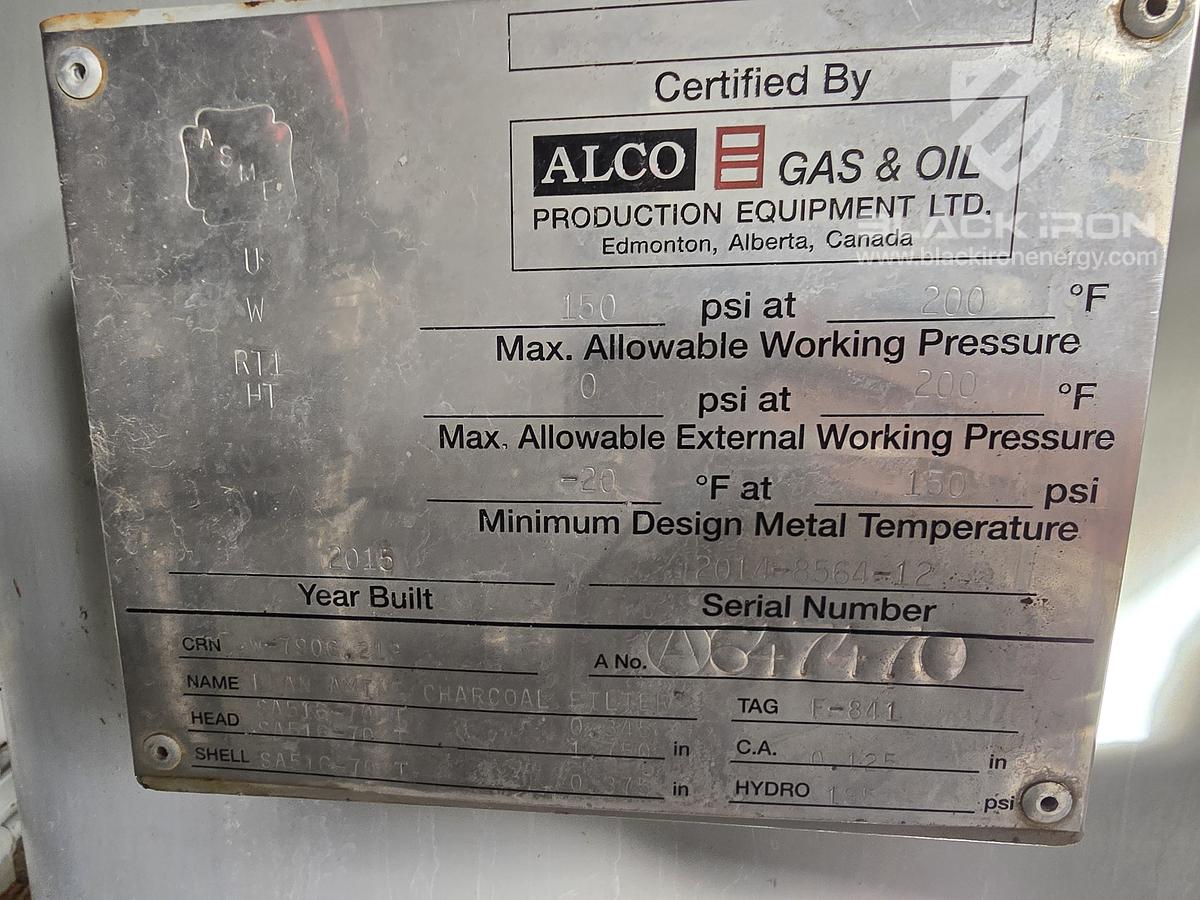

• Lean amine charcoal filter (F-840)
• 1034kPag
• (15 Carbon canisters)
• 8.85 m3/h (30% slip stream)
• Amine reflux pumps (P-880A/B)
• (2)inline centrifugal pumps
• 1.5 Hp
• 3 Phase
• 60Hz
• 460 VAC
• 3600 rpm
• sour service
• 1.05 m3/h @ 25.4

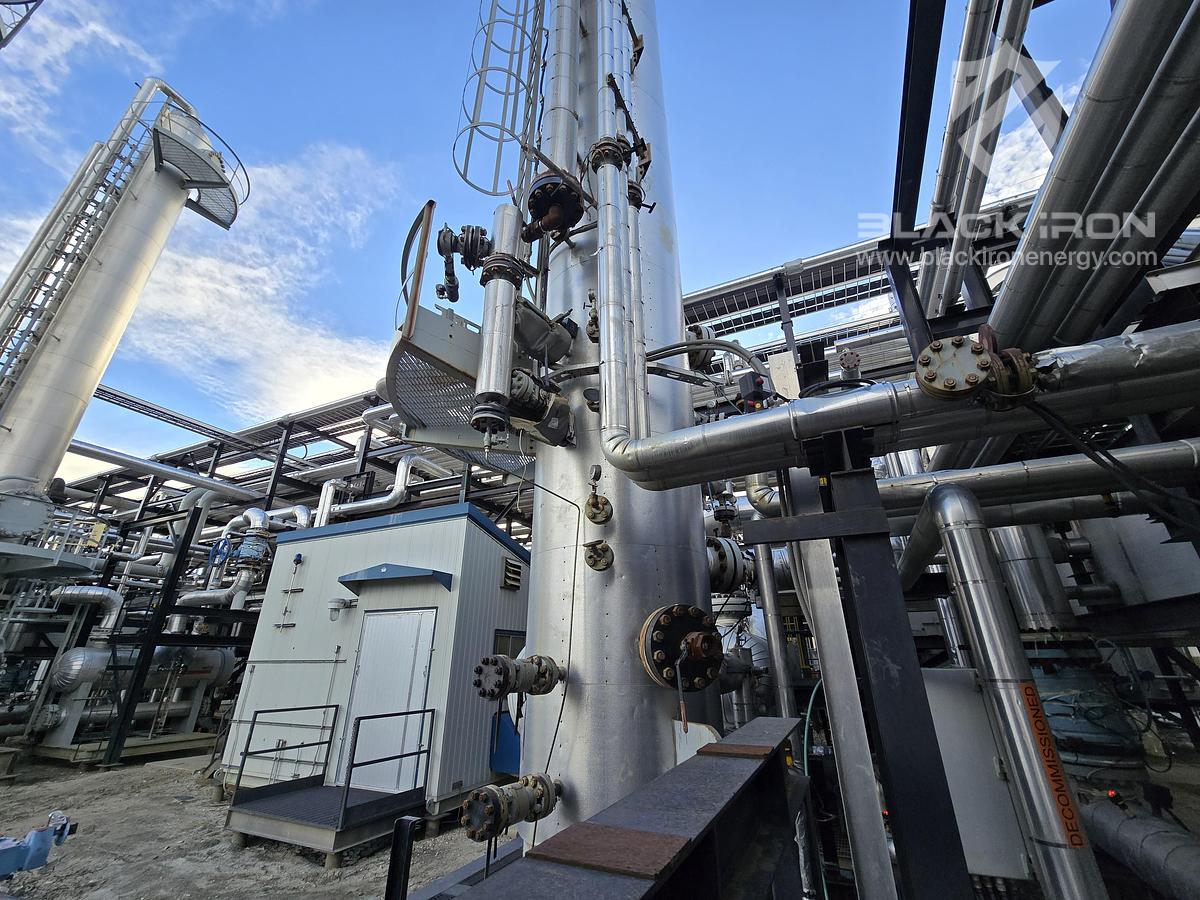

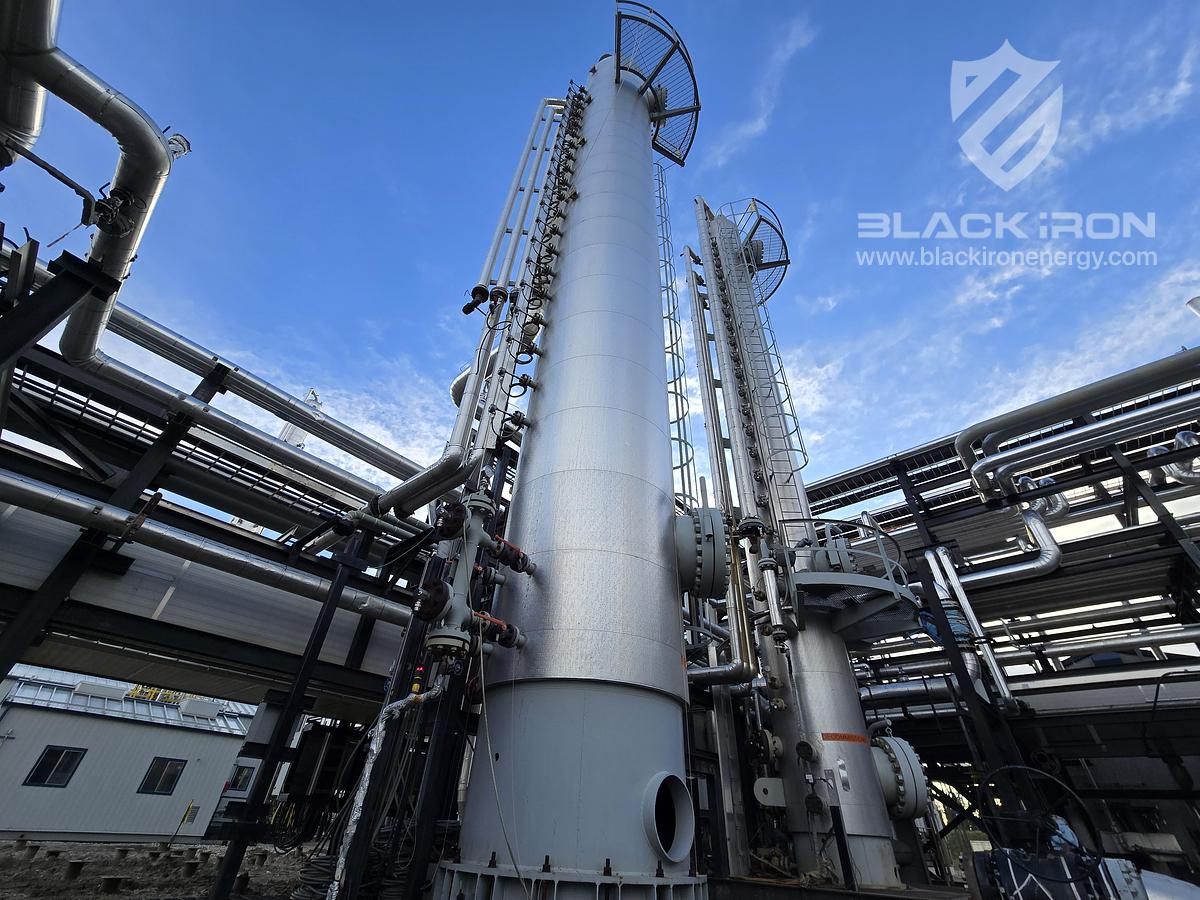

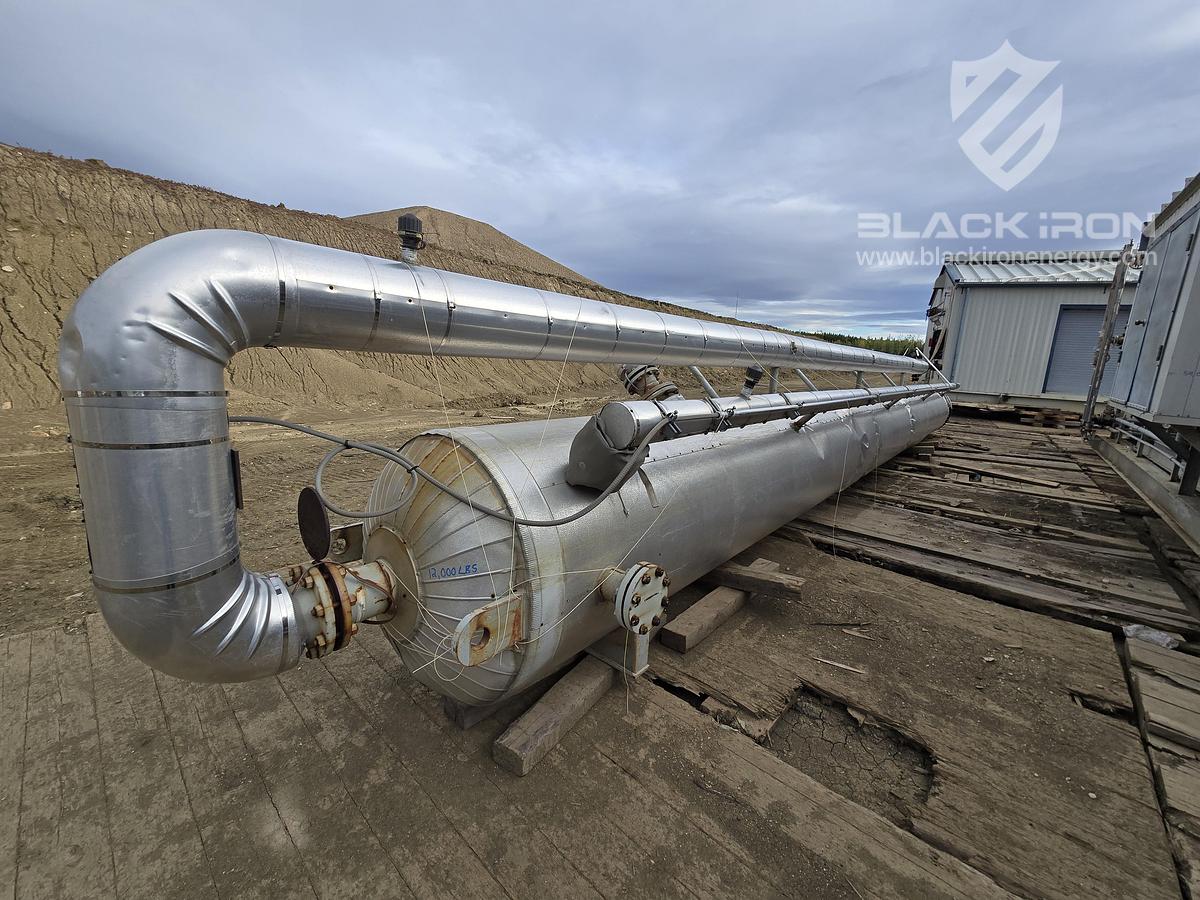

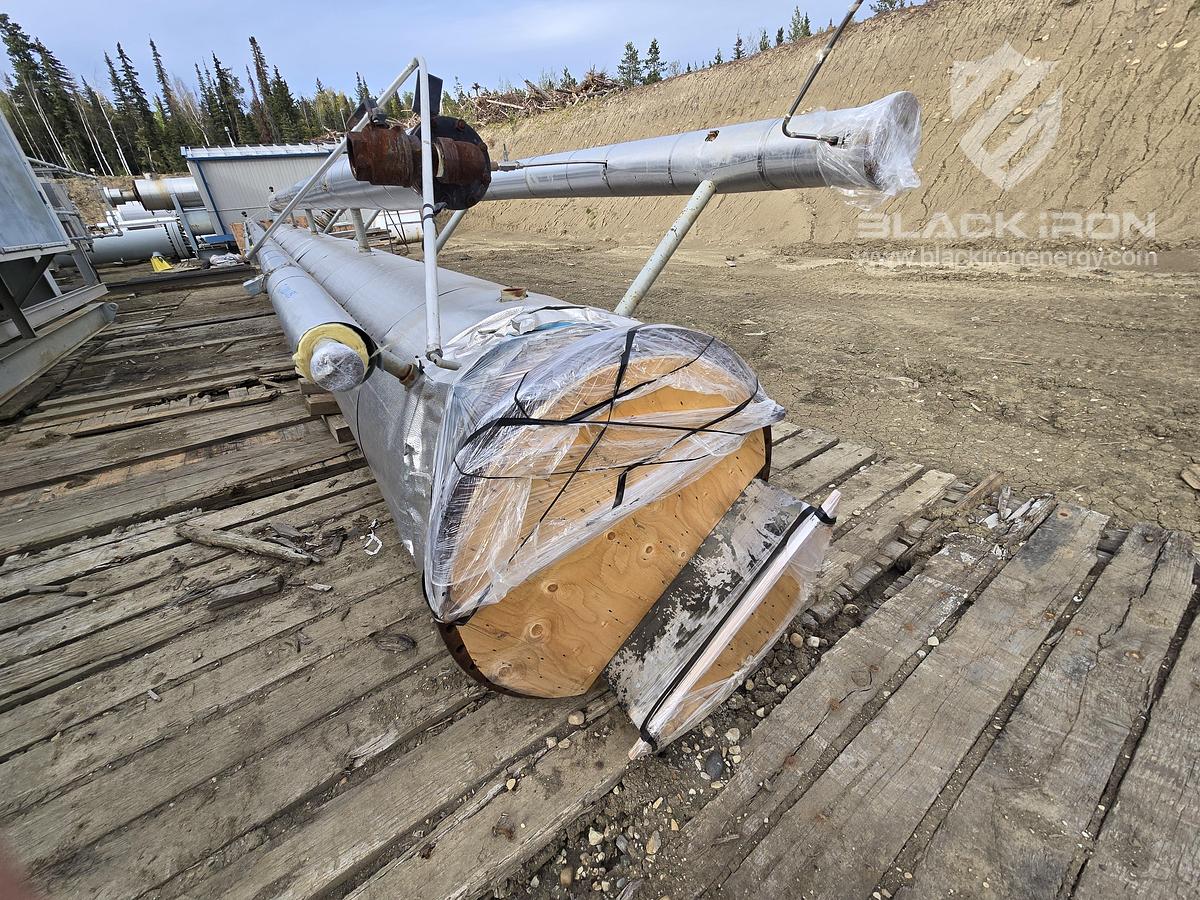

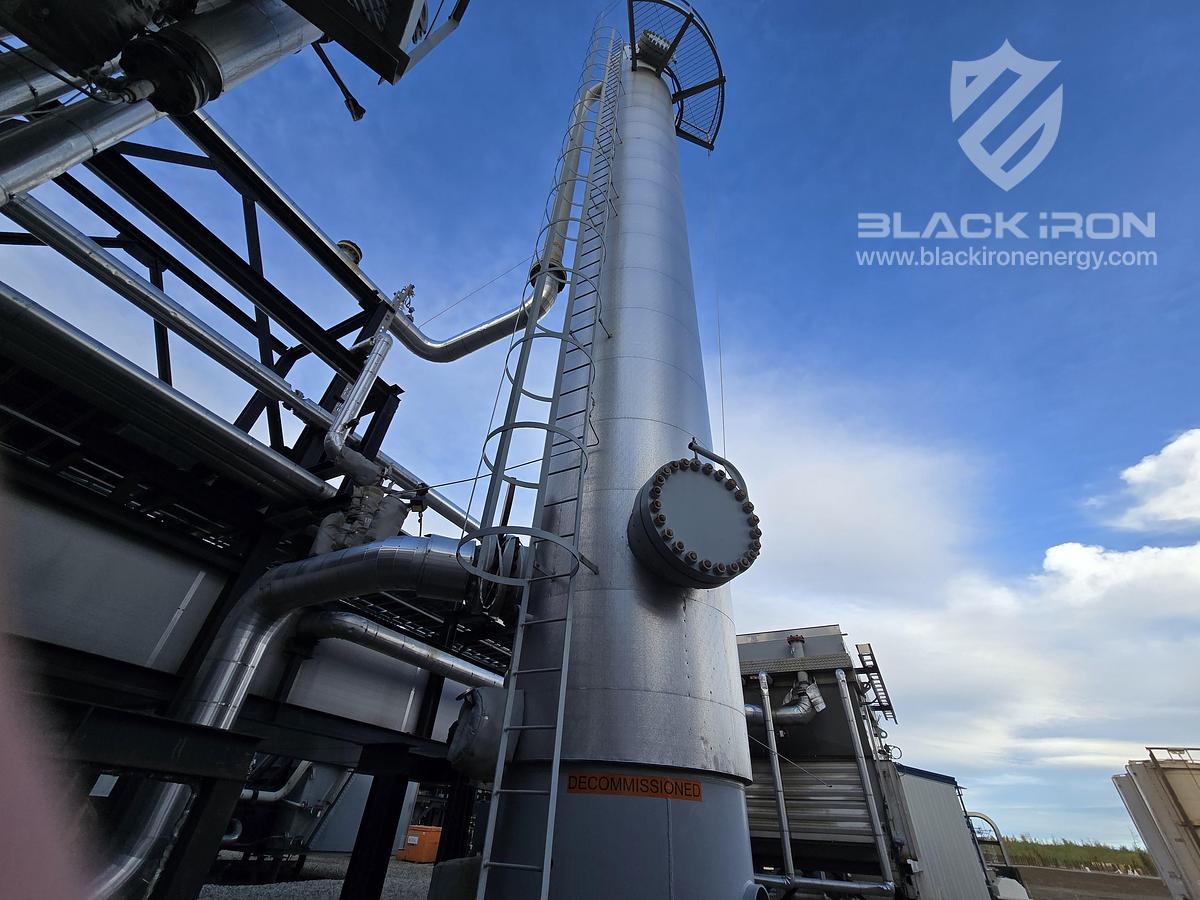

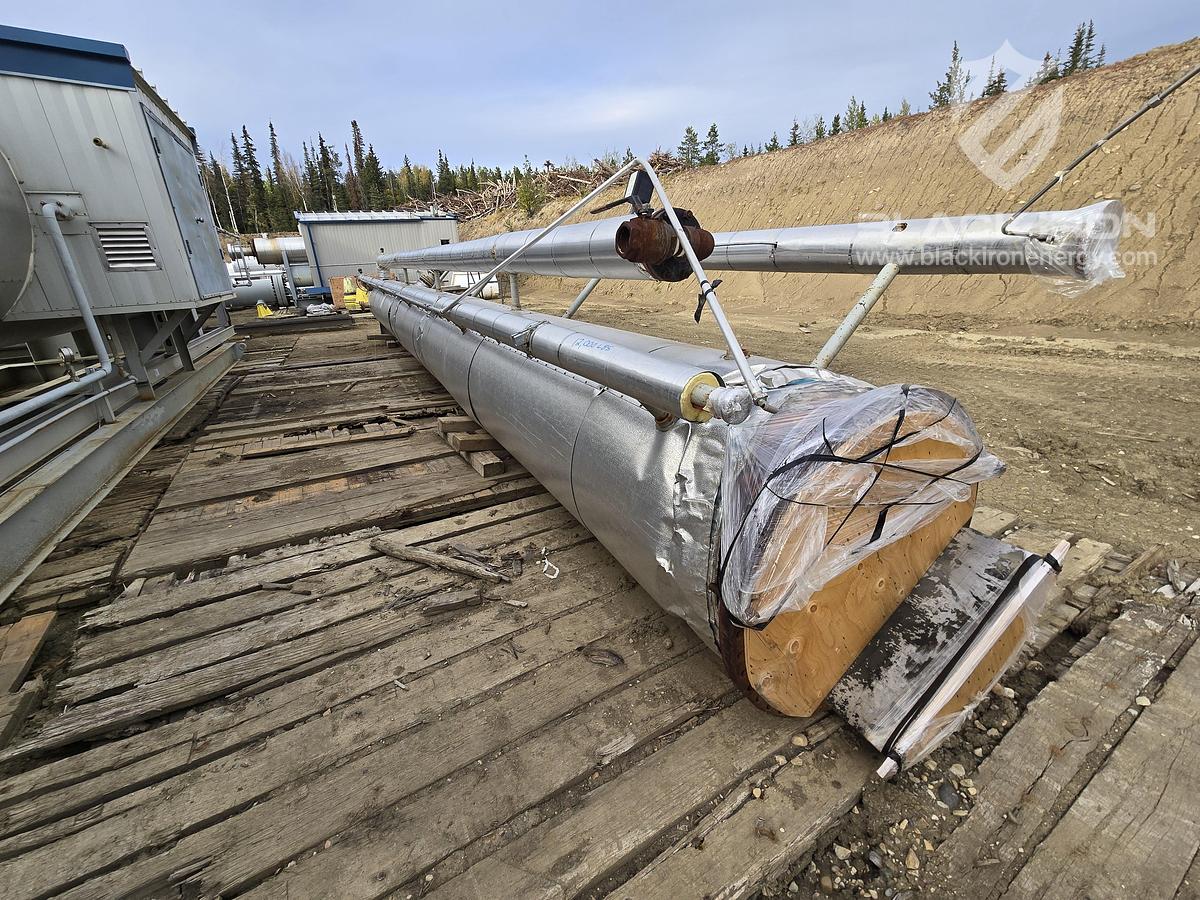

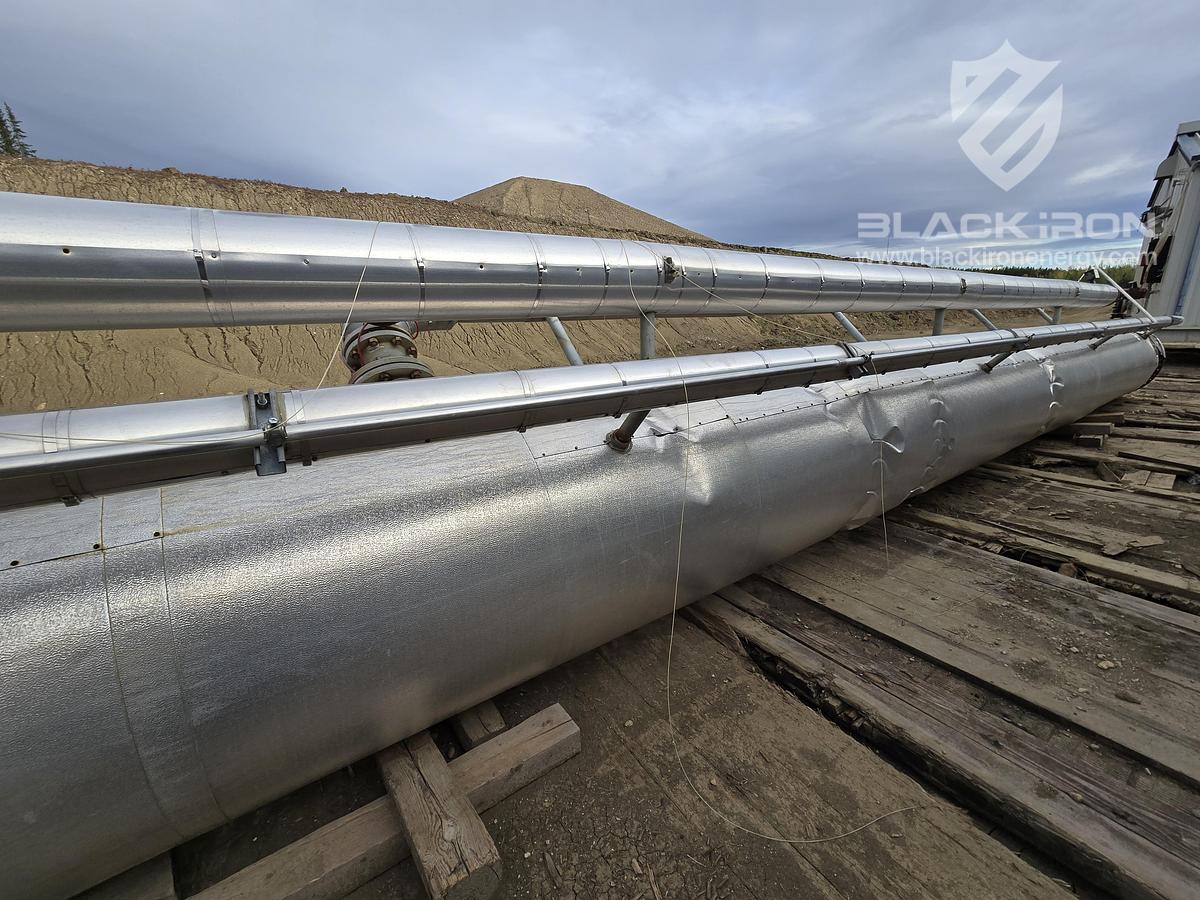

• Amine regenerator (V-460)
• 345 kPag
• C/W (20) KOCH T-Valve Cartridge Trays
• 36" x 50' 9"

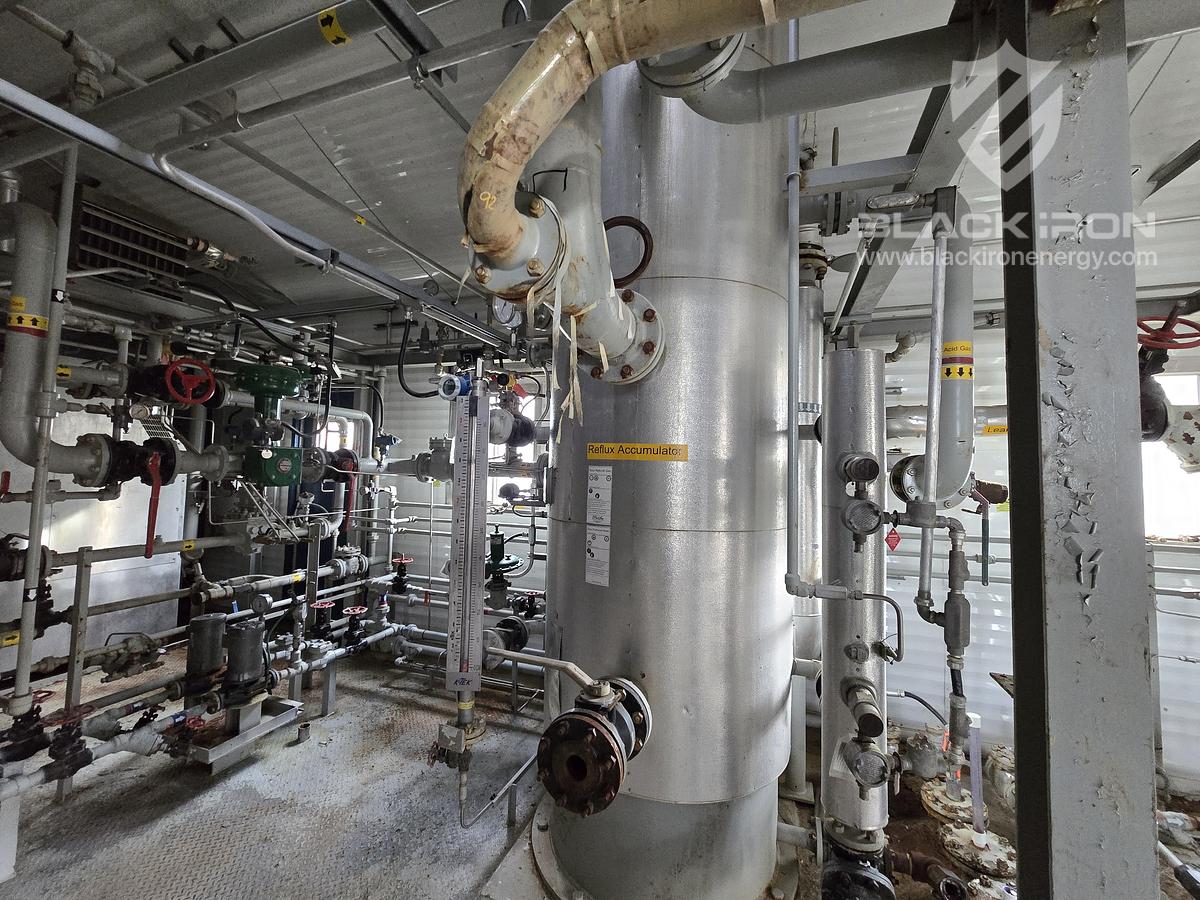

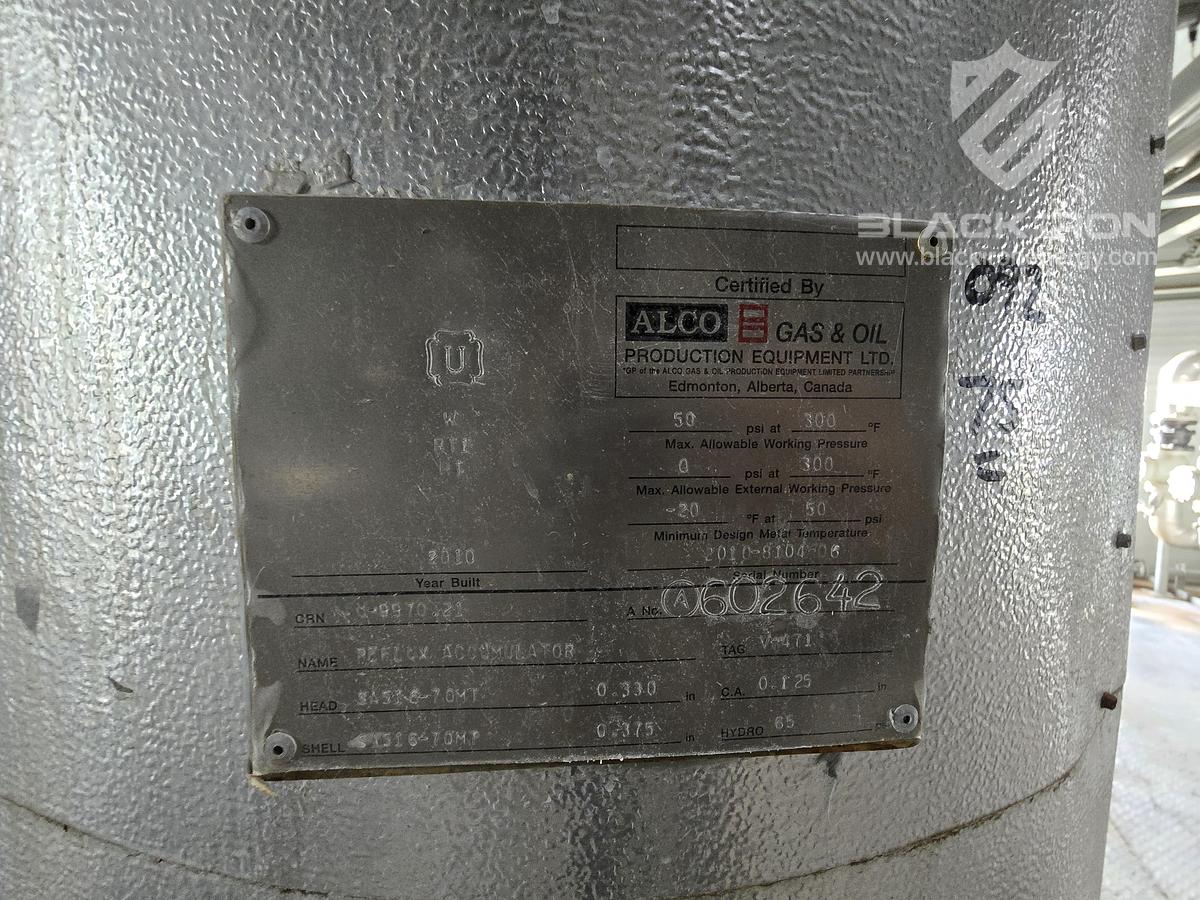

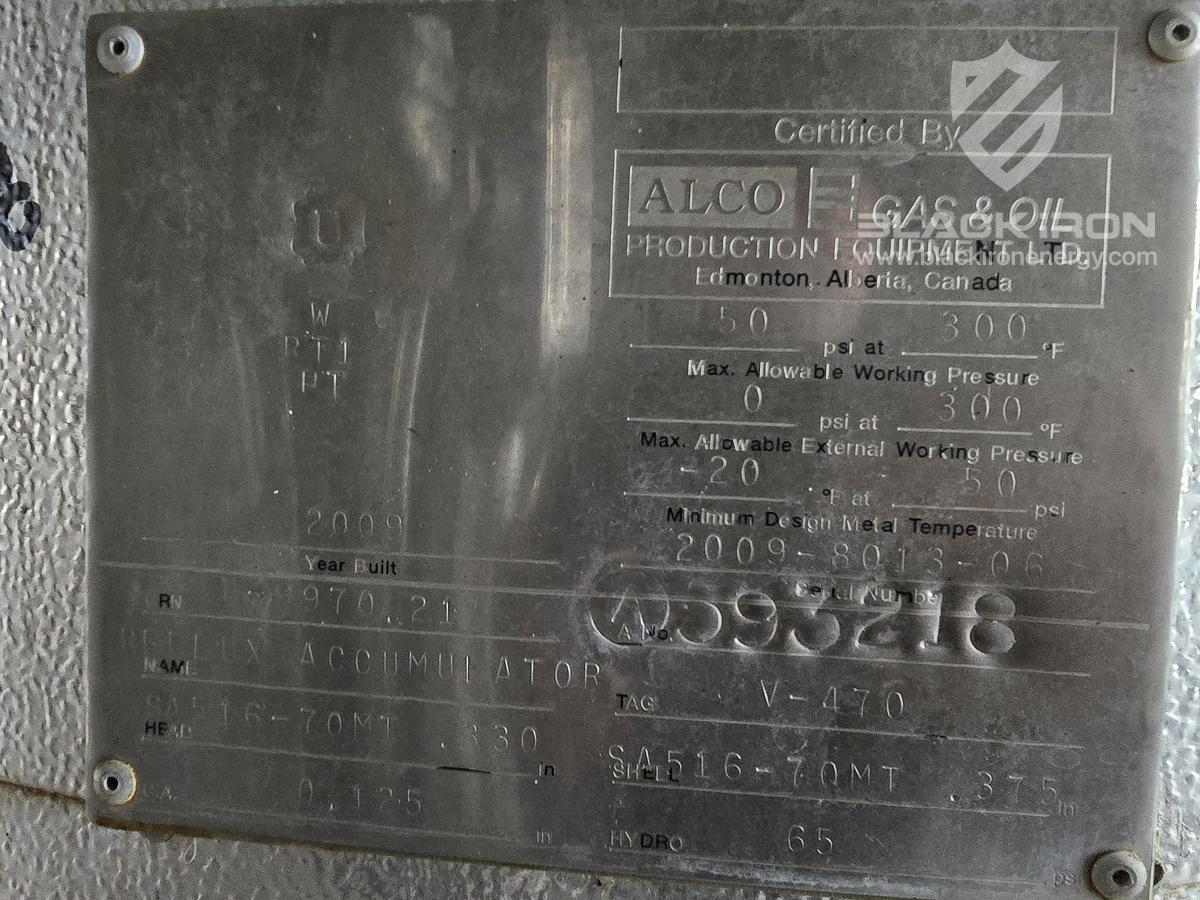

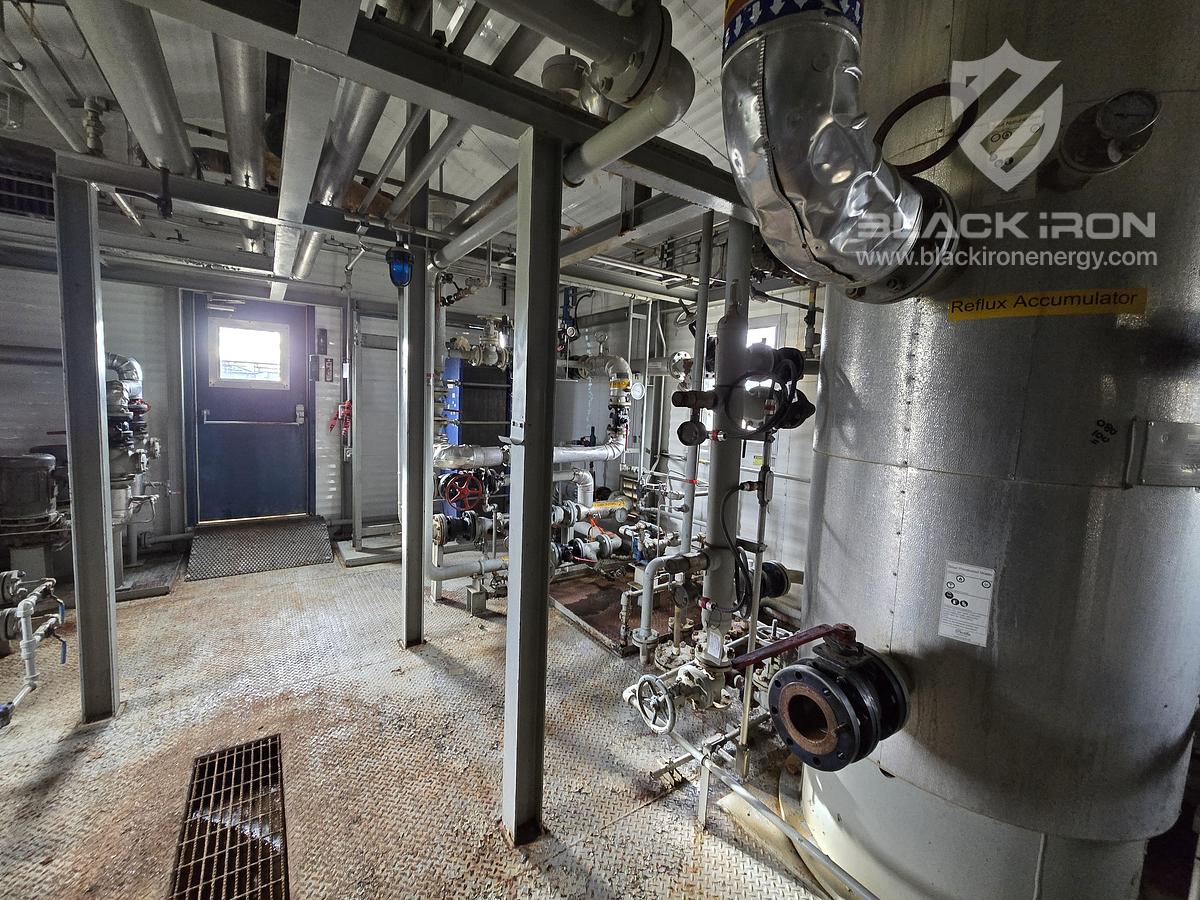

• Relux accumulator (V-470)
• 345 kPag
• 2 phase W/ Mistex
• Integral W/ t40
• 36" X 60"

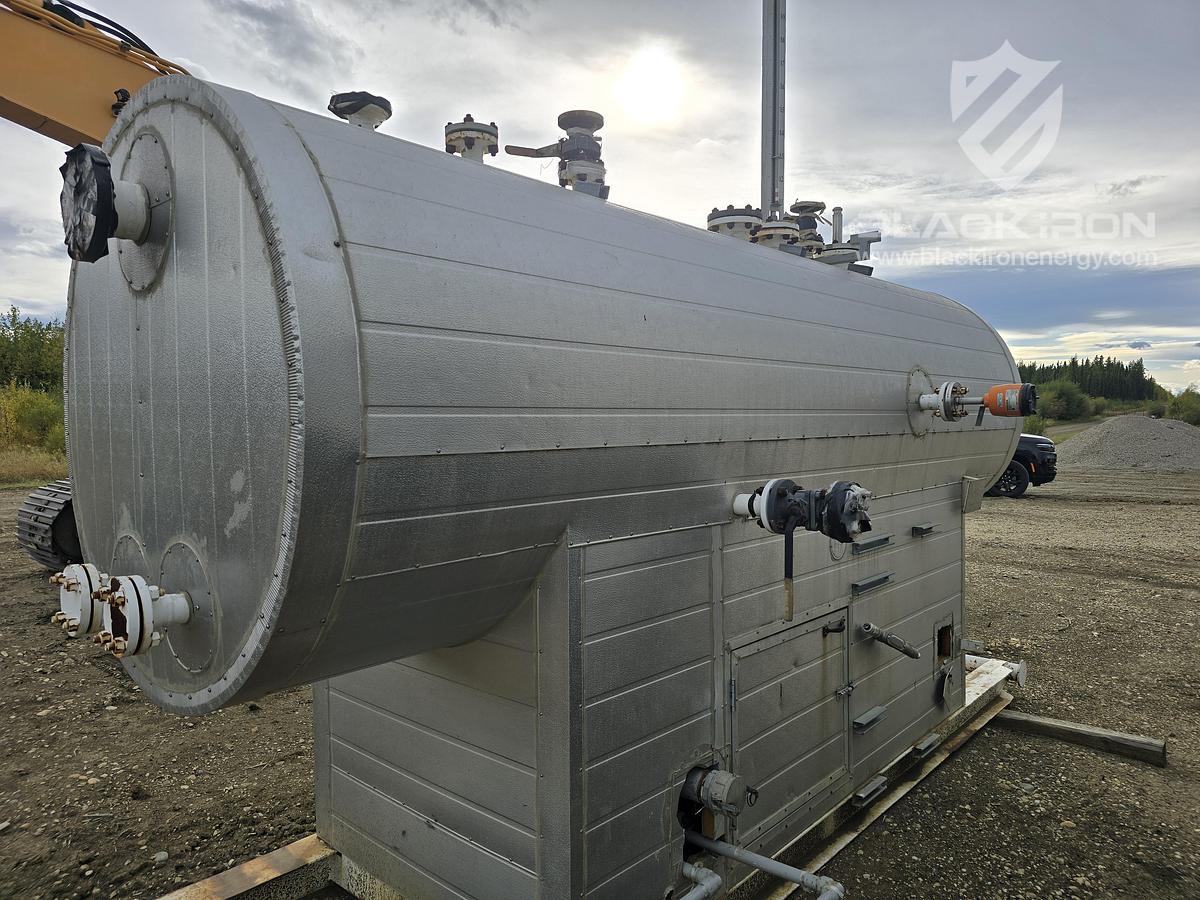

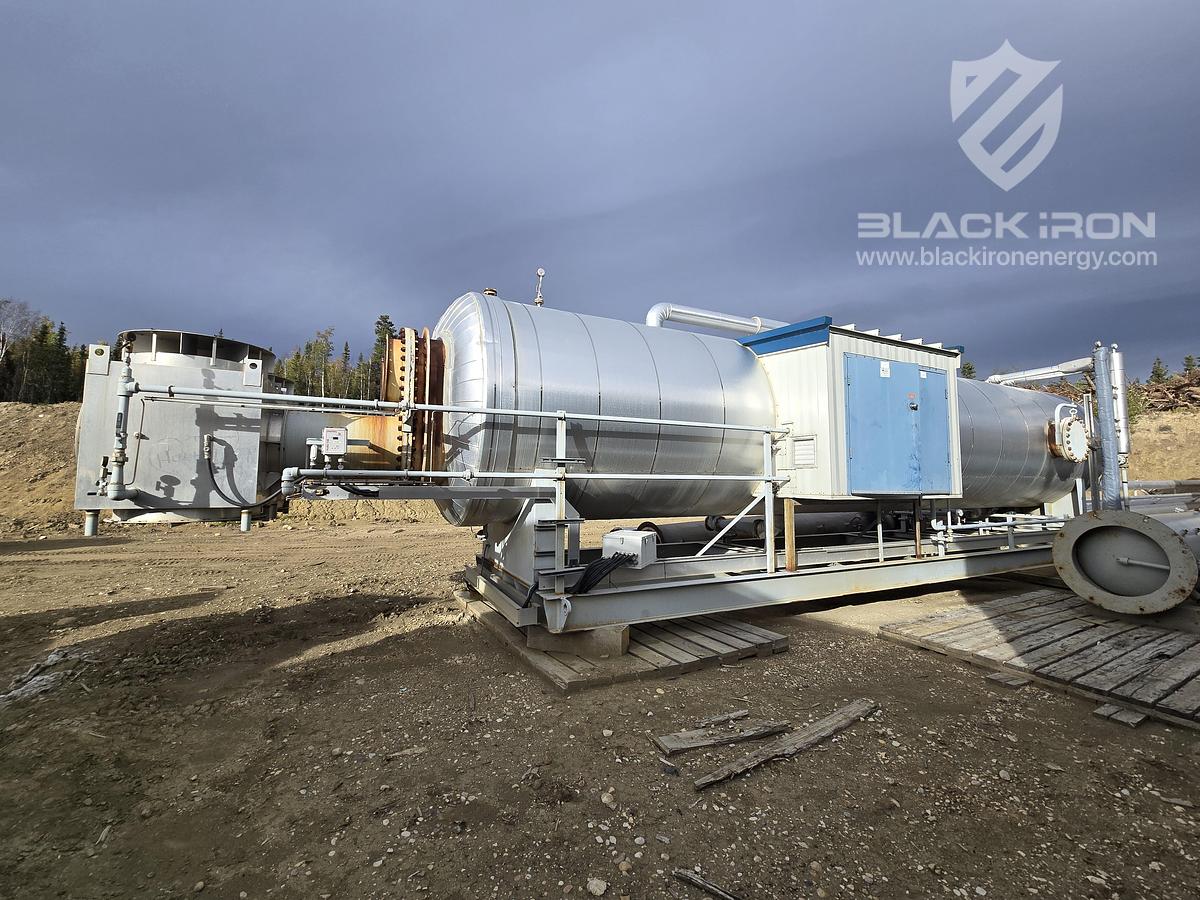

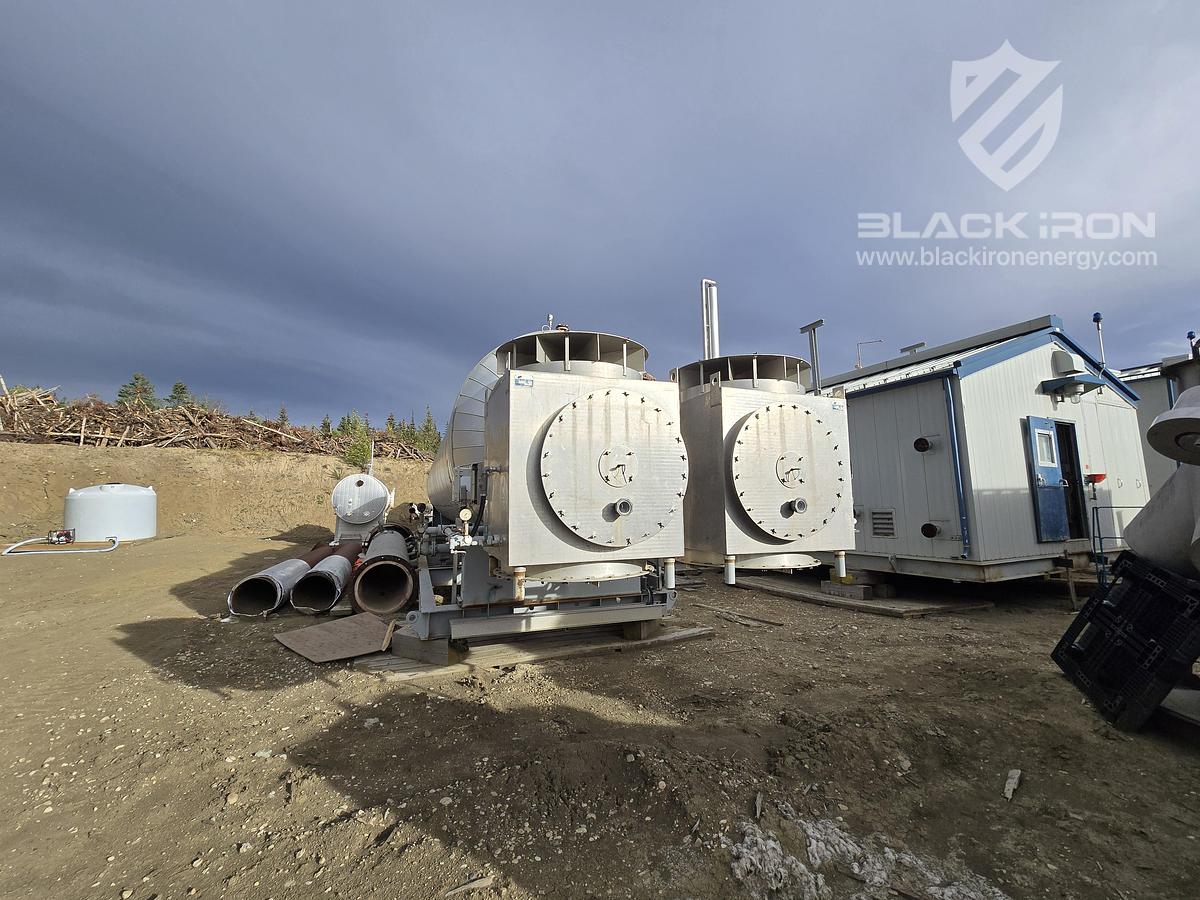

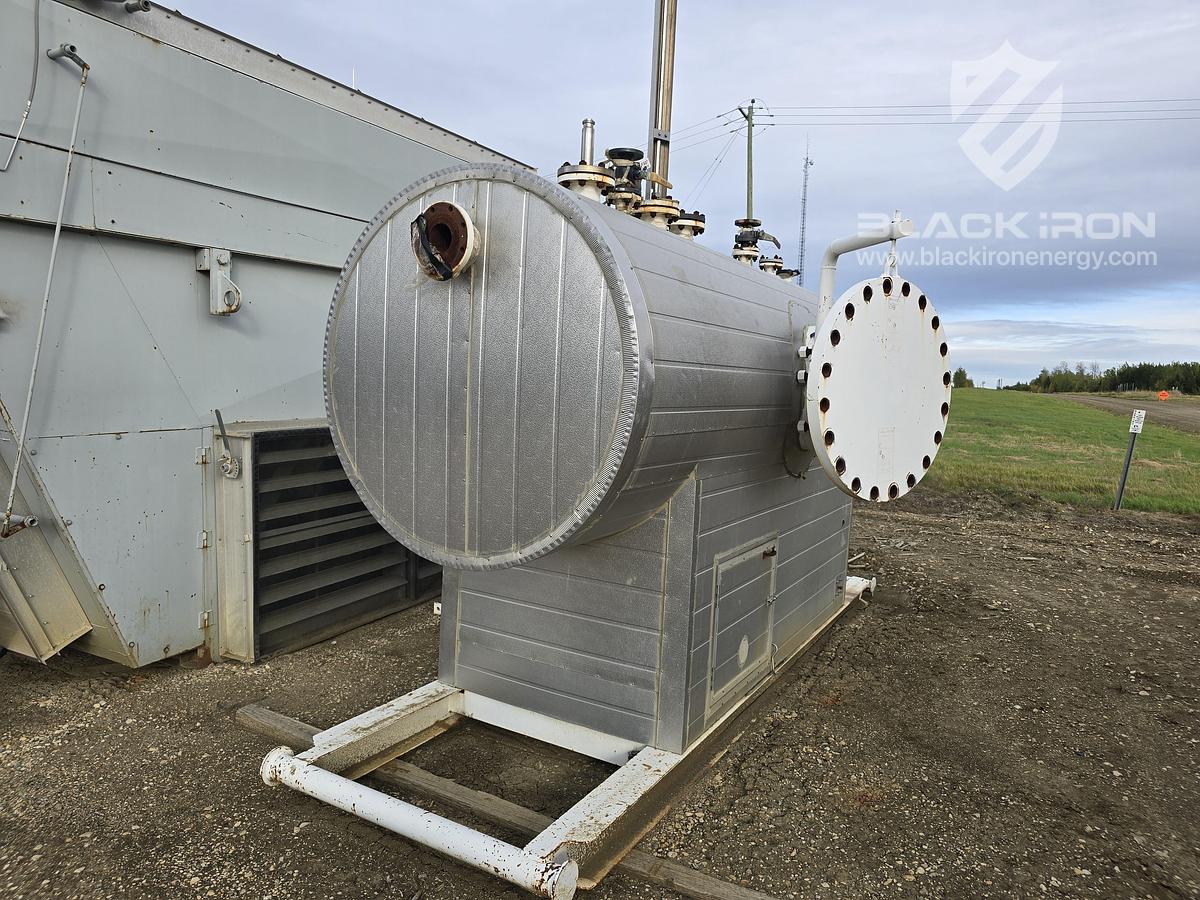

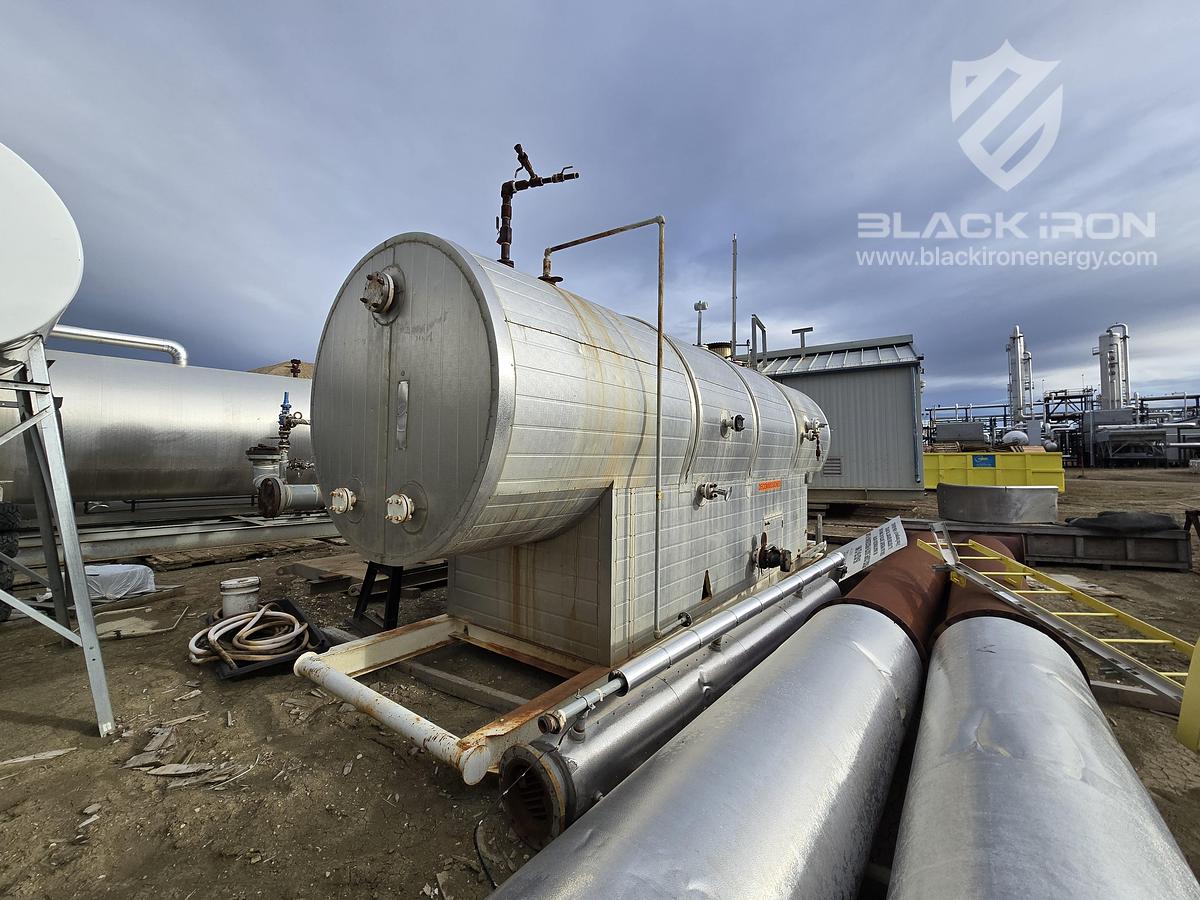

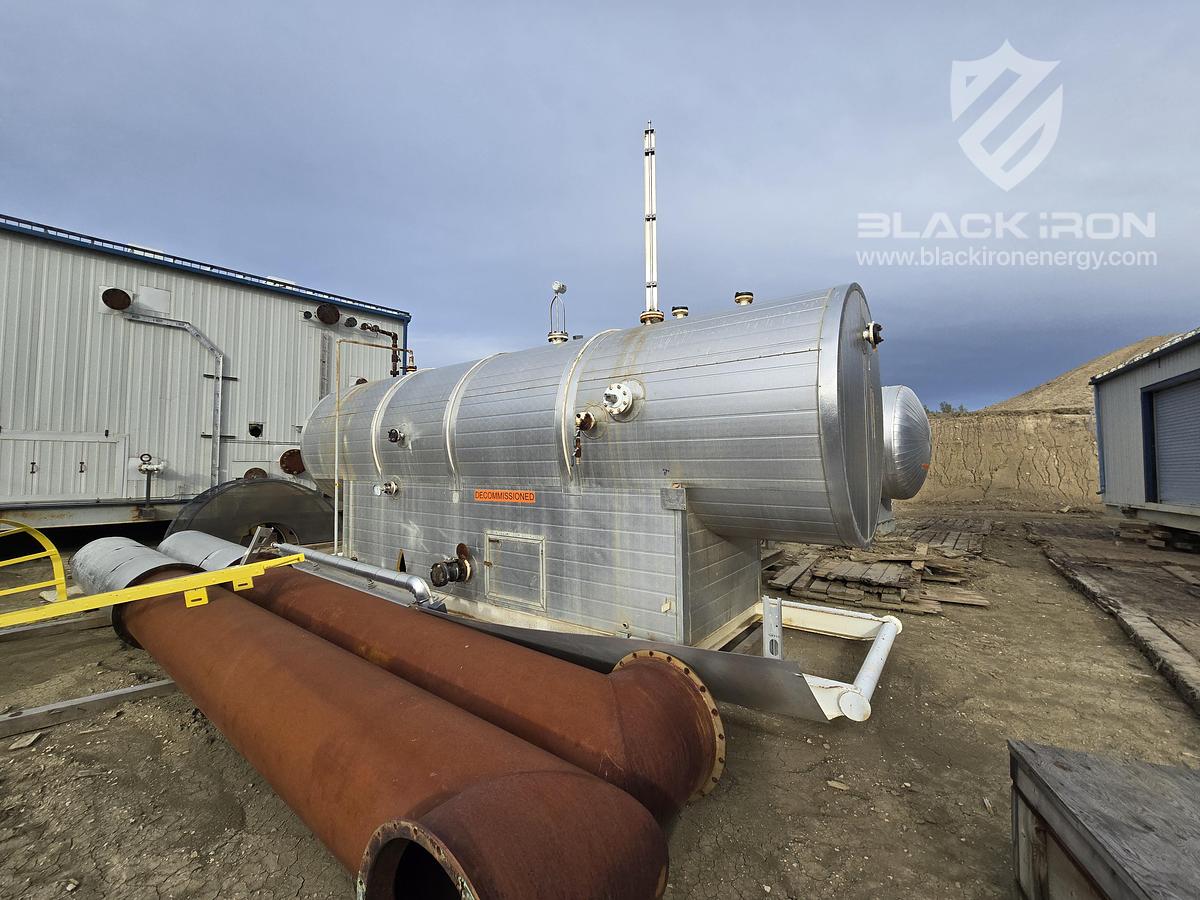

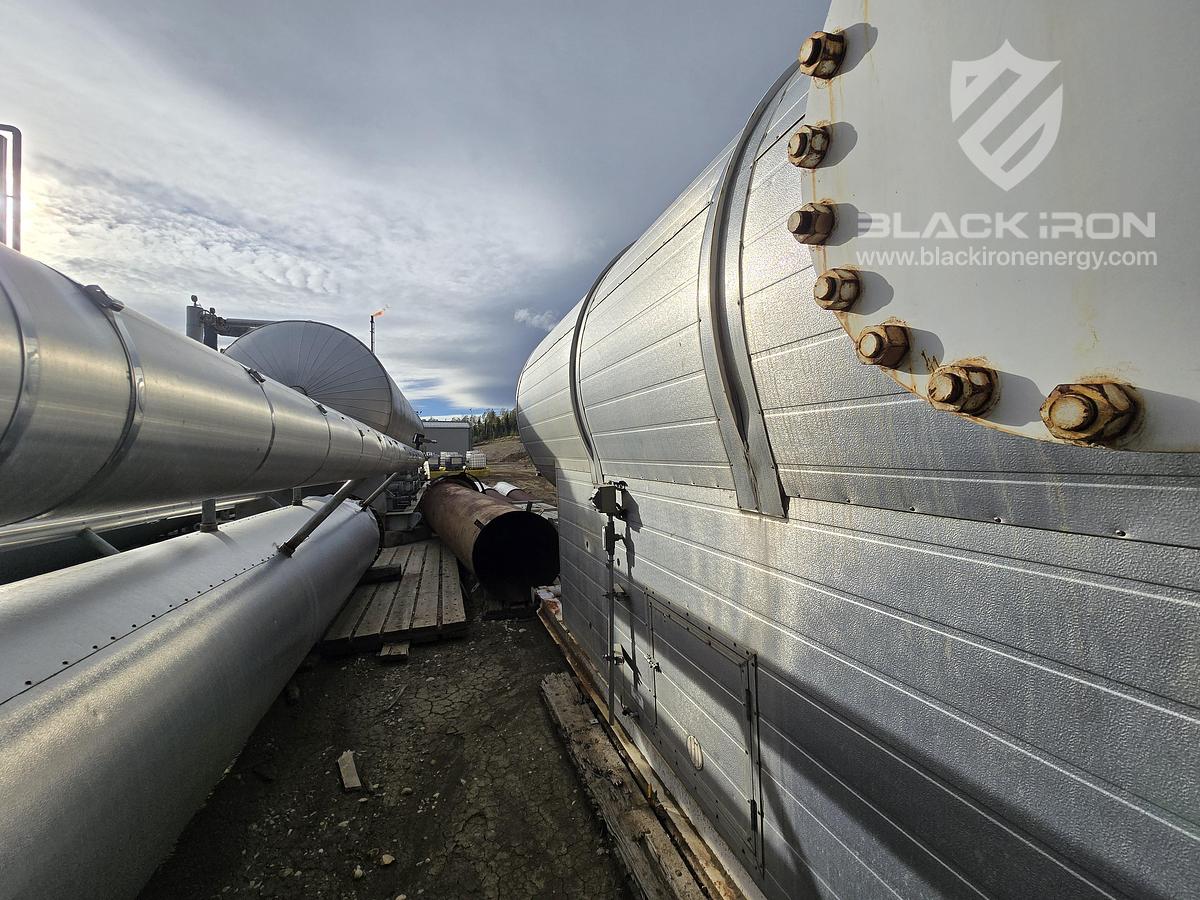

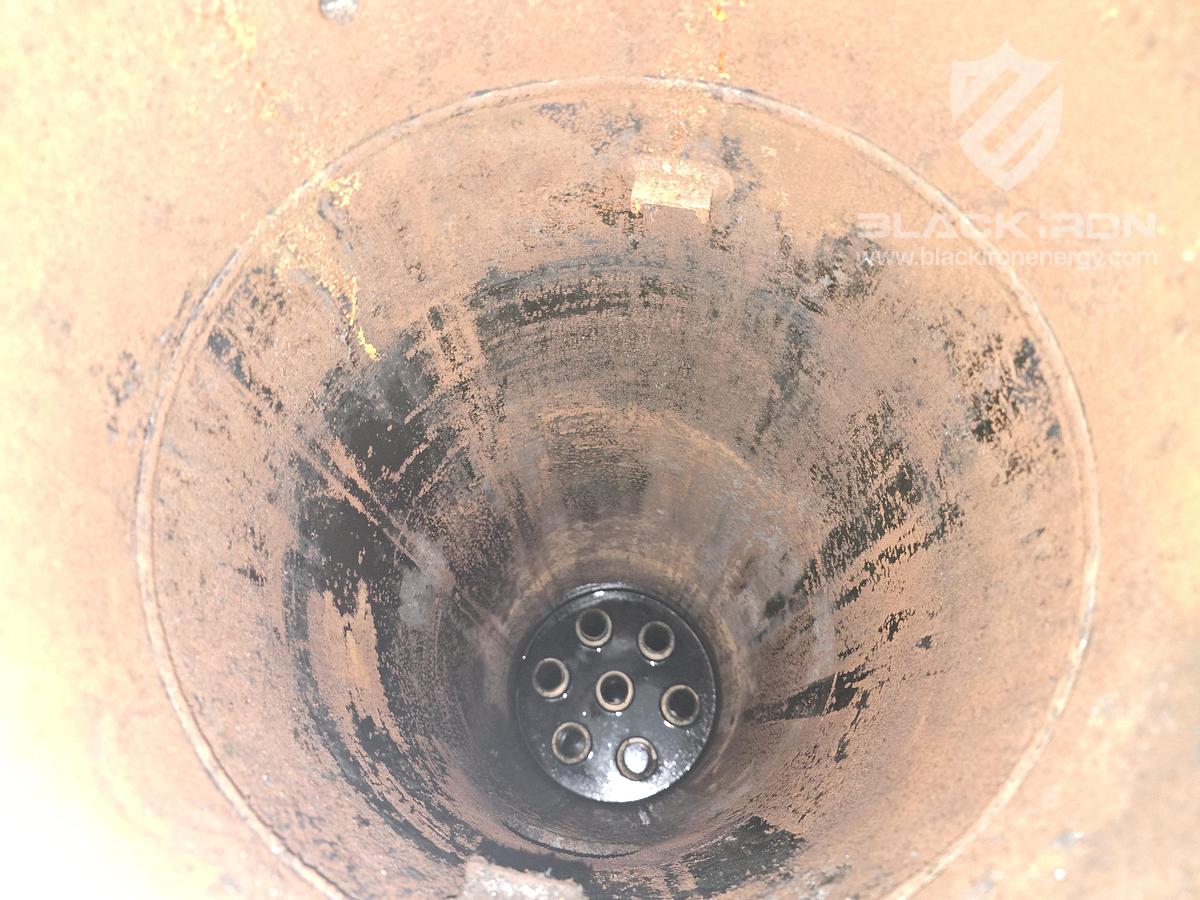

• Amine Reboiler (E-740)
• 345kPag
• Design Duty 1539 Kw direct fired 25% spare
• integral surge section

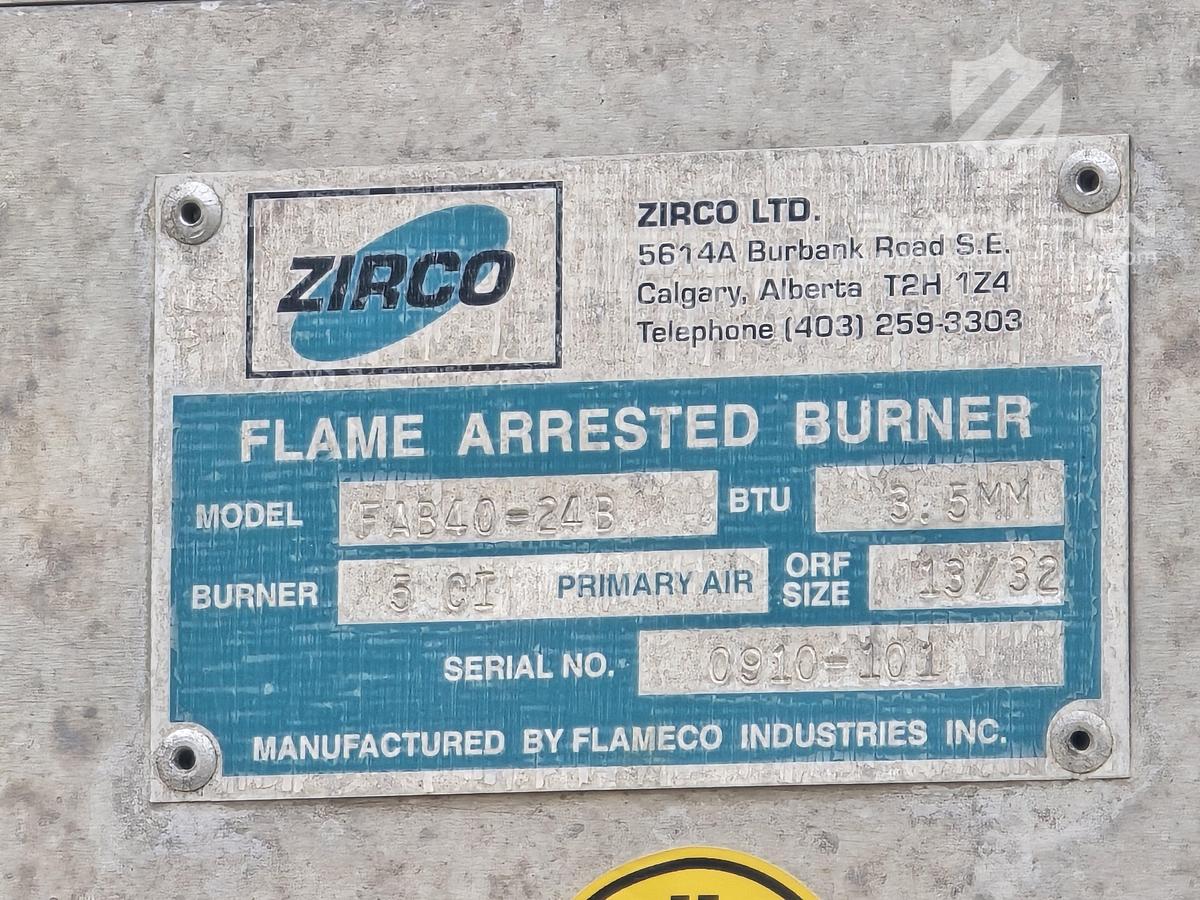

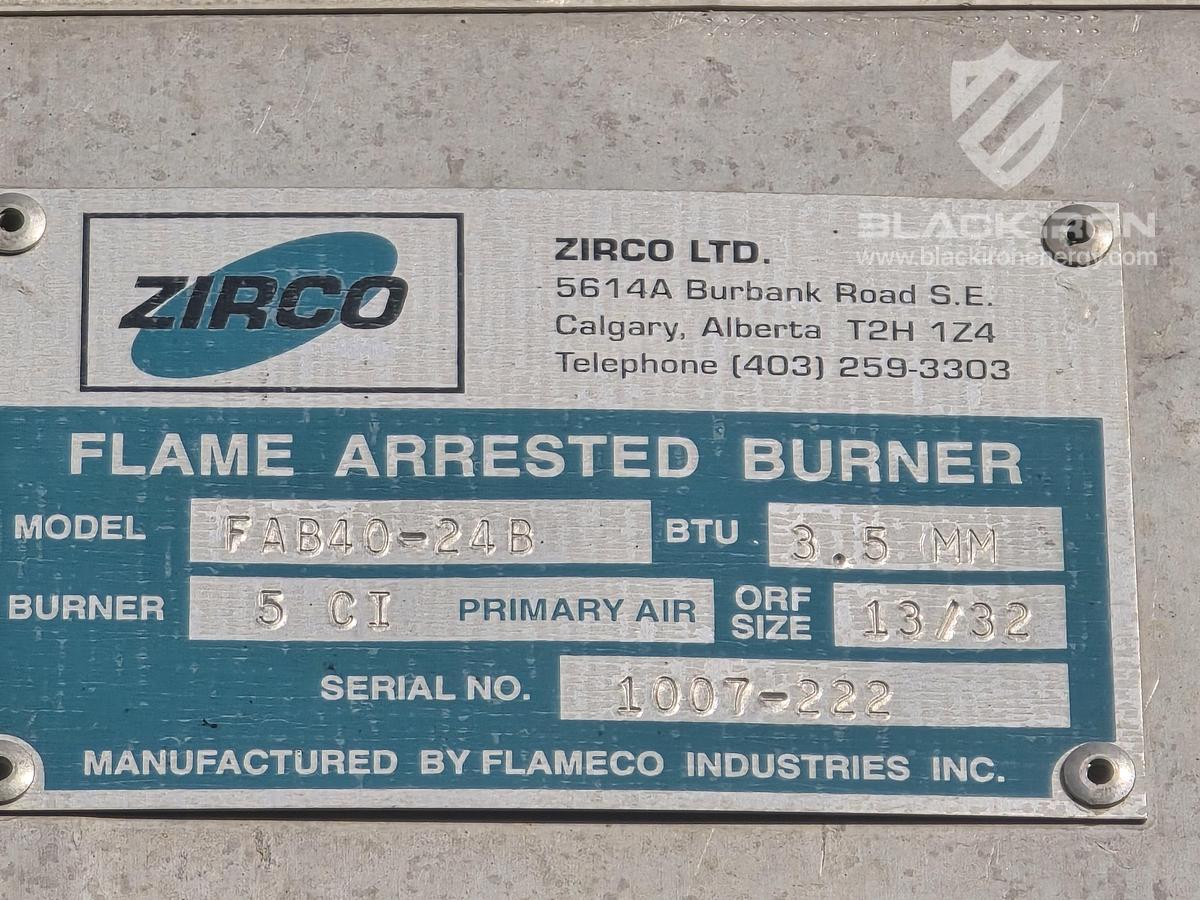

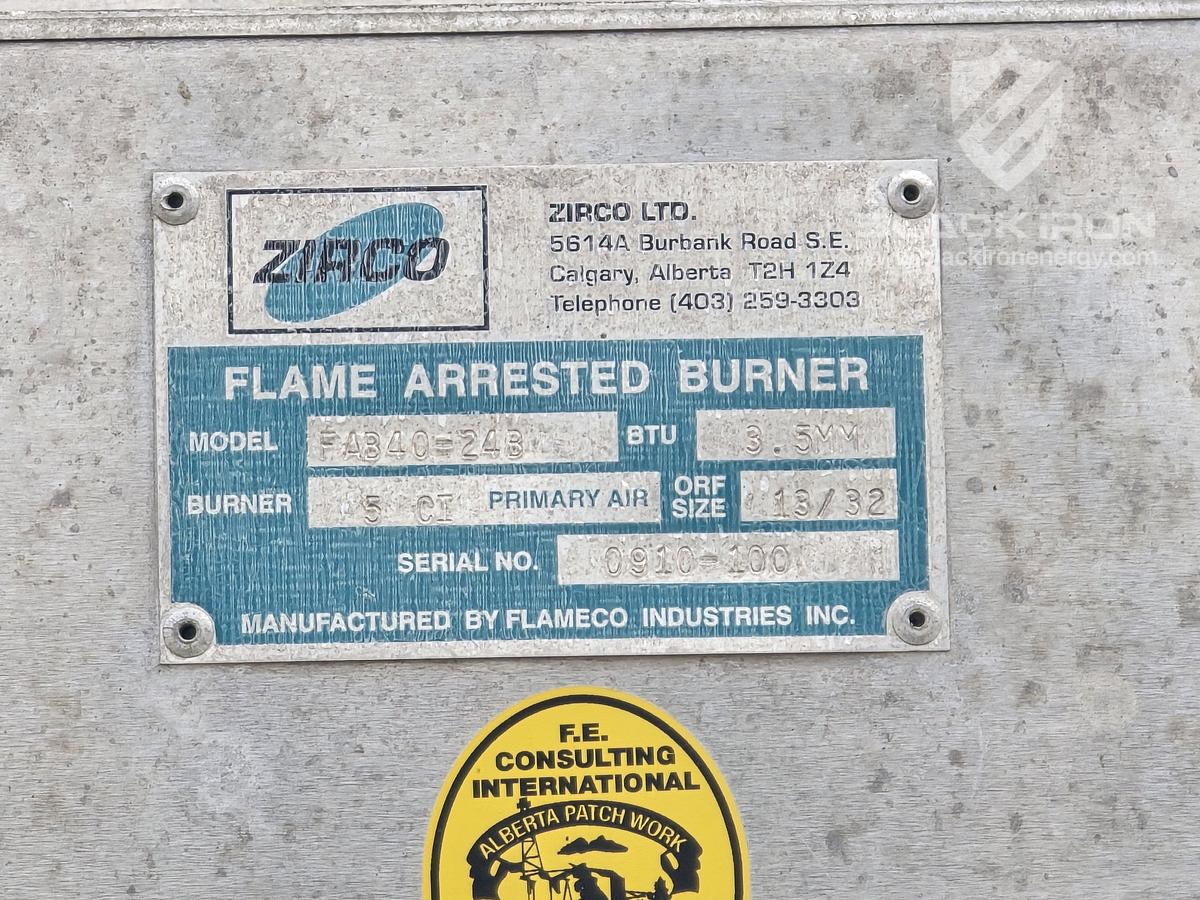

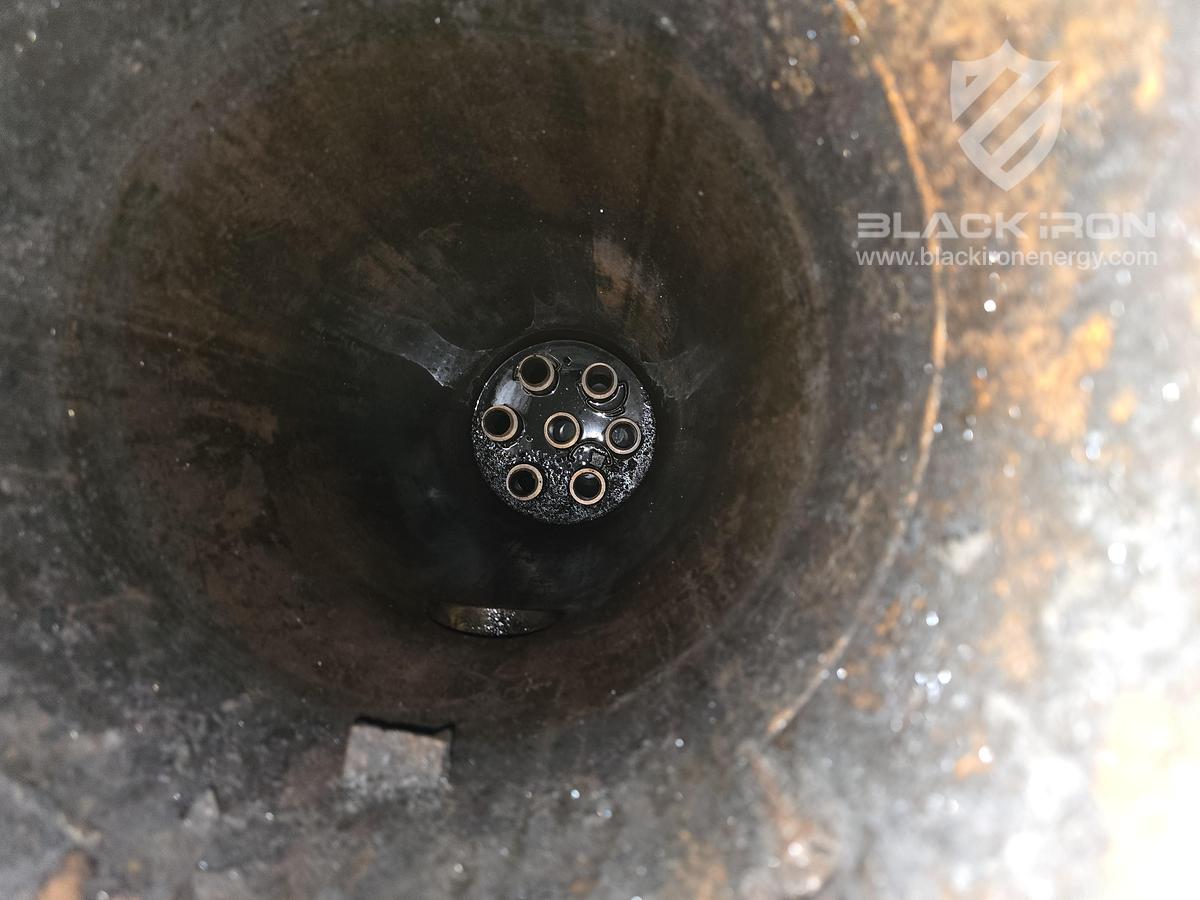

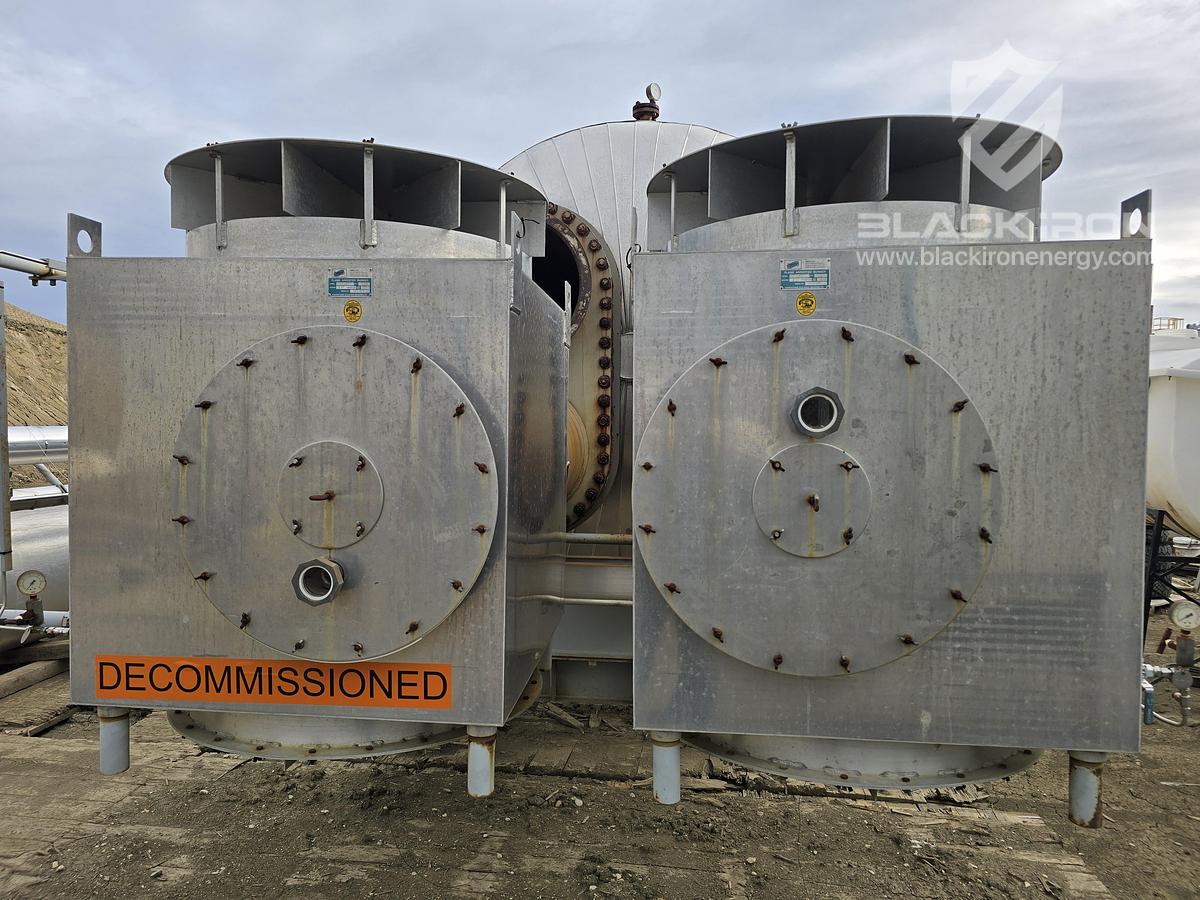

• Flame arrested gas burner (B-740A/B)
• 1026 Kw each

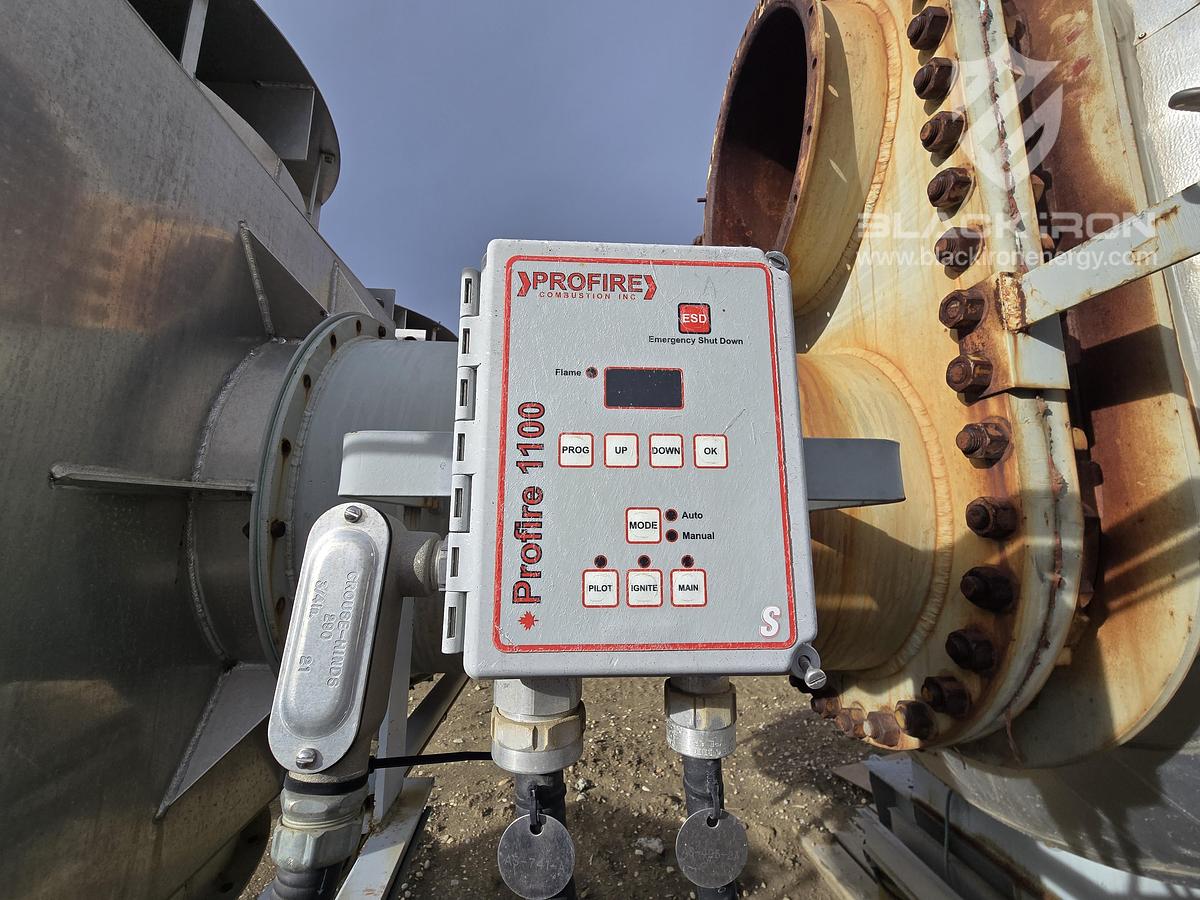

• burner control panels

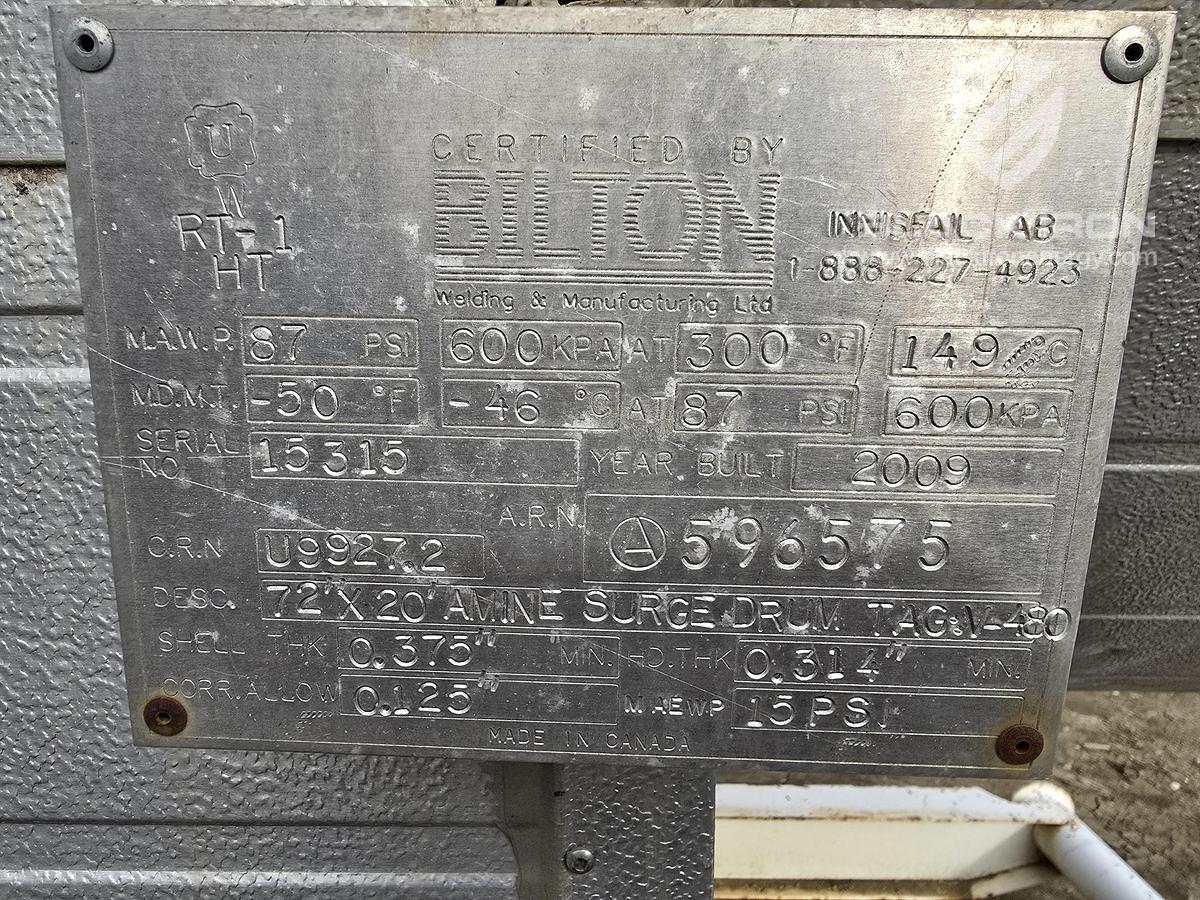

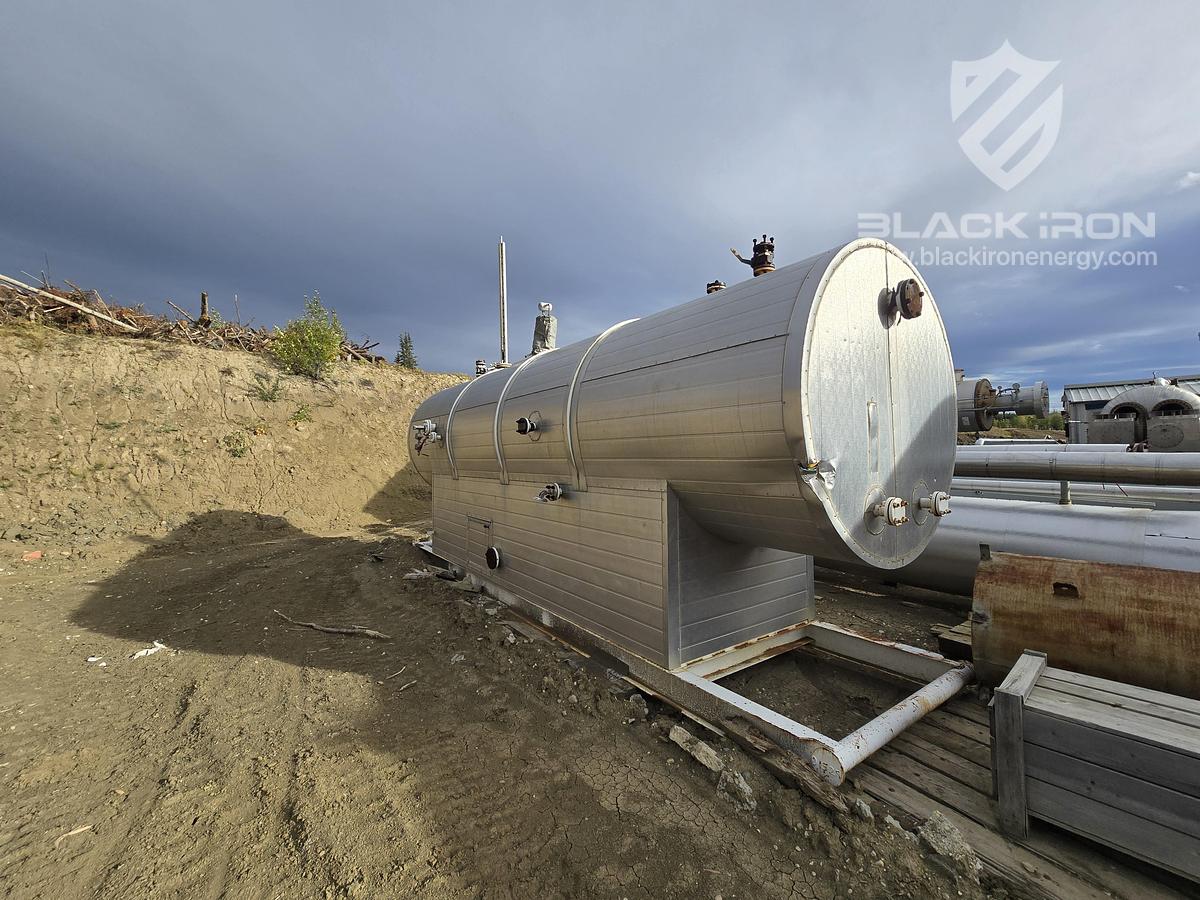

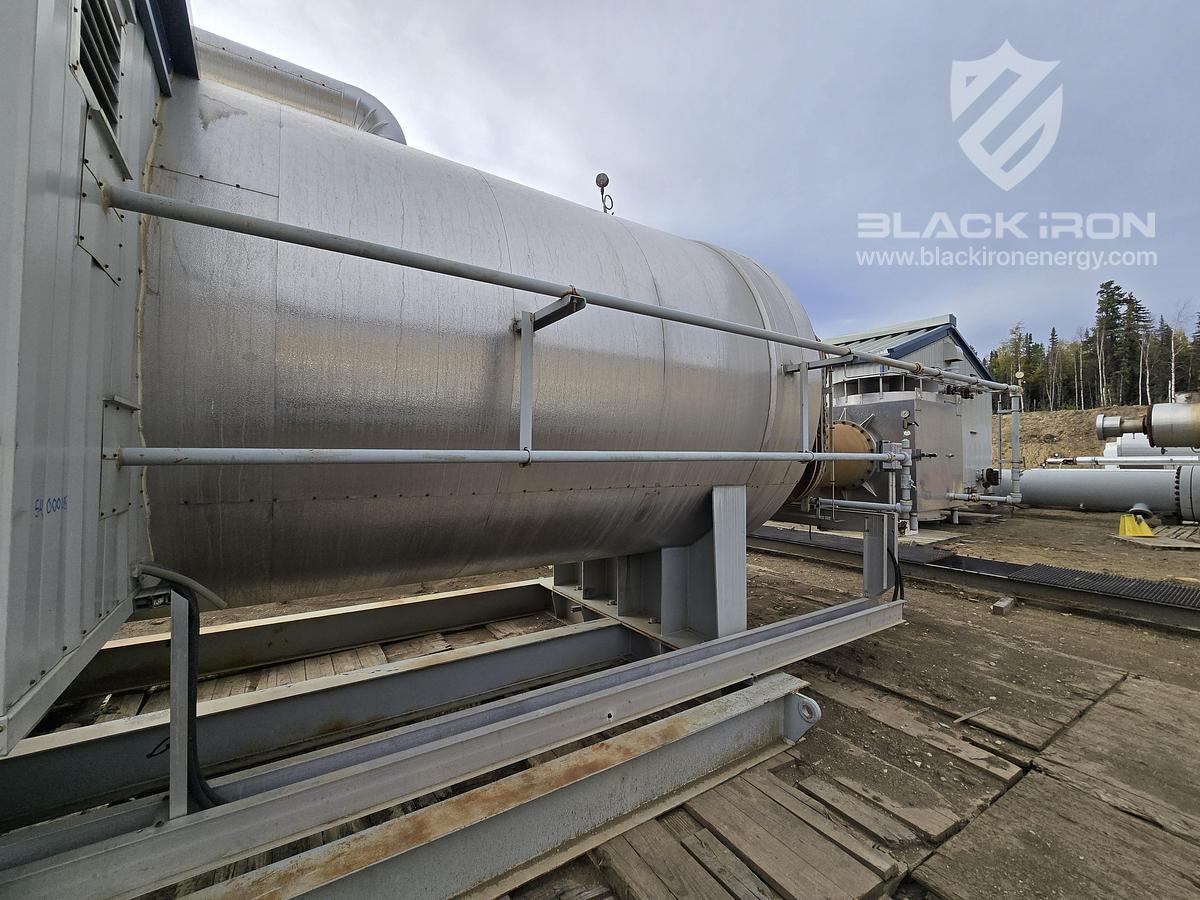

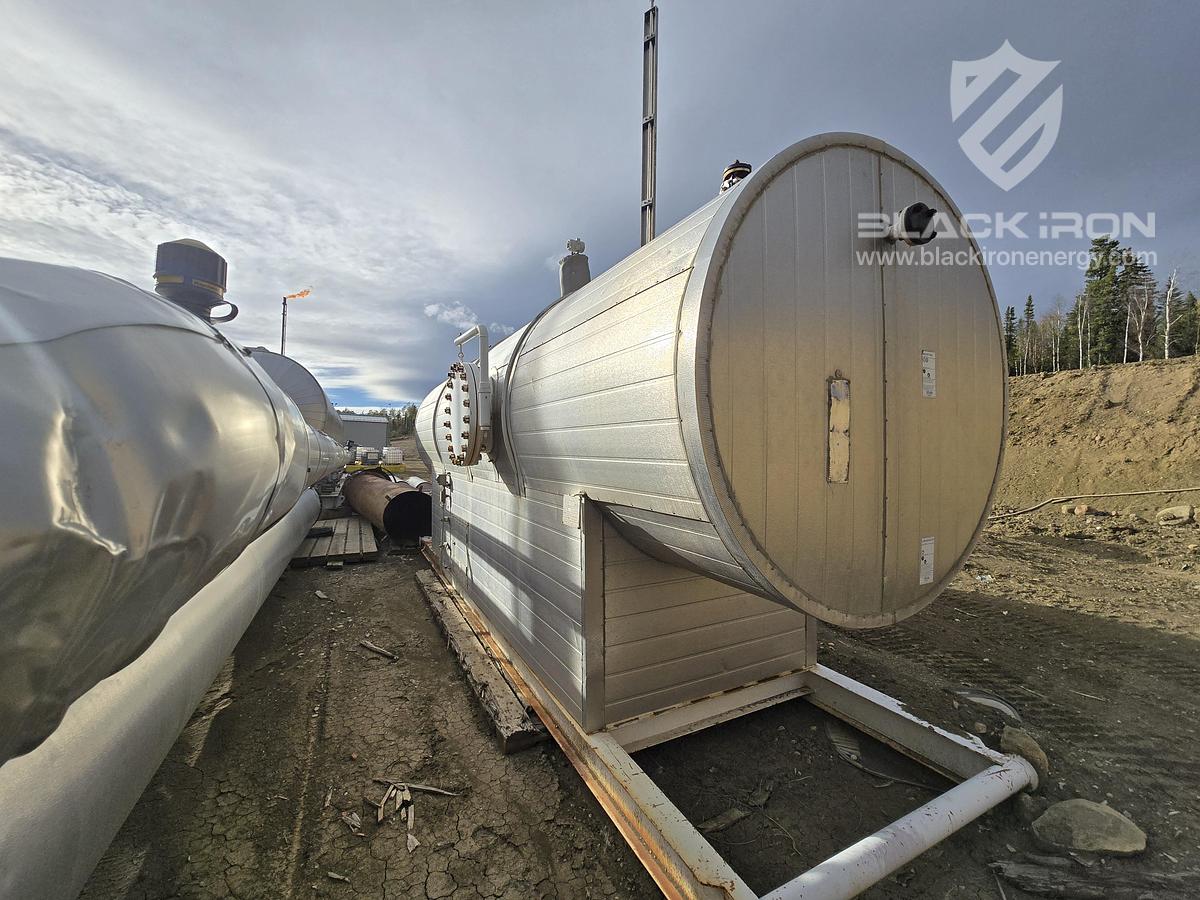

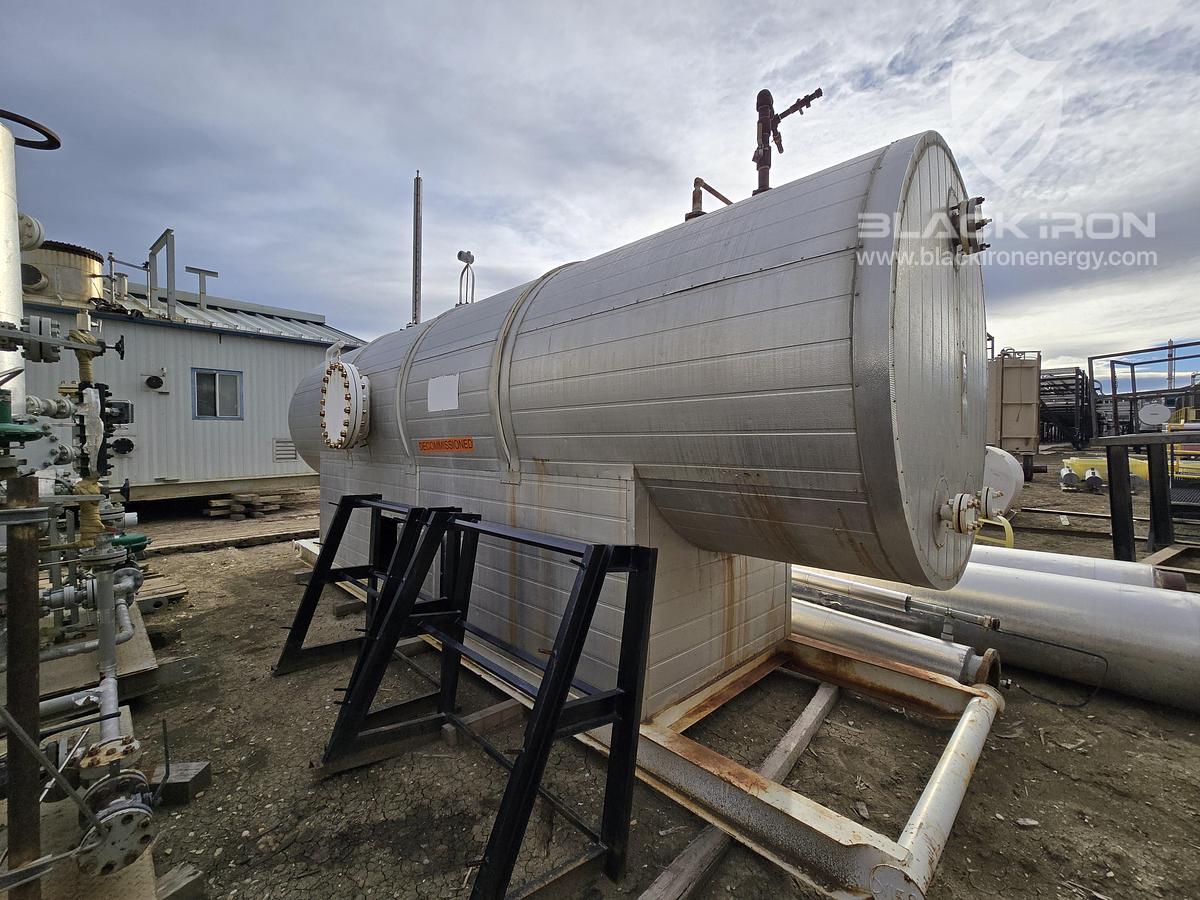

• Amine Surge Drum (V-480)
• MAWP 600 kPag
• Capacity 17.5m3
• 72" X 20'

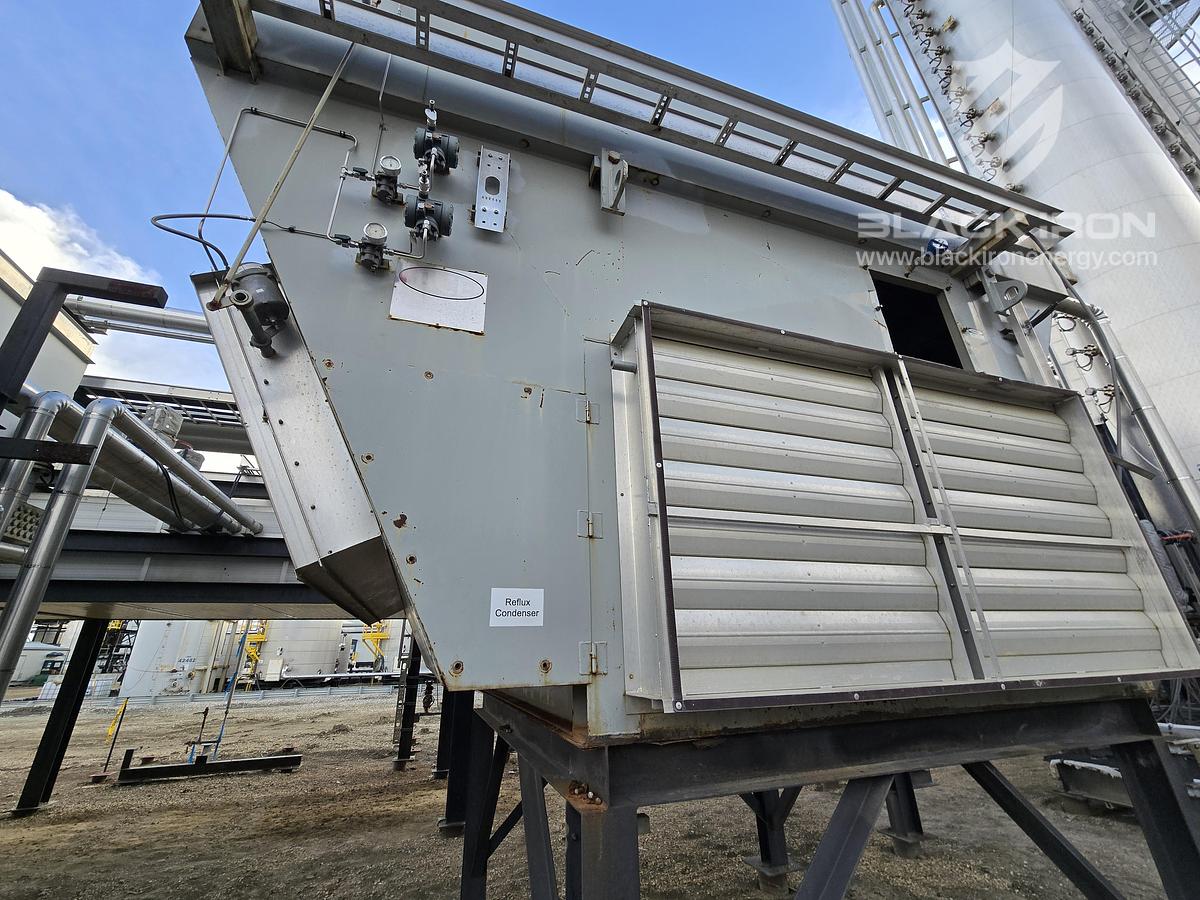

• Reflux condenser (R-760)
• 345 kPag
• Duty 889Kw
• 40 HP
• 60Hz
• 3 Phase
• 460V AC
• 1800RPM

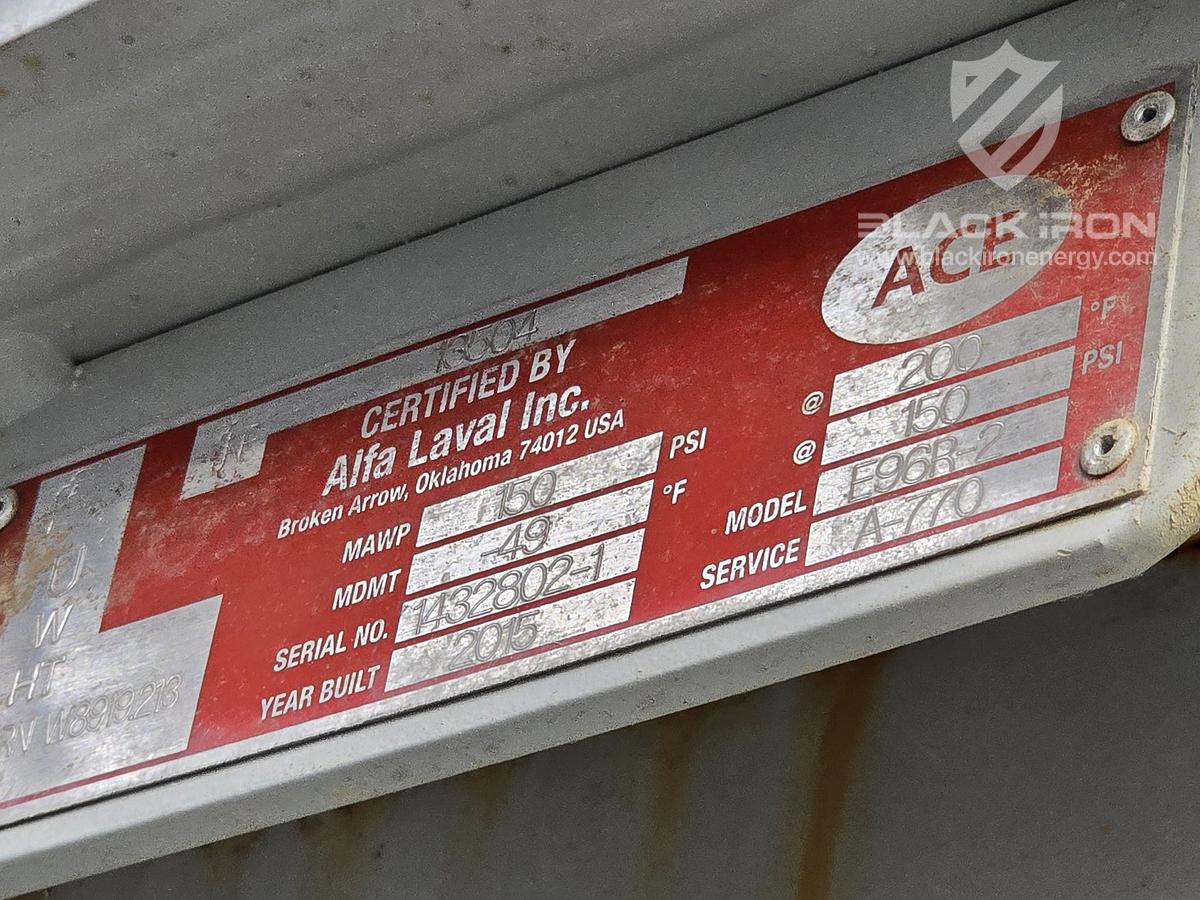

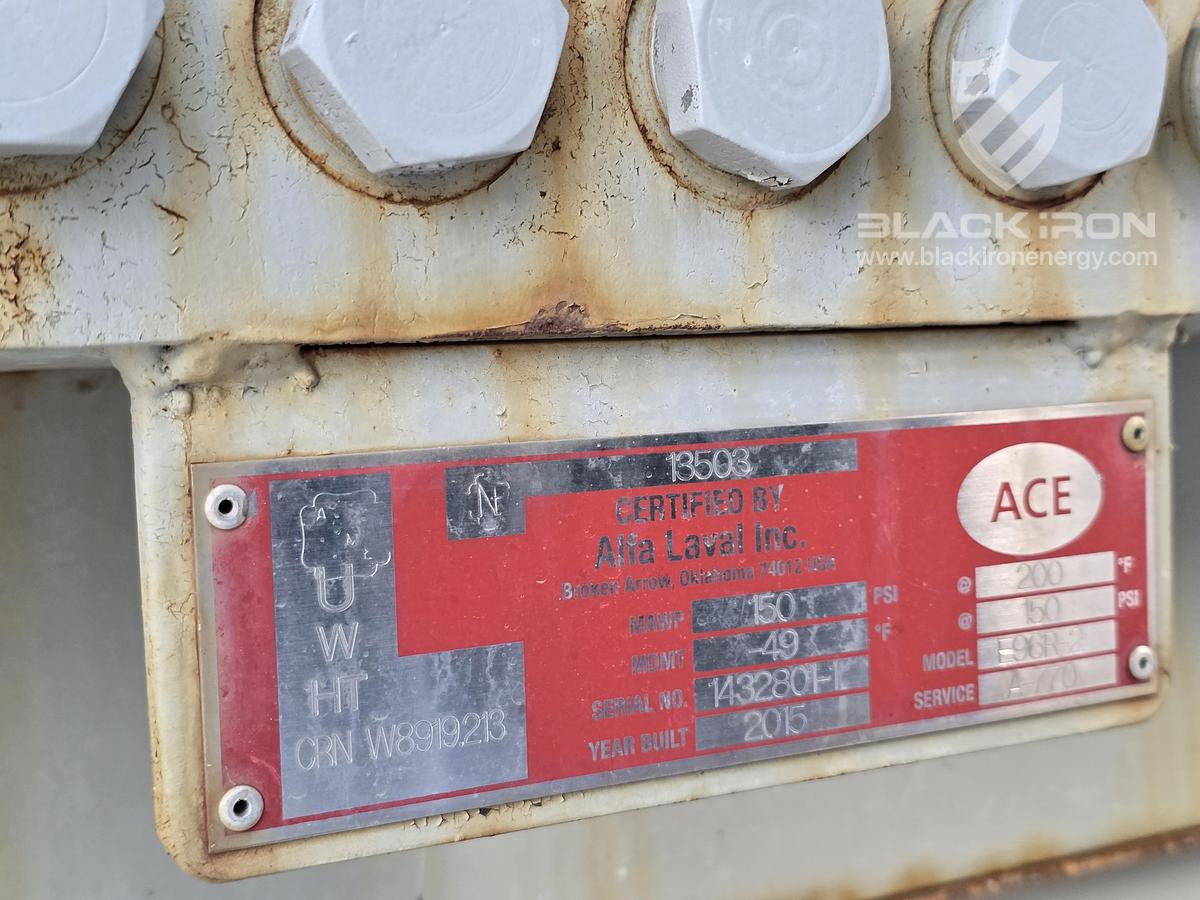

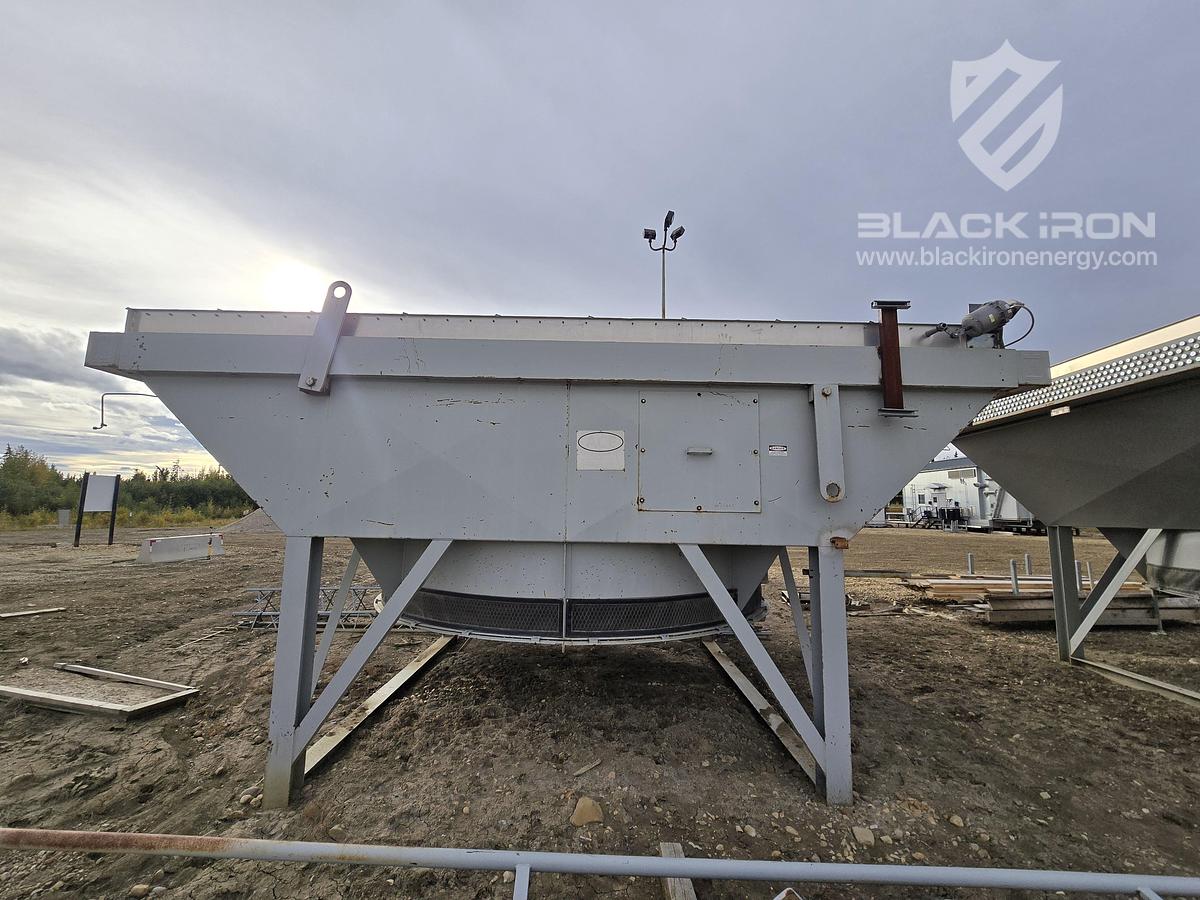

• Lean amine cooler (E-770)
• 1034 kPag
• Design Duty 916 Kw
• Lean amine cooler motors (E-770S/B)
• 22.4 Kw @ 460V
• 60Hz
• 3 Phase
• 1800 RPM

Second Amine Plant is mirrored Copy of first Amine Plant
