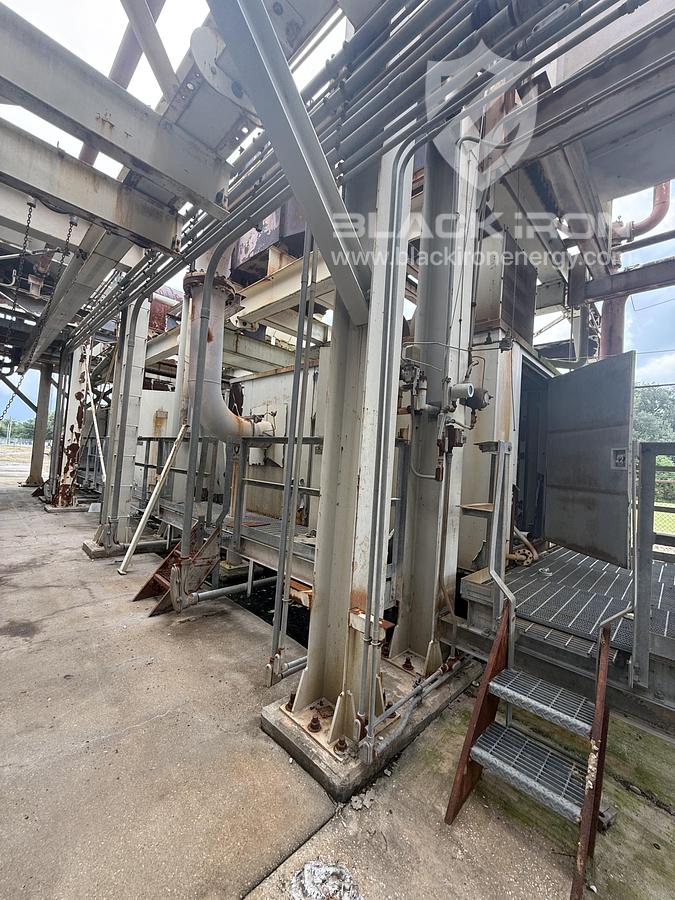

12,315 HP Solar Mars 90 Gas Turbine Compressor (2 of 3)

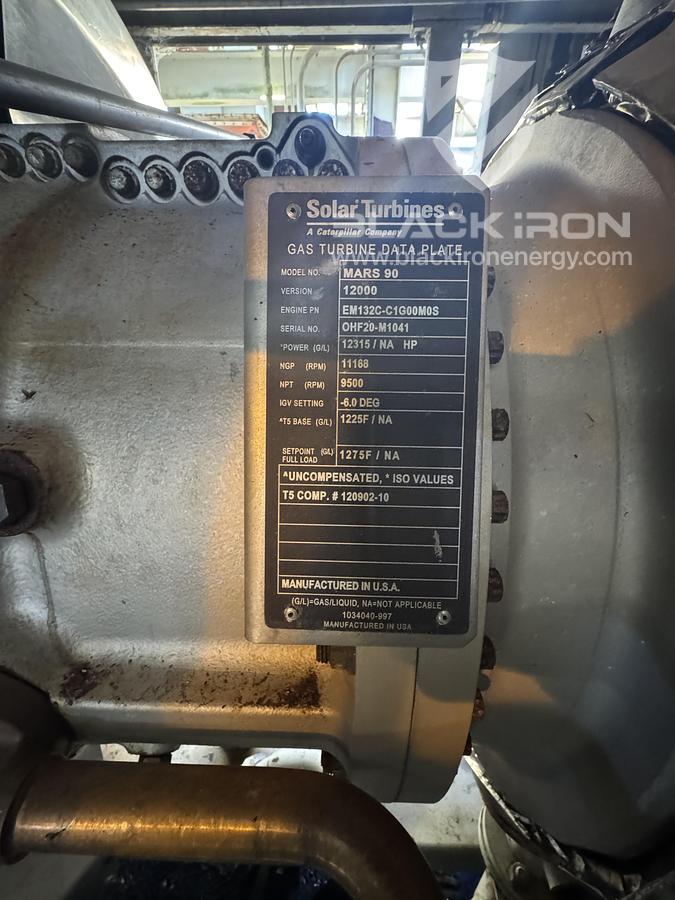

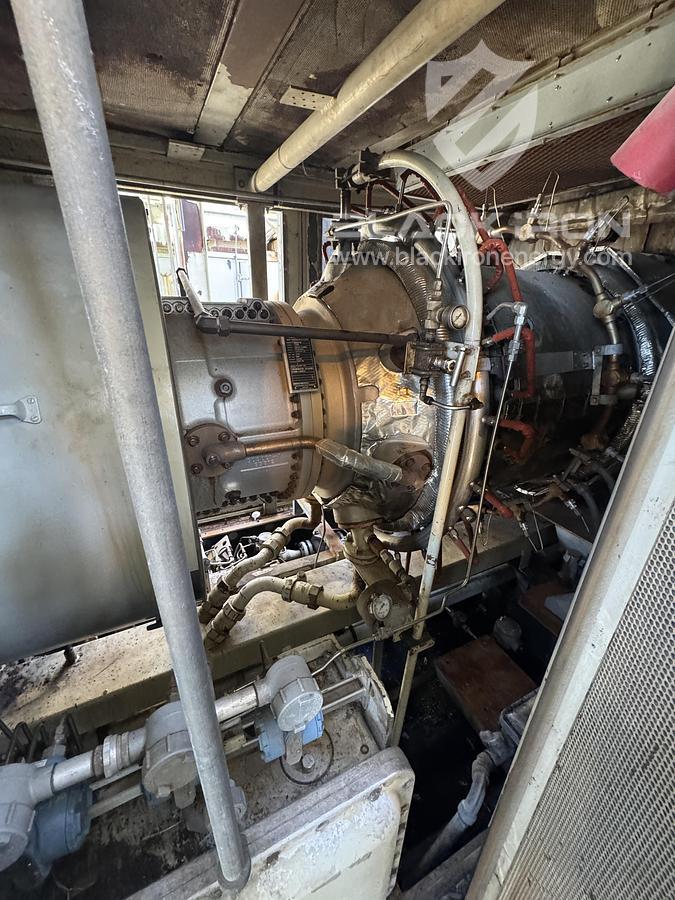

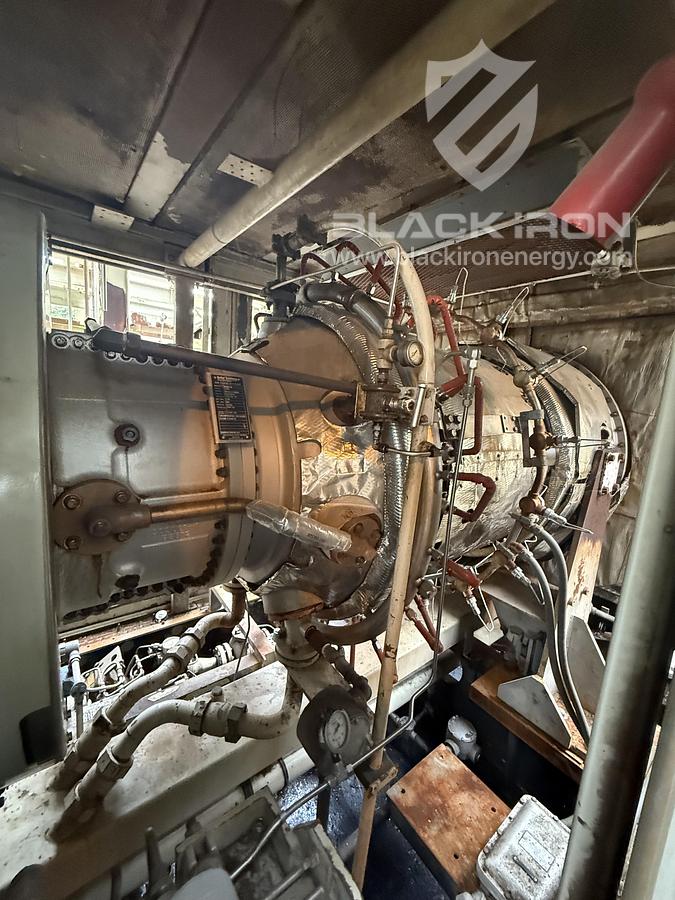

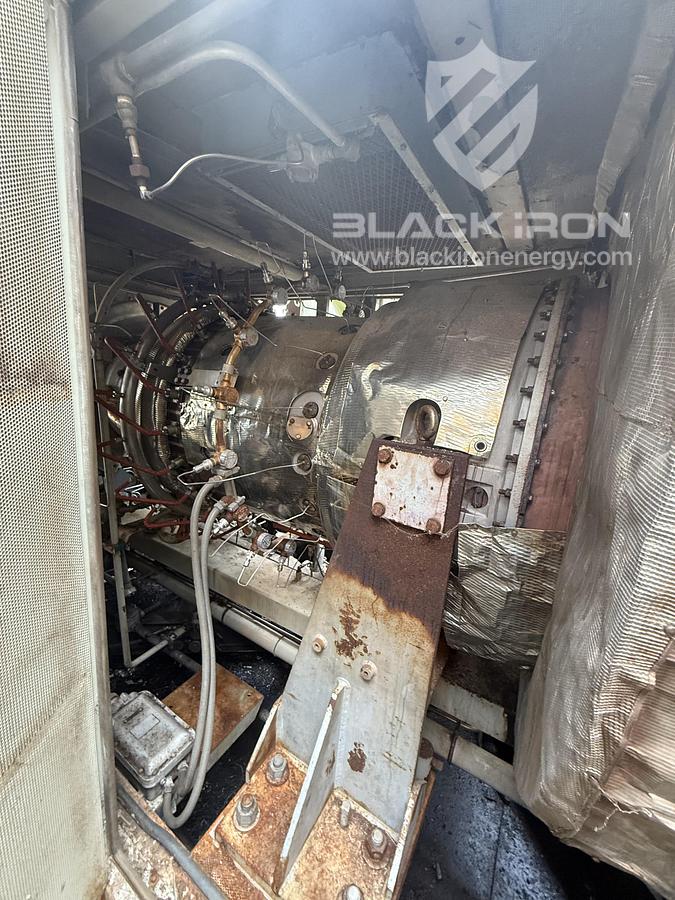

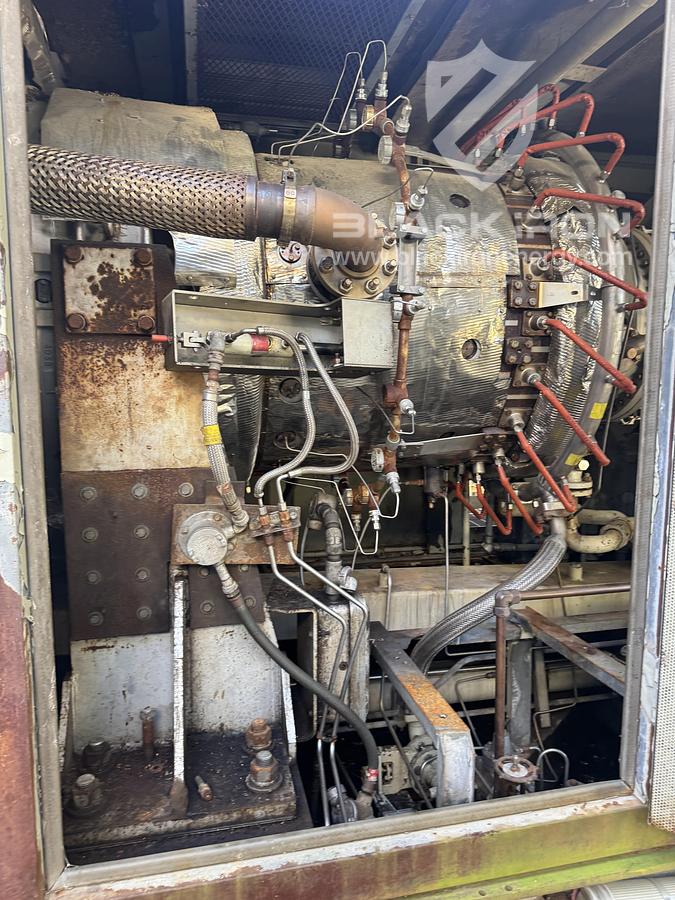

Turbine #2:

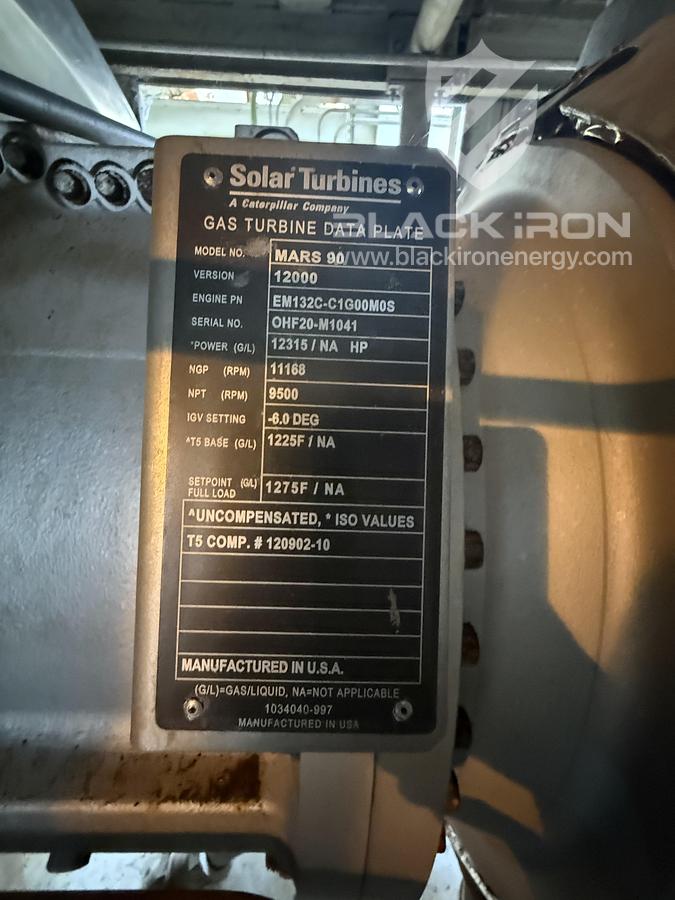

Solar Mars 90 natural gas turbine rated 12,315 hp

Version 12000

Engine PN: EM132C-C1G00M0S

SN. OHF20-M1041

NGP RPM: 11,168

NPT RPM: 9,500

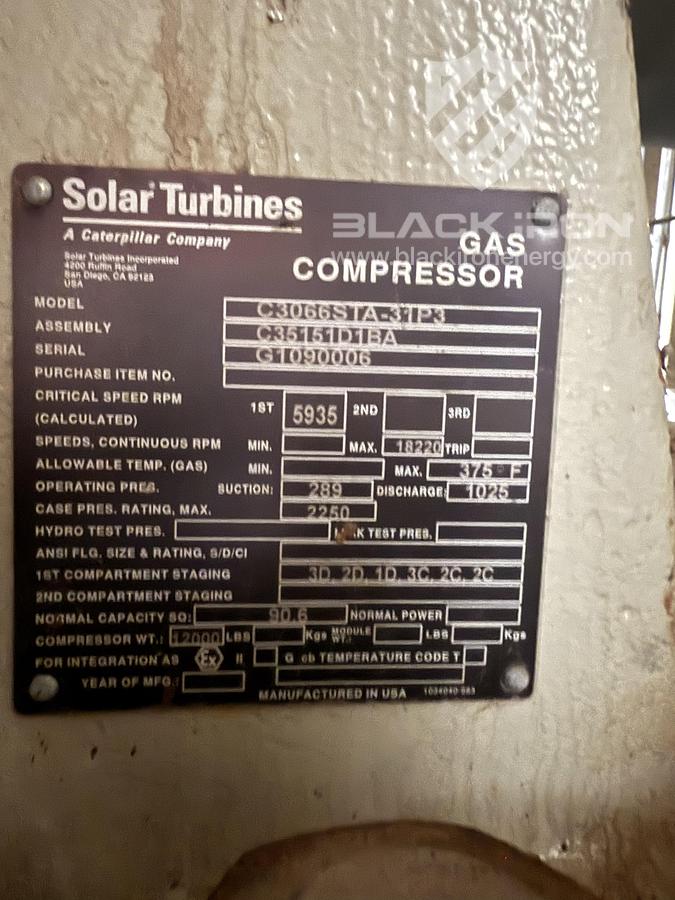

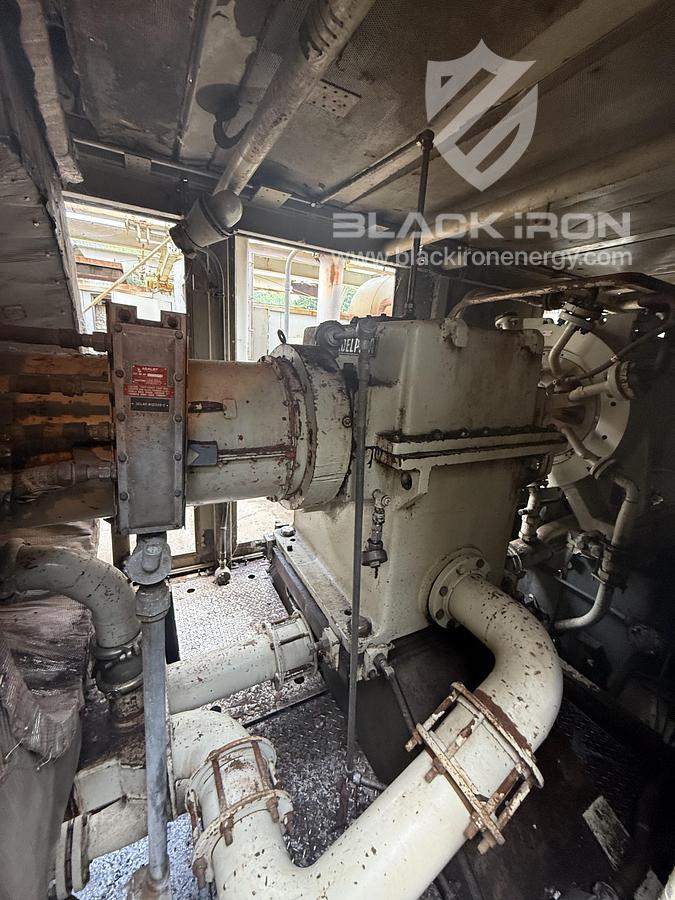

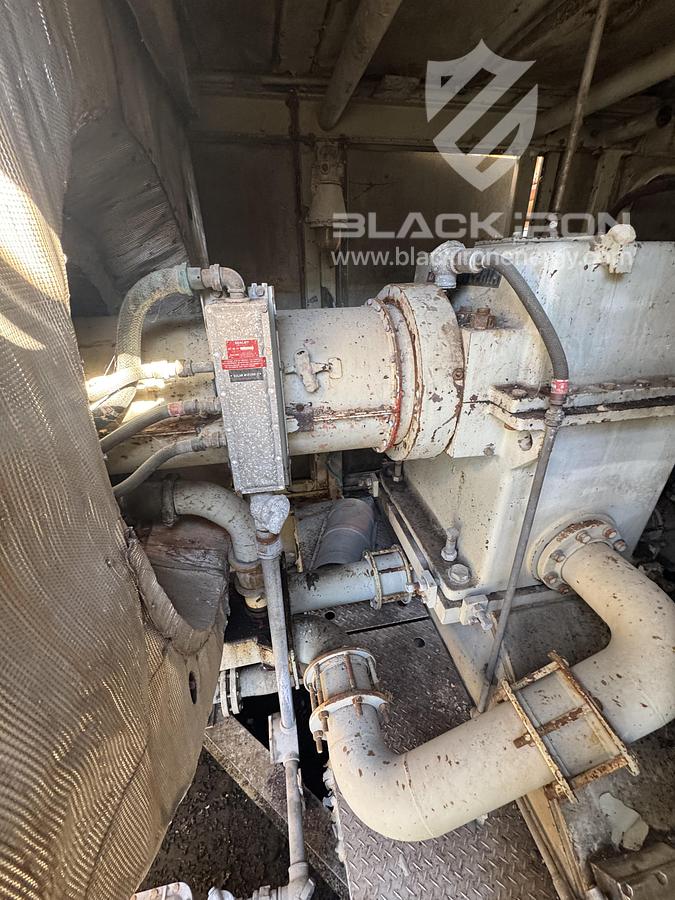

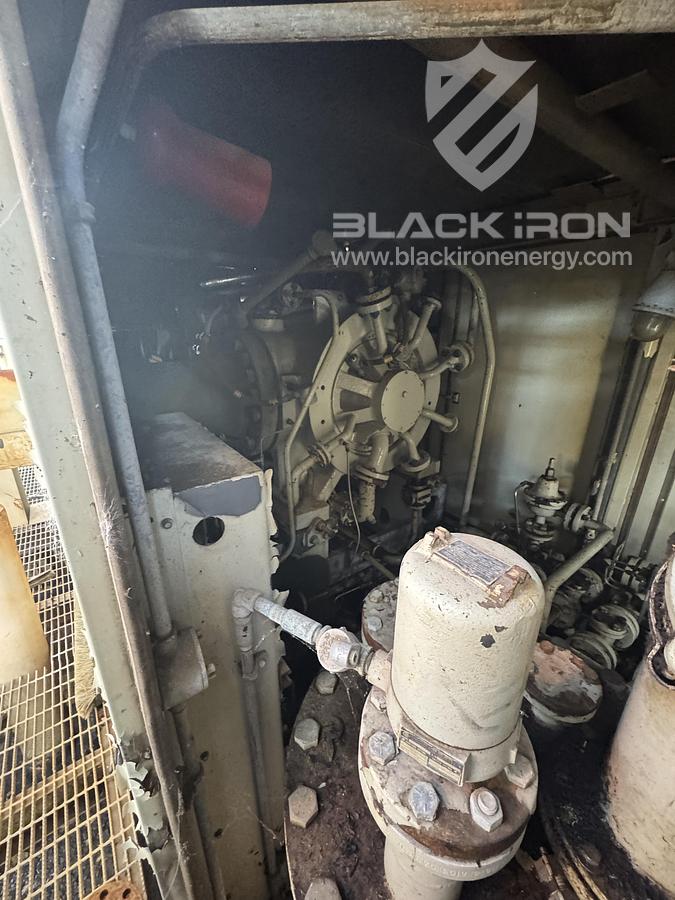

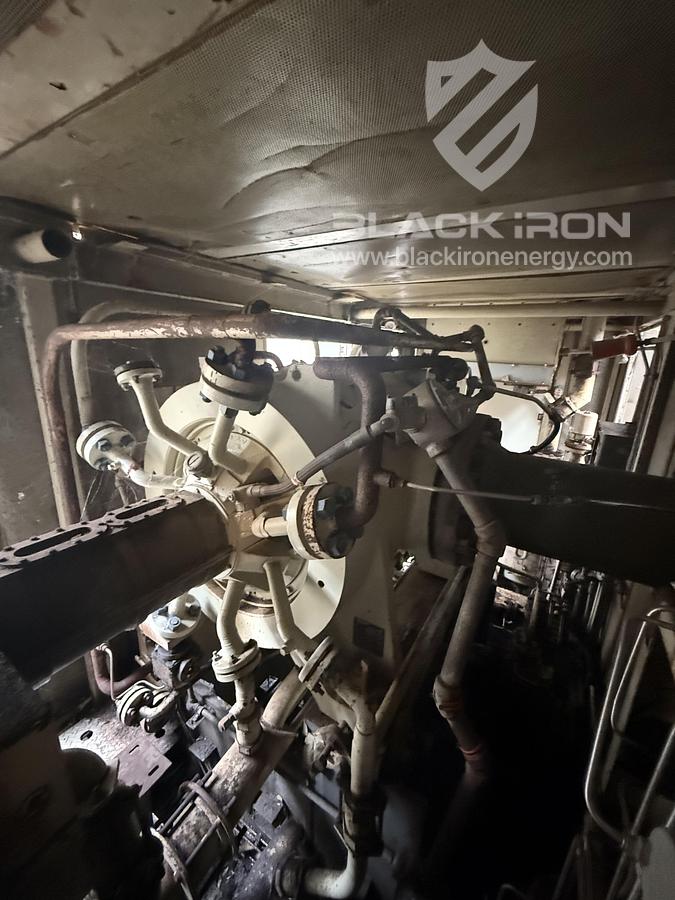

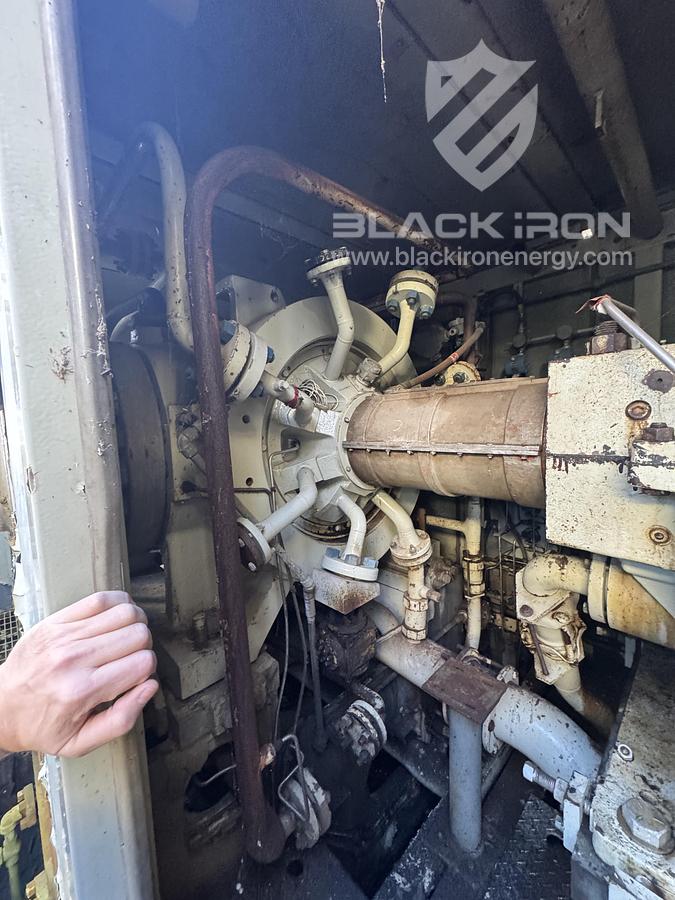

Gas Compressor:

Solar Model C3066STA-31P3

Assembly C35151D1BA

SN. G1090006

Critical Speed: 5,935 rpm

Max. Continous Speed: 18,220 rpm

Allowable Gas Temperature: 375 F

Operating Pressures: 289 psig suction, 1025 psig discharge

Max. Case Pressure Rating: 2,250 psig

1st Compartment Staging: 3D, 2D, 1D, 3C, 2C, 2C

Normal Capacity: 90.6 MMSCFD

Compressor Weight: 12,000 LBS
