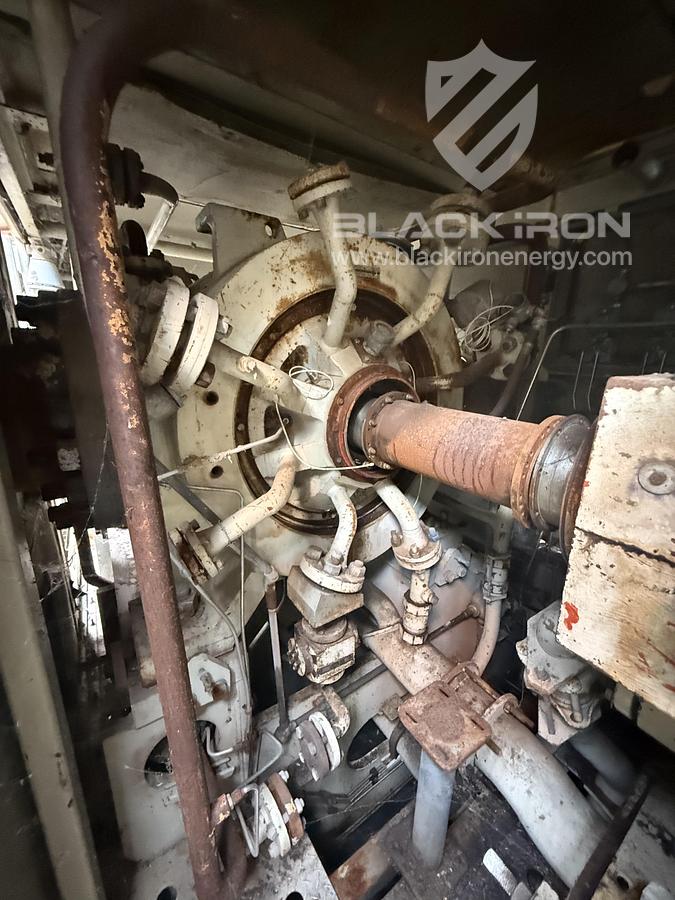

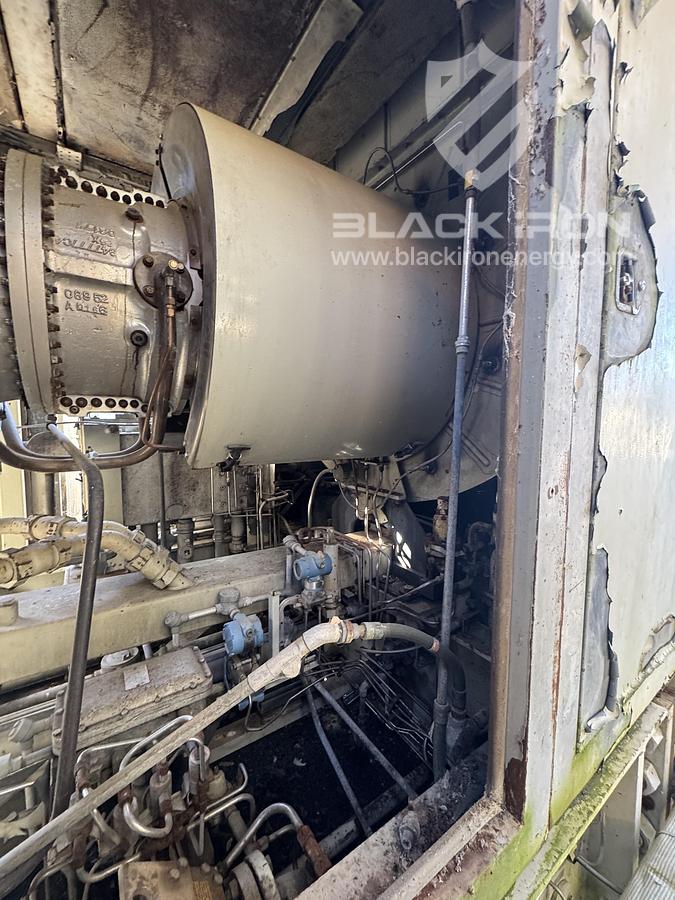

12,315 HP Solar Mars 90 Gas Turbine Compressor (3 of 3)

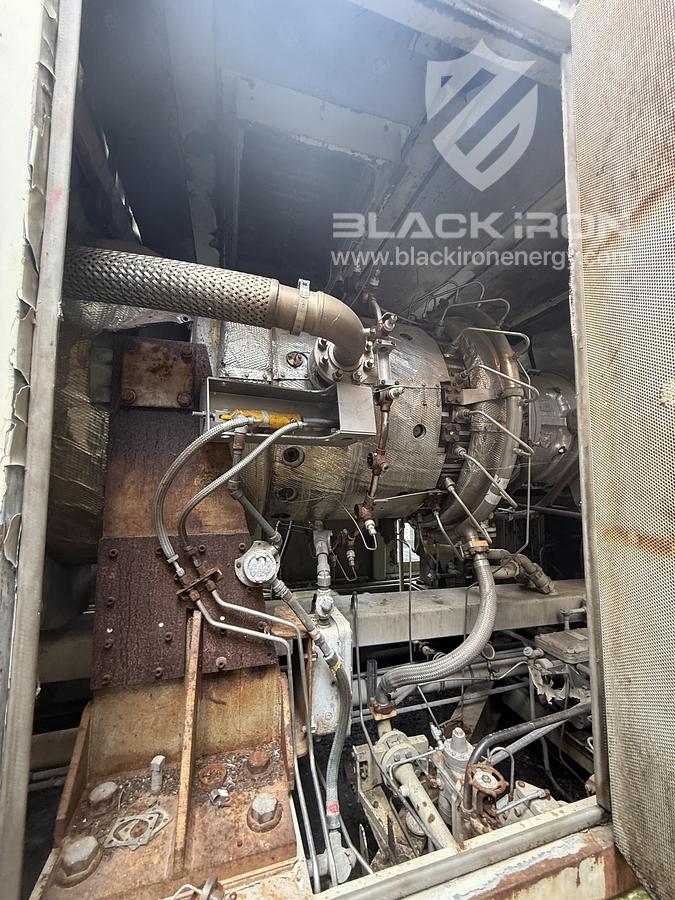

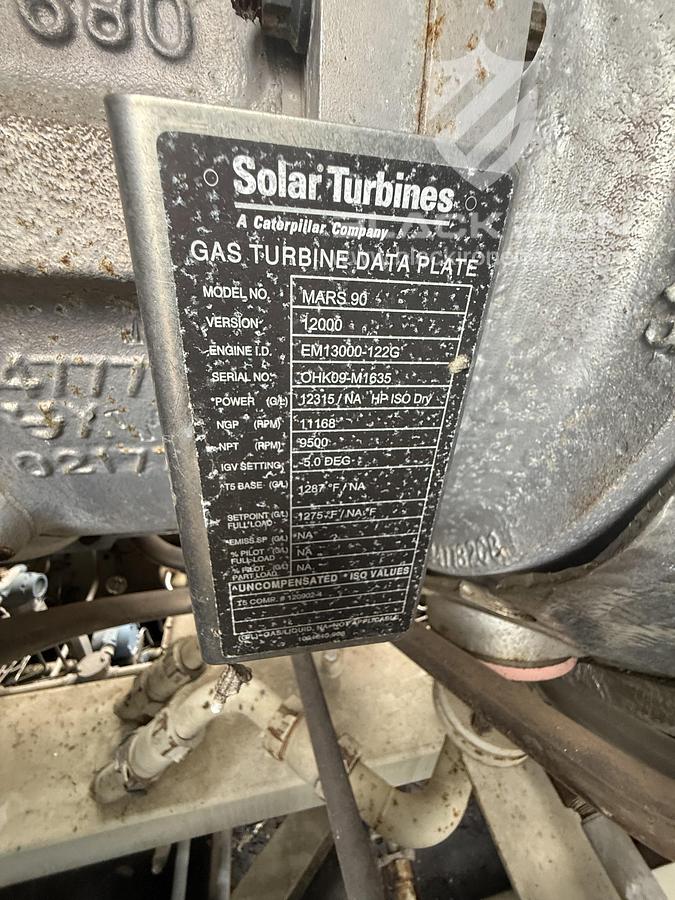

Turbine #3:

Solar Mars 90 natural gas turbine rated 12,315 hp

Version 12000

Engine I.D. EM13000-122G

SN. OHK09-M1635

NGP: 11,168 rpm

NPT: 9,500 rpm

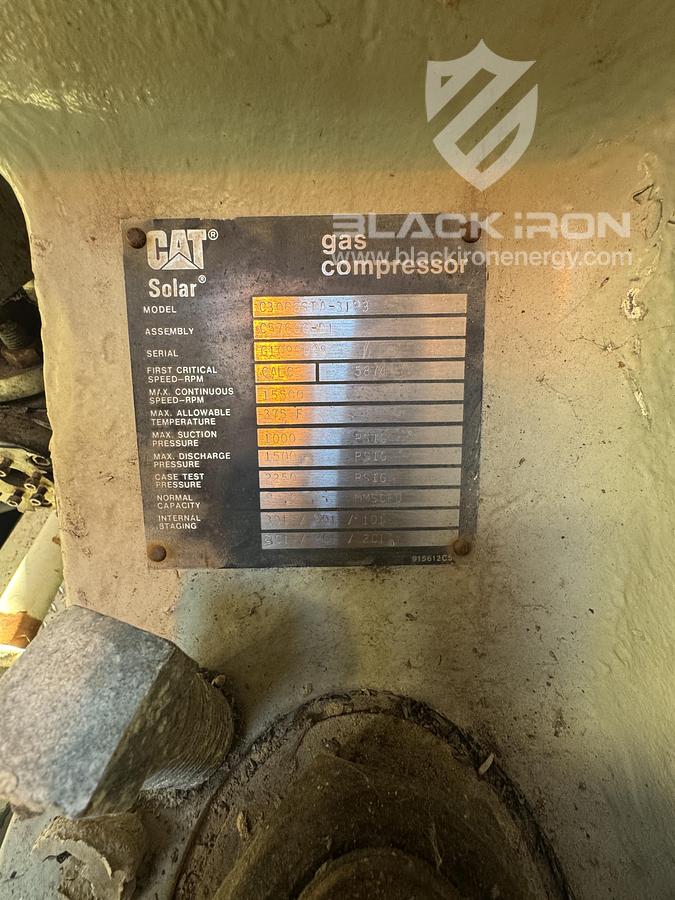

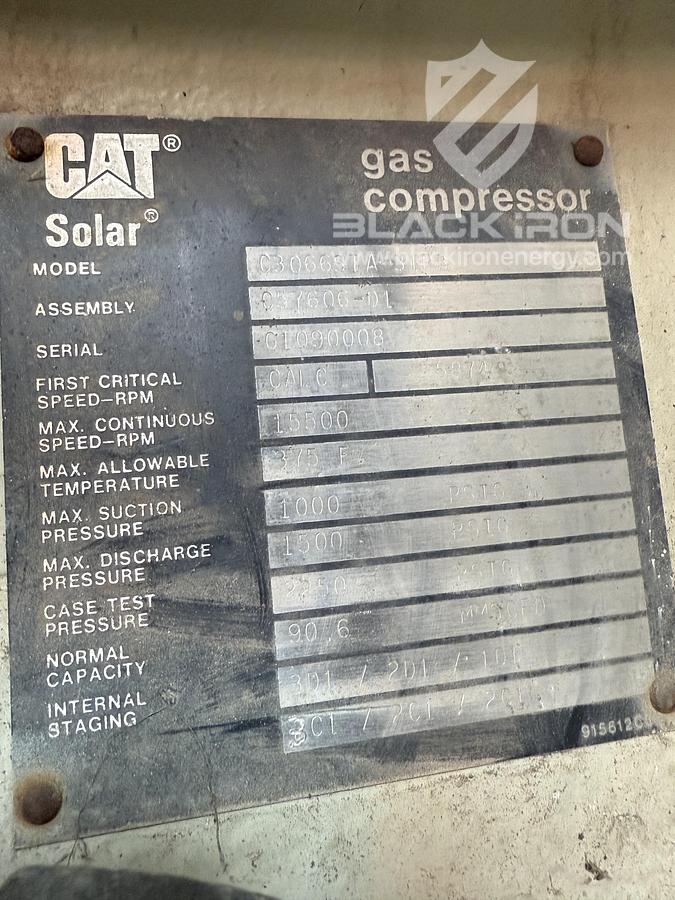

Gas Compressor:

Solar Model C3066STA-3IP3

Assembly 057606-D1

SN. G1090008

Critical Speed: 5,874 rpm

Max. Continous Speed: 15,500 rpm

Max. Allowable Temp: 375 F

Max. Suction Pressure: 1,000 psig

Max. Discharge Pressure: 1,500 psig

Case Test Pressure: 2,250 psig

Normal Capacity: 90.6 MMSCFD

Internal Staging: 3D1, 2D1, 1D1, 3C1, 2C1, 2C1
