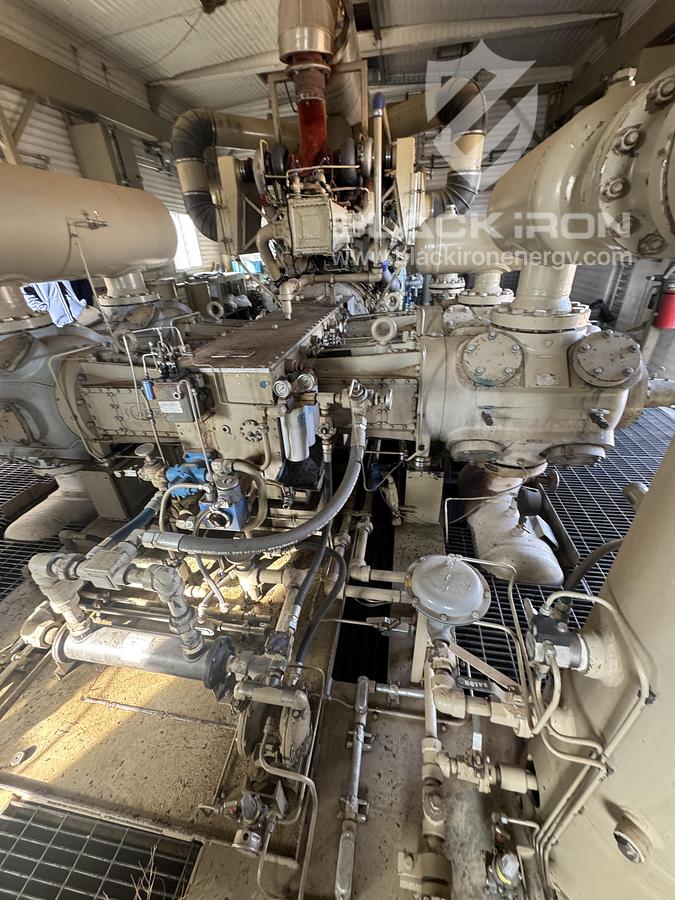

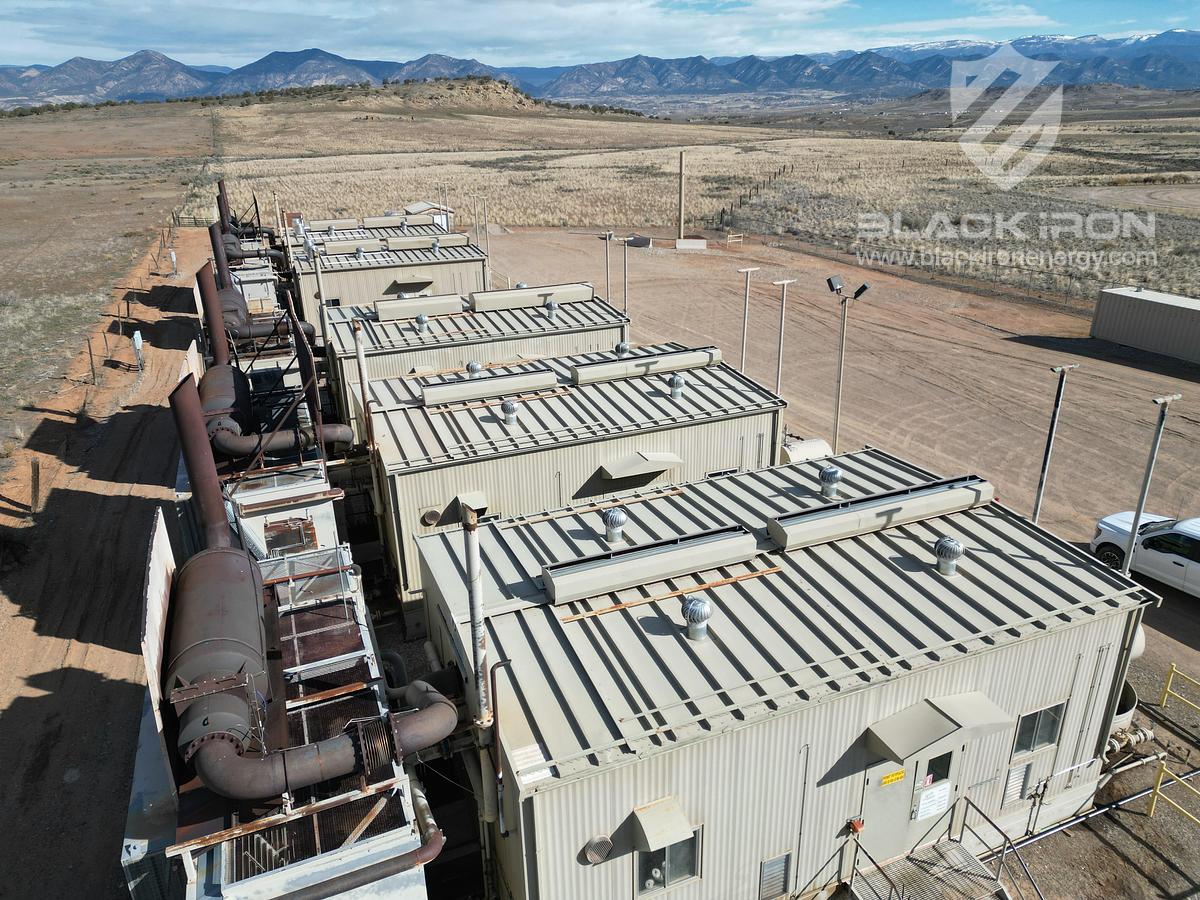

1680 hp Waukesha L7044GSI Ariel JGK/4 3-Stage Recip (1 of 5 Available)

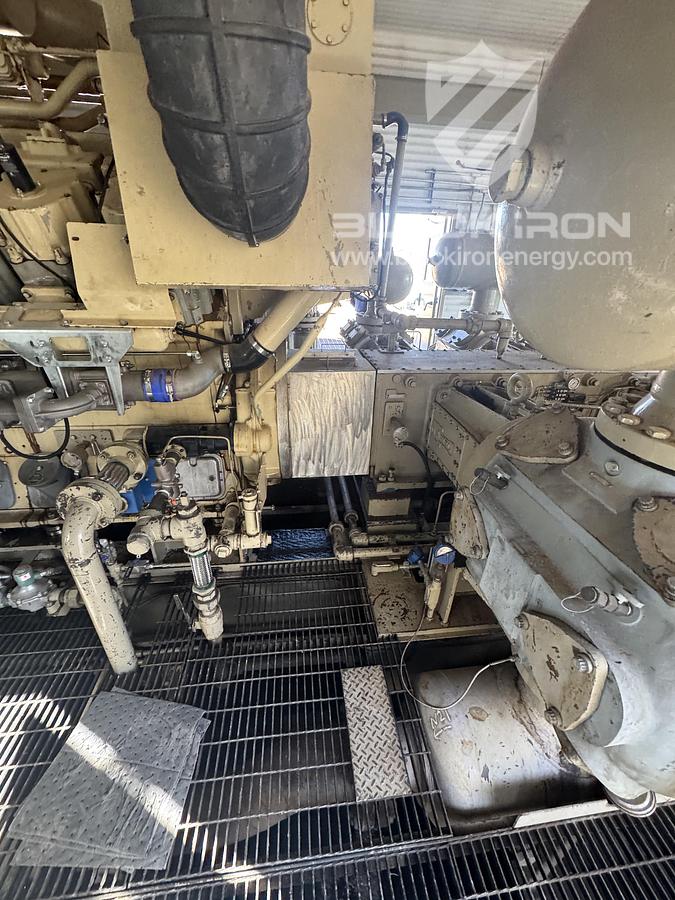

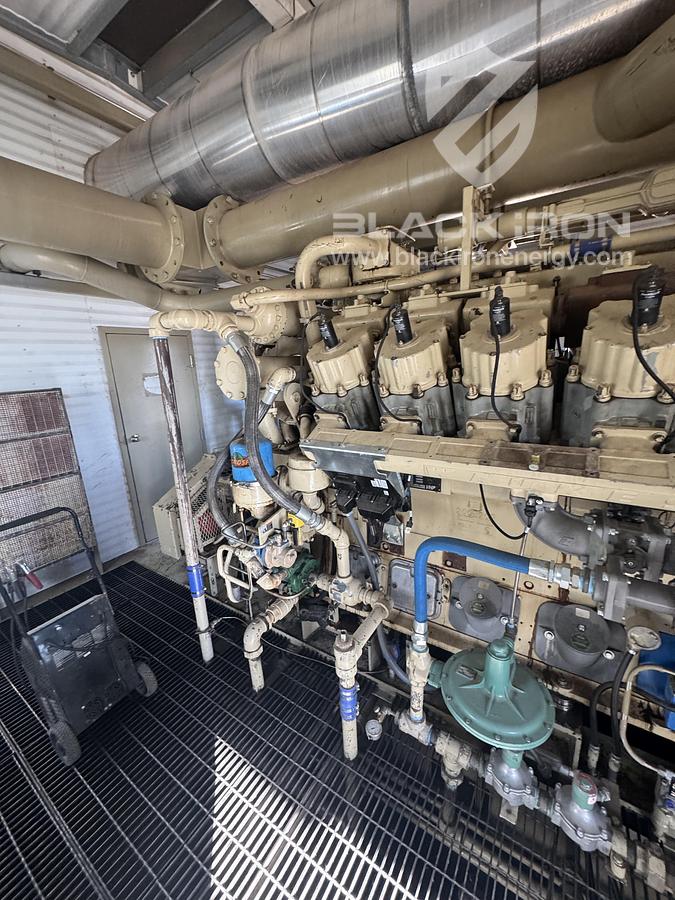

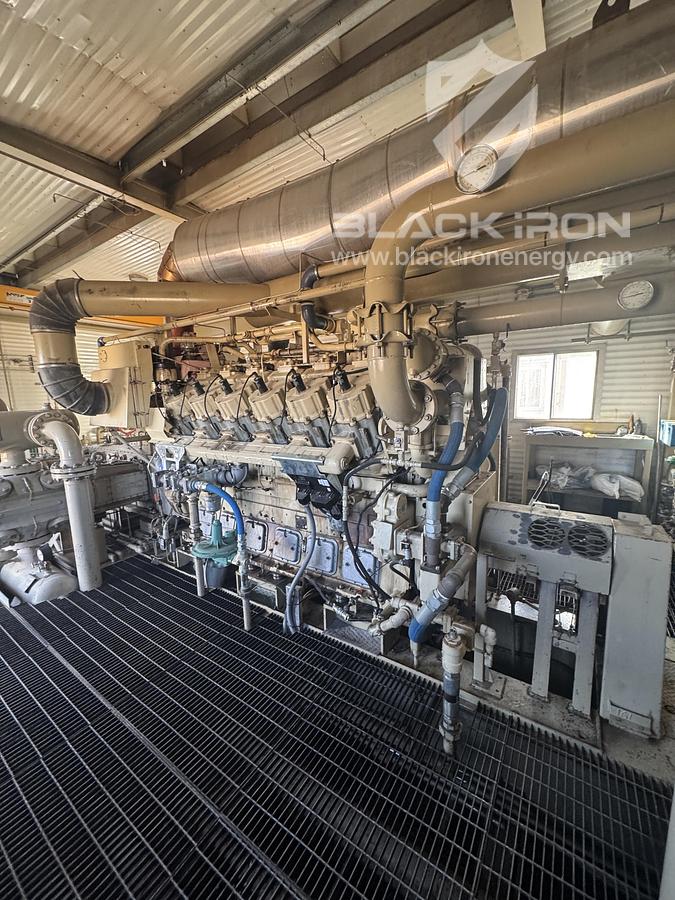

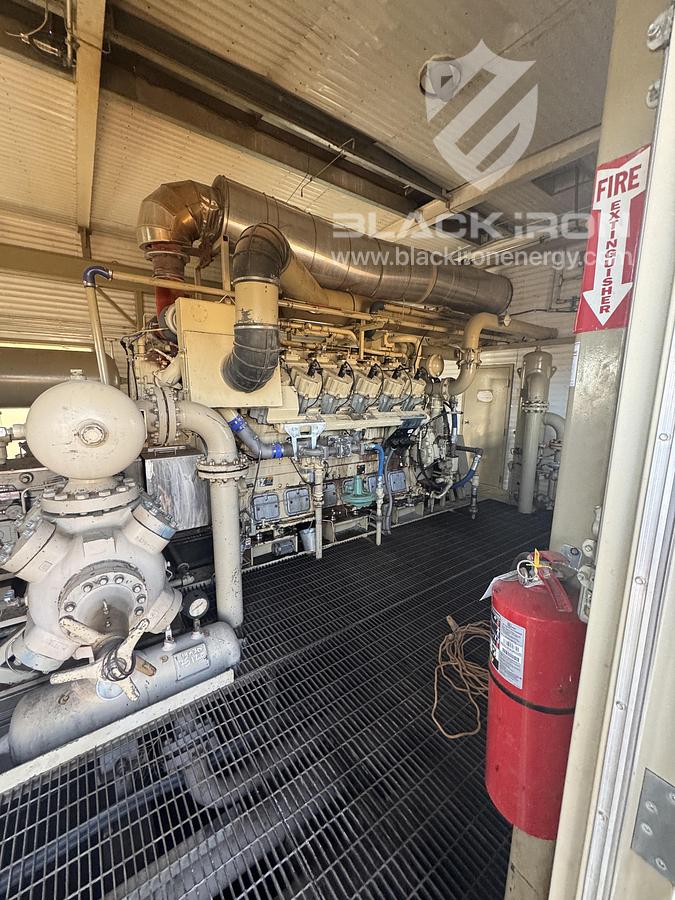

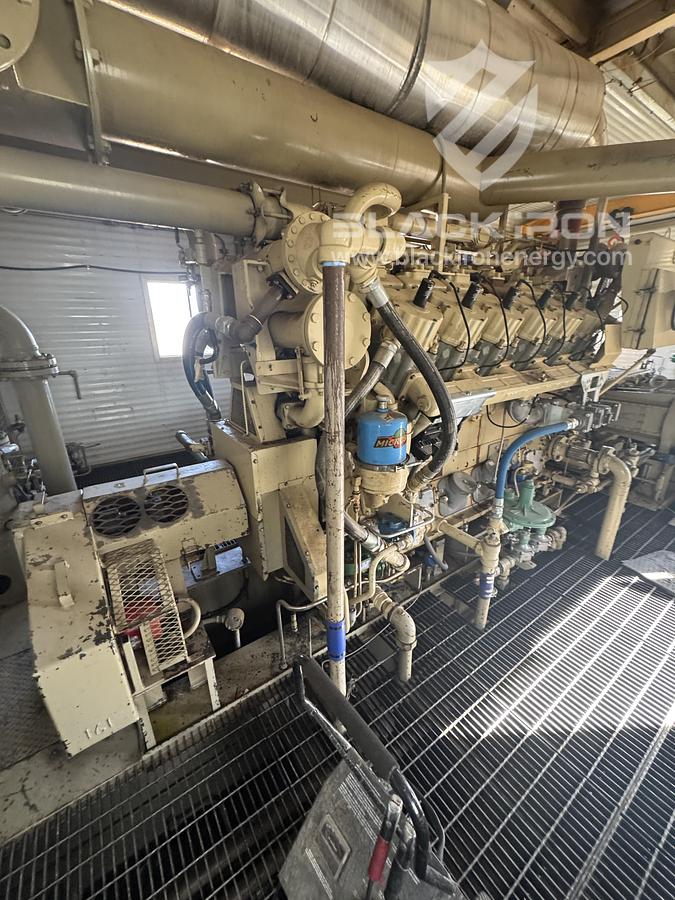

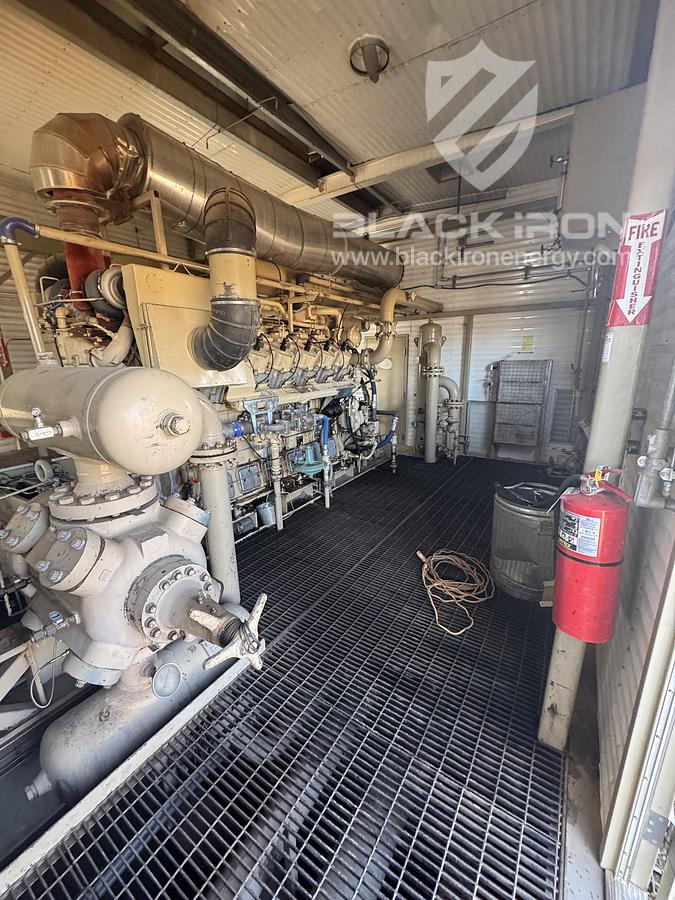

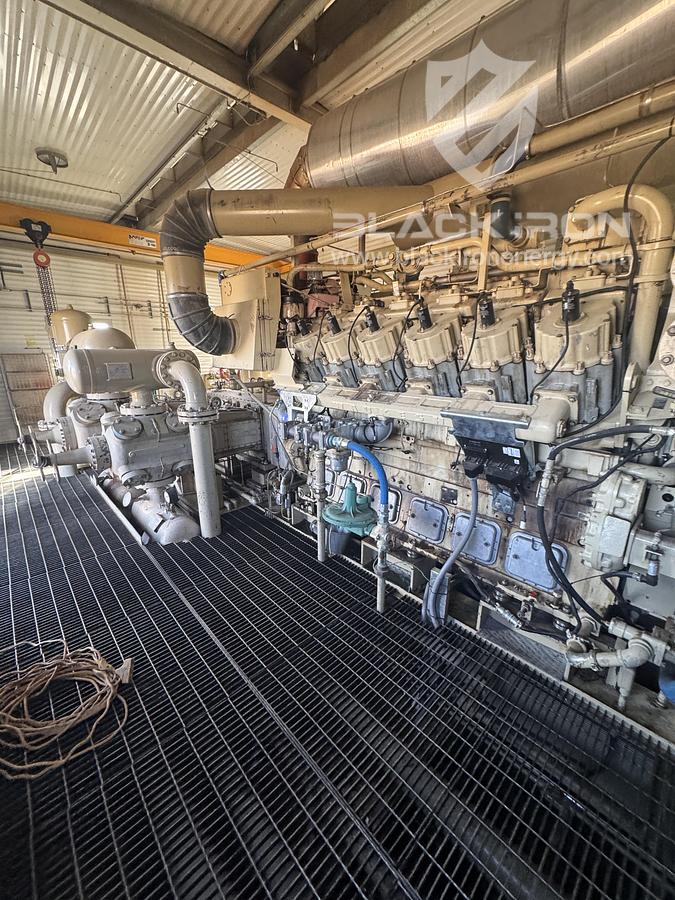

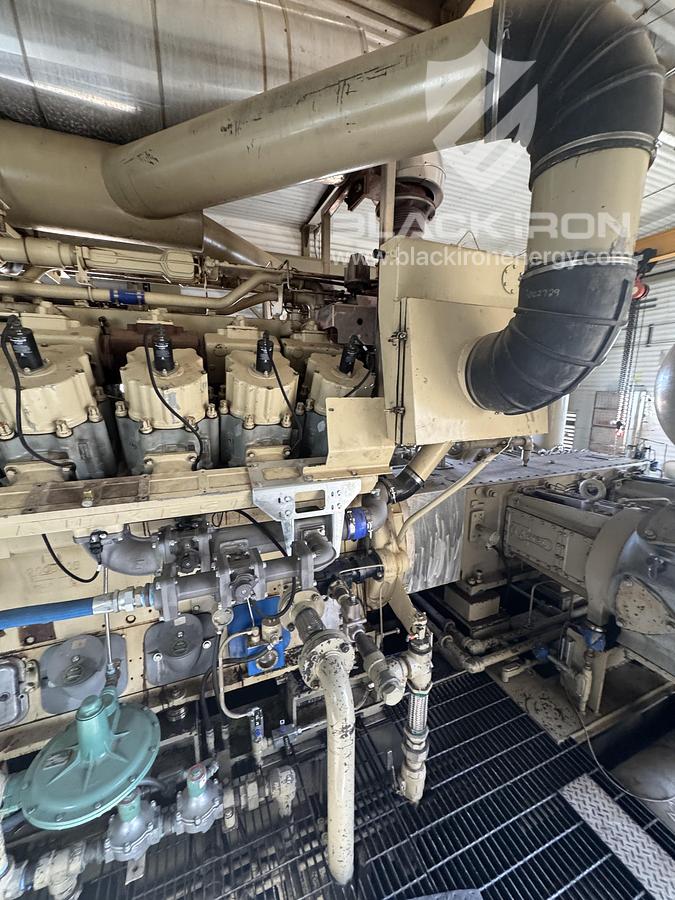

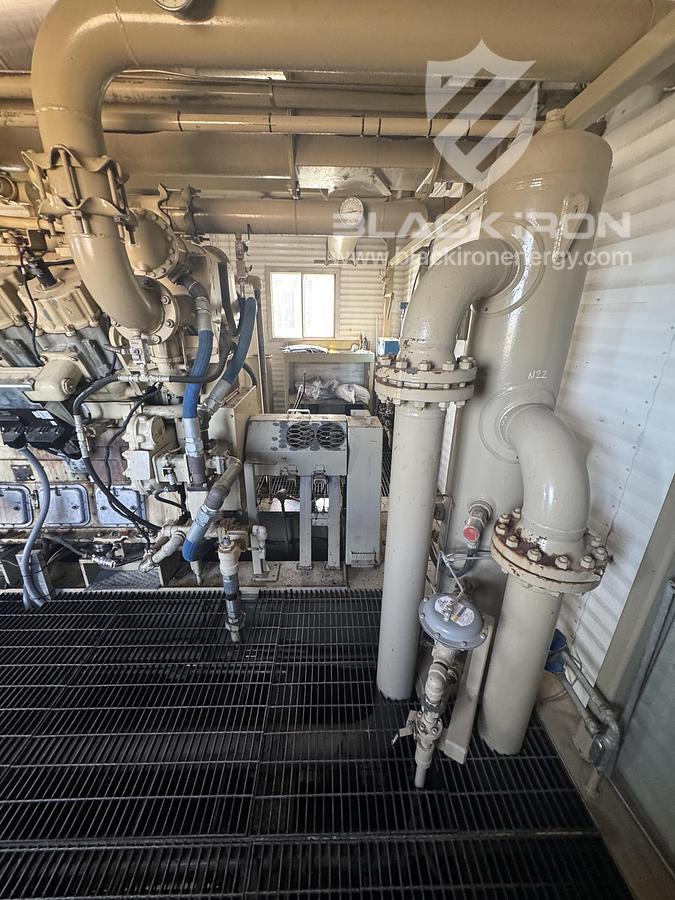

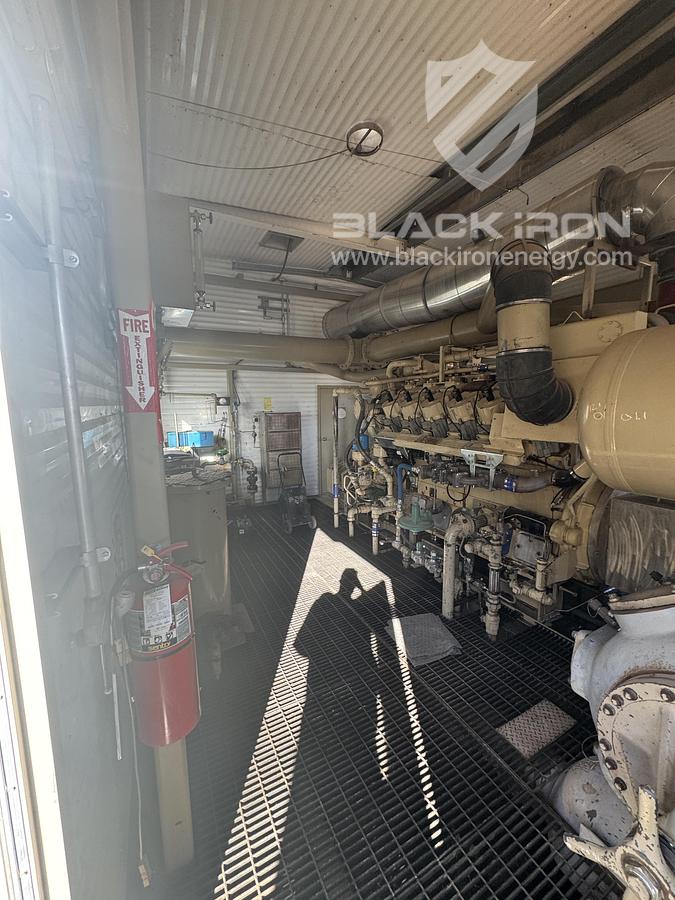

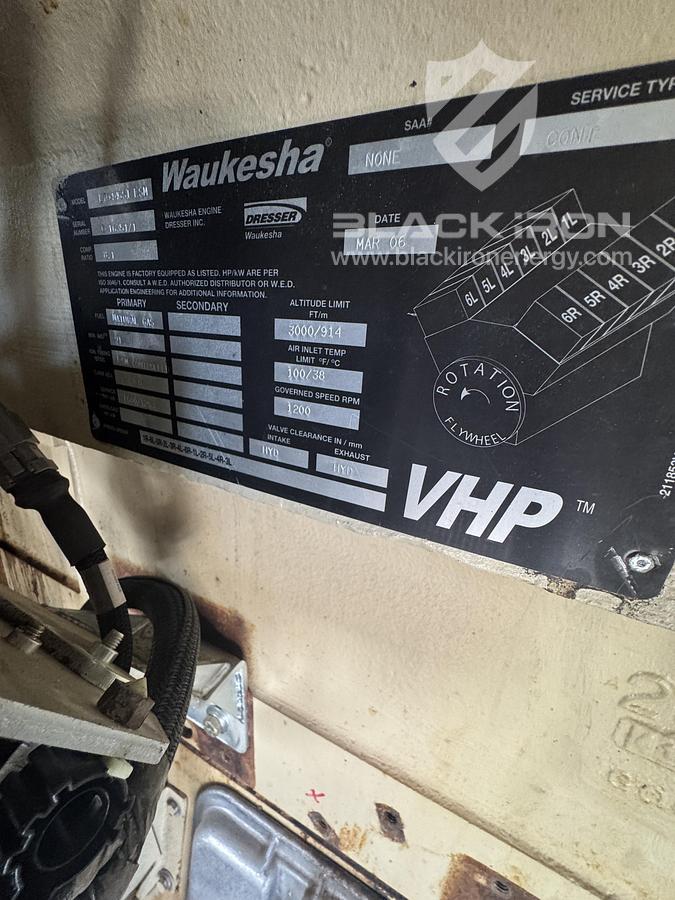

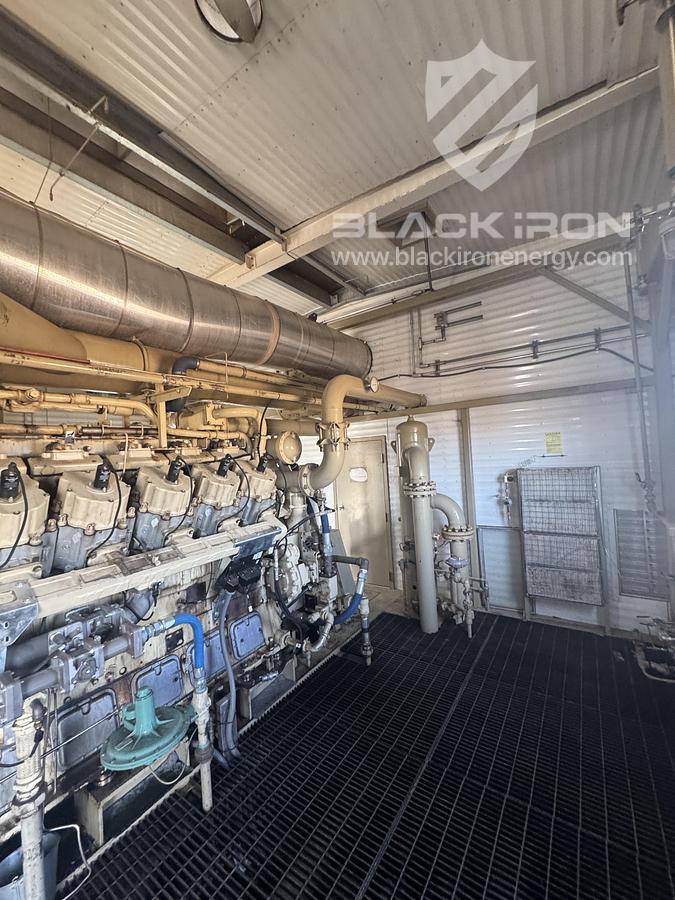

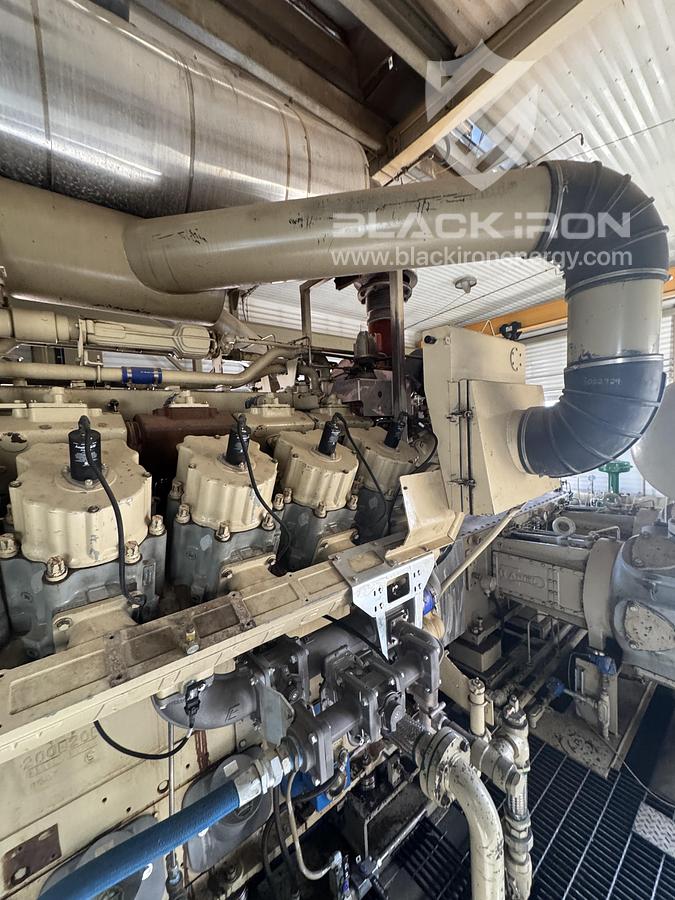

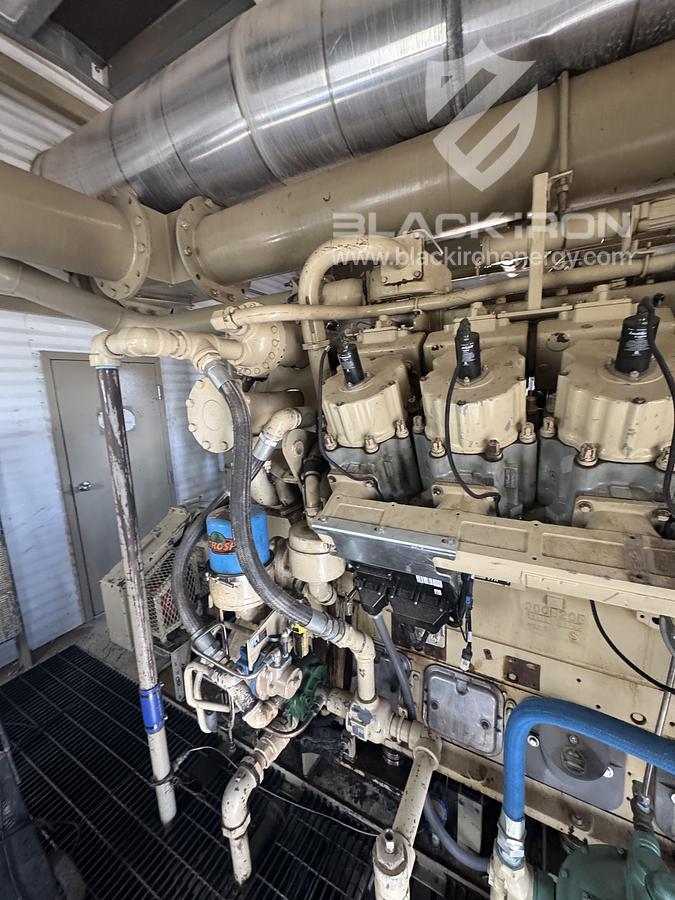

Waukesha L7044GSI natural gas engine rated 1680 hp at 1200 rpm, SN. C-16351/1

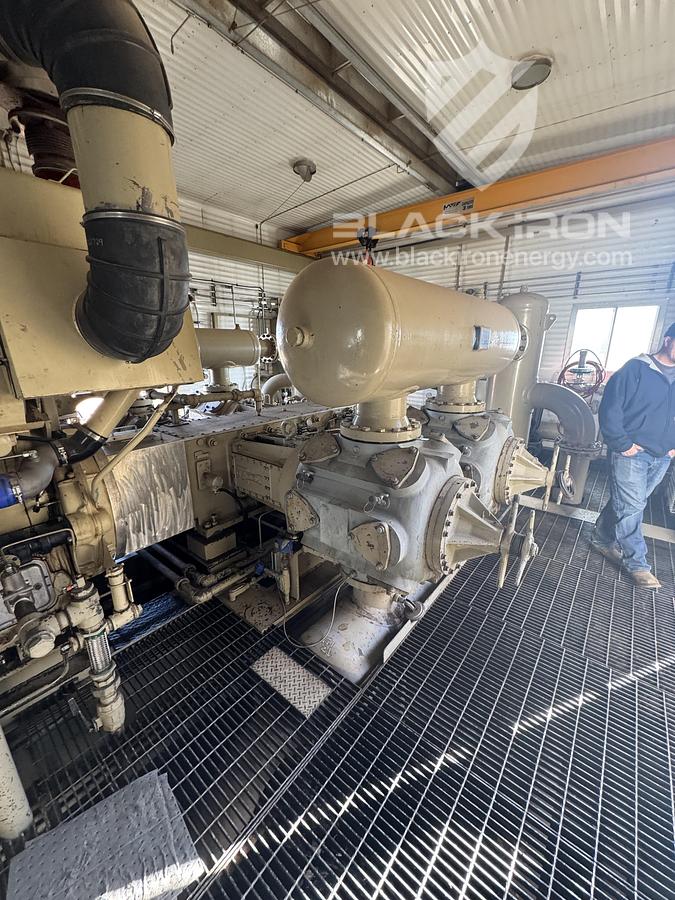

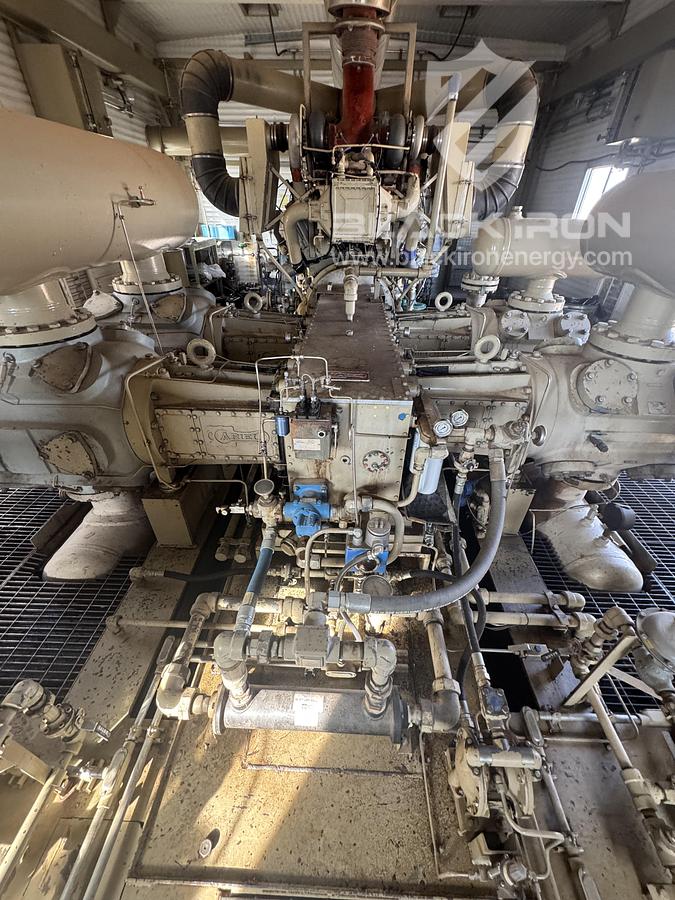

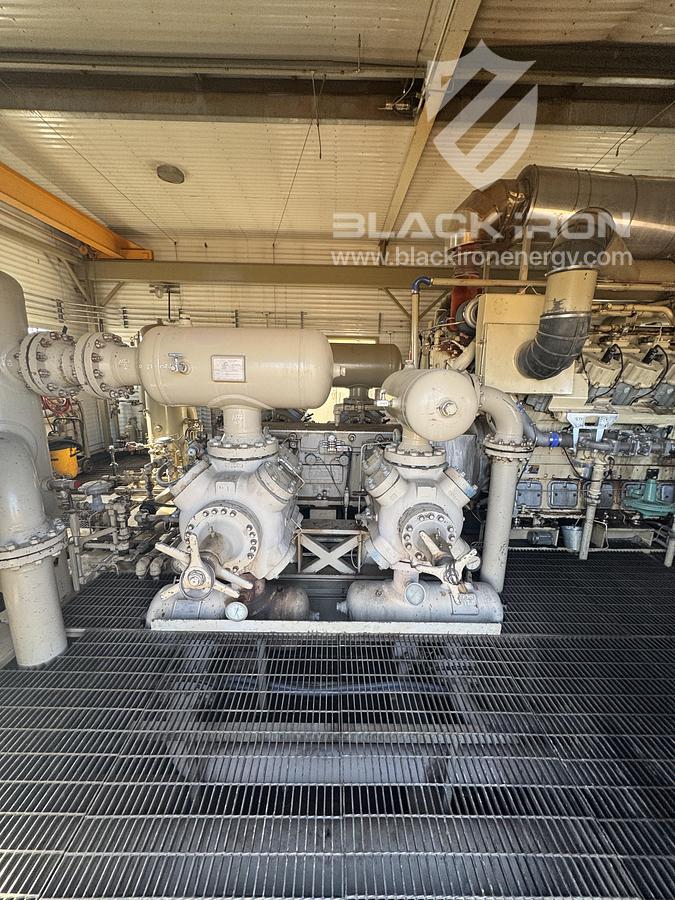

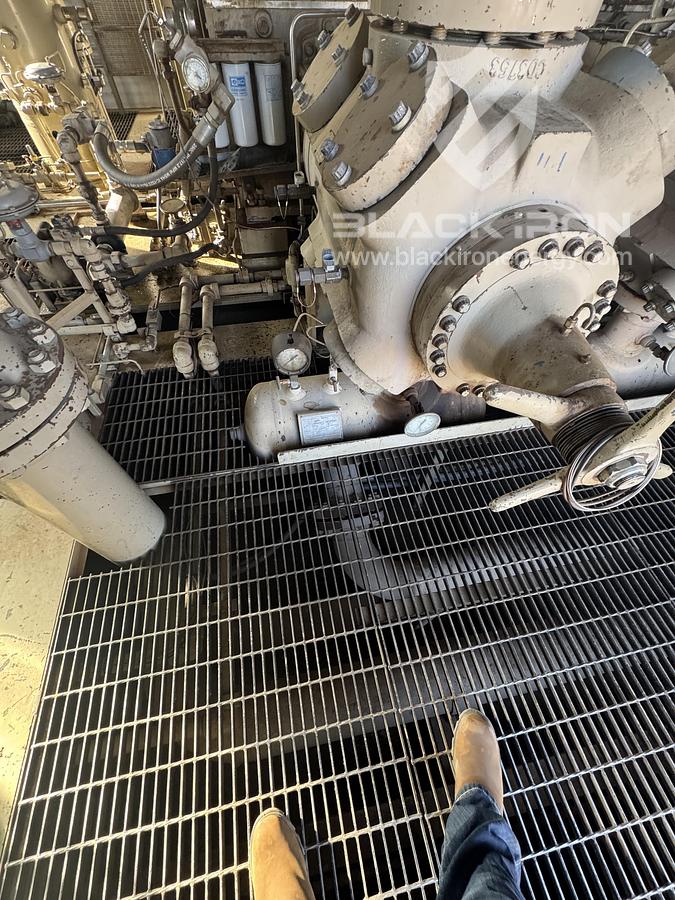

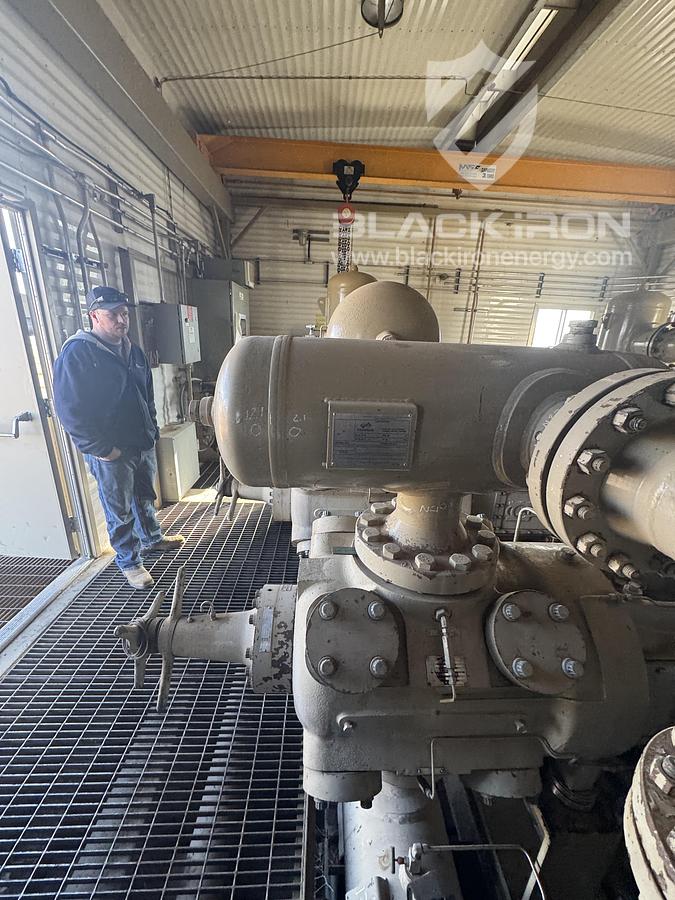

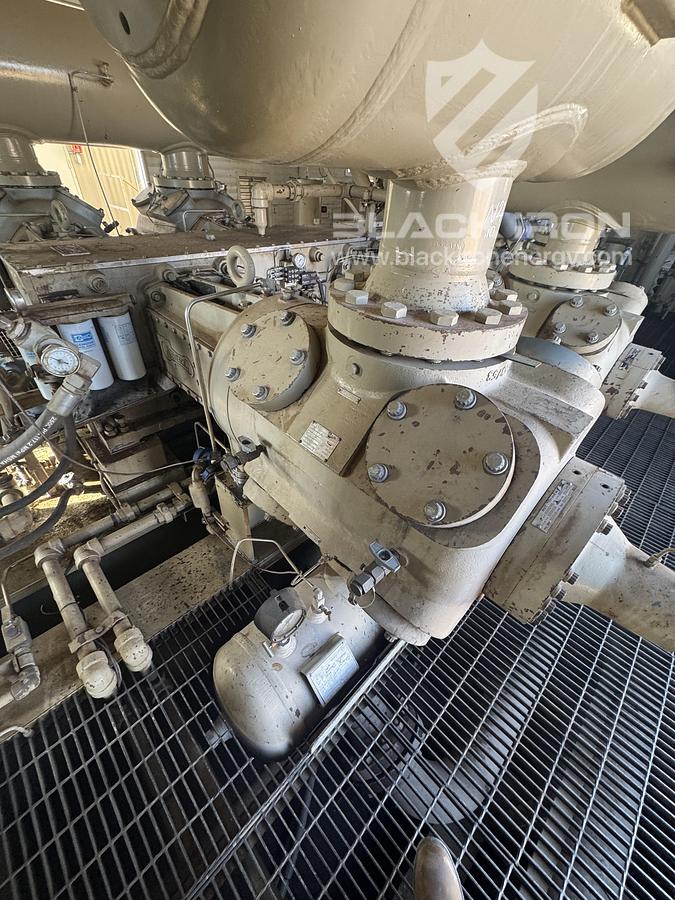

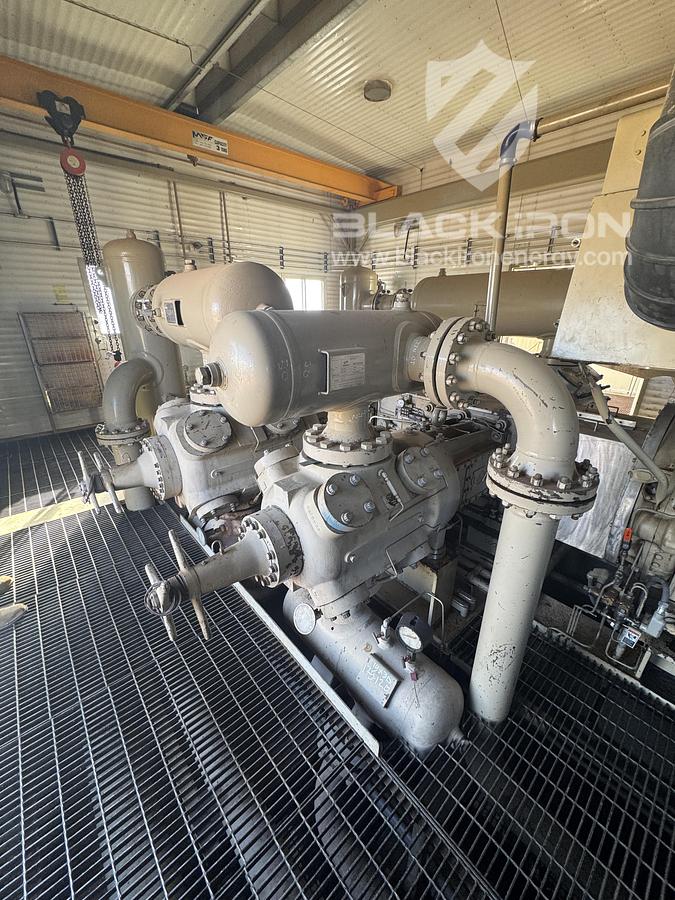

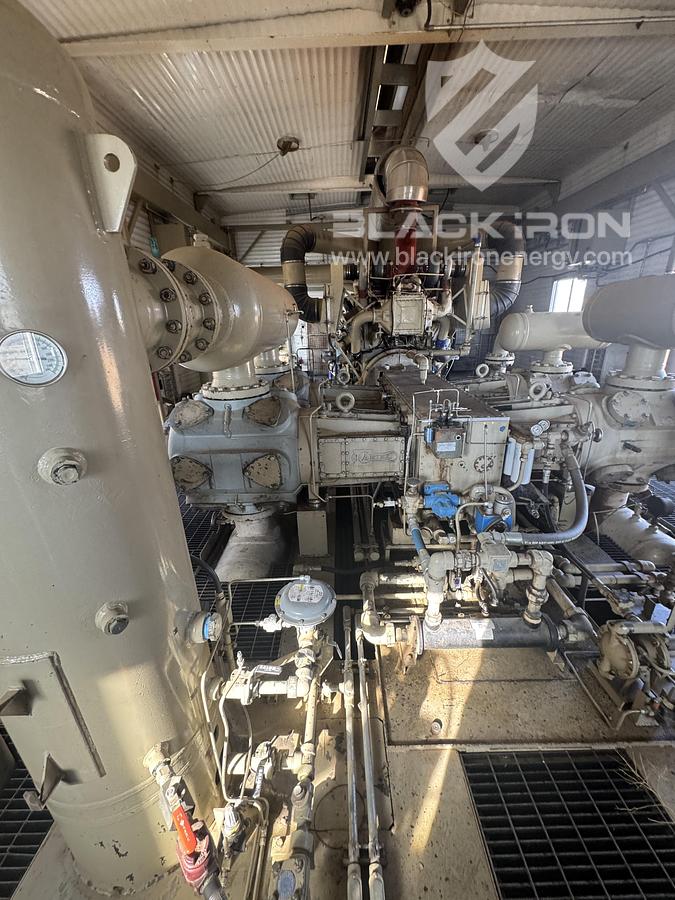

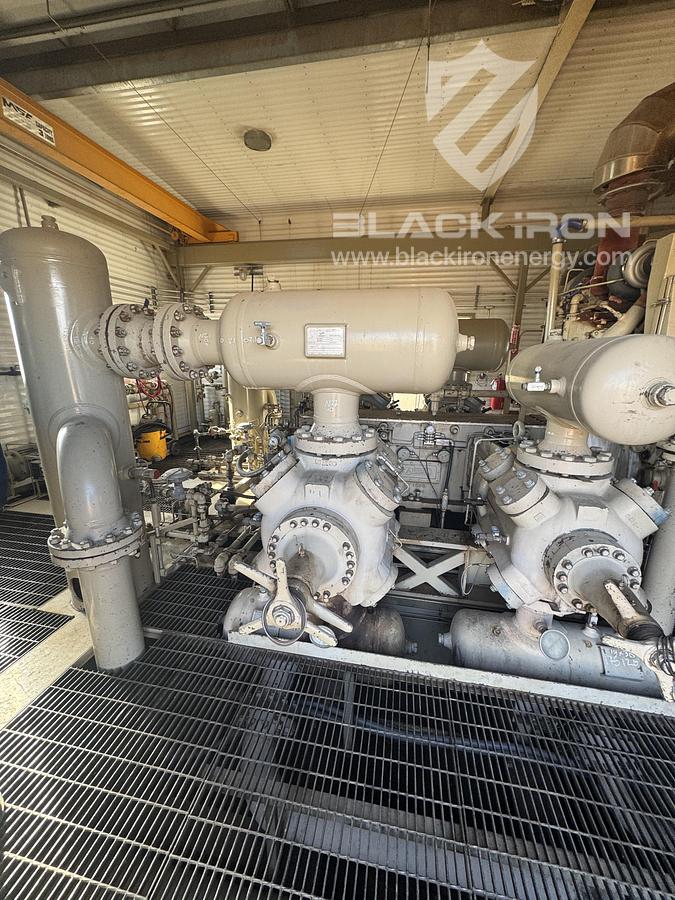

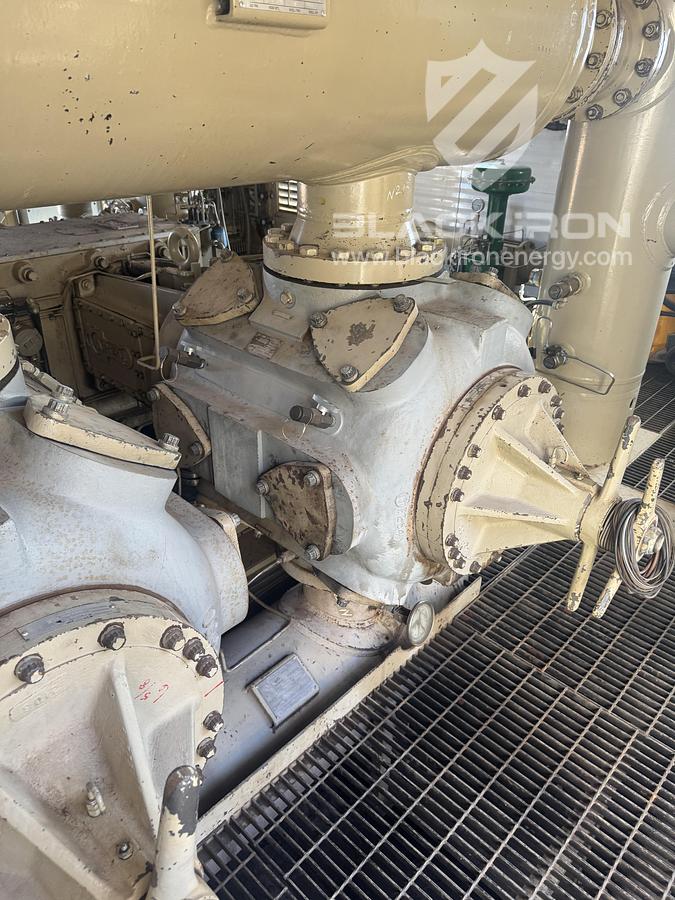

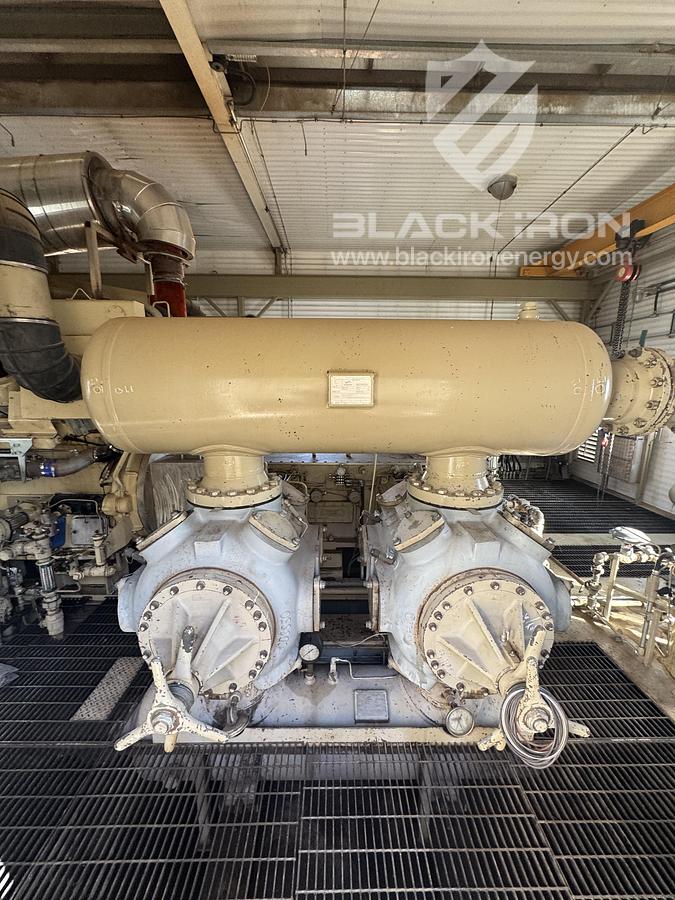

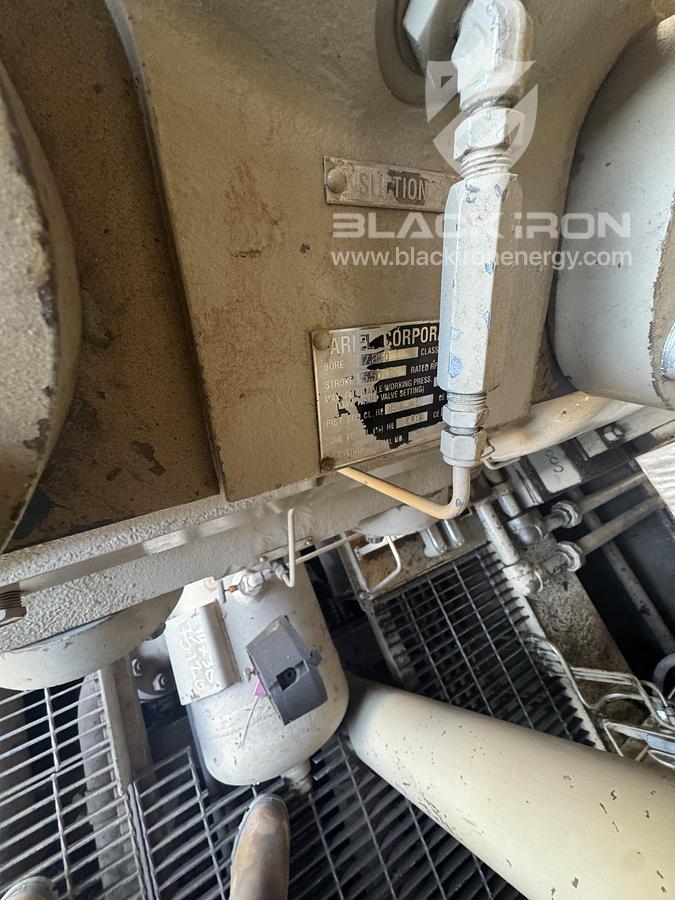

Ariel JGK/4 4-throw, 3-stage recip compressor frame, SN. F-24080.

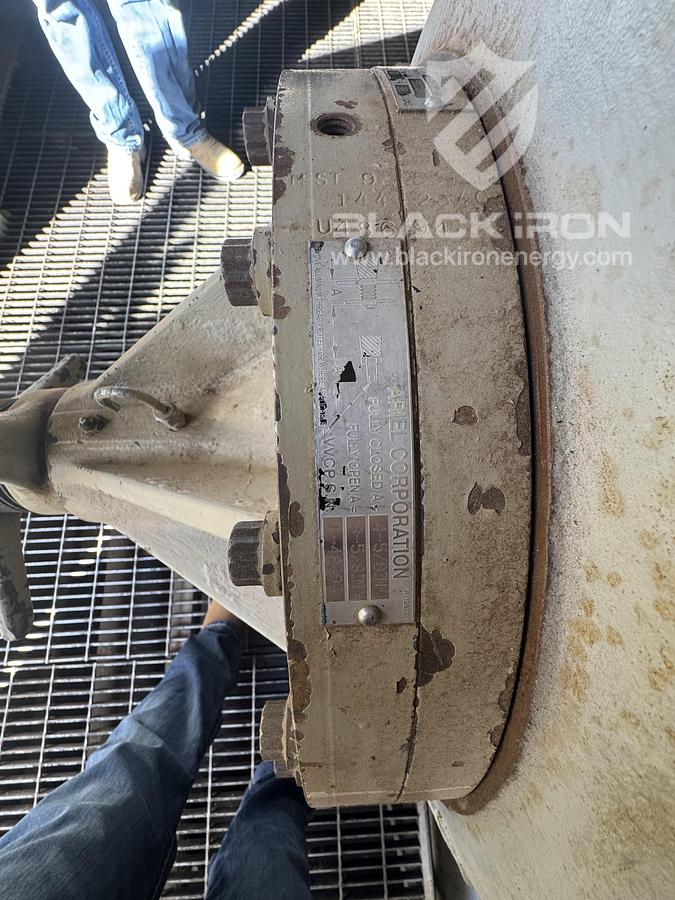

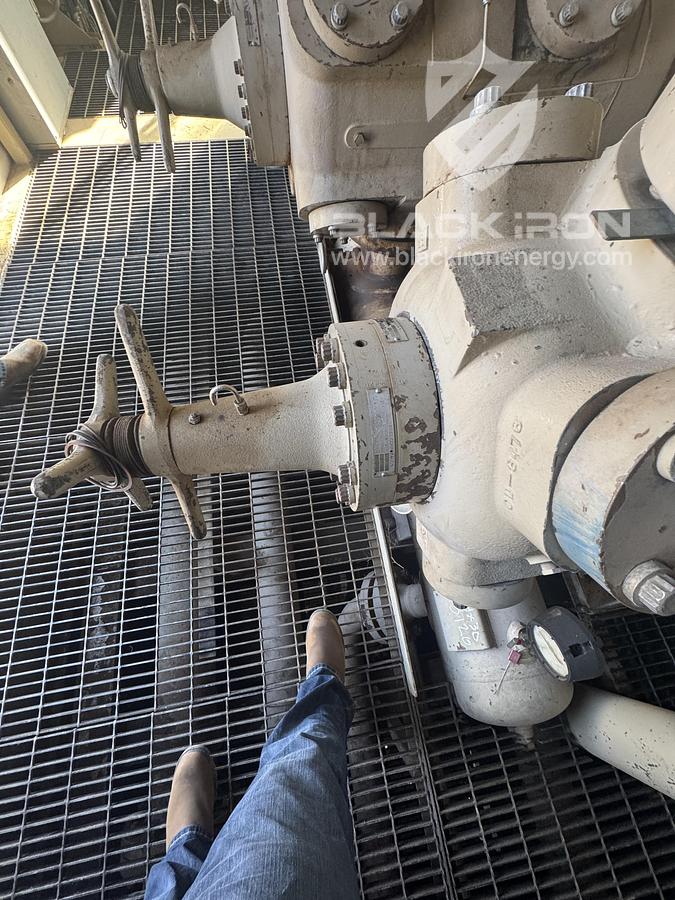

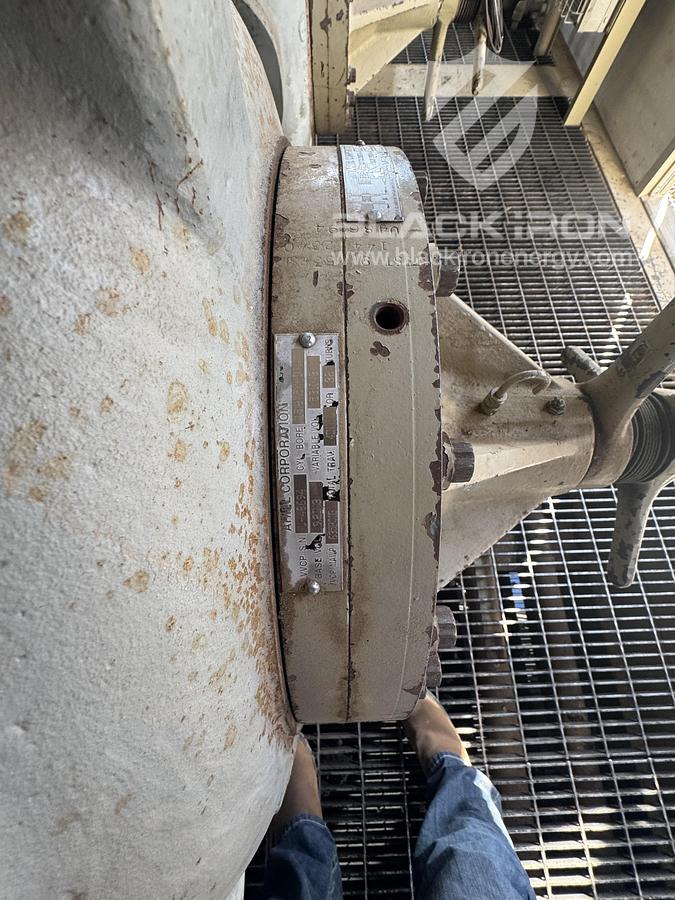

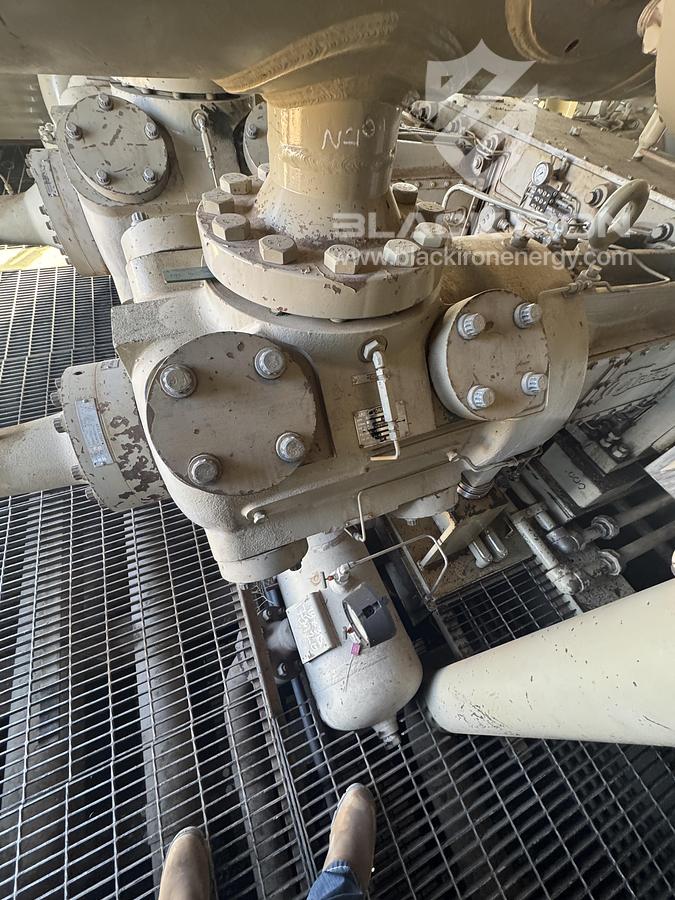

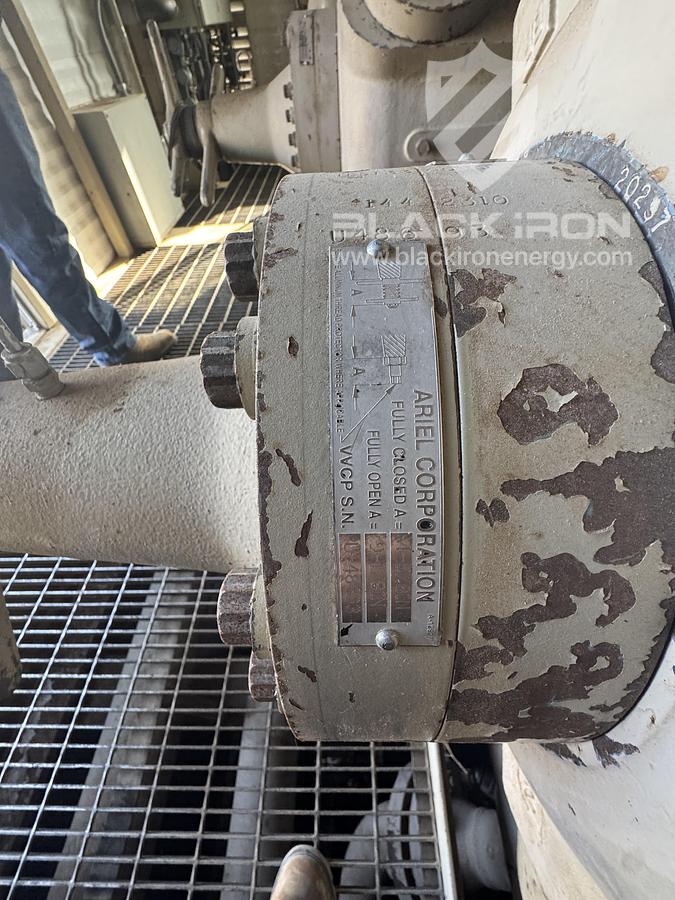

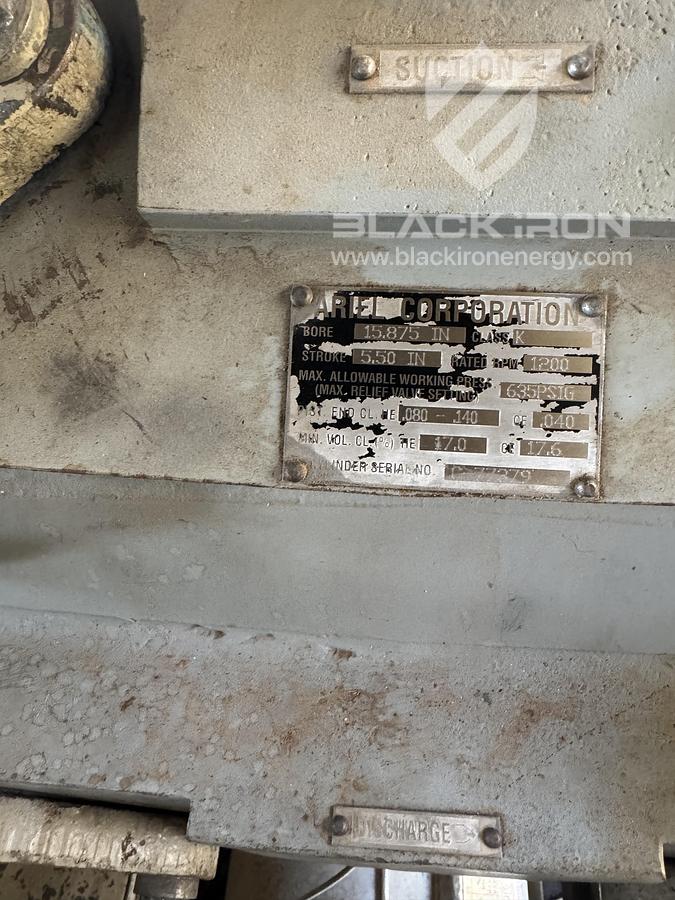

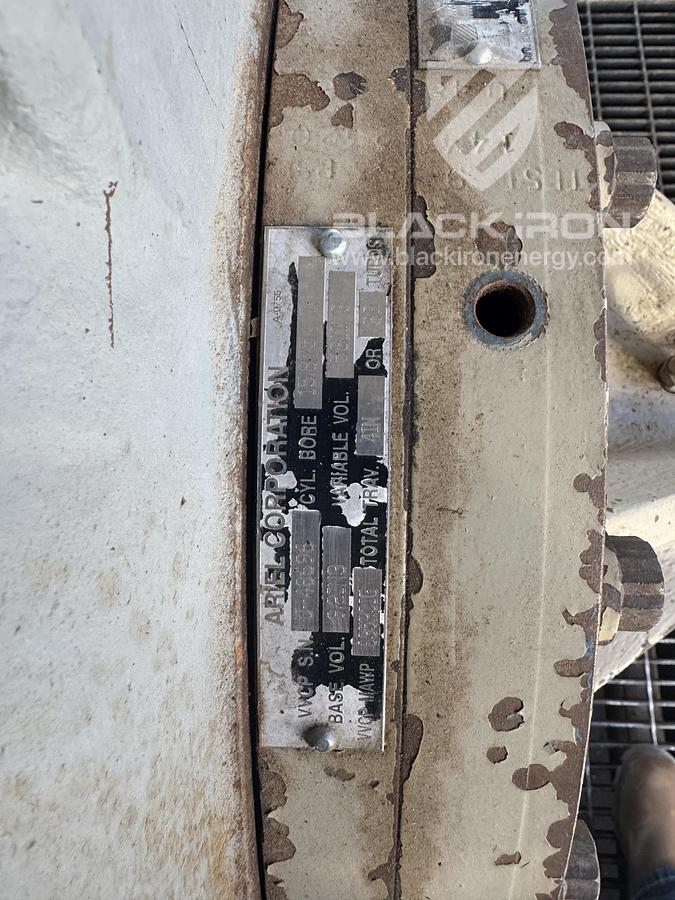

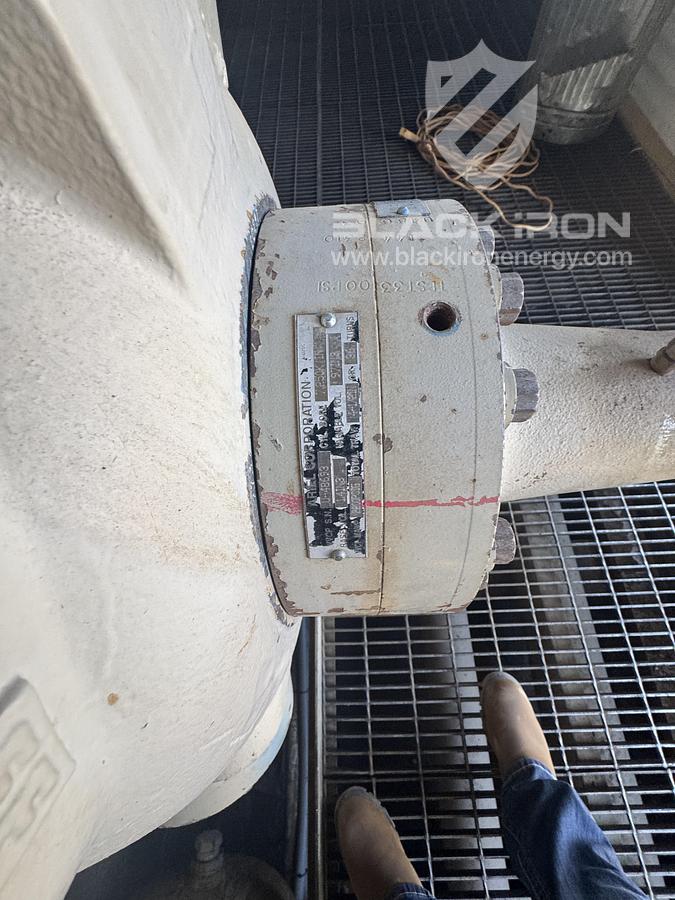

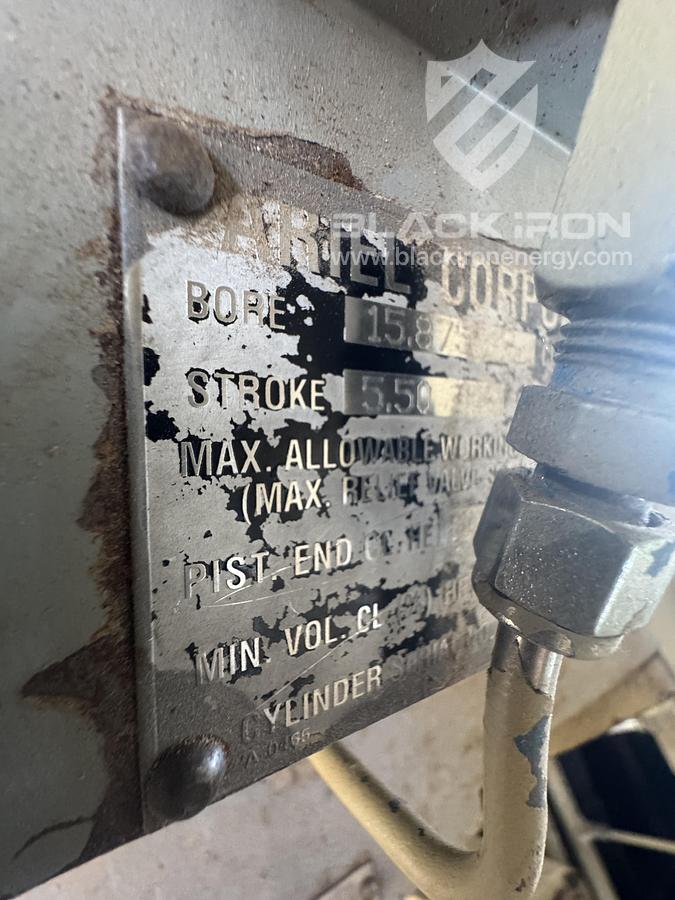

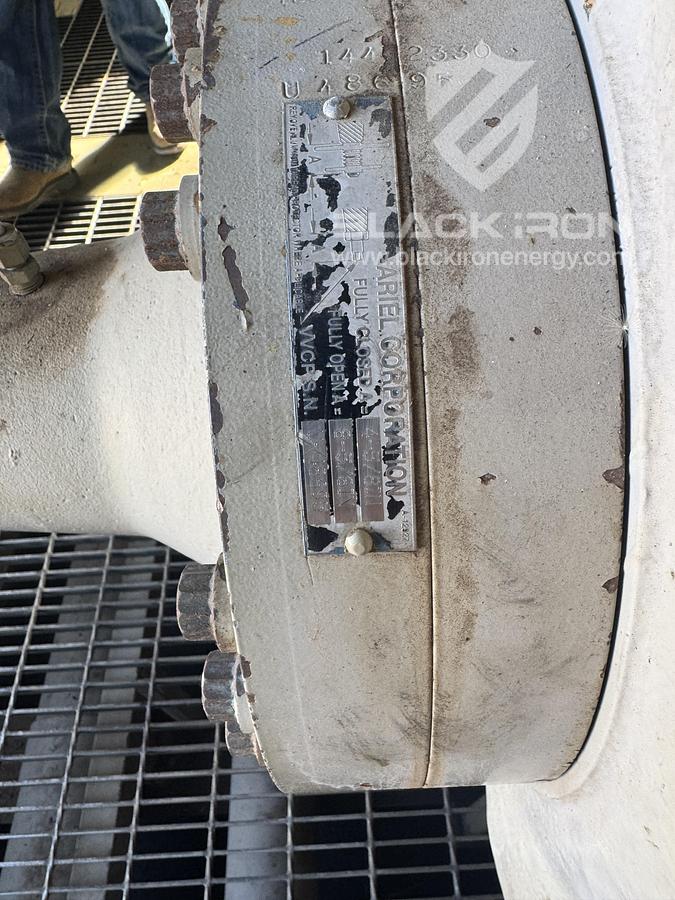

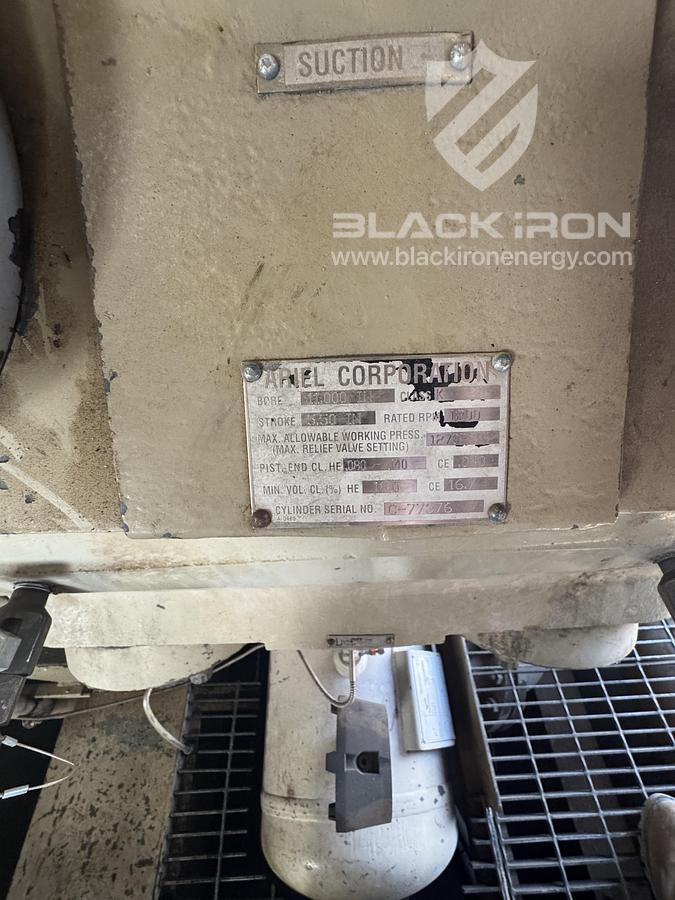

(2) 15.875" K cylinders rated 635 psig MAWP c/w VVCP.

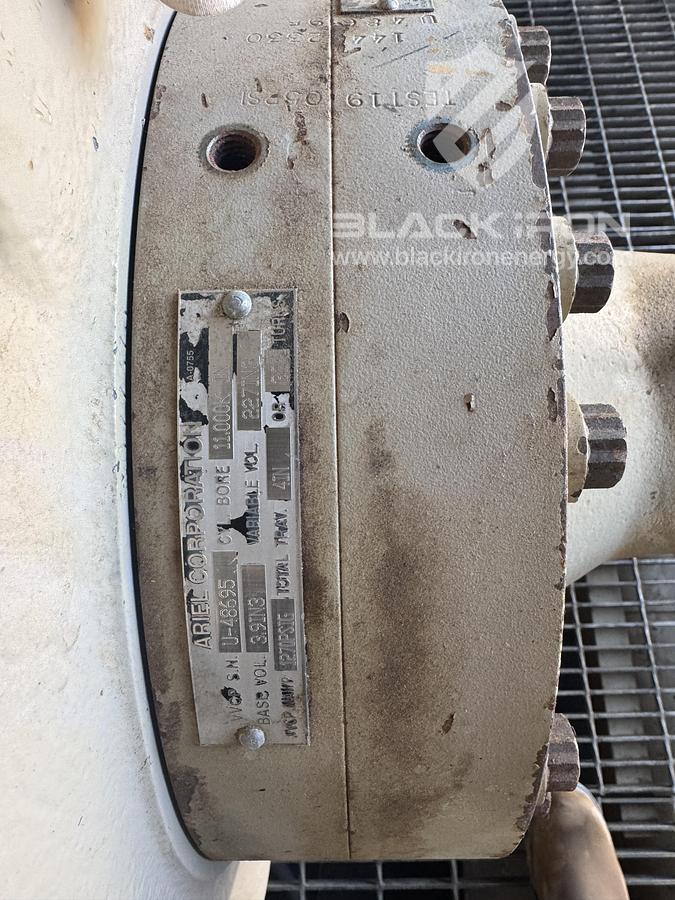

(1) 11.000" K cylinder rated 1270 psig MAWP c/w VVCP.

(1) 7.250" K cylinder rated 1900 psig MAWP c/w VVCP.

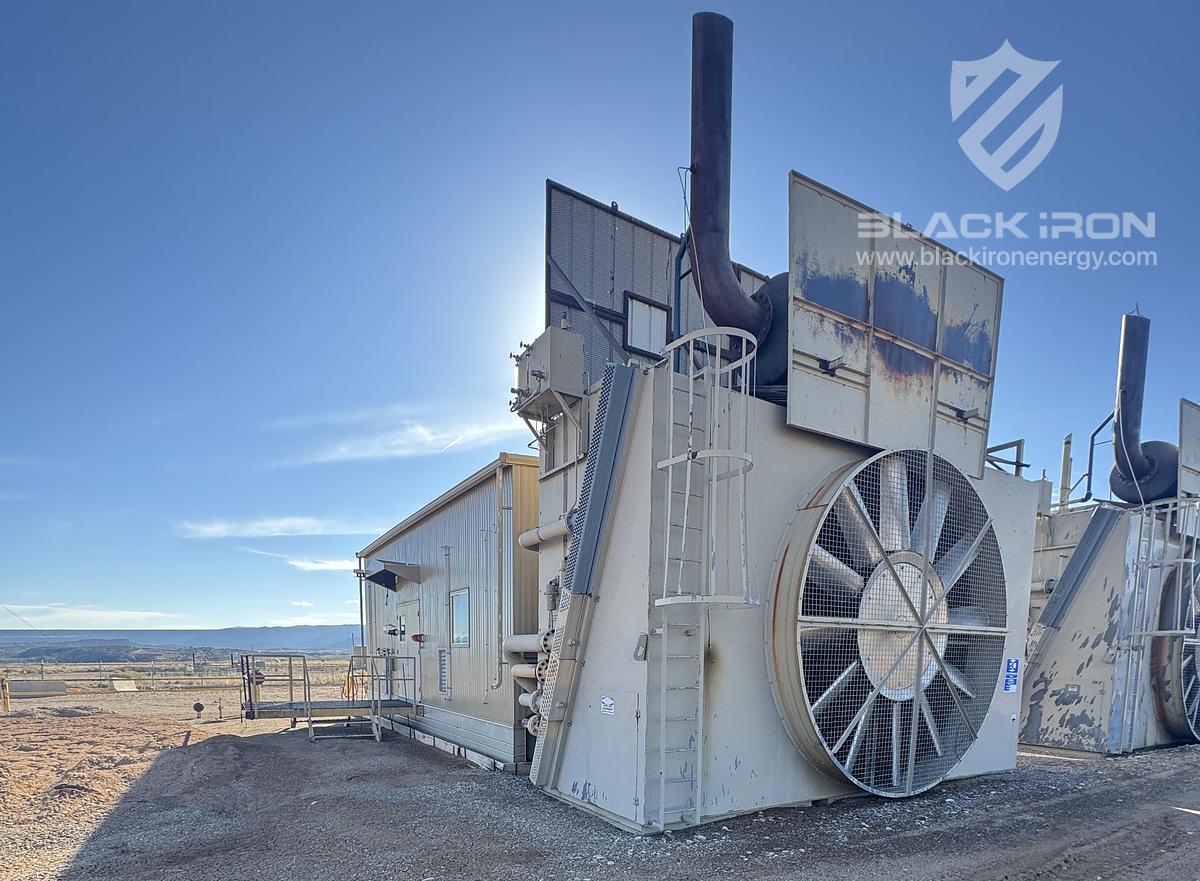

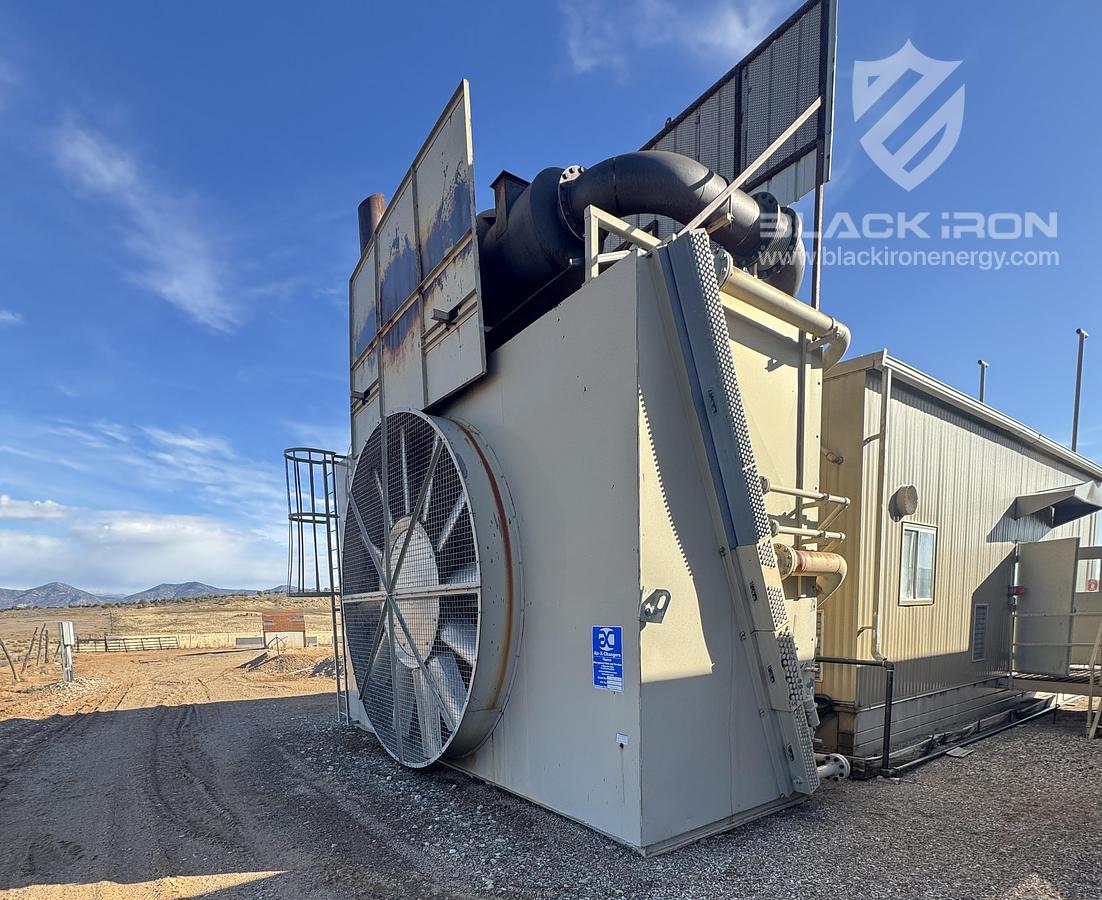

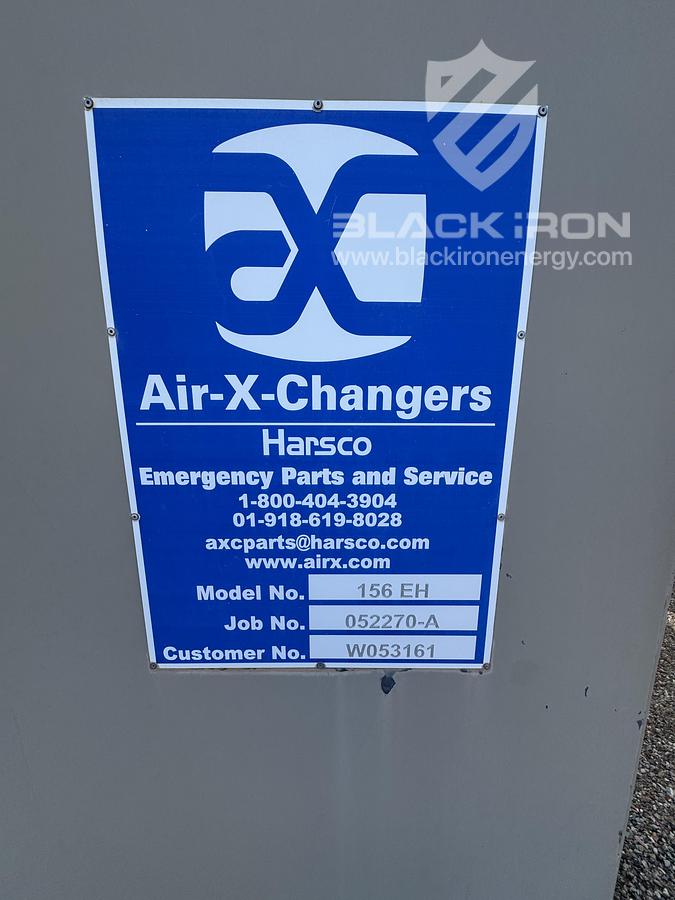

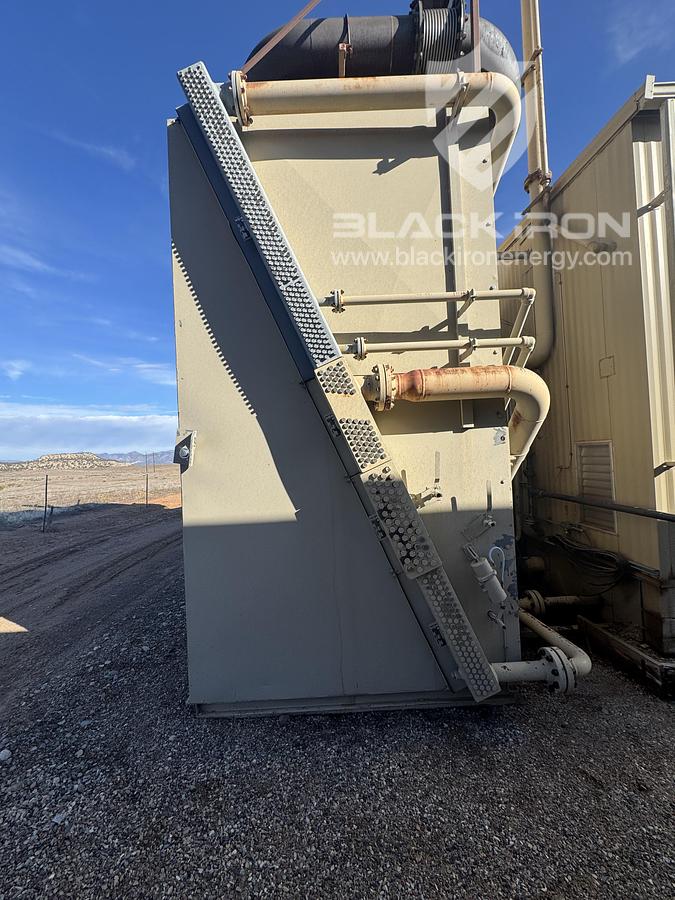

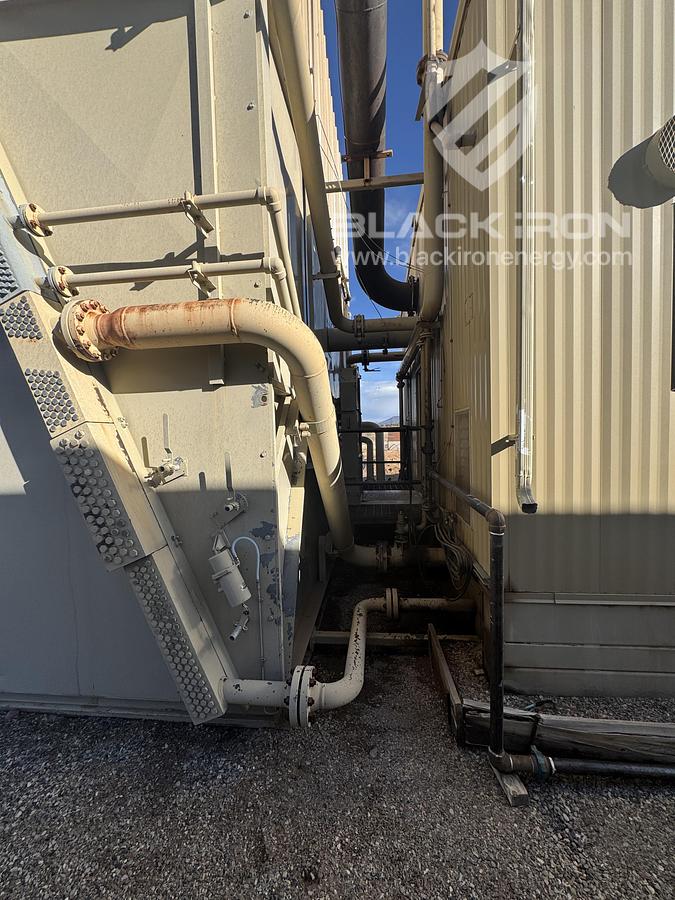

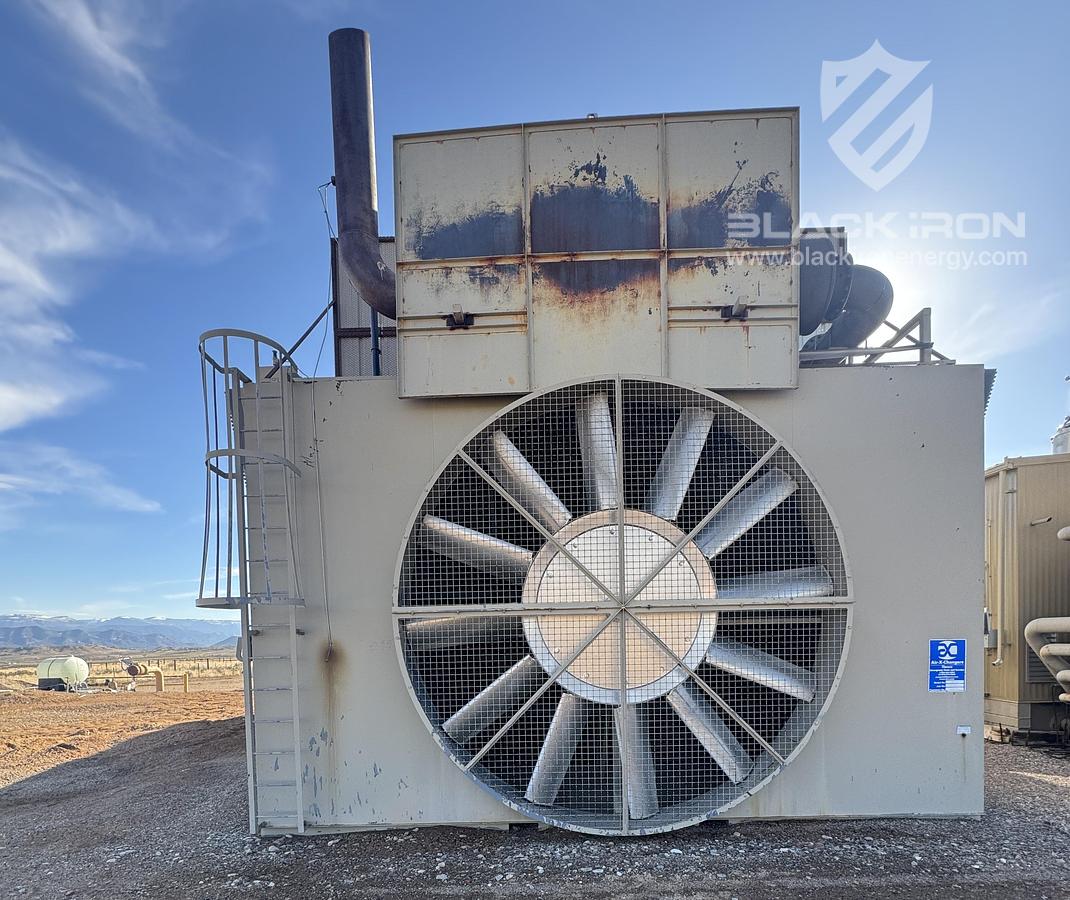

Air-X-Changer 156 EH jackshaft driven ship loose cooler, 100F ambient design at 6000 FASL, separate auto louver control, and AC section rated 1292 psig MAWP at 350F.

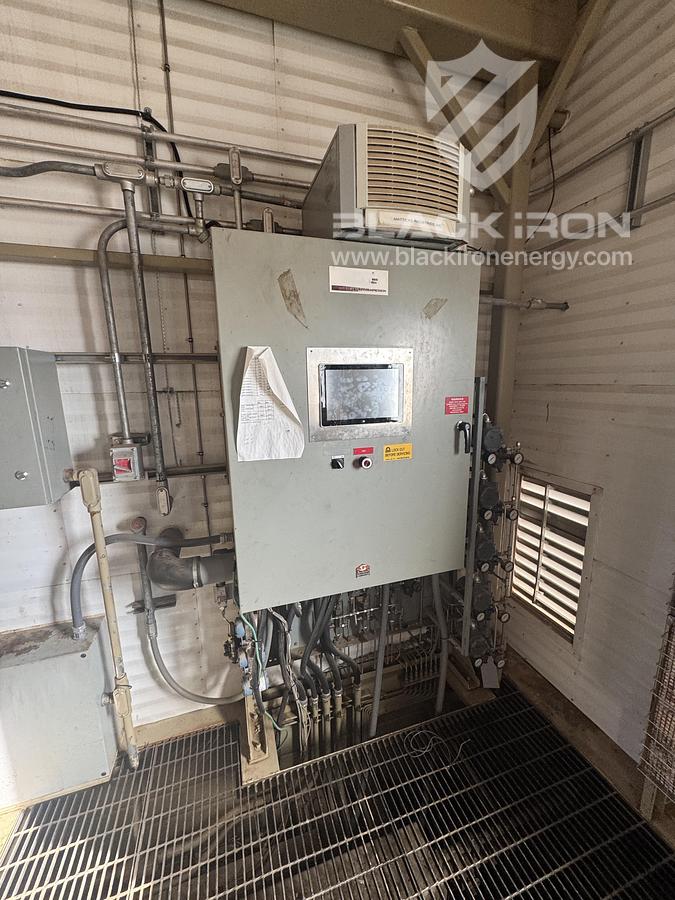

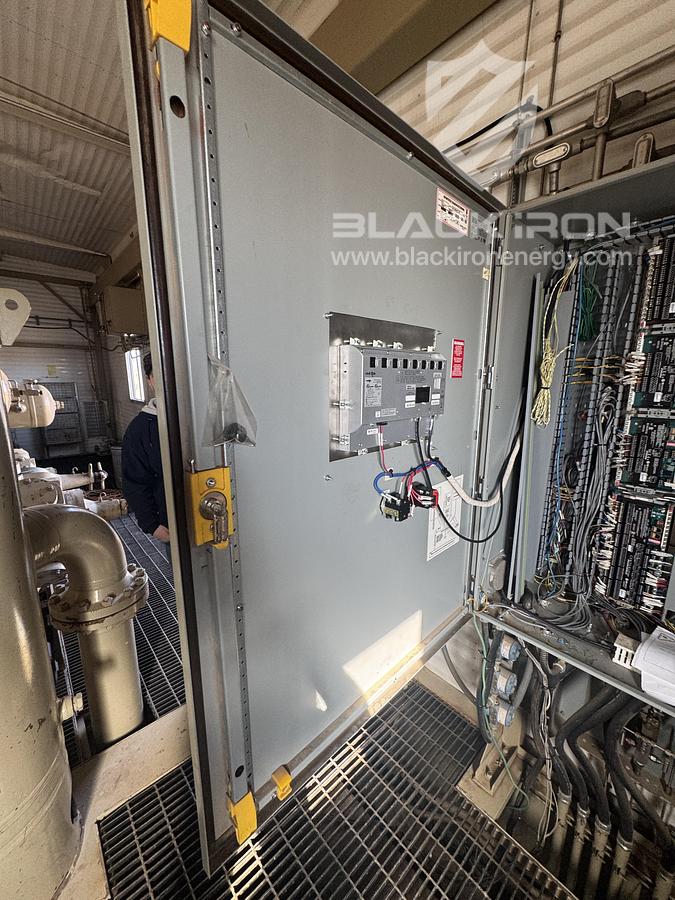

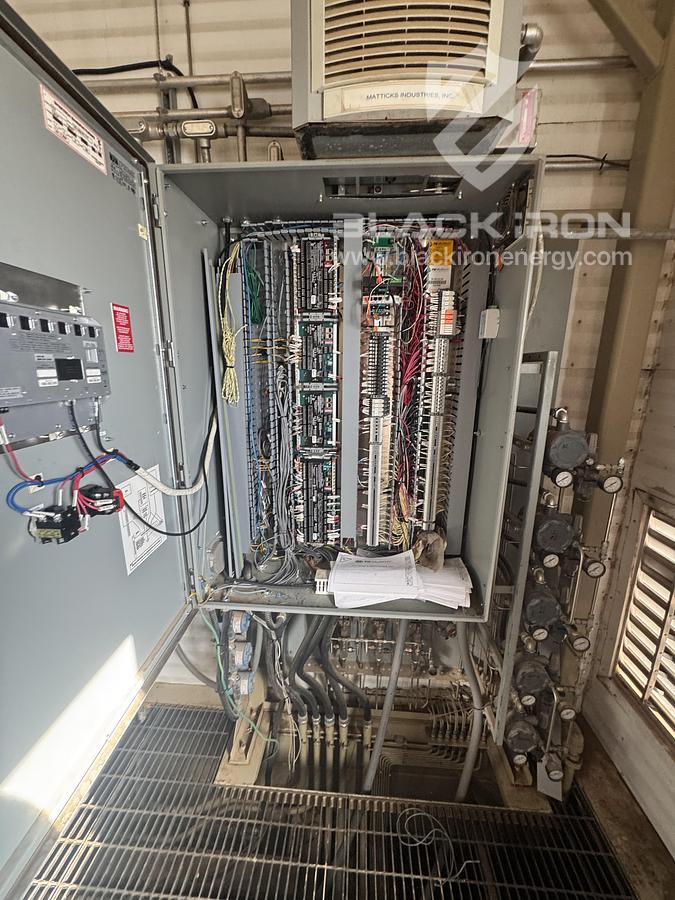

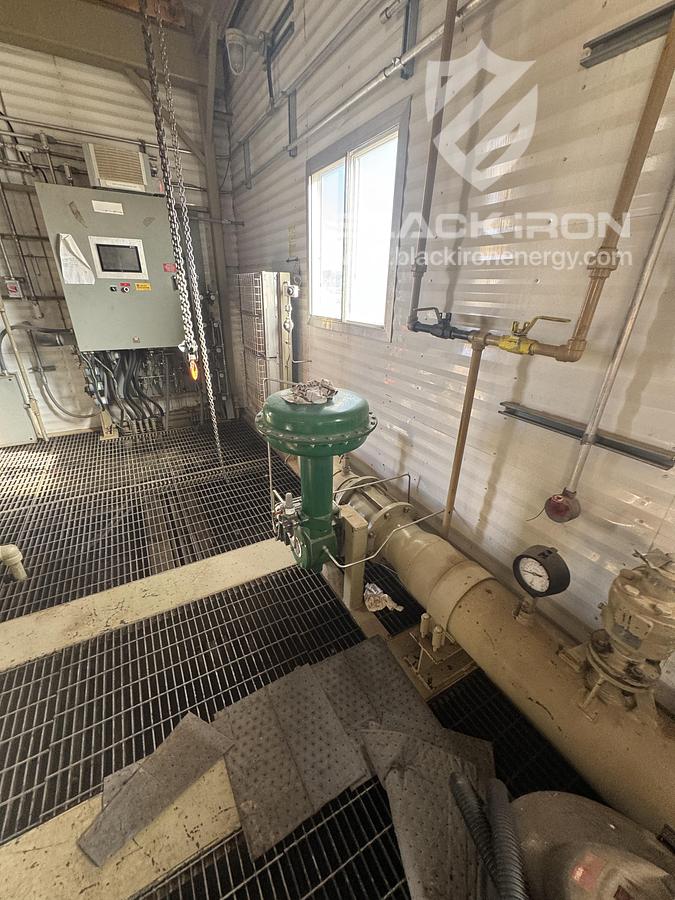

Allen-Bradley SLC 5/04 PLC control panel w/ PanelView 1000 HMI.

Sweet service.

Warm intake air diverter.

Cooler mounted exhaust silencer.

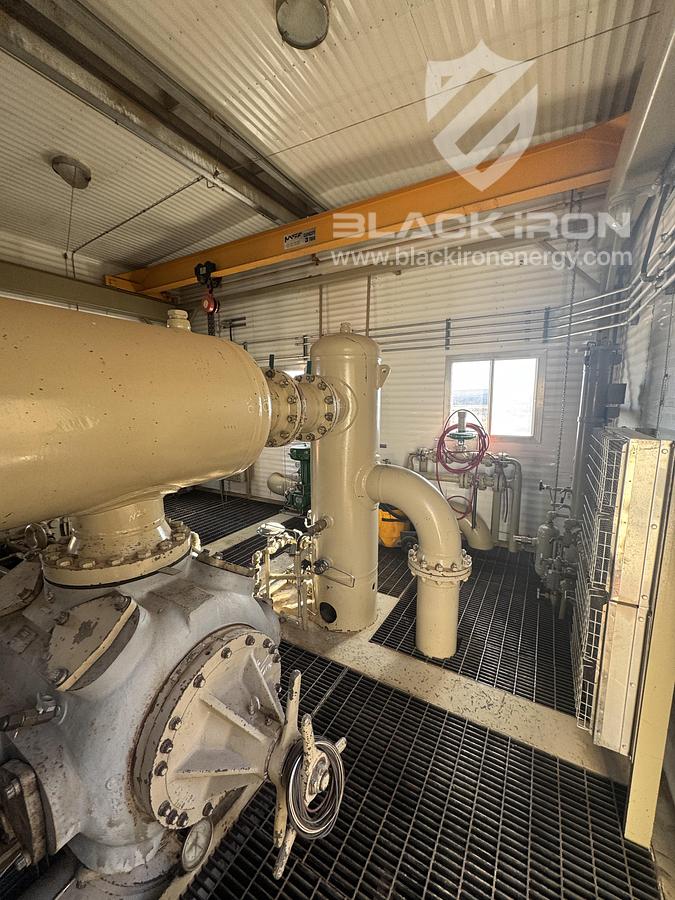

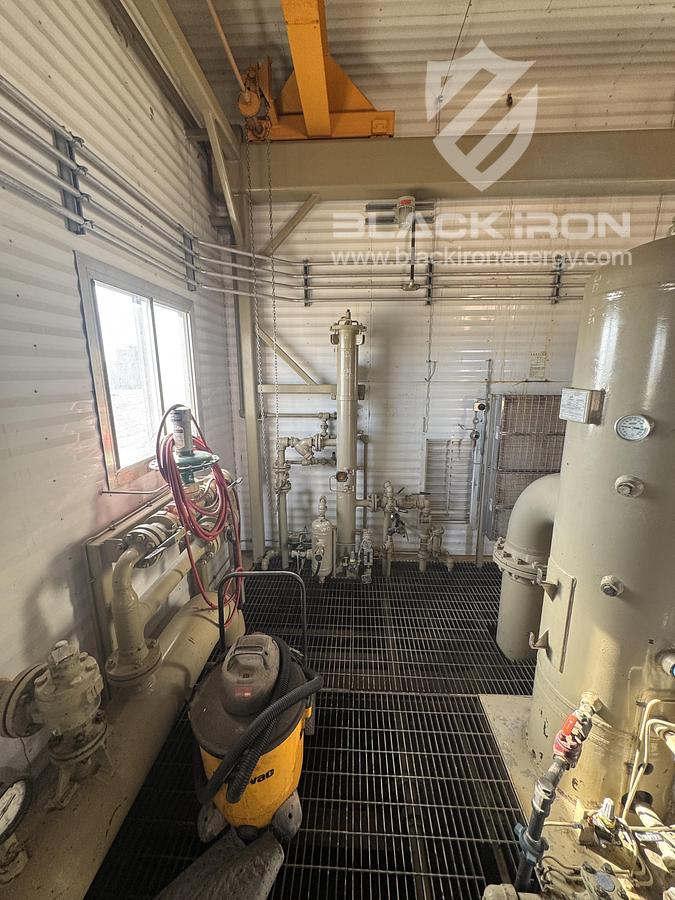

SPCV, auto bypass, auto blowdown, 3-ton bridge crane, Catadyne building heaters, building exhaust fans.

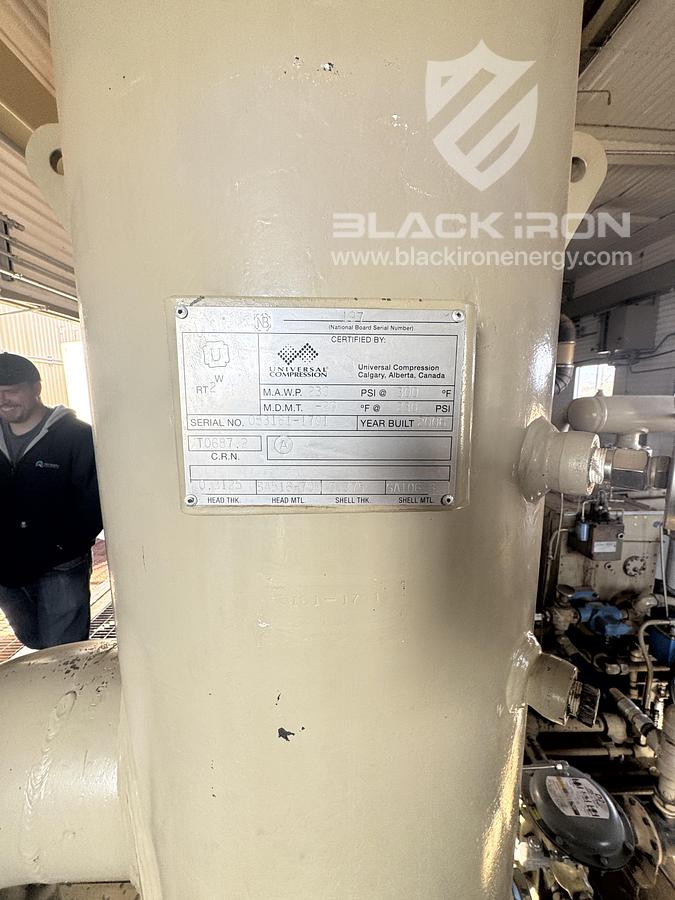

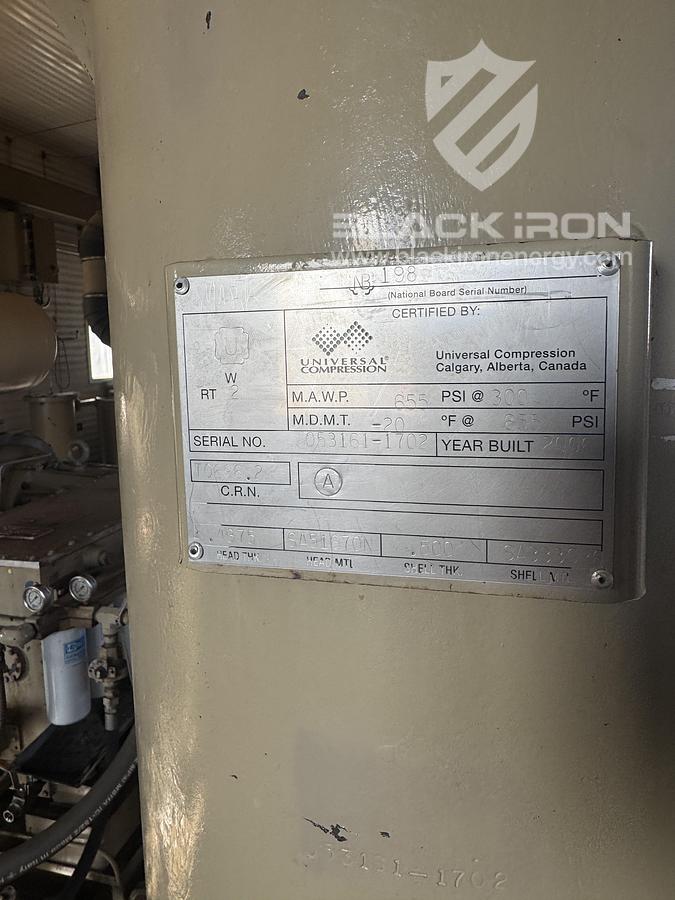

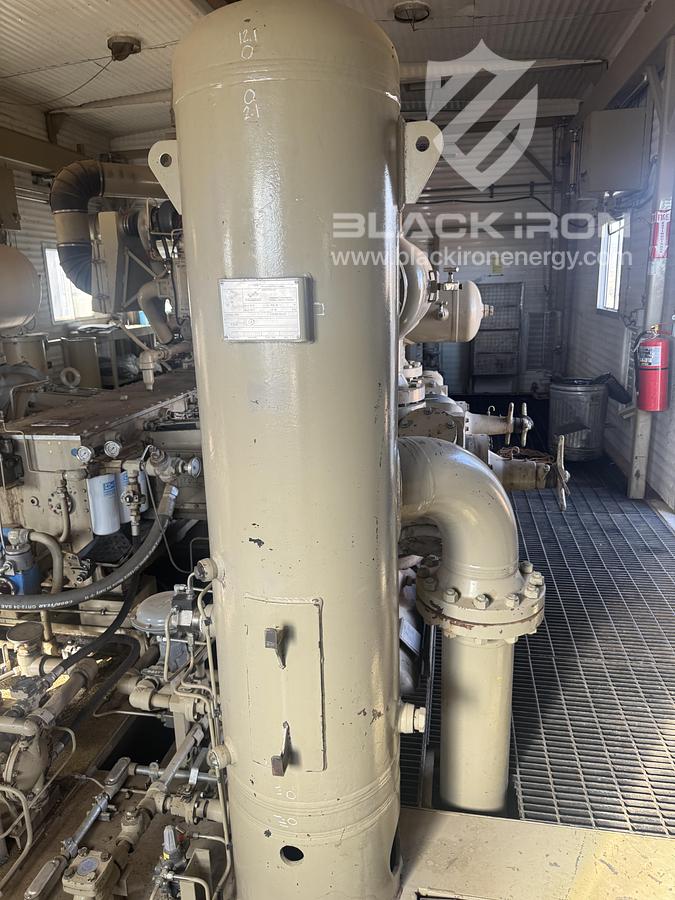

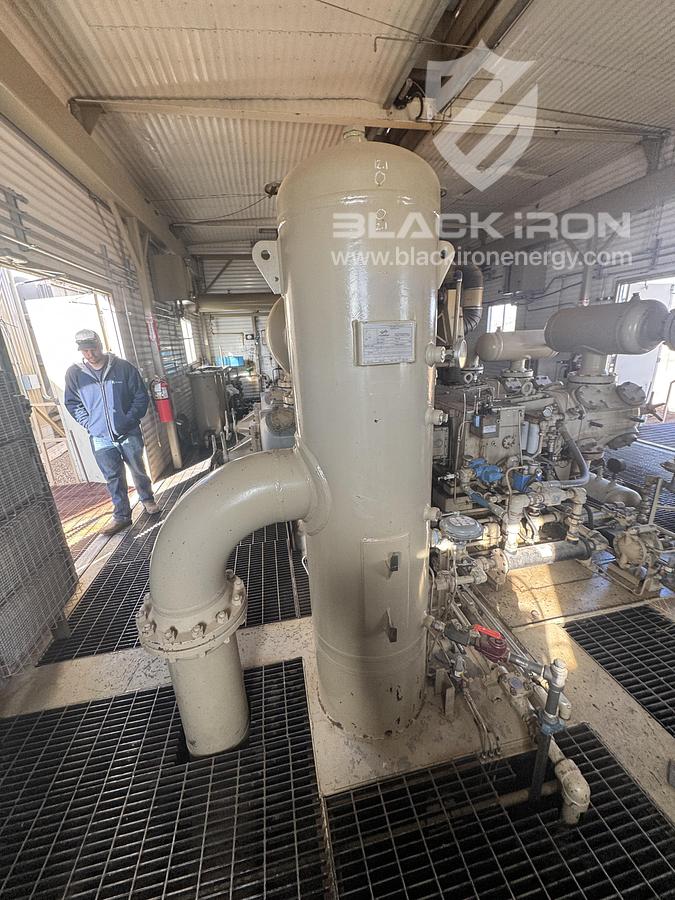

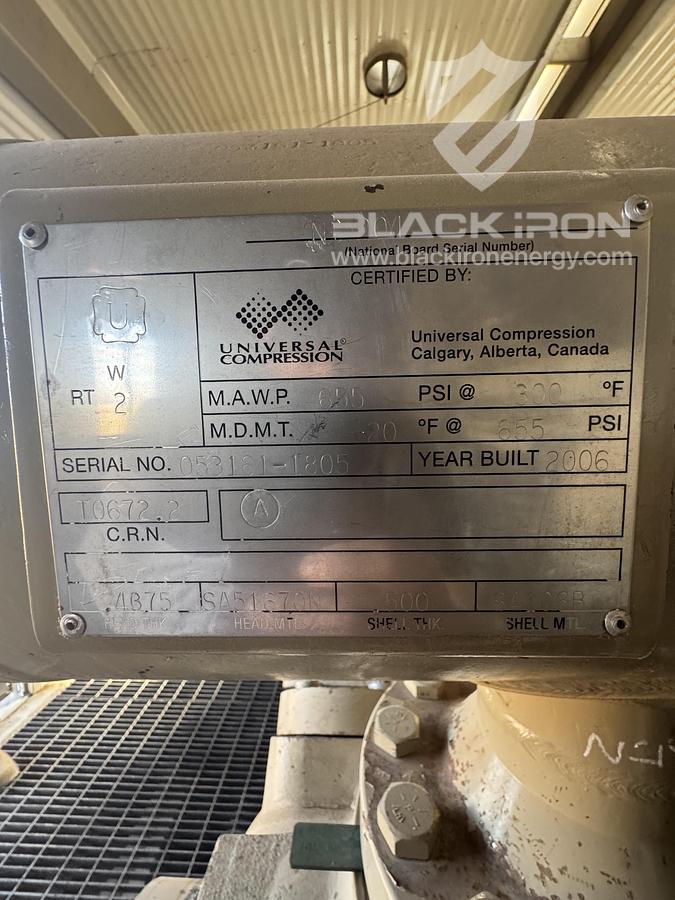

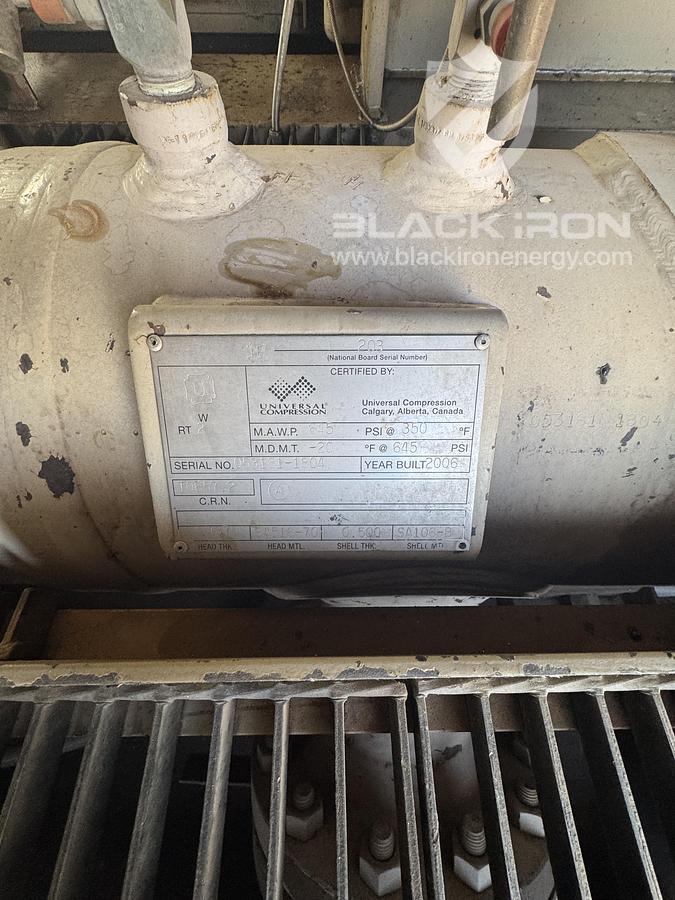

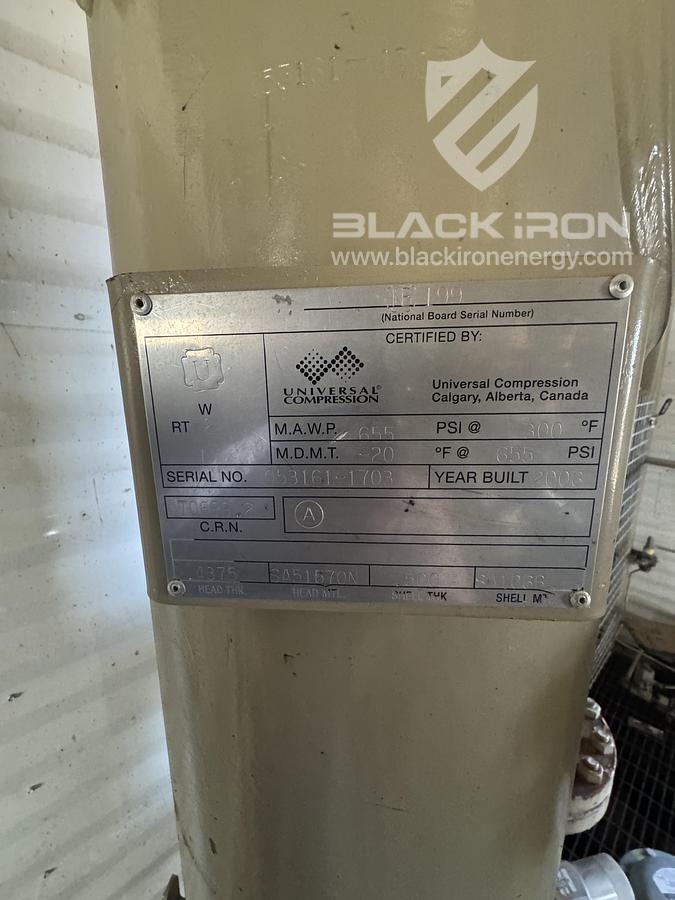

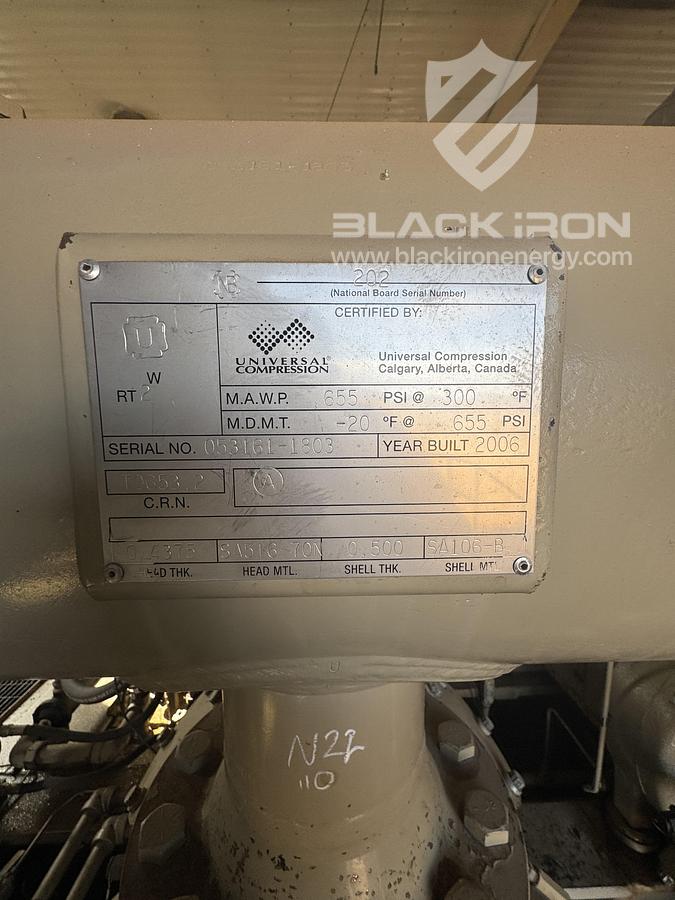

Vessels c/w Alberta CRN.

Originally packaged by Universal Compression in 2005.

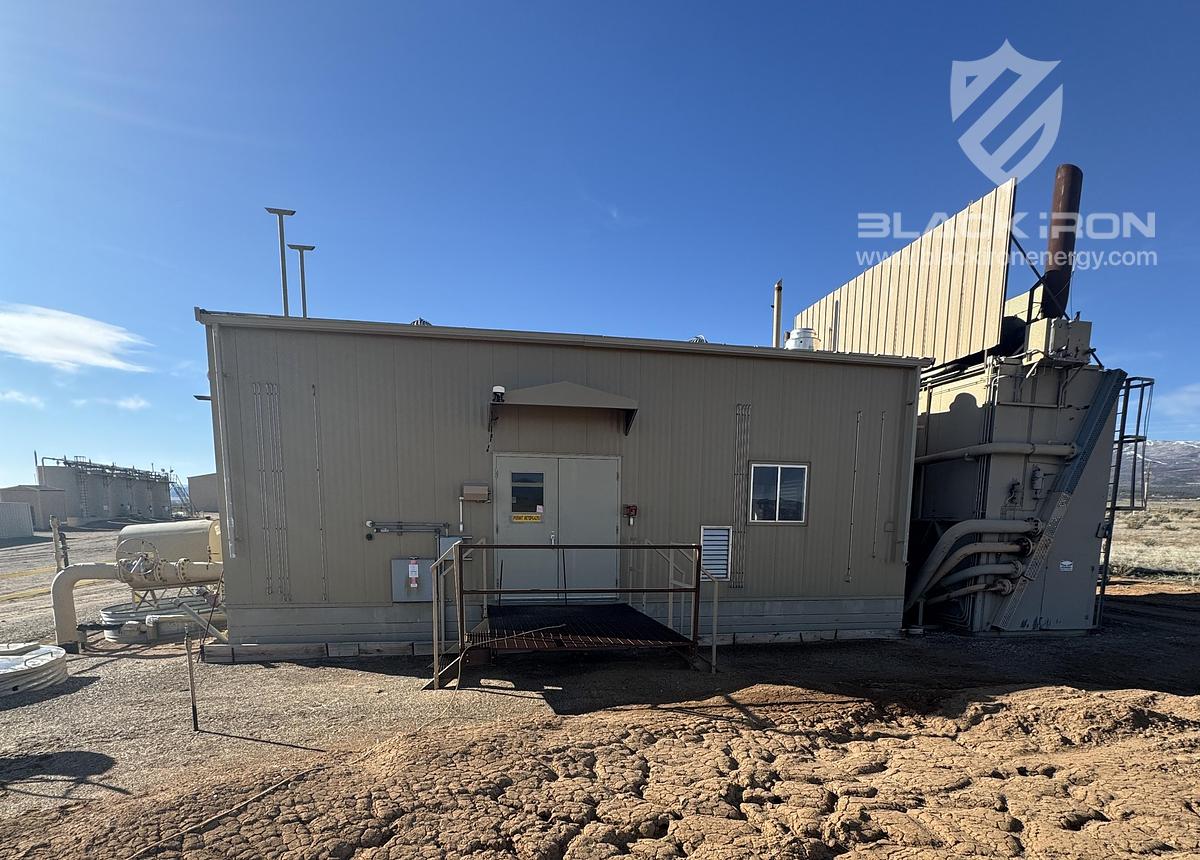

Overall Dimensions: 51'-4" L x 34'-10" W x 27'-7" H.

Shipping Dimensions: 40'-10" L x 23' W x 16'-5" H.

Shipping Weight: 138,000 lbs.

Total Weight of all Equipment: 167,200 lbs.

See attached drawings.

See attached service interval history for all (5) units.
